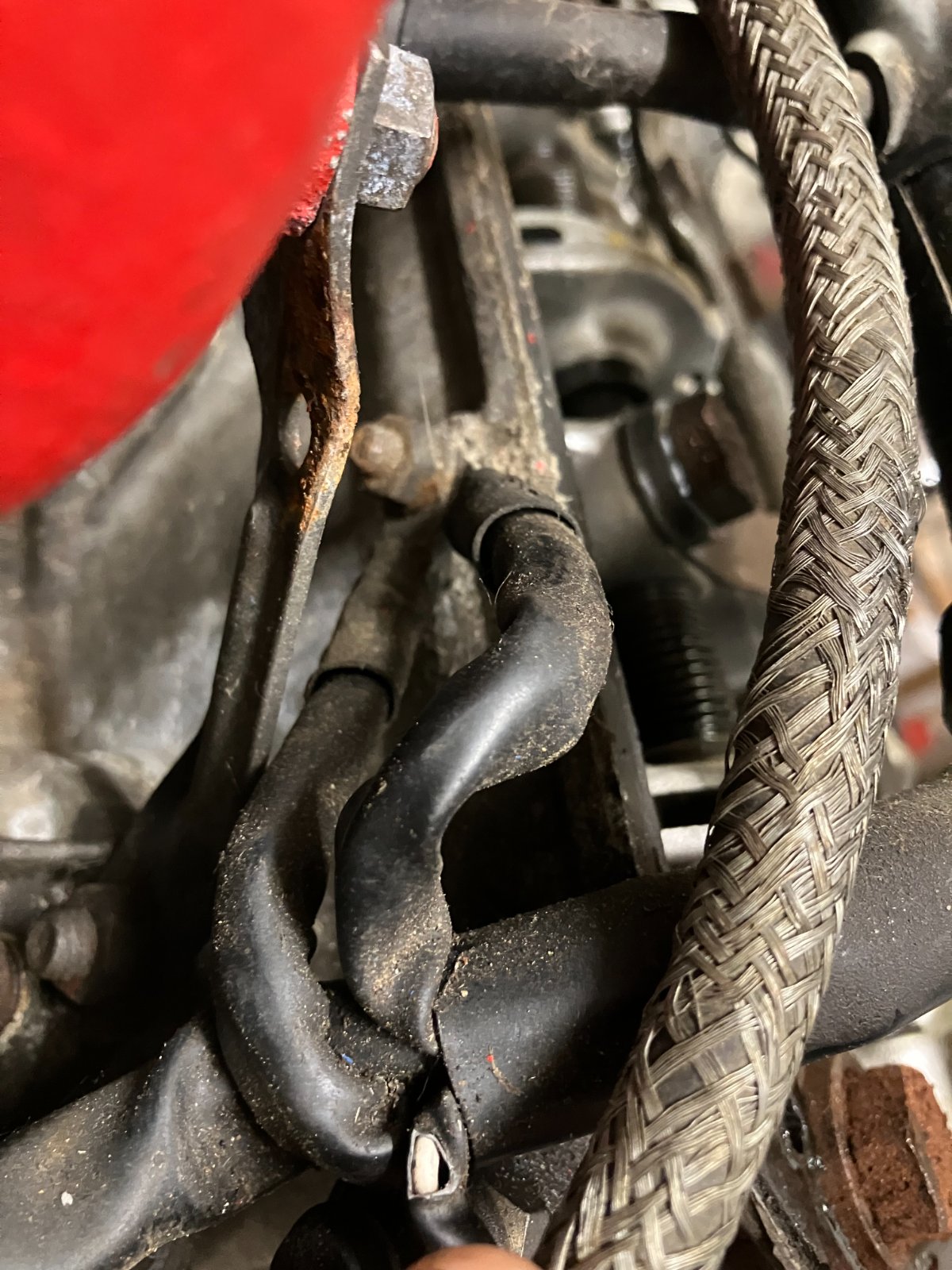

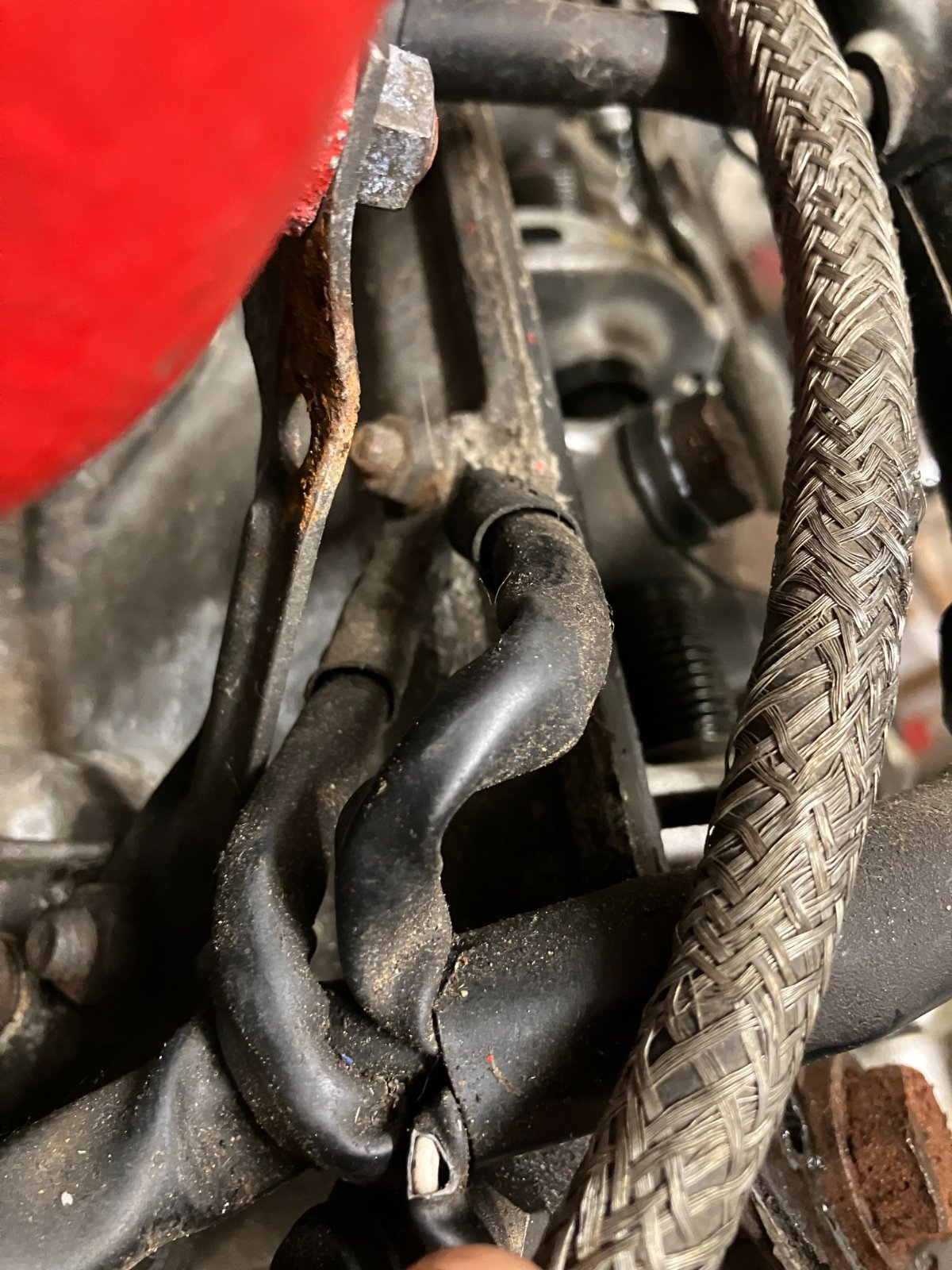

wiring tube - electronic fuel injection wiring harness.

And to answer your question on the ground. The wires are connected to a specific thread on the head (not on the valve cover itself, but just underneath).

At least, this is how they were installed on my engine.




  • Like
Reactions: LEO
LEO said:
Hi everyone and dear @sfdon :),

If you get the chance to take that picture, I’d be eternally grateful — it would really help a lot.

I also have a question regarding the ground wire for the injector harness. I’ve seen it connected to the last bolt on the valve cover. Is that the correct location? It seems to me that the wires have to be bent quite a bit to reach that point, which doesn’t feel ideal.

Thanks in advance for any guidance.
Click to expand...
I’m in Germany today luckily there’s a Csi in the garage. Let me see about a picture for you.


Attachments

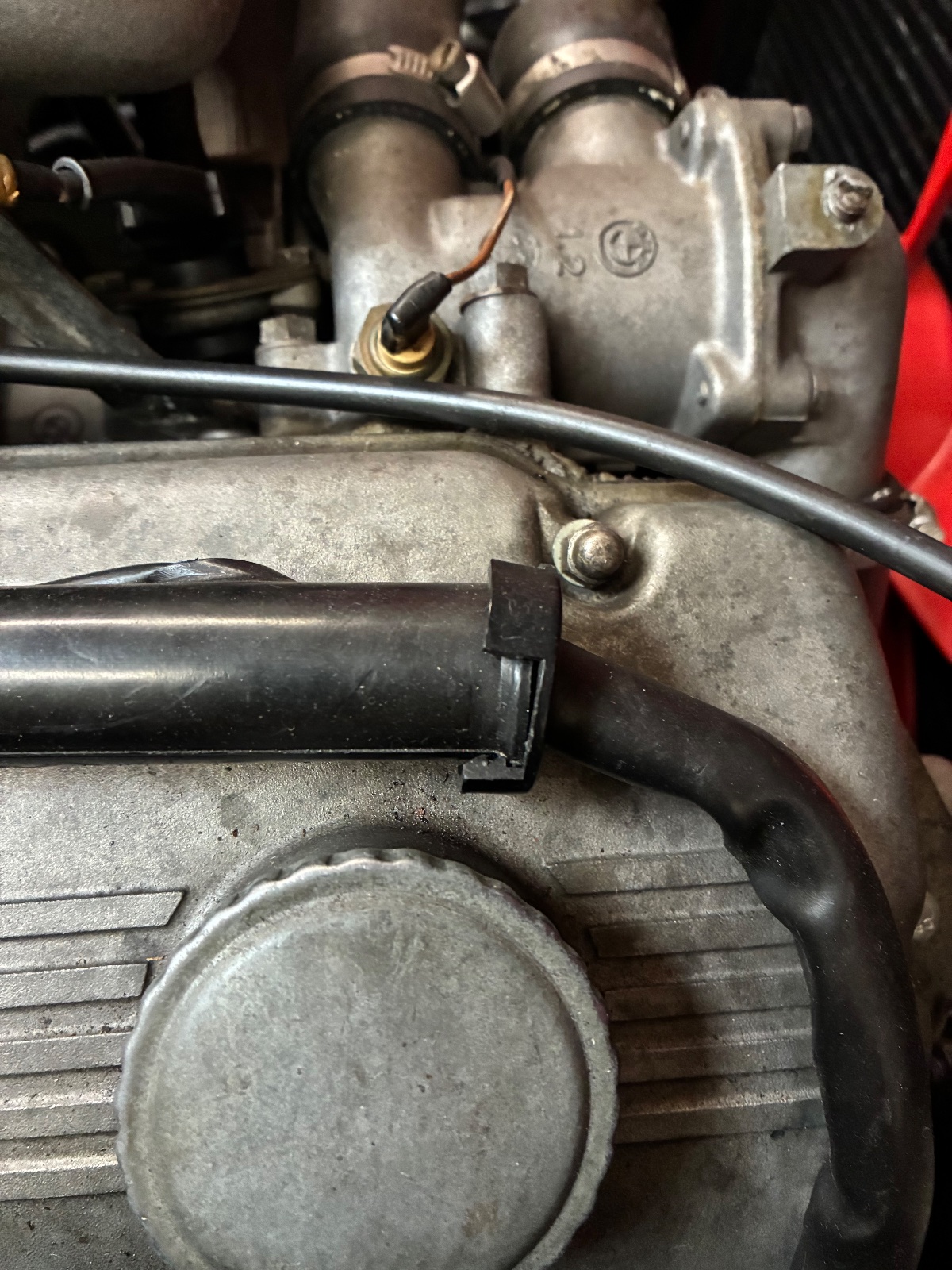

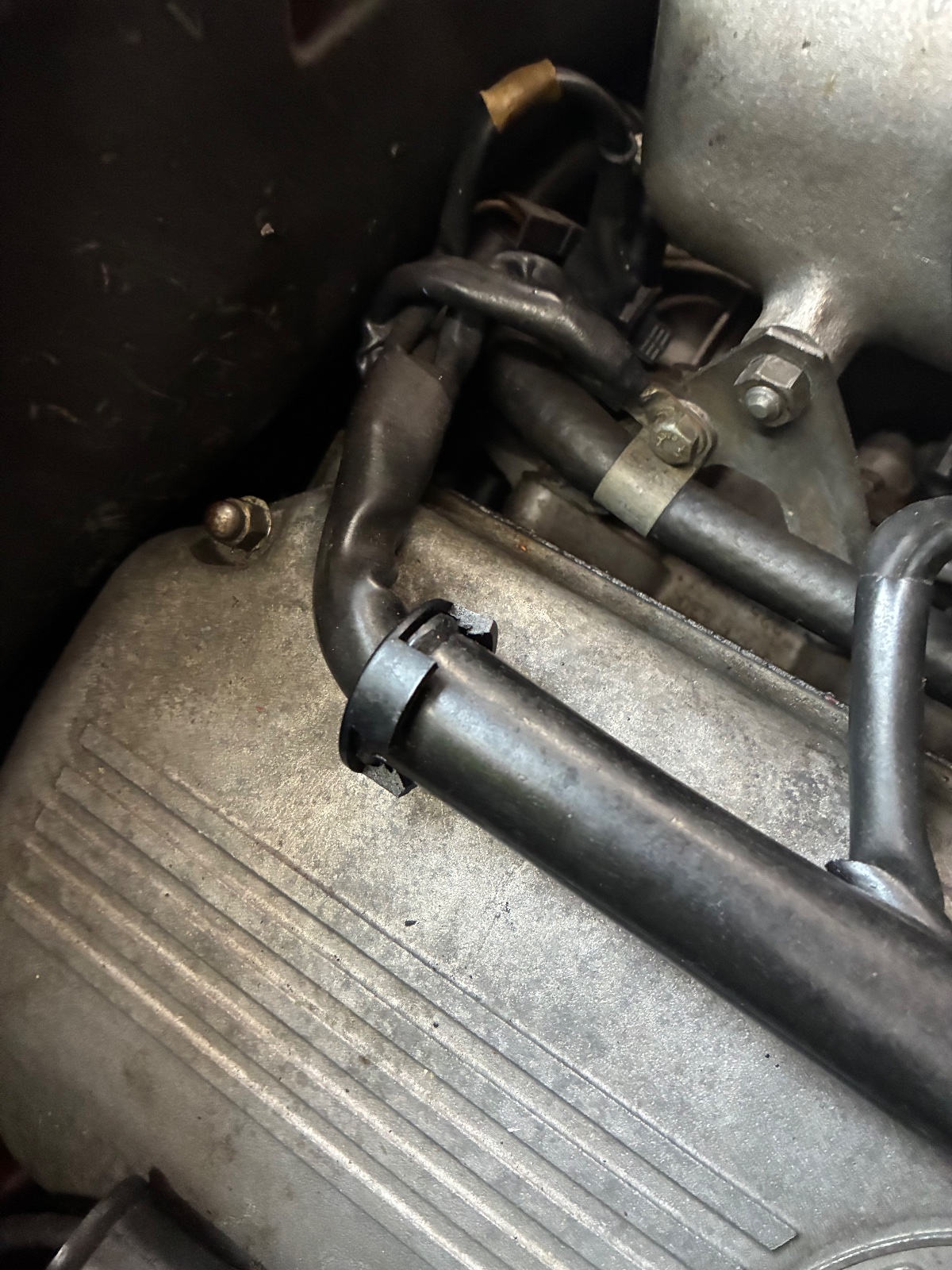

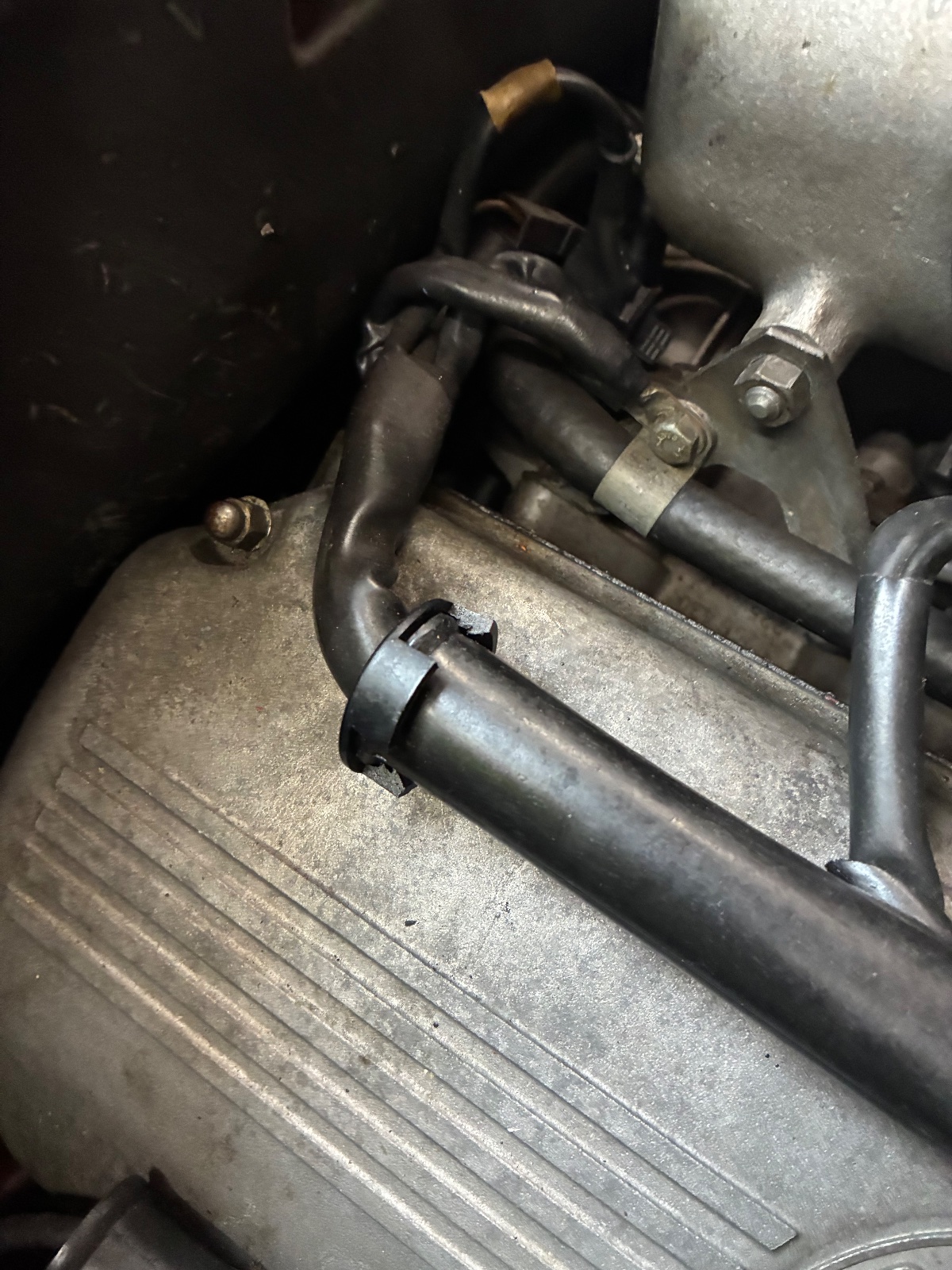

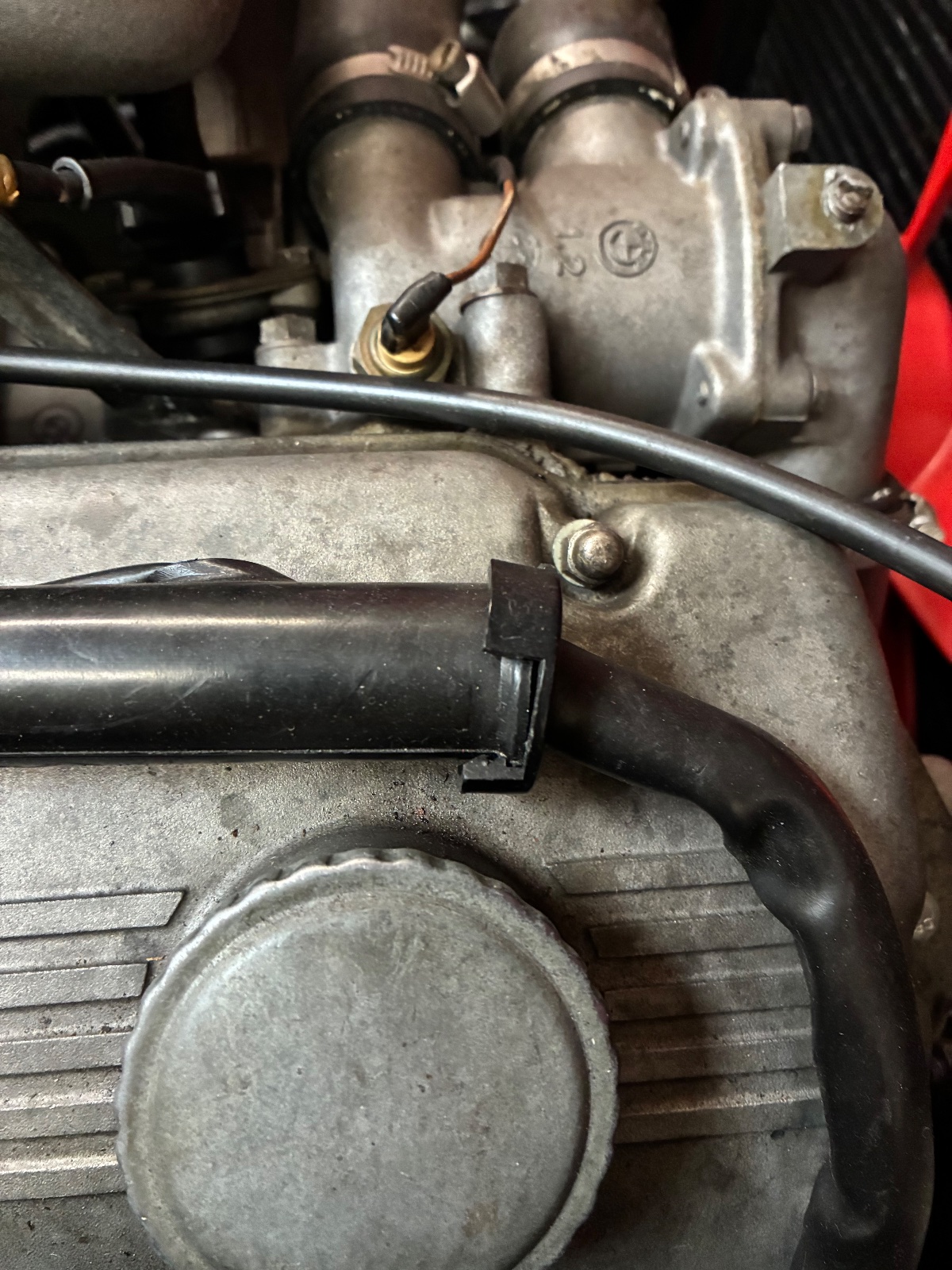

  • IMG_3610.jpeg
    641.5 KB · Views: 35
  • IMG_3609.jpeg
    649.6 KB · Views: 33
  • Like
Reactions: LEO
sfdon said:
I’m in Germany today luckily there’s a Csi in the garage. Let me see about a picture for you.
Click to expand...

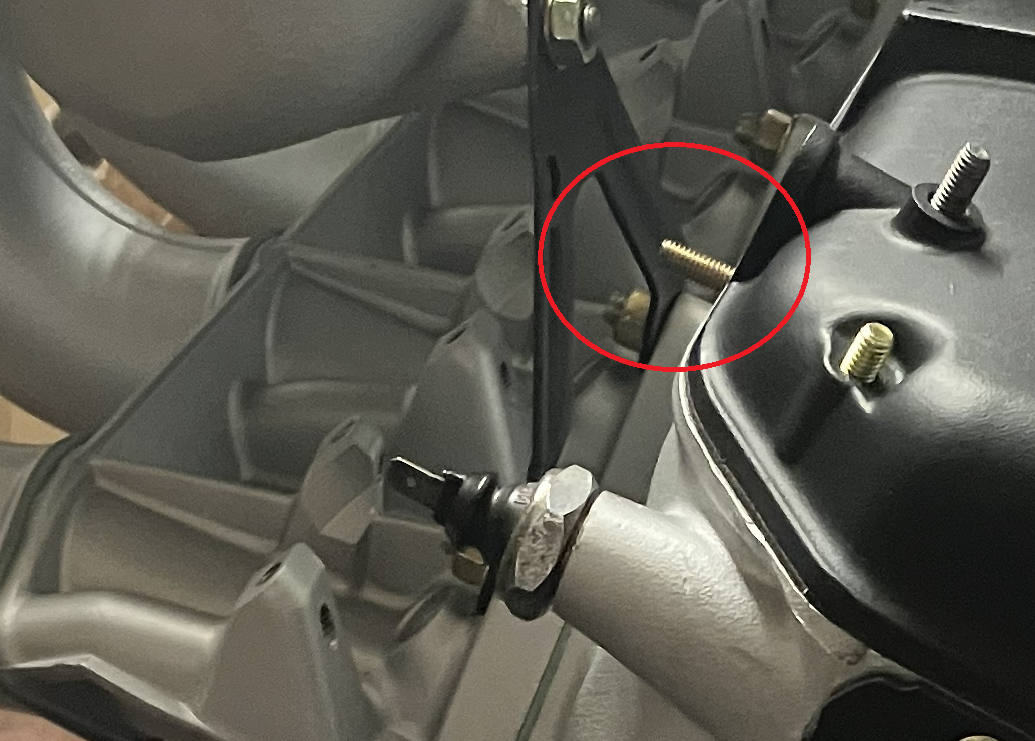

@sfdon this photo is incredible. Which hose is the one that goes inside the clamp? I need to look for that clamp now, but it will help to know which hose it is so I can find the right one. On the other bracket of the manifold there is the same hole, and there should also be a clamp holding the same hose there as well, right?

Thank you in advance for the pictures and the answers. Have a great day in Germany!
