Hey CTD,
I noticed the LCD on your dash. I was considering doing the same thing. Which car stereo is it? Is it the Pioneer modular series? Would you be willing to post me some pictures? Maybe others in the forum would be interested too. It fit's nicely in front of the speaker grill where you put it.
CTD
Well-Known Member
Hi there,

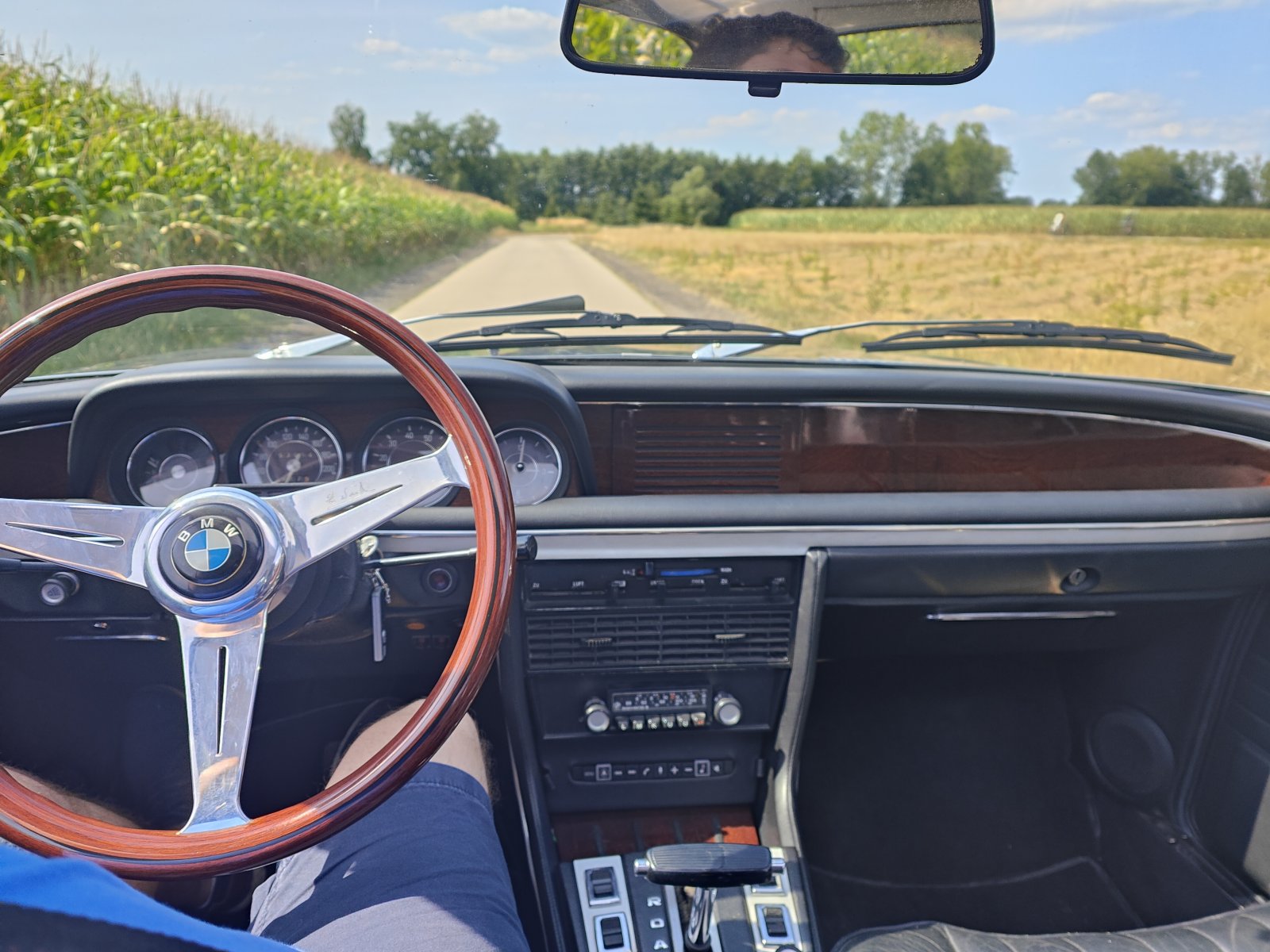

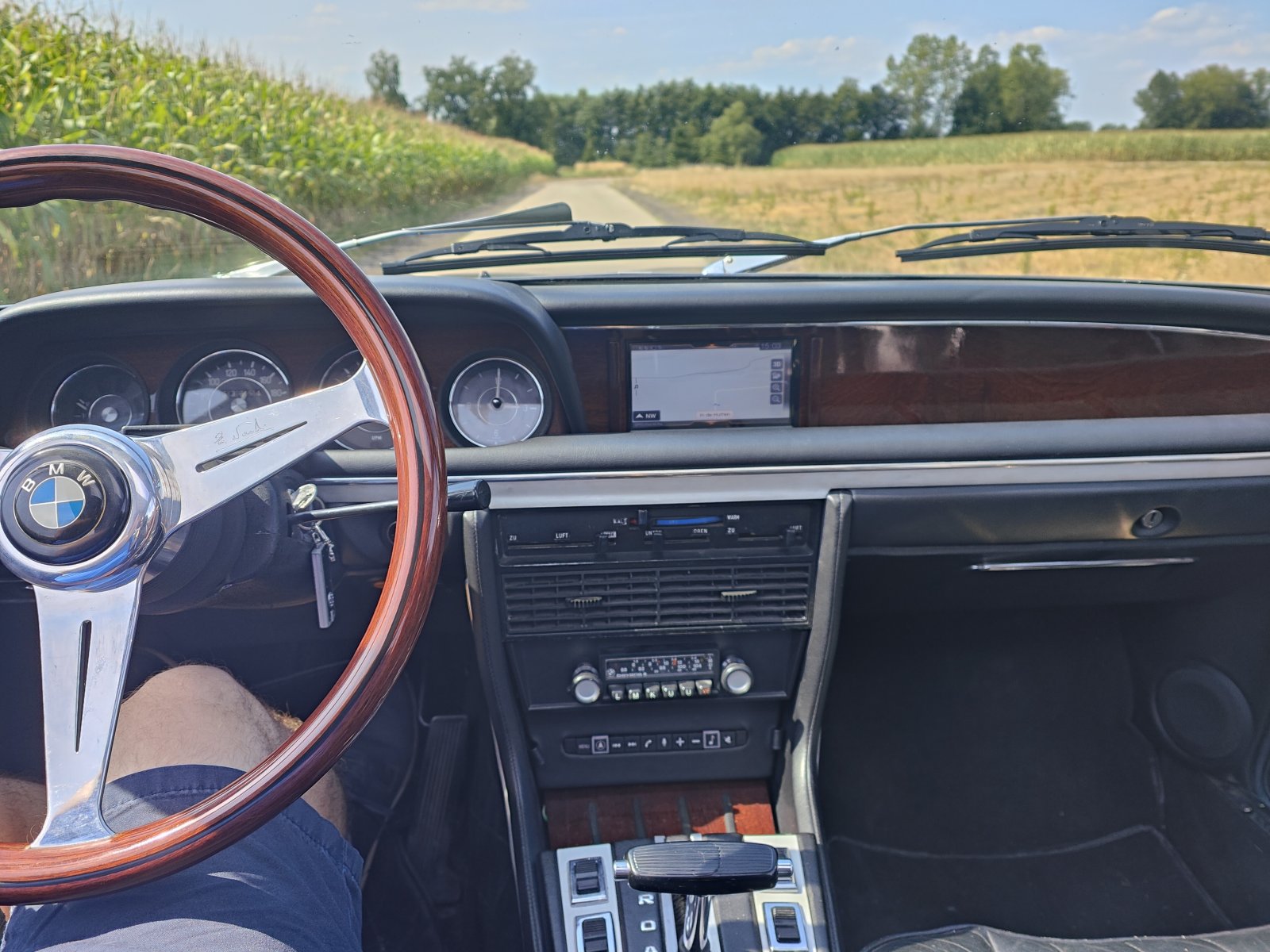

I used the Alpine freestyle unit. It has the LCD separate from the headunit and the controls also.
It fits perfectly under the grille.
I had my wood redone and descided to do this.

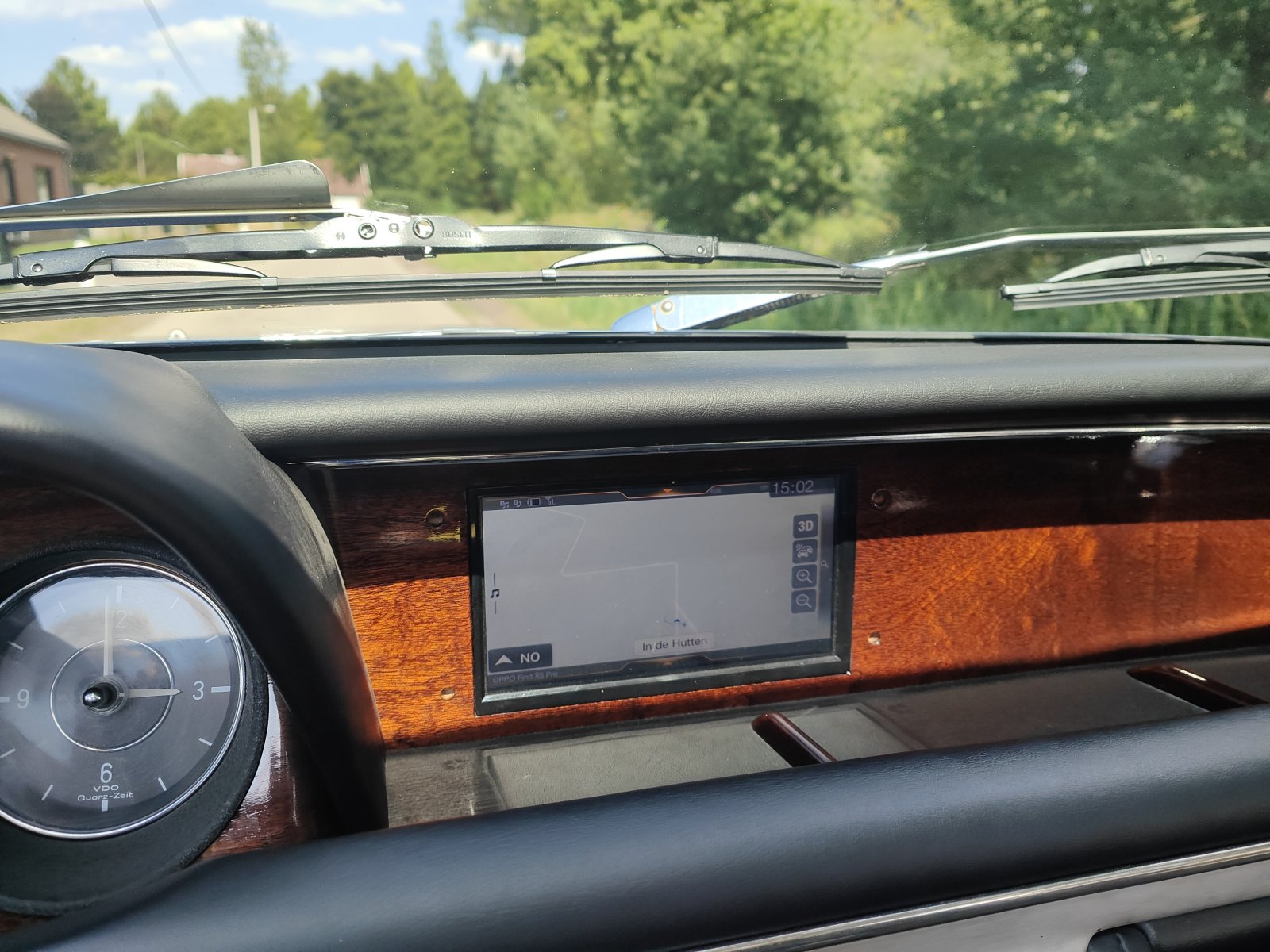

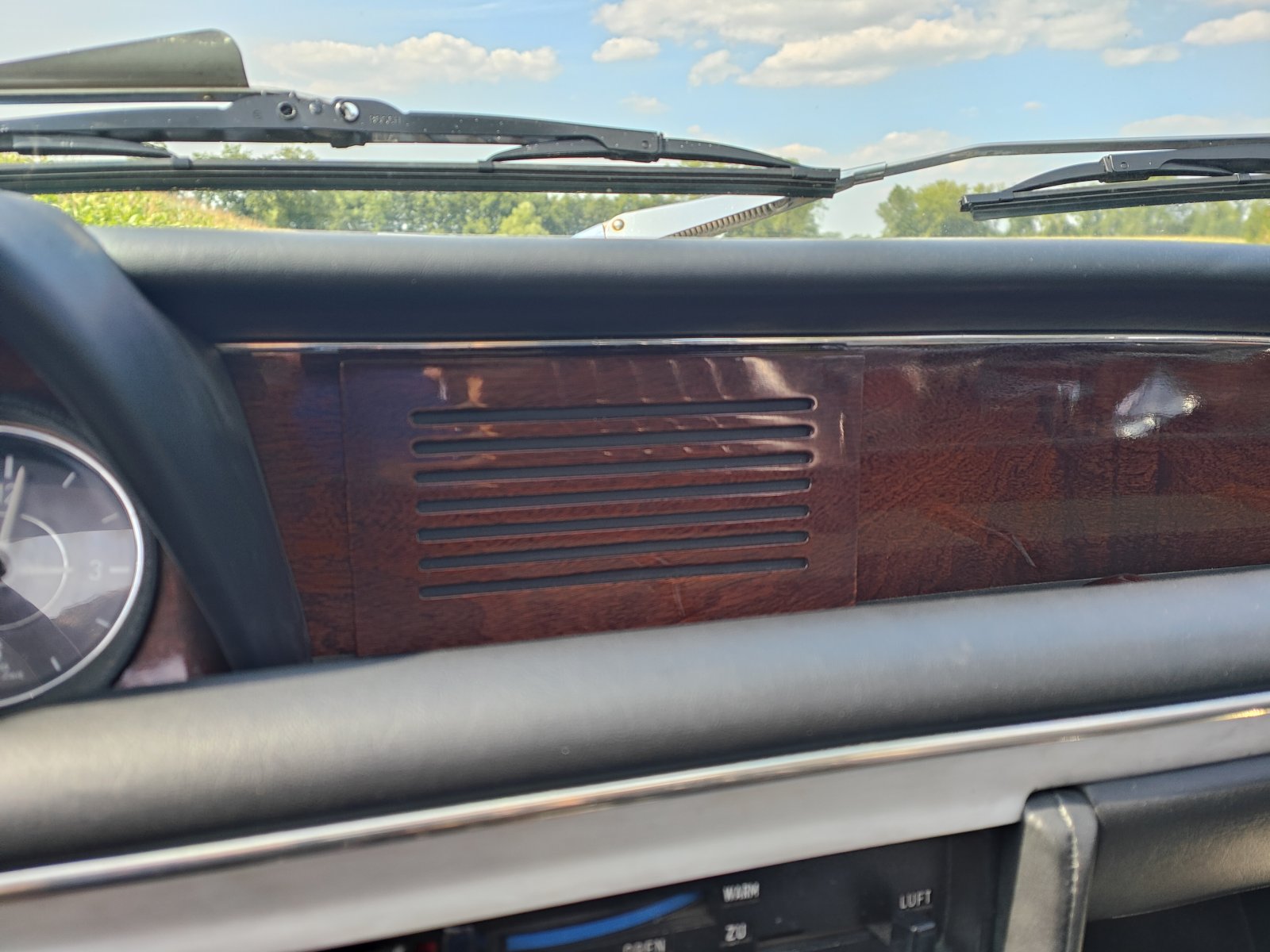

I can cover up the LCD with the speaker grille. The holes where the grille plugs into can be covered up with 2 wooden covers.

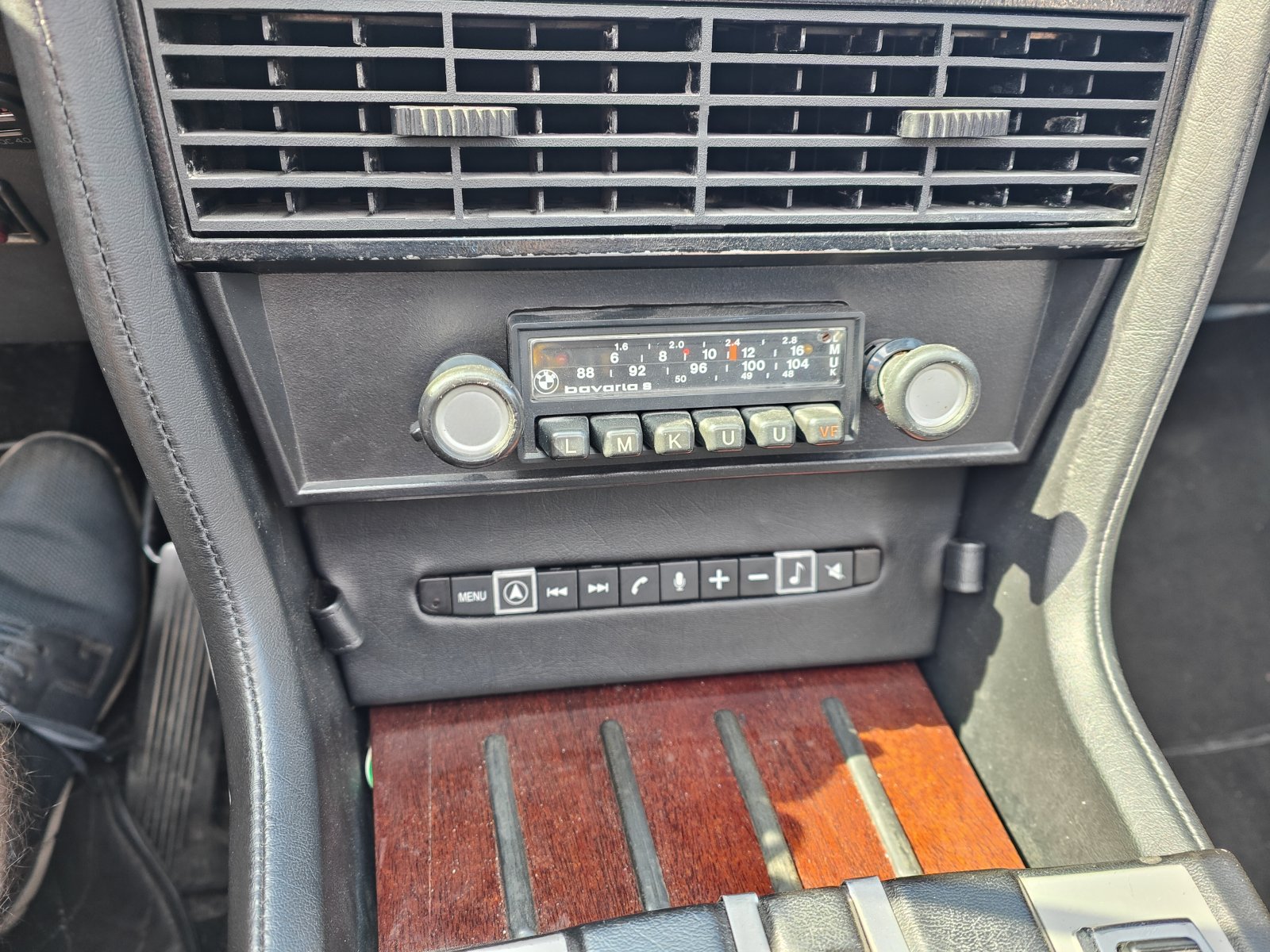

I placed the controles below the original radio which is only connected for the lighting.
I people here are interested in my setup, I might make a separate thread with the complete audio system (hideen speakers, sub, amps,...)
In these pictures not everything is cleaned up yet as I took them last summer.
Alpine has a 7 inch and a 9 inch screen model. Which model did you use?
CTD
Well-Known Member
I used the 7" screen. 9" doesn't fit if you want the grill to be in the original size.
Too bad the Alpine X701D-F is not available in the USA
UPDATE: looks like they don't sell the 9" anymore.
www.alpine.co.uk
The 9" is 5 3/8" tall.
Not worried about the speaker grille, would that still work on that wood dash?
UPDATE: looks like they don't sell the 9" anymore.

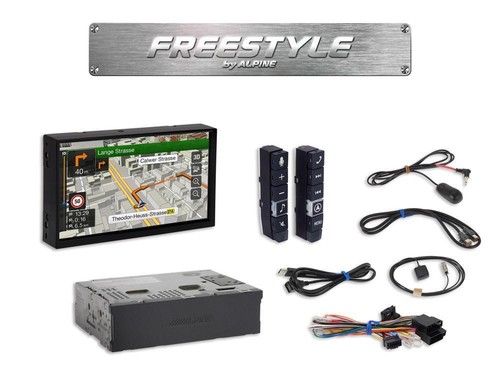

Alpine - Freestyle Head Units
The 9" is 5 3/8" tall.
Not worried about the speaker grille, would that still work on that wood dash?
Last edited:
CTD
Well-Known Member
No, that won't work. Because the 9" is so tall you don't have enough depth behind the wood to build it in.Too bad the Alpine X701D-F is not available in the USA
UPDATE: looks like they don't sell the 9" anymore.
Alpine - Freestyle Head Units
The 9" is 5 3/8" tall.
Not worried about the speaker grille, would that still work on that wood dash?
Newer 7" available:
Lot of money tho
Alpine X703D-F - 2DIN Navigation 4958043622559 | eBay
Find many great new & used options and get the best deals for Alpine X703D-F - 2DIN Navigation at the best online prices at eBay! Free shipping for many products!
www.ebay.com
Lot of money tho
Has anyone tried to install the Alpine iLX-W650. It’s a 7 inch audio /video receiver . It may be able to be installed in the center speaker . I just not sure if that center speaker area is deep enough. Does anyone have the depth measurement behind the center speaker?
The dimensions of this Alpine unit are width : 7 inches (178mm) , height : 4 inches (100mm) depth : 2 6/16th (60mm) .
I am going to remove my speaker and measure but I am not keen on cutting any larger than the speaker box cover. Just wondering if this center speaker depth information available.
The dimensions of this Alpine unit are width : 7 inches (178mm) , height : 4 inches (100mm) depth : 2 6/16th (60mm) .
I am going to remove my speaker and measure but I am not keen on cutting any larger than the speaker box cover. Just wondering if this center speaker depth information available.
I did try it. It doesn't fit. Unless you are OK with it sticking 1 or 2 cm out. There is simply not enough depth available as the ILX 650 is a complete unit, unlike the X703
Thank you, for the quick reply. Much appreciated. Looks like I will be returning that unit today and continue looking for a good clean Apple play solution with a 7 inch screen.
Last edited:

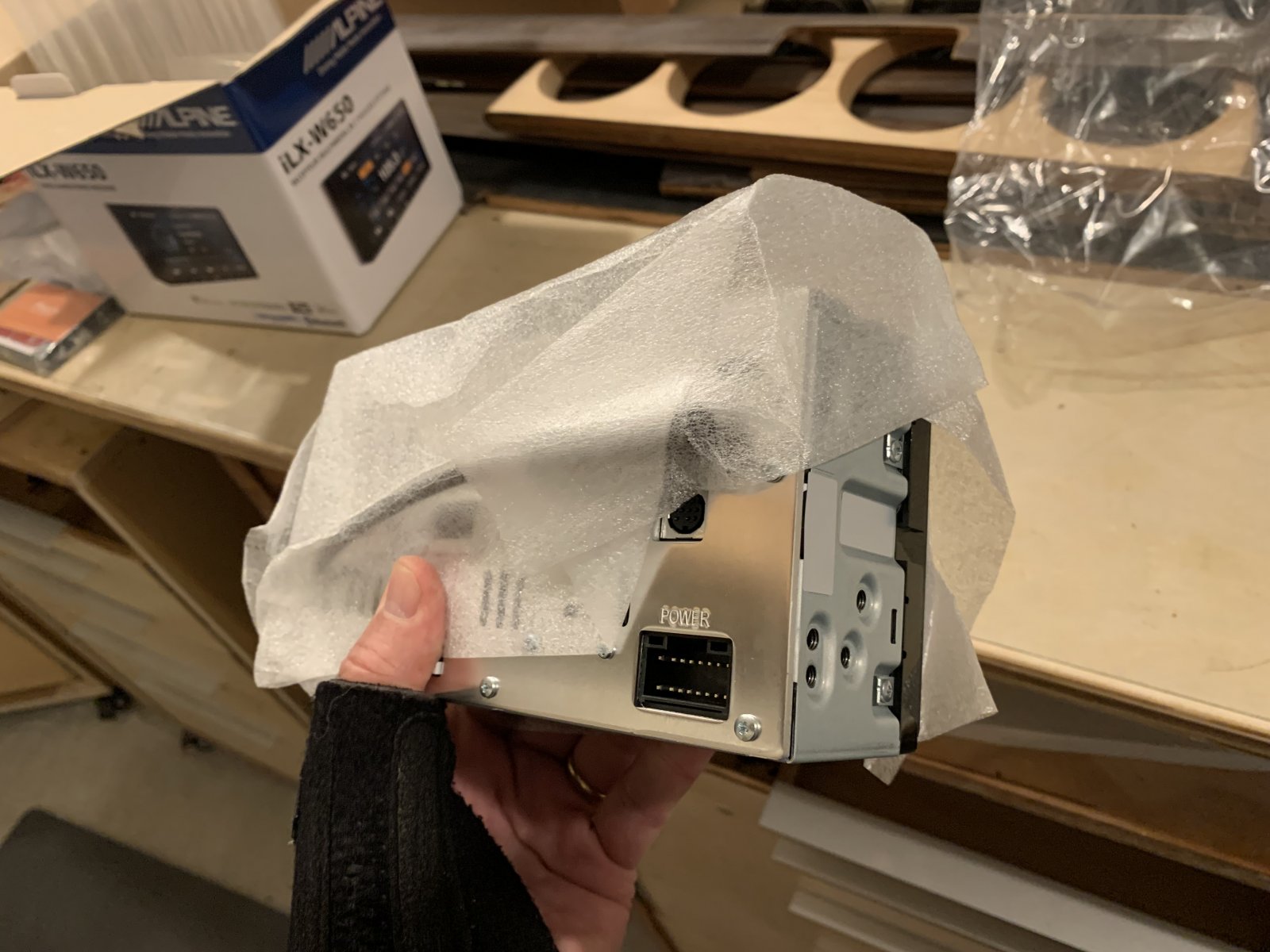

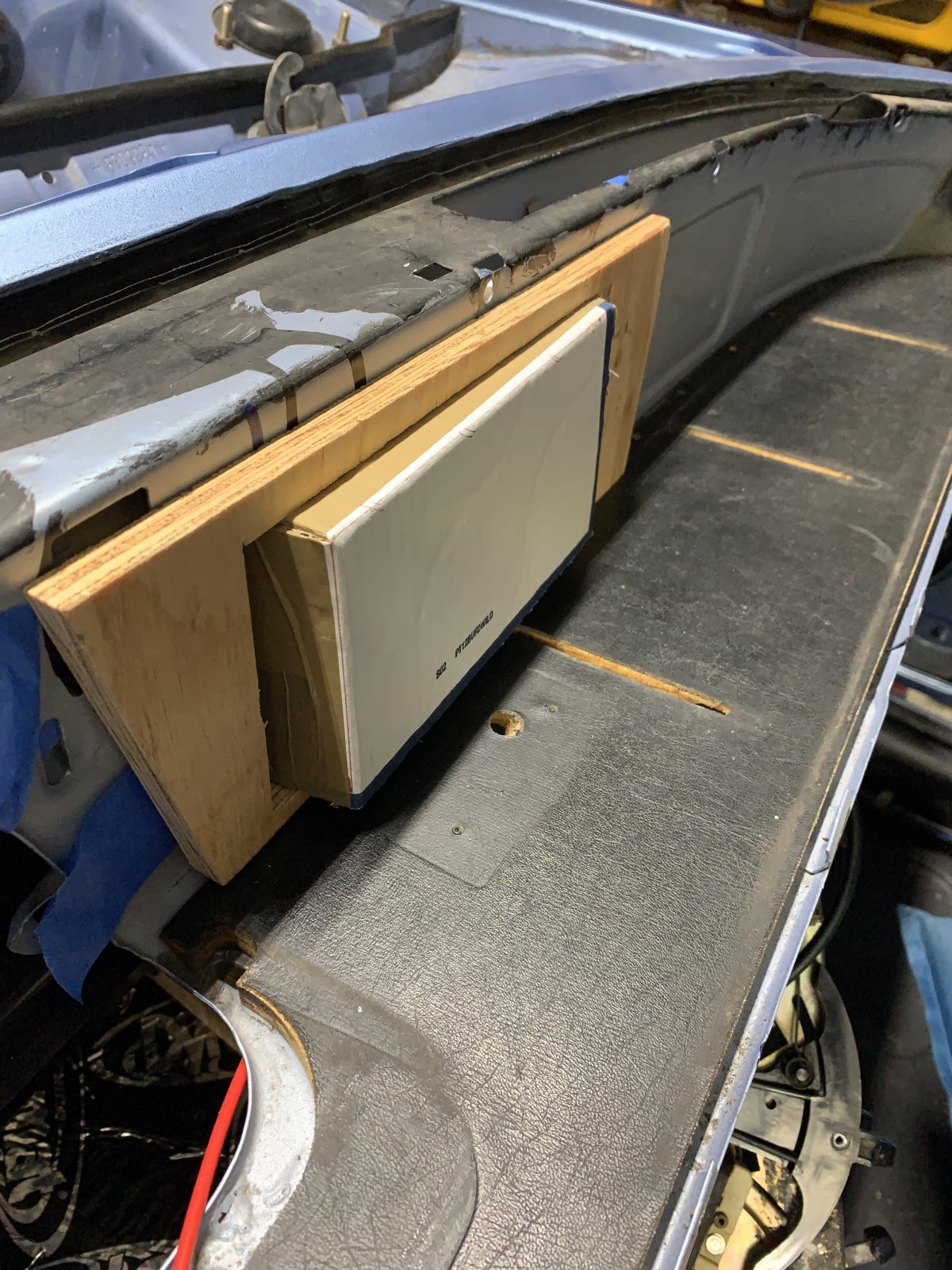

I bought the ILX650 and made a test box of the same dimensions. Here is how much it sticks out
And you have to add a bit more for the thickness of the connector
And you have to add a bit more for the thickness of the connector
So looks like if we can locate a slimmer model less than the 60 mm depth of this unit we might have a good option for a touch screen receiver.
I have a different take on a 'dash mount' screen.
I have my car currently at @sfdon (99% finished) with a full meal deal restoration - 5 years in the making. LOL Long story, but to the point at hand....
I removed the speaker grill entirely (new wood) to give my car a cleaner dash look. I do plan on being able to use a screen for nav or other purposes - but I will use something non-permanent on the dash. I have one of these already for my Garmin and think it will do the trick here as well. The four 'petals' making up the base can be folded up (so to speak) to allow the base to sit in the shelf area of the dash. I can then also remove it when I don't want to have it out. The bottom of the base is rubberish so it grabs the dash and also does not damage anything.
Now - this is my plan. I have not had a chance to try it in the car, but will do so shortly as the car will be coming home soon.
I have my car currently at @sfdon (99% finished) with a full meal deal restoration - 5 years in the making. LOL Long story, but to the point at hand....
I removed the speaker grill entirely (new wood) to give my car a cleaner dash look. I do plan on being able to use a screen for nav or other purposes - but I will use something non-permanent on the dash. I have one of these already for my Garmin and think it will do the trick here as well. The four 'petals' making up the base can be folded up (so to speak) to allow the base to sit in the shelf area of the dash. I can then also remove it when I don't want to have it out. The bottom of the base is rubberish so it grabs the dash and also does not damage anything.
Now - this is my plan. I have not had a chance to try it in the car, but will do so shortly as the car will be coming home soon.
In that same line of thought but more customized for the coupe...
Custom removable wireless iPhone holder and charger
We do a fair bit of driving in unfamiliar areas. In our other cars, we have a screen that hooks up to the iPhone and displays Apple CarPlay which allows use of interactive maps from either Google or Apple. Once you start using these, they quickly become indispensable navigation tools. And I...
e9coupe.com

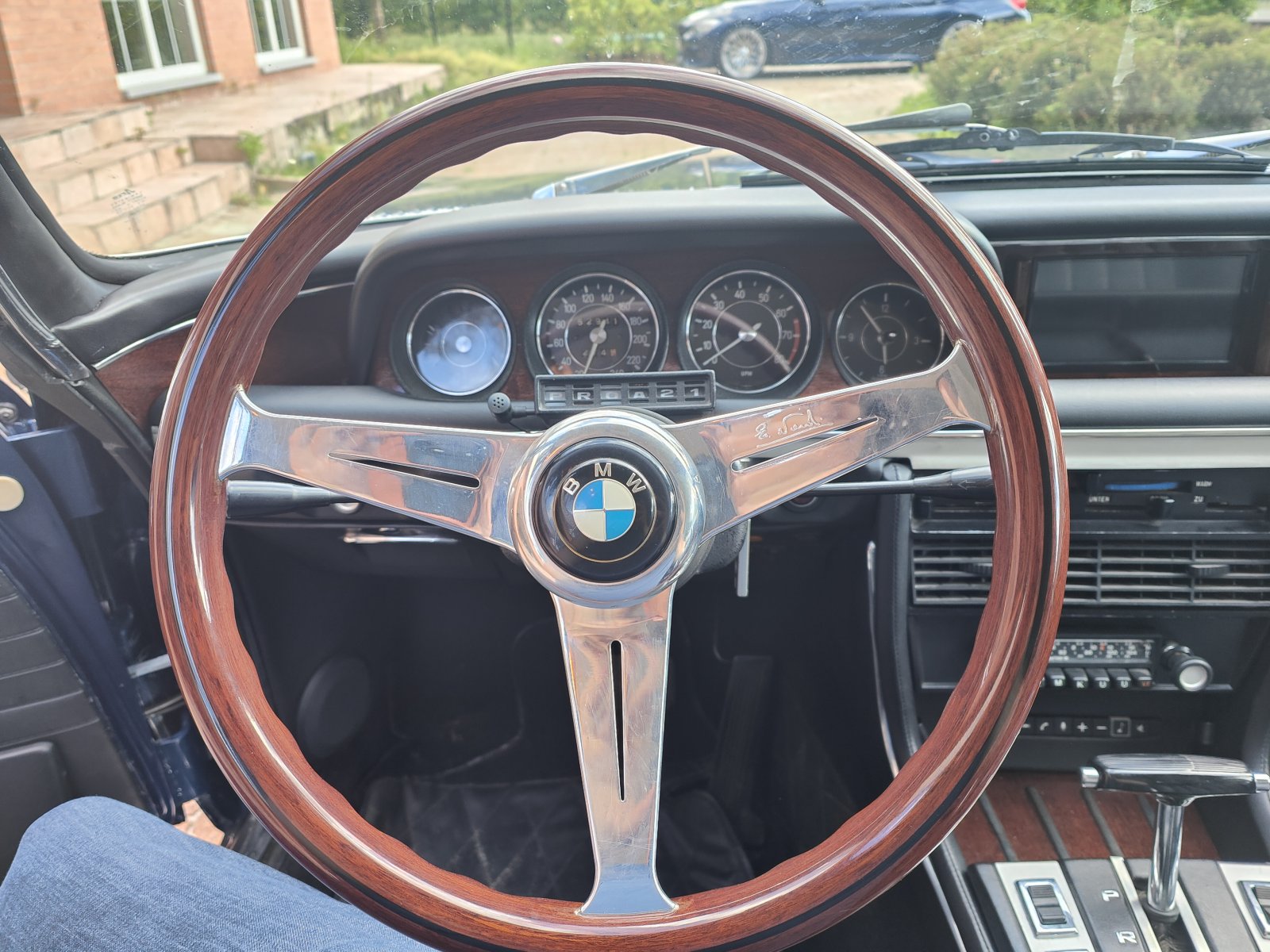

I put my 7" LCD touch screen behind the speaker grill. But I added a linear actuator to allow the screen to be hidden.
