Hey all,

A question for those who have fitted a 2002Tii booster...

Please see attached pic. Does it look like this will be small enough to work these ITBs and a shorter trumpet? Or, any other systems that might work better?

Also considering a servo delete and switching M/Cs. Anyone on here done this?

Cheers,
Cal


Attachments

aearch

Well-Known Member
Site Donor
Messages
3,633
Reaction score
351
Location
pleasant hill , ca
THE TII WOULD STILL HIT WITH THE (E) LENGTH
I WOULD GET THE TI AND ALSO SHORTEN THE HORNS THAT WOULD WORK
HICE SETUP THOUGH I LIKE THE INJECTOR INPUT LOCATIONS


Ohmess

I wanna DRIVE!
Site Donor
Messages
2,775
Reaction score
607
Location
Vienna, VA
No, those won't work. You cannot come straight out from the carbs and keep the stock brake booster location with horns that long. I know somebody makes horns like yours with a 15 degree upwards cant. (I know this because I recently bought a stash of old carb parts and have a few of these).

I found a guy making reproduction Alfa horns (from the GTV, I think), and this is what I have gone to. That is a tii booster under the horns
Engine Bay.jpg
:

Engine Bay.jpg


Markos

Never tell me you aren't in a hurry
Staff member
Site Donor $$
Messages
9,287
Reaction score
2,879
Location
Seattle, WA
Before you swap your trumpets or the brake booster. Research whether a field injected ITB really needs to be “level” (Yeah I know the carbs aren’t perfectly level). Most ITB manifolds are recycled carb manifolds. You could get a shorter, straighter version, or mount them upside down. Take a look at any m30 with a slide throttle, or any number of JDM motors with ITB’s...

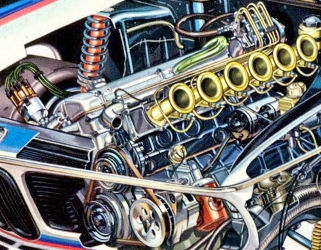

BMW:

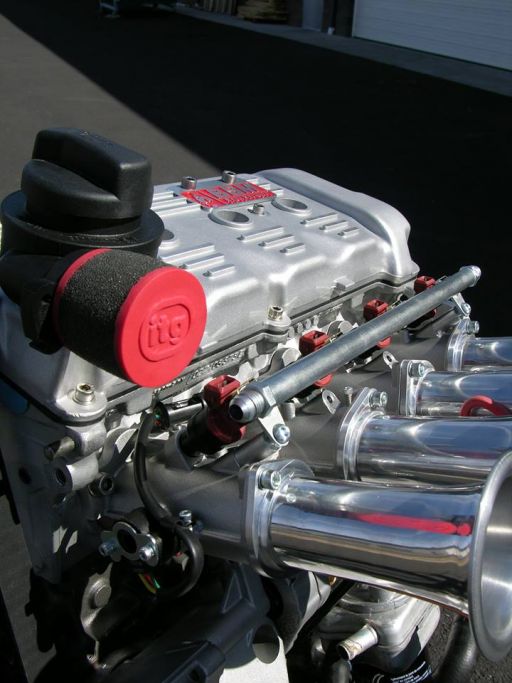

VW:


Markos

Never tell me you aren't in a hurry
Staff member
Site Donor $$
Messages
9,287
Reaction score
2,879
Location
Seattle, WA
You could get a shorter, straighter version, or mount them upside down. Take a look at any m30 with a slide throttle, or any number of JDM motors with ITB’s...
Confirmed that you can’t mount the manifold upside down. It fits, but the ITB-side flange is not reversible.


Ohmess

I wanna DRIVE!
Site Donor
Messages
2,775
Reaction score
607
Location
Vienna, VA
Before you swap your trumpets or the brake booster. Research whether a field injected ITB really needs to be “level” (Yeah I know the carbs aren’t perfectly level). Most ITB manifolds are recycled carb manifolds. You could get a shorter, straighter version, or mount them upside down. Take a look at any m30 with a slide throttle, or any number of JDM motors with ITB’s...

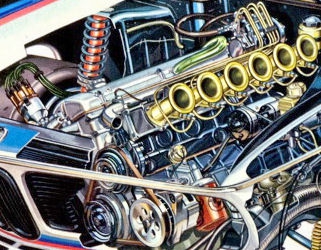

BMW:
View attachment 67565


VW:
View attachment 67564
Markos -- further to your suggestion -- and apologies to all for the thread highjack -- At Cars n Coffee on Saturday I was looking over an itb install a local guy did on a Datsun 240Z to replace the factory carbs (I was primarily interested in his Electromotive ignition setup). His intake manifold was canted upward about 15 degrees as you suggest.


Honolulu

Well-Known Member
Messages
1,613
Reaction score
98
Location
Honolulu Hawaii
This isn't my area but noting the 2002 carbs(?) mounted on a phenolic spacer for heat insulation reasons, could one make up a set of six, or pair, of such phenolic blocks that have an angle cut into them? The material would be relatively easy to machine...


lloyd

Active Member
Messages
444
Reaction score
88
Hey all,

A question for those who have fitted a 2002Tii booster...

Please see attached pic. Does it look like this will be small enough to work these ITBs and a shorter trumpet? Or, any other systems that might work better?

Also considering a servo delete and switching M/Cs. Anyone on here done this?

Cheers,
Cal
https://www.e9coupe.com/forum/threads/brake-booster-delete.15489/

Have heard that the FI Volvo P1800 used the same tii booster, or that they they can be made to interchange. That said, I recall seeing the same model Volvo with a slightly smaller aftermarket booster, that may have had a Bosch sticker rather than one from ATE.



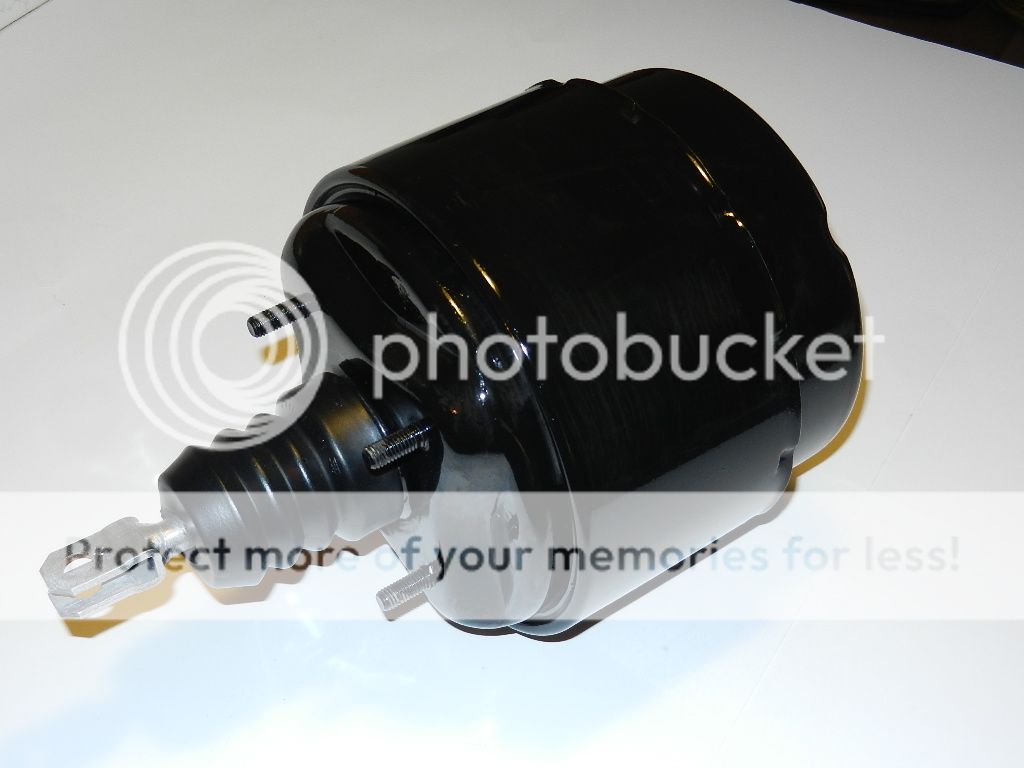

But what about something that projects less from the firewall, like this from an E46 (2002 330i) ?? (No, I do not have any dimensions)



Markos

Never tell me you aren't in a hurry
Staff member
Site Donor $$
Messages
9,287
Reaction score
2,879
Location
Seattle, WA
This isn't my area but noting the 2002 carbs(?) mounted on a phenolic spacer for heat insulation reasons, could one make up a set of six, or pair, of such phenolic blocks that have an angle cut into them? The material would be relatively easy to machine...
It doesn’t look like the idea of angling the ITB’s is getting much traction. I had a similar idea as yours for the coolant flange spacer. Angle it away from carb/itb #1. The problem with your approach is that the studs wouldn’t line up with the manifold holes.


Ohmess

I wanna DRIVE!
Site Donor
Messages
2,775
Reaction score
607
Location
Vienna, VA
I don't think a booster that mounts closer, or that is thinner would help much. The bracket that the booster mounts to places the booster into the air flow path outside the center of a three carburetor setup. If you could move it back, you would merely be moving the interference to the carb closest to the firewall.


Belgiumbarry

Well-Known Member
Messages
1,121
Reaction score
570
Location
Belgium
How is the braking effort with this setup? Am thinking of a servo delete myself but am worried about the effort required to press the ge pedal. What size are the master cylinders? I'm assuming there are two.
there are indeed 2 master cilinders. But , sorry , i don't remember the size… should look "if" i can see it. First they were mounted on the oem frame in the engine bay using the oem pedals but i changed that to a Tilton pedal box with the cilinders in the car . Therefore we had to weld a box in the car , partly into the frame rail. Even reinforced the box , so it is sure stronger than the frame was .
pedalbox 001.JPG

pedalbox 002.JPG

Braking is fine... but i do have the big Wilwood calipers in front....

Last edited:

gazzol

Member
Messages
359
Reaction score
13
Location
Preston, England
Confirmed that you can’t mount the manifold upside down. It fits, but the ITB-side flange is not reversible.
The throttle bodies don't care which way up they are, unlike carburettors they can go upside down the fuel rail will still fill with fuel and the injectors will spray just fine. It might look odd but that's only because we are used to seeing injectors at the top. It would save you a lot of messing around.
