This Thread will attempt to display the wiring legends, diagrams and relays for both euro and US versions with photos and descriptions.



2800CS Early (Feb and Jun 1970)

2800CS Relays.jpg


1) Wiper Delay: brown/black (2), green/black (2), black

2) Wiper Changeover: green/black (2), brown/red, black (2), black/violet, brown (2)

3) Load Shed (for headlights and heater blower): red, green/red, green, brown (2)

2800CS Late (Mar 1971)

Mar 71 2800CS wiper and load.jpg

Mar 71 2800CS wiper wire 1.jpg

Mar 71 2800CS wiper wire 2.jpg

Mar 71 2800CS wiper relay.jpeg


Wiper Relay: green/black (2), brown/red, black/violet, black, brown (2), brown/black (2)
Load Shed: red, green, green/red, brown (2)

Mar 71 2800CS hazard.jpg


2800CS US/NA Market Fuse Sticker



3.0CS Early


3.0CS Late
(May 1973 with window circuit breakers)

Relay 1 Wiper.JPG

black/blue, black/red, violet/black, black, brown/black (2), brown/red, brown (2)

73 Relay 2,3,4.jpg





3.0CS Late
(Aug 1973, Euro)

3.0CS 73 Euro Luis.jpg


1974

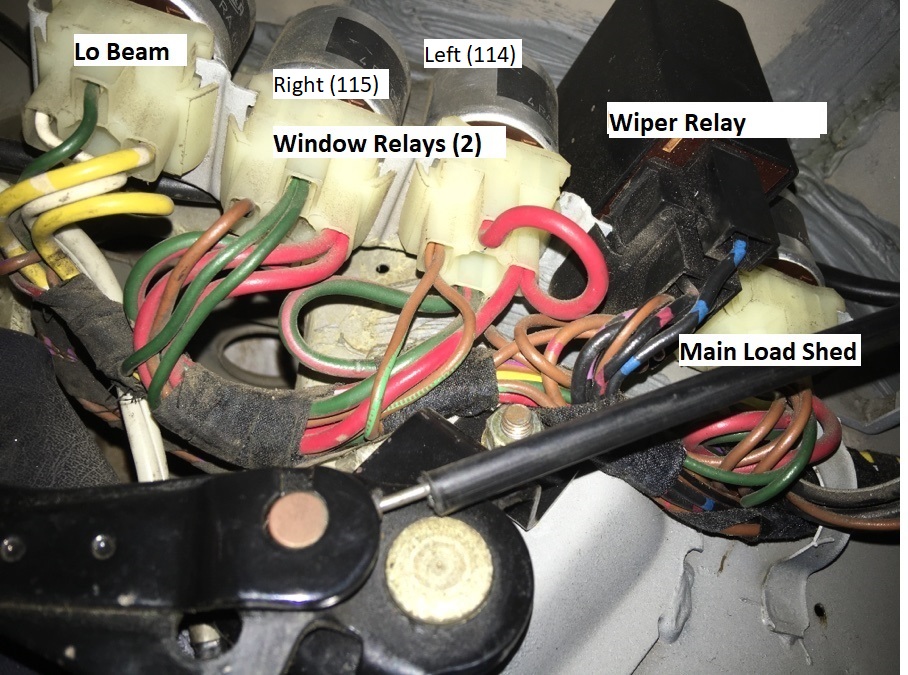

74 Underdash Relays.jpg



74 Auto Relays 2.jpg

Low Beam: yellow, yellow/white, red (2), brown
Window 115: green/red, brown (2), red (2), green (Activates all window motors when ignition key on)
Window 114: green/red (2), red (3), brown/black (Activates front window motors when driver door opened)
Wiper: brown/red, violet/black, black, brown/black, black/red, black/blue, brown (3)
Load shed: red (2), brown (3), green (2), green/violet
Automatic: black (4), brown/black


2.5CS Late (manual windows, automatic)

2.5CS Relays.jpg

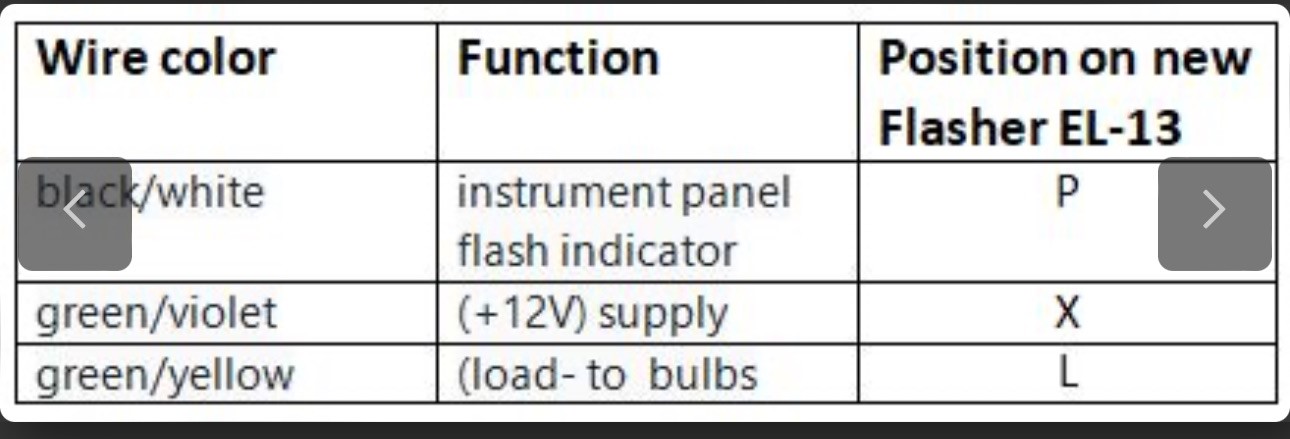

Hazard Relay Upgrade (EL-13 Electronic Flasher)
Allows use of LED bulbs, diagram below







Attachments

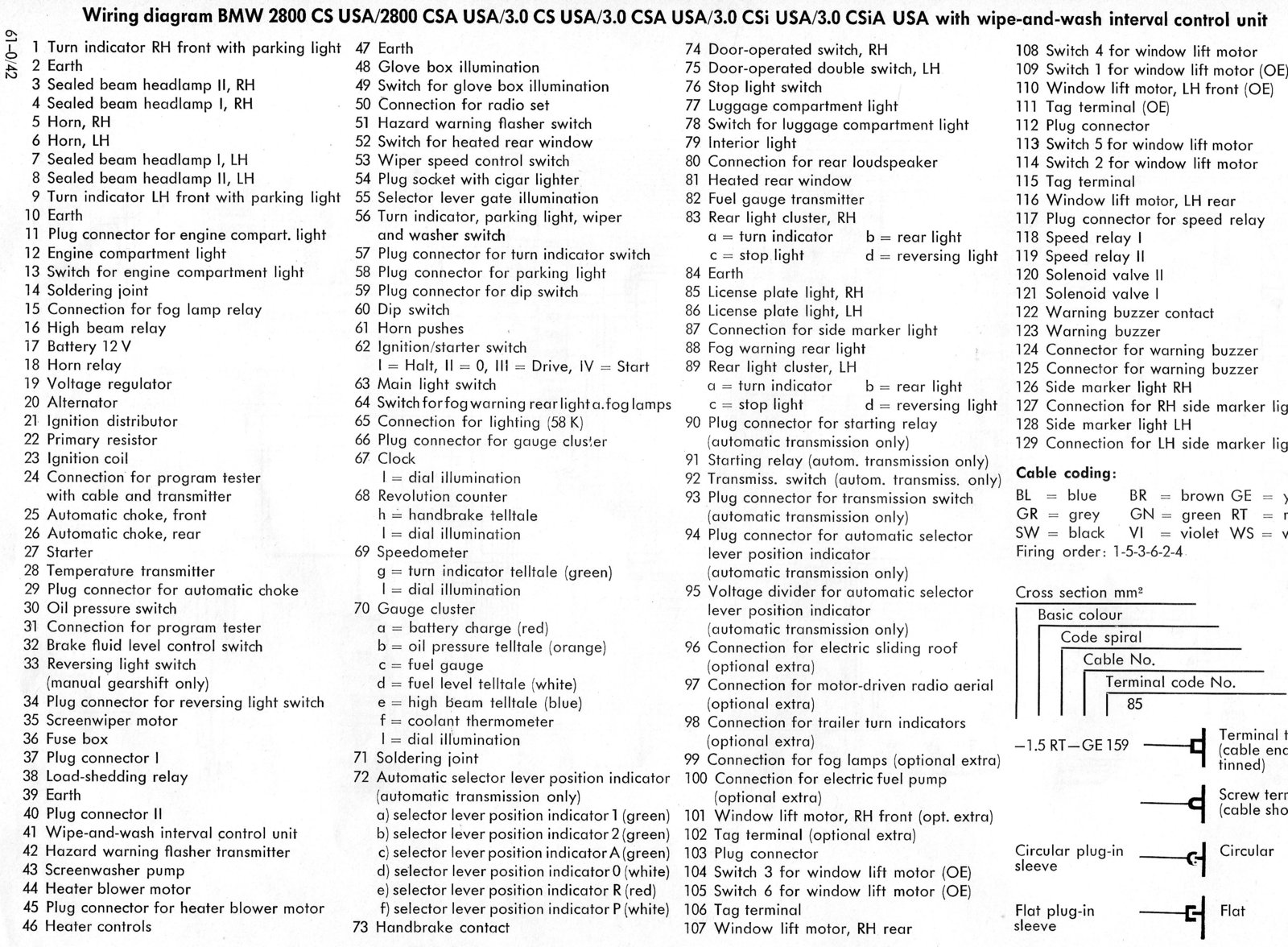

  • 2800CS US Wiring Legend & Diagrams.pdf
    4.1 MB · Views: 527
  • 2800CS Euro Wiring Legend & Diagram.pdf
    1.8 MB · Views: 416
  • 74 Underdash Relays.jpg
    74 Underdash Relays.jpg
    247.4 KB · Views: 2,059
  • 72-73 3.0CS USA Wiring Diagram.pdf
    949.1 KB · Views: 455

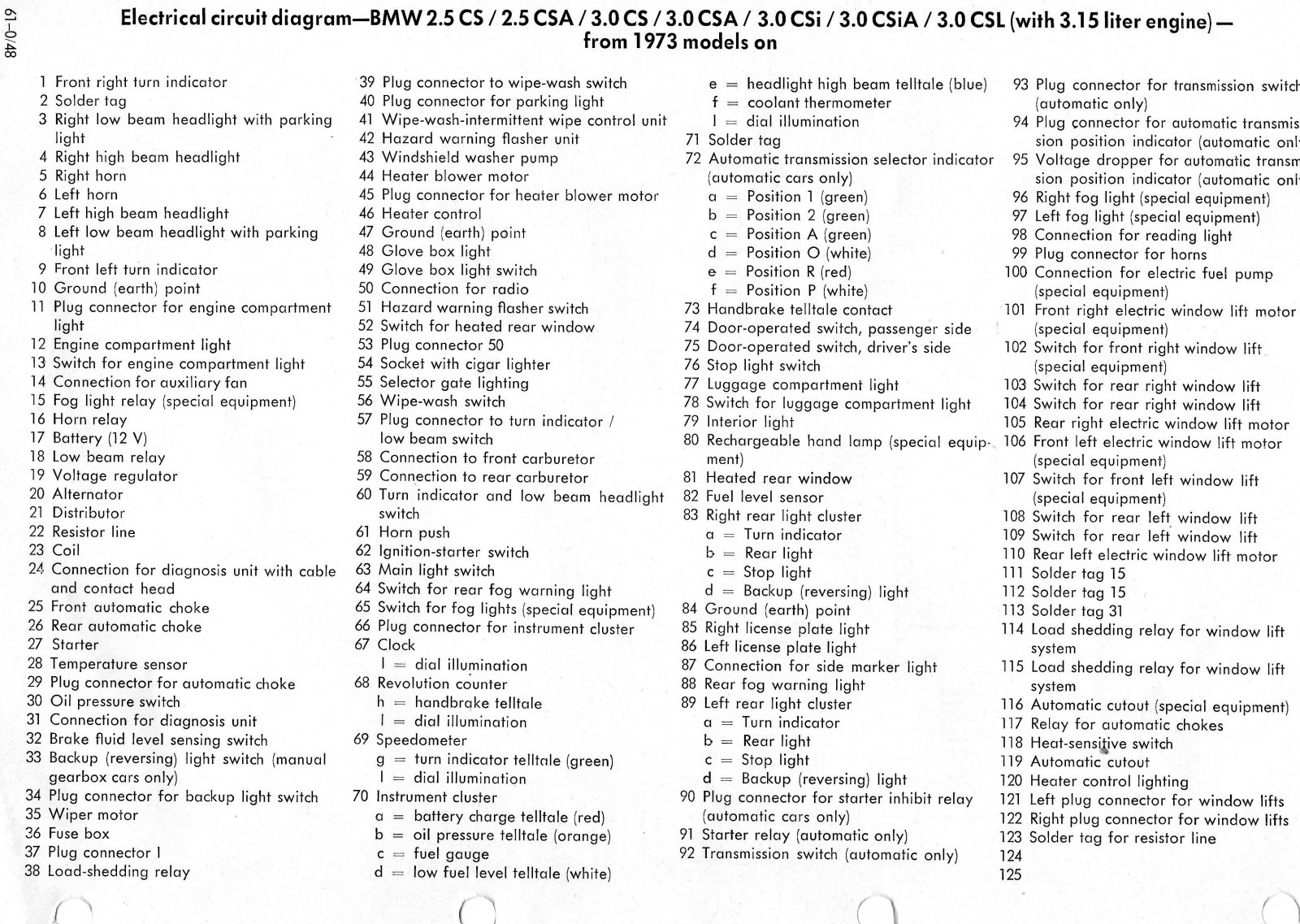

  • 72-73 3.0CS USA Wiring Legend.jpg
    72-73 3.0CS USA Wiring Legend.jpg
    479.1 KB · Views: 453
  • Flasher2.jpeg
    92.1 KB · Views: 95
  • 74 3.0CS Euro Wiring Diagram.pdf
    1.3 MB · Views: 42
  • 74 3.0CS Euro Wiring Legend.jpg
    74 3.0CS Euro Wiring Legend.jpg
    477.2 KB · Views: 32
Last edited:

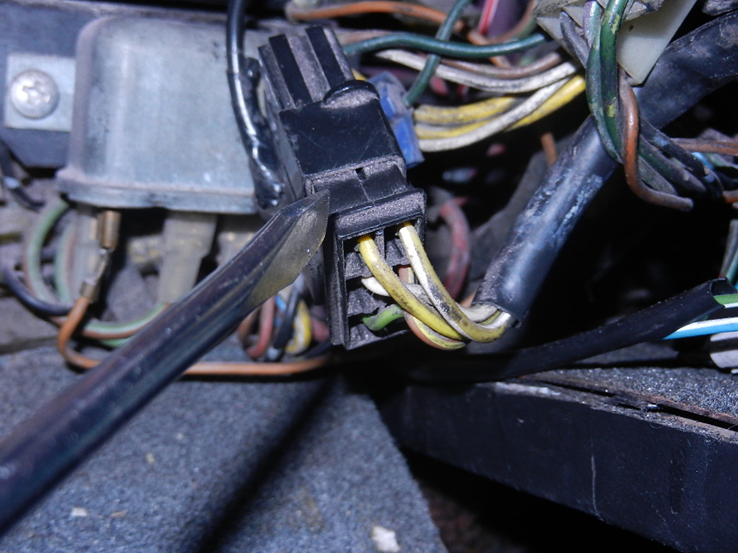

This is how my car's relays are arranged (Aug '73 build; Euro).

From left to right:
1st: Windshield wipers relay (large one).
2nd: Load shedding relay (38 in my schematic).
3rd: Was empty (114) on my car as front windows are manual thus the door switch wiring to allow windows to open isn't needed so I rewired the existing socket and added a relay for the low beams to unload both the ignition and headlight switches from carrying that heavy current load.
4th: Relay 115, load shedding for electric windows


.


The relay arrangements in this area seem to be varied.

Last edited:

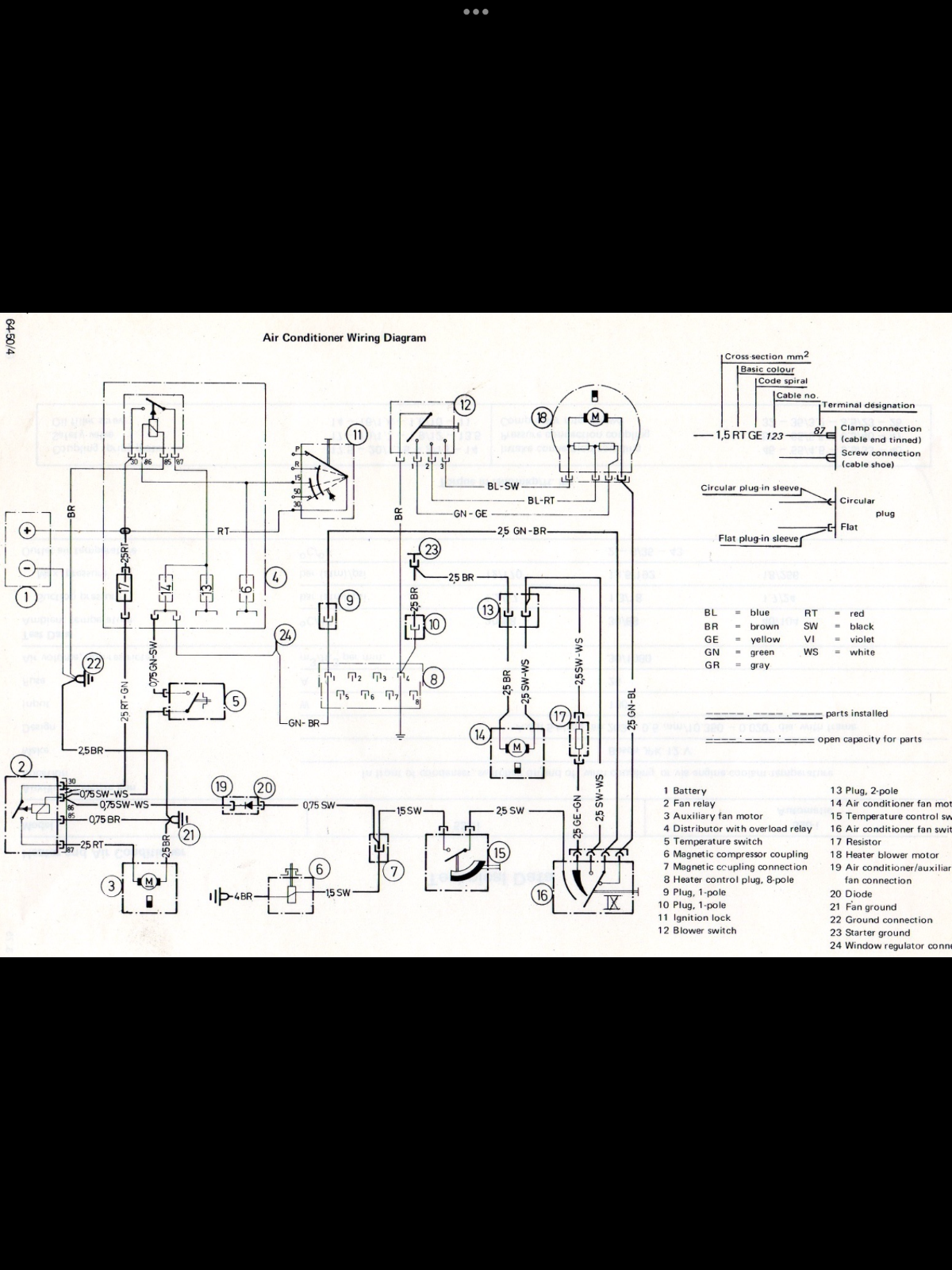

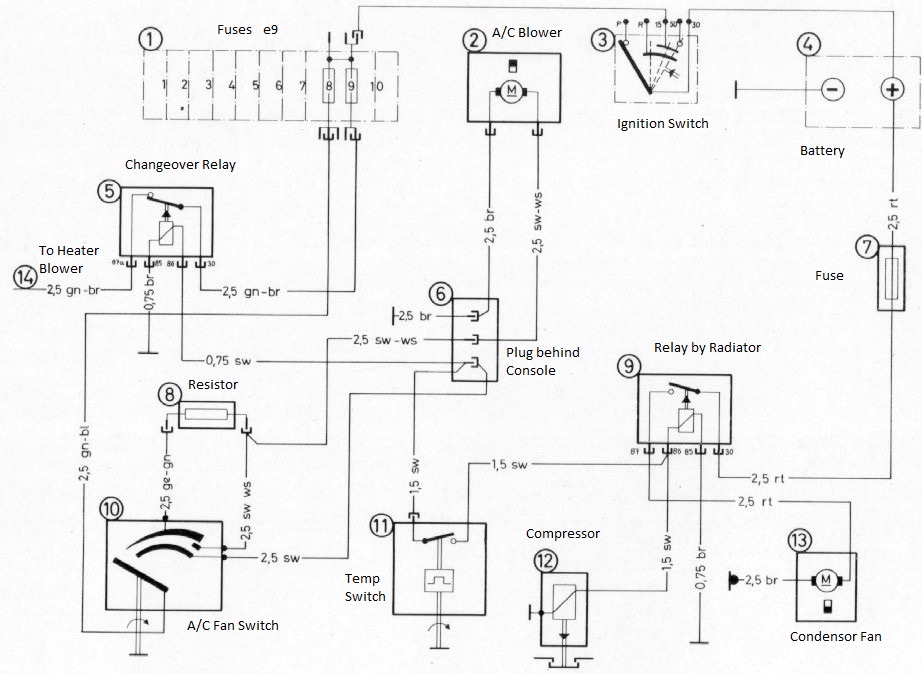

Great resource on relays and labeling also helps.
Would you have anything on 74 3.0 cs automatic? I just bought one and found a second line coming from the transmission expansion tank loose and don't know whwere it goes. The other line in connected to the trans dipstick tube.
Thanks
