E9 Parts dimensions, drawings, technical info and models

[rsporsche]

Okay everyone, this thread is the new place to post drawing information, parts dimensions, data, etc. Any of the drawings on this post are only to be used for individual usage and not to be used for commercial profit unless approved to by the individual who created them.



[rsporsche]

The first post will be the drawing for the rear trunk panel, this is conceived as a 2 piece construction that is glued together prior to wrapping with the vinyl. i used waterproof panel board that is 30" x 60", i spray mounted the pdf to the panel and cut it out.

my approach is to place a strip on either side of the vertical panel, set the thickness of the panel below the top. the top piece is then glued to the vertical piece.



[rsporsche]

the second post is the drawing for the sound insulation under the hood



[rsporsche]

the third post is the wood speaker grill. this is drawn in millimeters



[rsporsche]

the fourth drawings show the mounting dimensions of the 3.0 cs and 2800 cs badges. the 3.0cs dimensions have been updated to comply with @HB Chris' new coupe



[rsporsche]

the fifth drawing is the rear side armrests (wood)



[rsporsche]

here are the 2800cs wiring diagrams, the pre '74 3.0cs (US) wiring diagrams and the pre '74 3.0cs (euro) wiring diagrams



[rsporsche]

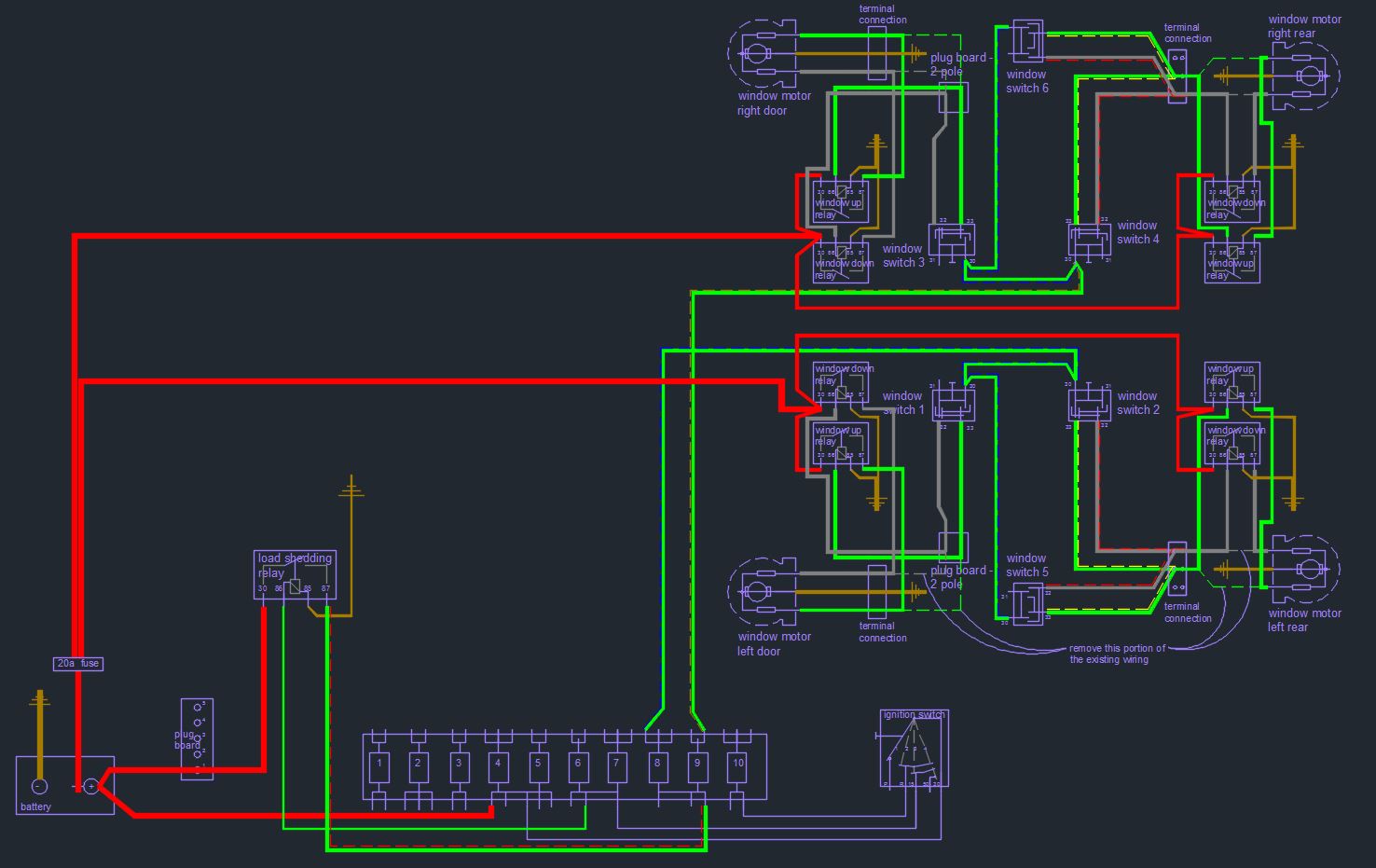

this is a drawing for the rewiring of the sardine window motors to run power directly to the motors



[rsporsche]

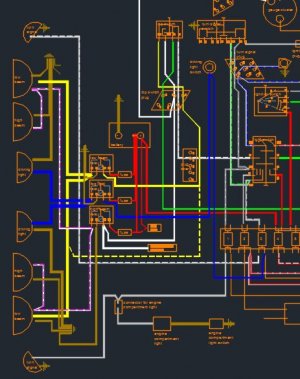

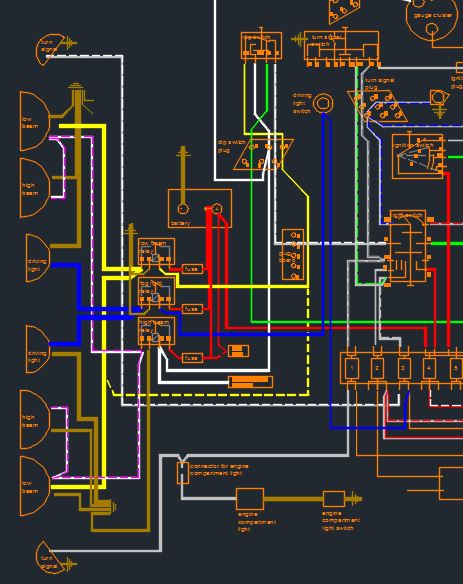

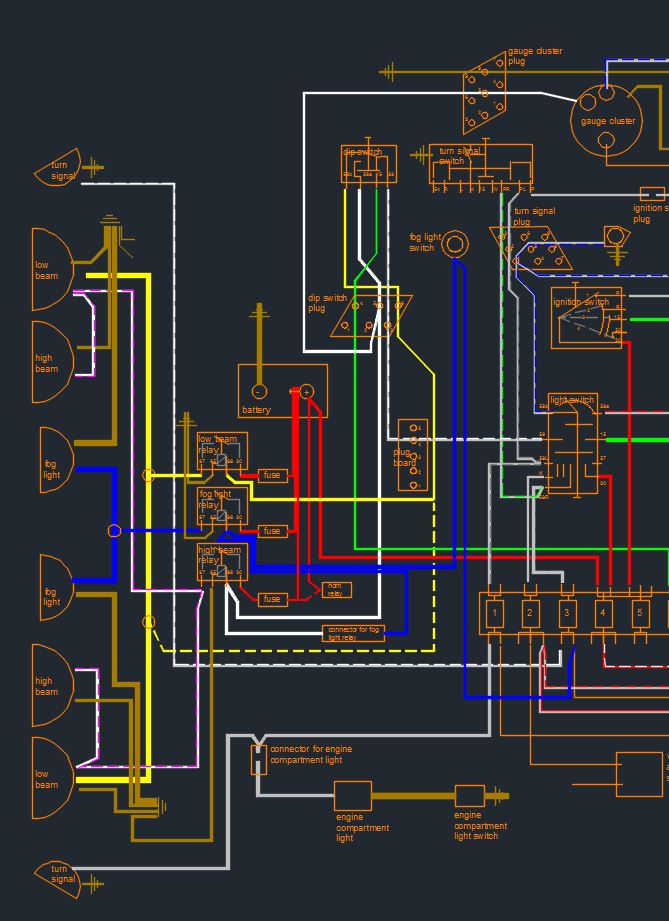

these are some drawings for rewiring of the headlights - one is just headlights, the other is headlights and fog / driving lights. this is to provide power directly to the lights rather than through the ignition switch



[rsporsche]

the following are bolt size lists - the first is listed per the realoem group tabs, the second is by size with the realoem group / part #



[rsporsche]

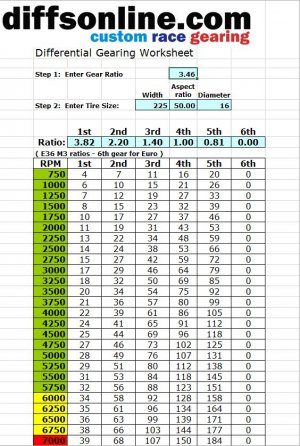

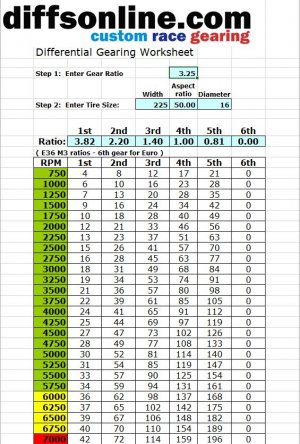

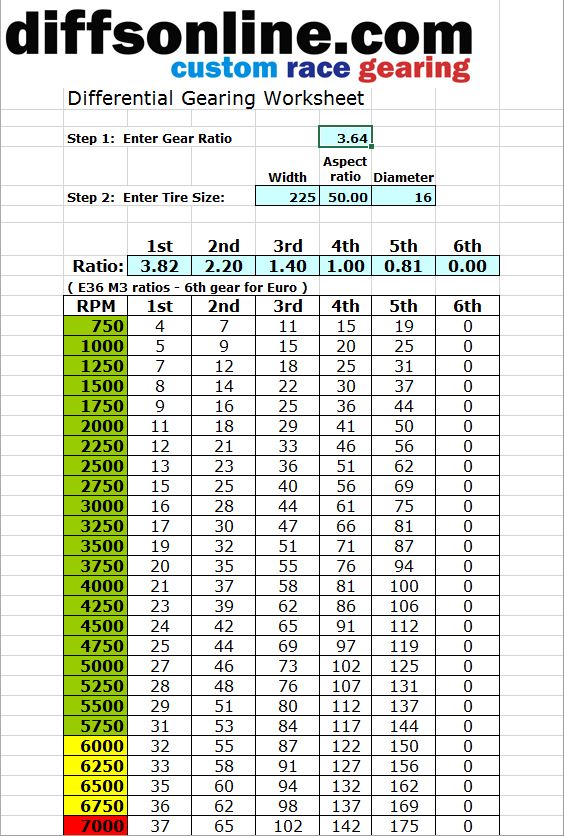

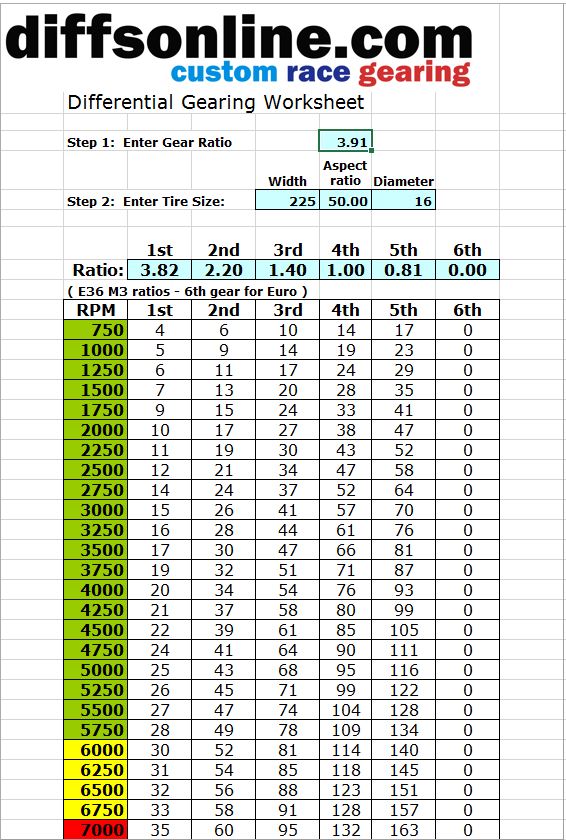

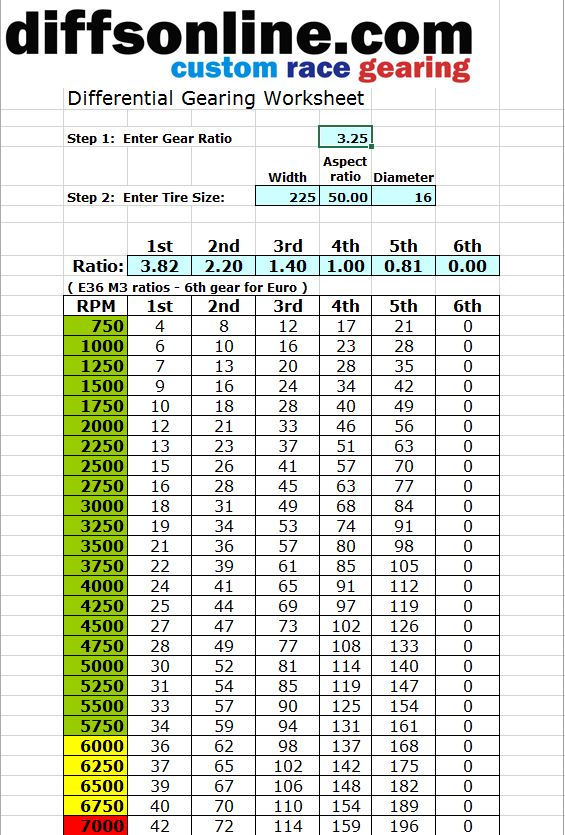

the following tables show the speeds / rpm depending on the specific diff gear - these are based on the standard 5 speed overdrive tranny.



[rsporsche]

i found this information on the different BMW engine identification codes and what model years they were produced.



[Markos]

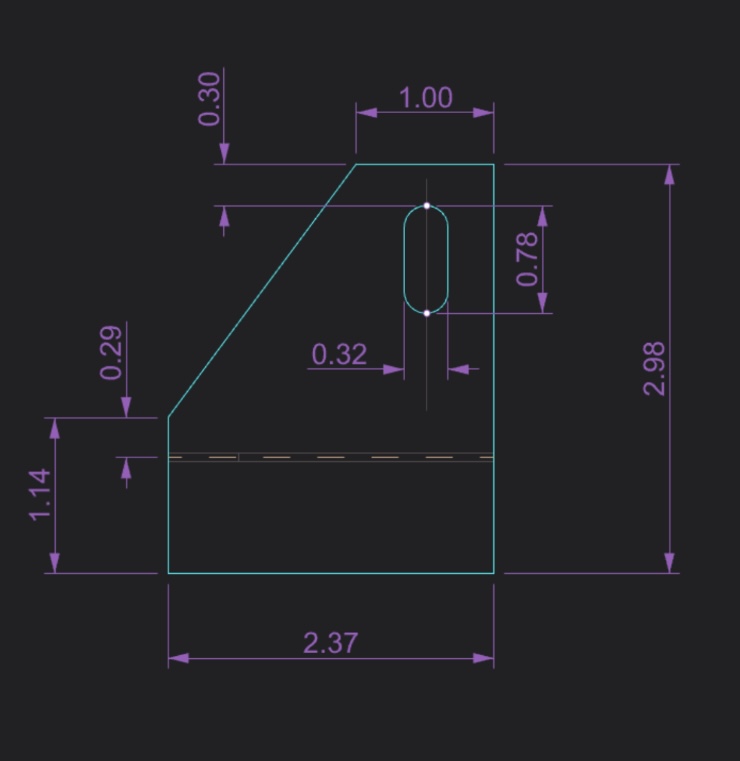

Coolant tank bracket. @mark99 drew this up for me years ago.



[Johan_CS2800]

Thanks a lot Scott!



[dave v. in nc]

Great kickoff for an important thread; lots of work involved, thanks Scott!



[Bmachine]

Awesome work there. Thank you Scott.



[rsporsche]

In regard to a recent request for information on the piping that goes on both front and back of the doors (between the door and the door panel) and the large piping that goes under the metal trim at the side panels ... i have done a drawing showing the pieces. please note that the door piping is wrapped around the core, but 10mm is left as a single thickness - to have a better fit. all of these pieces were based on original BMW piping, with the exception of the front side panel trim (thick) piping ... that was from one on my car ... so it should be close.

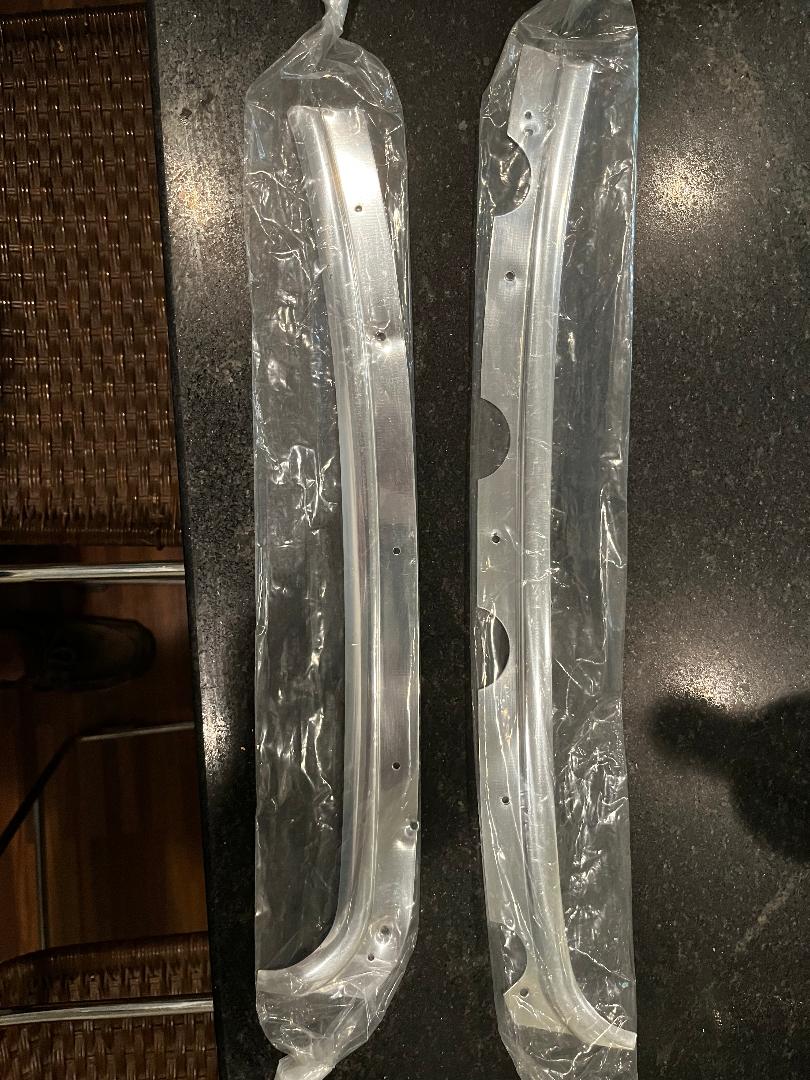

for information, i have also included a pic of the metal trims. the longer piece with the scalloped edge is for the rear side panel



[Bajasur]

This is so incredibly helpful and valuable! Thank you. Did the Wiring Diagrams post have two copies of the pre-74 CS? Maybe it was just me, but I think the files are duplicates. Can you post the non-pre-'74 CS?



[rsporsche]

This is so incredibly helpful and valuable! Thank you. Did the Wiring Diagrams post have two copies of the pre-74 CS? Maybe it was just me, but I think the files are duplicates. Can you post the non-pre-'74 CS?

actually i have posted the pre 74 US and the pre 74 euro diagrams. i don't have a scanned version of the 74



[Ohmess]

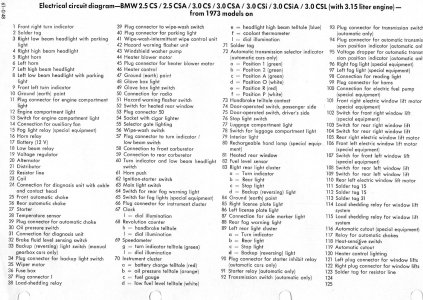

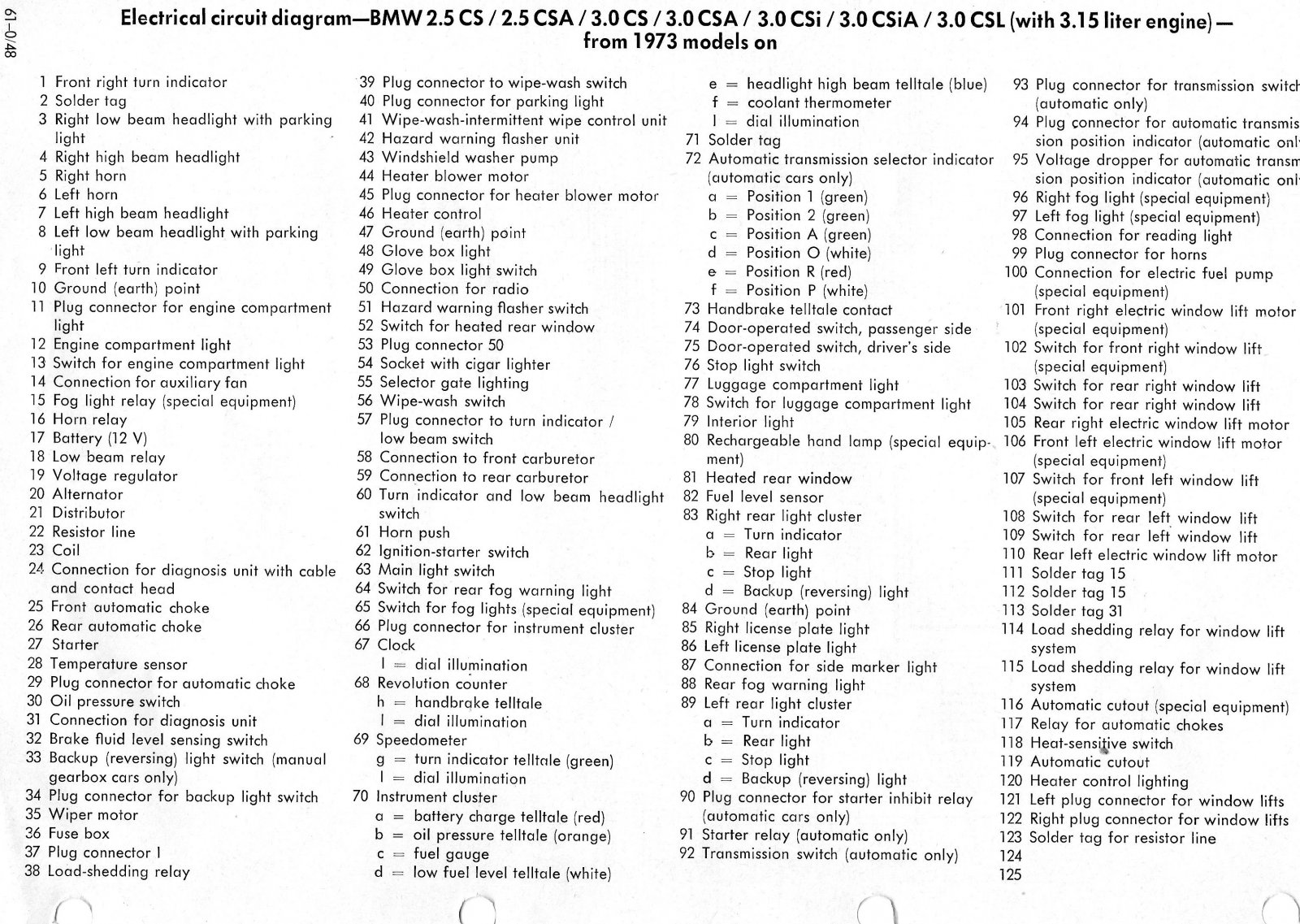

Scott - Here is what I have for 74 wiring diagrams:
