Hi all:

I am still alive but doing slow progress on the car. Engine bay is painted, same as most components and we are in the process of assembling, but there is one part which I cannot fit back and the pics I took on dissasembly are not helping, so I am posting a pic here hoping somebody can help.

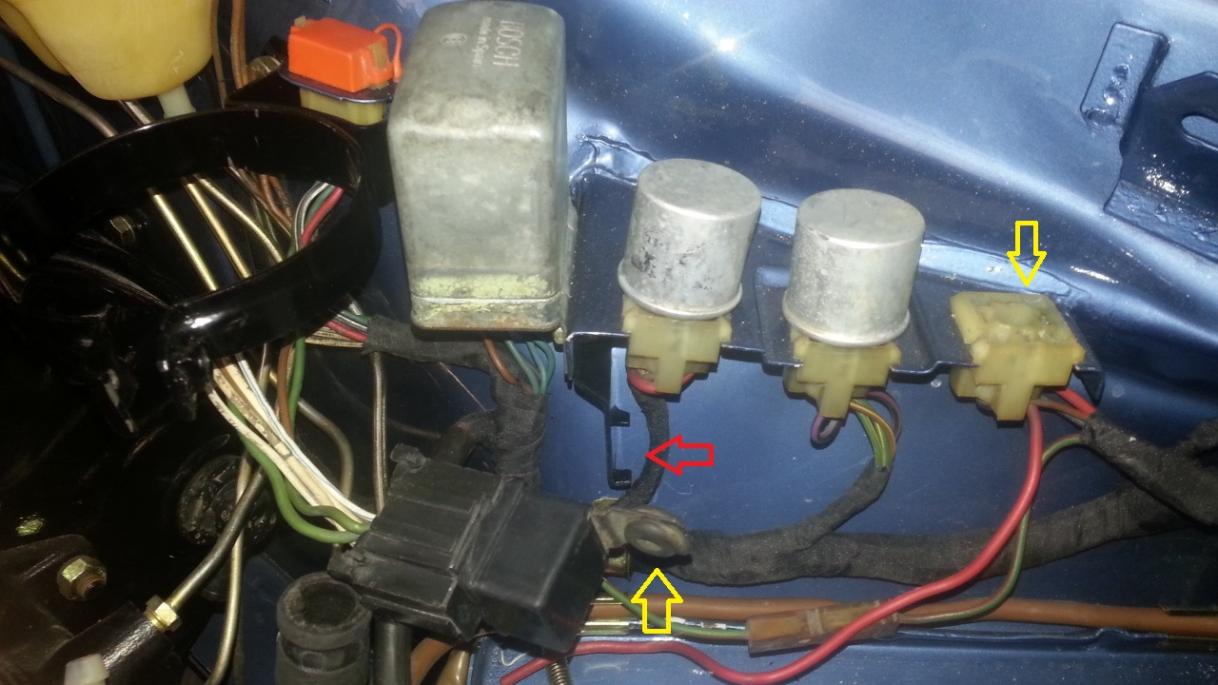

There is an electric relay that I don't remember how to attach (yellow arrow on the left, pointing to a hole and grommet like if it would need to be fixed with a screw), and there is a sort of clip under the electrical relays (red arrow) on the left side of the car where I suppose it goes, but I cannot figure out how...

Also, there is another yellow arrow at the right pointing to an electrical conection for another relay. What function should this be for?

Thanks!
victor


Attachments

  • 13.12, 1974 BMW 3.0CS, vmg (6).jpg
    13.12, 1974 BMW 3.0CS, vmg (6).jpg
    93.8 KB · Views: 212
David; indeed the nuts and bolts are W&N

To answer the question below; yes, the nuts and bolts are W&N.

Herewith, copied from their website;

Catalog picture / Position no. 41/01/00

A07139790008





Special offer price valid: 2/9/14
instead of€79.00
Your price:€69.00 Incl. VAT + Shipping(Excl. VAT €57.98

Please correct me if I am wrong, but I think the black relay is the high beam relay and it is attached where the red arrow is pointed. In my car the first relay space is empty as in your picture. I think if you take off the silver box-voltage regulator- you will find a place to screw in the receptor for the high-beam relay, otherwise it should slide into that holder (red arrow) somehow. I will see if I can snap a shot of mine later-

PS 3.0 really nice looking clean up of the engine area. Mine is a 74 CS as well, so maybe some of the pics I post will help you.

Didn't 74's have the low beams relayed by then? Or does your car have fog lights? The wiring looks original though.

Relays are pretty easy to identify, yellow wire is for low beam which was added for 74, white wire is high beam, from the Regulator it should be horn relay, high beam relay and then low beam closest to radiator. That black relay must have have been added or is for injection system if present, can't say for sure.

Hmmmmm... My car has no fog lights and it has never had an injection system. The wiring to the relay all comes within the same original harness, so it is something that came originally with the car. Mistery continues...

So the front socket is likely the low beam circuit

3.0CS said:
Hmmmmm... My car has no fog lights and it has never had an injection system. The wiring to the relay all comes within the same original harness, so it is something that came originally with the car. Mistery continues...
Click to expand...

I will have to check on that. Lights worked perfectly without it... In fact everything except the seat belt system(warning light or buzzer) did.

Merry Christmas to all

Not that I know of, but if you go to Penske and find all the clamps you need one by one it will say the size needed (and number needed in some cases), for example this radiator hose clamp:

07129952119 HOSE CLAMP - L42-48

the L42-48 is the mm range.

Or this fuel line clamp:

13531257243 HOSE CLAMP - D=12MM


David said:
Is there a list somewhere of all the hose clamp sizes or P/N's I would need to replace them all (carbed CS) ?
Click to expand...

Steve has pointed you in the right direction. Once you have sizes I went to Mesa Performance. However, Belmetric has all of these, I am a nut and always make sure they are the same brand such as Gemi so they look identical. Mesa will have a mixture of brands usually.

Thanks guys.

Years ago I thought, "I'll get a cool old car and drive it around on the weekend. Nothing fancy, just something fun". I'm now shopping for correct and matched hose clamps.

this is just pathetic

David said:
Thanks guys.

Years ago I thought, "I'll get a cool old car and drive it around on the weekend. Nothing fancy, just something fun". I'm now shopping for correct and matched hose clamps.

this is just pathetic
Click to expand...

Hahaha! I was the same way then I met Chris Macha, saw his coupe and got "infected"
I can say that, the driving experience is great, the camaraderie is awesome and I get a degree of satisfaction from seeing my coupe in a much better state than it was 12 years ago.

David said:
Thanks guys.

Years ago I thought, "I'll get a cool old car and drive it around on the weekend. Nothing fancy, just something fun". I'm now shopping for correct and matched hose clamps.

this is just pathetic
Click to expand...

I've had my Coupe for a year, and it's been a slippery slope for sure.
