Help with side mirror location measurement

[saltydawg]

I used the rivnuts when I added my right side mirror. Worked great. Treat the raw edges after drilling and practice on a scrap piece of sheet metal.
View attachment 79396View attachment 79397View attachment 79396View attachment 79397



[deQuincey]

I used the rivnuts when I added my right side mirror. Worked great. Treat the raw edges after drilling and practice on a scrap piece of sheet metal.
View attachment 79396View attachment 79397View attachment 79396View attachment 79397

your mirror base is 2mm off the surface, bear in mind, nota great thing



[Bmachine]

If you are tall and want to use the "forward" mirror location as on Keshav's pic., make sure you test it and confirm that you can see it properly when in your normal seating position. I could not.

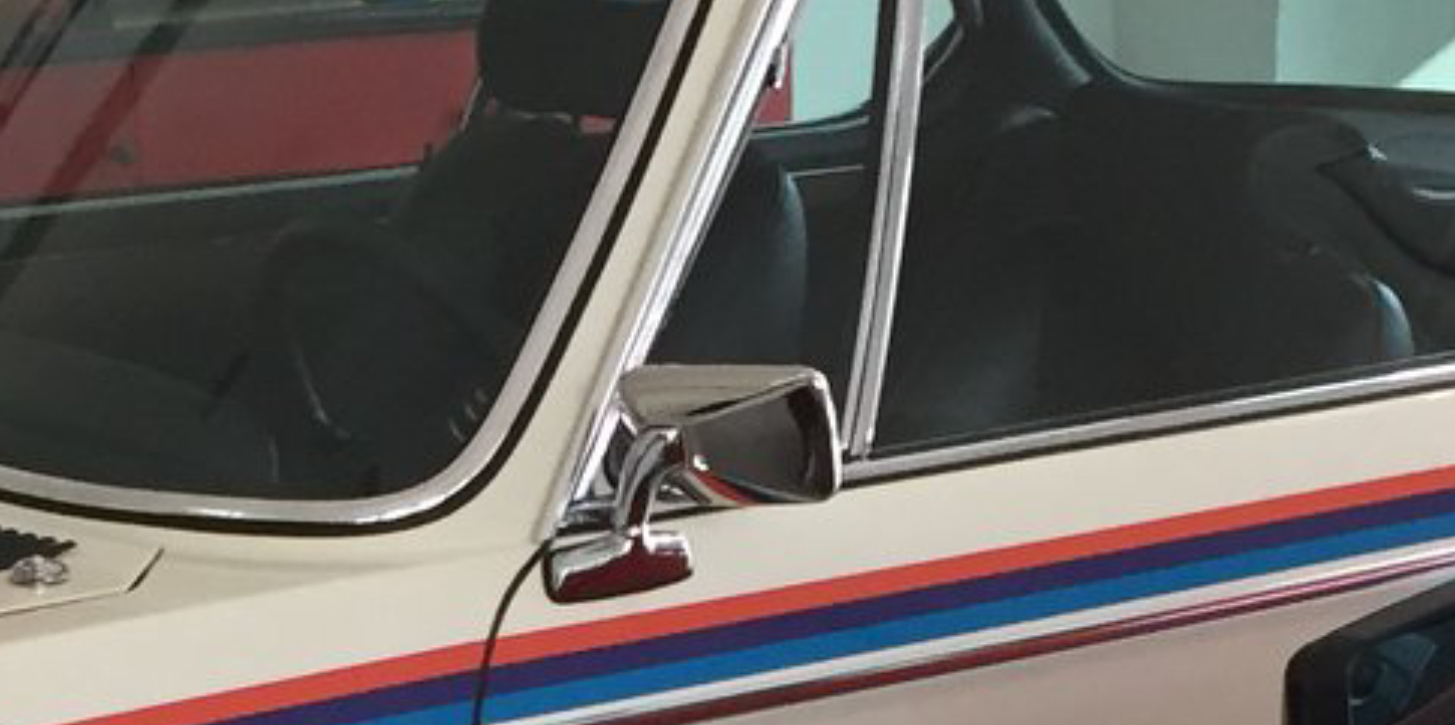

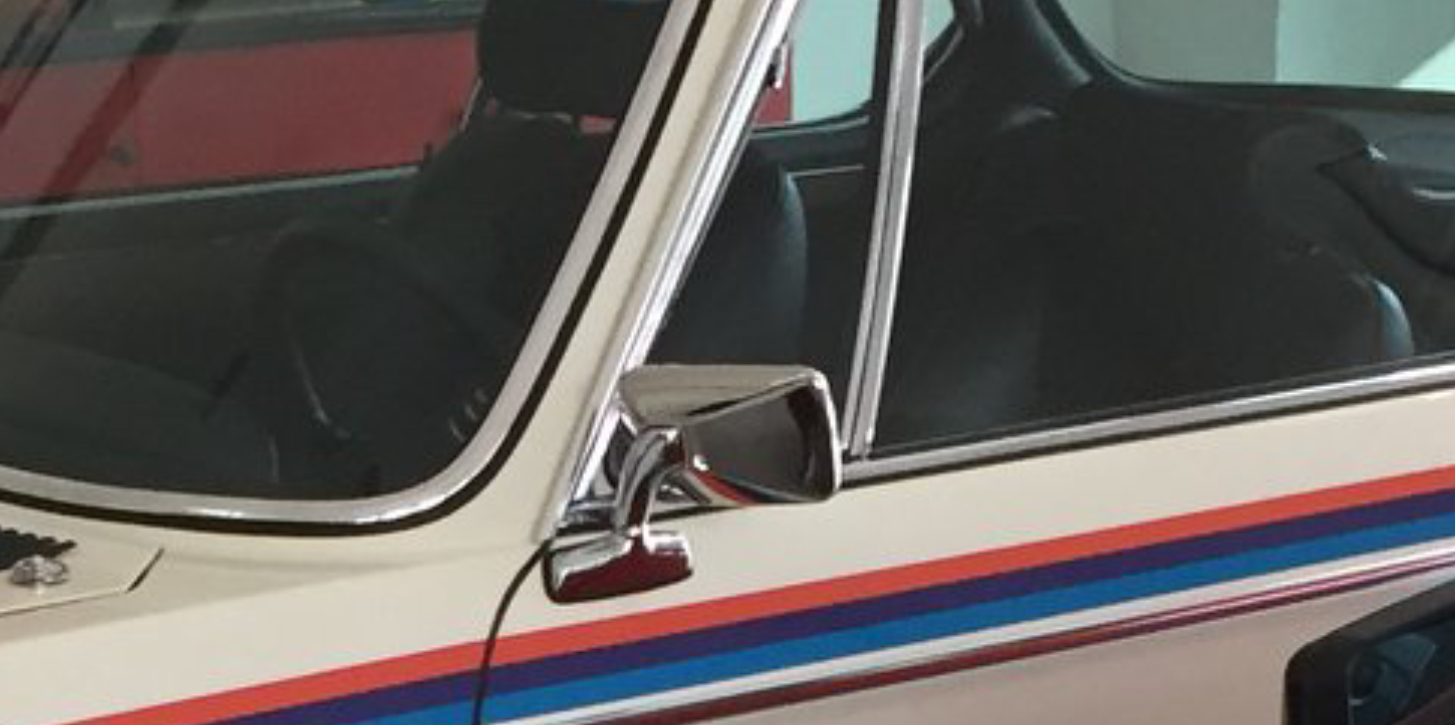

Maybe this pic helps.....

View attachment 79277



[saltydawg]

your mirror base is 2mm off the surface, bear in mind, nota great thing

Actually the mounting plate that came with mine had relief of about 0.5mm on the bottom side where the holes are located. I shaved off a little more to clear the heads of the rivnuts which are 0.85mm. The actual mirror base fits over / straddles the mounting plate. When the set screw in the base is tightened against the bevel in the mounting plate, it pulls the mirror base tight and flush to the door panel.

It’s a good point that you make, deQuincey, anyone using rivnuts should ensure the mounting plate has adequate relief for the heads. I should have included this step in my post.
JNL



[pickman]

Where did you purchase the riv-nuts? Its time to install my mirror and Yes the original fasteners do not stay tight.



[saltydawg]

Where did you purchase the riv-nuts? Its time to install my mirror and Yes the original fasteners do not stay tight.

It’s been a couple of years but I think I got them off eBay. PM me your address and I’ll send you what you need plus enough to practice with. I’ve got a bunch left over. You can buy a special installation tool, but they are expensive. Search YouTube and you’ll find several videos on how to put together a DIY tool with just a long bolt, nuts, and washers.



[saltydawg]

Whoa, hold on. pickman, I just saw in your earlier post that you have the slotted (London underground logo) holes. I’m not sure the rivnuts will work for you...maybe not enough surface area for the rivnut to grip. Perhaps Keshav’s suggestion in post #6 would be a better solution. If you want, I’ll still send the rivnuts for you to experiment.



[Cornishman]

As Bo said above, make sure that wherever they are mounted you can see them clearly. The quarter light pillar obscures the view if they are mounted in a certain position. Worth getting someone to hold it in the proposed place and do a check before getting the drill out.



[pickman]

These are the parts Chris is possibly referring to. for trap style mirrors.

Spiegelfuß

Spiegelfuß zum anschrauben an der Tür Neue Klasse 1800 - 2000 tii ab Modell '69 1502 - 2002 turbo E3 2500 - 3,3 Li E9 2,5 CS - 3,0 CSL E12 518 - 528 bis 8/77 E21 316 - 323i bis...

www.bts-autoteile.de

Schraube Spiegelfuß

Schraube zur Befestigung des Spiegelfußes an der Tür Neue Klasse 1800 - 2000 tii ab Modell '69 1502 - 2002 turbo E3 2500 - 3,3 Li E9 2,5 CS - 3,0 CSL E12 518 - 528 bis 8/77 E21 316 -...

www.bts-autoteile.de

Käfigmutter

Käfigmutter / Korbmutter zur Befestigung von Außenspiegeln am Türblatt 1500 - 2000 CS 1502 - 2002 turbo E3 2500 - 3,3 Li E9 2,5 CS - 3,0 CSi E12 518 - 528 bis 8/77 E21 316 - 323i bis 8/79

www.bts-autoteile.de

if you install these cage type retainers, insert and rotate 90• to fix to the door sheet metal

Good Day, Would the cage nits you link to here be available in the USA?
