Help with side mirror location measurement

NZCSi

Member
Site Donor
Messages
38
Reaction score
0
Location
New Zealand
Hi There,

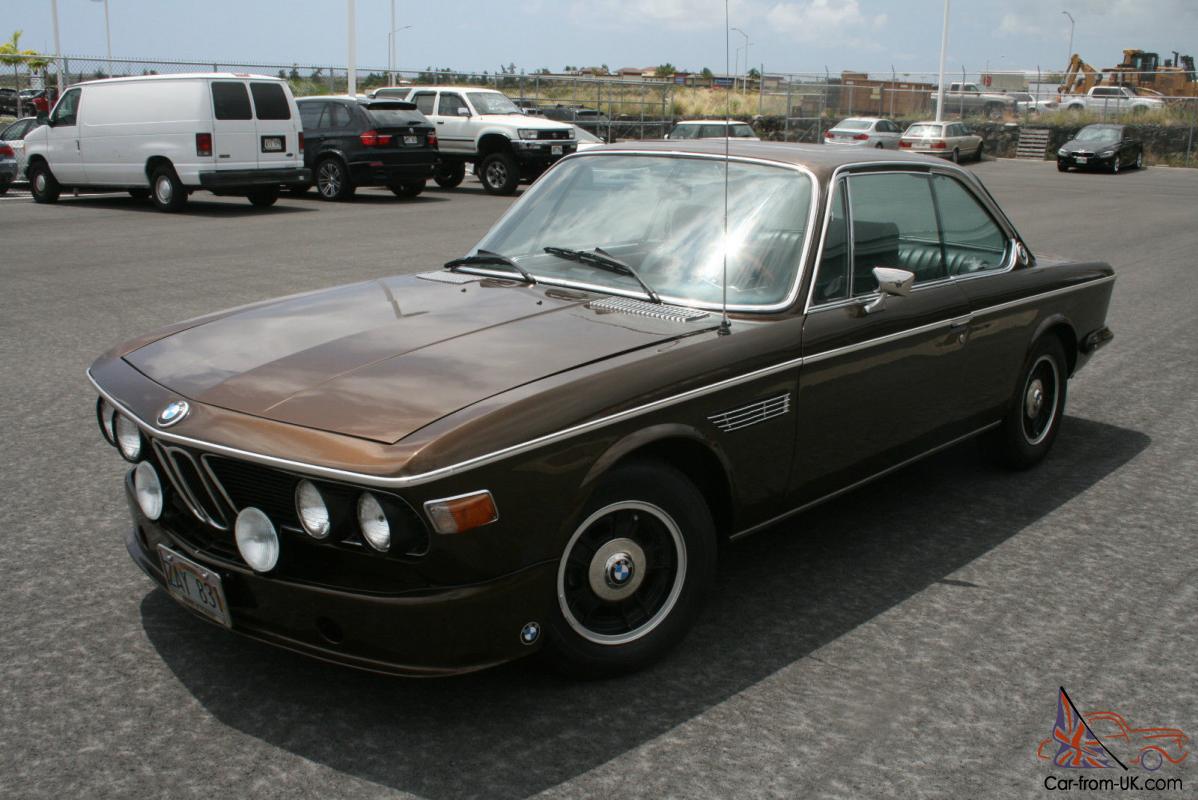

I'm getting close to paint but need to locate holes for the side mirrors. My car is a UK delivery RHD and the mirrors were originally located further back like in the pic attached. Is there anyone with this mirror location who could post a couple of measurements?

#1 - A horizontal measurement from the front of the door at the height of the mirror
#2 - A vertical measurement from the bottom of the door to the bottom of the mirror base

I don't have any trim or windows in the car so I'm looking for measurements taken from the panels - hope that makes sense.

Also, I'm reading that plates are needed behind the holes, are these parts welded in or are they the parts which came with the mirrors? I have new mirrors from here: https://www.wallothnesch.com/en/karosserieanbauteile/bmw-2-5-cs-3-0-csl-e9/katalogbild-51-14.html

Any help would be much appreciated.

Cheers

Ben


Attachments

Markos

Never tell me you aren't in a hurry
Staff member
Site Donor $$
Messages
9,205
Reaction score
2,795
Location
Seattle, WA
I measured it here:



HB Chris

Moderator
Site Donor $$
Messages
11,704
Reaction score
1,847
Location
Huntington Beach, CA

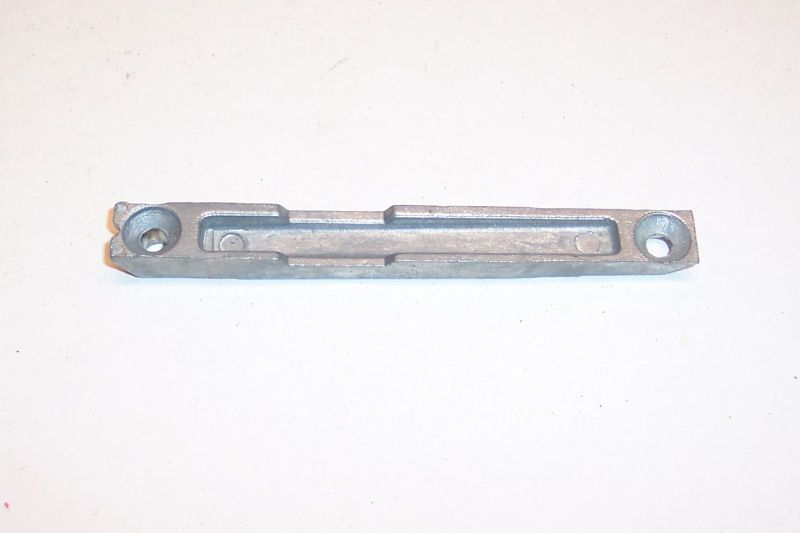

There are no plates and no welding. Your mirror should have come with a bracket that the mirror mounts to. You can use small sheet metal screws to attach it to the door, more secure that the captured nuts that came originally.


Keshav

Well-Known Member
Site Donor $
Messages
1,702
Reaction score
1,125
Location
Weiterstadt, Germany
These are the parts Chris is possibly referring to. for trap style mirrors.




if you install these cage type retainers, insert and rotate 90• to fix to the door sheet metal


HB Chris

Moderator
Site Donor $$
Messages
11,704
Reaction score
1,847
Location
Huntington Beach, CA
The hole in the door can become enlarged and the captured nuts we get here are very thin and can be damaged if overtightened. On my 2002 I just used sheet metal screws to mount the bracket, works great!


NZCSi

Member
Site Donor
Messages
38
Reaction score
0
Location
New Zealand
I measured it here:
It looks like your mirrors are mounted at the front of the door but mine were further back which allowed for the quarter winder to be opened fully (reversed) so air could come in from the front which I liked.

No worries if nobody has a measurement, will fit the window and mark it up so it doesn't foul on the window. Cheers


Markos

Never tell me you aren't in a hurry
Staff member
Site Donor $$
Messages
9,205
Reaction score
2,795
Location
Seattle, WA
It looks like your mirrors are mounted at the front of the door but mine were further back which allowed for the quarter winder to be opened fully (reversed) so air could come in from the front which I liked.

No worries if nobody has a measurement, will fit the window and mark it up so it doesn't foul on the window. Cheers
Yes my measurements were for the forward position mirrors most commonly found on euro cars.


matthewp

Member
Messages
163
Reaction score
3
Location
gold coast queensland australia
Hi There,

I'm getting close to paint but need to locate holes for the side mirrors. My car is a UK delivery RHD and the mirrors were originally located further back like in the pic attached. Is there anyone with this mirror location who could post a couple of measurements?

#1 - A horizontal measurement from the front of the door at the height of the mirror
#2 - A vertical measurement from the bottom of the door to the bottom of the mirror base

I don't have any trim or windows in the car so I'm looking for measurements taken from the panels - hope that makes sense.

Also, I'm reading that plates are needed behind the holes, are these parts welded in or are they the parts which came with the mirrors? I have new mirrors from here: https://www.wallothnesch.com/en/karosserieanbauteile/bmw-2-5-cs-3-0-csl-e9/katalogbild-51-14.html

Any help would be much appreciated.

Cheers

Ben


NZCSi

Member
Site Donor
Messages
38
Reaction score
0
Location
New Zealand
Leading edge of mirror base matches trailing edge of vent window post. Trap and flag mirrors should be the same.
Perfect! Those are the photos I was looking for - thank you.

Are the holes just normal holes or do they need to be made the shape of the screws - I thought I saw a pic somewhere (which I can't find now) which showed the holes like the London underground logo if that makes sense.


NZCSi

Member
Site Donor
Messages
38
Reaction score
0
Location
New Zealand
Normal round holes......

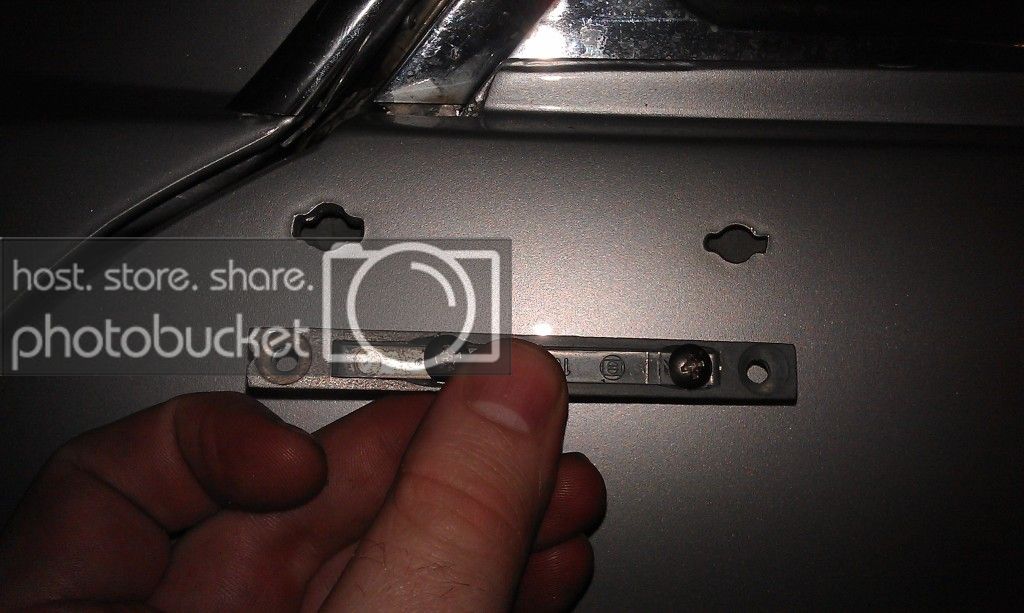

Here's the pic I found - are these the factory holes? Those holes look to be in the shape of the little nuts that came with the mirrors.

However, we're not too keen on creating this shape! So are wondering about just using rivnuts like the ones attached.

What do people think?


Attachments

Last edited:

HB Chris

Moderator
Site Donor $$
Messages
11,704
Reaction score
1,847
Location
Huntington Beach, CA
I have only seen the oblong hole as the original nuts had ears on them but they get loose. I would use those round cylindrical bushings or again just drill a small starter hole for a sheet metal screw.
