Just like mine
Is that a single solid black next to brown/blacks instead of 1 black/blue and 1 black/red? 9 wires vs later 10 wires, another change.
Yep, solid black, 9 wires total
Looks like I have a single Black one and not having the Blk/Rd and Blk/Bl !!

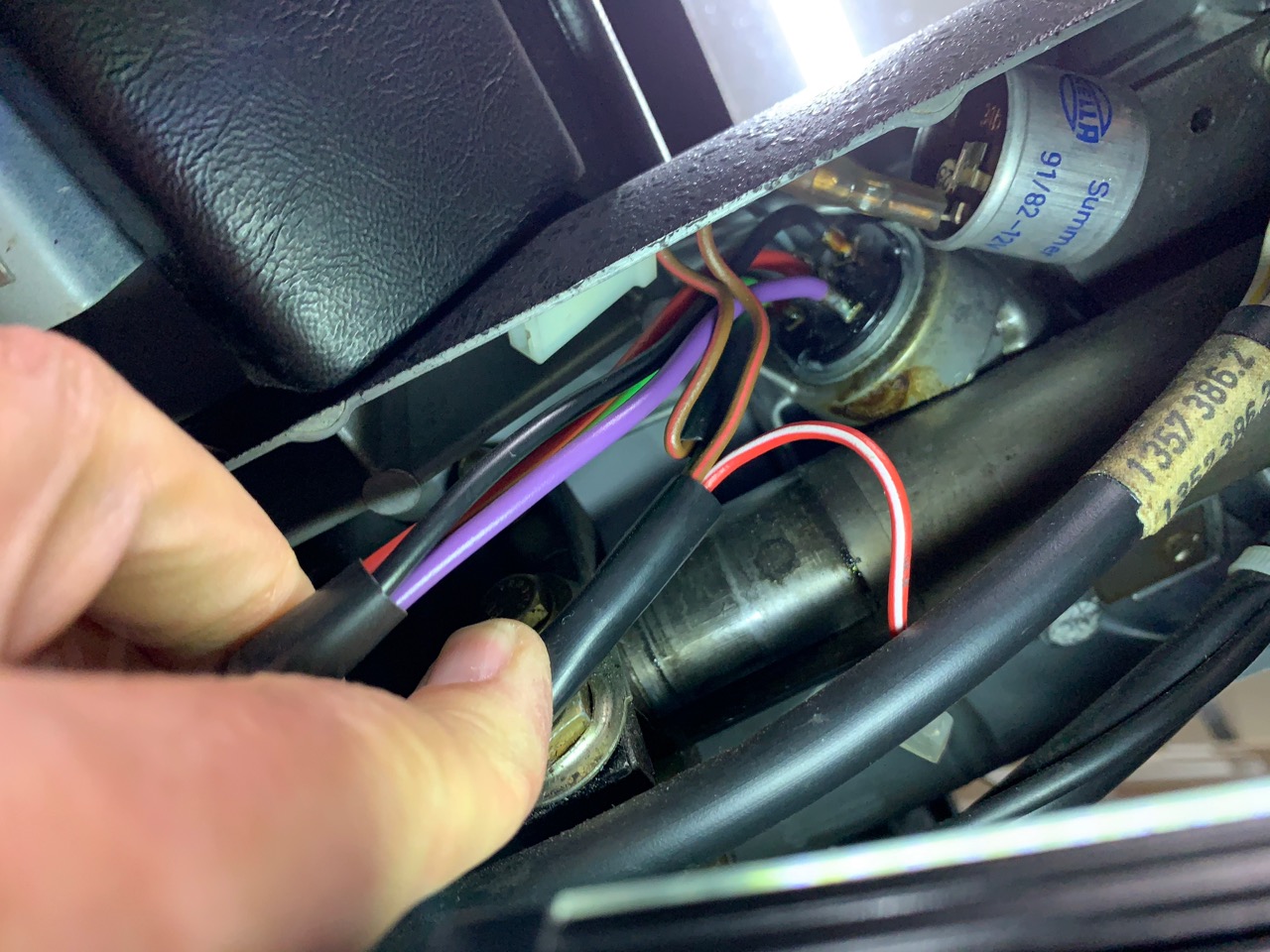

Now these two wires go to speed control. Diagram shows 6 wires to SC . Mine has only three wires at the control. Mine also has only one speed higher than the stalk.
Could this be the differnce?

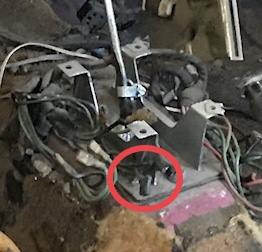

Not a good picture, but..
Attachments
Last edited:

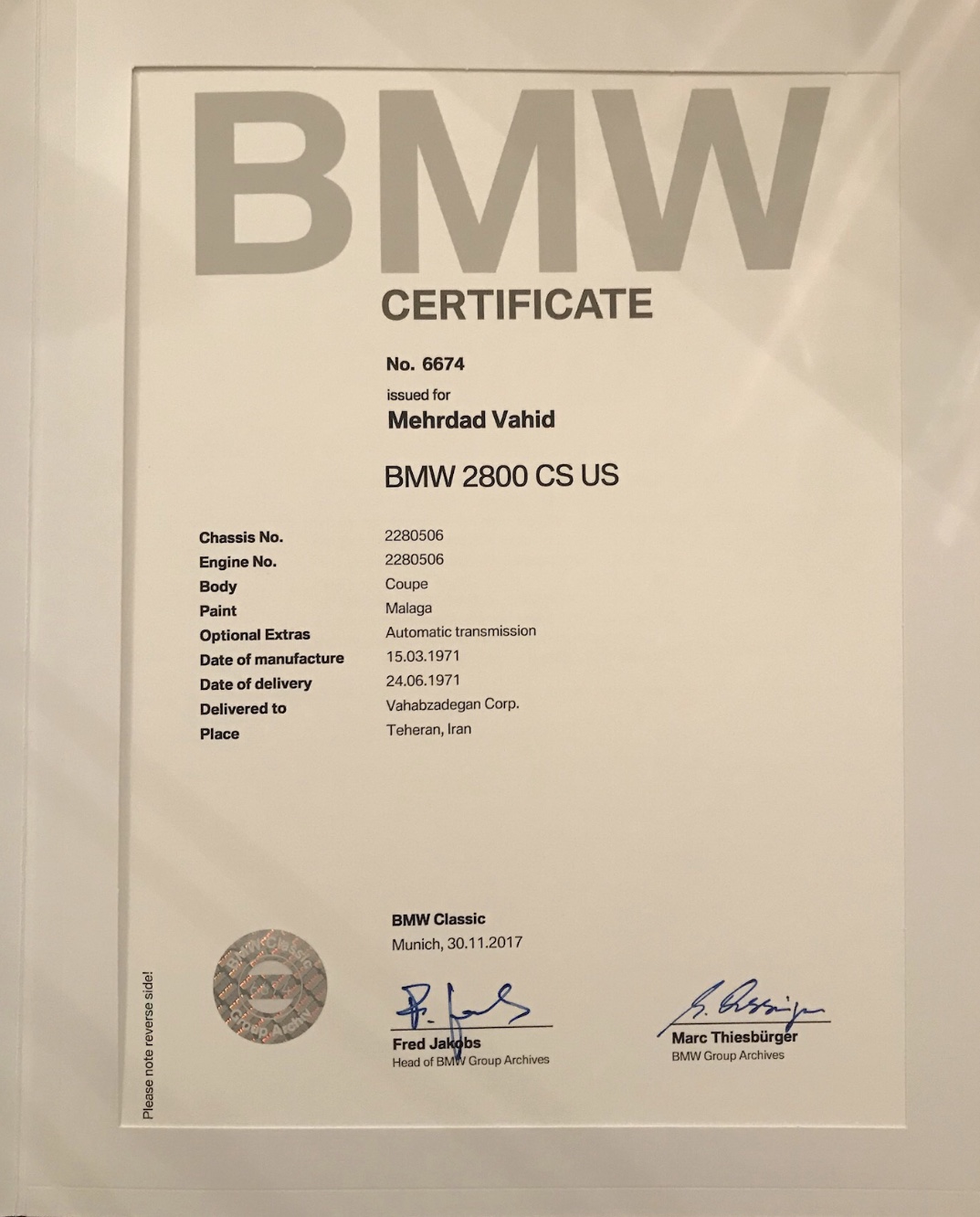

US or euro 2800CS? I think I figured this out.
Last edited by a moderator:
Thank you again Merdad.
Great visual!
Thank you Eric. I am guessing the sixth one next to the load shed is for electric sunroof, do you have that? It isn’t in Any diagrams.
Chris
Chris
I pulled the small black relay #6 on the right, sunroof still worked but car wouldn’t start. I should be more specific, starter would not turn.
Chris, sorry for the delay. Family activities.

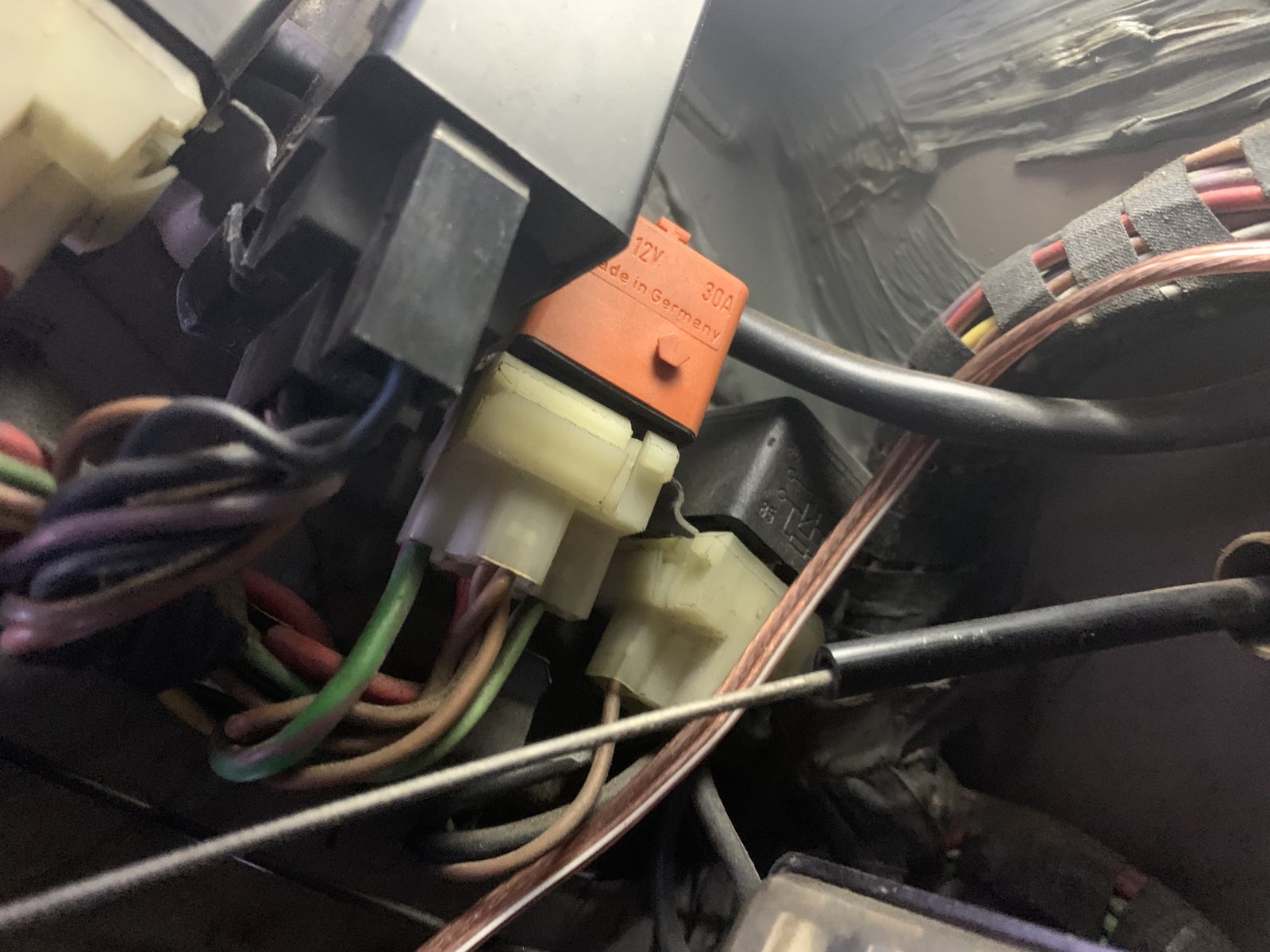

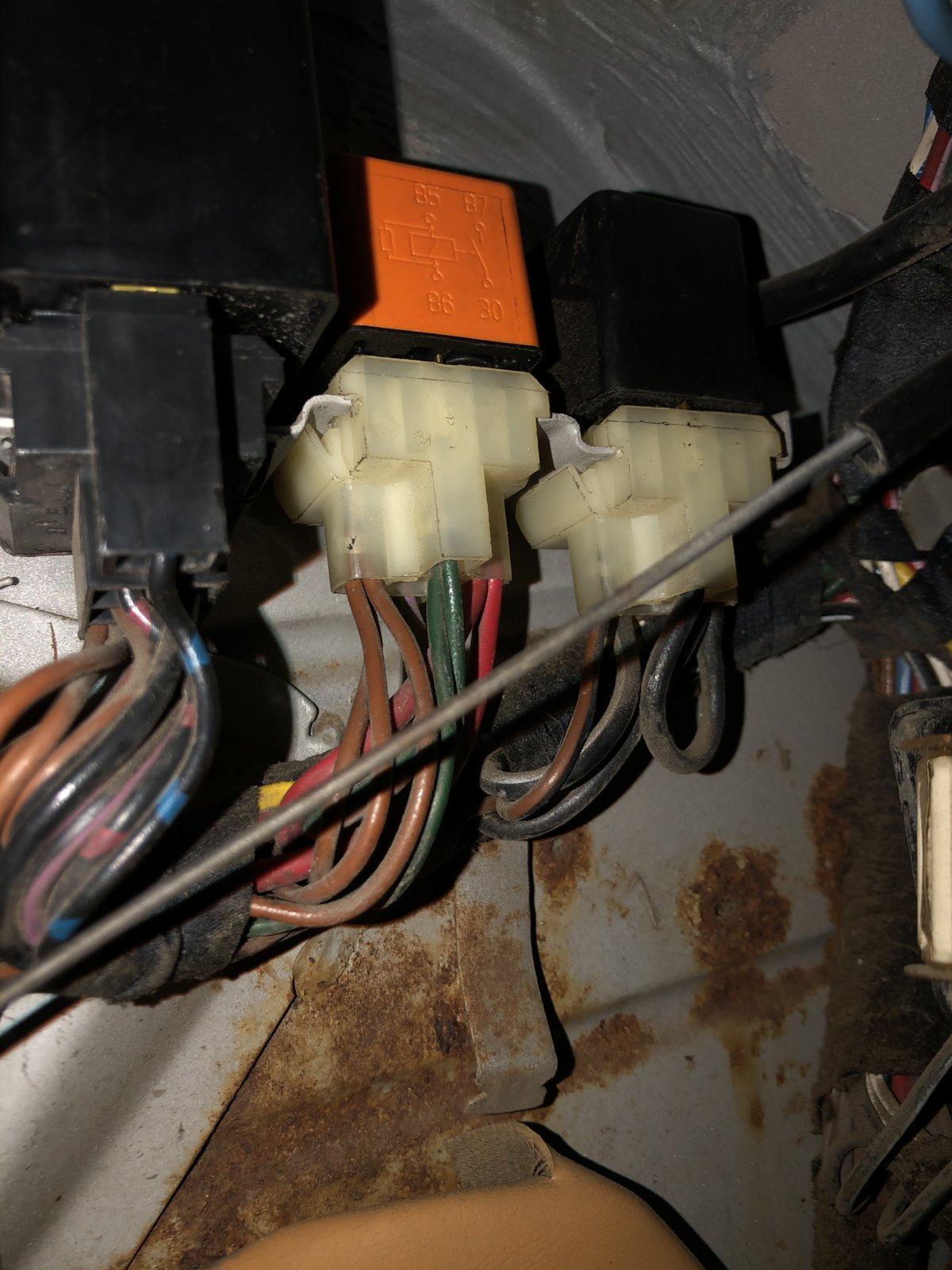

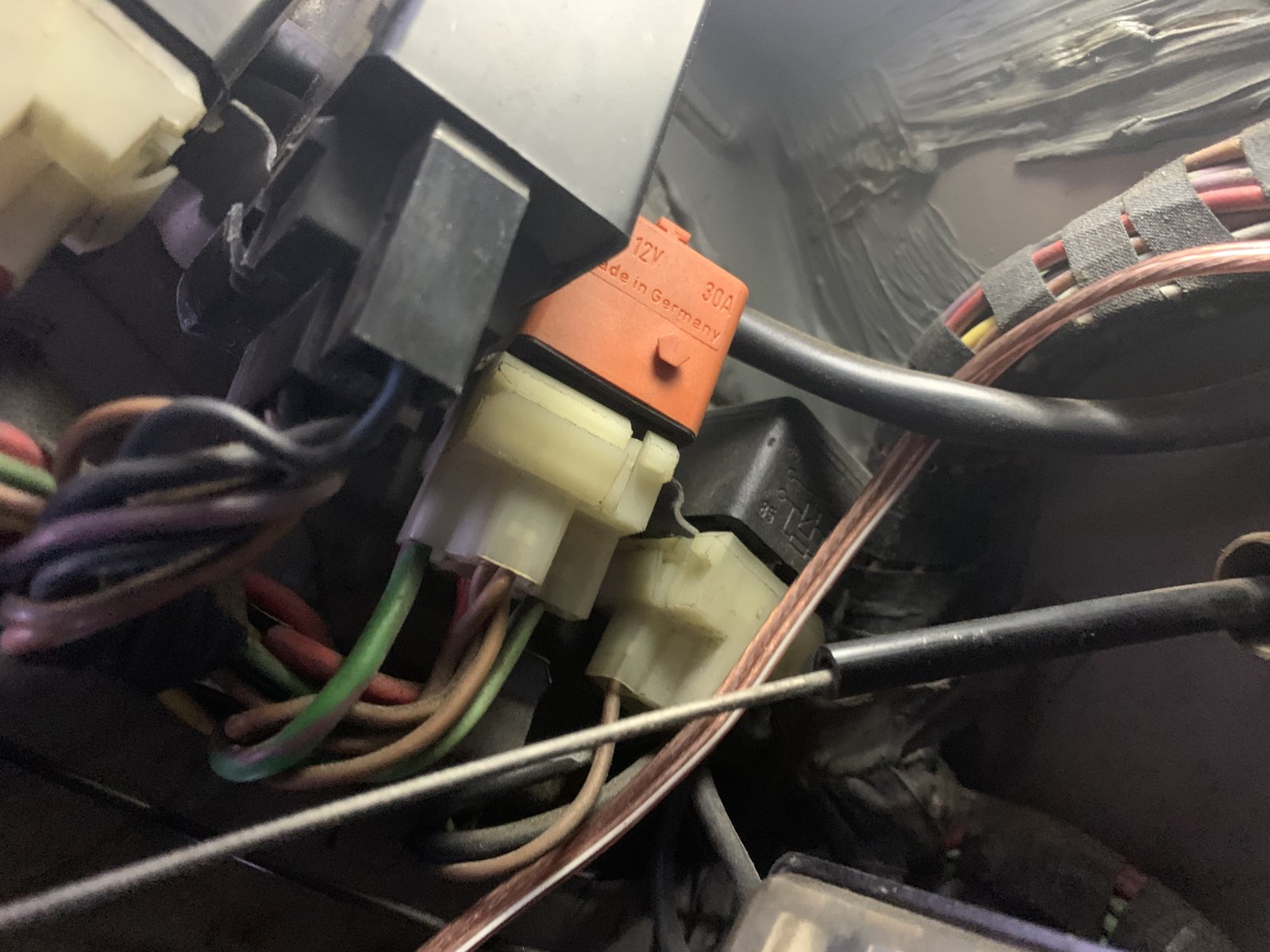

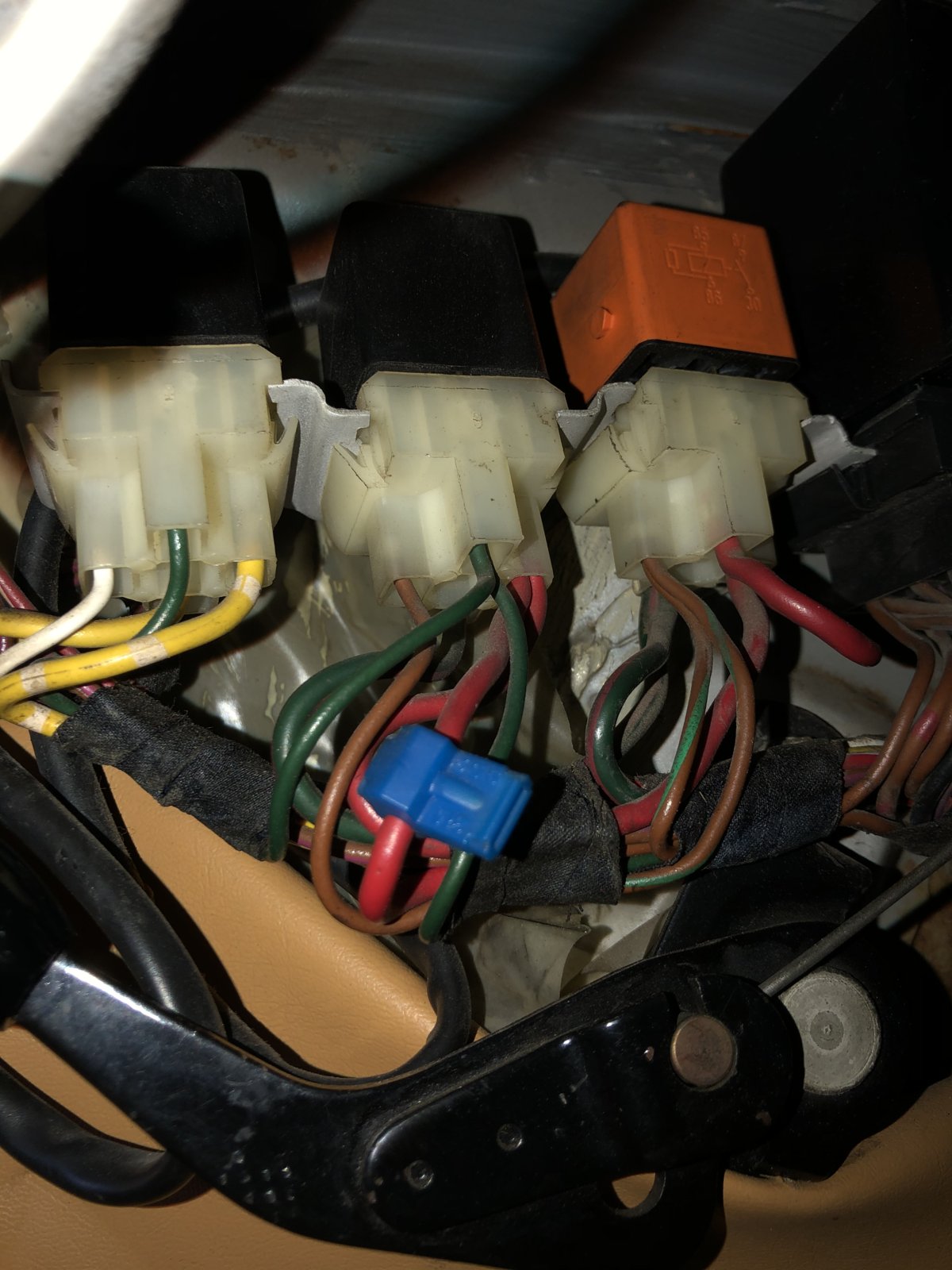

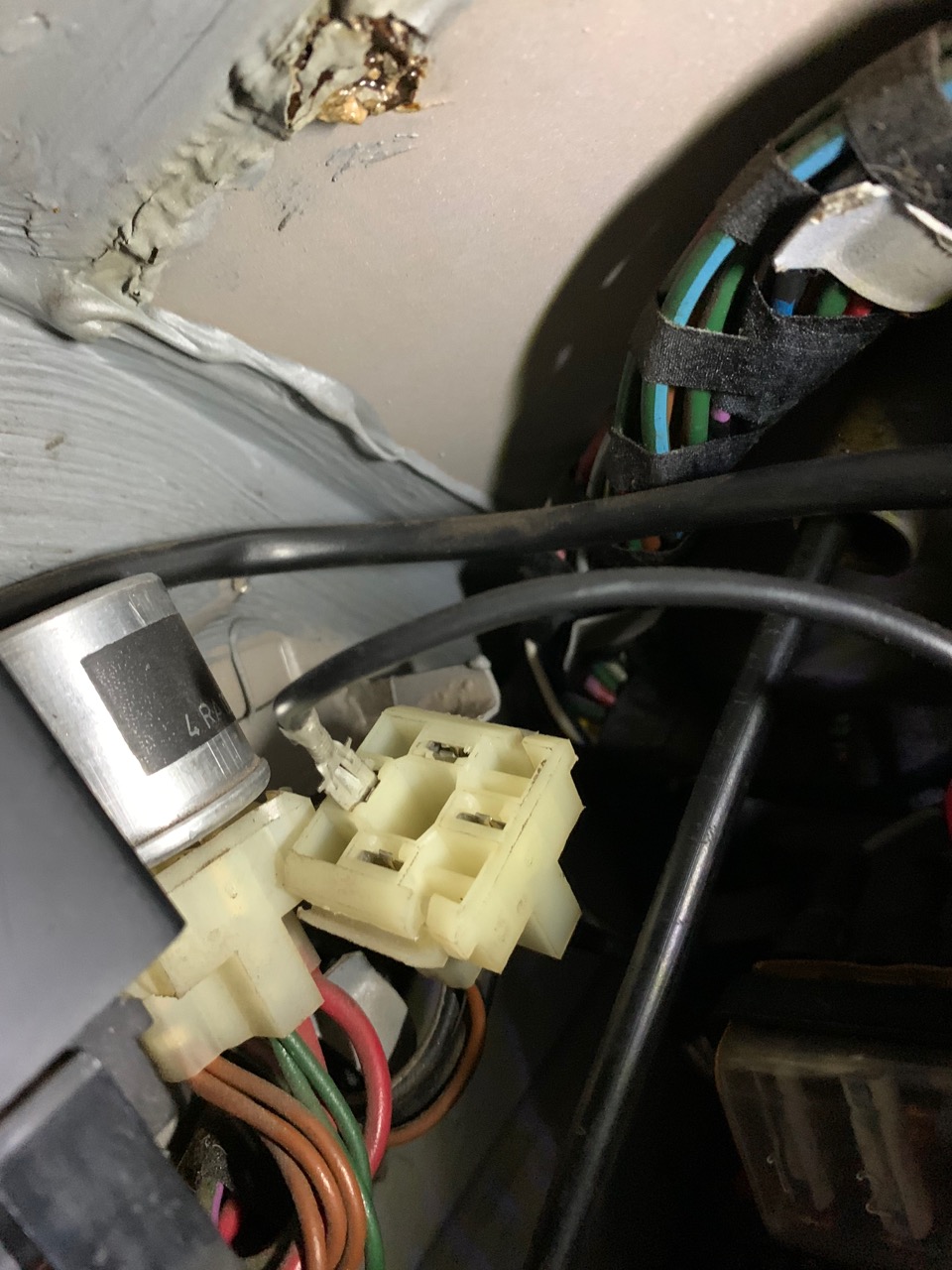

I finally had time to go down and take some pictures of those relays. One thing that was immediately obvious is that, in my car, there is no actual relay inserted in number 6 receptacle. However my electric sunroof does work fine. This indicates that that six relay is not for the sunroof.

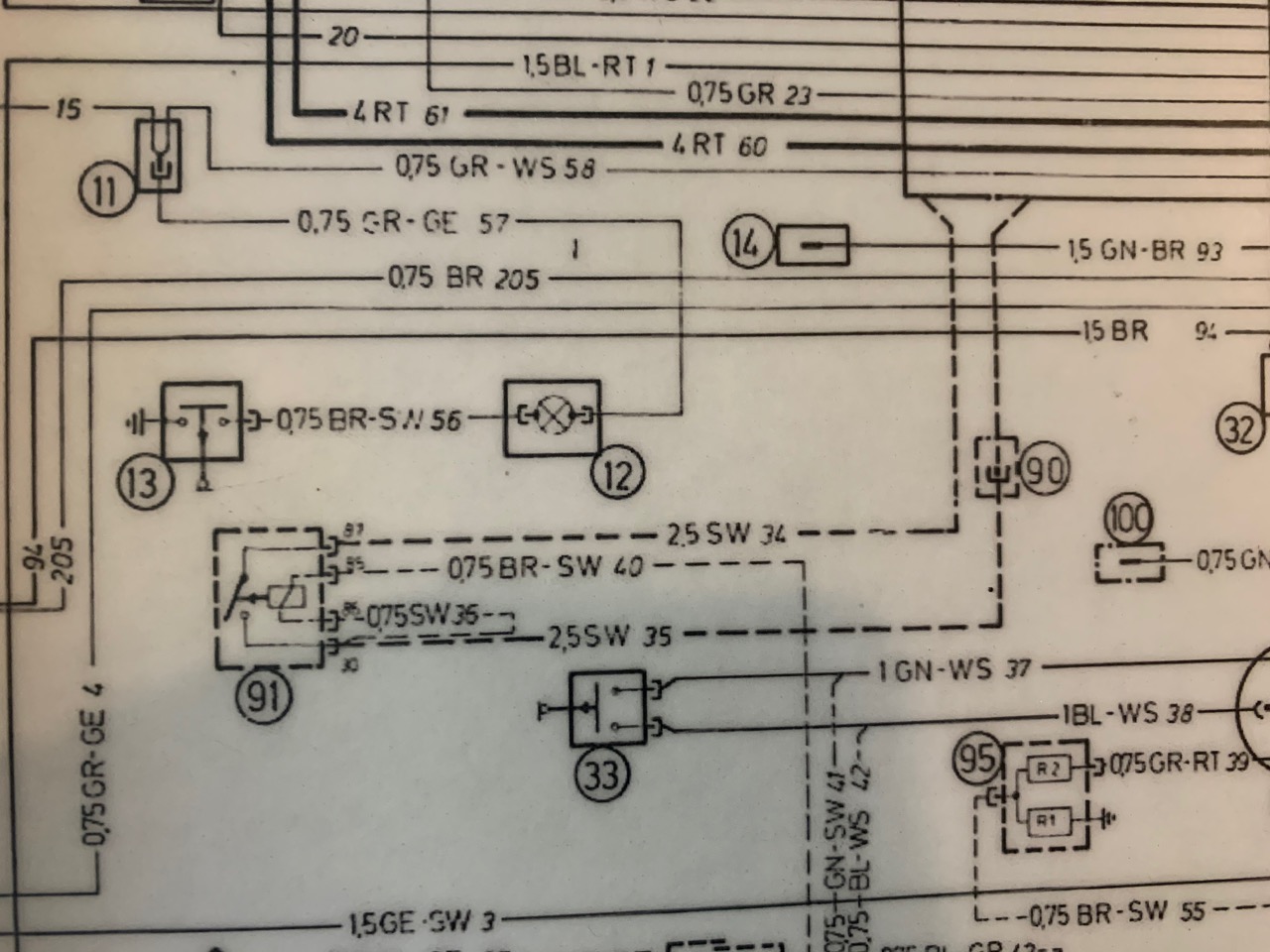

Going a little deeper, I noticed that there is actually a single black wire going into that connector. Tracing that wire, it goes to the ignition key. Then, going to my trusty schematic (which you provided me years ago) I found out that that 6th position is for relay 91 "Automatic starter relay". Since mine was converted to manual, this direct wire I have is simply bypassing the relay.
I finally had time to go down and take some pictures of those relays. One thing that was immediately obvious is that, in my car, there is no actual relay inserted in number 6 receptacle. However my electric sunroof does work fine. This indicates that that six relay is not for the sunroof.
Going a little deeper, I noticed that there is actually a single black wire going into that connector. Tracing that wire, it goes to the ignition key. Then, going to my trusty schematic (which you provided me years ago) I found out that that 6th position is for relay 91 "Automatic starter relay". Since mine was converted to manual, this direct wire I have is simply bypassing the relay.
Last edited:
Thx Bo, mystery solved.
So it’s for the circuit that knows when the automatic transmission is in P or O?
I’m not aware of what the “O” position is but I am willing to bet it is to make sure it is in “P” before it allows the starter to come to life.
O is neutral, will start only in P or O. Good to know what that lineup of relays are.
