renew the original central consoles of a non-AC car

Discussion in 'E9 Projects and Restorations' started by deQuincey, Sep 13, 2015.

  1. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao
    just in the process of doing some interior elements, i know my car is a bit different i have to renew the lateral panels of the central console

    it is essentially a non-AC car but with and odd aftermarket AC that was probably installed in 1974, lateral cuts are not very nice, but it has the advantage of the more beautiful central console área of the non-AC version

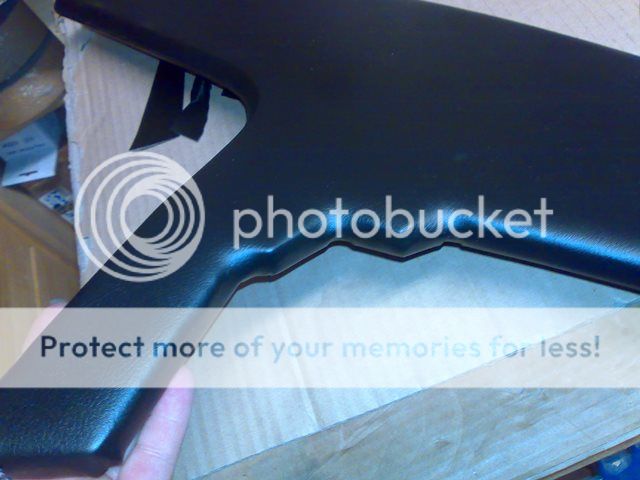

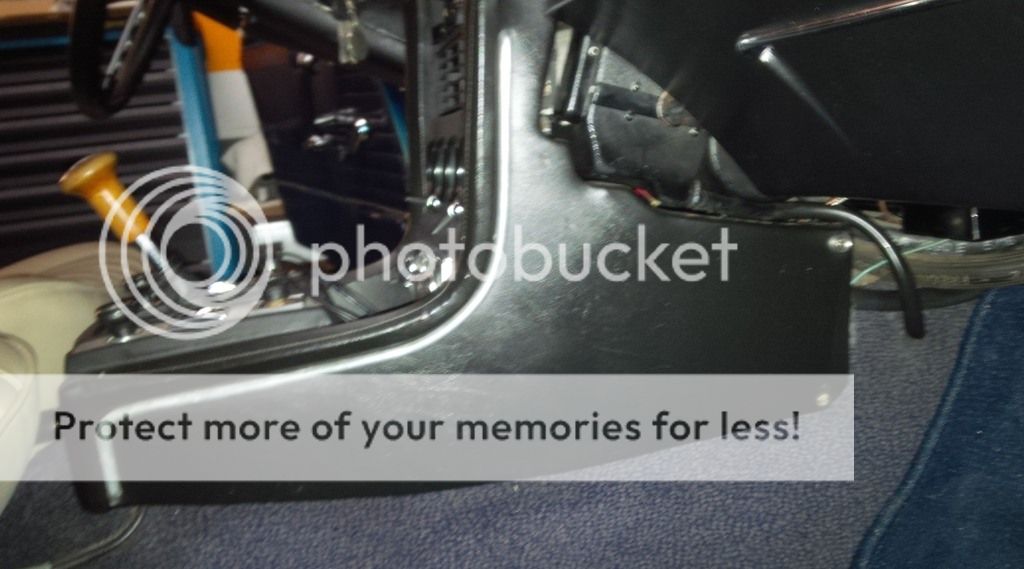

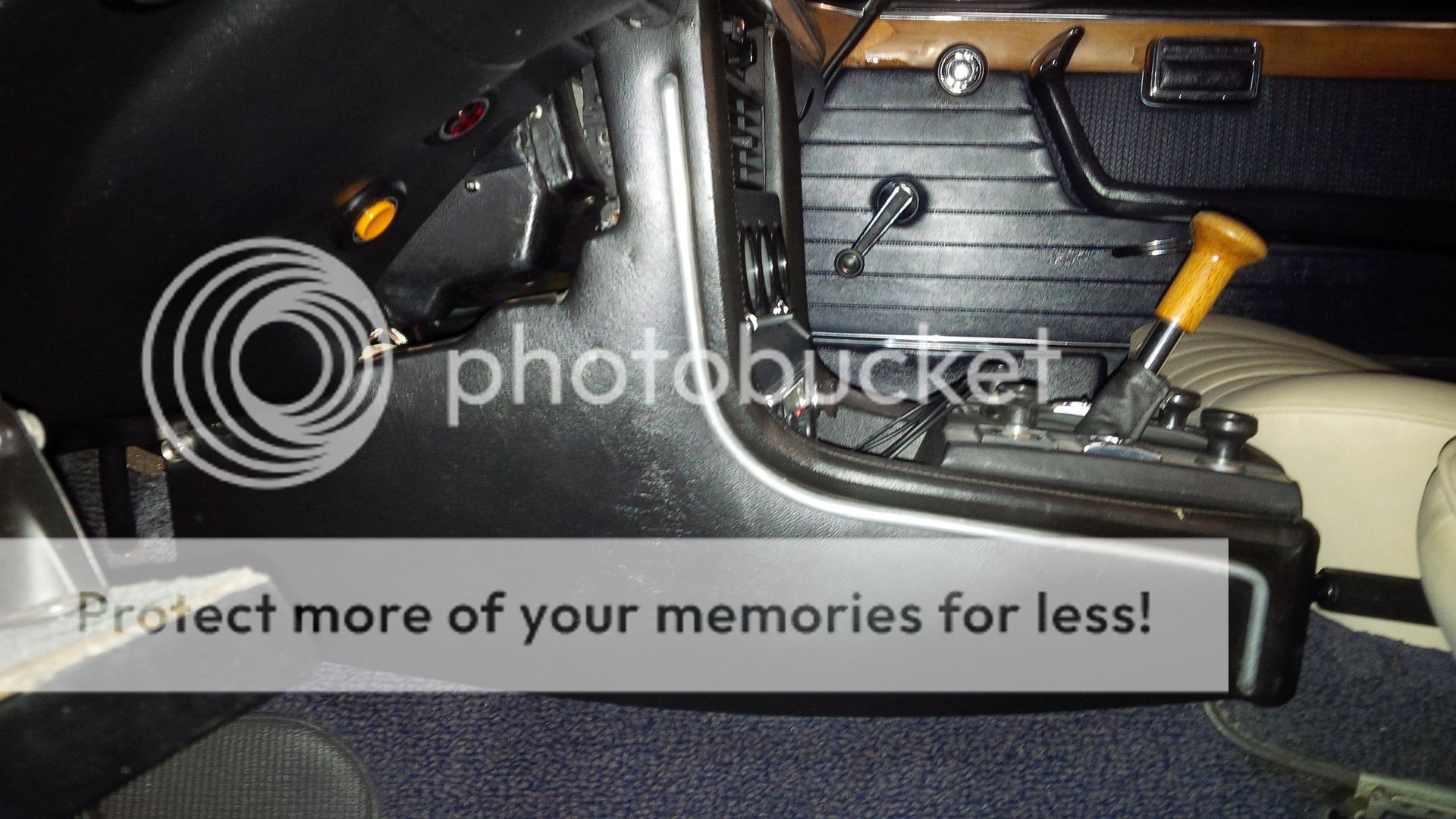

    this is it:

    [​IMG]

    [​IMG]

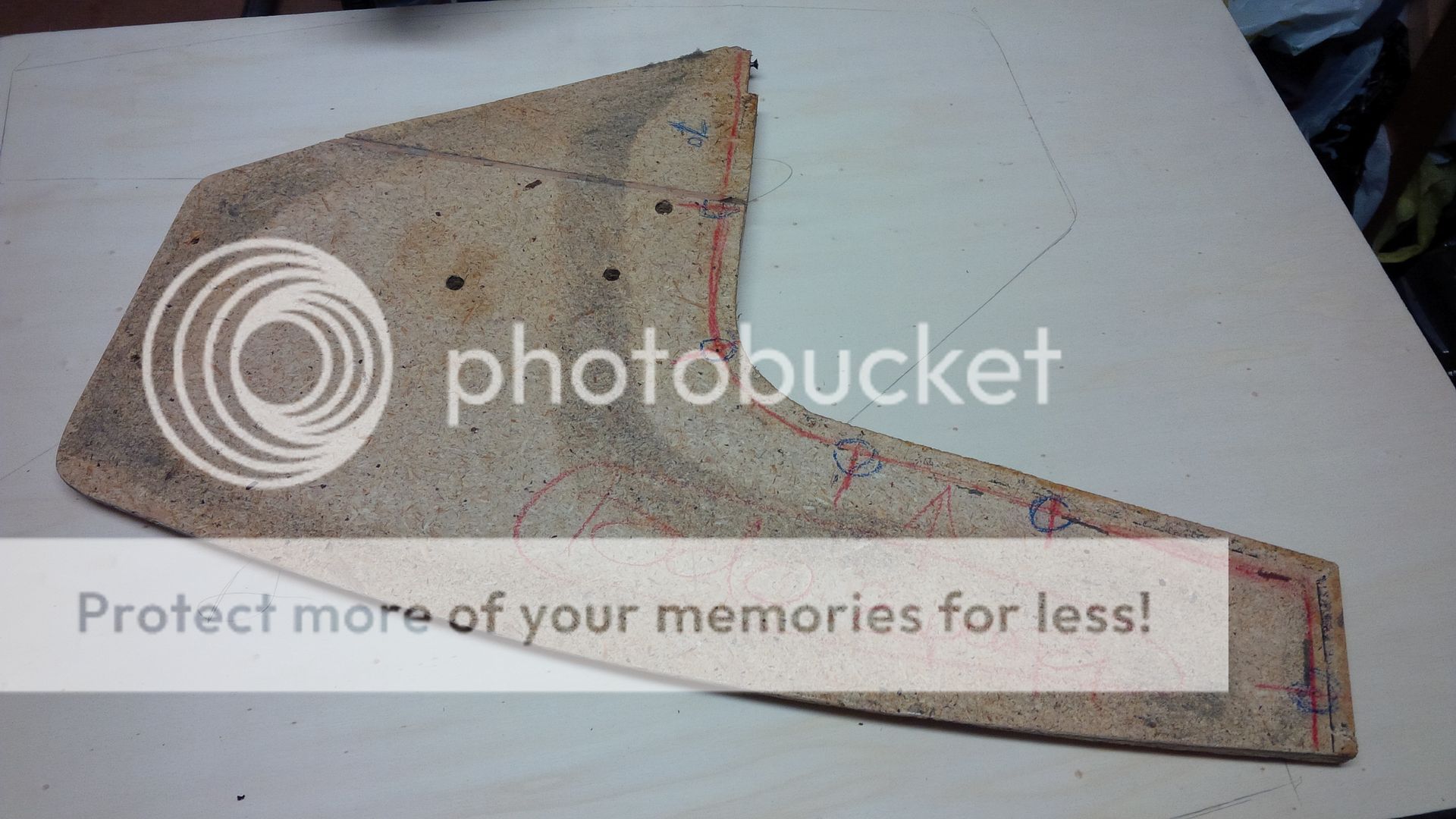

    wanted to renew them in nice new vinyl

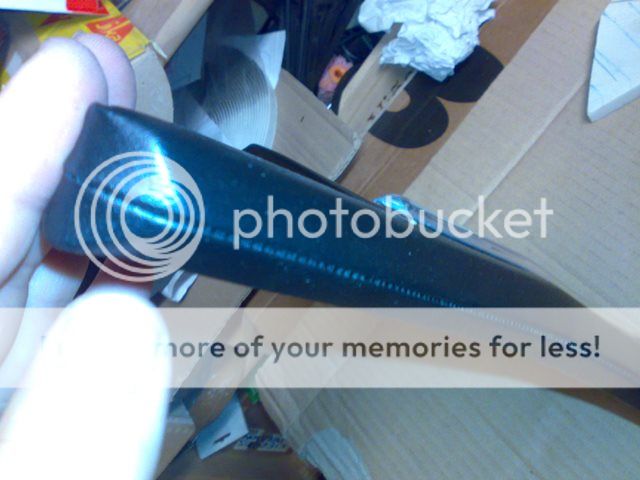

    the main issue is that the lateral panels are not flat, they have a slight bent in top área, that is the key business of this job.

    [​IMG]

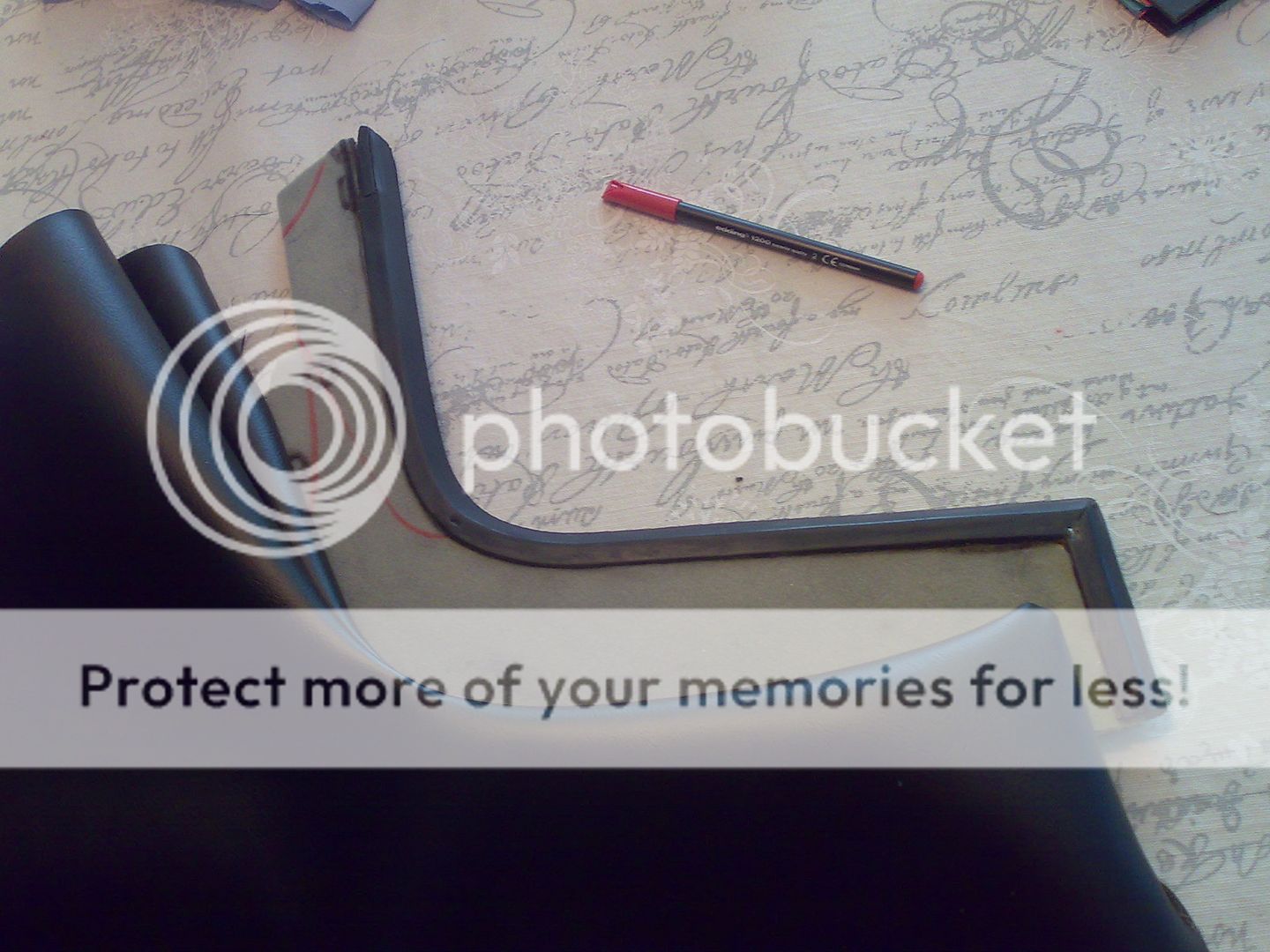

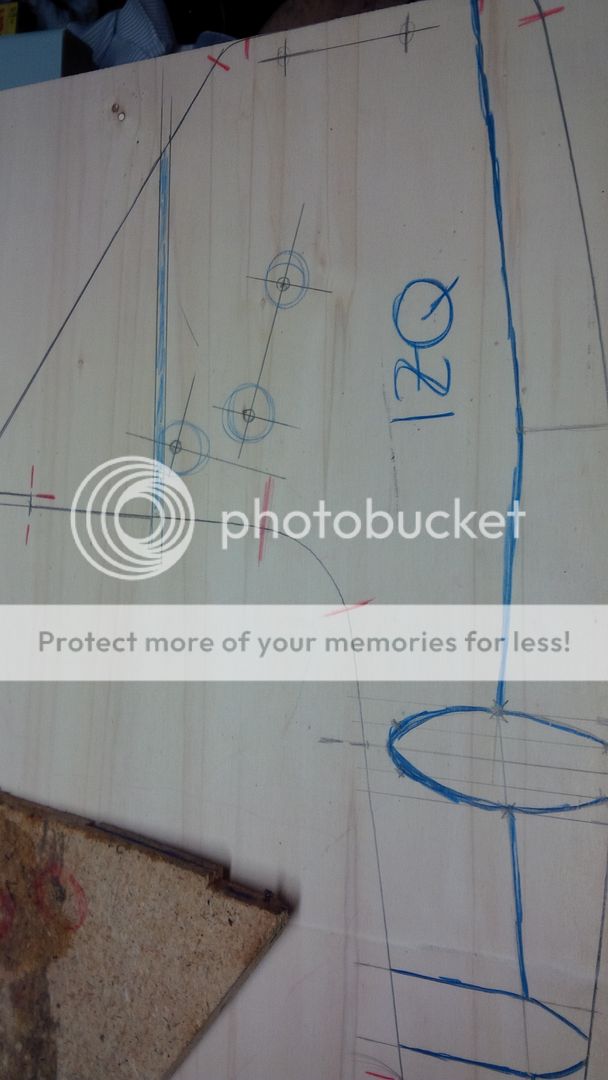

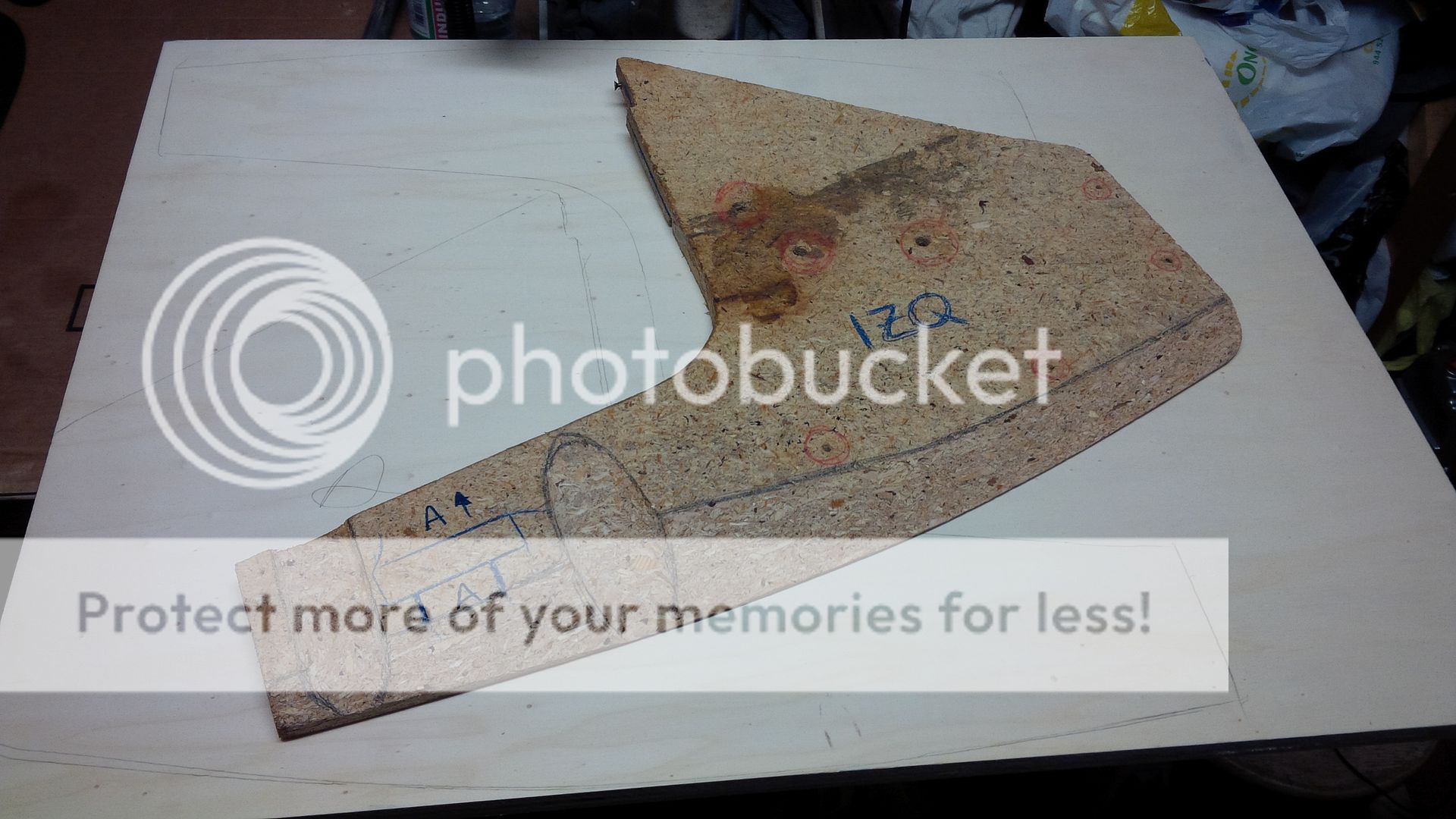

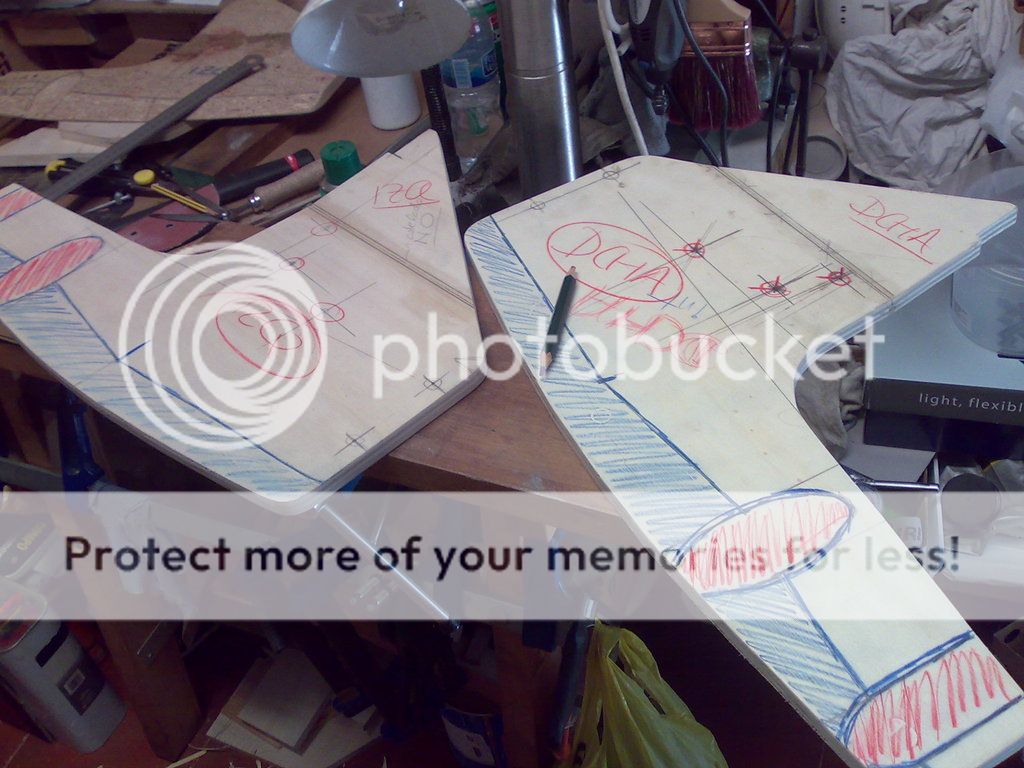

    draw the contours.
    [​IMG]

    [​IMG]

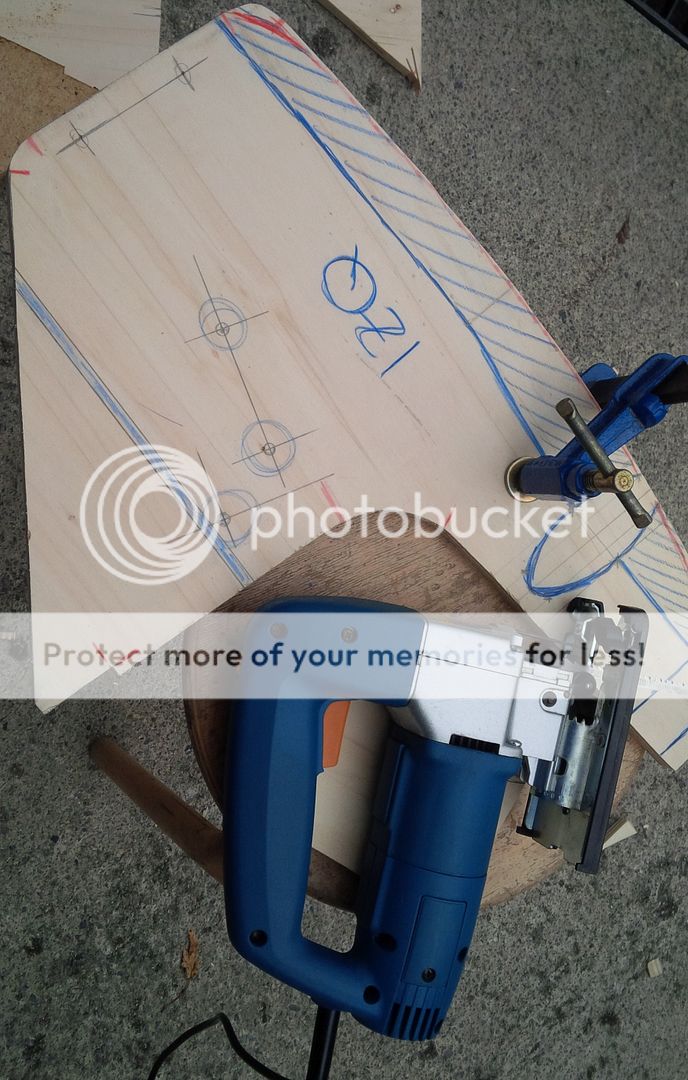

    so cut the panels:
    [​IMG]

    [​IMG]

    [​IMG]



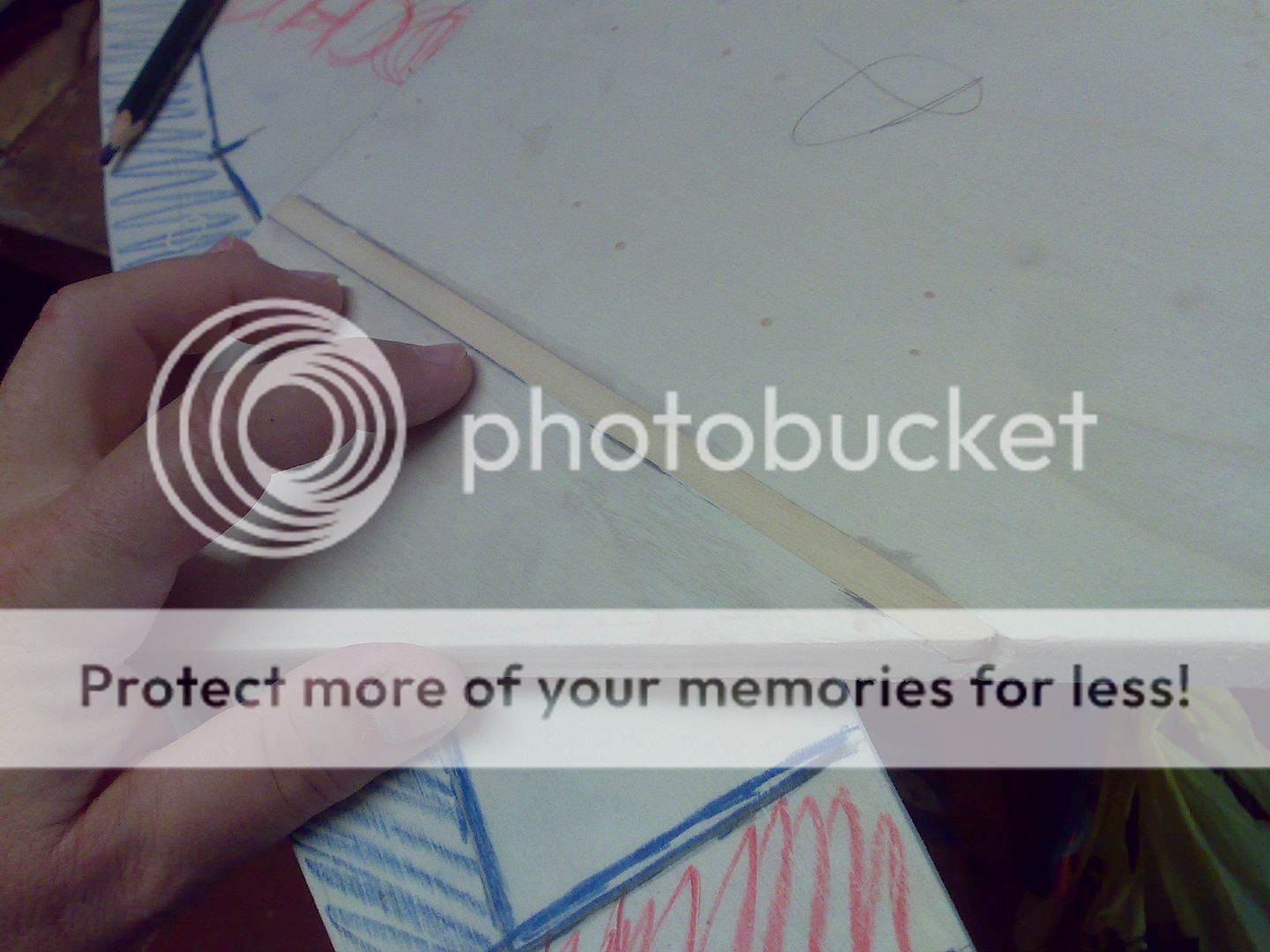

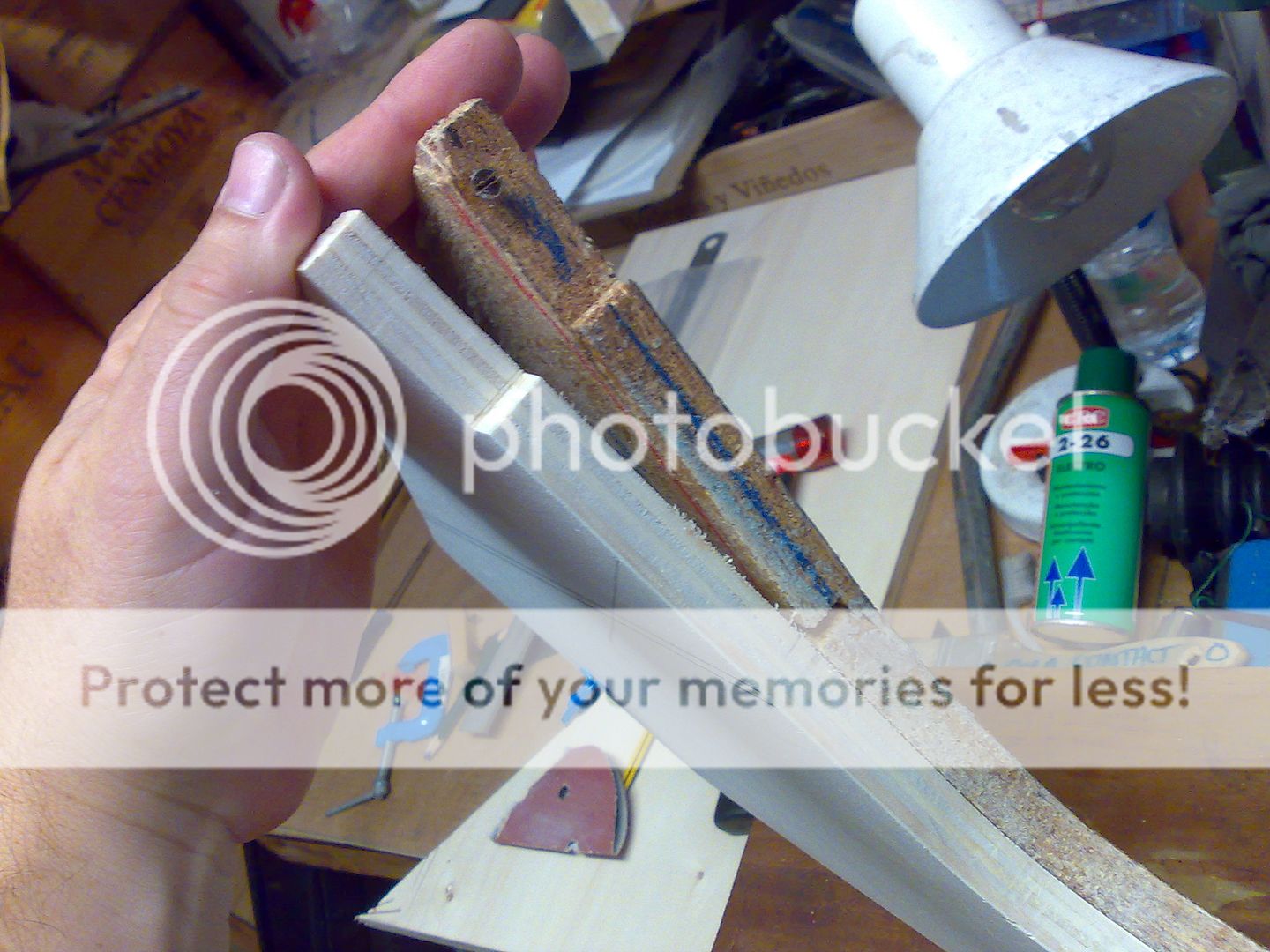

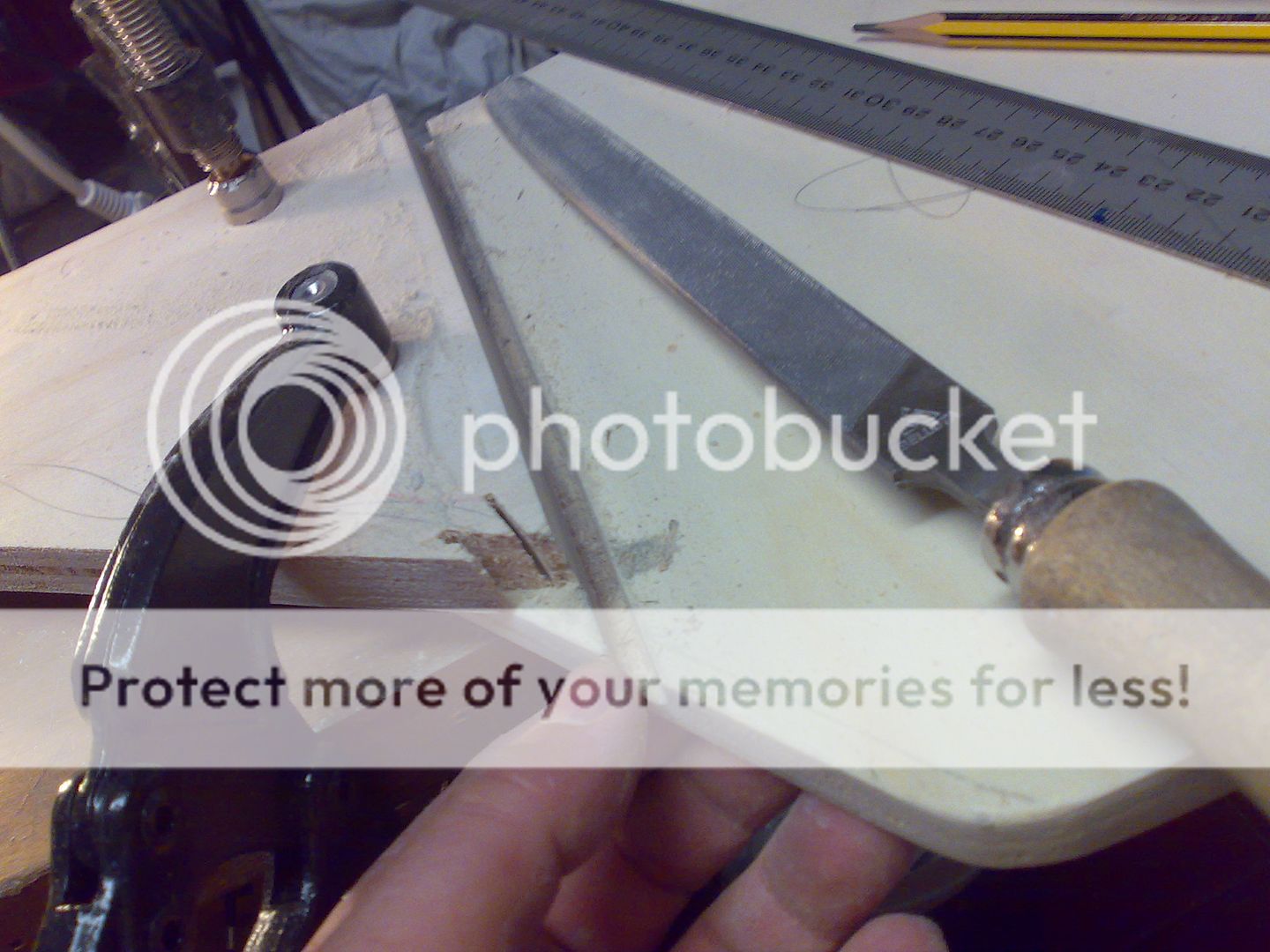

    in order to bend the panel use a file and make a channel

    [​IMG]

    [​IMG]

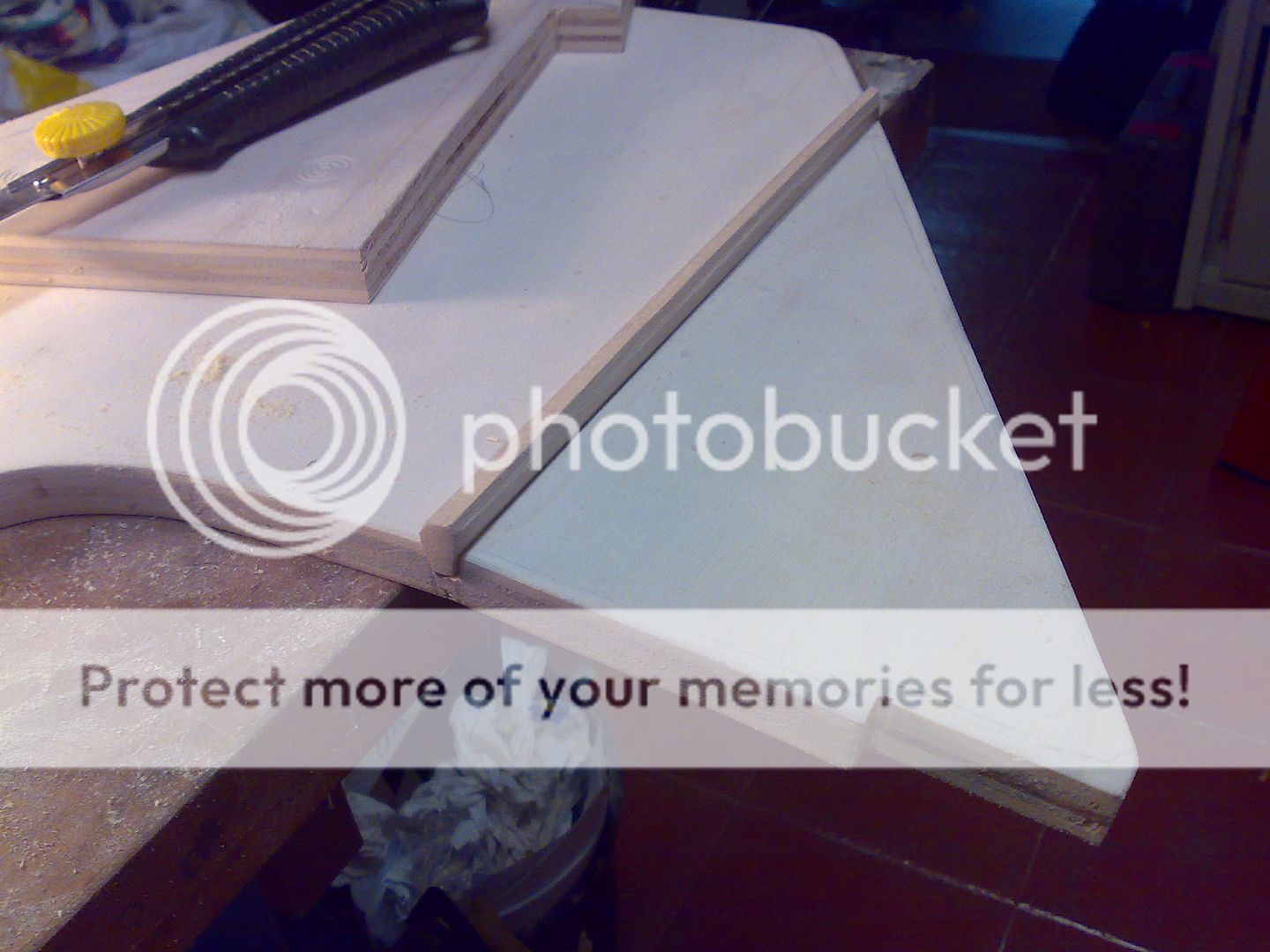

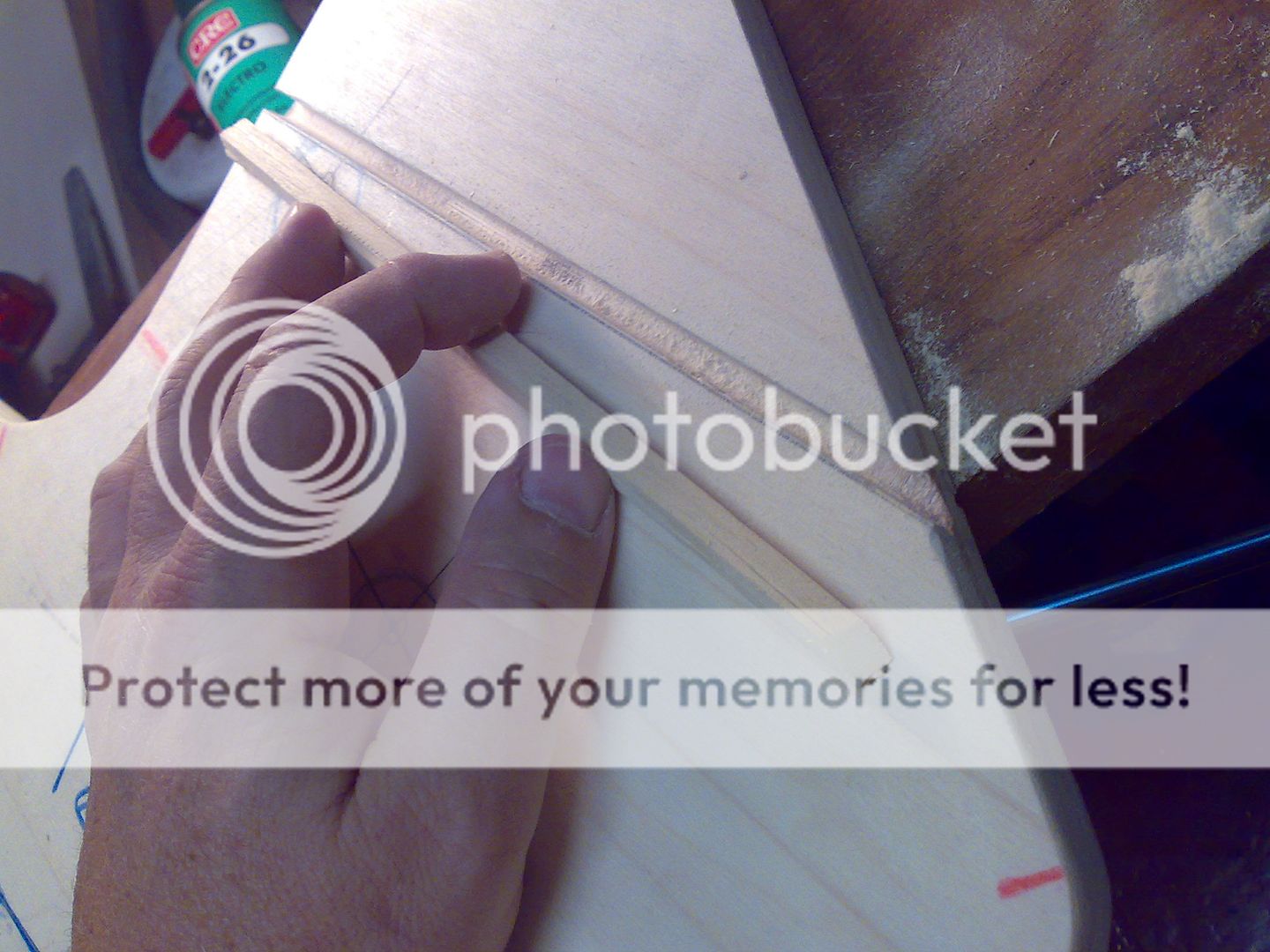

    and use a bit of wood

    [​IMG]

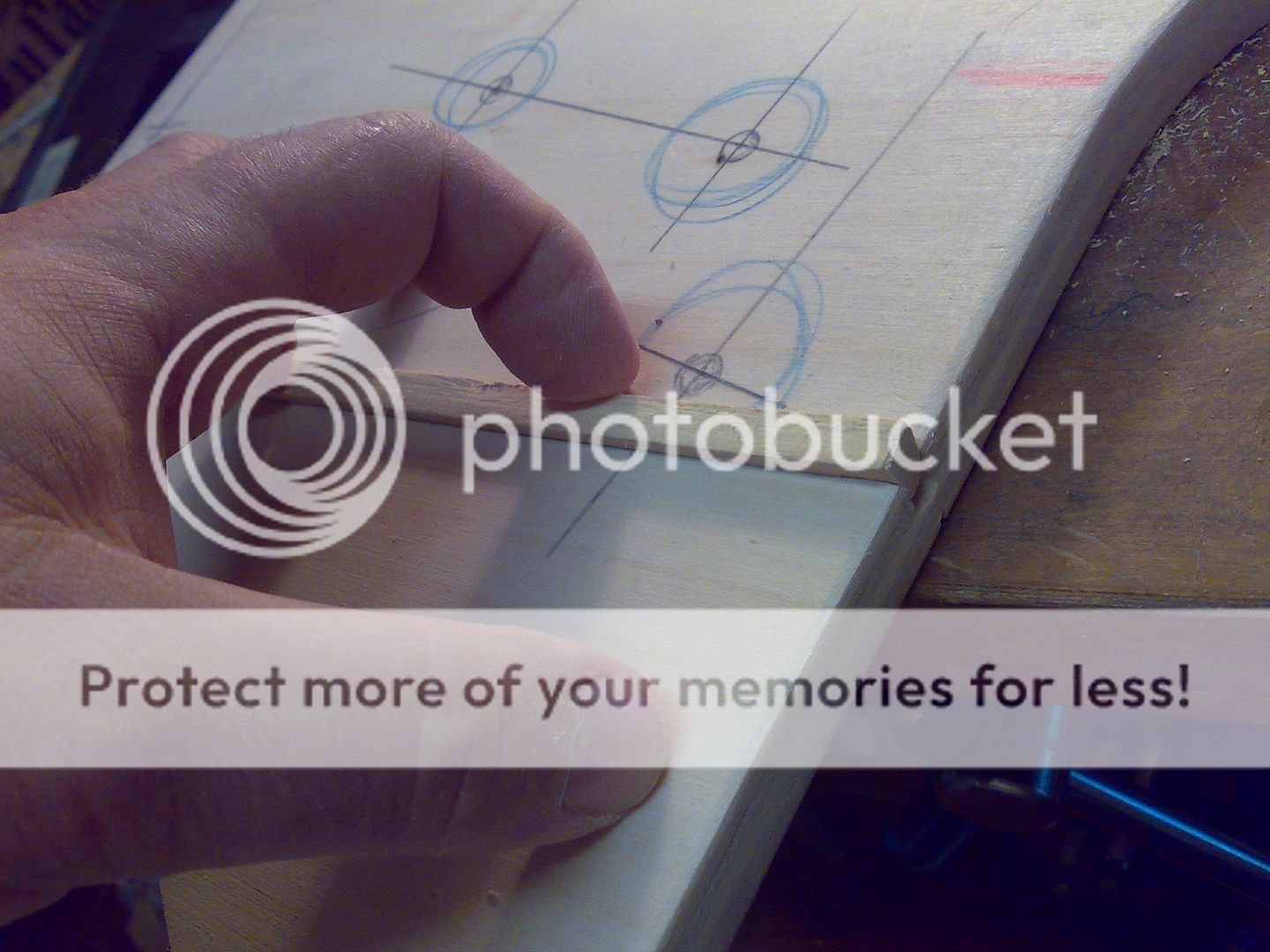

    forcé it into the cannel

    [​IMG]

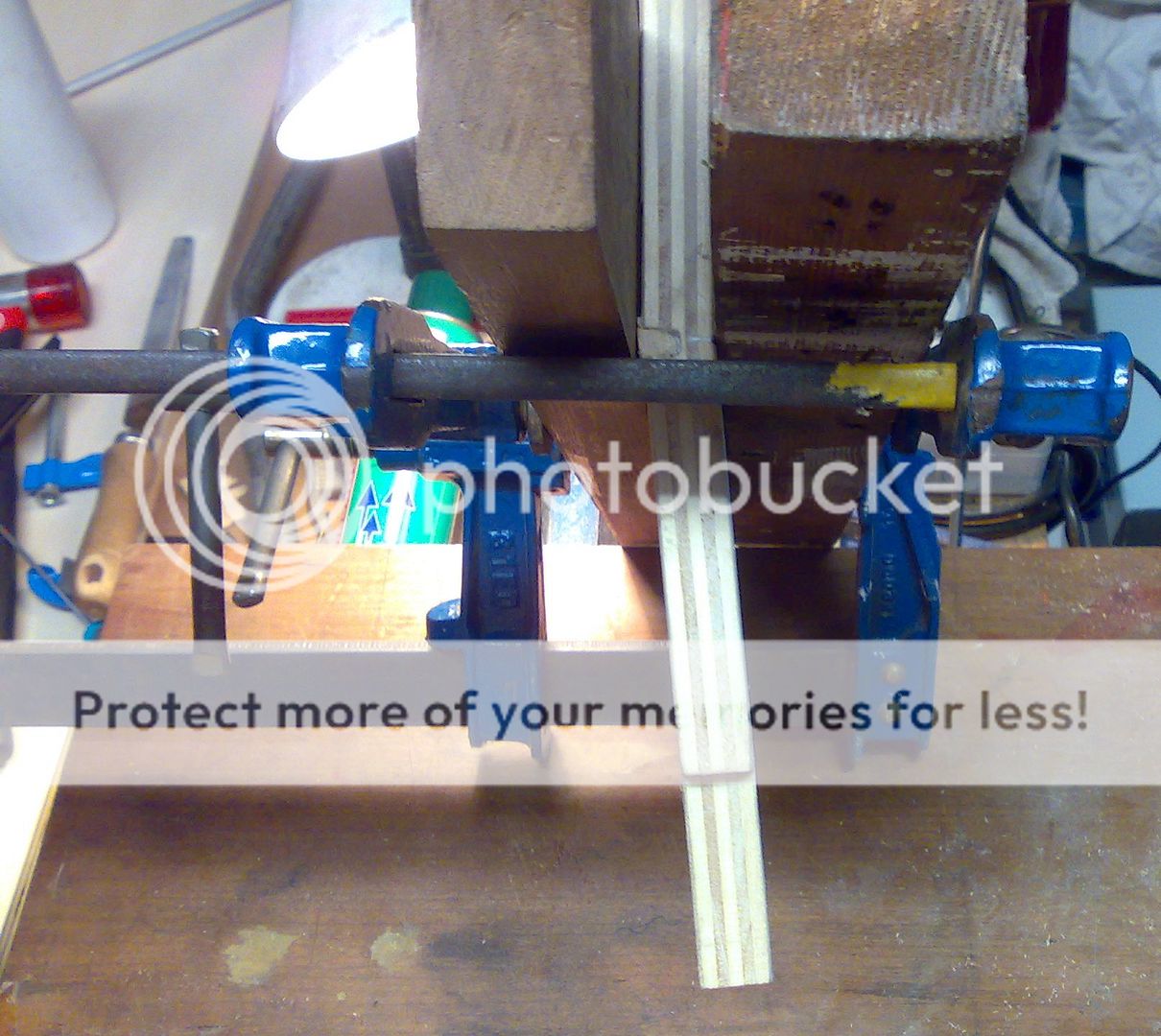

    glue it together for super strong finish

    [​IMG]

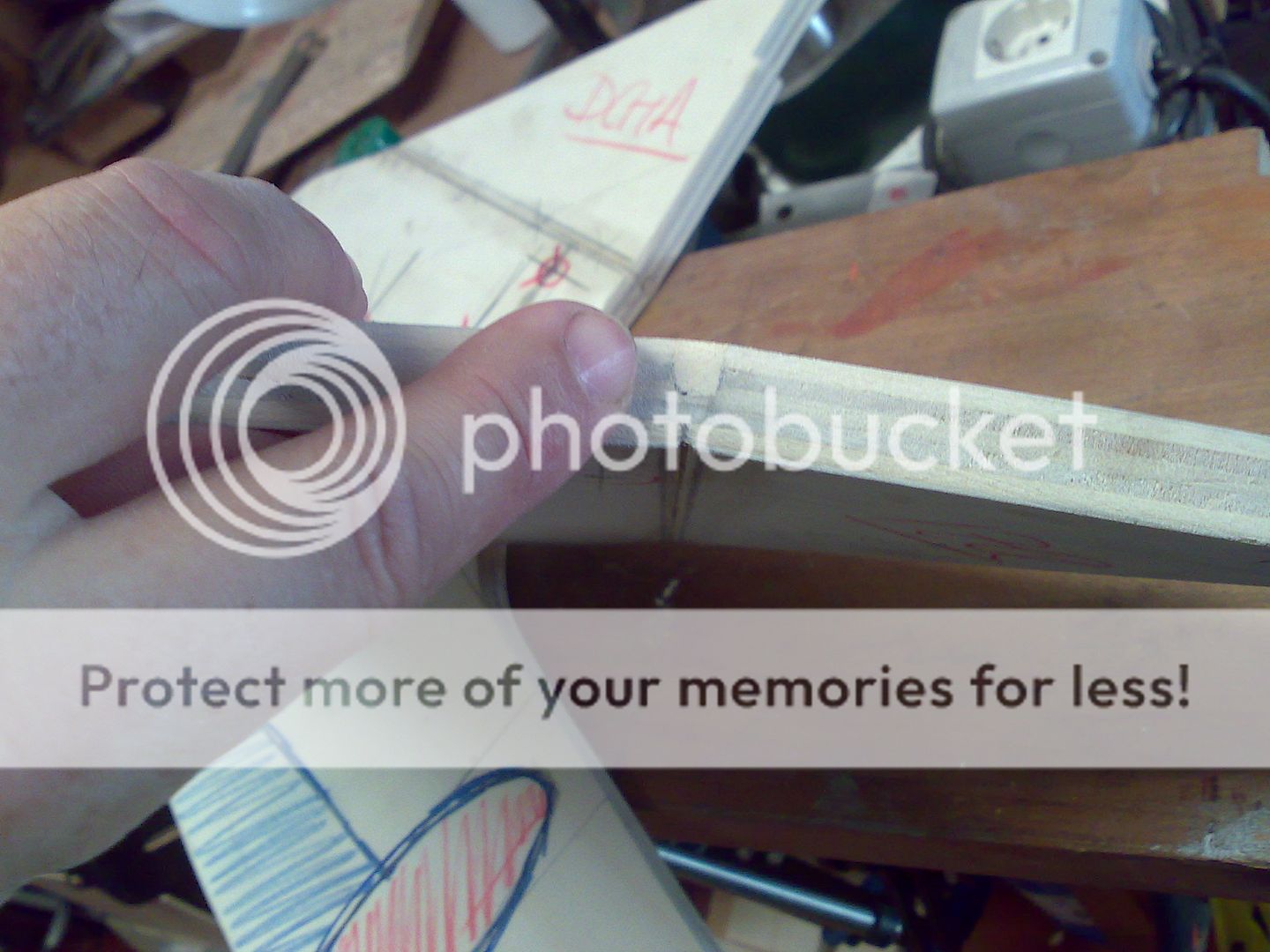

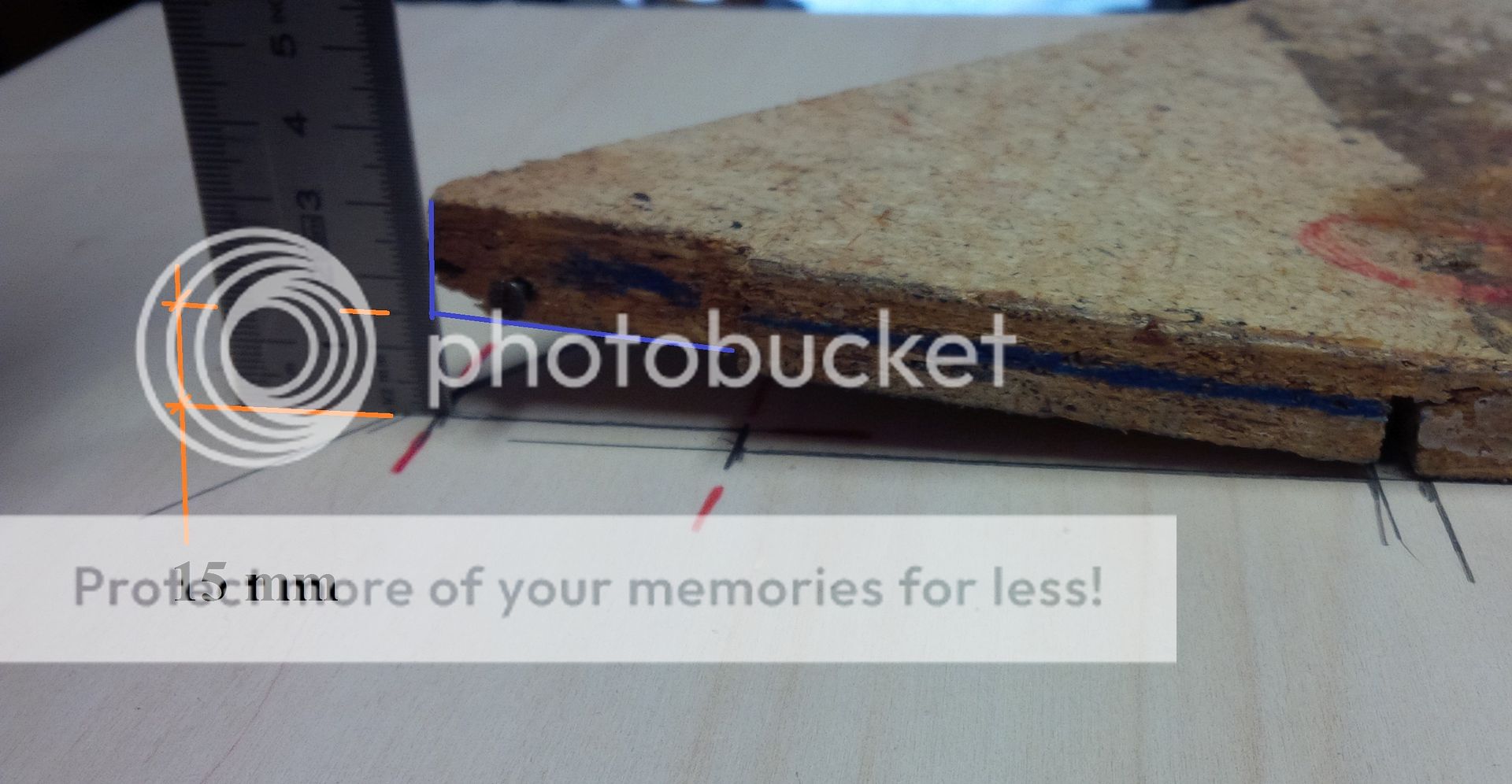

    see the angle that you have to achieve

    [​IMG]

    [​IMG]


    done,a nice solution from the 70-ties

    [​IMG]

    [​IMG]

  2. Kizilsakal

    Kizilsakal Member Site Donor

    Messages:
    203
    Likes Received:
    19
    Trophy Points:
    18
    Location:
    Istanbul, Turkey
    Jesus it seems the old pieces were done by you also. are you improving on your own work now? did you run out of things to do on your car? if so, would you restore my cars if I bring them to spain? ;)

  3. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao
    ha,ha, noooo the old pieces that are now in the car are the original parts that were cut to accomodate the odd AC evaporator, so 40 years use left some dents and defects that i want to correct now

    you were right that i did recently brand new consoles for a stock AC install

    the point is that i do not really know which way to go, refresh the odd but period correct AC installation that leaves me enough space for my gauges, probably this will be the way, or, install the original AC including the horrible central grille that will force me to abandon the gauges, not likely...

    i am trying to keep this as it is now, but with the AC blowing fresh air too

    [​IMG]

    Last edited: Sep 14, 2015
  4. NewSixCoupe

    NewSixCoupe Active Member Site Donor

    Messages:
    961
    Likes Received:
    25
    Trophy Points:
    28
    Location:
    Northeast
    Absolutely beautiful work Jesus! Now how are you going to reproduce the vinyl covering?

  5. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao
    thanks Len,

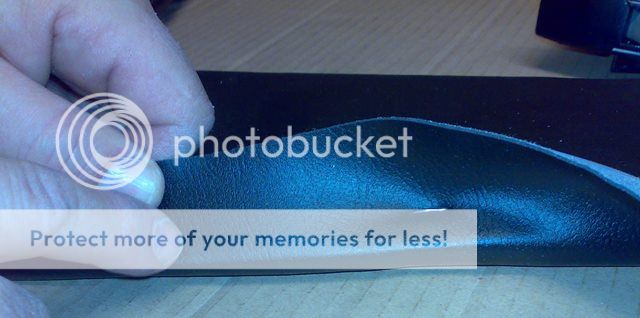

    as to the material to cover them, i do have a roll of vinyl that looks very much the same as the original, it has a very nice texture, colour and feels like the dashboard pieces, i did that in the AC version panels, and the result was lovely, so i expect a similar result here,

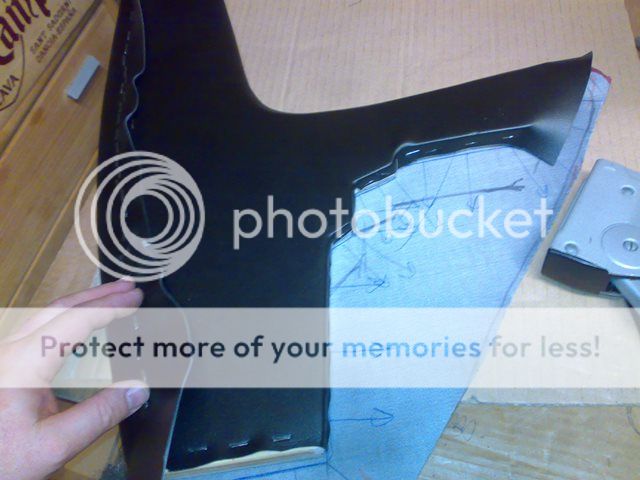

    i will cut the patterns and sewn them, then i have to open a bit the rubber channels to let the joint line come into them, and finally some staples will do the job

    but prior to that i will have to work a bit more on the wood, and to bring the aluminium trim lines to polish and re-anodize

    still a lot to do

  6. NewSixCoupe

    NewSixCoupe Active Member Site Donor

    Messages:
    961
    Likes Received:
    25
    Trophy Points:
    28
    Location:
    Northeast
    Jesus, I have a tiny piece (3mm x 3mm) missing from the corner of one of my panels, luckily not where the faux stitching is. They're otherwise perfect. Any ideas about how to touch this up? I was thinking about trying liquid vinyl, the kind used for dipping tool handles...

  7. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao
    probably yes, liquid leather, or liquid vinyl, but maybe easier than that, what about a touch of paint ? i mean if you see a clear hole i would paint it

  8. NewSixCoupe

    NewSixCoupe Active Member Site Donor

    Messages:
    961
    Likes Received:
    25
    Trophy Points:
    28
    Location:
    Northeast
    I tried paint, but it would need many, many coats before the uneveness between vinyl and wood disappears. That's why I thought something with a bit more viscosity...

  9. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao
    on

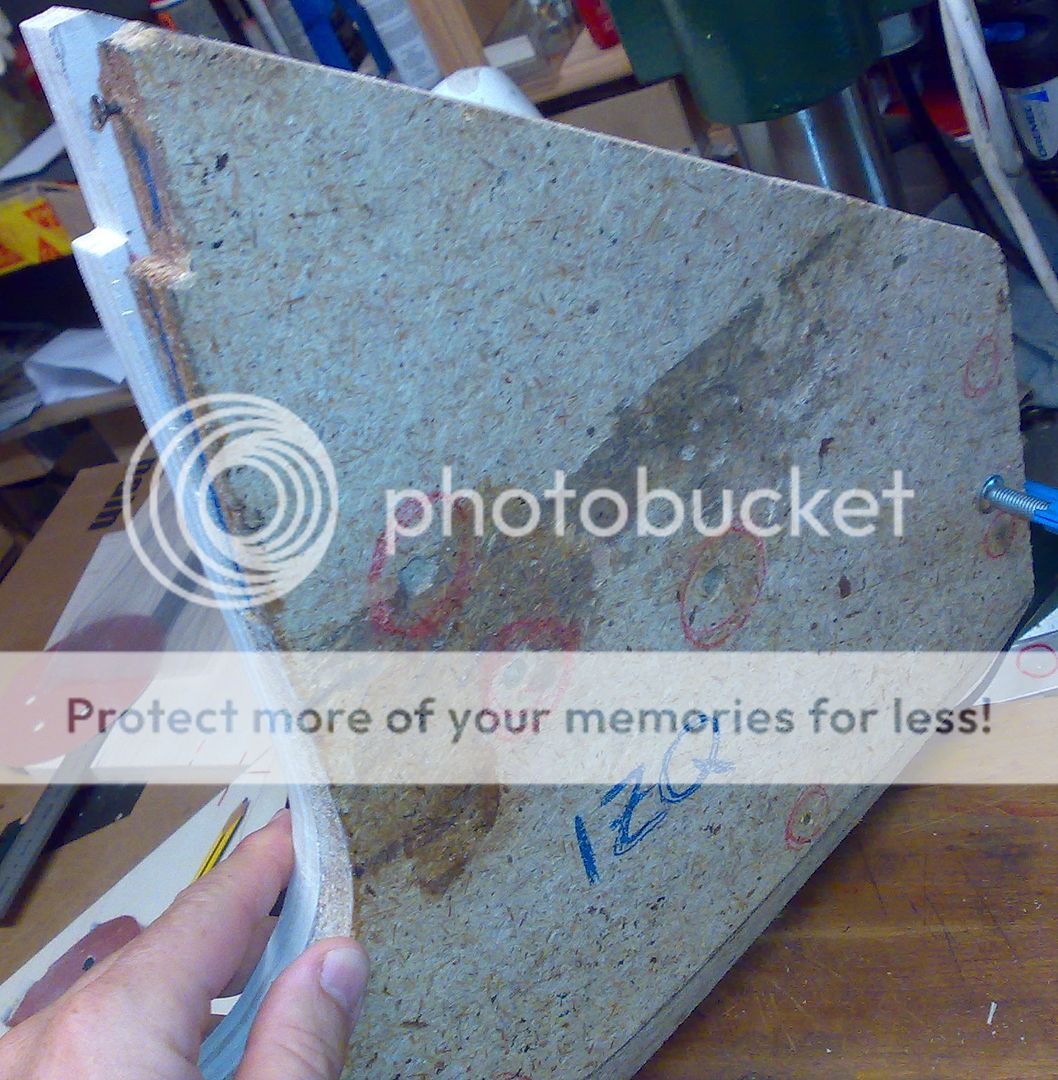

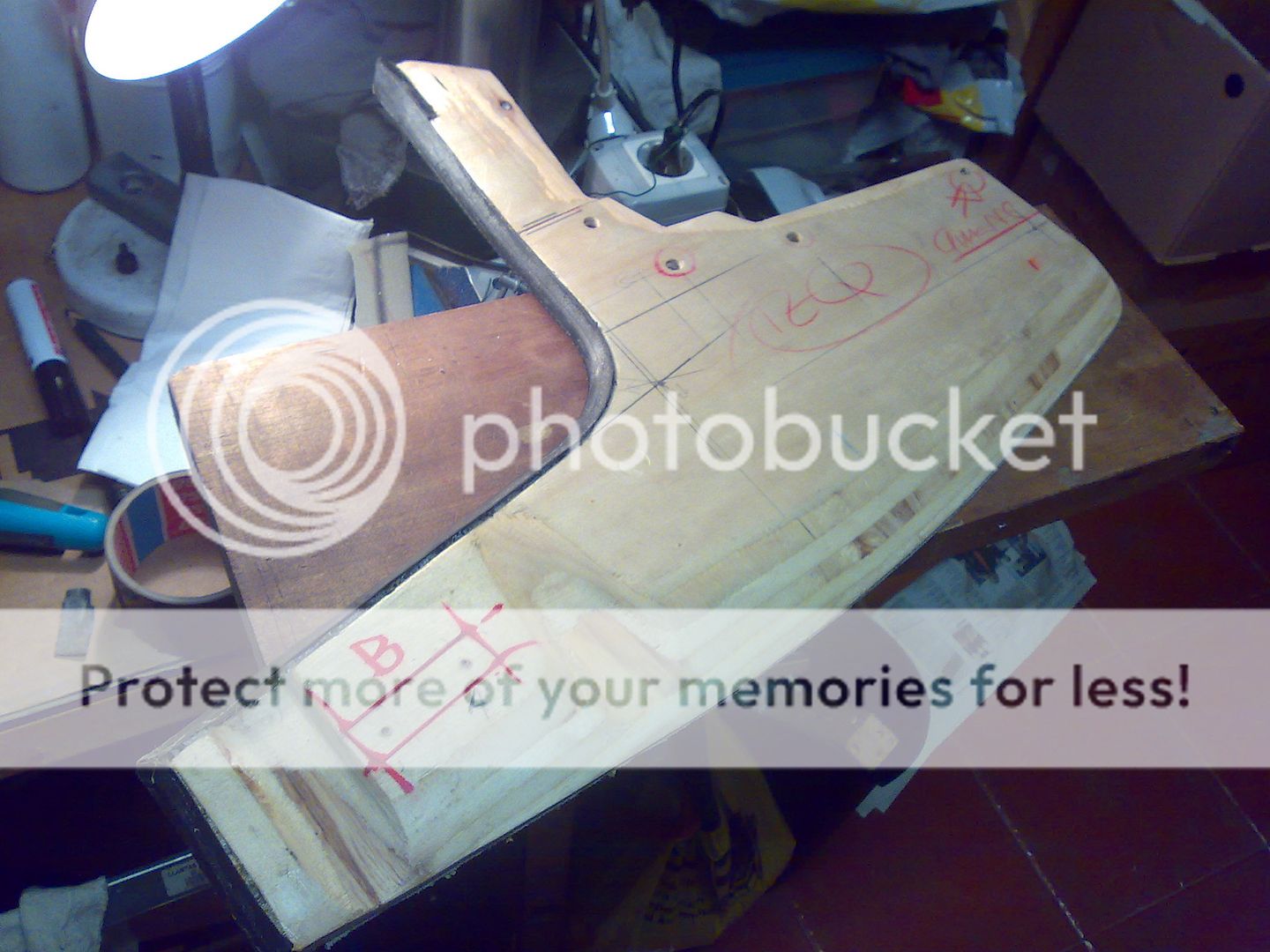

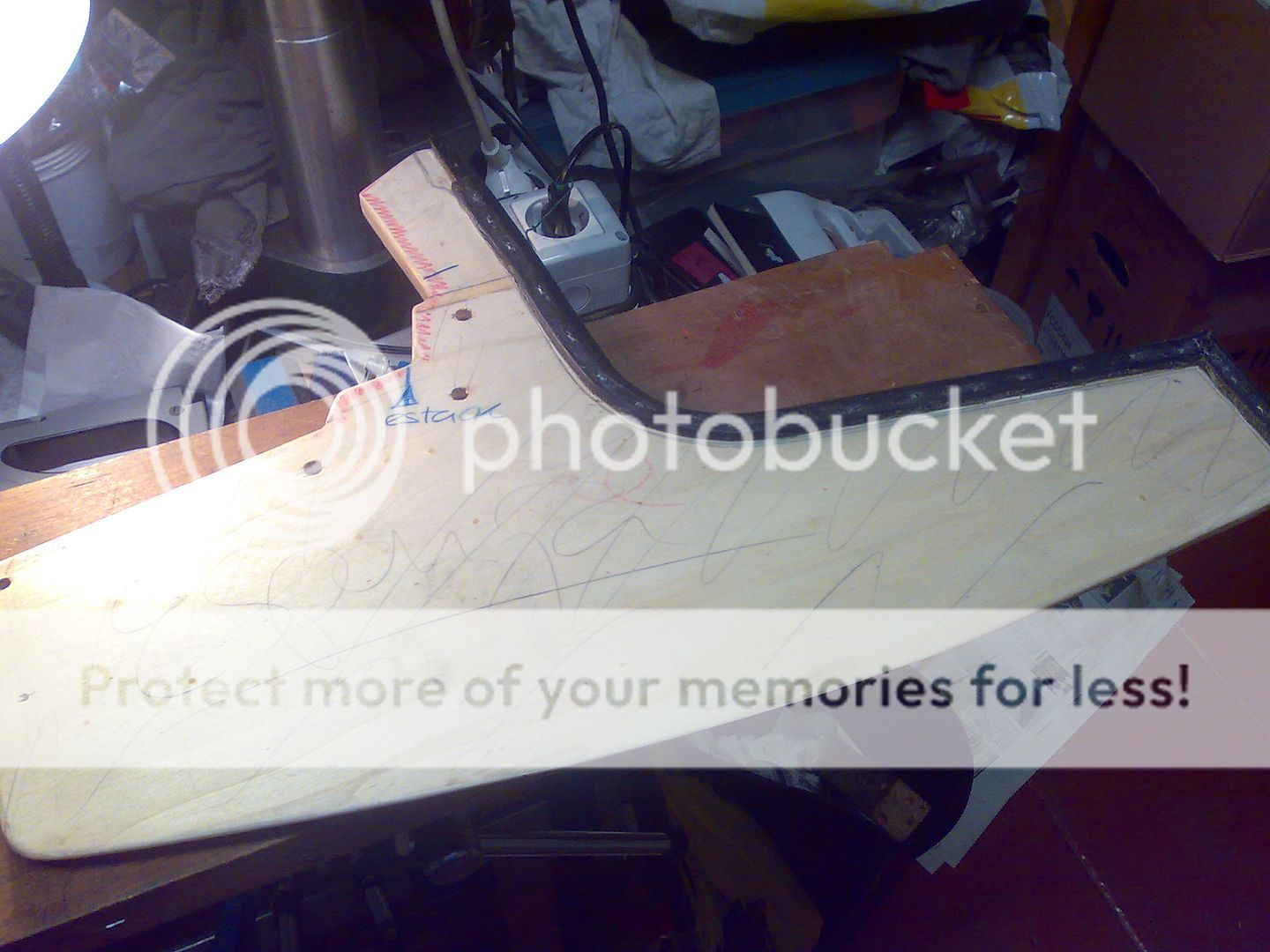

    another step to finish the Wood pieces:

    [​IMG]

    clering some of the thickness, and building some space for the shifter console

    [​IMG]

  10. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao
    adapted shape to AC evaporator

    [​IMG]

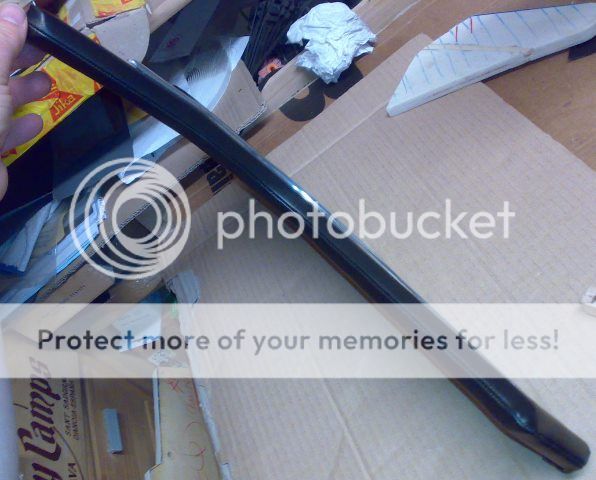

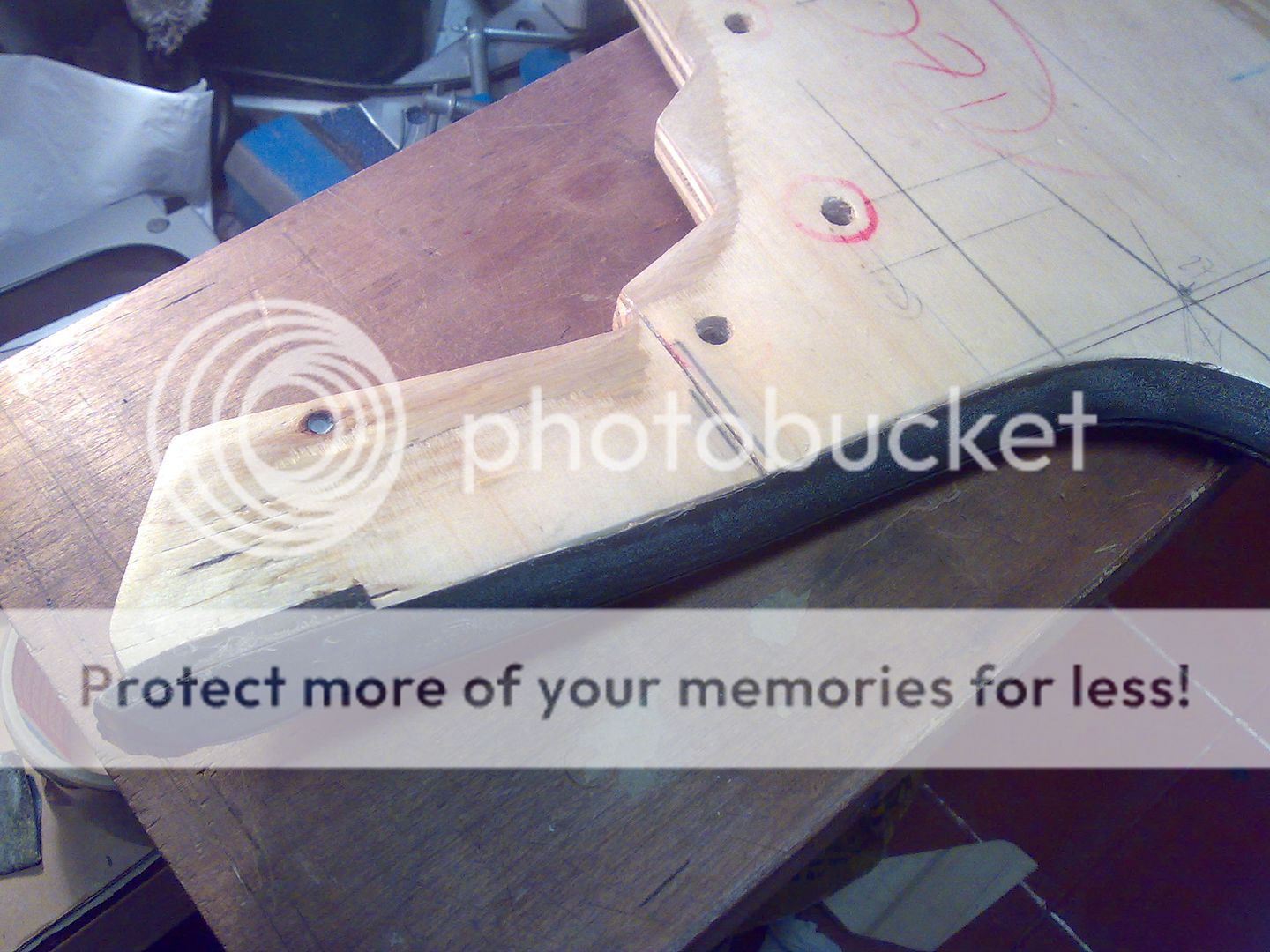

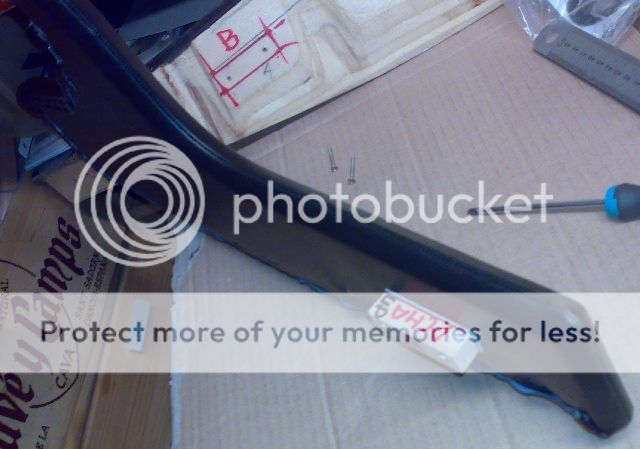

    place the front rubber profile

    [​IMG]

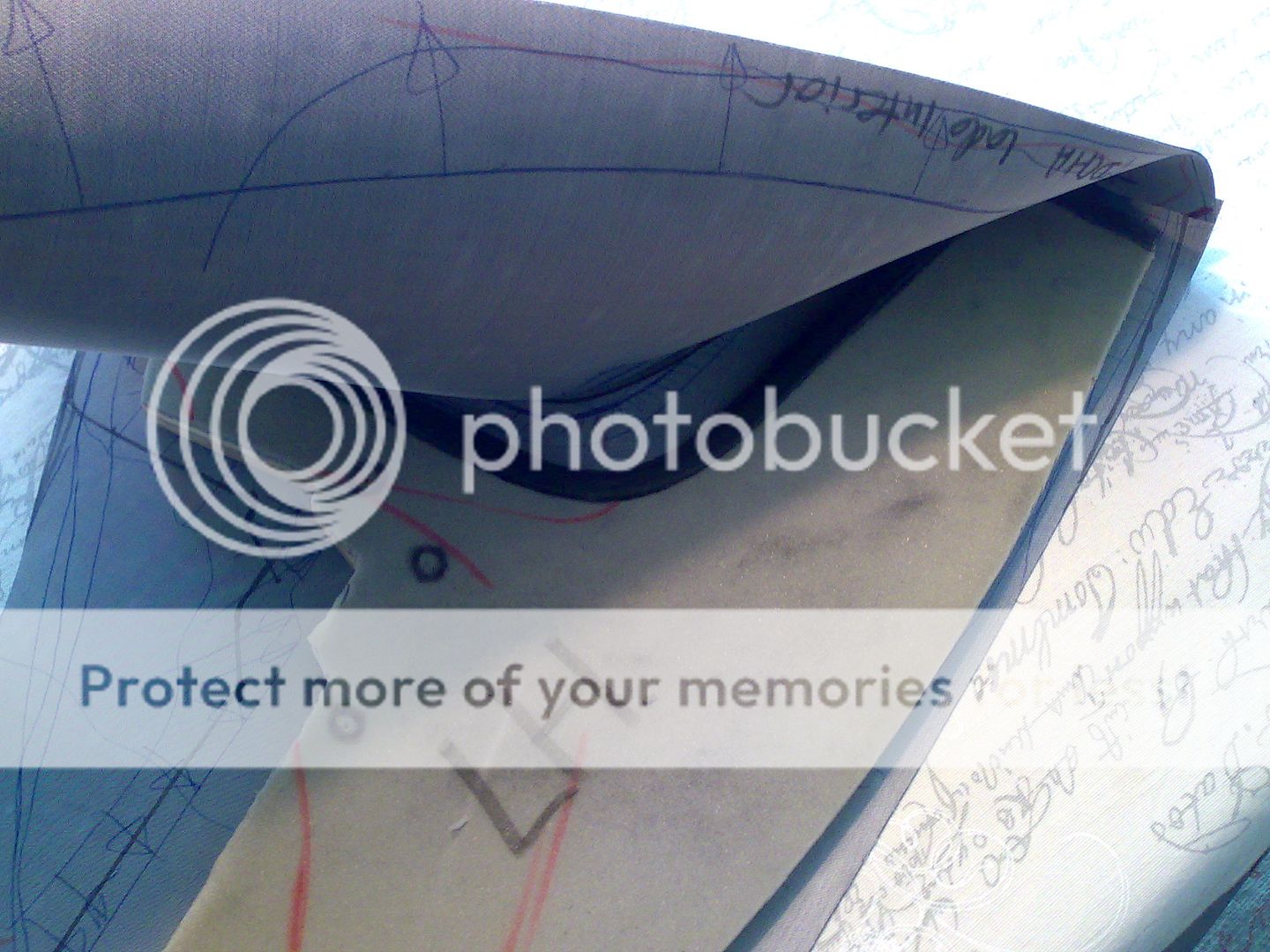

    i have found two different ways of producing this shape

    [​IMG]

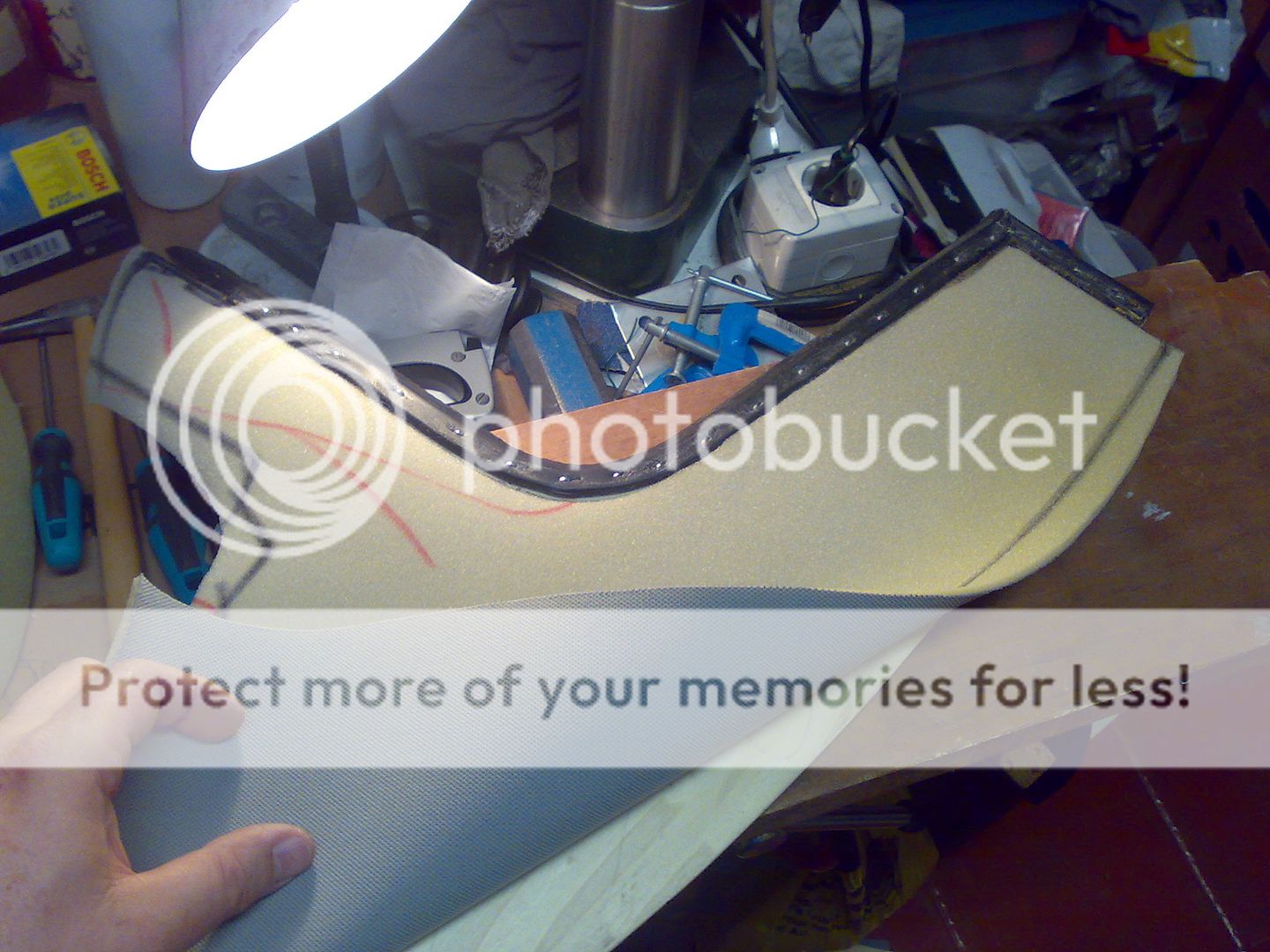

    place the foam

    [​IMG]

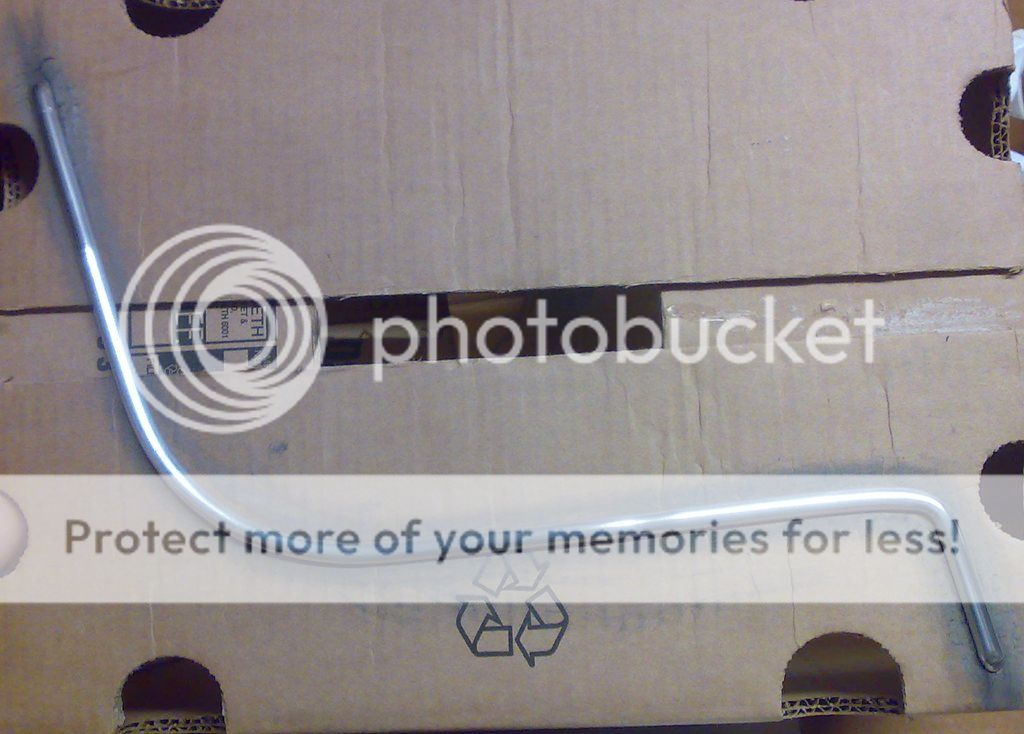

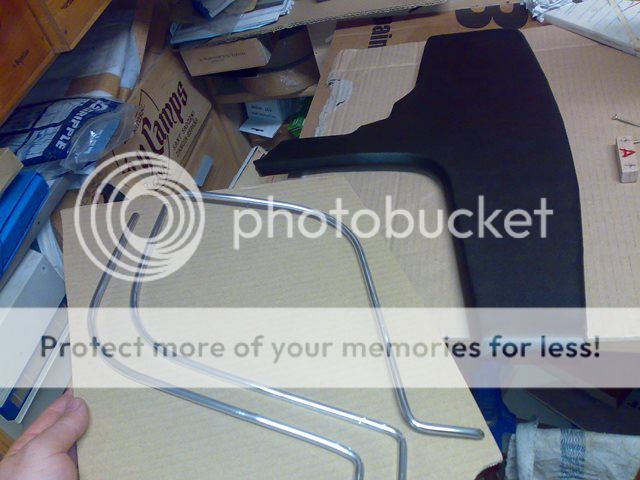

    polish the trim alu profile

    [​IMG]

    [​IMG]

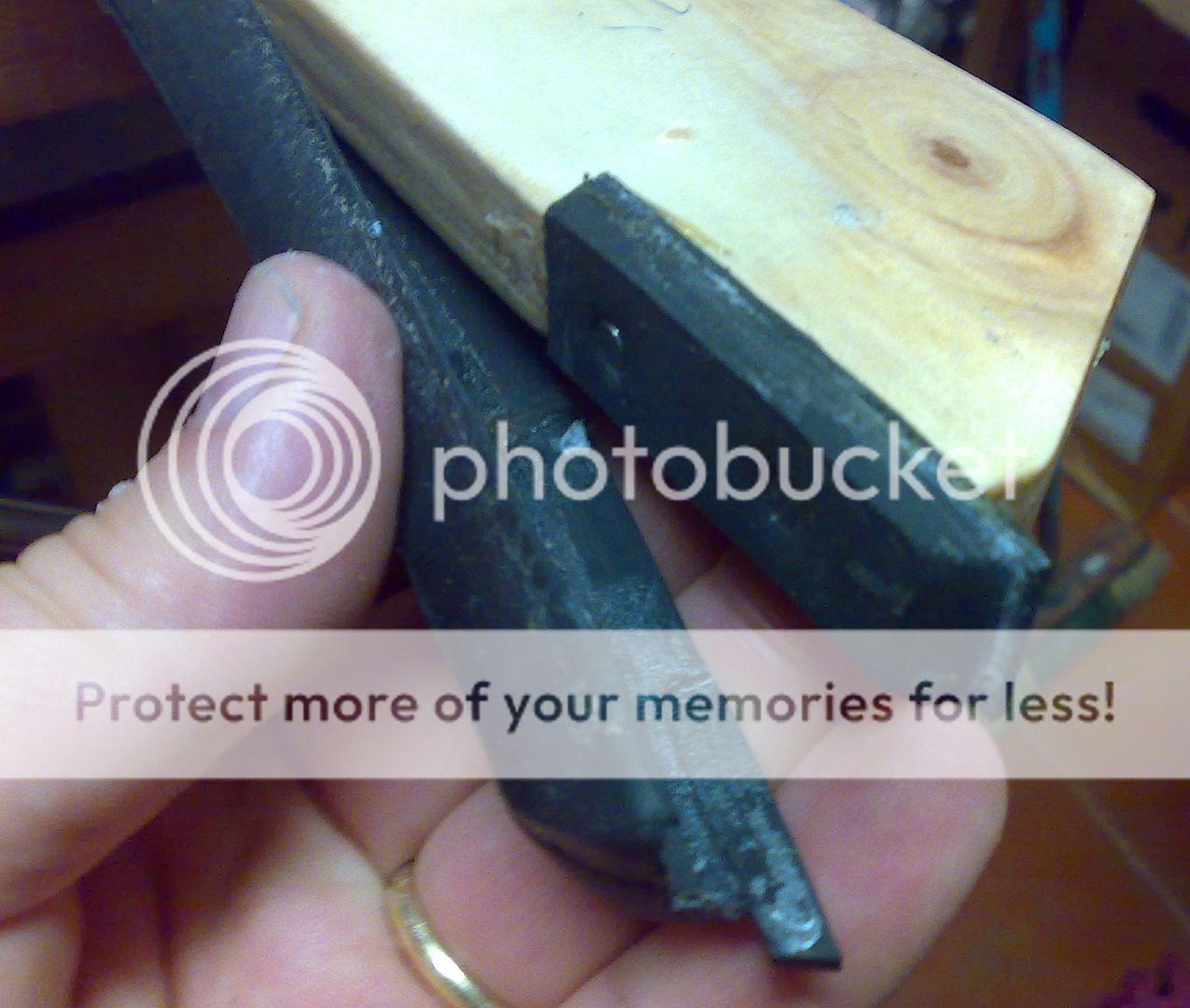

    as mentioned the right specimen was made in a different way so i have to reproduce the LH idea, using this special adhesive that really glues rubber strongly i prepared the top corner

    [​IMG]

    [​IMG]

  11. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao

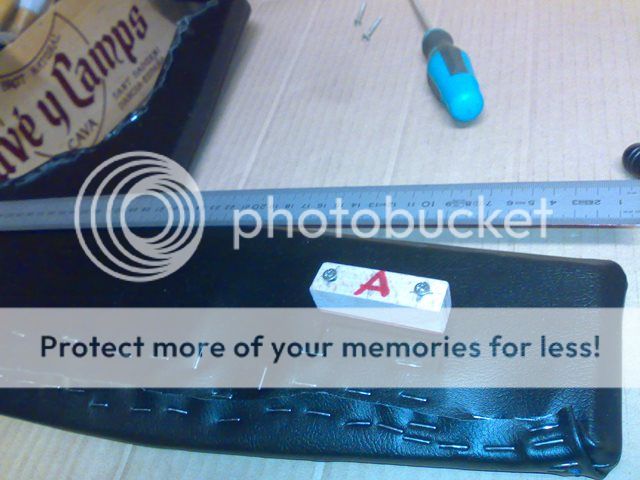

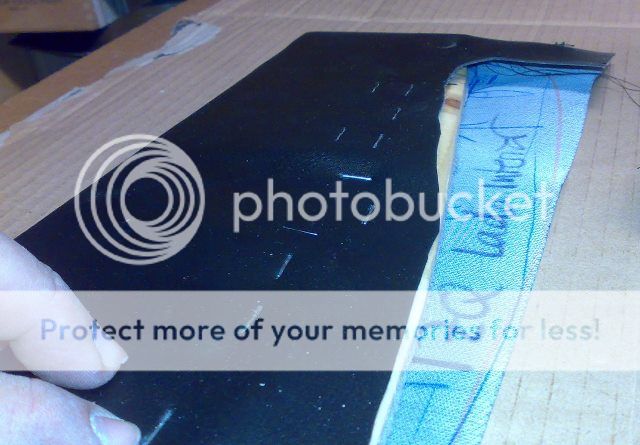

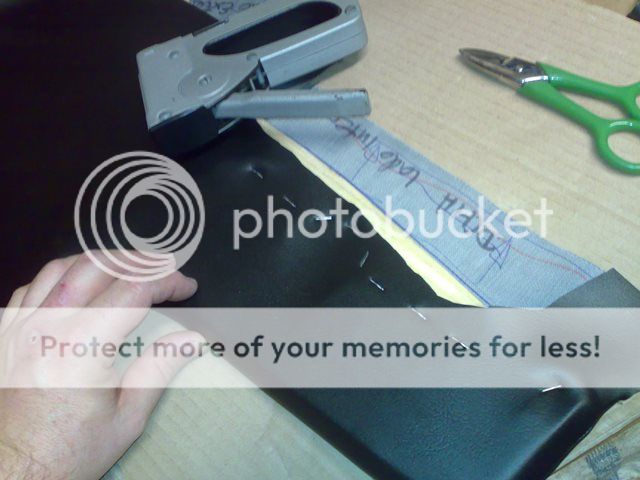

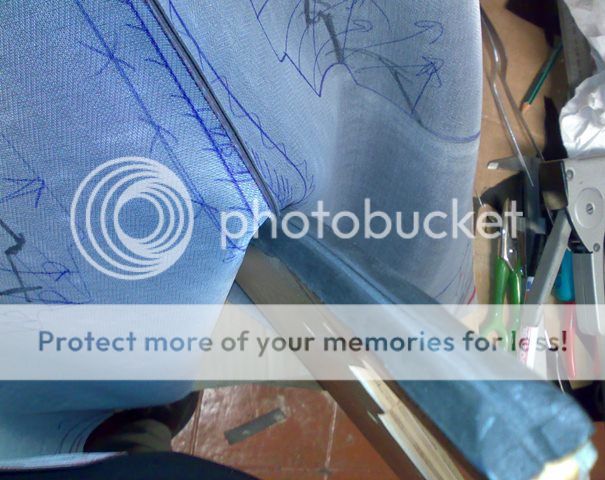

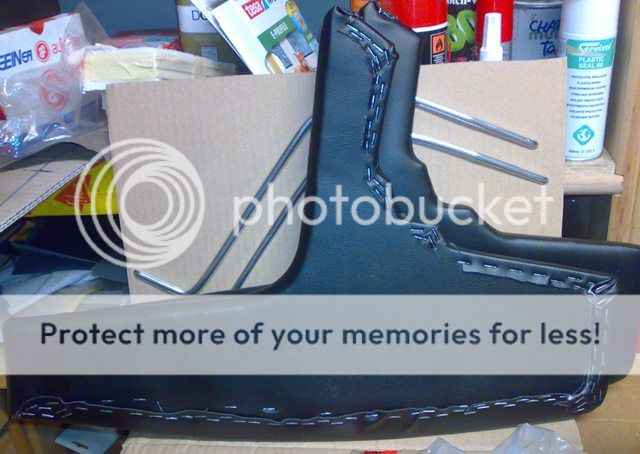

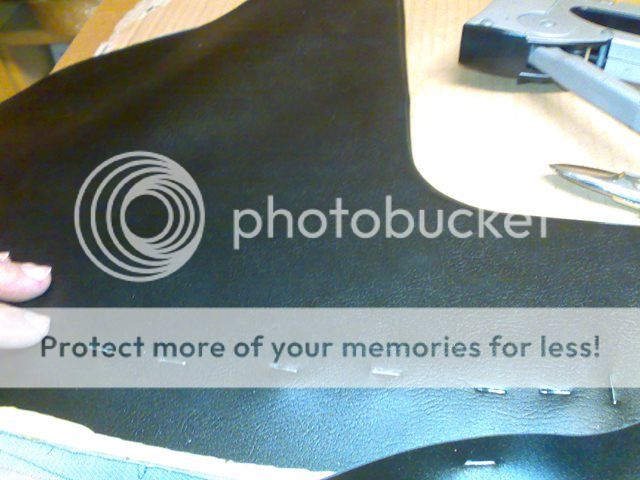

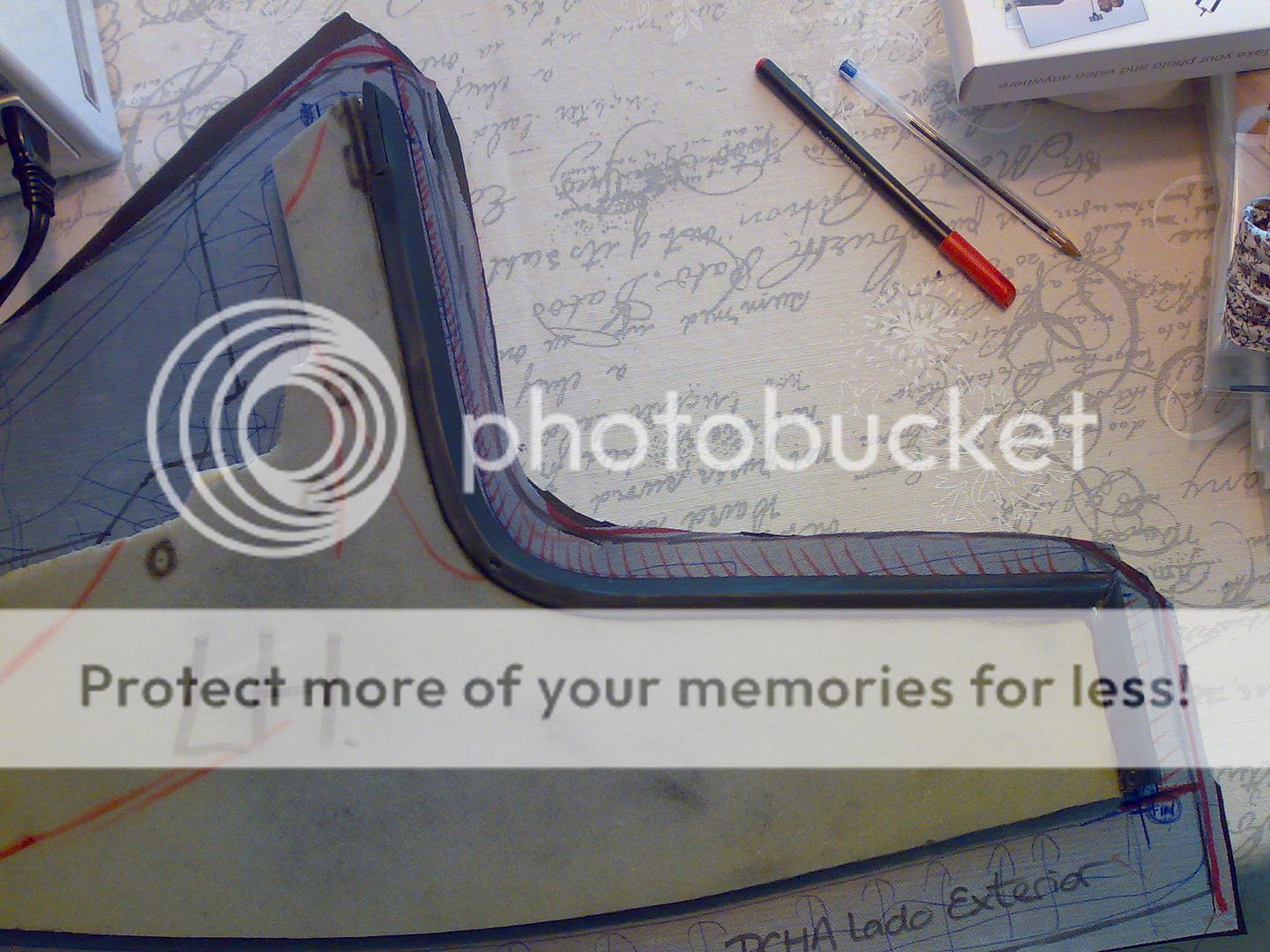

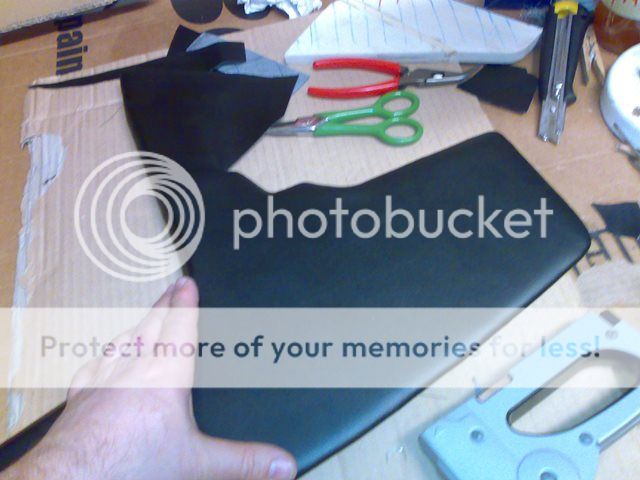

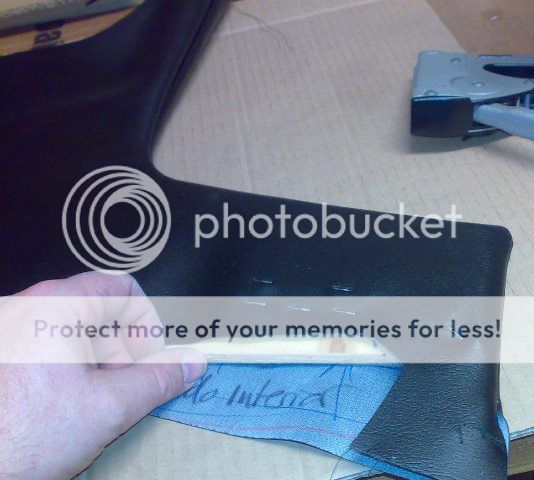

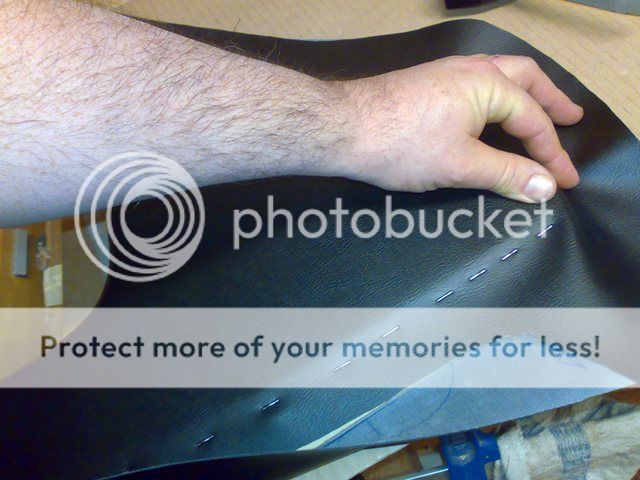

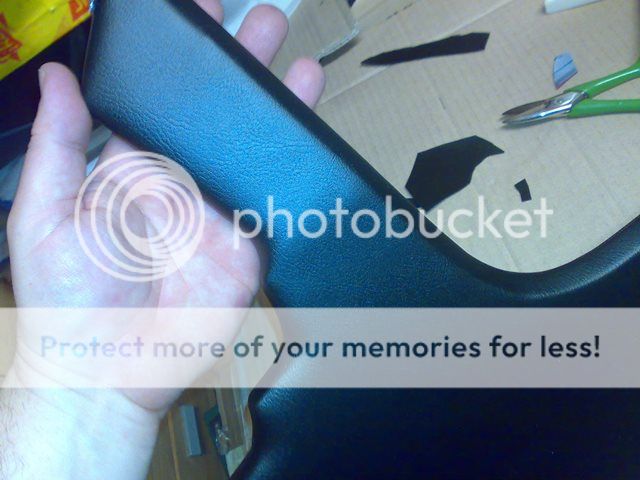

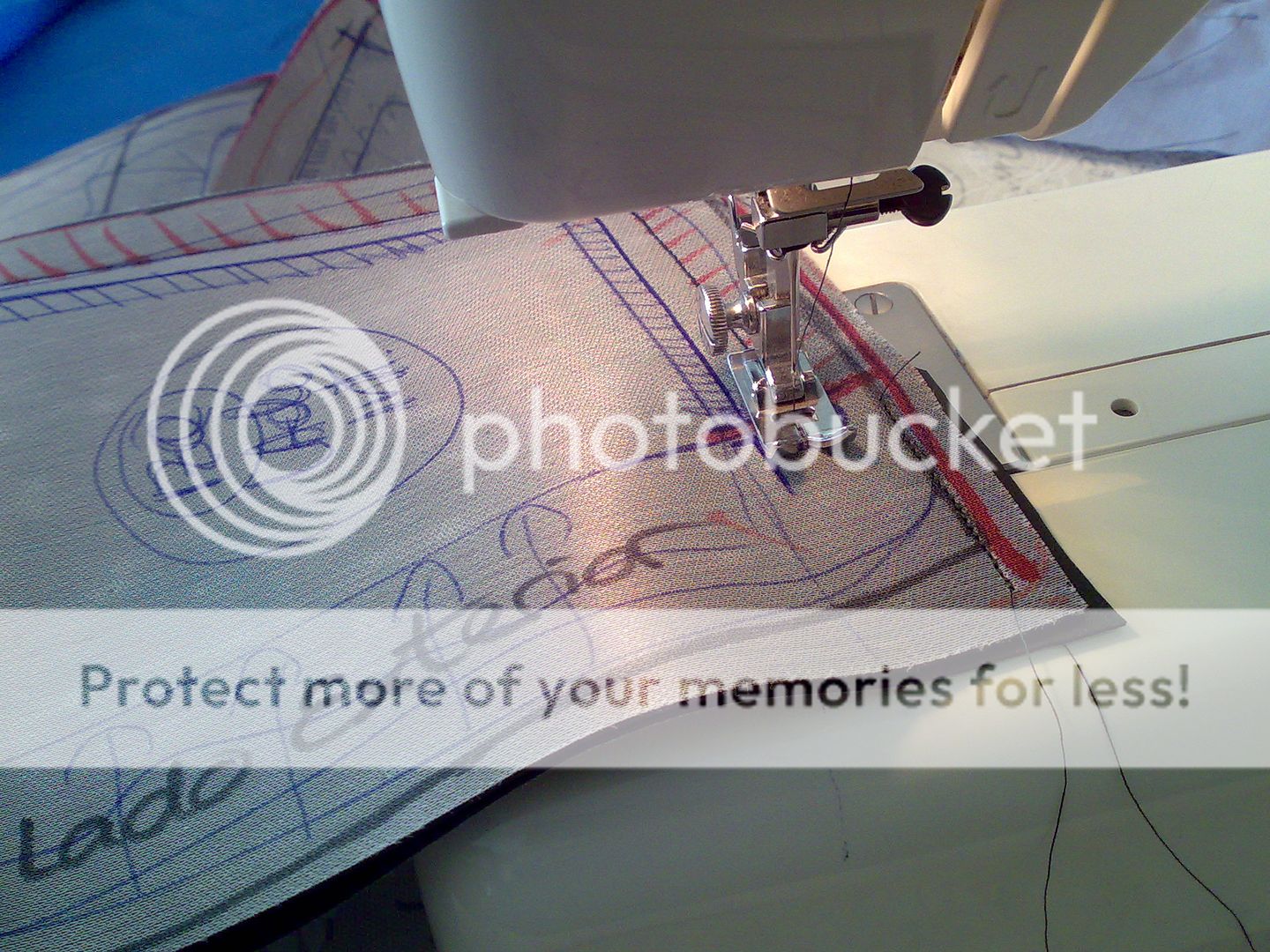

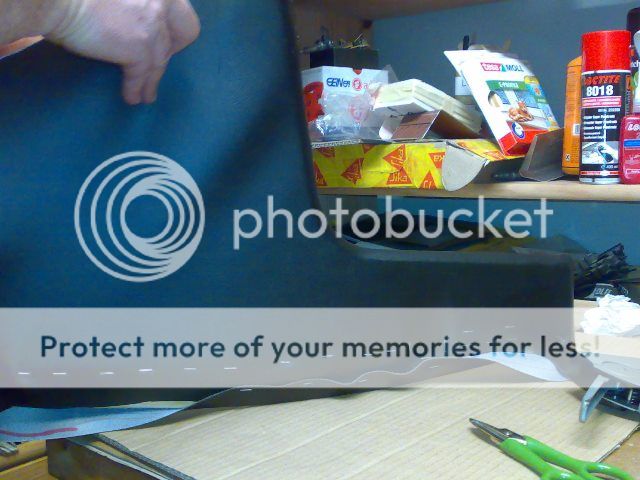

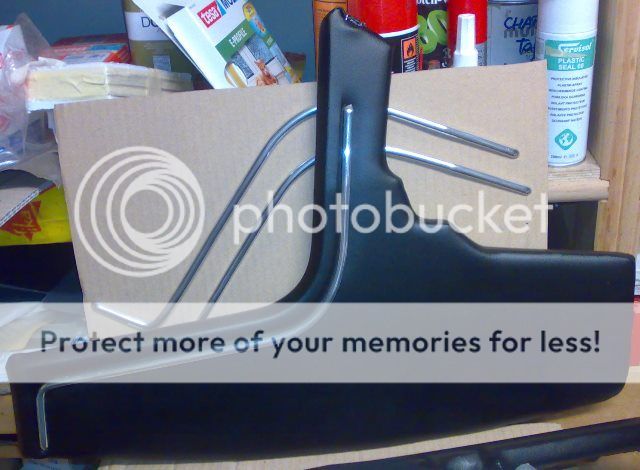

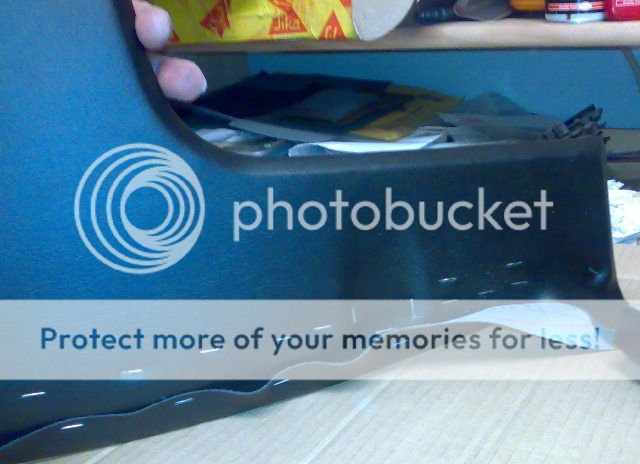

    i learnt how to sew vinyl:

    [​IMG]

    [​IMG]

    [​IMG]

    [​IMG]

    not bad for the first time

    Last edited: Jan 4, 2016
  12. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao
  13. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao
  14. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao
  15. deQuincey

    deQuincey Well-Known Member

    View My Showcase
    Messages:
    5,822
    Likes Received:
    525
    Trophy Points:
    113
    Location:
    bilbao

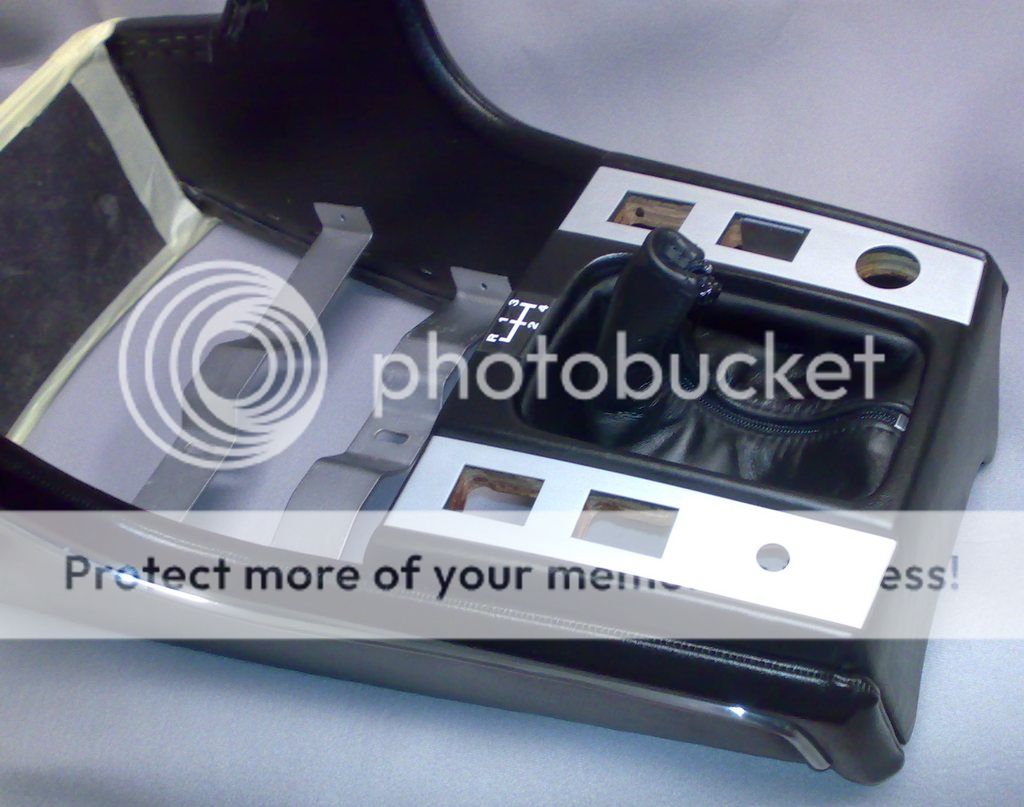

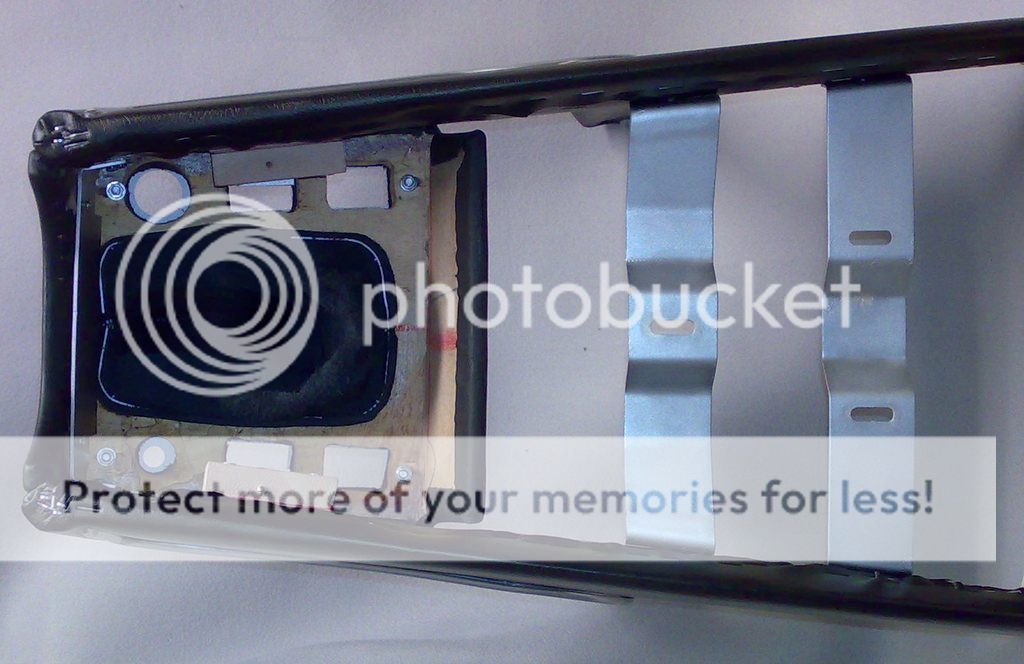

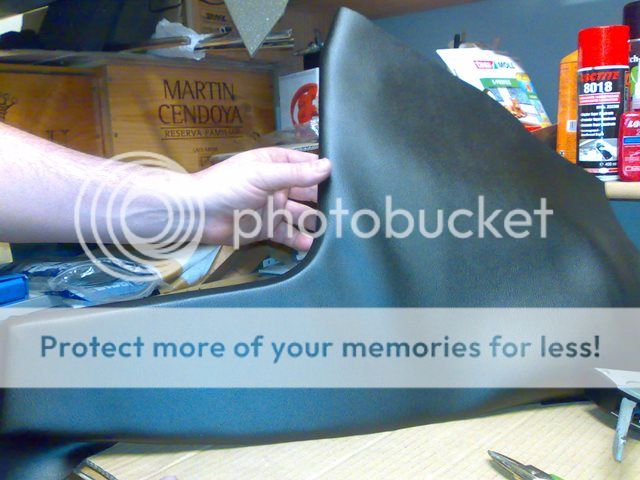

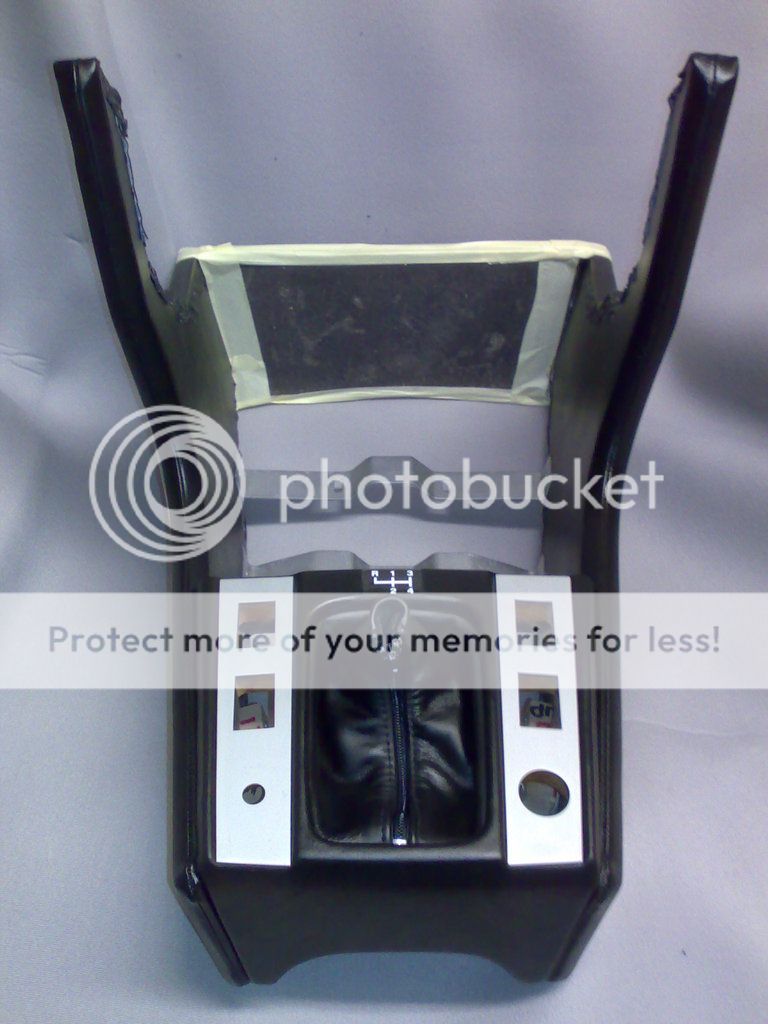

    finishing by including the shifter console

    [​IMG]

    [​IMG]

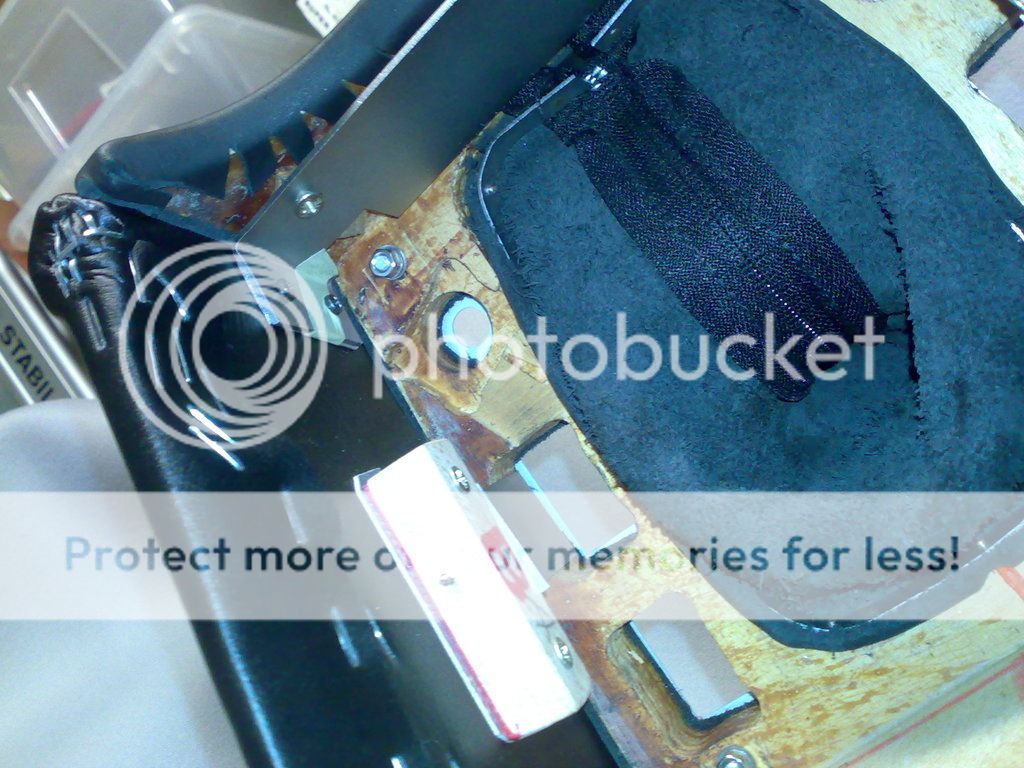

    the rear support is not definitive:

    [​IMG]

    [​IMG]

    [​IMG]


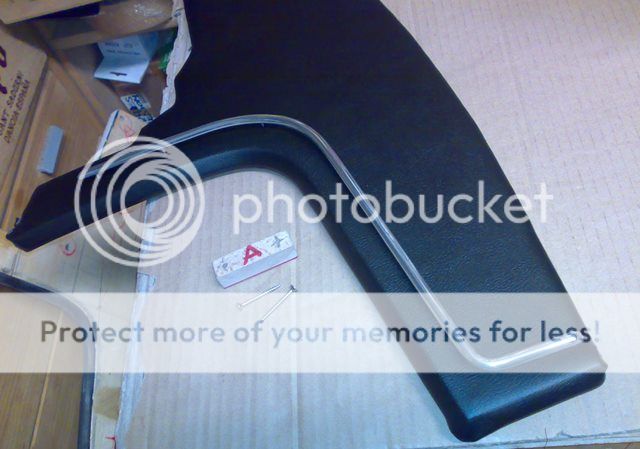

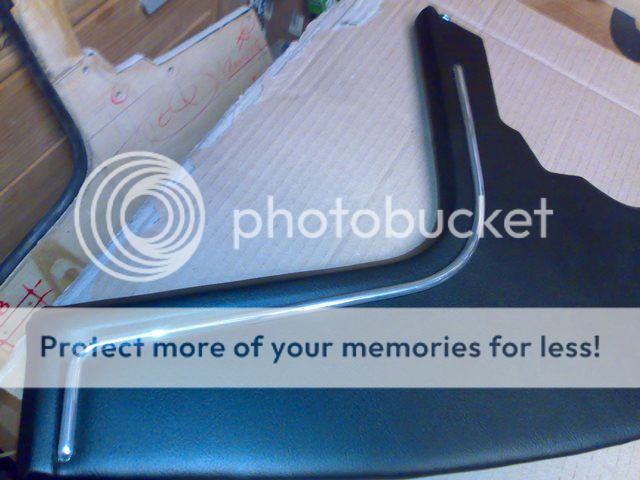

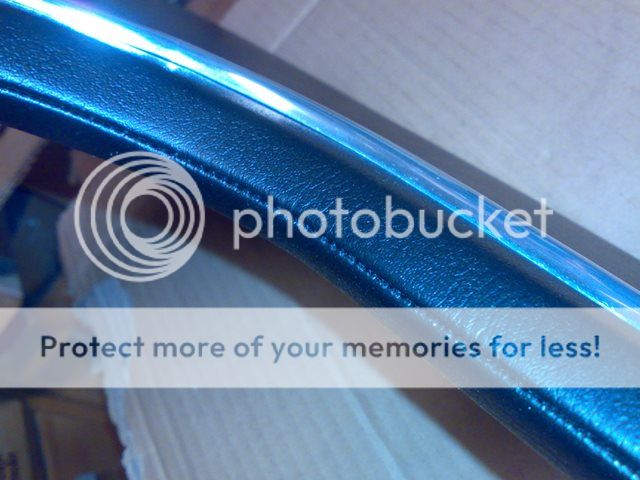

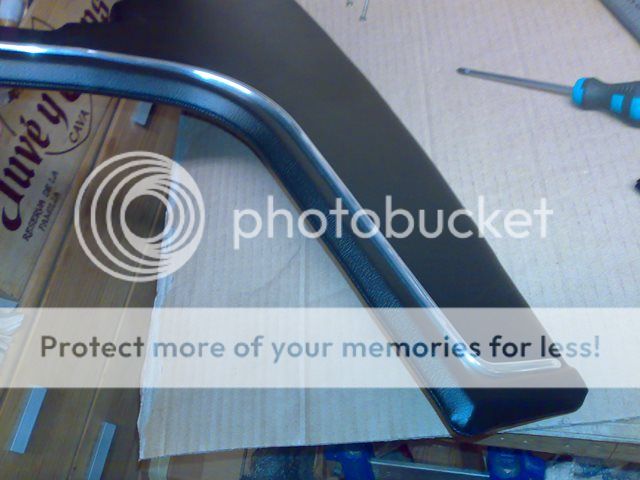

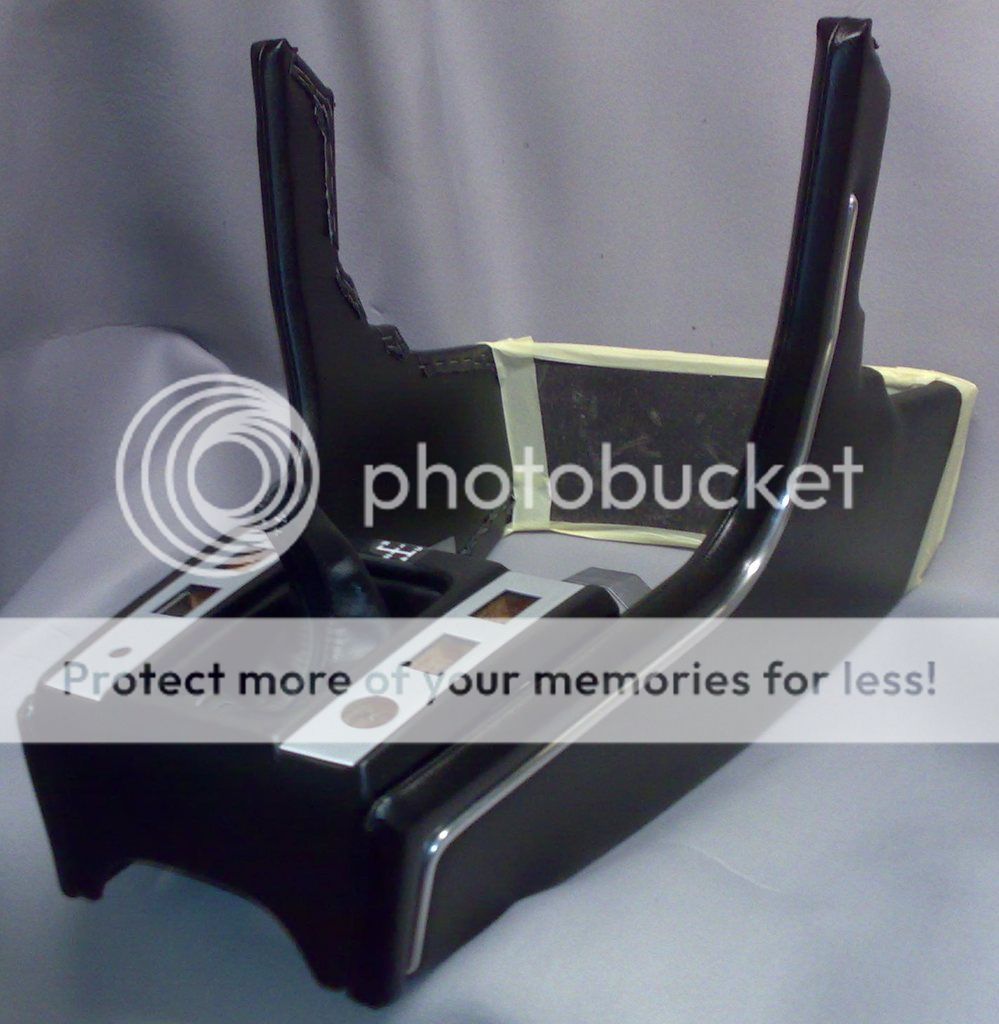

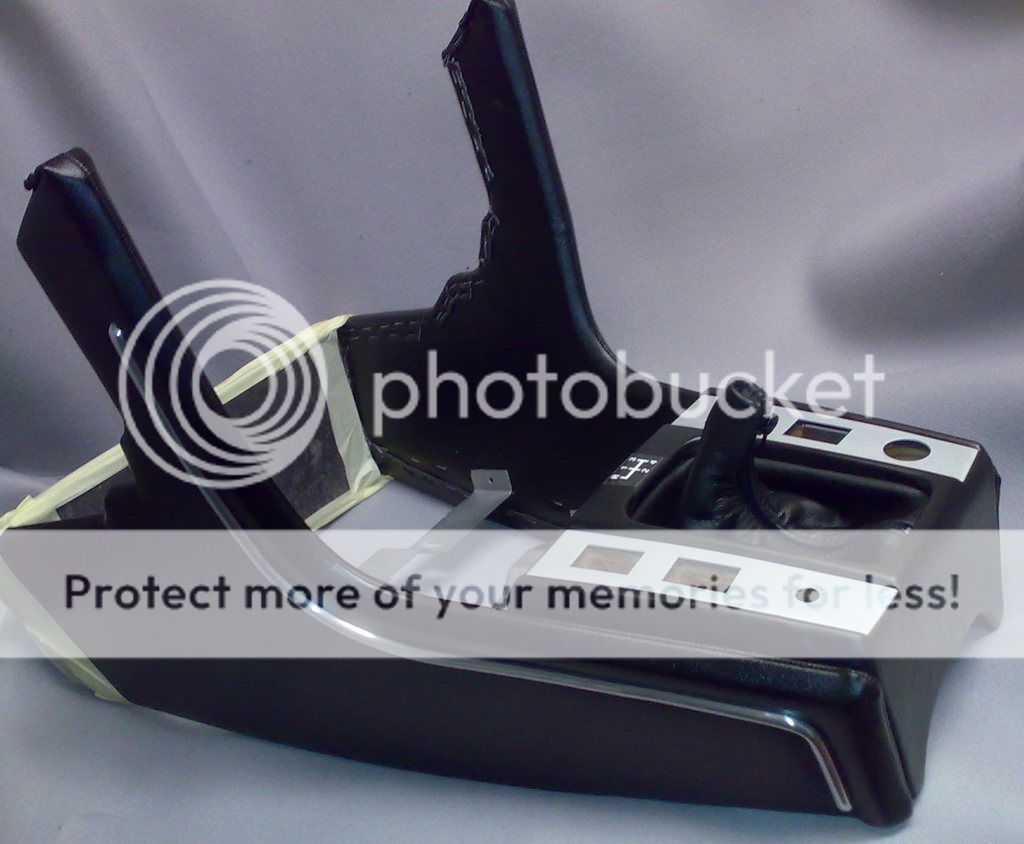

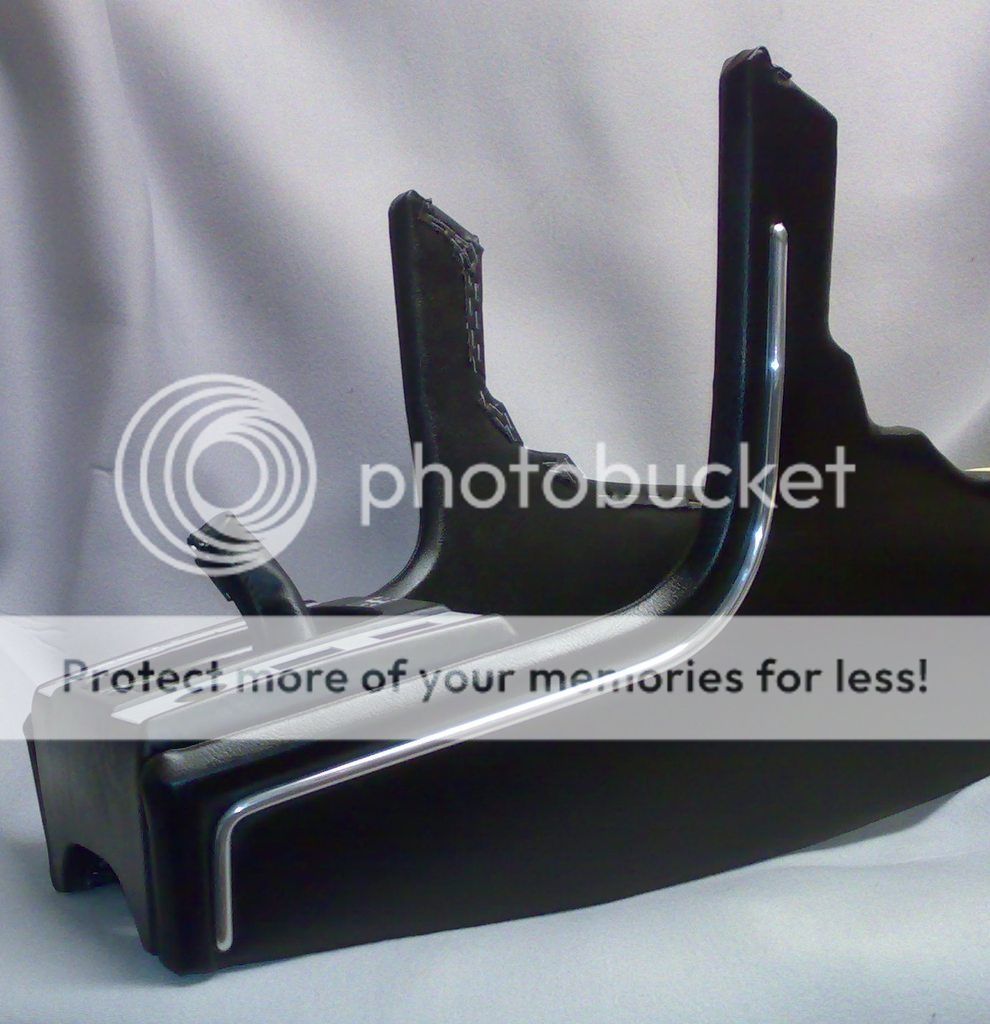

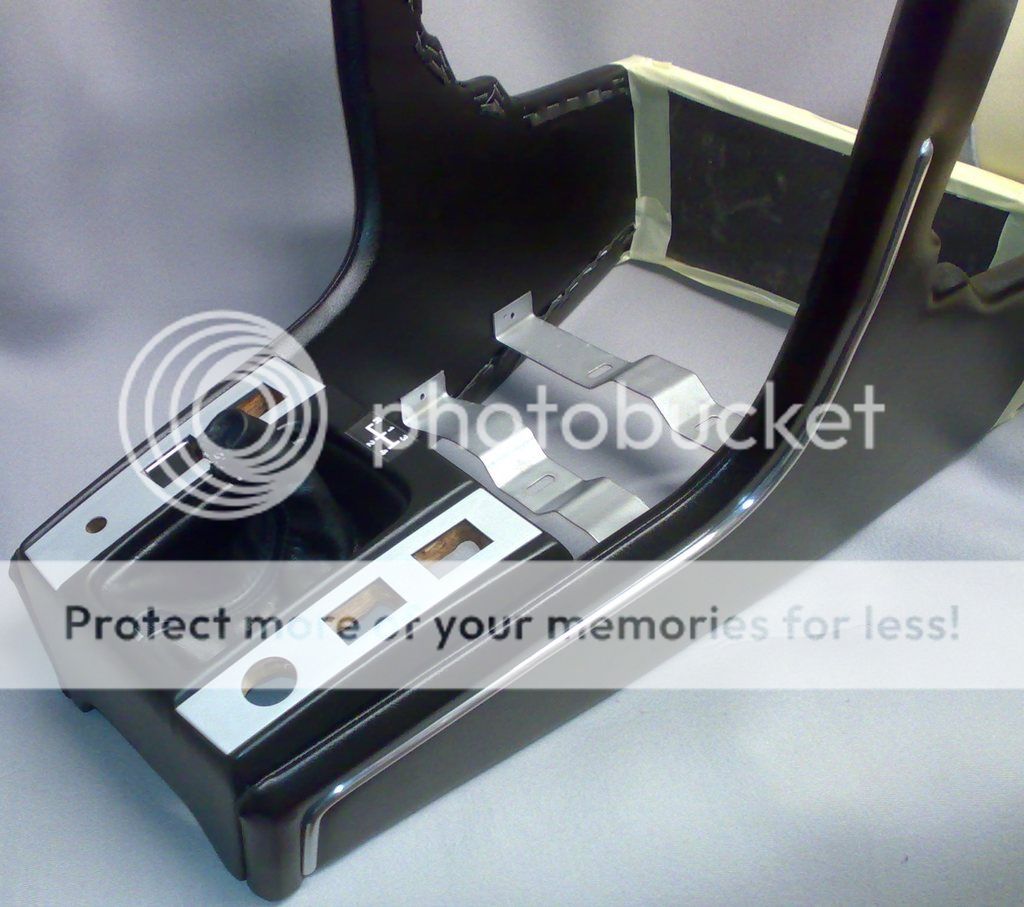

    final aspect

    [​IMG]

    [​IMG]

    [​IMG]

  16. Antar

    Antar Member

    Messages:
    58
    Likes Received:
    1
    Trophy Points:
    8
    Location:
    D.C. (originally from Northern California)
    Just seeing this, but this work is Awesome!:)

  17. Stefan

    Stefan Member

    Messages:
    528
    Likes Received:
    6
    Trophy Points:
    18
    Location:
    Sweden
    I'm missing the big thumb in every photo that makes it DQ "original"

  18. x_atlas0

    x_atlas0 Active Member

    Messages:
    1,613
    Likes Received:
    7
    Trophy Points:
    38
    Location:
    Clarkston, MI
    I'm not sure about others, but my center console side parts were not made of fiberboard. They appeared to be multiple parts glued together in a jig of some kind using actual grained wood pieces. I also found the signature of the worker that made it and the part "born-on" date written in pencil.

  19. Stan

    Stan Well-Known Member Site Donor

    View My Showcase
    Messages:
    5,509
    Likes Received:
    475
    Trophy Points:
    83
    Location:
    Newmarket, New Hampshire
    A transfer would look nicer than the shift patter sticker, albeit not OEM

  20. bmwkai

    bmwkai Member

    Messages:
    39
    Likes Received:
    5
    Trophy Points:
    8
    Location:
    Denmark
    Looks fantastic, how do you put the chrome trim on without bending it? I am doing the same, but find it very hard to put the trim on
