Fuse box upgrade (prototype)

[Bmachine]

Thank you for the images! That is very helpful

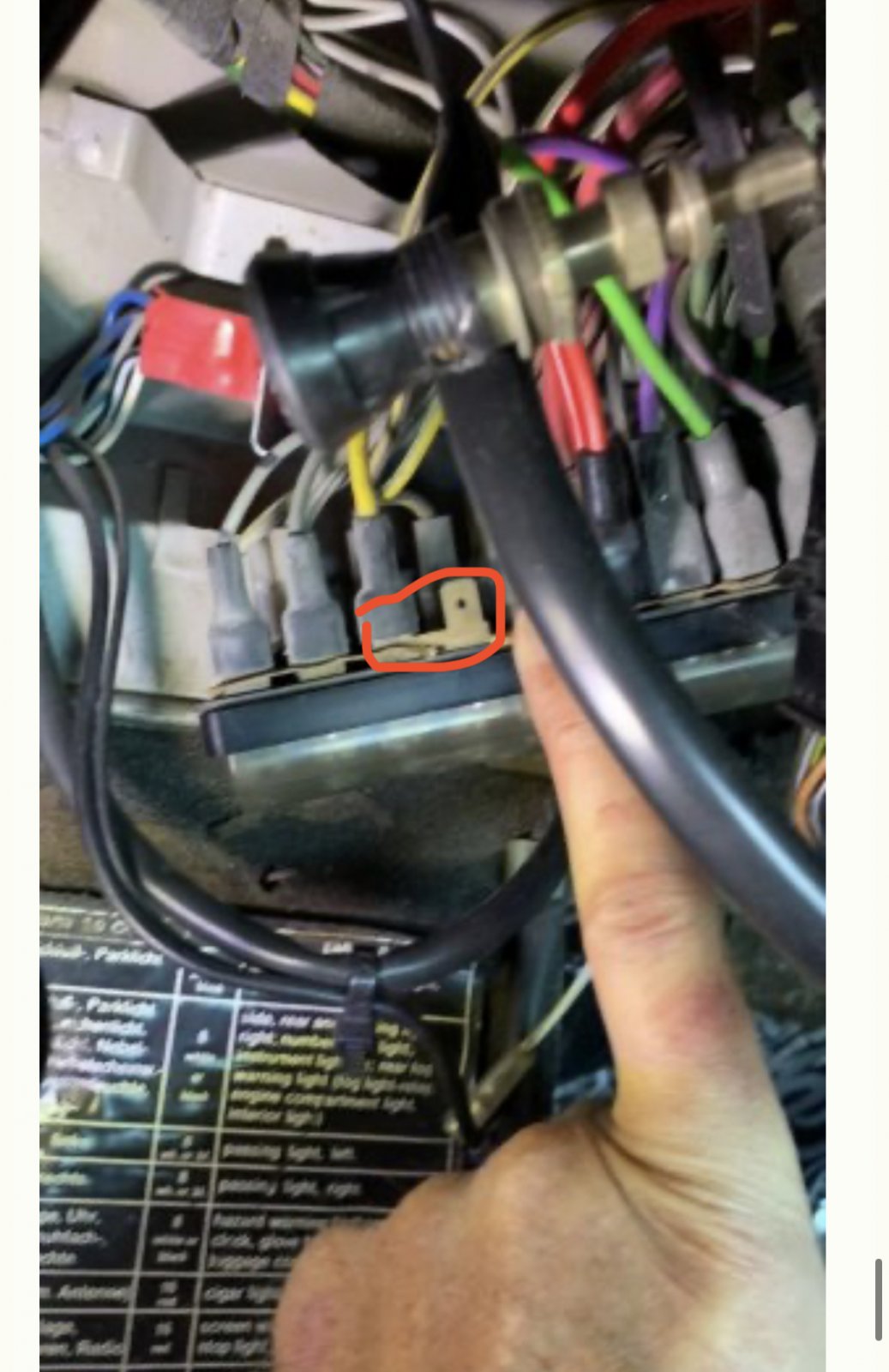

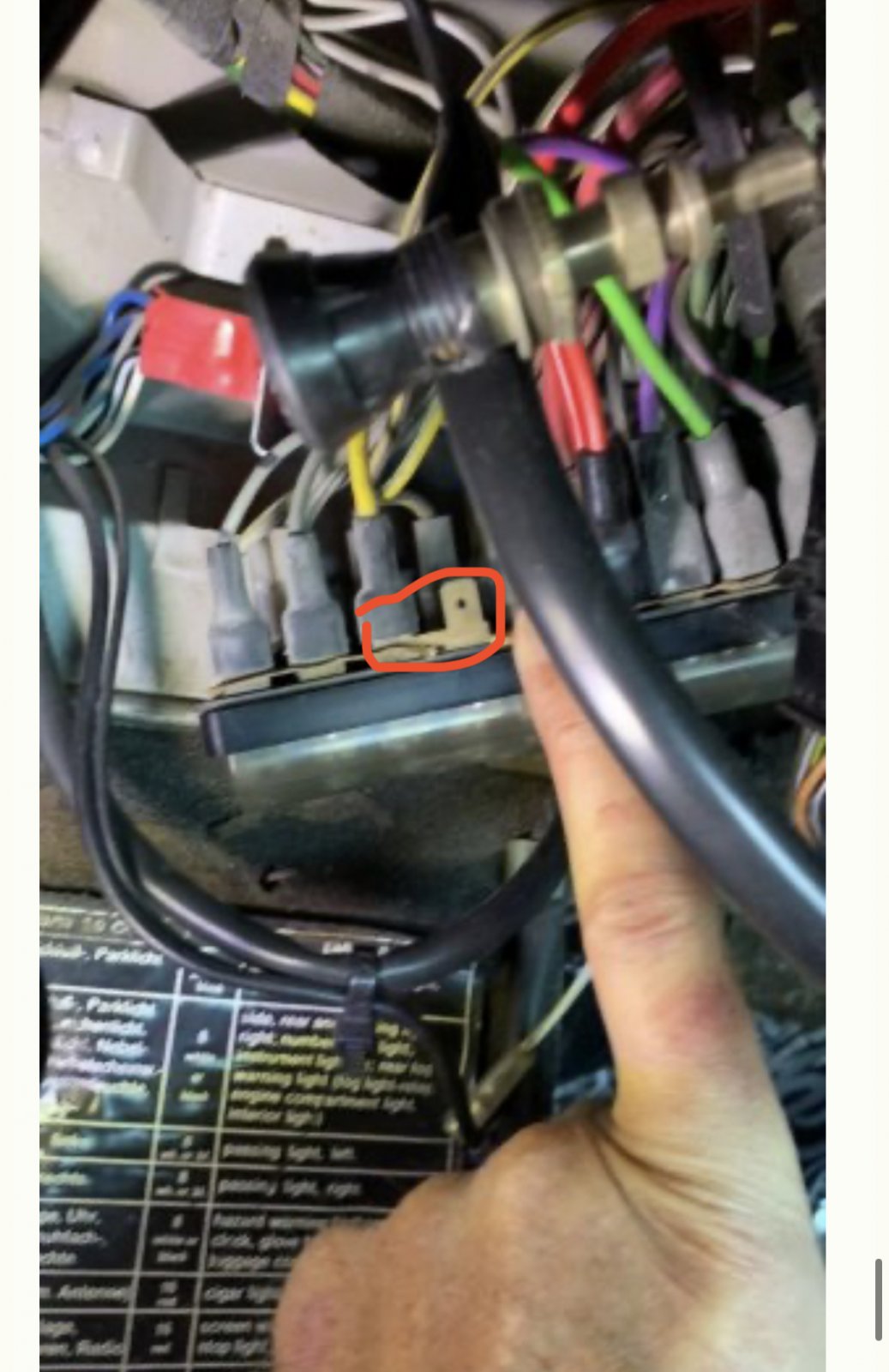

What I am looking for are the connections between fuses. I circled an example shown in one of your images (a connection between #3 and 4):
View attachment 168385

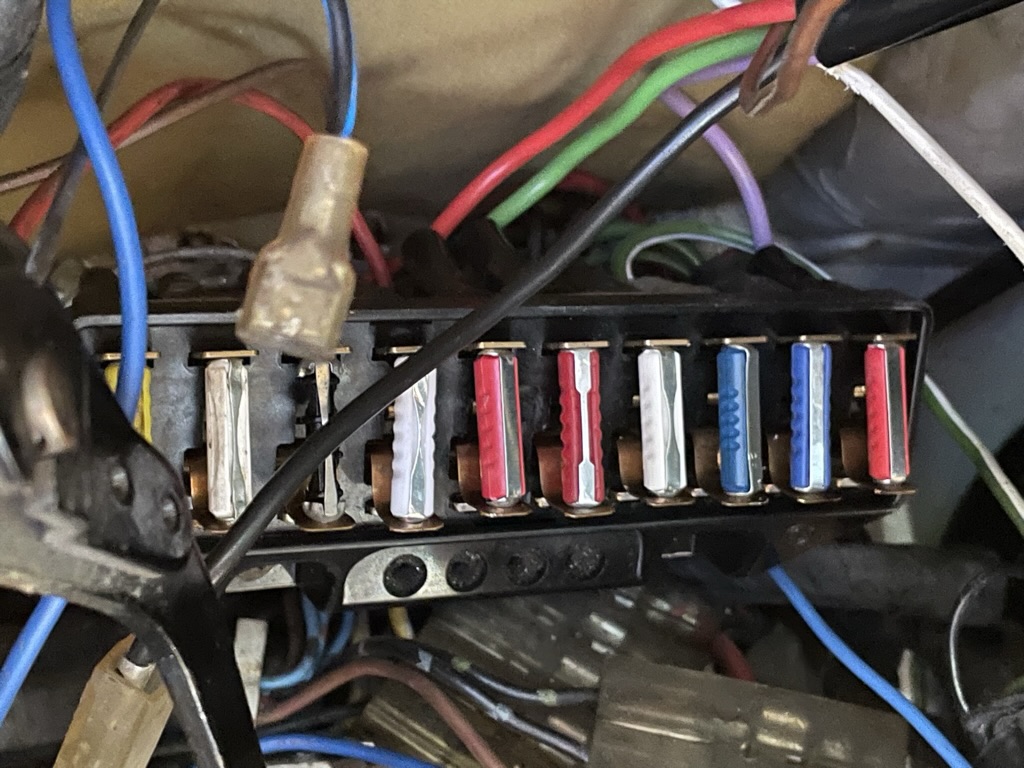

There should be one between 5&6 right under your finger in the image above and also 9&10

Gotcha. Isn't that indicated on your schematic above? For example 3 and 4 are connected on the schematic. But, I will definitely look for a photo that illustrates that better



[Ezz]

You are correct, they are indicated in the schematic and that is what I wanted to confirm.
I looked more closely on some of the pics above and i think i spotted the linkage between 5&6. So the schematic for the post 1973 seems to be correct.
I already ordered the PCBs. I should get them in a week or so.
Now I am more convinced of the importance of adding the LED indicator.
I will work on that for the next revision.



[HB Chris]

You can trust the schematic.



[Bmachine]

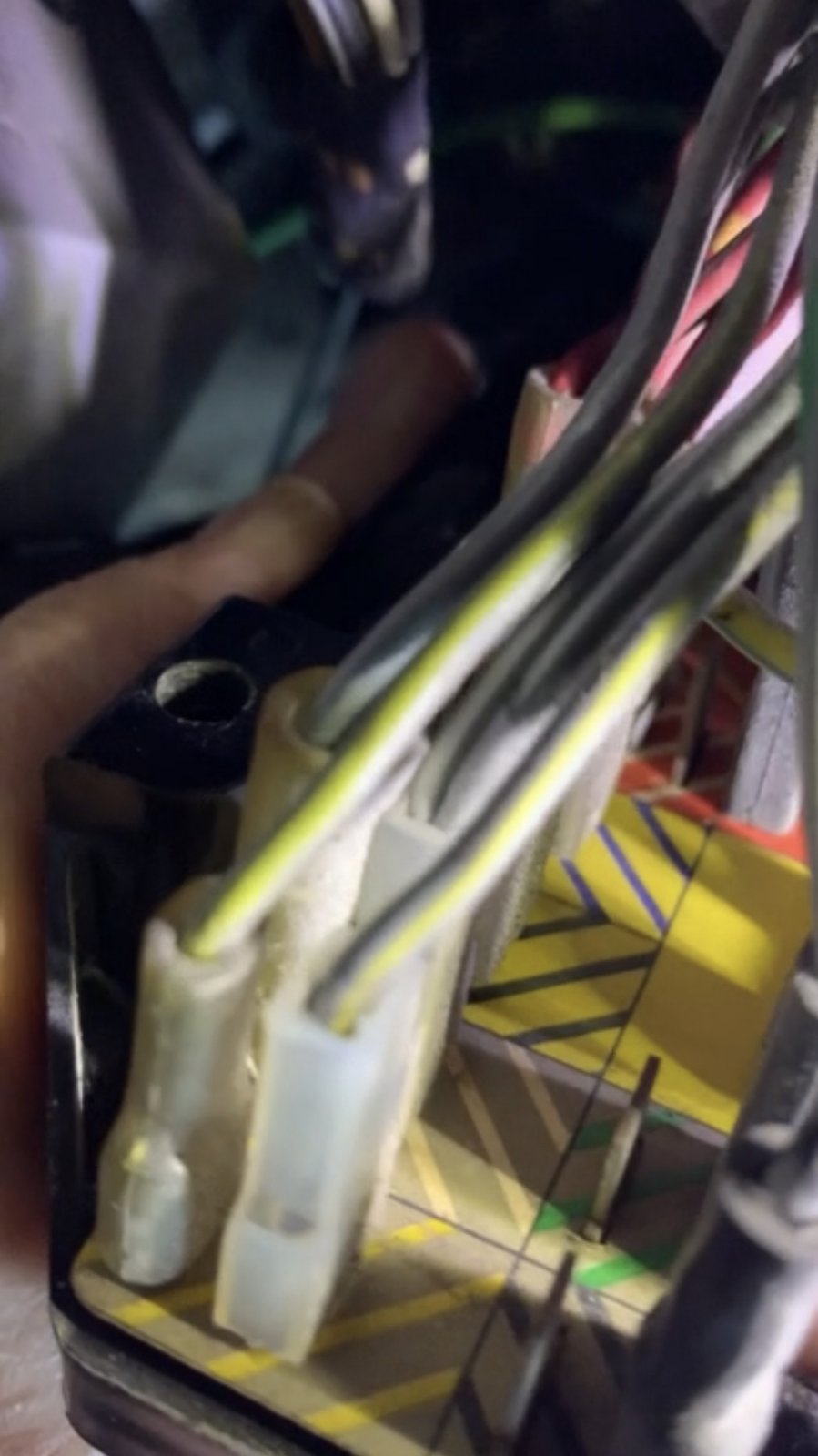

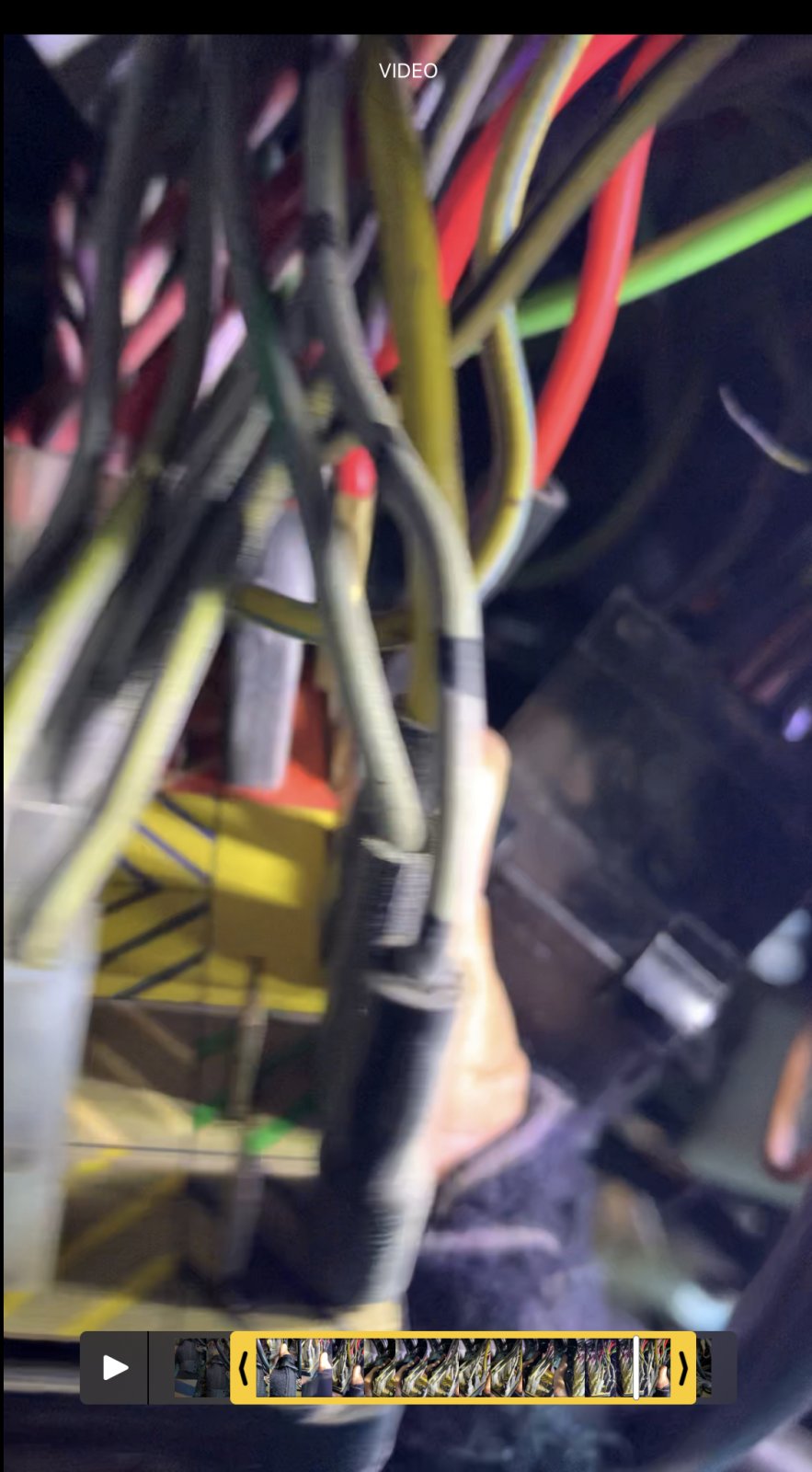

Again, crappy photos taken from a video for the reasons explained above. But if the color coding on the PC is any indication, it confirms that 3 and 4 as well as 5 and 6 are bridged



[Ezz]

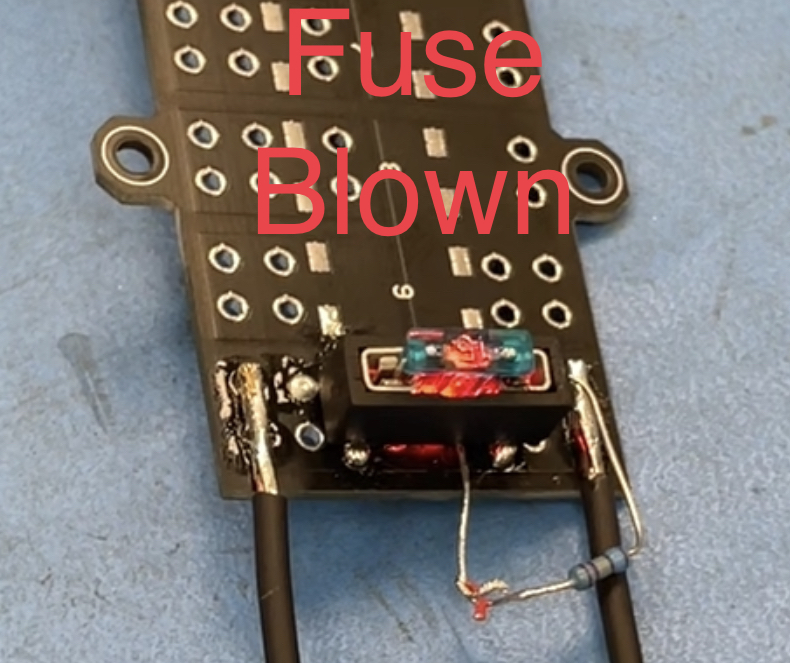

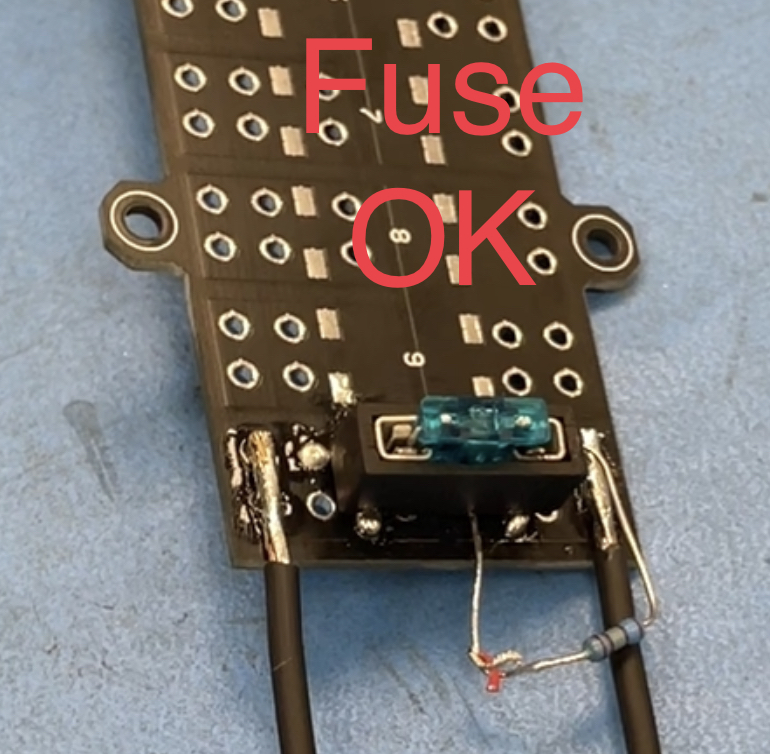

First attempt at fuse indicator:



[Bmachine]

Nice work!



[Ezz]

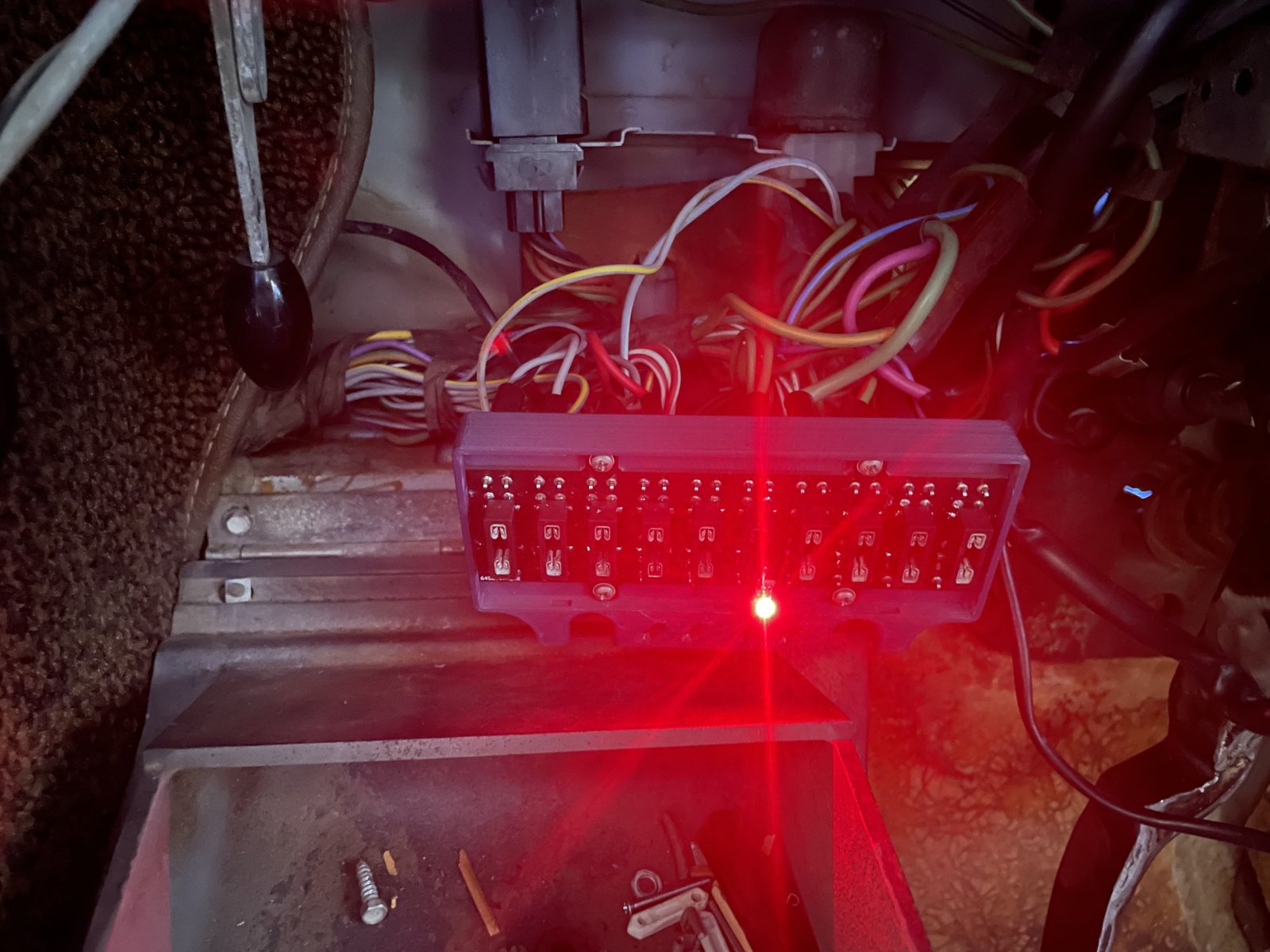

In vehicle LED indicator test.
Since this is confirmed, i will be ordering the revised PCBs with LED indicator circuit.
The next prototype should be ready to install with in two weeks.



[Ezz]

This is getting very close to final prototype. Actually this next order will be the final PCB revision unless of course issues comes that will need to be addressed.

I would like to know if there is interest from members to use my fuse box design in their cars…



[Bmachine]

I would be interested!



[Erik]

Interested in '74+ version



[merdad]

Of course interested for 2800cs



[Ezz]

Interested in '74+ version

E9, correct?



[Ezz]

Of course interested for 2800cs

What year?



[Erik]

E9, correct?

Yes, e9. Thanks



[merdad]

What year?

1971



[Dlc]

Hi Ezz-- this is my '71 Ep fuse box - and I woudl be very interested in testing your upgrade



[Markos]

Not sure if it helps but I made this:



[Ezz]

Not sure if it helps but I made this:

thank you, this confirms that the early E9 is exactly the same as the early E3 with 10 fuses.



[x_atlas0]

I am interested!



[Ezz]

Sorry, I have not posted an update in a while. I have been busy with the E3 (almost ready to crank the engine!)
I found some design improvements to the fuse box that I am working on currently before I can order the PCBs. I will share the details later.
