Rubber FAQ

Markos · Sep 4, 2020

Body:

Description	Qty	Part #	Left/Right	Book	Status
Windshield front CSL	1	51 31 1 819 631		51/28
Windshield front Europe	1	51 31 7 740 114		51/28
Windshield front US	1	51 31 1 812 587		51/28
Windshield rear	1	51 31 7 740 154		51/28
Rear quarter sill to glass rubber	1	51 36 7 740 128		51/37	NLA
	1	51 36 7 740 129		51/37	NLA
Rear quarter sill to glass brush	1	51 36 7 740 130		51/37	NLA
	1	51 36 7 740 131		51/37	NLA
Chrome window sill seal 'U'	meter	54 12 9 734 126		41/14
Rear quarter glass upper seal	2	51 37 6 740175		51/37
Rubber left for rear side window	1	51 36 7 740 107	left	51/38a
Rubber right for rear side window	1	51 36 7 740 108	right	51/38a
Rocker cover to body	meter	51 13 1 827 359		51/14

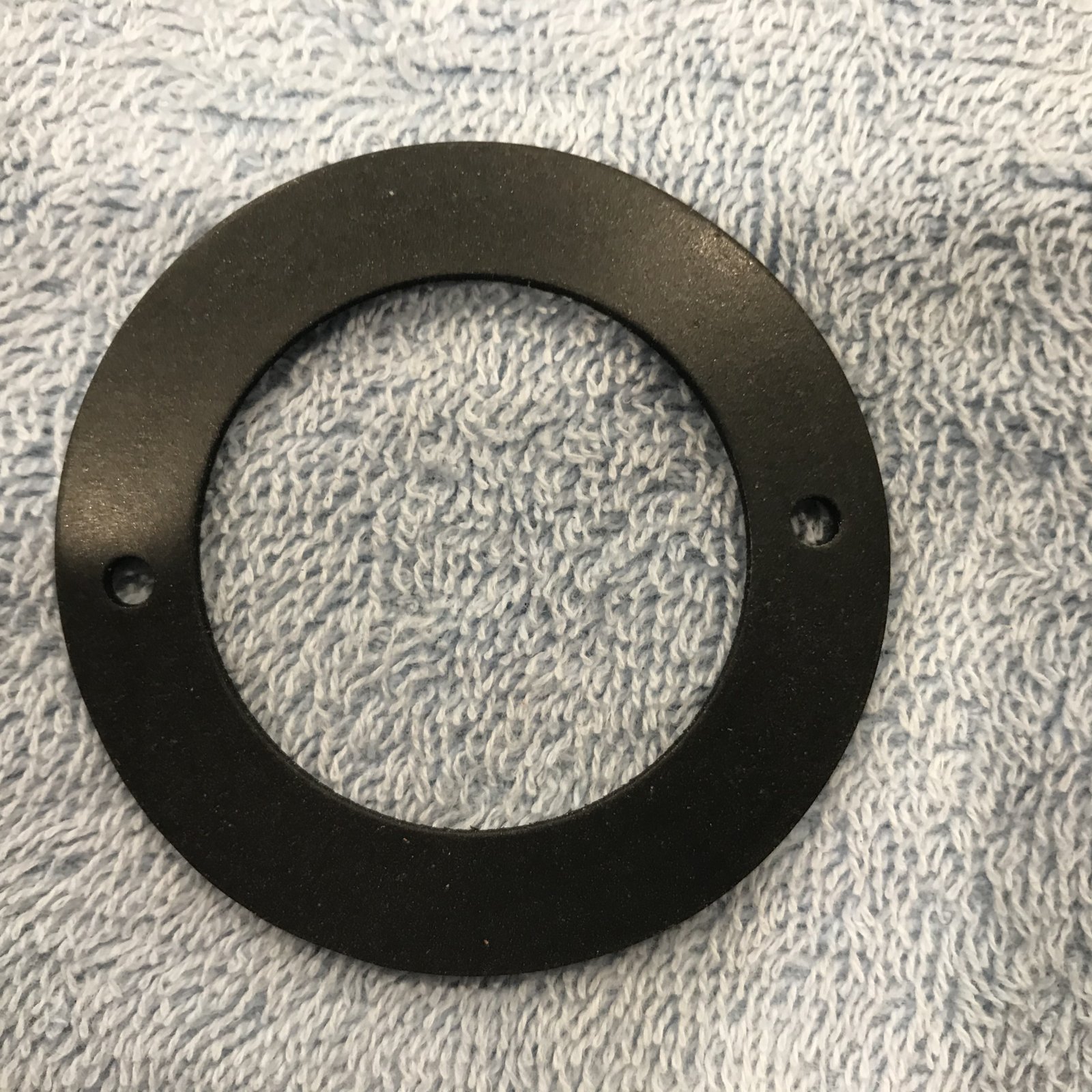

C pillar Roundel	2	51 14 6 040 110		51/15
Sunroof felt seal forward	1	54 12 1 801 431		54/1
Sunroof felt seal rear	1	54 12 1 801 343		54/1
Sunroof rubber seal seal	1	54 12 1 801 211		54/1
Front turn signal seal to body	1	63 13 1 811 103	left	63/5
	1	63 13 1 811 104	right	63/5
Euro rear fog housing seal	1	63 24 1 353 256		63/9
Rear upper wheel well seal	meter	51 71 5 776 180			unlisted

Markos · Sep 4, 2020

Rubber FAQ

This FAQ is an attempt to identify all rubber needs for an e9 restoration. Note that this does not include engine/driveline/suspension bushings and seals. Given that W&N carries most of these parts, a link to their website was provided to assist the identification process. If you have additions, please reply below!

Edit: Pics for 175 should be tied
to missing 51711810529. Move 175 to fender post
and include pic.

Engine Bay:

Description	Qty	Part #	Left/Right	Book

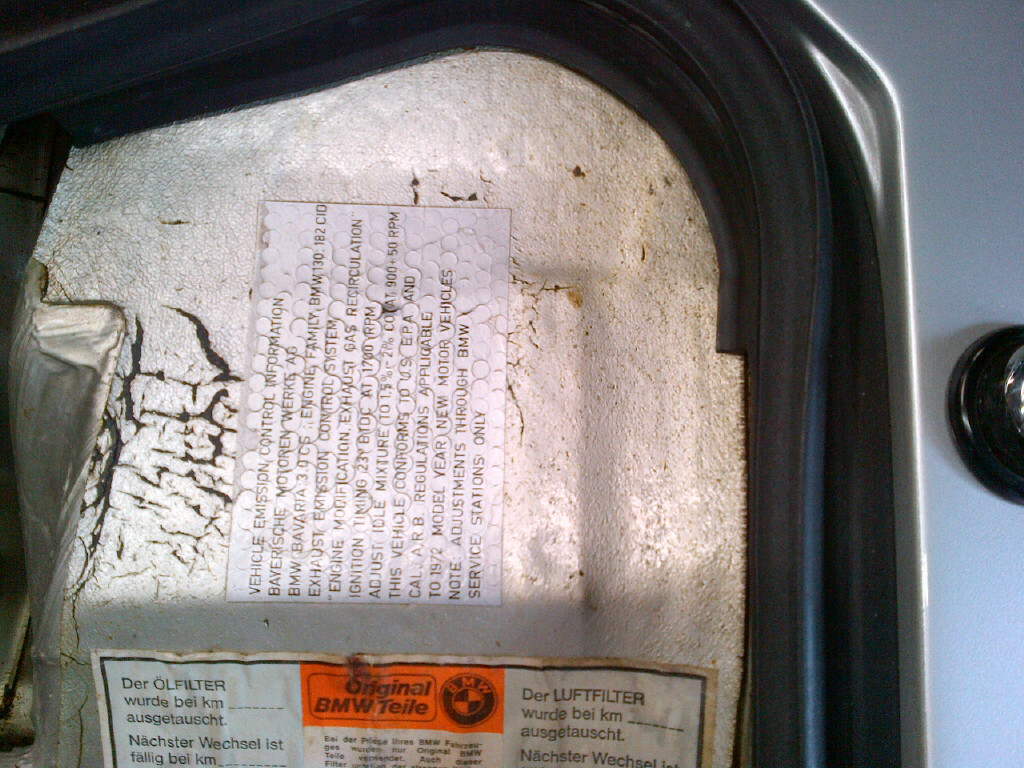

Radiator wall seal	1	51 71 1 810 530		41/8
Firewall seal	1	51 71 1 810 531		41/15
Plenum seal in front of glass	1	51 71 5 780 175		41/15
A pillar corner in plenum 200mm	2	41 14 5 703 175		41/4

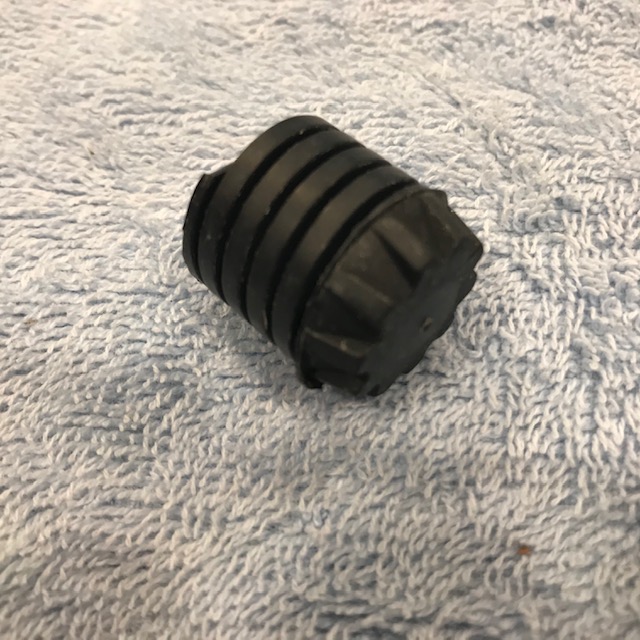

Adjustable hood bumpers	2	51 23 1 852 347		41/15
Headlight access cover gasket	1	63 12 1 811 923	left	63/4
	1	63 12 1 811 924	right	63/4
Hood washer jet seal	2	61 66 1 354 194		61/13
Fresh air plenum drain hose	2	64 21 4 674 121		64/3

Markos · Sep 4, 2020

Front Fenders:

Description	Qty	Part #	Left/Right	Book

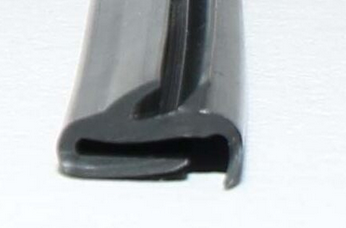

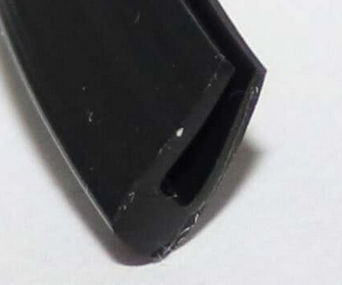

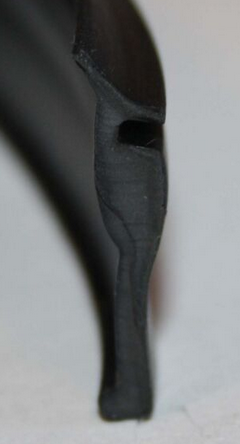

Wheel house rear seal (mud cover)	meter	51 71 5 776 180		41/8

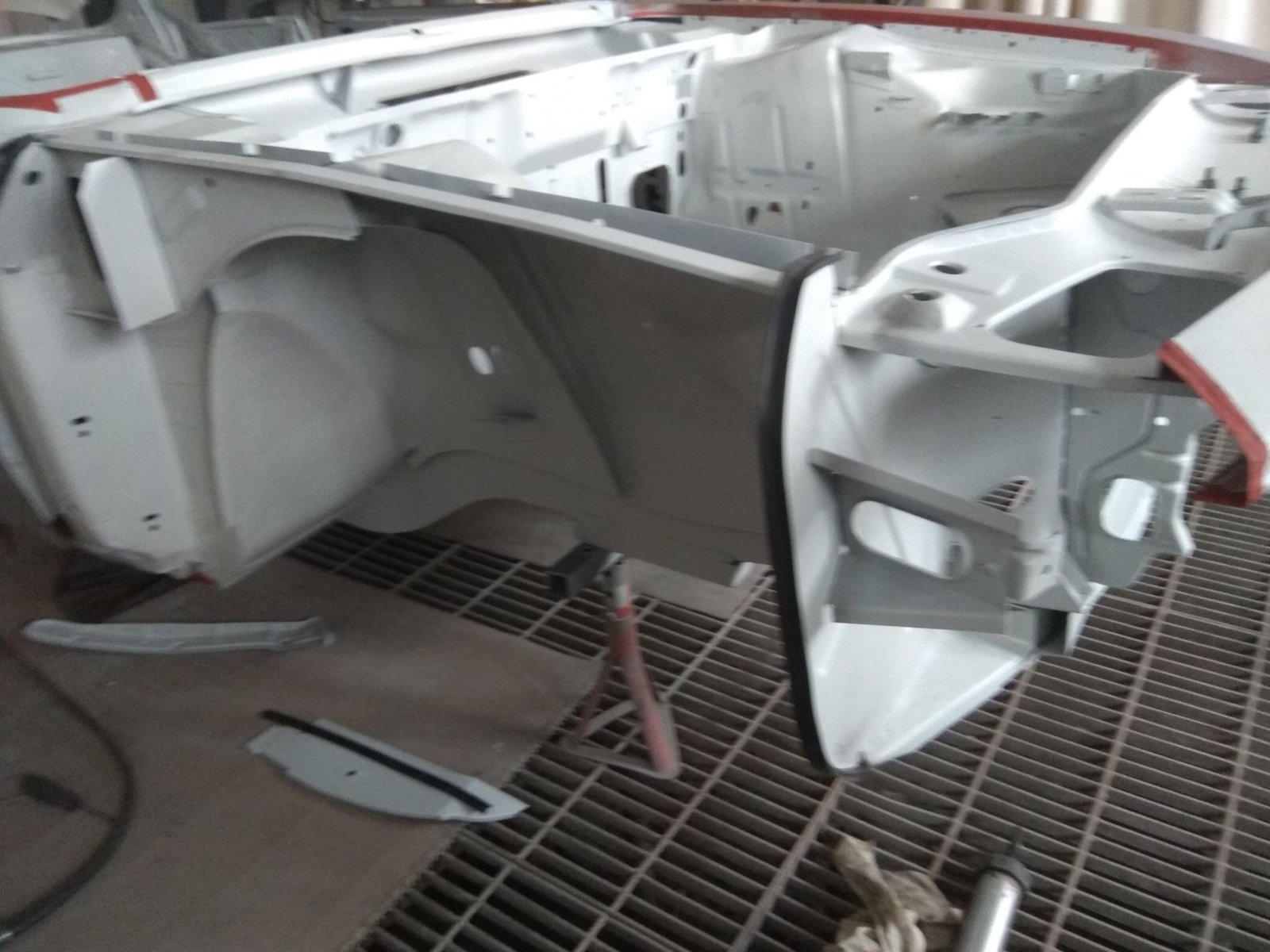

Wheel house front seal	meter	51 71 5 776 180		41/8

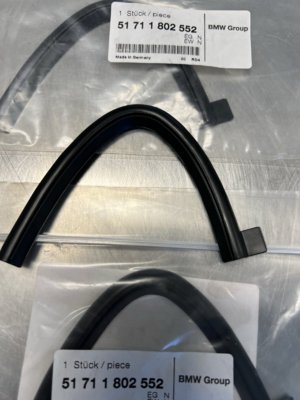

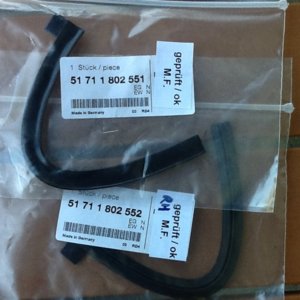

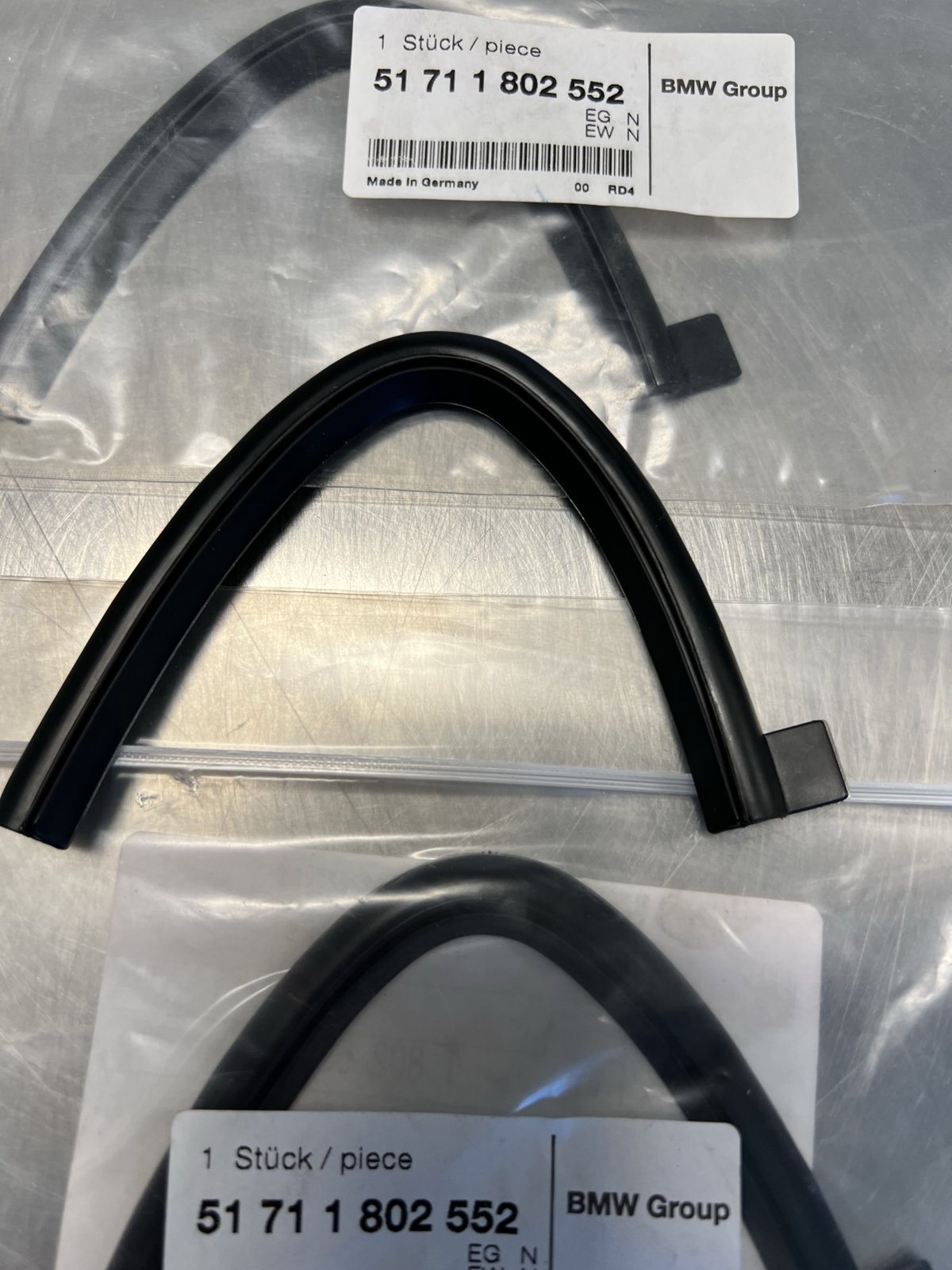

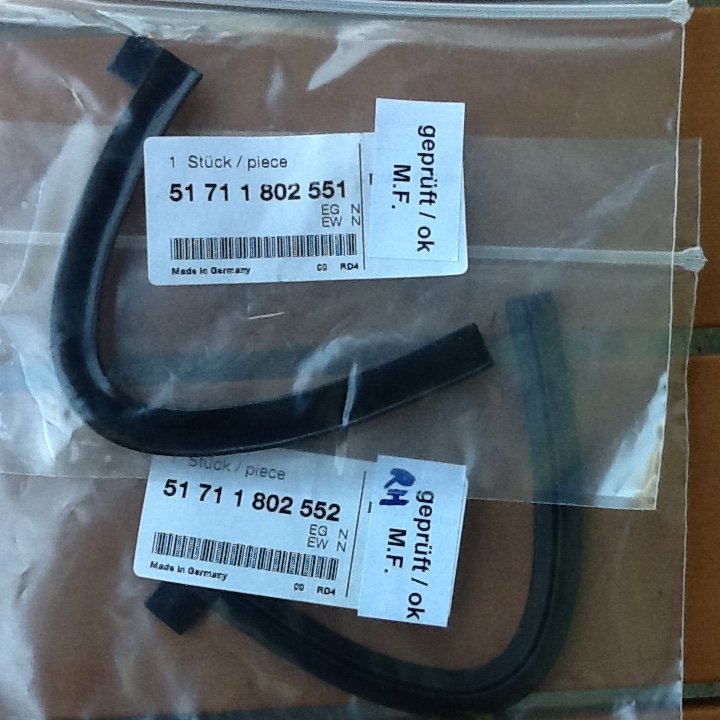

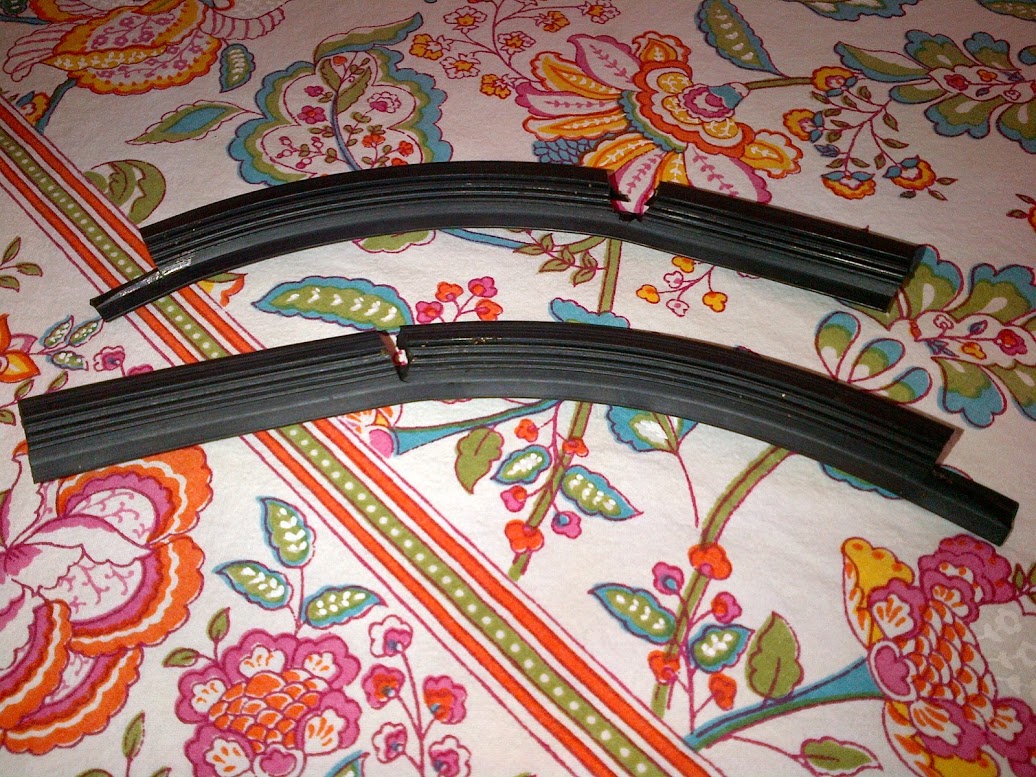

Forward fender area	1	51 71 1 802 551	left	41/8
	1	51 71 1 802 552	right	41/8

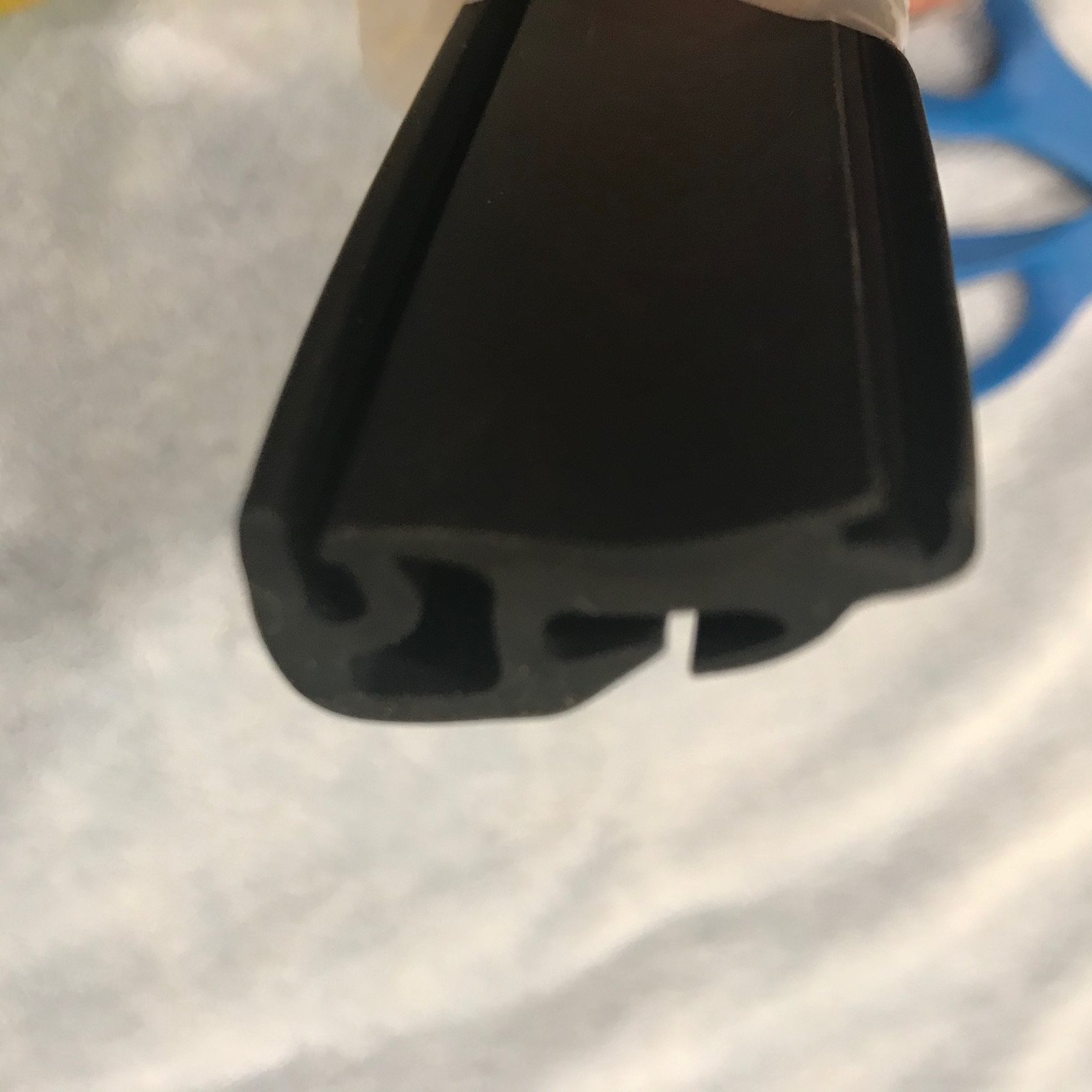

Unknown 625mm	meter	41 13 1 817 098		41/4

Markos · Sep 4, 2020

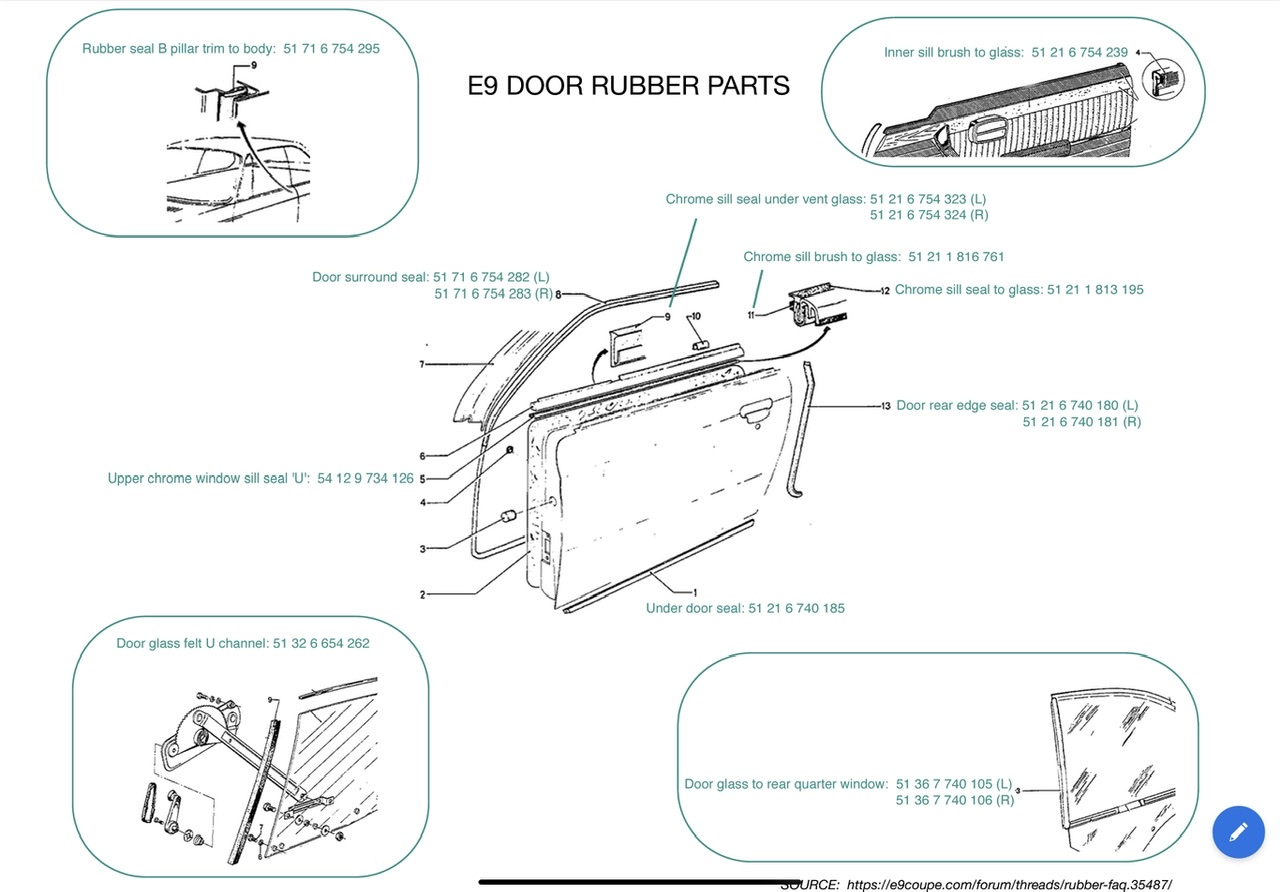

Doors:

Description	Qty	Part #	Left/Right	Book	Status

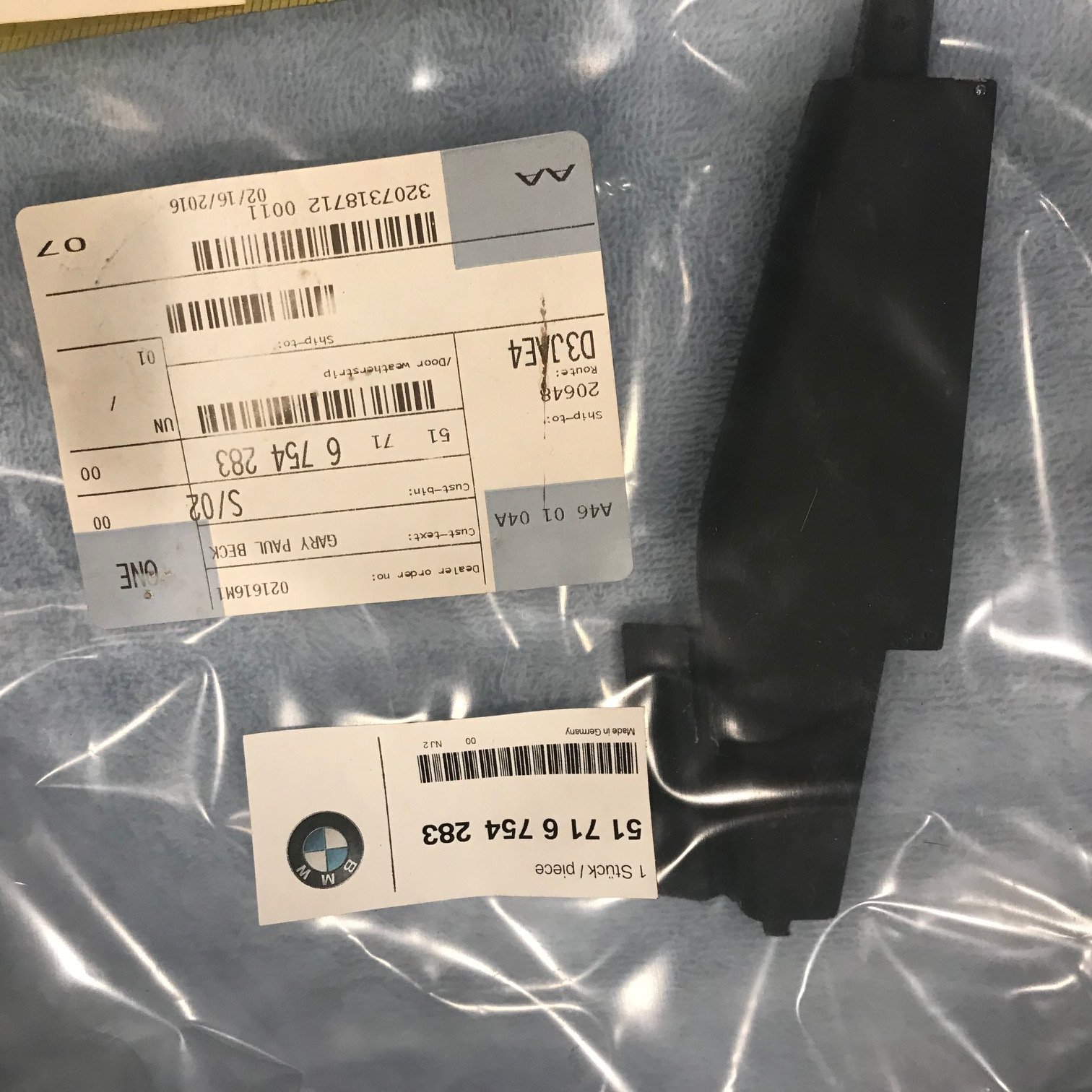

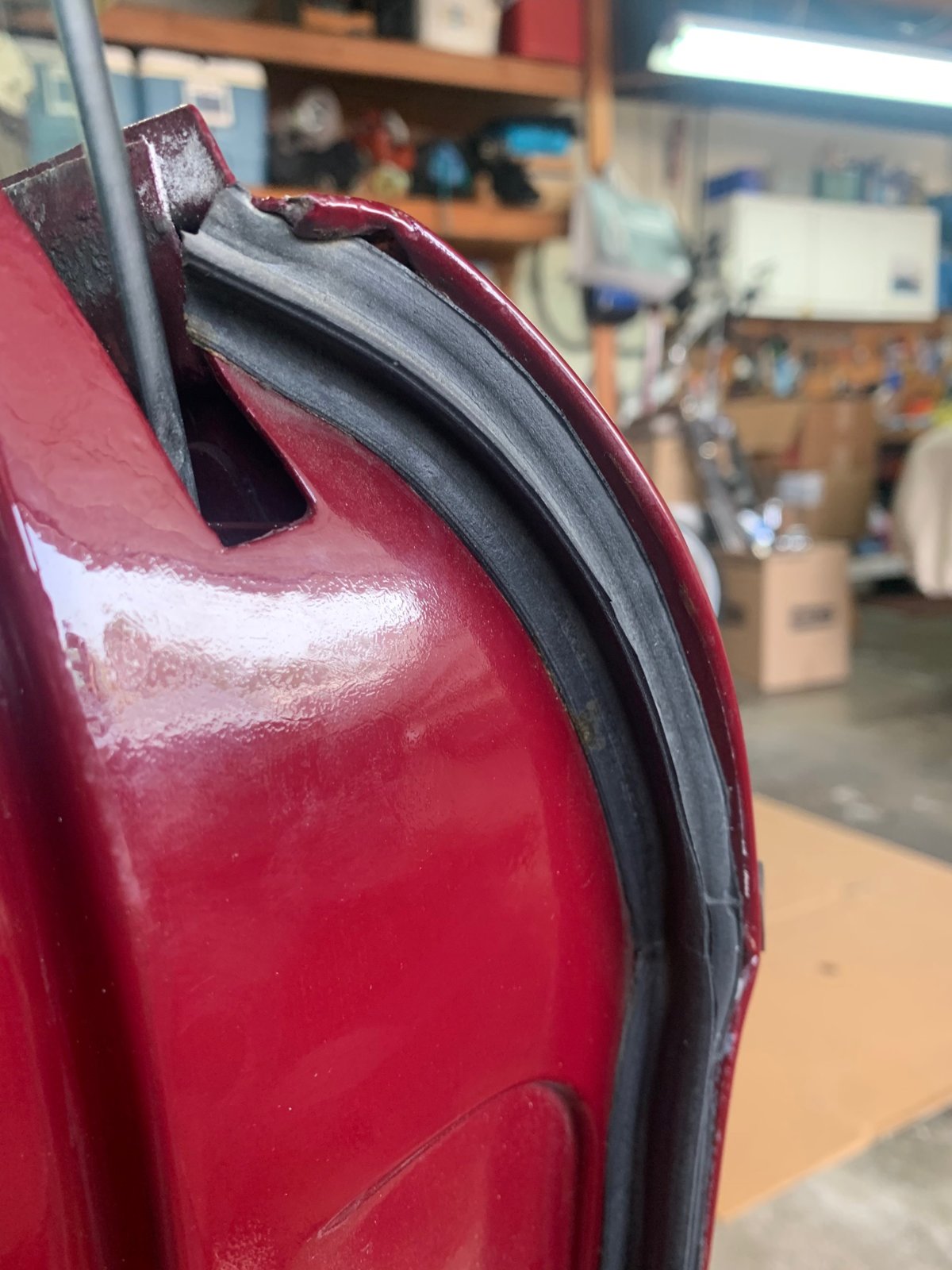

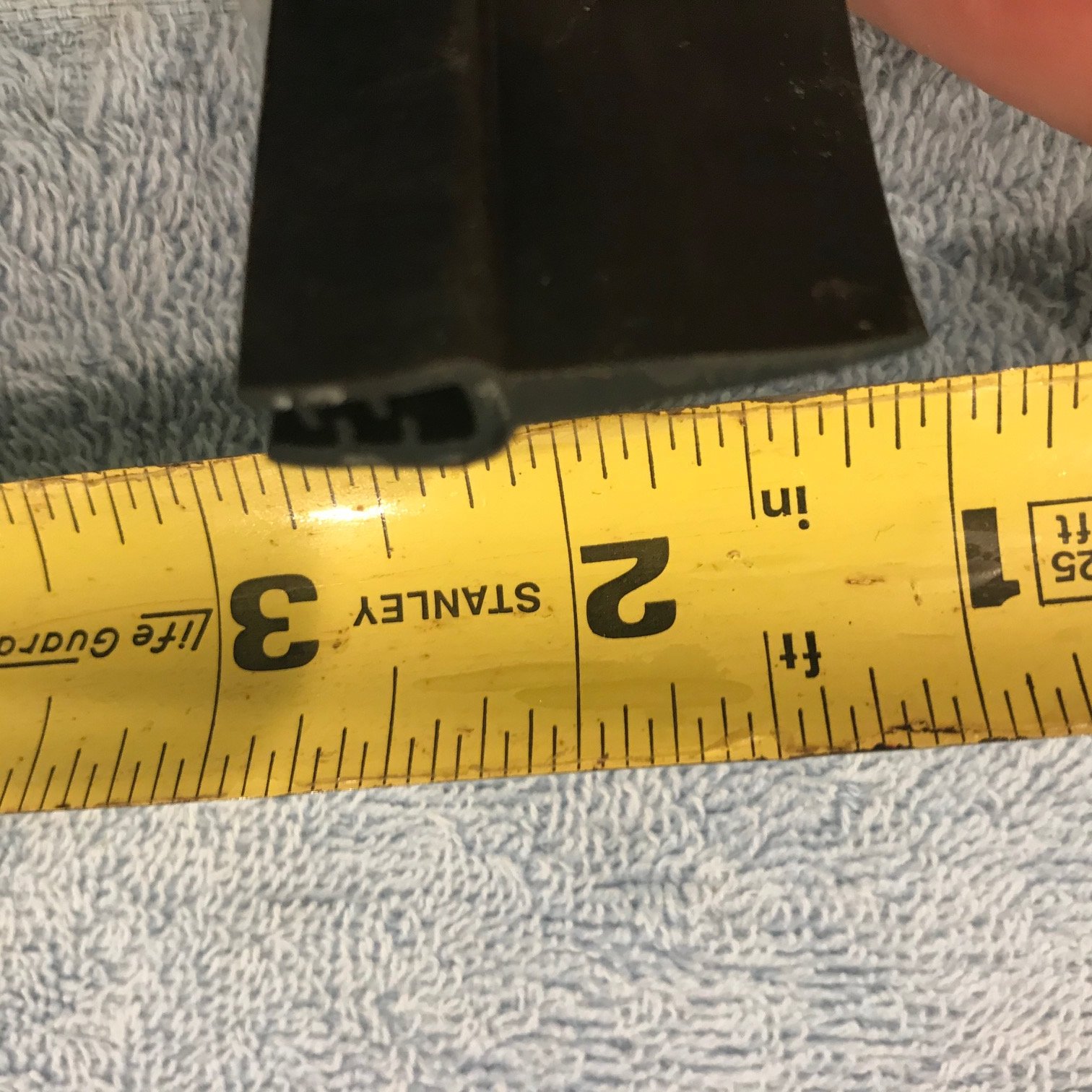

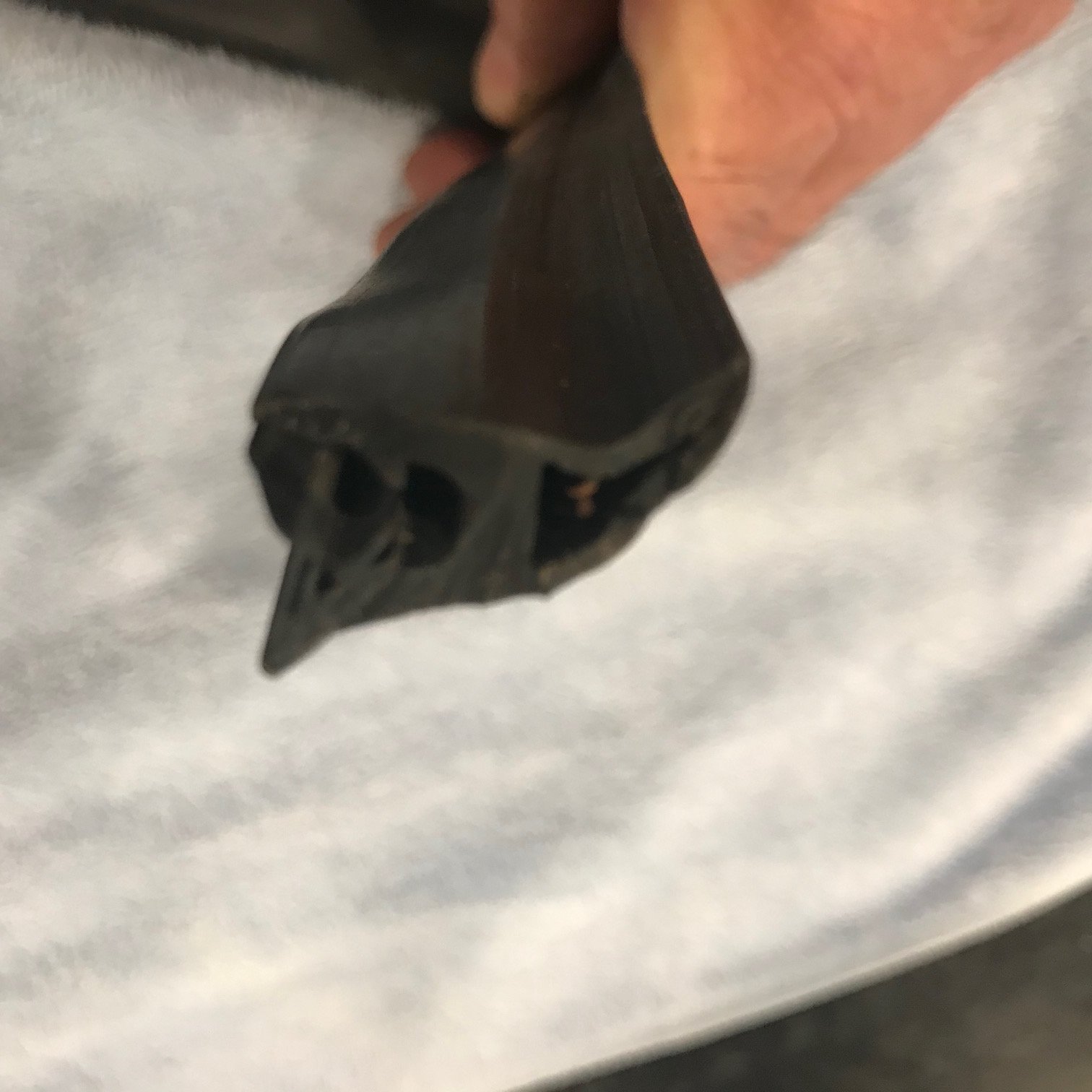

Door surround seal	1	51 71 6 754 282	left	41/14
	1	51 71 6 754 283	right	41/14

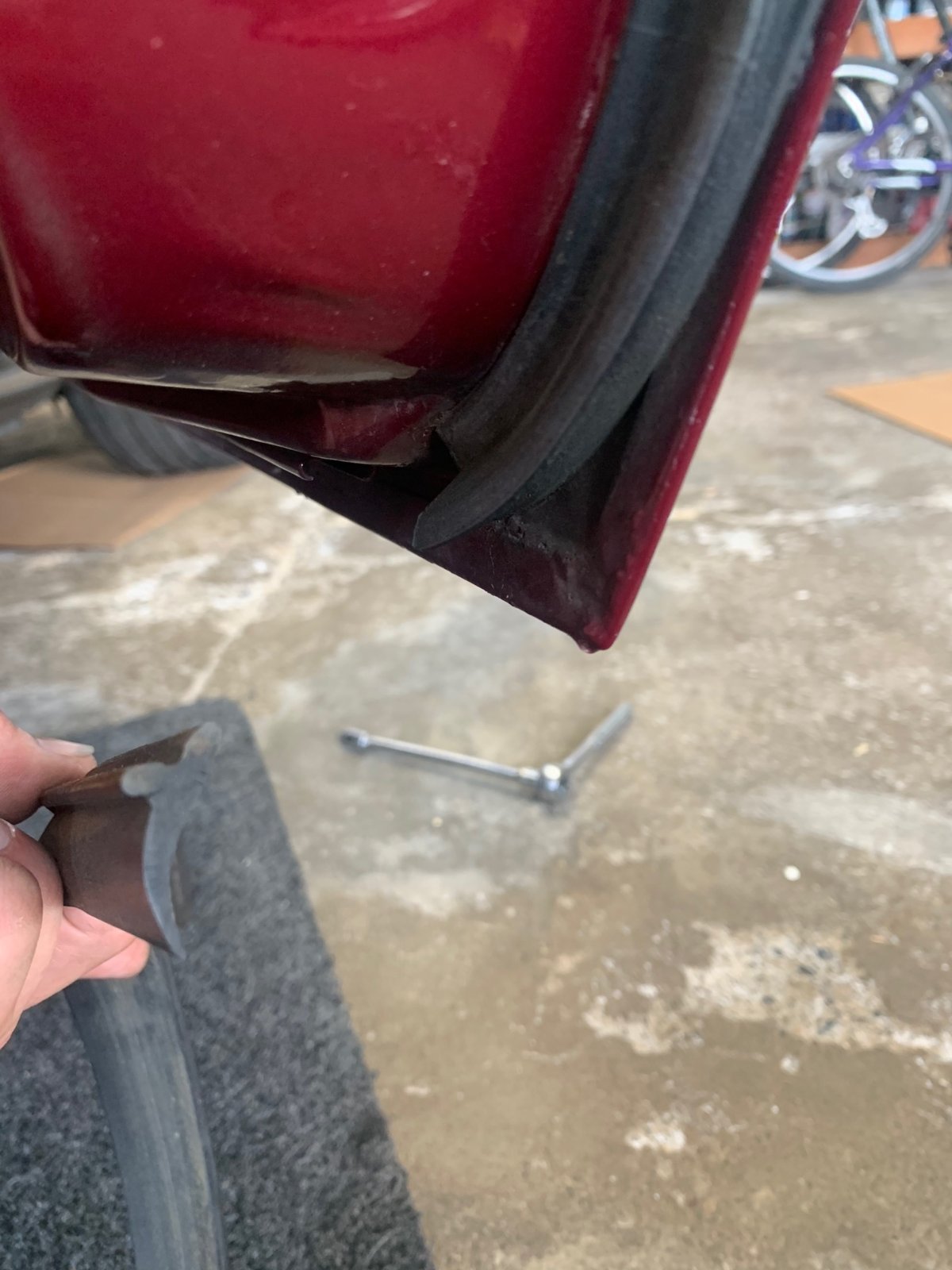

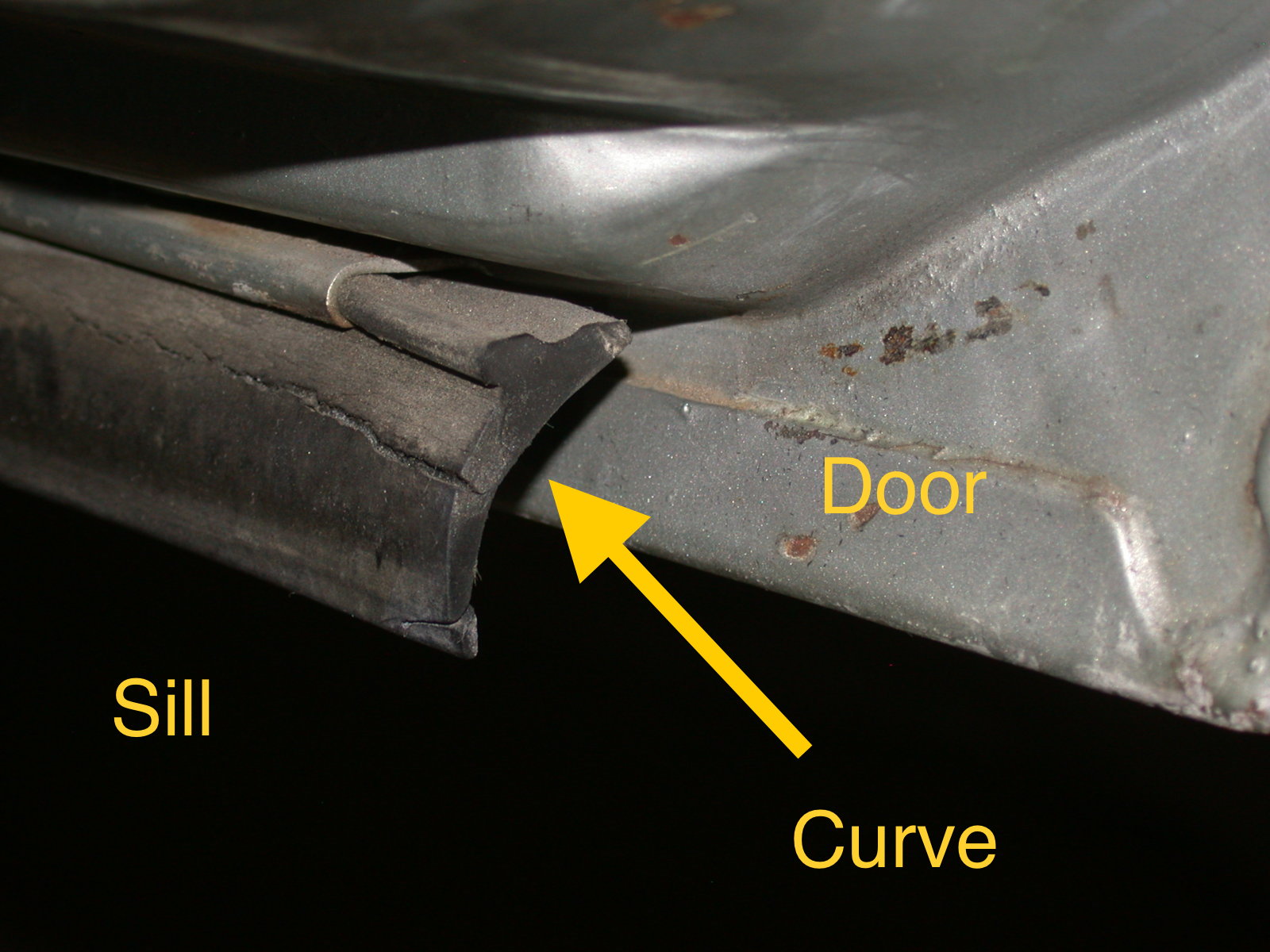

Under door seal	2	51 21 6 740 185		41/14

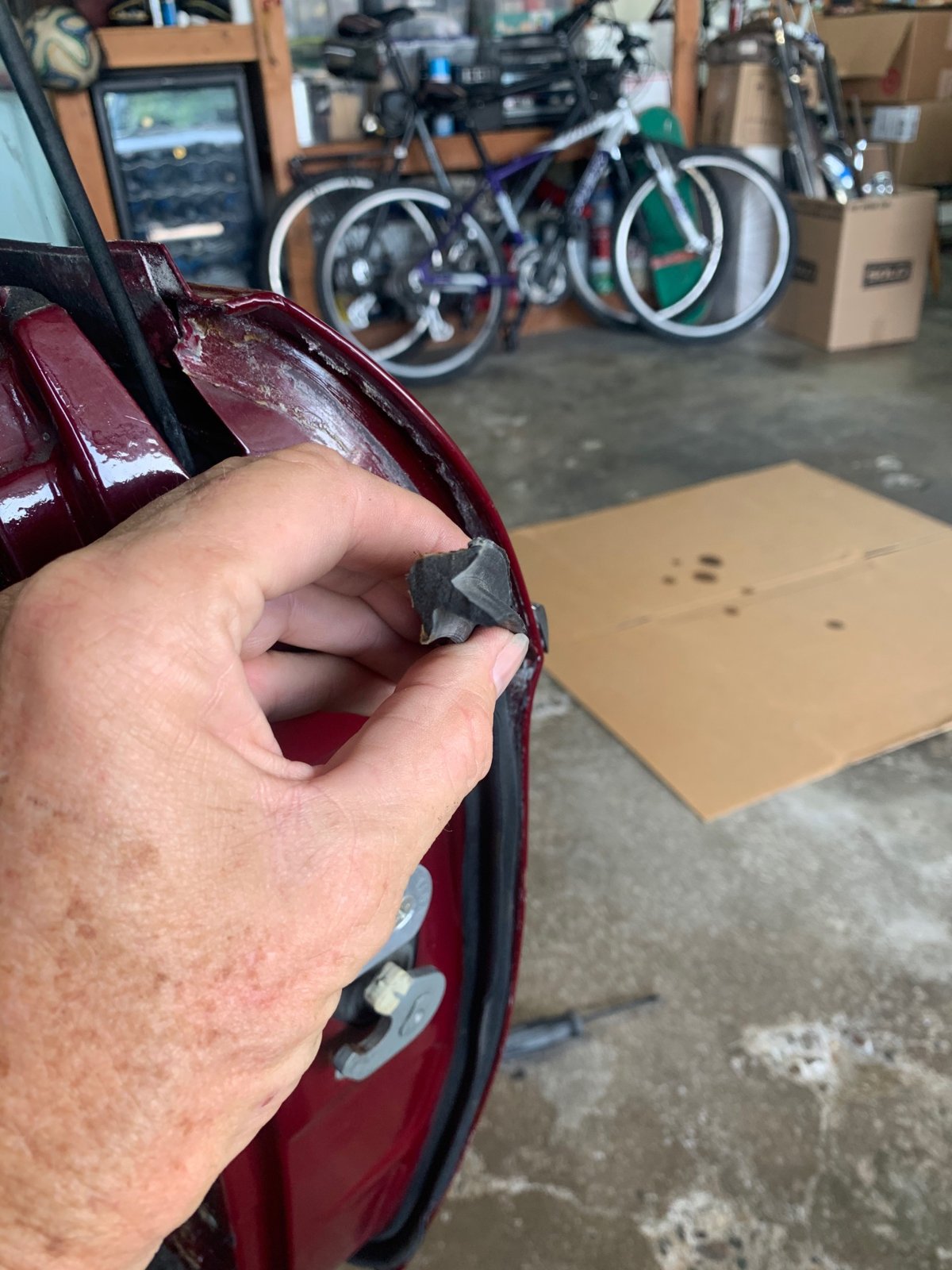

Door rear edge seal	1	51 21 6 740 180	left	41/14
	1	51 21 6 740 181	right	41/14
Upper chrome window sill seal 'U'	meter	54 12 9 734 126		41/14
Chrome sill seal to glass	meter	51 21 1 813 195		41/14
Chrome sill seal under vent glass	1	51 21 6 754 323	left	41/14
	1	51 21 6 754 324	right	41/14
Chrome sill brush to glass	2	51 21 1 816 761		41/14	NLA
Inner sill brush to glass	2	51 21 6 754 239		51/46	NLA
Rubber buffer under door handle	2	51 21 6 742 118		41/13
Rubber dot/buffer under handle	4	51 21 6 742 120		41/13
Door key lock rubber	2	51 21 1 814 989		41/13
Rubber seal B pillar trim to body	meter	51 71 6 754 295		51/14
Door glass felt U channel	meter	51 32 6 654 262		51/32
Vent glass seal	1	51 32 1 826 933	left	51/30
		51 32 1 826 934	right	51/30
Door glass to rear quarter window	1	51 36 7 740 105	left	51/36
	1	51 36 7 740 106	right	51/36

Markos · Sep 4, 2020

Trunk:

Description	Qty	Part #	Book	Status
Rubber seal	1	51 71 5 776 161	41/17
Rubber buffer in corners	2	51 23 5 780 190	41/17
Roundel seal	1	51 14 5 780 172	51/15	NLA

Markos · Sep 4, 2020

Bumper Front:

Description	Qty	Part #	Left/Right	Book	Status
Rubber bumper strips	2	51 11 10810 819		51/1
Bumper guard	1	51 11 1 810 523	left	51/1
	1	51 11 1 810 524	right	51/1
Bumper guard shim	meter	51 11 1 808 420		51/1
Bumper iron seal to body	1	51 11 1 802 067	left	51/2
	1	51 11 1 802 068	right	51/2
Bumper end tip cover <73 US	meter	51 11 1 811 180		51/2
Bumper end tip cover 73 US	1	51 11 1 823 147	left	51/3
	1	51 11 1 823 148	right	51/3
Bumper guard rubber US 73	1	51 11 1 823 145	left	51/3	NLA
	1	51 11 1 823 146	right	51/3	NLA
Rubber bumper strip US 74	1	51 11 1 828 929		51/5
Bumper cap to body US 74	1	51 11 1 827 847	left	51/5	NLA
	1	51 11 1 827 848	right	51/5	NLA

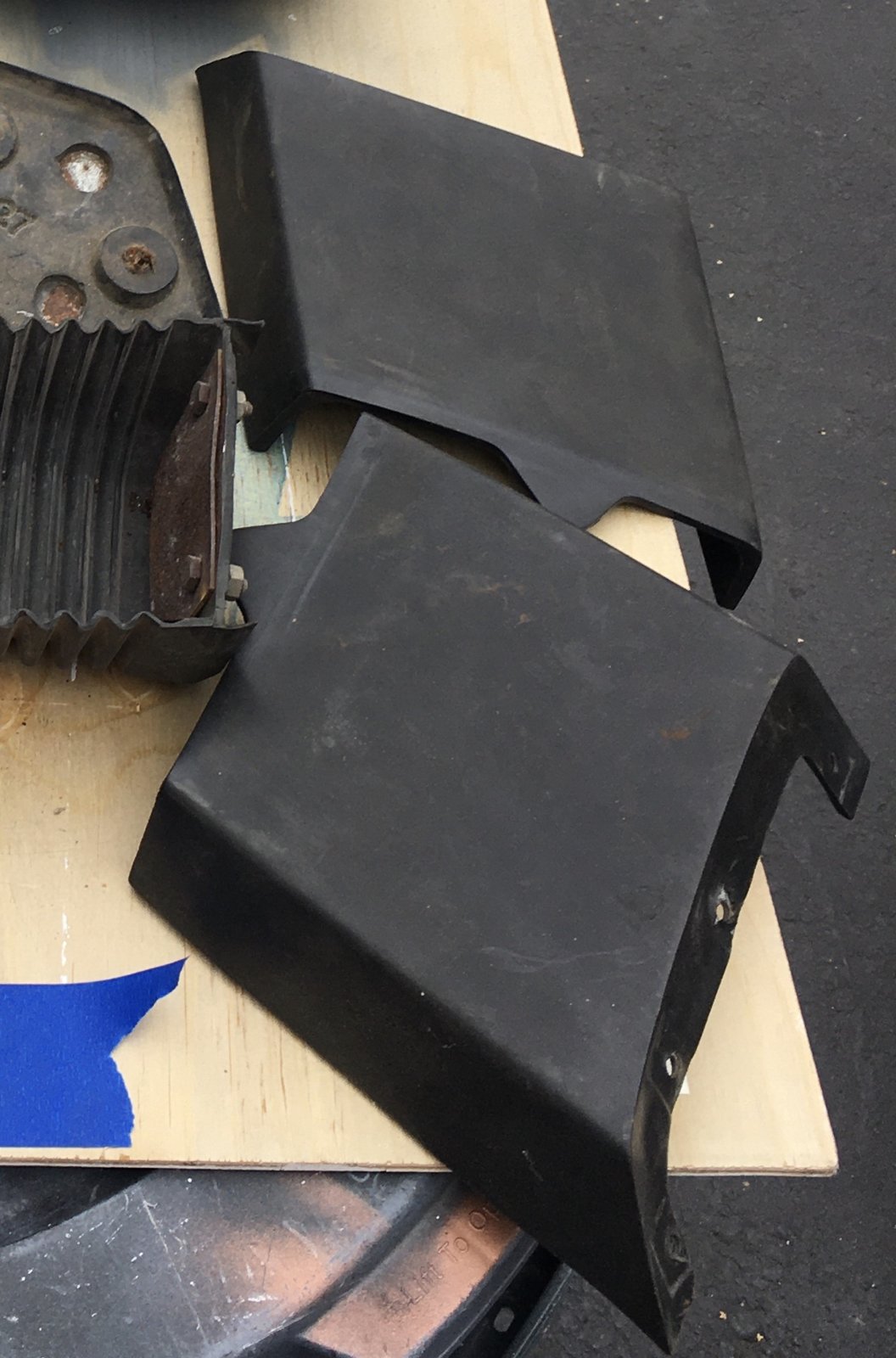

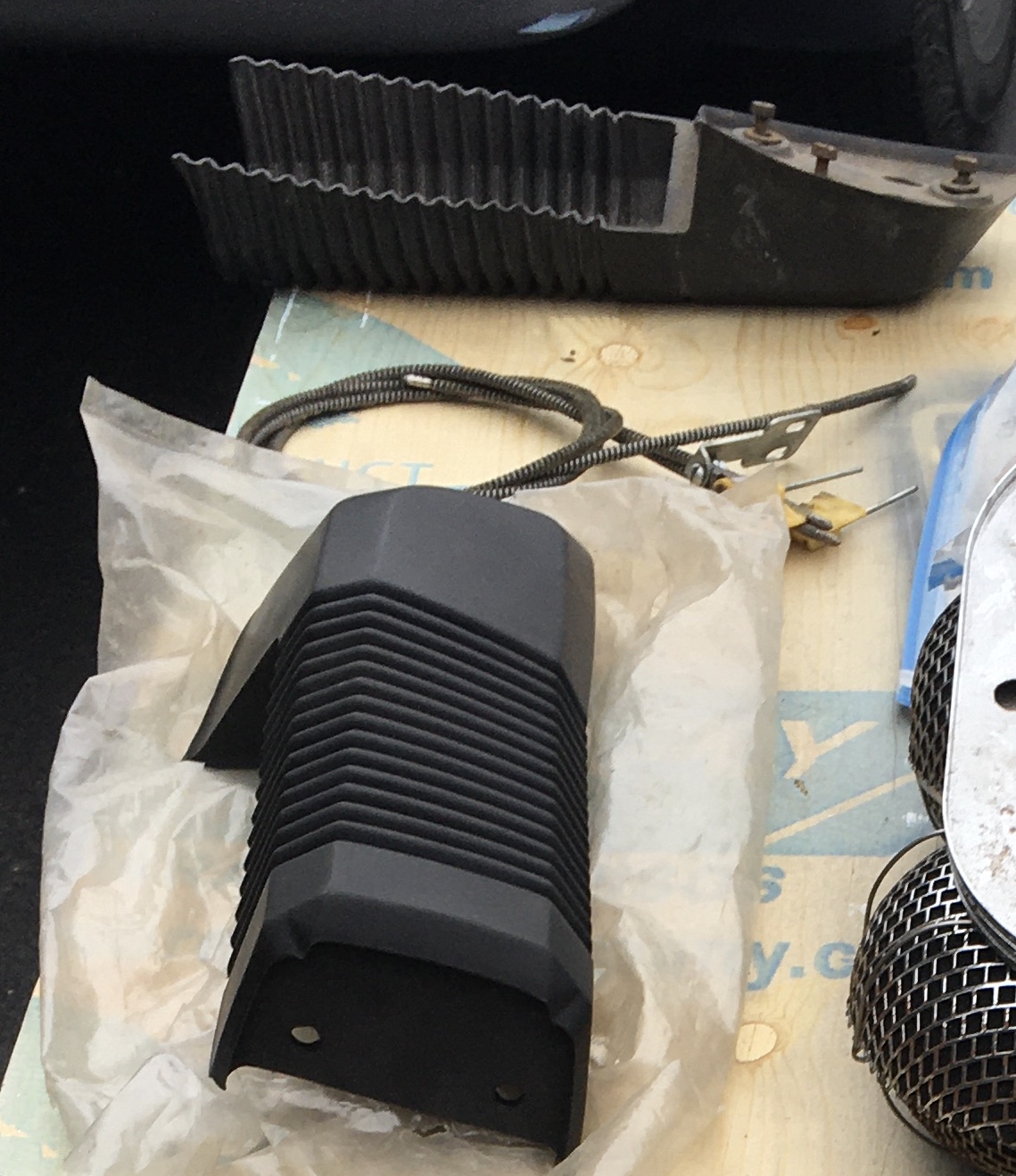

Bumper shock cover US 74	1	51 11 1 831 645	left	51/5	NLA
	1	51 11 1 831 646	right	51/5	NLA

Markos · Sep 4, 2020

Bumper Rear:

Description	Qty	Part #	Left/Right	Book	Status
Rubber bumper strip	1	51 12 1 810 825		51/7
Bumper guard thru 73	1	51 12 1 810 973	left	51/7
	1	51 12 1 810 974	right	51/7
Bumper guard to body <73 US	2	51 12 1 810 997		51/7
Bumper guard to bumper	meter	51 11 1 808 420		81/7
Bumper end tip cover <73 US	meter	51 12 1 811 179		51/7
Bumper end tip cover 73 US	2	51 12 1 823 115		51/8
Bumper rubber strip US 74	1	51 12 1 827 823		51/10
Bumper cap to body US 74	1	51 12 1 827 827	right	51/10	NLA
	1	51 12 1 827 828	left	51/10	NLA

Markos · Sep 4, 2020

HB Chris said:
I have created a spreadsheet with all rubber part numbers and book location for Mark to review, will post soon. That rear inner fender one is not shown even though it exists. Parts w/o a part number that are NLA may not be on the list.

I am highly impressed with the turnaround from @HB Chris! I’ll try to add some of the NLA stuff with a part number. It is helpful for folks like me who still need to restore their car.

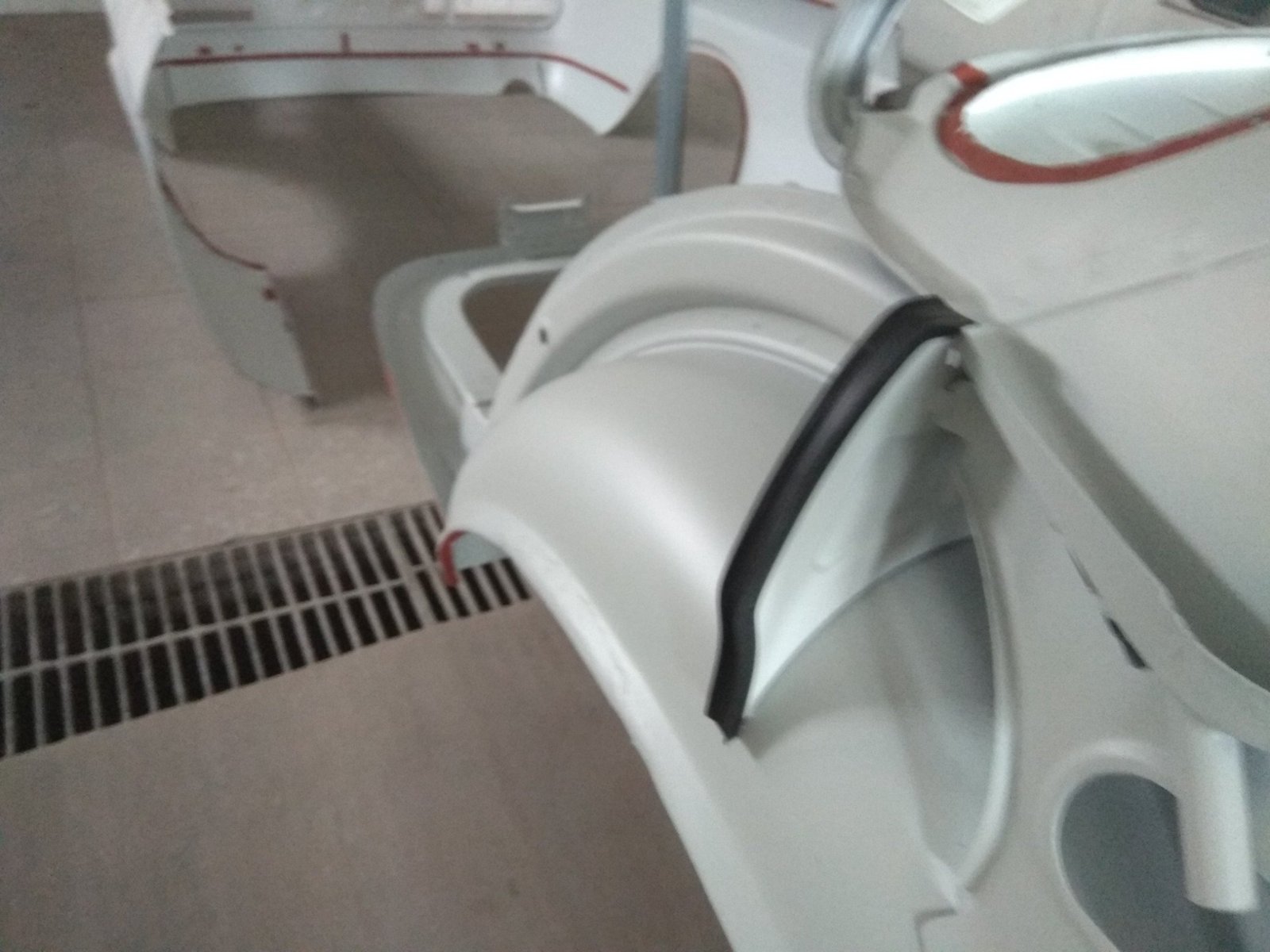

Edit: Thanks to @m73 for finding a few elusive fender seal pics!

Figure it costs about 2,000€ to 2,500€ to replace all of the rubber on your vehicle (as of September 2020).

eriknetherlands · Sep 17, 2020

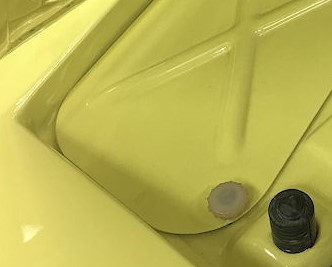

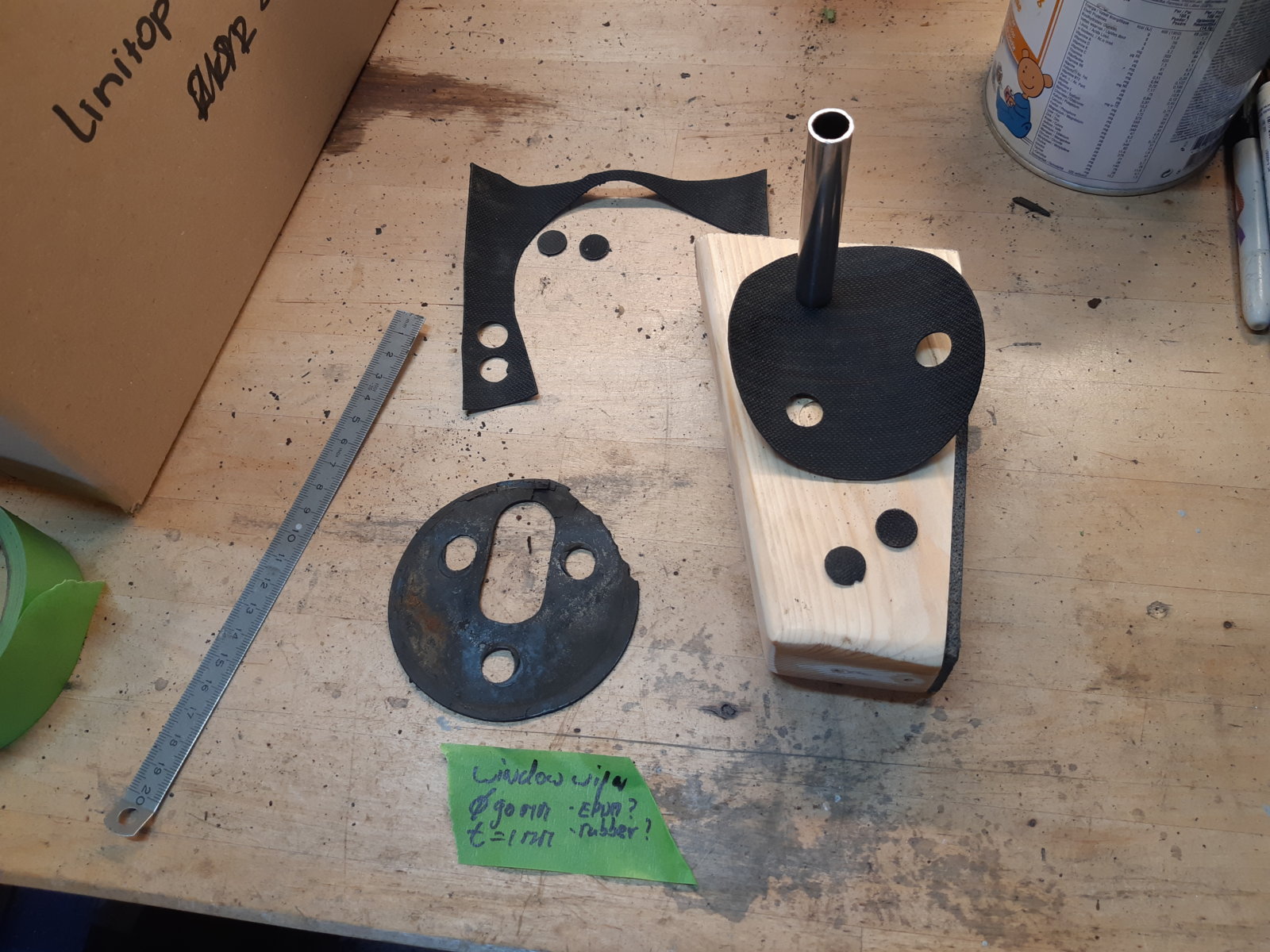

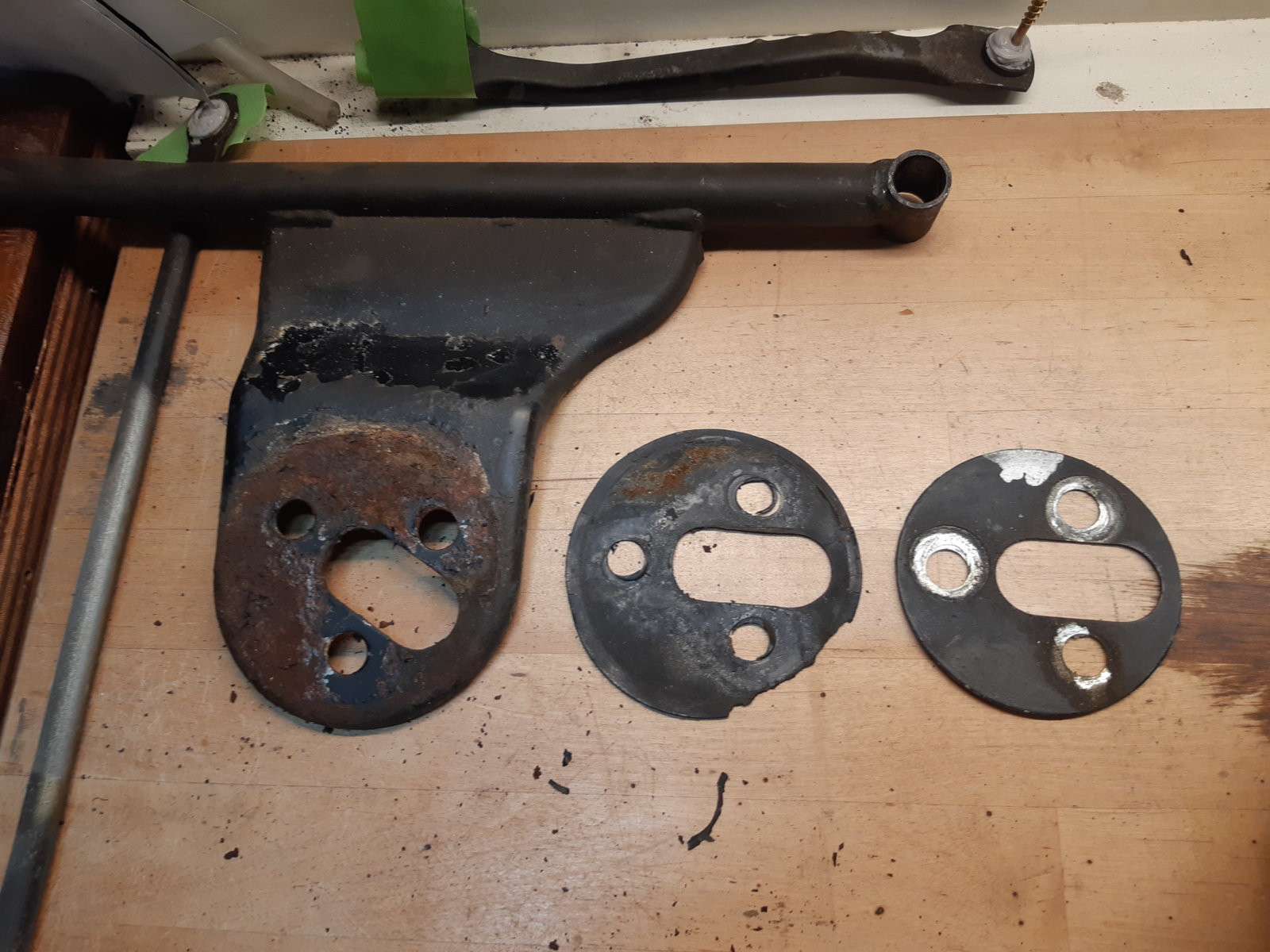

to add; the rubber sheet in the window wiper motor; the part in the middle here

eriknetherlands · Sep 17, 2020

90 mm across; 1 mm thick.

eriknetherlands · Sep 17, 2020

for sale on E9 forum, oem complete set-4.jpg

fuel door boot including plugs

for sale on E9 forum, oem complete set-3.jpg

HB Chris · Sep 17, 2020

Markos said:
You can see where we are going with this. Not very mobile-friendly due to the tables. If you need this much rubber I would advise that you site down in front of a computer.

Note:
* Need to add tail light gaskets

They aren’t listed separately I don’t think.

Markos · Sep 18, 2020

HB Chris said:
Got it, if you have a good source.

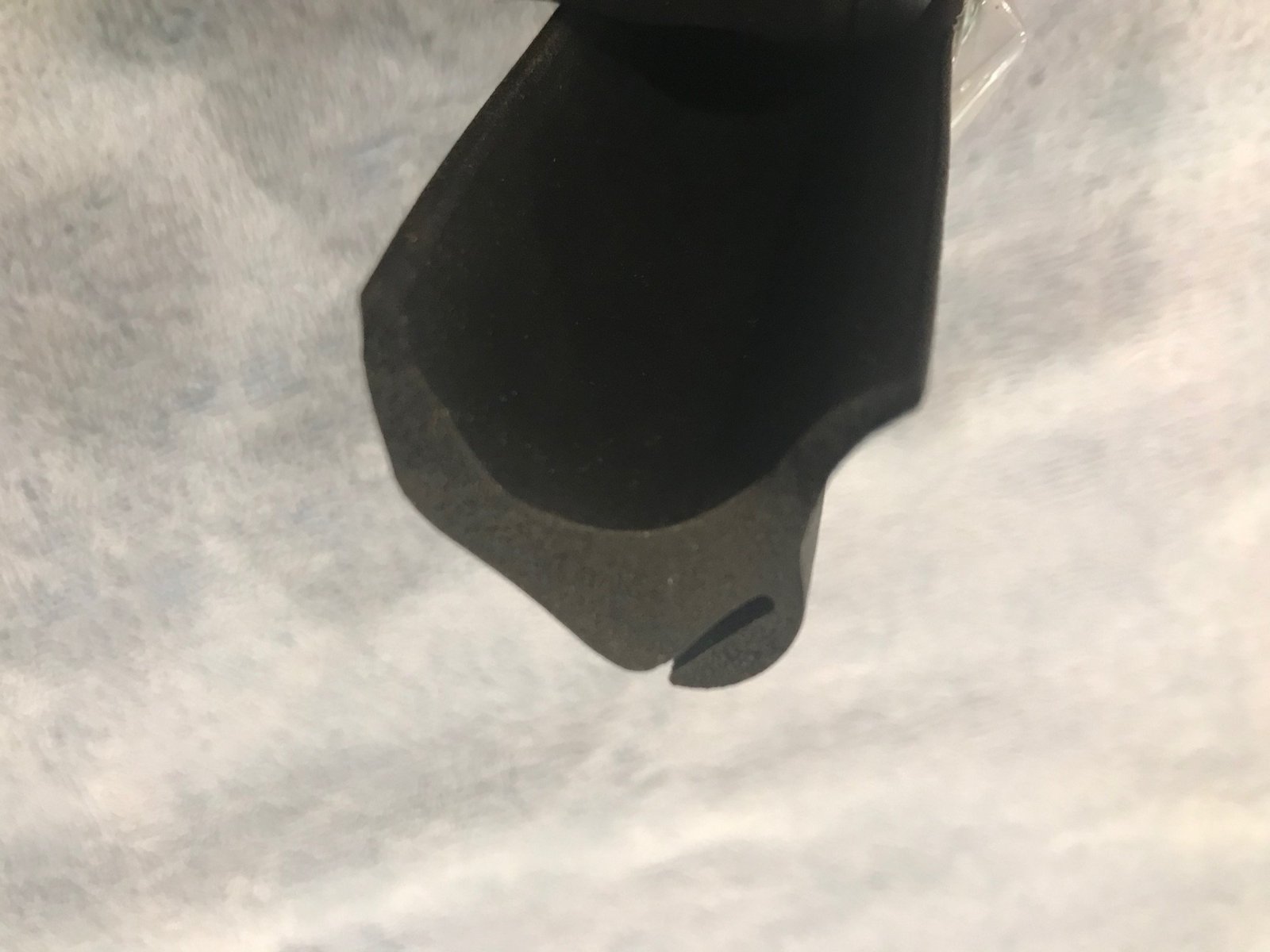

Interior channel material:

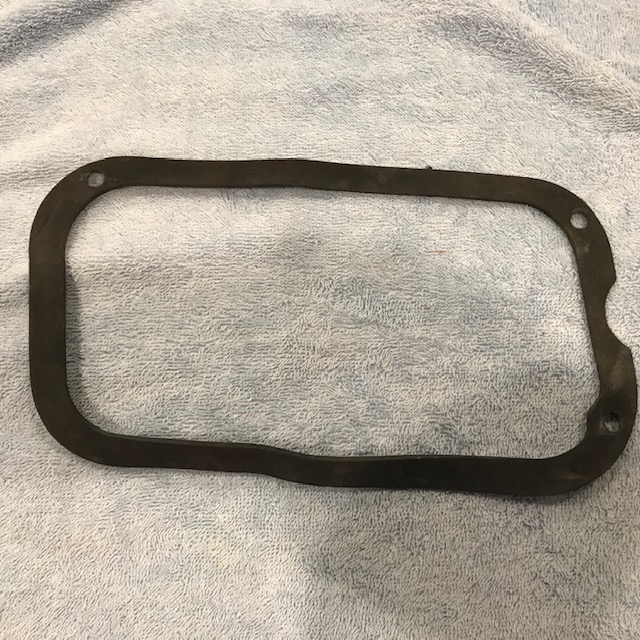

Rubber seal between rear light and body fits for left or right side you need 2 for 1 car

www.wallothnesch.com

Markos · Sep 19, 2020

Need to add row for 51361837226

Markos · Sep 19, 2020

@HB Chris & @rsporsche

Okay I'm stuck rationalizing the following part numbers. They are distinctly different in the diagrams, but I need to tie them to a pic and put them in the proper category. Chris I'll take a look at your original sheet once again. Scott - I was confused by 529. Looks like the small cowl corner seals but the diagram shows a long hood seal. Easy to solve I'm sure, but I'm having a hard time visualizing. I think 175 is the gasket that I mentioned in front and rear of the car, goes between the fenders, similar or same to 180 (which I duplicated).

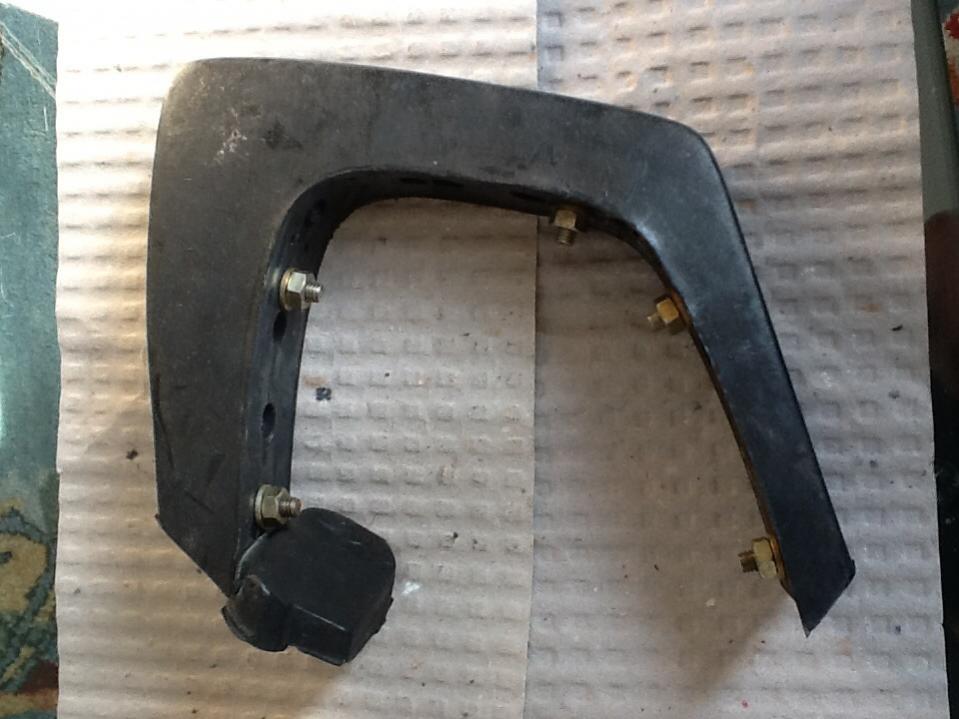

Also scott, you had an overrider cover that I didn't recognize the profile on. In your gallery.

51711810529
41131817098
41145703175

HB Chris · Sep 19, 2020

I’m in Oregon so no parts book. I used original part numbers not supercedes so that might be an issue.

rsporsche · Sep 19, 2020

Markos said:
@HB Chris & @rsporsche

Okay I'm stuck rationalizing the following part numbers. They are distinctly different in the diagrams, but I need to tie them to a pic and put them in the proper category. Chris I'll take a look at your original sheet once again. Scott - I was confused by 529. Looks like the small cowl corner seals but the diagram shows a long hood seal. Easy to solve I'm sure, but I'm having a hard time visualizing. I think 175 is the gasket that I mentioned in front and rear of the car, goes between the fenders, similar or same to 180 (which I duplicated).

Also scott, you had an overrider cover that I didn't recognize the profile on. In your gallery.

51711810529
41131817098
41145703175

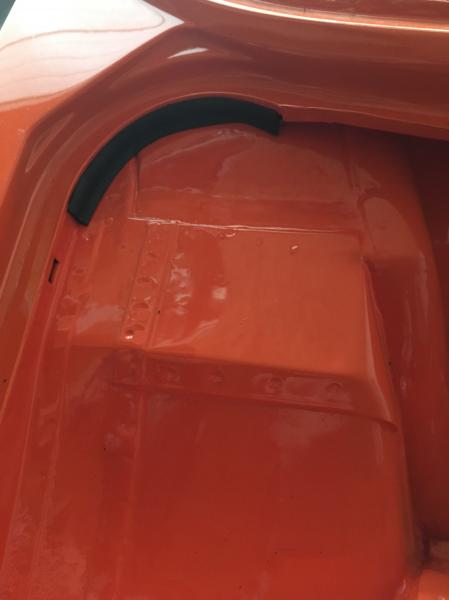

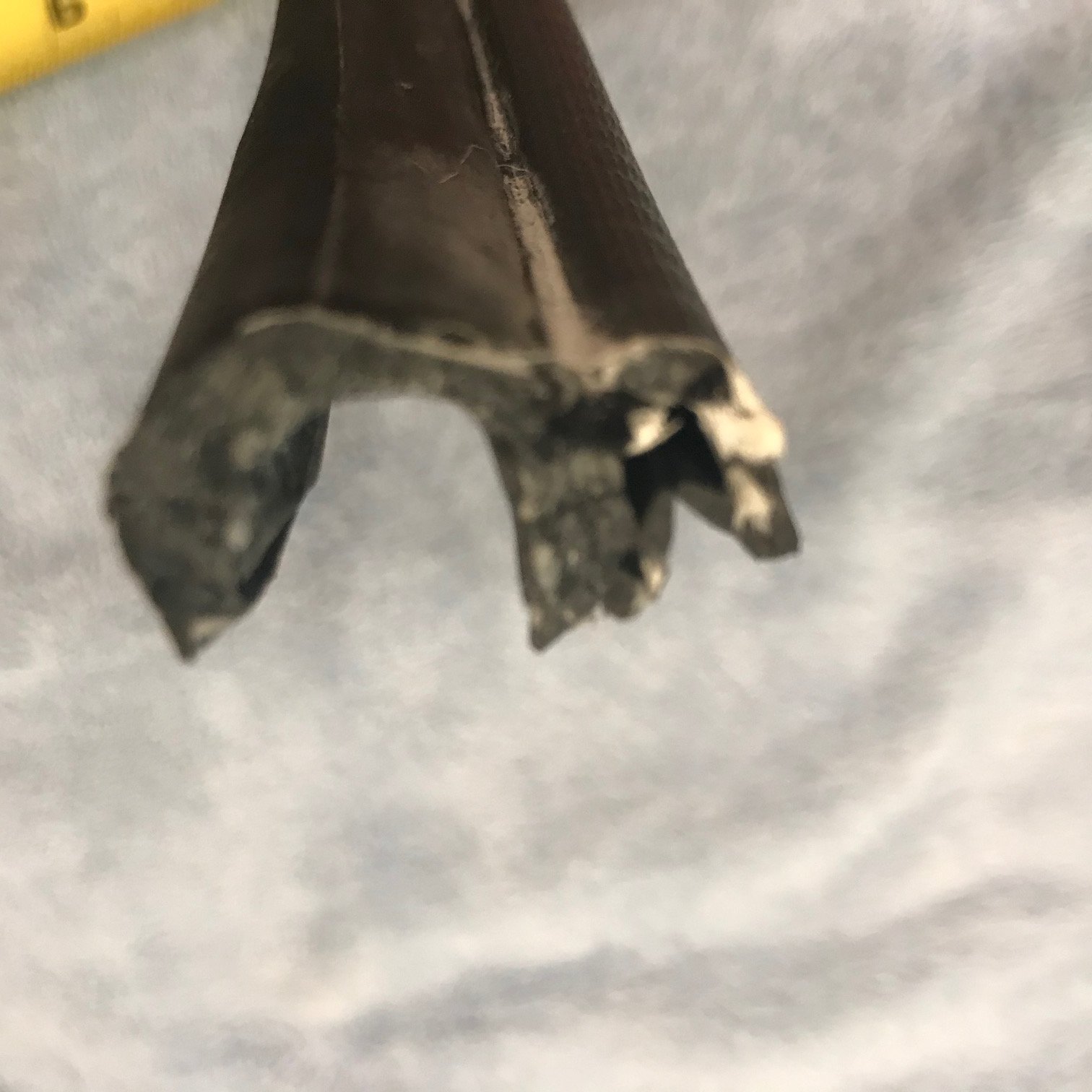

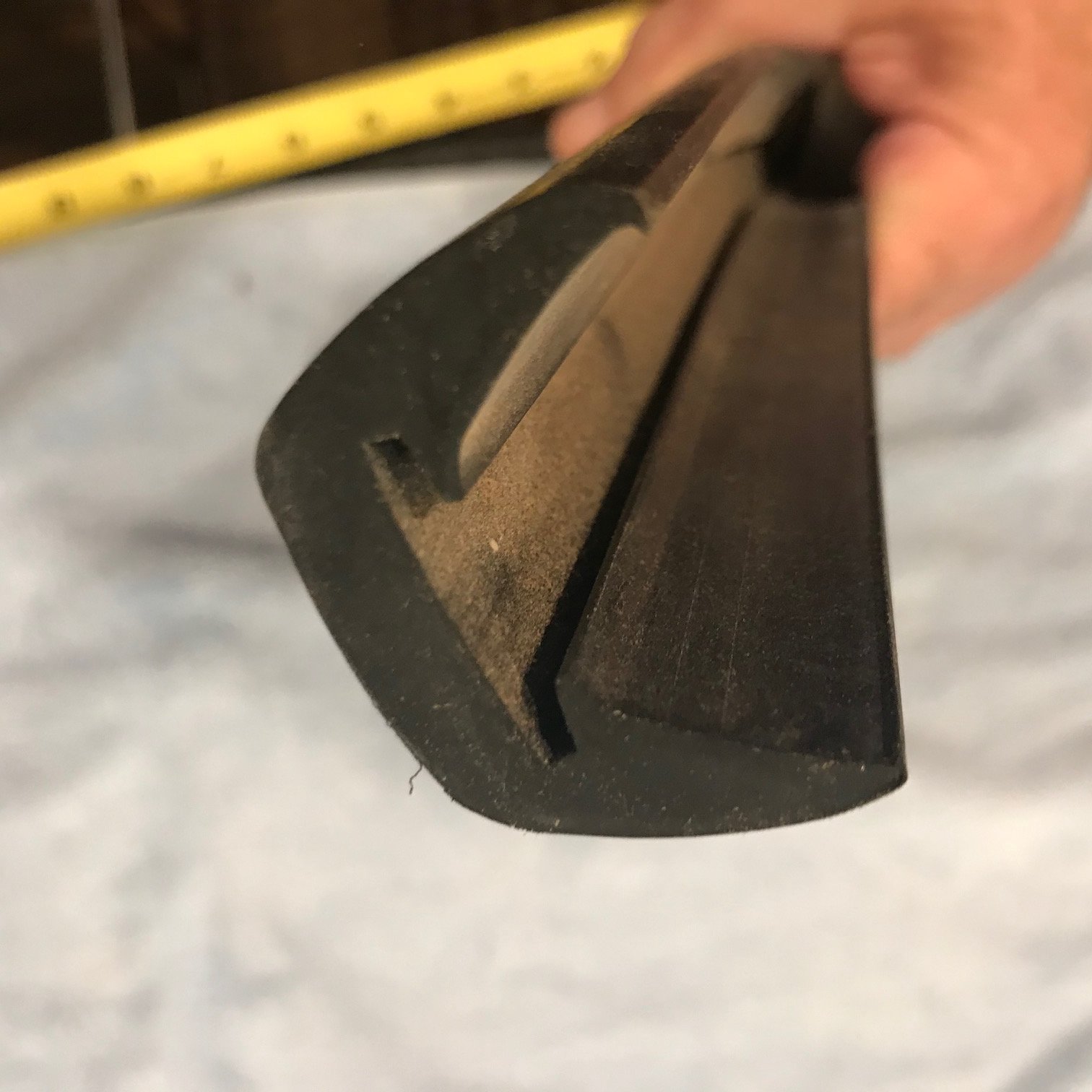

Markos - xx529 is the little piece that goes in the corners of the engine compartment (near the windshield) - between the gutter and the top of the inner fender, pushed into place.

there are 2 different 175 parts.
41145703175 is #17 on 41/15
51376740175 is the rear window rubber trim between the frame + the metal trim at the headliner

i don't have an overrider cover in my gallery. i don't have the xx817098 pics in my photos either
i have to look for more rubber pieces in my boxes. i know i have more.

eriknetherlands · Sep 29, 2020

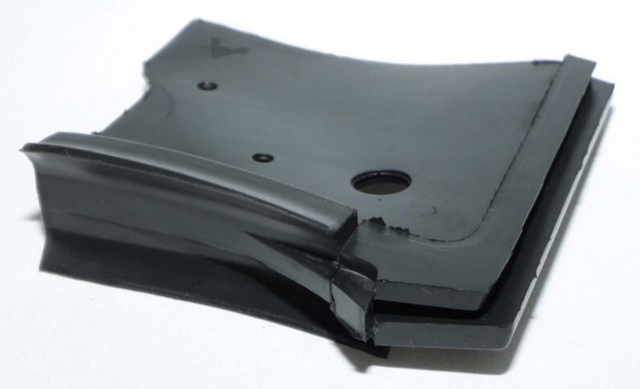

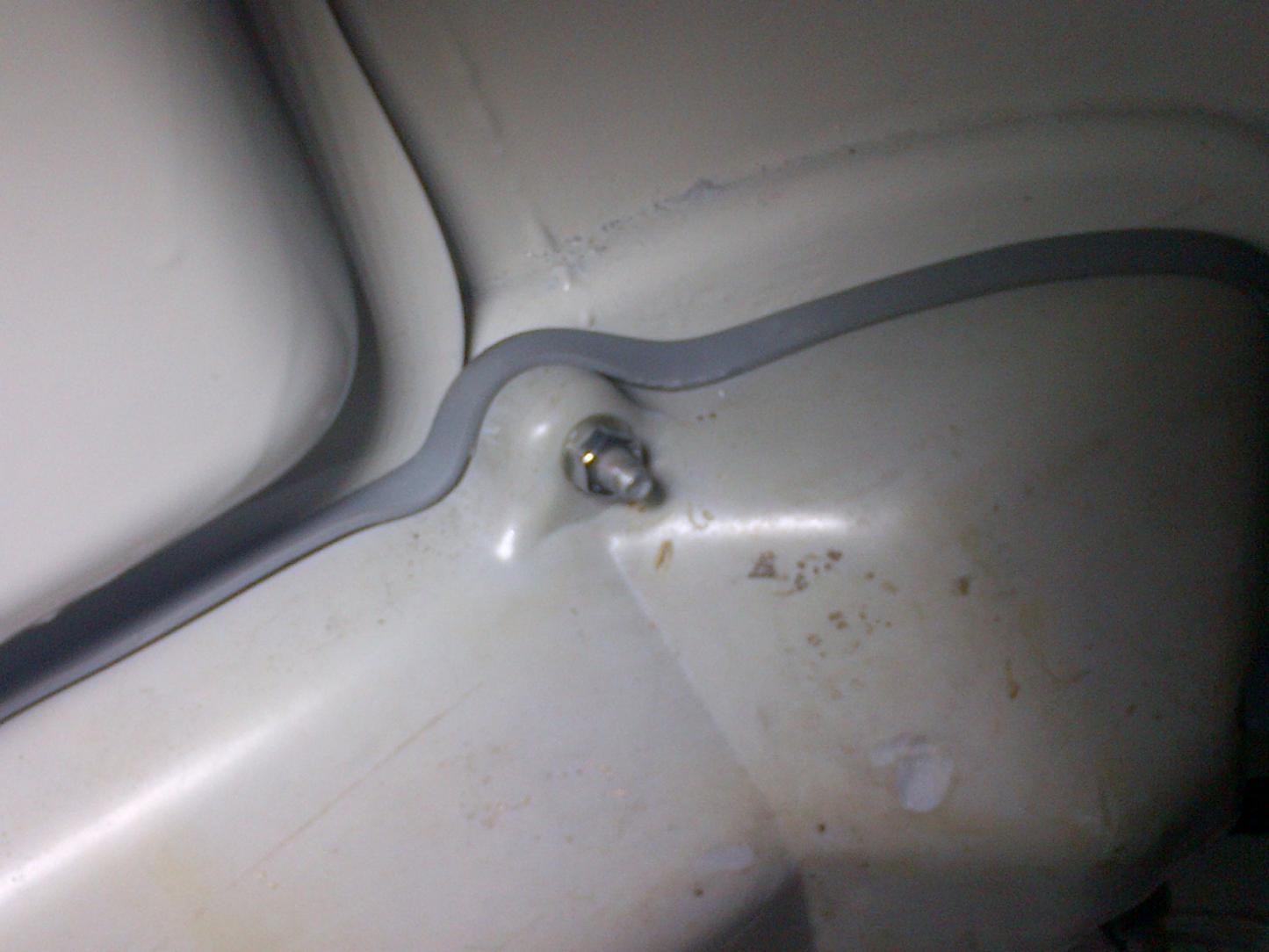

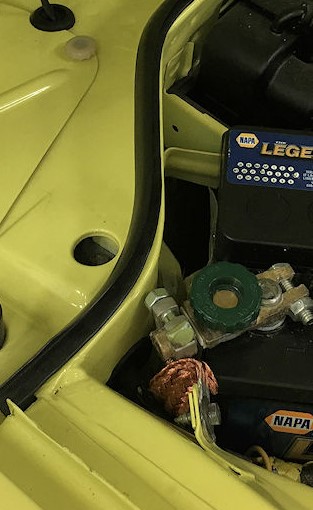

XX529 is pictured here by Keshav:

Hood? but where?

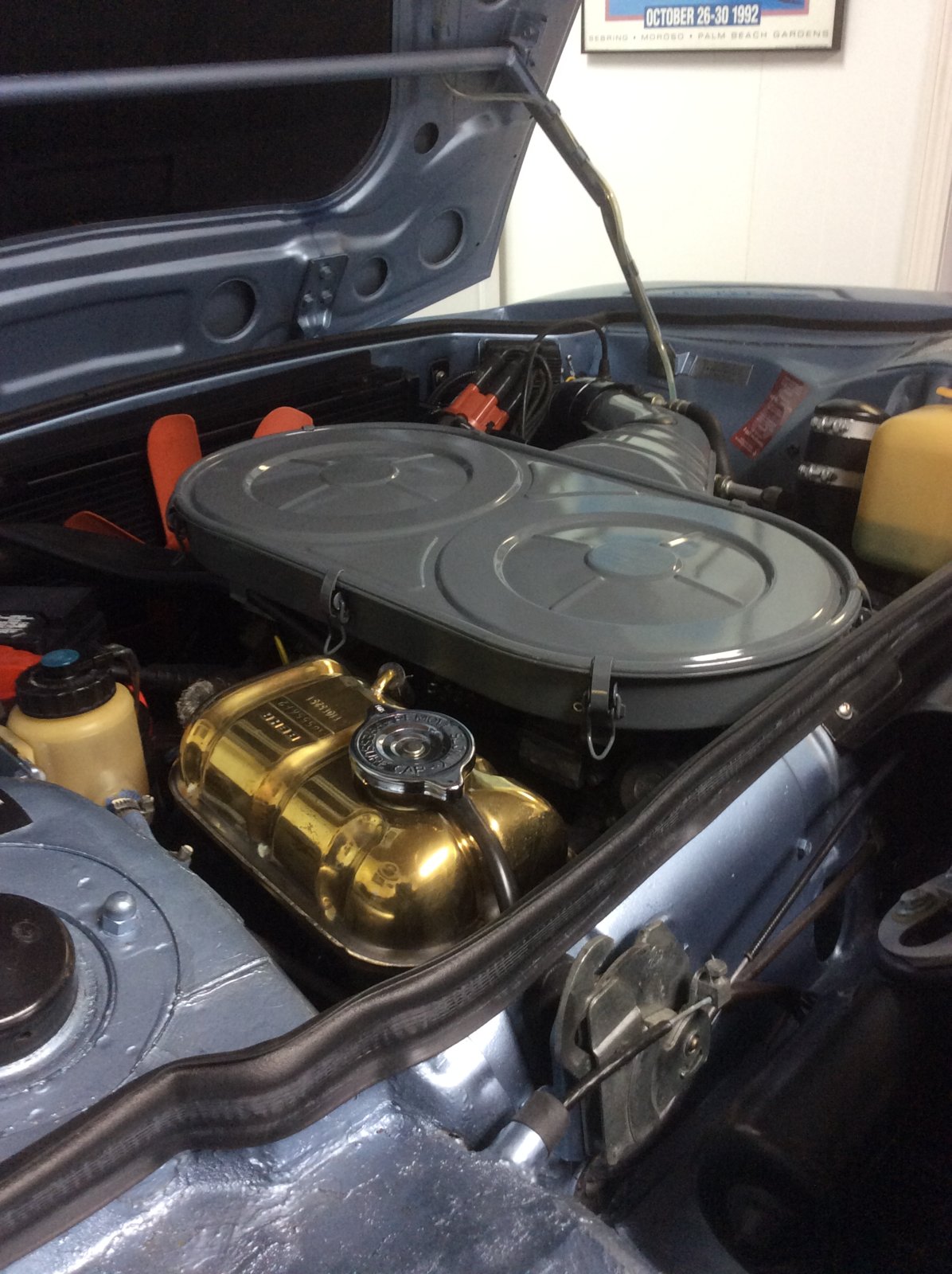

This part is in the hood section but I never saw it on my car so can some one tell me where it goes please? 51711810529 #11

e9coupe.com

eriknetherlands · Sep 29, 2020

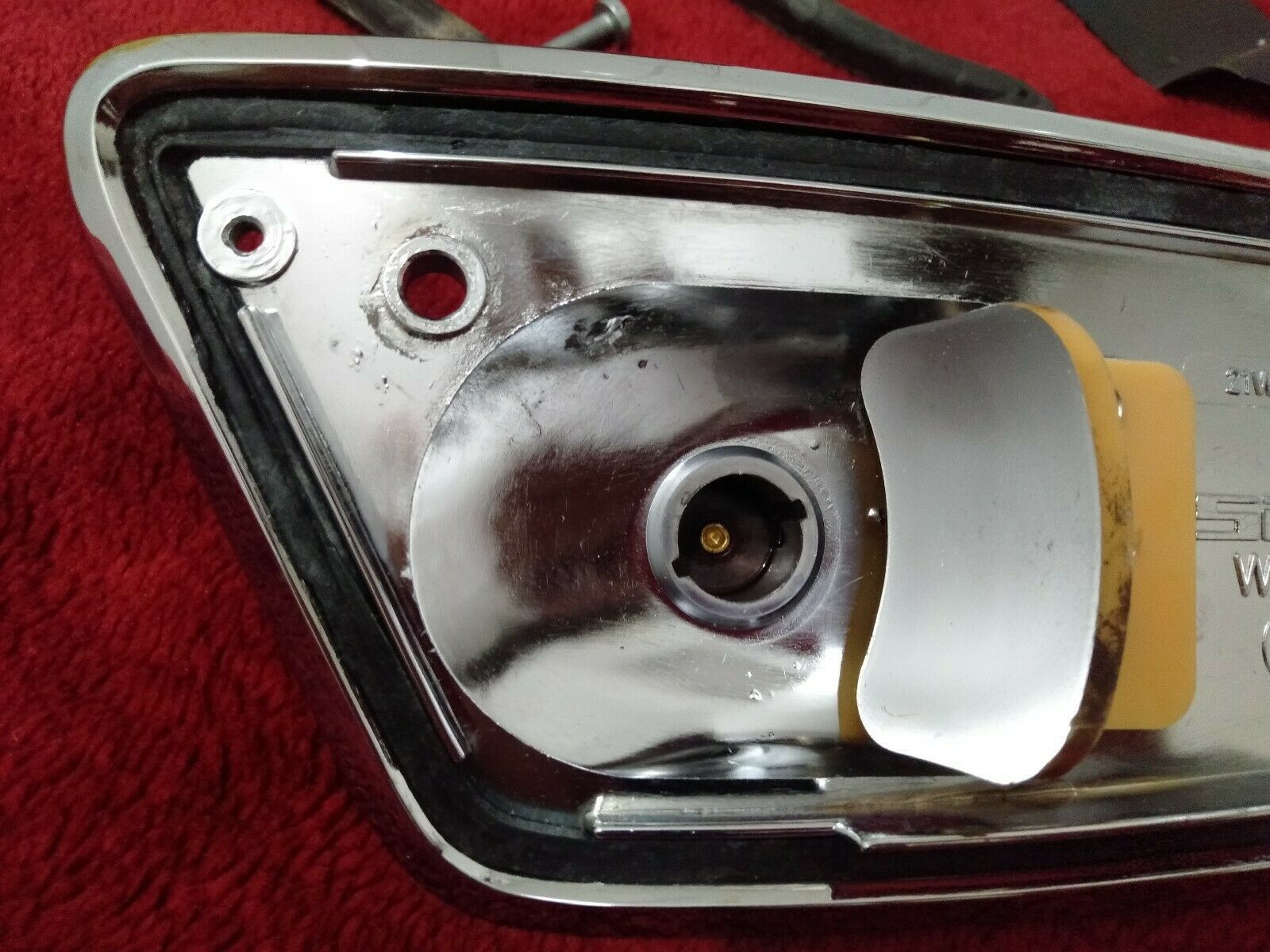

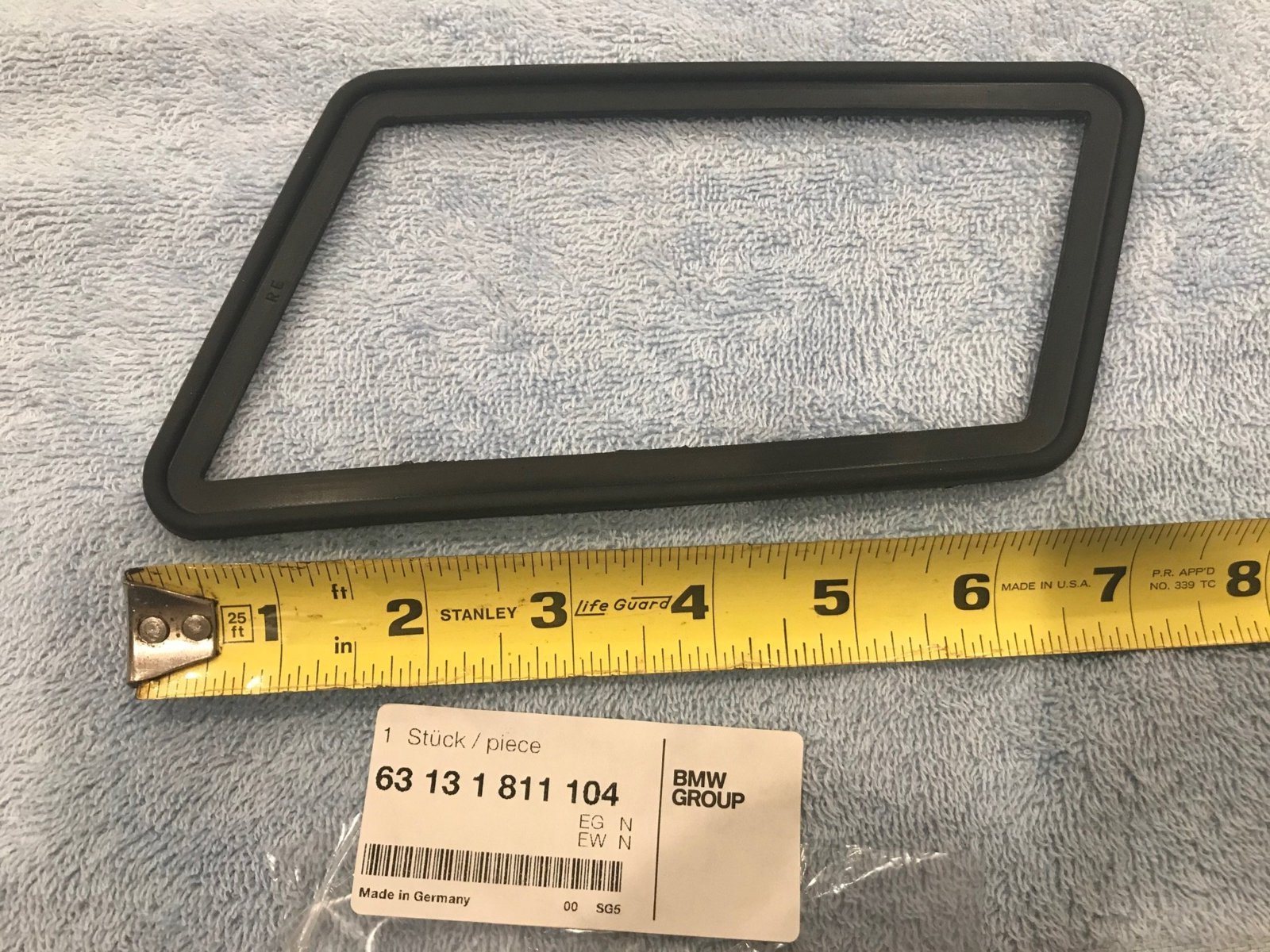

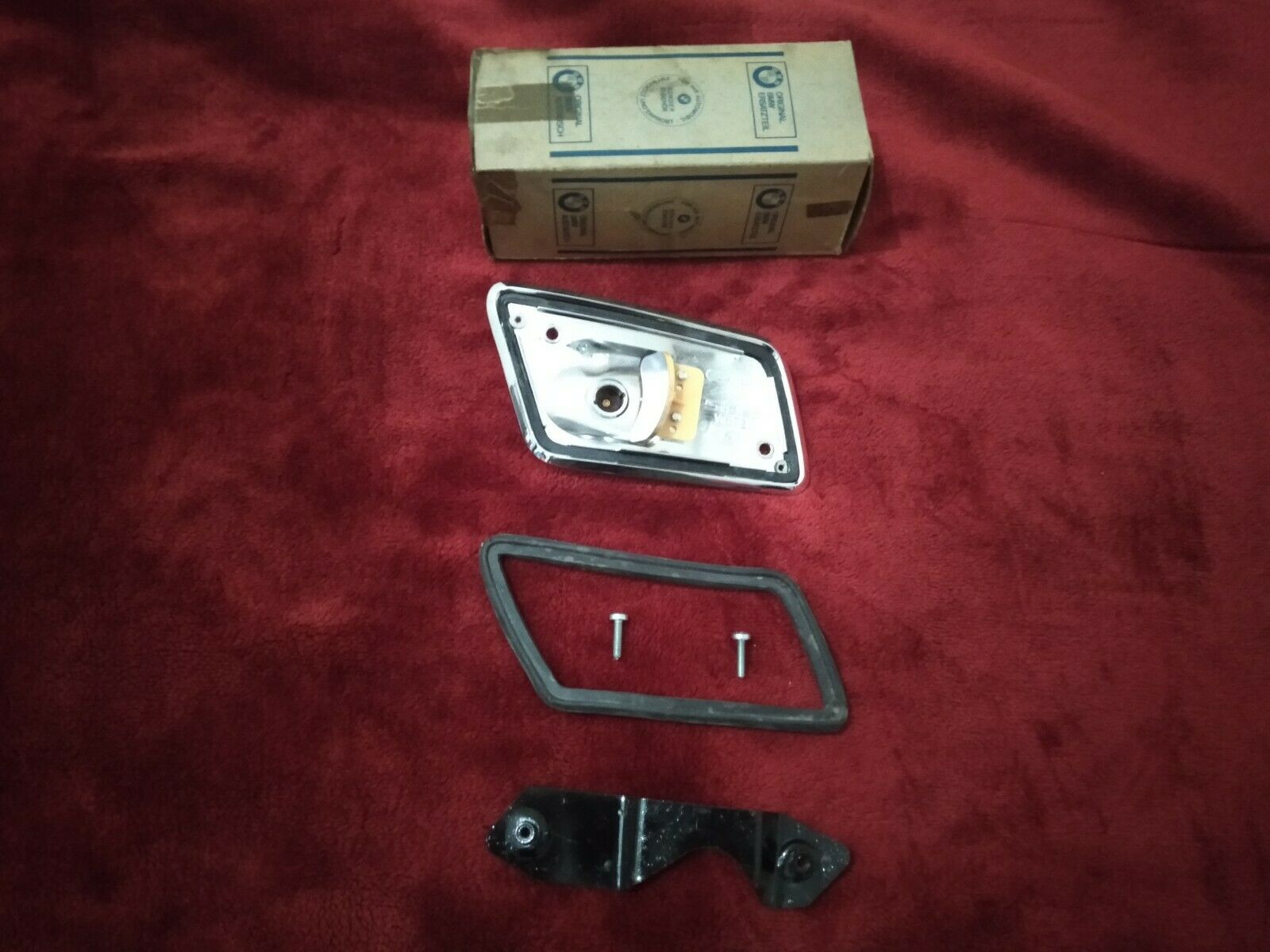

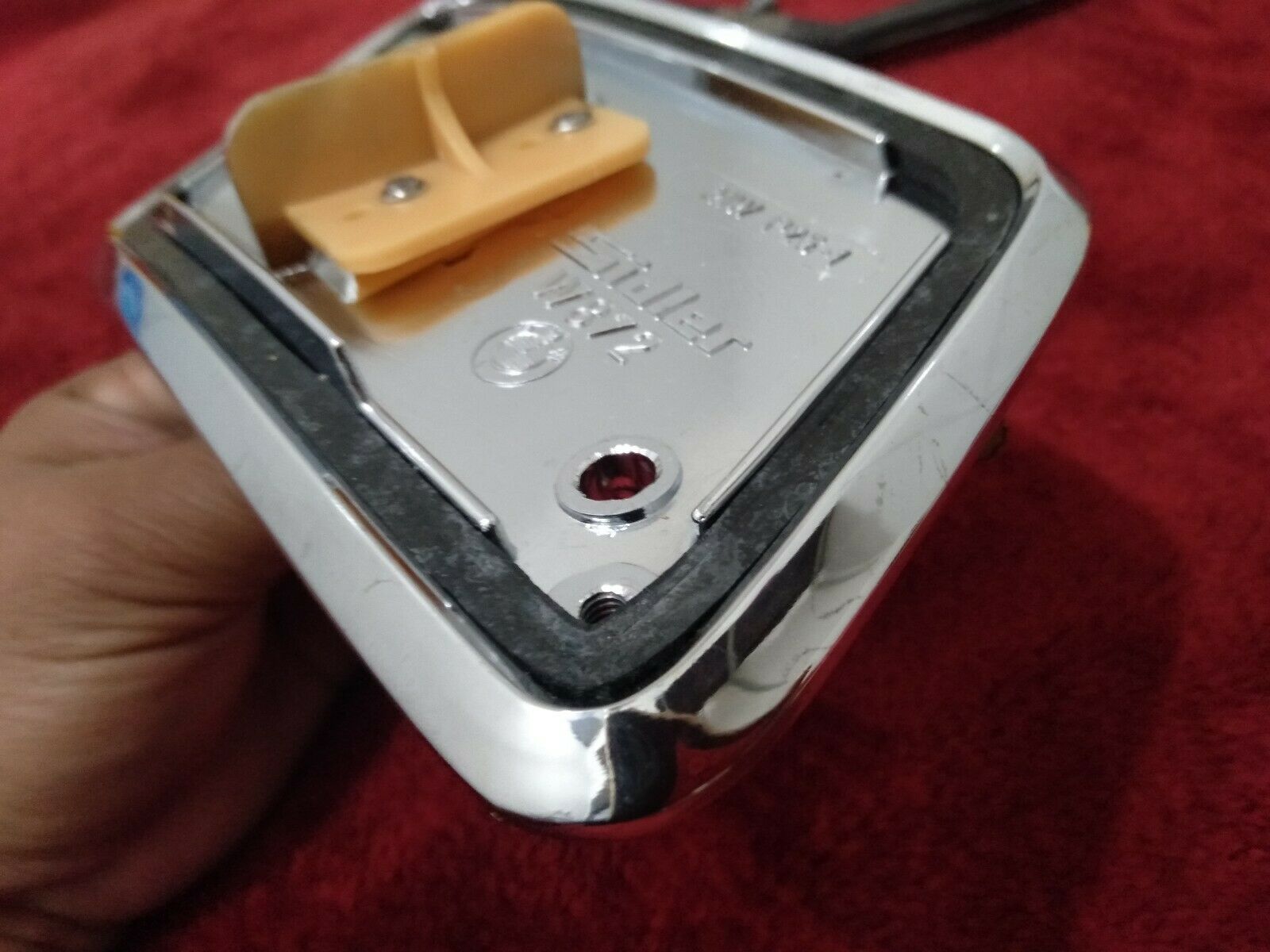

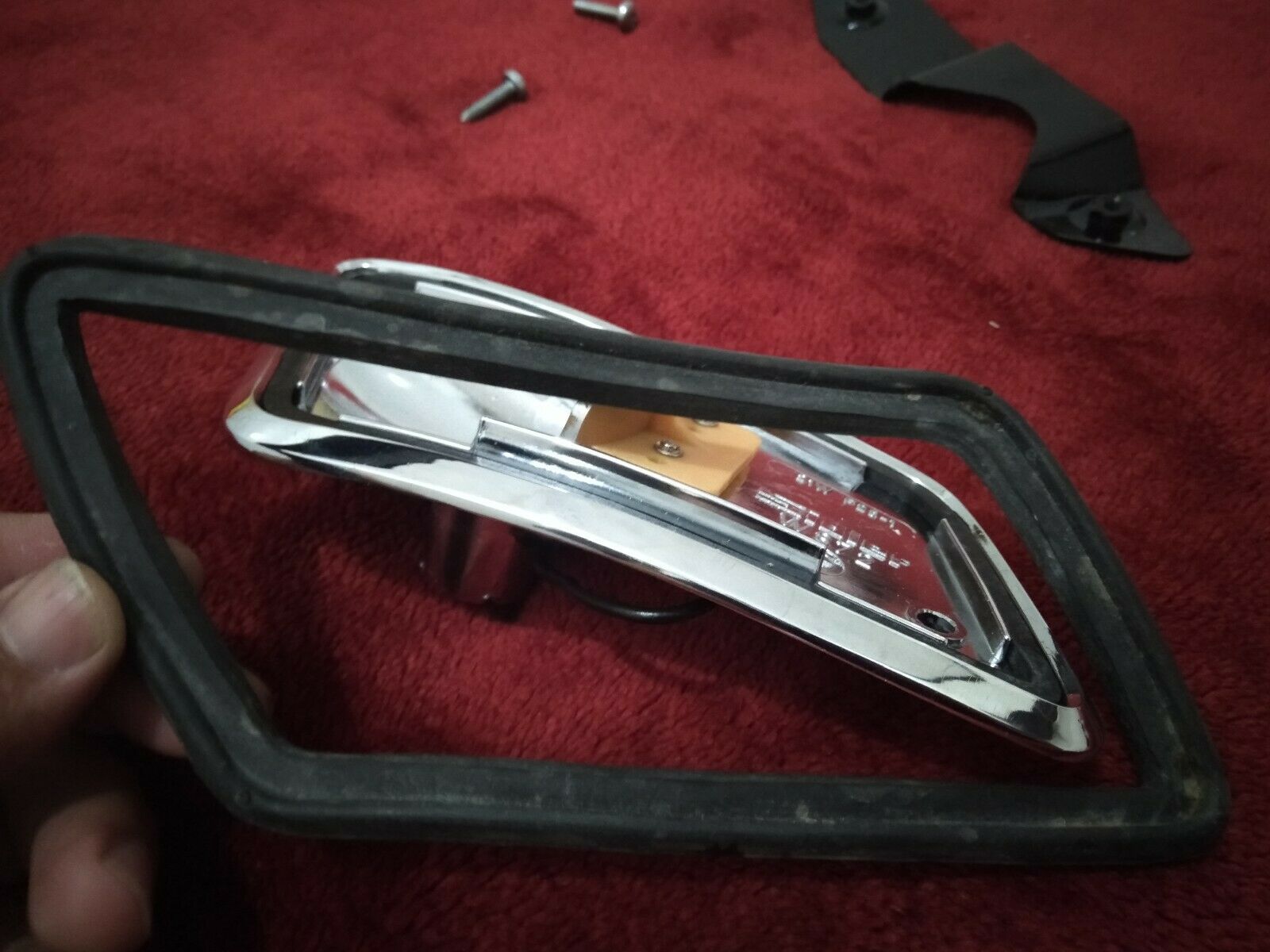

Front turn signals actually have two seals; one between body and chrome base (which I think you already have pic of), but there also is a rubber gasket that seals the lens to the chrome base. In the attached pics (From ebay, it's for sale for a dump ass price of @ 600 usd...) you see the body rubber as a separate part, and the rubber between chrome and lens is still in place inside the chrome base.

Markos · Sep 29, 2020

eriknetherlands said:
Front turn signals actually have two seals; one between body and chrome base (which I think you already have pic of), but there also is a rubber gasket that seals the lens to the chrome base. In the attached pics (From ebay, it's for sale for a dump ass price of @ 600 usd...) you see the body rubber as a separate part, and the rubber between chrome and lens is still in place inside the chrome base.

Thanks @eriknetherlands! I need to clean this up a bit. I’ll add the inner seals. Also the screws on the blinkers have little rubber donuts. So do the t-bolt nuts for the belt-line, but maybe I’m splitting hairs at this point.
