    Me too, I chuckled to myself yesterday as i put away crumbling arm rest pieces that i replaced. I think i have kept every piece removed from my car. Thats why i have 2 alternators that Markos can choose from


  2. inovermyhead

    inovermyhead Active Member

    Messages:
    477
    Likes Received:
    131
    Trophy Points:
    43
    Location:
    Sydney
    IMG_2232.JPG IMG_2231.JPG IMG_2229.JPG Some under bonnet shots

    Bmachine likes this.
  3. rsporsche

    rsporsche Well-Known Member Site Donor $$

    Messages:
    6,817
    Likes Received:
    779
    Trophy Points:
    113
    Location:
    Atlanta, GA
    very nice inovermyhead. there's that different washer bottle. you might want to order the 2 drain hoses on either side of the heater intake. i know you can get them from Carl Nelson (bimmerdoc) and i think W+N has them as well.

  4. inovermyhead

    inovermyhead Active Member

    Messages:
    477
    Likes Received:
    131
    Trophy Points:
    43
    Location:
    Sydney
    Have you got a photo of the drain hoses Scott, not sure where they go. Also when we installed the engine we also did a heater delete ie blanked off the outlet at the back of the engine, its hot enough in Sydney not to need a heater especially with that great big lump up front!!

    Cheers. John

  5. inovermyhead

    inovermyhead Active Member

    Messages:
    477
    Likes Received:
    131
    Trophy Points:
    43
    Location:
    Sydney
    Also wiring is different because I am running after market ecu, Haltec PS 2000

    John

  6. Stevehose

    Stevehose Well-Known Member Site Donor $

    View My Garage
    Messages:
    8,379
    Likes Received:
    931
    Trophy Points:
    113
    Location:
    New Orleans, LA
    They attach to the 2 short tubes jutting out into the engine compartment on the firewall on either side of the heater fan cover. They keep fumes from getting into the cabin.

    http://www.bimmerdoc.com/parts-find...2800cs30cscsicsl/coupe-under-hood-drain-tube/





  7. Tom P

    Tom P Member

    Messages:
    149
    Likes Received:
    9
    Trophy Points:
    18
    Location:
    Vacaville, CA
    IMG_0970.jpg IMGP2286.jpg

    Bmachine, Stan and Keshav like this.
  8. Markos

    Markos Parts Hoarder Staff Member Site Donor $$

    View My Garage
    Messages:
    6,910
    Likes Received:
    1,588
    Trophy Points:
    113
    Location:
    Seattle, WA
    Beautiful Tom! Can you say which intake manifold and throttle linkages are on your motor? Also, the water pump setup.

  9. Tom P

    Tom P Member

    Messages:
    149
    Likes Received:
    9
    Trophy Points:
    18
    Location:
    Vacaville, CA
    Thanks Markos! I don't know the name of the manifolds but they're the typical three individual manifolds of two ports each. I port matched them to the size of the larger M30-B35 intakes. Stevehose has a great single piece intake - its very nice. I love his Weber set up despite going a few different directions with mine. That said, I owe him many thanks for answering a multitude of Weber and 123 Distributor related questions!

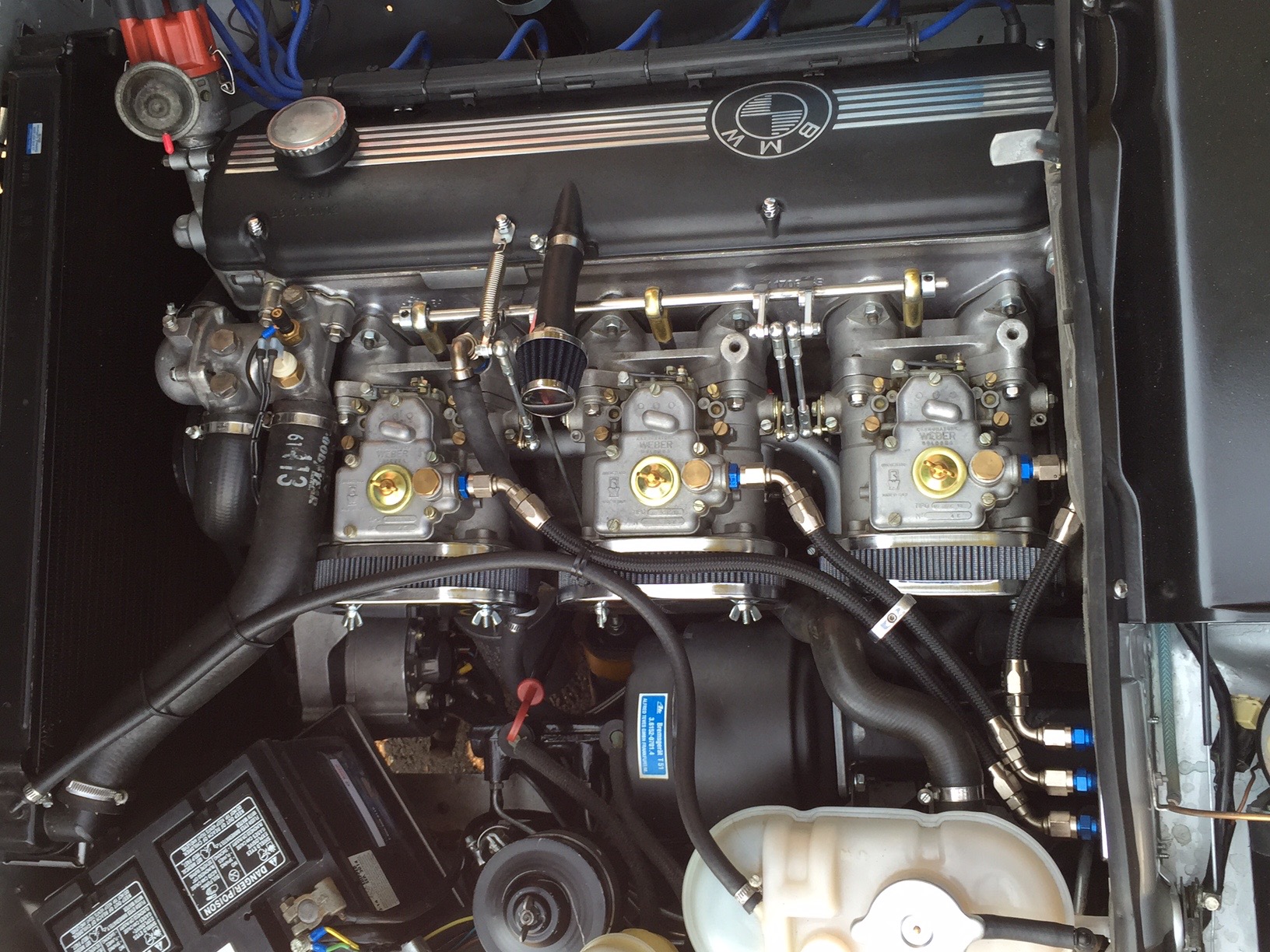

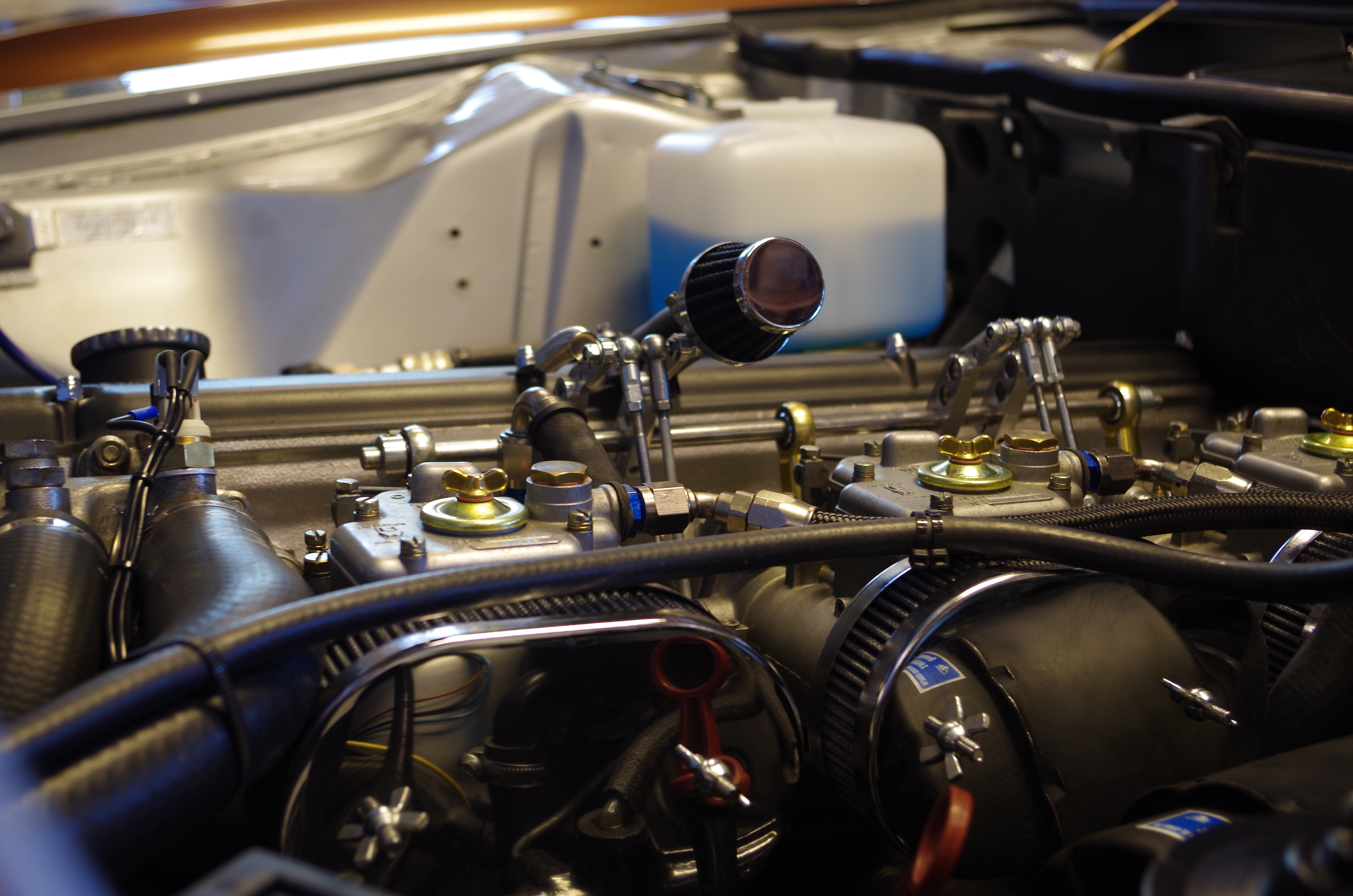

    The throttle linkages I purchased from Pierce Manifolds in Gilroy, CA - US Weber Dealer. I realize now that I included the wrong photo above since it features my old flimsy linkage set up. My new set up is such an improvement - no flex at all. I'll post a couple other photos of the new set up following.

    As for the water pump, I did not cut and weld as many do, I trimmed a little bit off the pump and a little bit off the edge of the carb base and it all fits snugly.

    Next on the list is the 123 Ignition distributor install...

    Last edited: Apr 25, 2017
  10. Tom P

    Tom P Member

    Messages:
    149
    Likes Received:
    9
    Trophy Points:
    18
    Location:
    Vacaville, CA
    Last edited: Apr 25, 2017
  11. Stevehose

    Stevehose Well-Known Member Site Donor $

    View My Garage
    Messages:
    8,379
    Likes Received:
    931
    Trophy Points:
    113
    Location:
    New Orleans, LA
    Hubba hubba!

  12. restart

    restart Well-Known Member

    Messages:
    1,007
    Likes Received:
    121
    Trophy Points:
    63
    Location:
    KANADA, Roberts Creek, BC
  13. bimbill

    bimbill Active Member Site Donor

    Messages:
    192
    Likes Received:
    31
    Trophy Points:
    28
    Location:
    Sammamish, WA
    B35 preparint to install.jpg B35 underside.jpg Driver's side.jpg passenger side.jpg

    M30B35, stock internals
    L-jet log, e21 runners
    E30 325i wiring harness

    Bmachine likes this.
  14. Layne

    Layne Active Member Site Donor

    Messages:
    277
    Likes Received:
    59
    Trophy Points:
    28
    M30B34 with high comp pistons, using B35 motronic system.


    Bmachine likes this.
  15. bwalvoord

    bwalvoord Active Member Site Donor $$

    Messages:
    617
    Likes Received:
    25
    Trophy Points:
    28
    Location:
    Greenville, SC
    M42 going into the 02!


    Sent from my iPad using Tapatalk HD


    Attached Files:

    Stevehose likes this.
  16. aearch

    aearch Well-Known Member Site Donor

    Messages:
    2,914
    Likes Received:
    192
    Trophy Points:
    63
    Location:
    pleasant hill , ca
    VERY NICE ENGINE BAY
    NICE AND NEAT
    COOL
    you can get the white head light cover screws now that would help a whole bunch in the overall look instead of the phillips
    It looks unfinished
    like the sticker on the radiator
    no windsheild washers are they hidden?
    grab some underhood stickers

    Last edited: Jul 9, 2017
  17. DWMBMW

    DWMBMW Active Member Site Donor

    Messages:
    411
    Likes Received:
    204
    Trophy Points:
    43
    Location:
    Miami, Florida
    Tom,

    What linkage did you purchase from Pierce, was it just their universal kit or did you buy individual components to create your set up? I just removed my old original flimsy linkage today which has developed too much play and yours looks great.

    Doug

  18. Stevehose

    Stevehose Well-Known Member Site Donor $

    View My Garage
    Messages:
    8,379
    Likes Received:
    931
    Trophy Points:
    113
    Location:
    New Orleans, LA
    A good place for linkage is Dellorto UK, you can email them and ask for a triple weber kit:

    https://www.dellorto.co.uk/?s=linkage&post_type=product



  19. rsporsche

    rsporsche Well-Known Member Site Donor $$

    Messages:
    6,817
    Likes Received:
    779
    Trophy Points:
    113
    Location:
    Atlanta, GA
    these guys have some really nice pieces of kit. really cool stuff ... almost makes me want to go with triples over injection

  20. DWMBMW

    DWMBMW Active Member Site Donor

    Messages:
    411
    Likes Received:
    204
    Trophy Points:
    43
    Location:
    Miami, Florida
    Wow, thanks Steve. I will shoot them an email.

    I have the standard intakes so will never get as clean a set up as you have.

    My old set up had the rod posts attached to the pre threaded holes in the intake and I saw Tom had them in the anchored behind in the webs which means he had 3 posts vs just the catilvered 2 post rod assembly I had.
