Here are some more pics of the progress

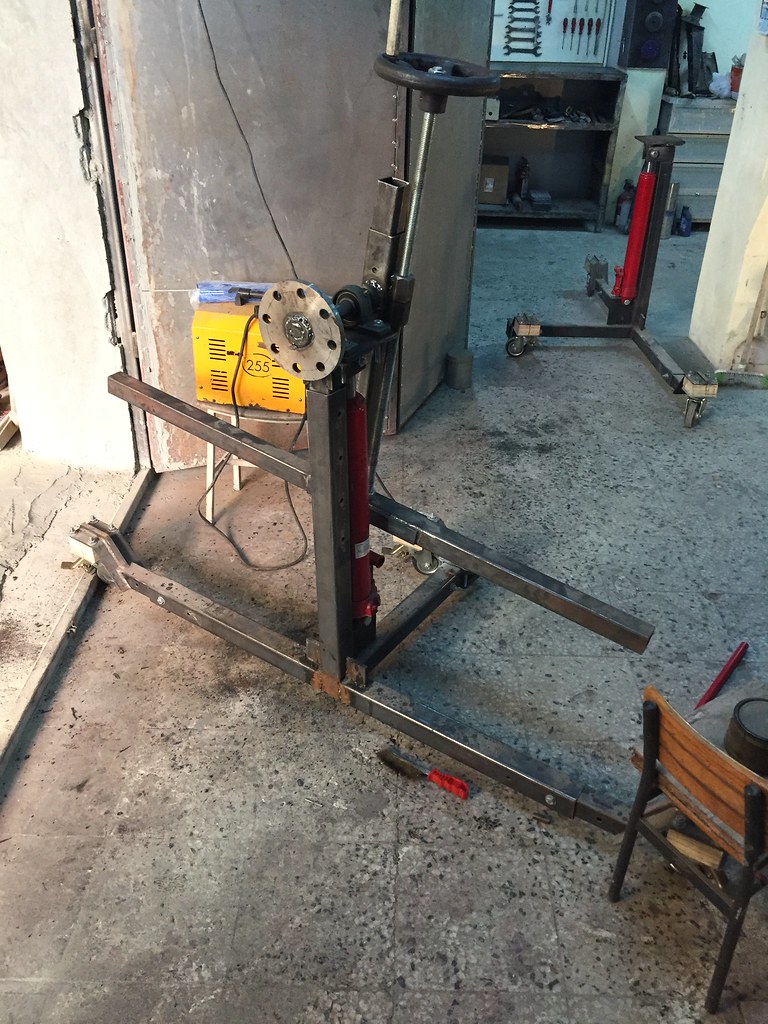

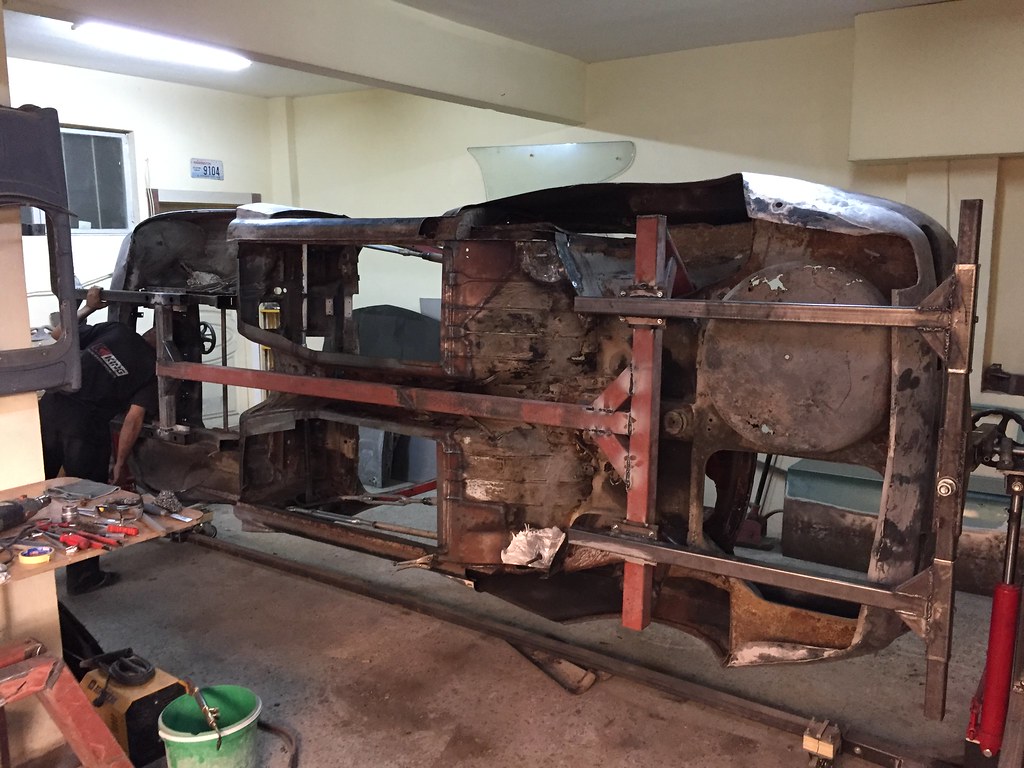

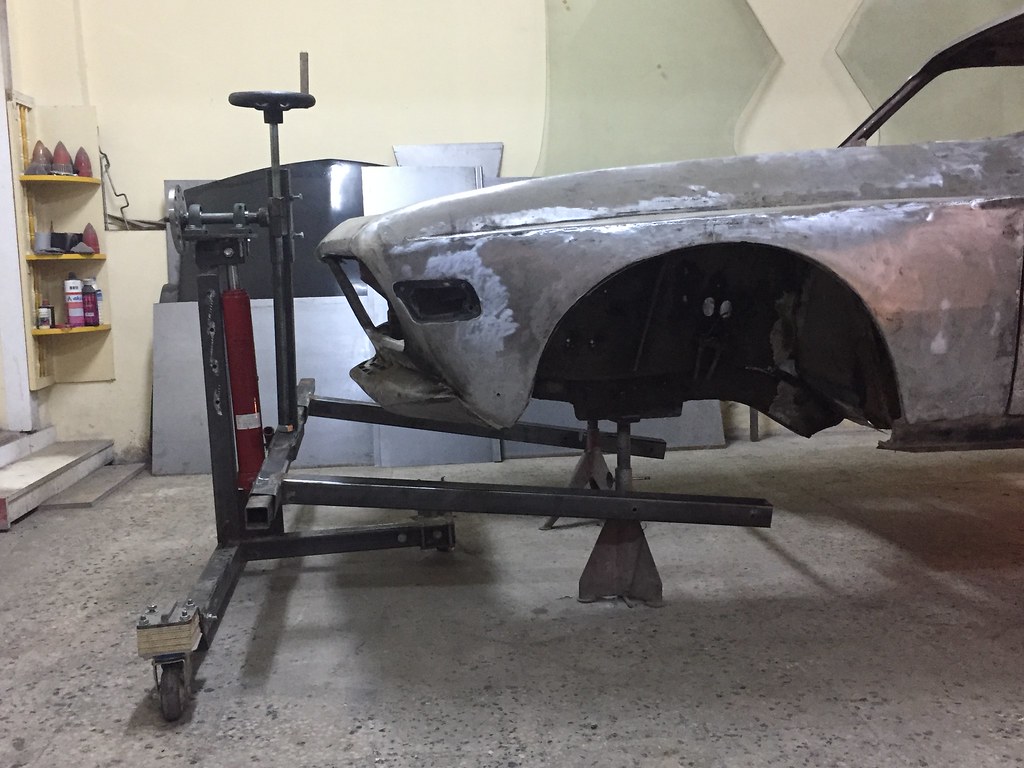

we are making a rotisserie for the car.

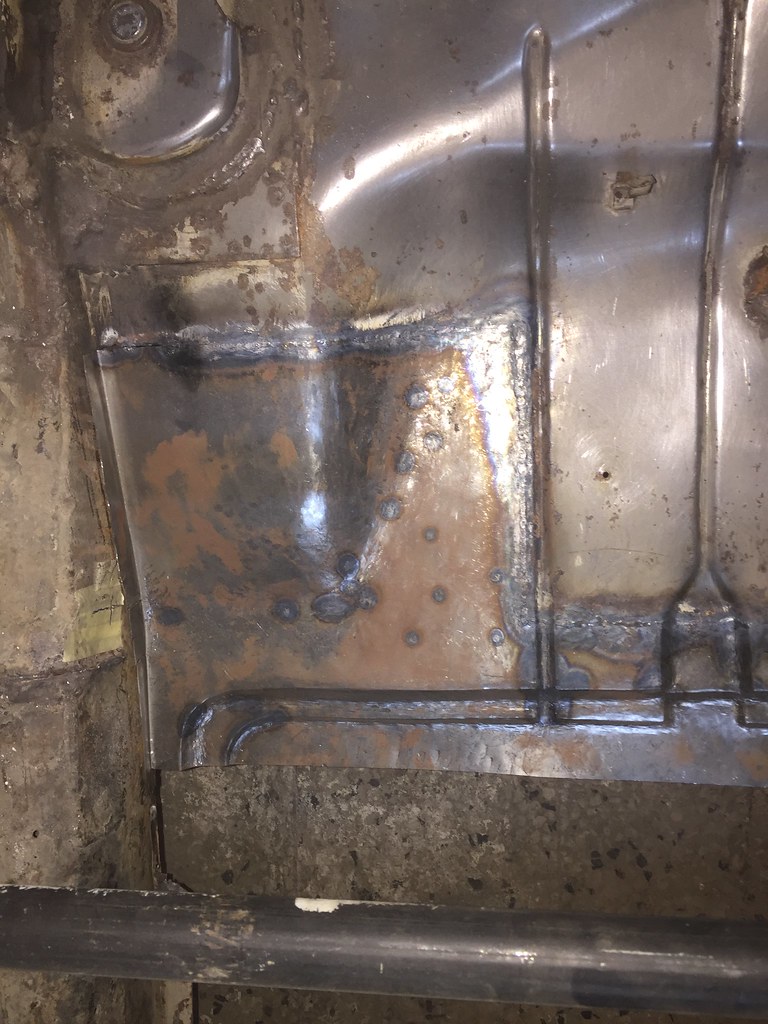

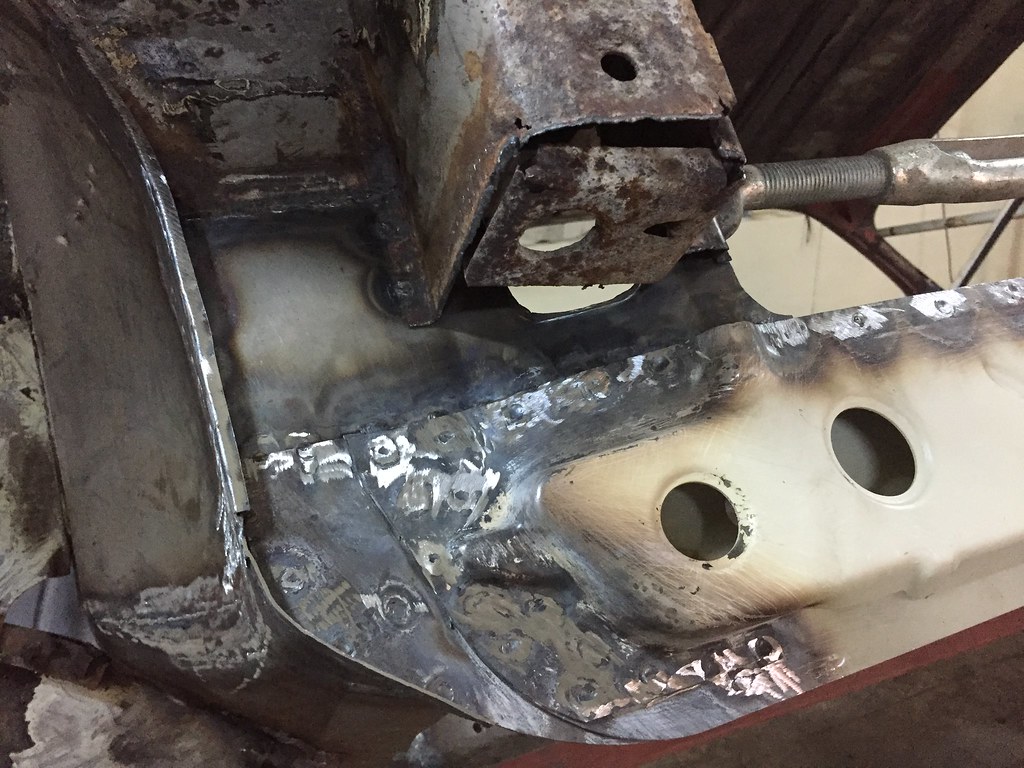

new metal going in.

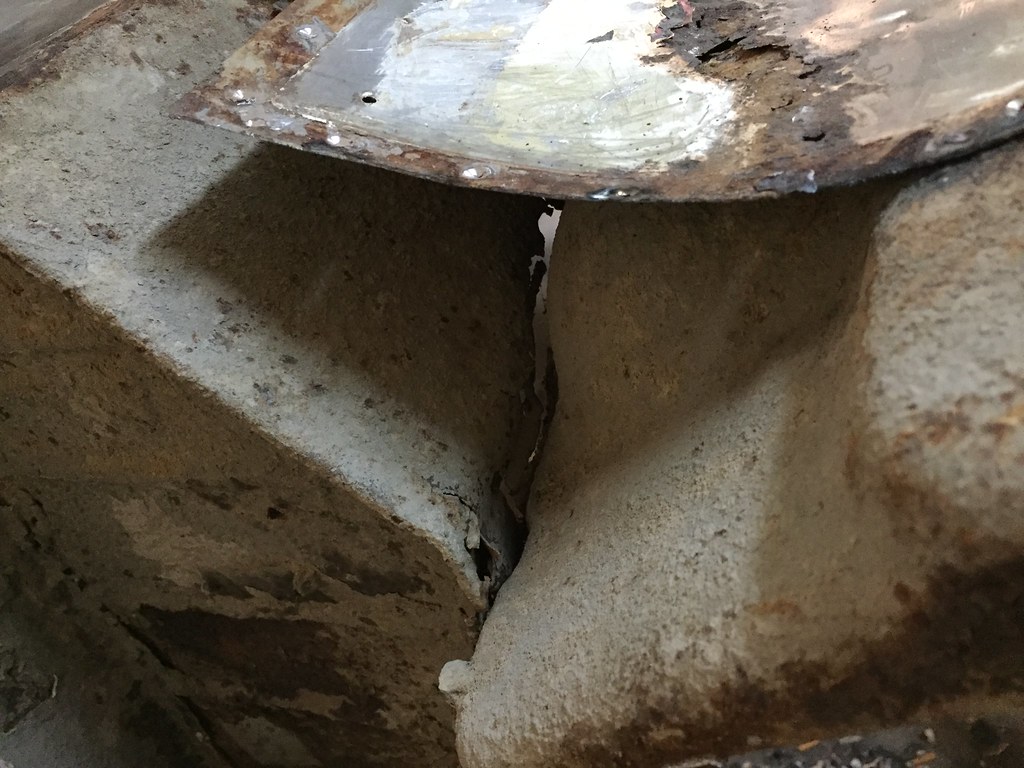

we will have a lot of work around this area



eriknetherlands

Moderator
Site Donor
Messages
2,699
Reaction score
1,930
Location
Netherlands, Eindhoven area
some floor pics that you requested..


Attachments

  • 20160402_235147.jpg
    477.1 KB · Views: 199
  • 20161012_215900.jpg
    687.1 KB · Views: 201
  • 20151021_012524.jpg
    641.6 KB · Views: 198
  • 20151126_000845.jpg
    801.1 KB · Views: 217

Kizilsakal

Well-Known Member
Site Donor
Messages
203
Reaction score
20
Location
Istanbul, Turkey

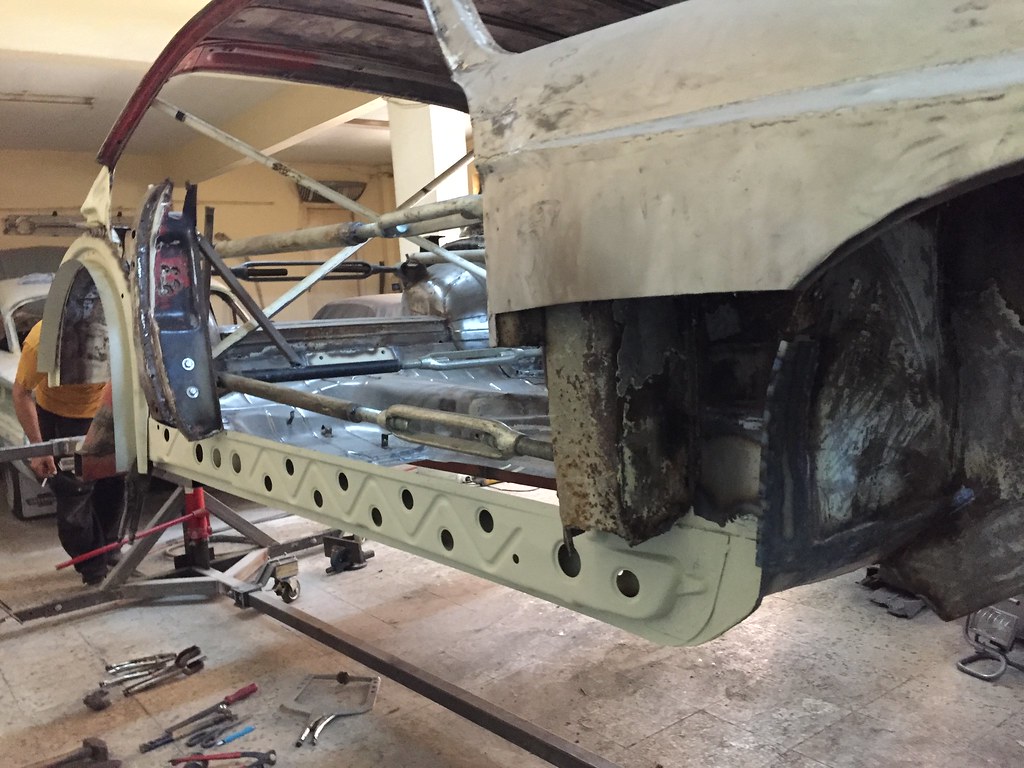

some updates

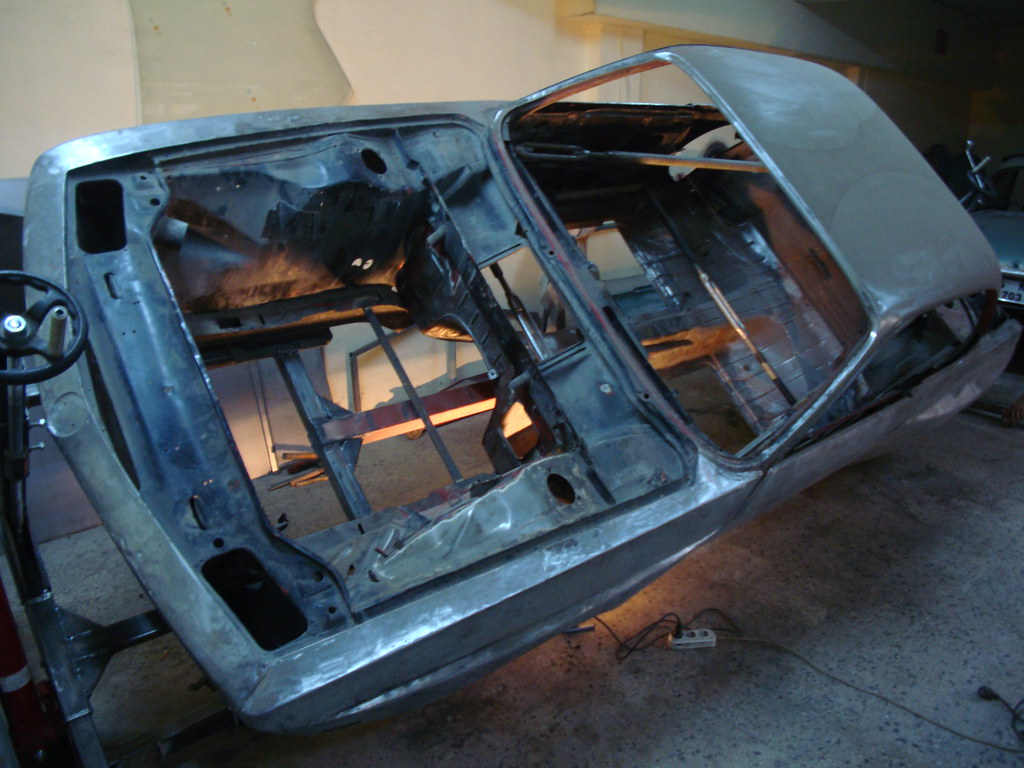

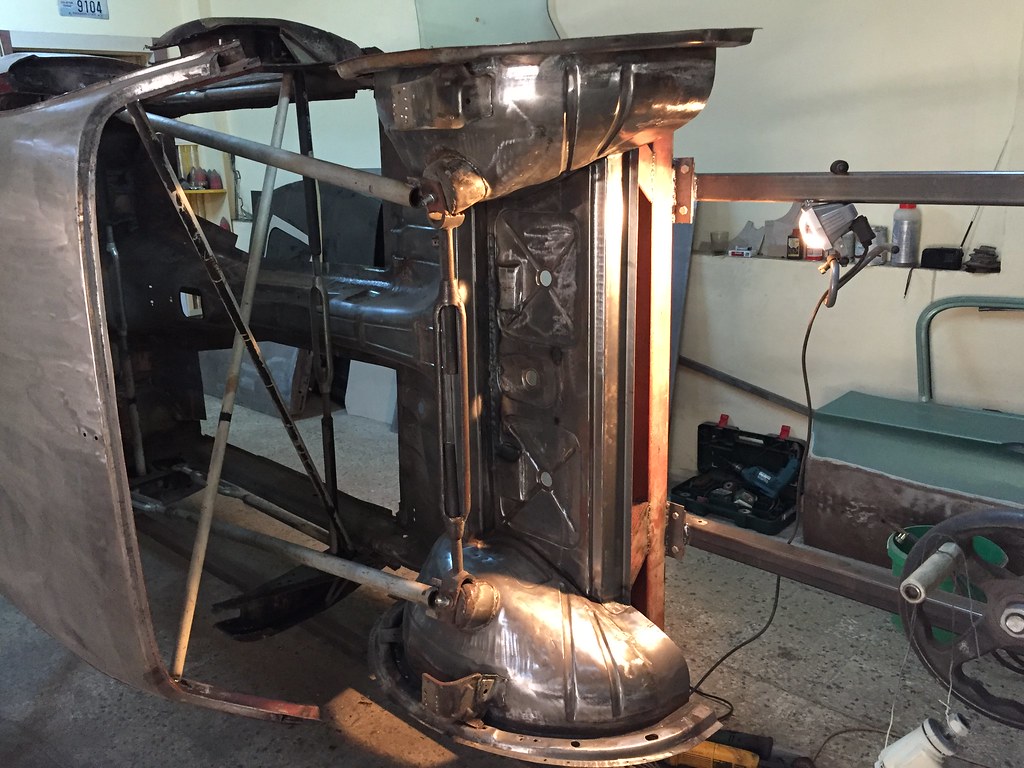

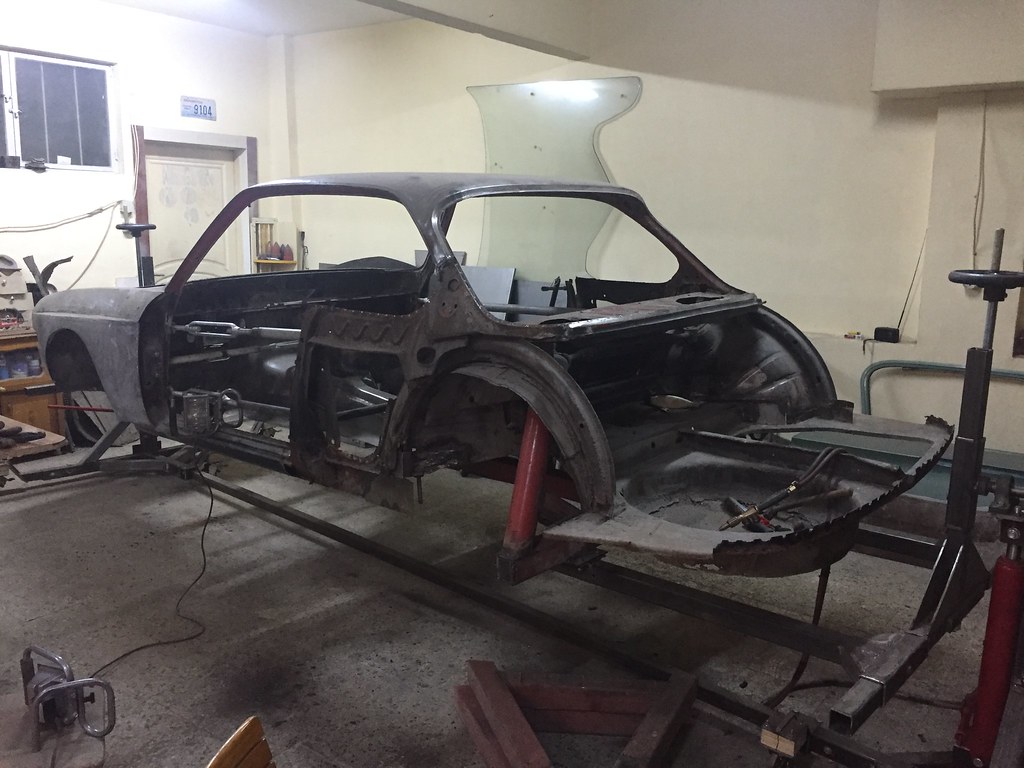

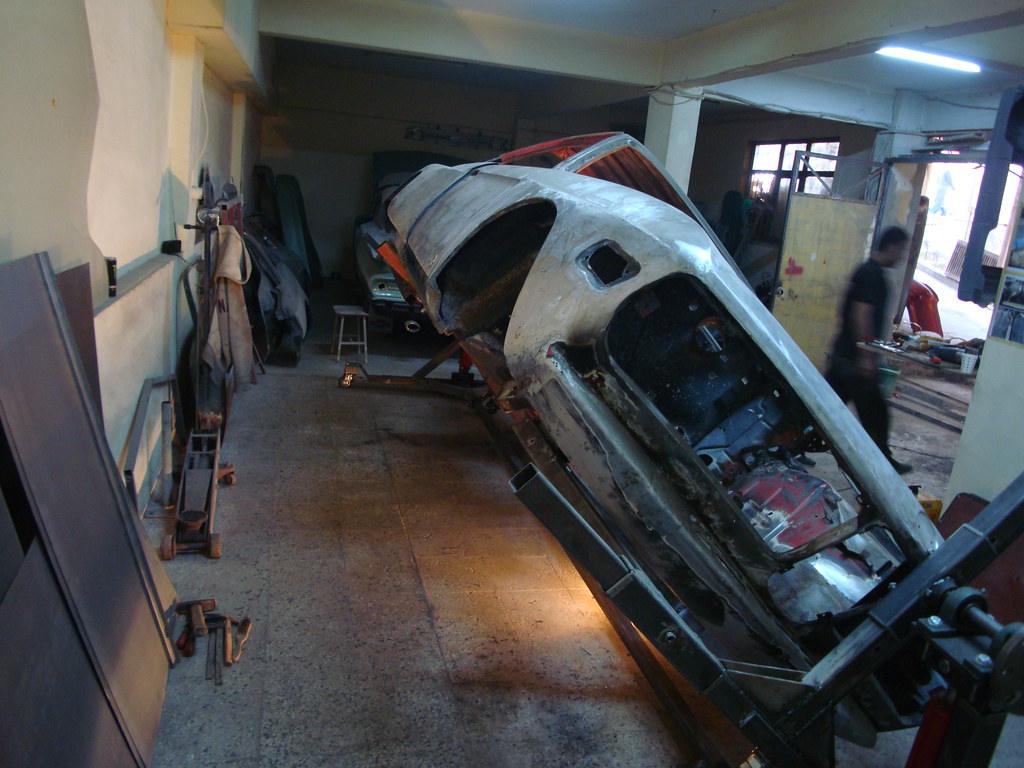

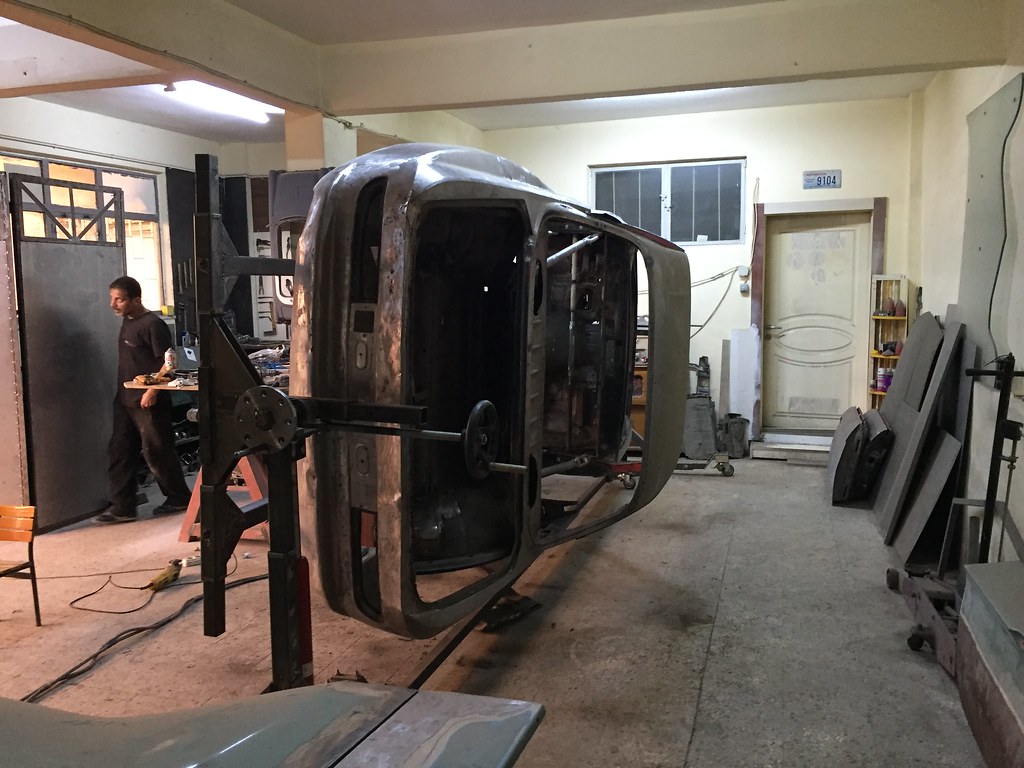

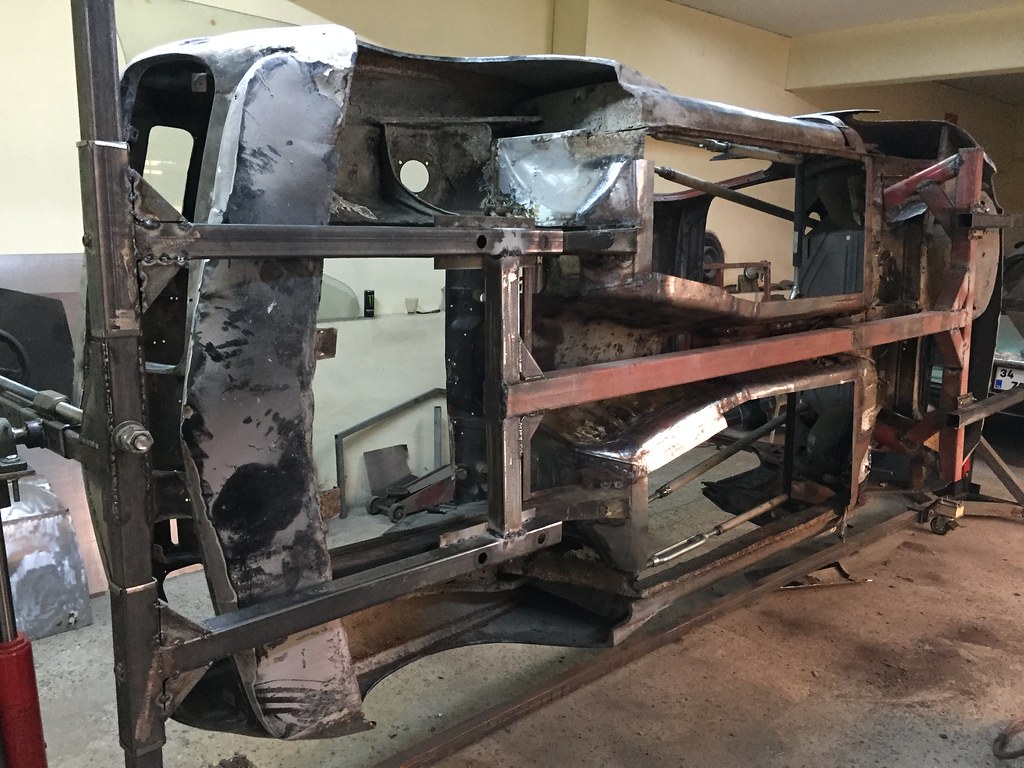

the car is connected to the rotisserie

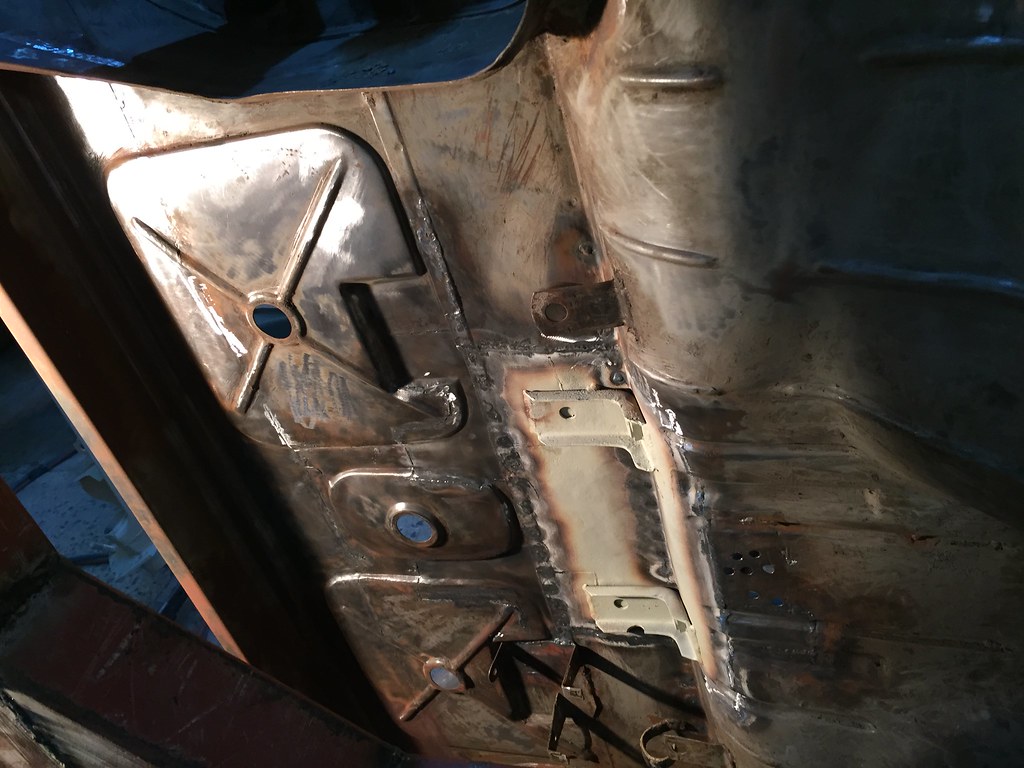

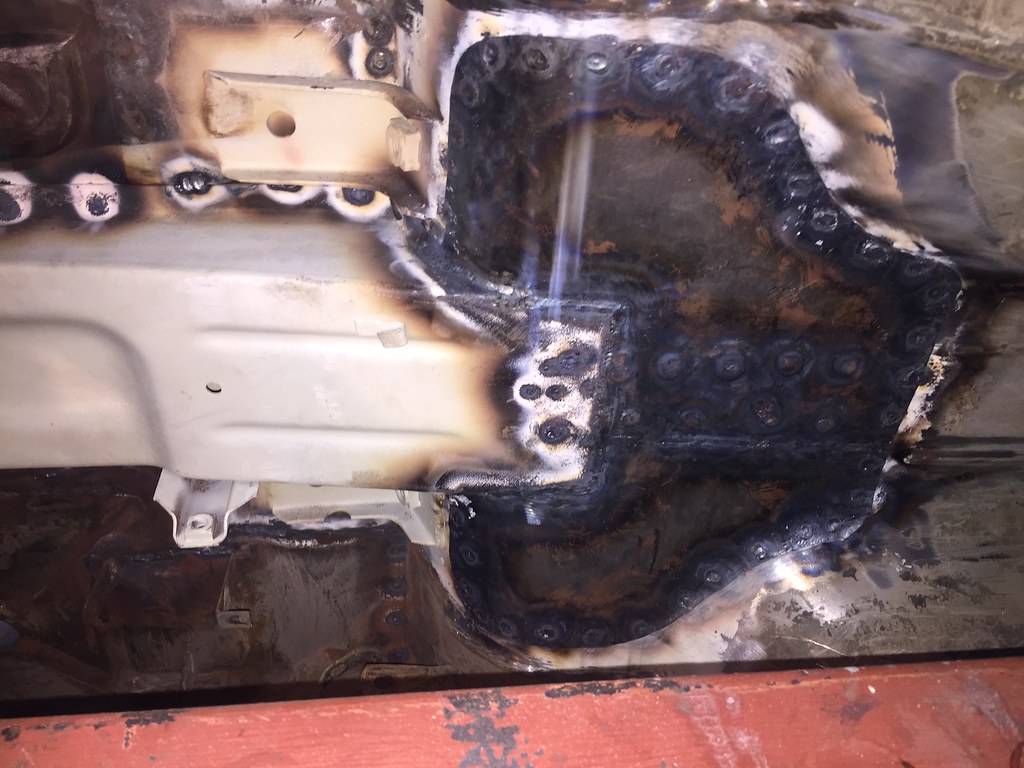

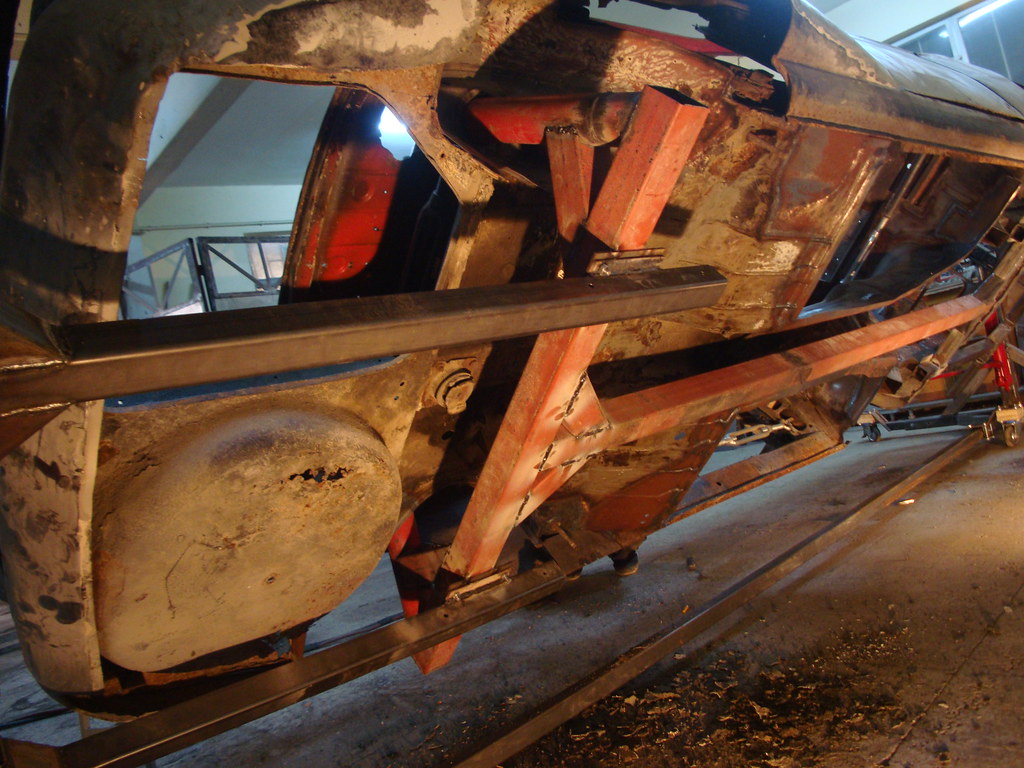

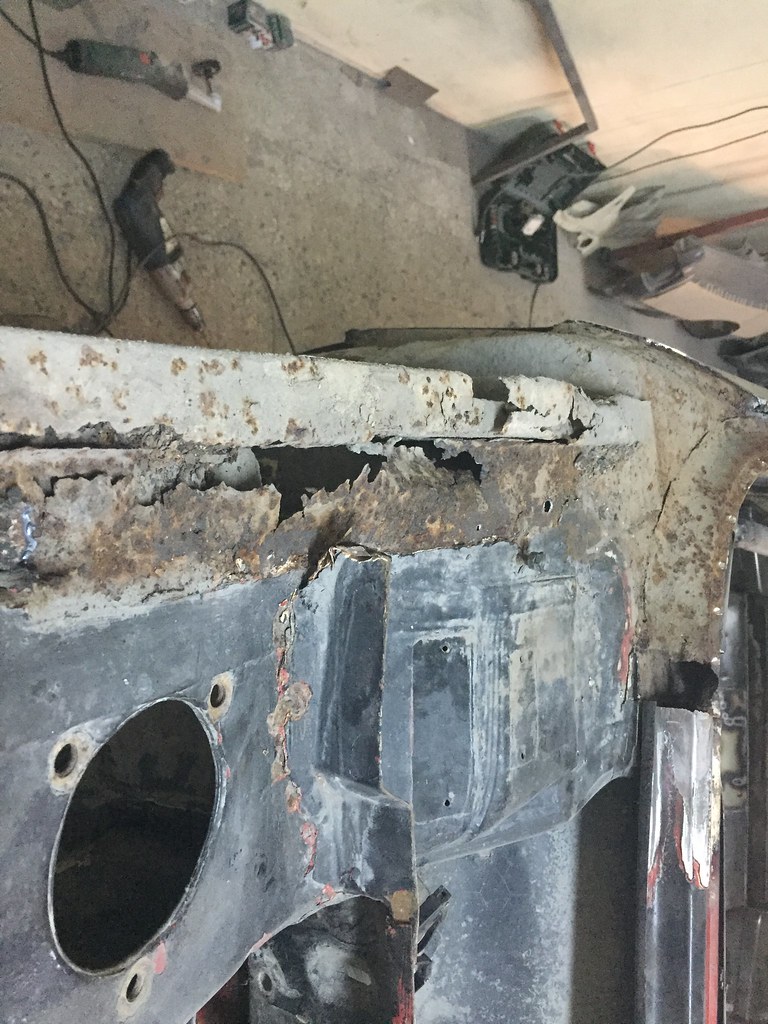

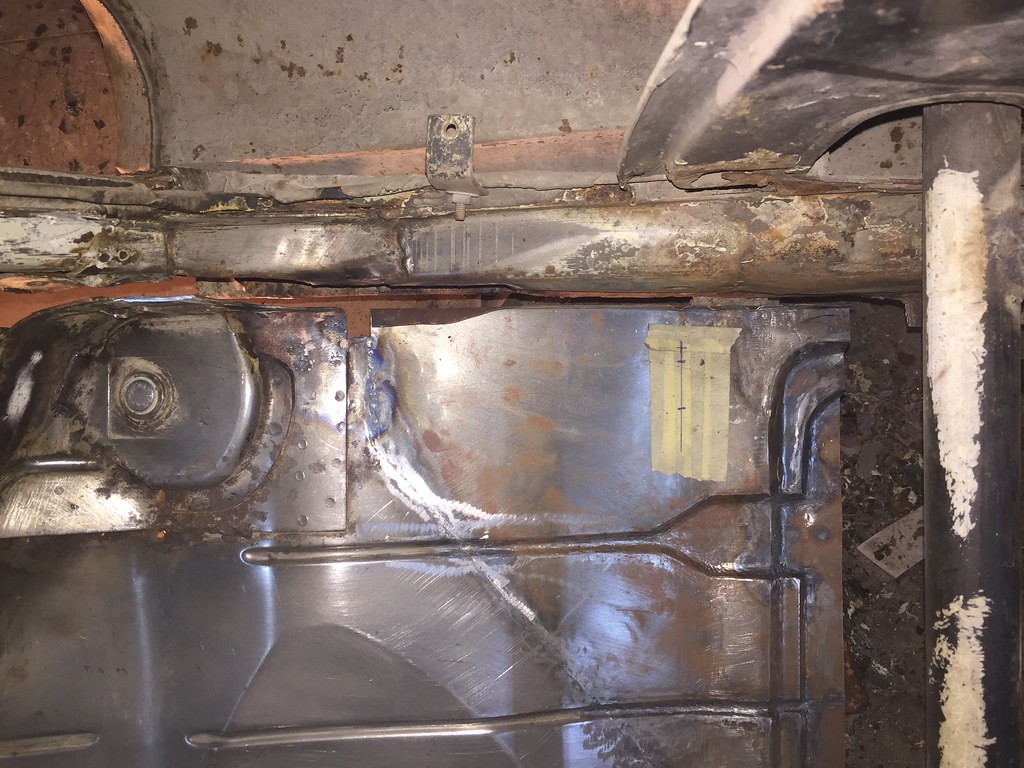

the crap on the floor is removed from 1/4 m2 of the underside

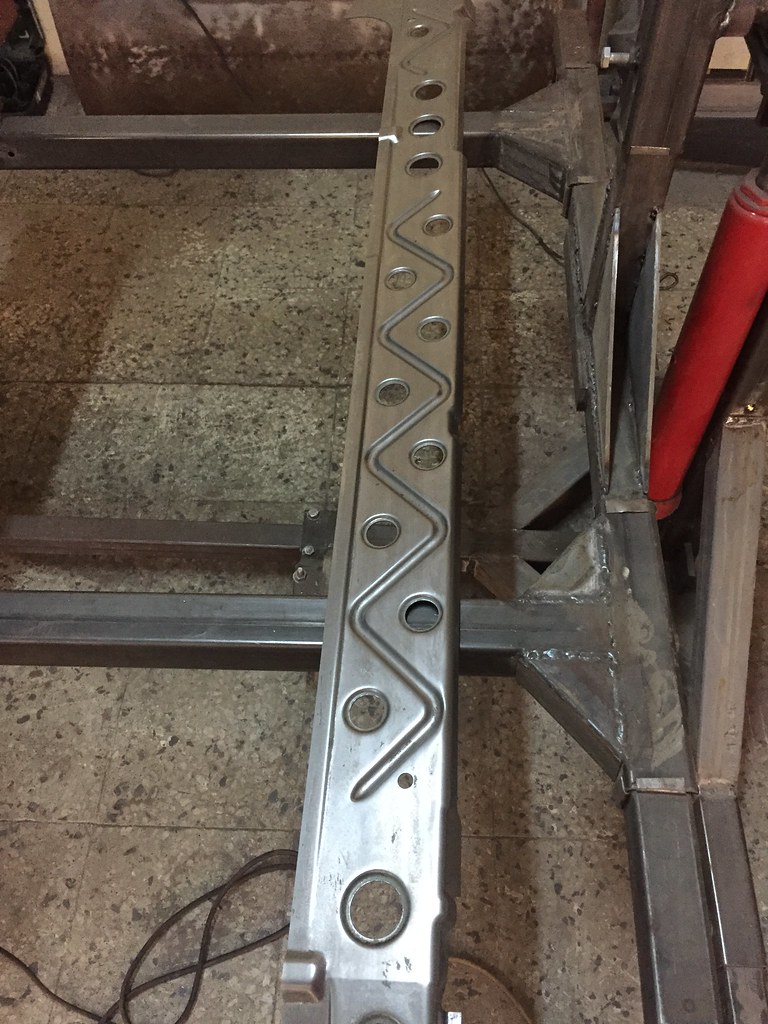

in previous repairs they didn't bother putting in the intermediate sill panel




a lot to do but all will be taken care of.


Kizilsakal

Well-Known Member
Site Donor
Messages
203
Reaction score
20
Location
Istanbul, Turkey
How to make a REAL light weight CSL.

add lightness :)

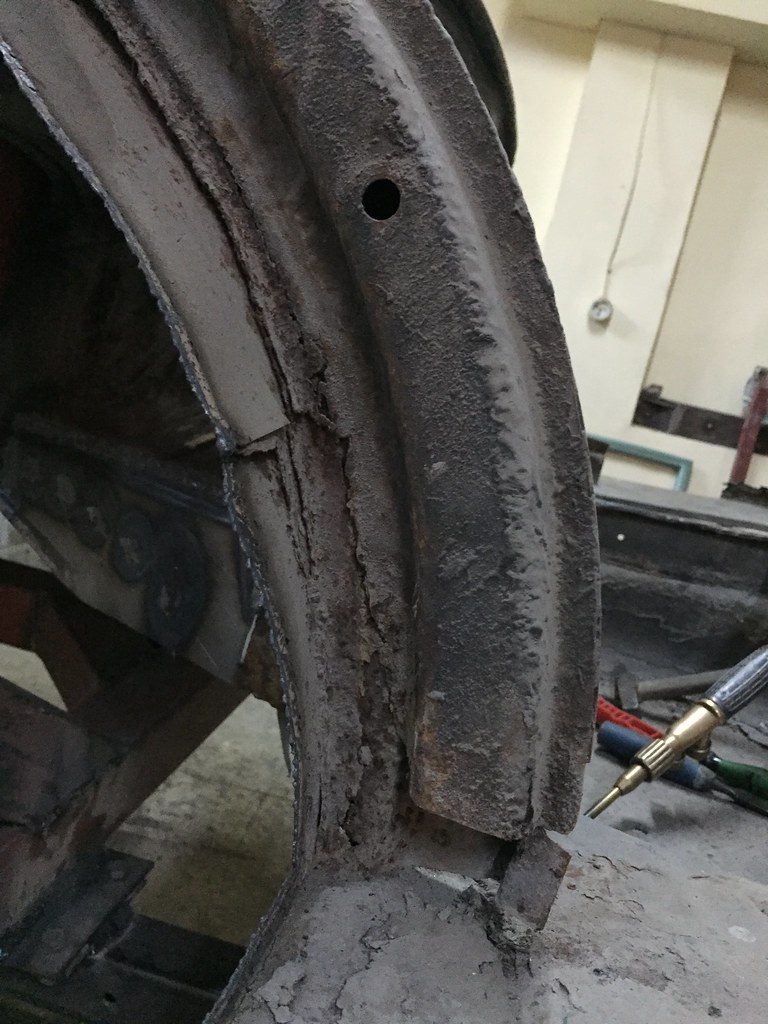

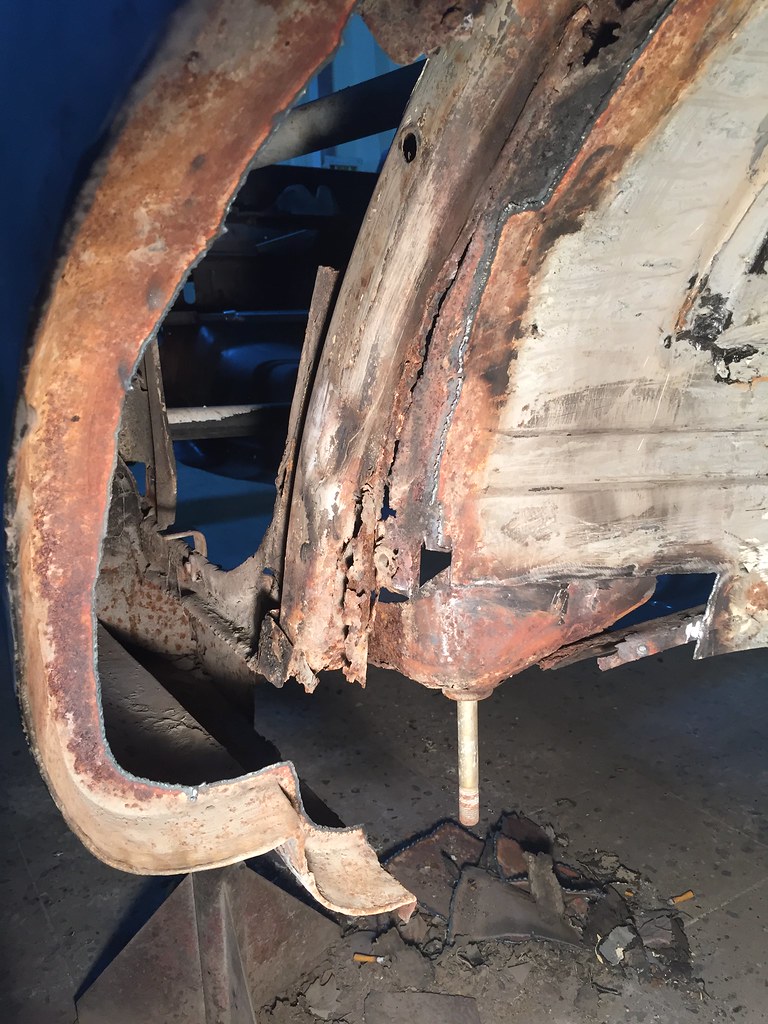

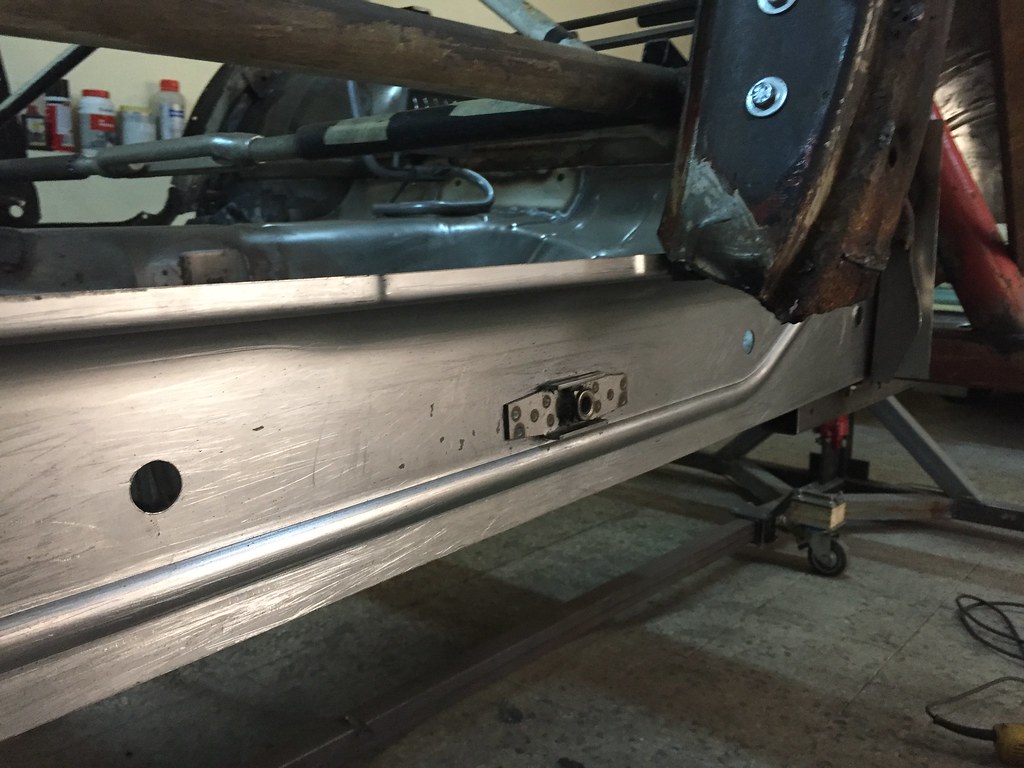

now we can access all rust.





















here is some decal I liked on an Alfa




That is the chemical formula of rust as you may have guessed


Kizilsakal

Well-Known Member
Site Donor
Messages
203
Reaction score
20
Location
Istanbul, Turkey
Another update

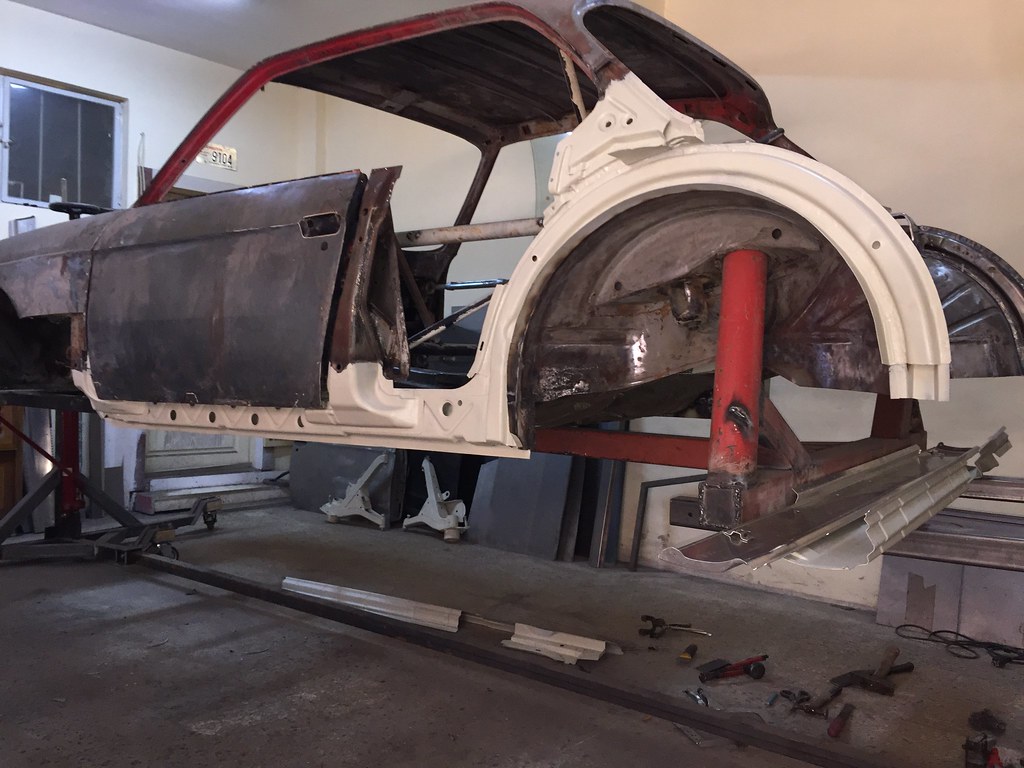

we are attacking rust on all sides. There won't be a piece left untouched.

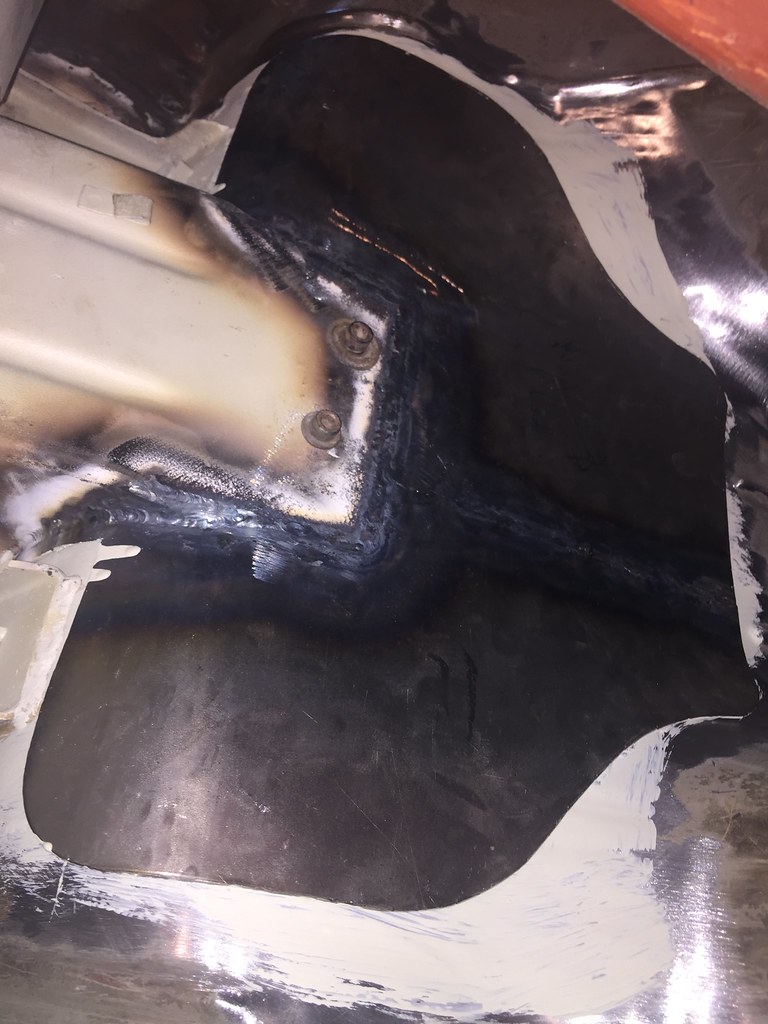

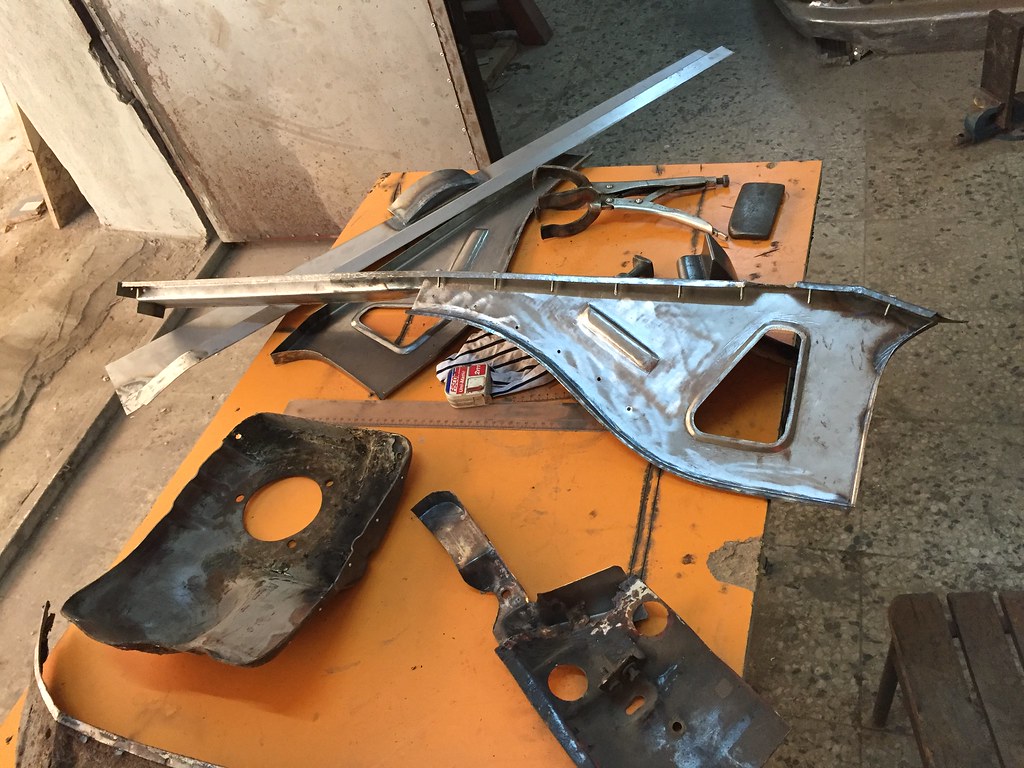

Pieces are being made, for example half of that trunk panel is hand made new.

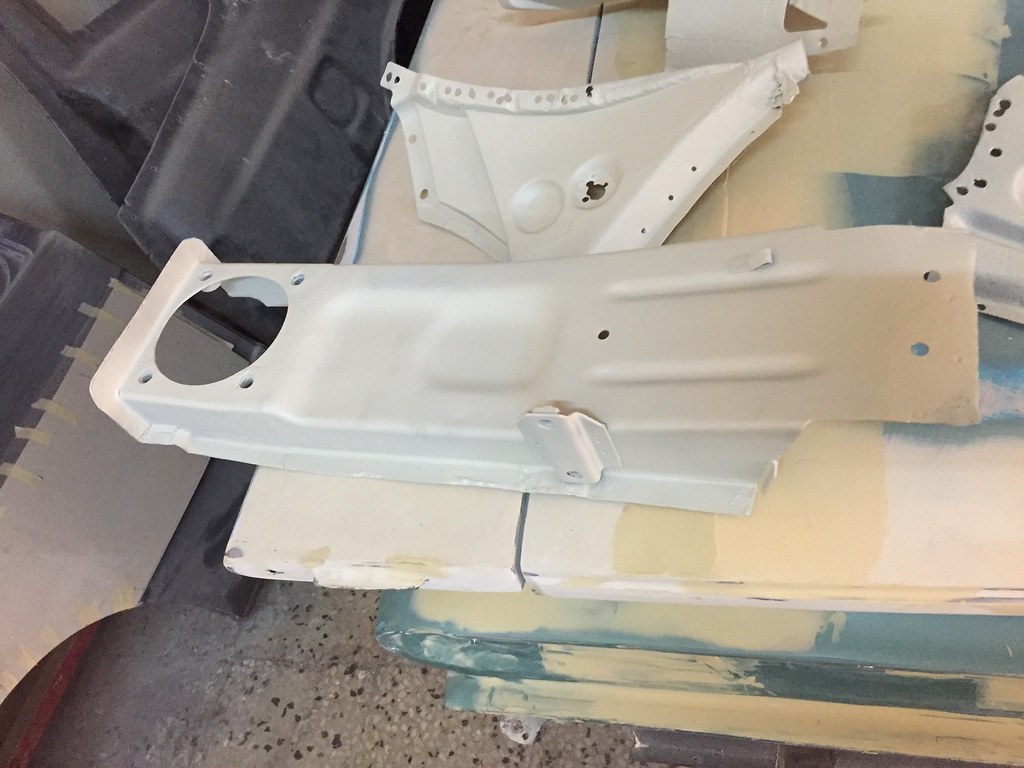

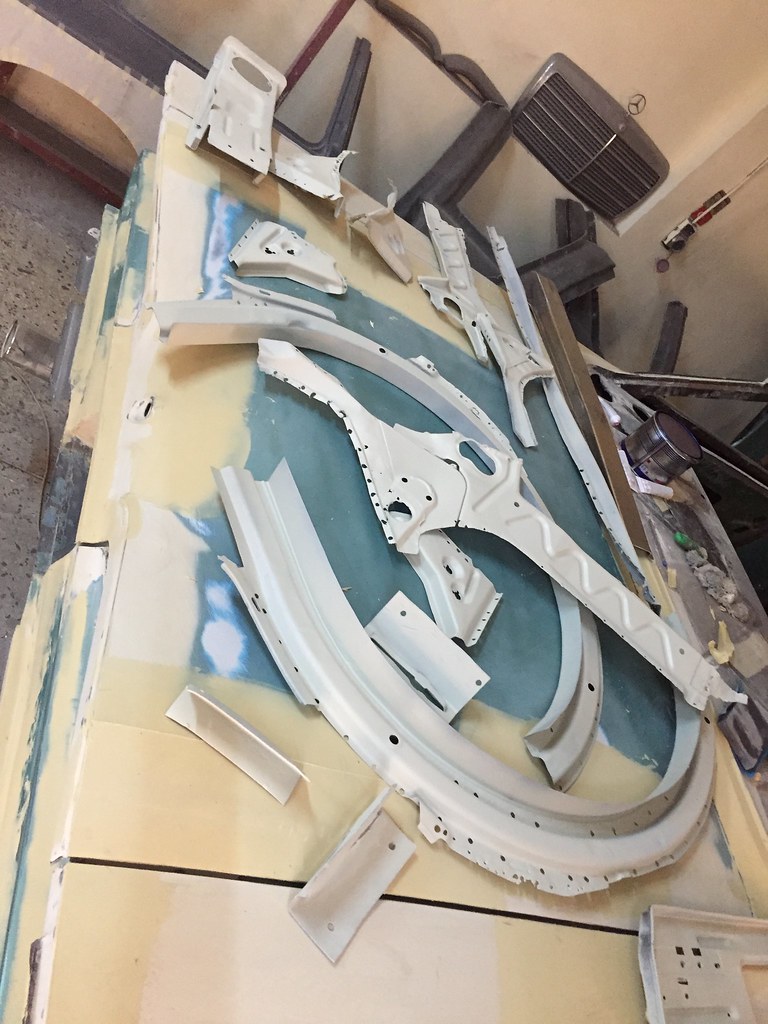

Some parts have been sand blasted and sprayed with epoxy primer.

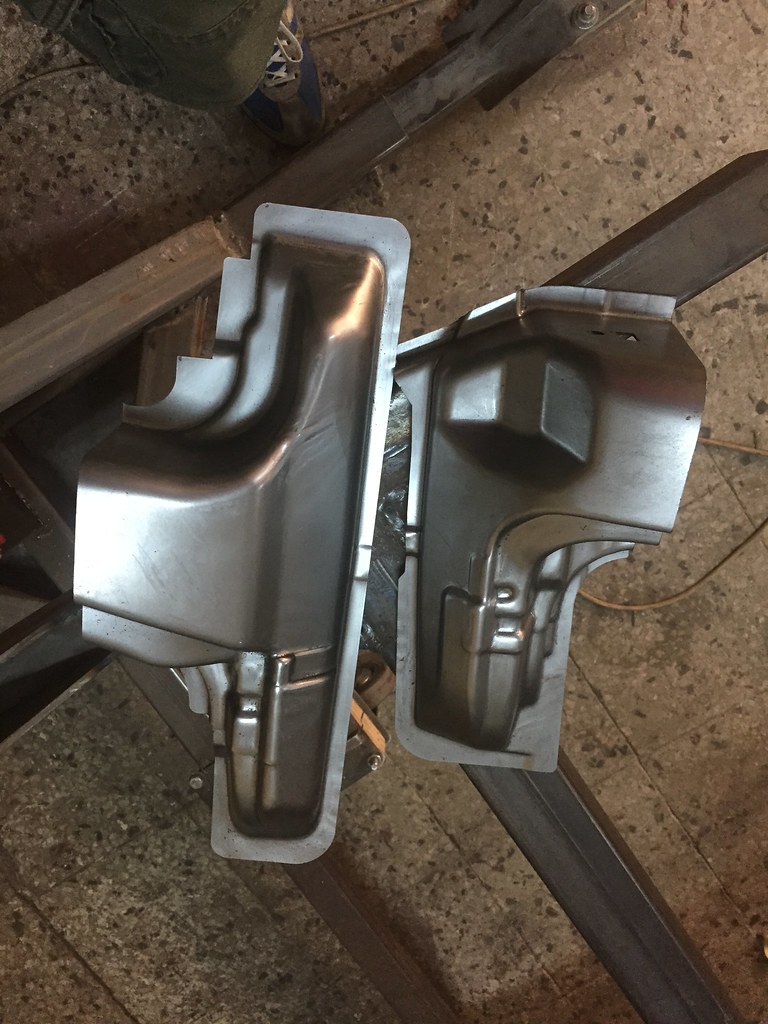

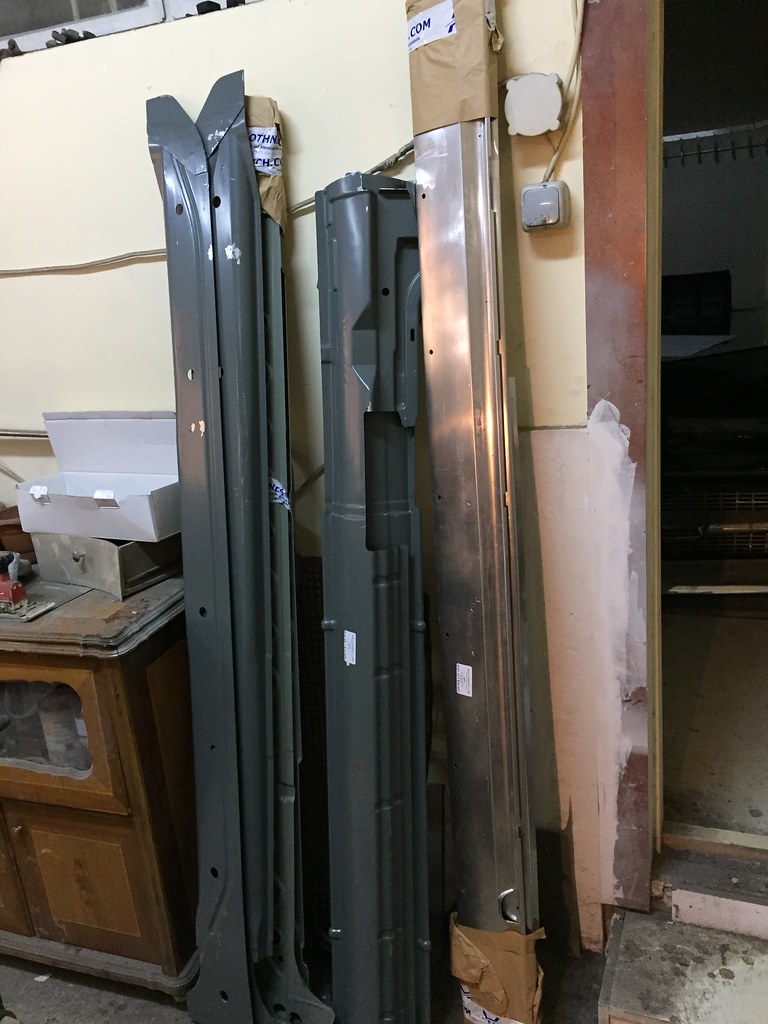

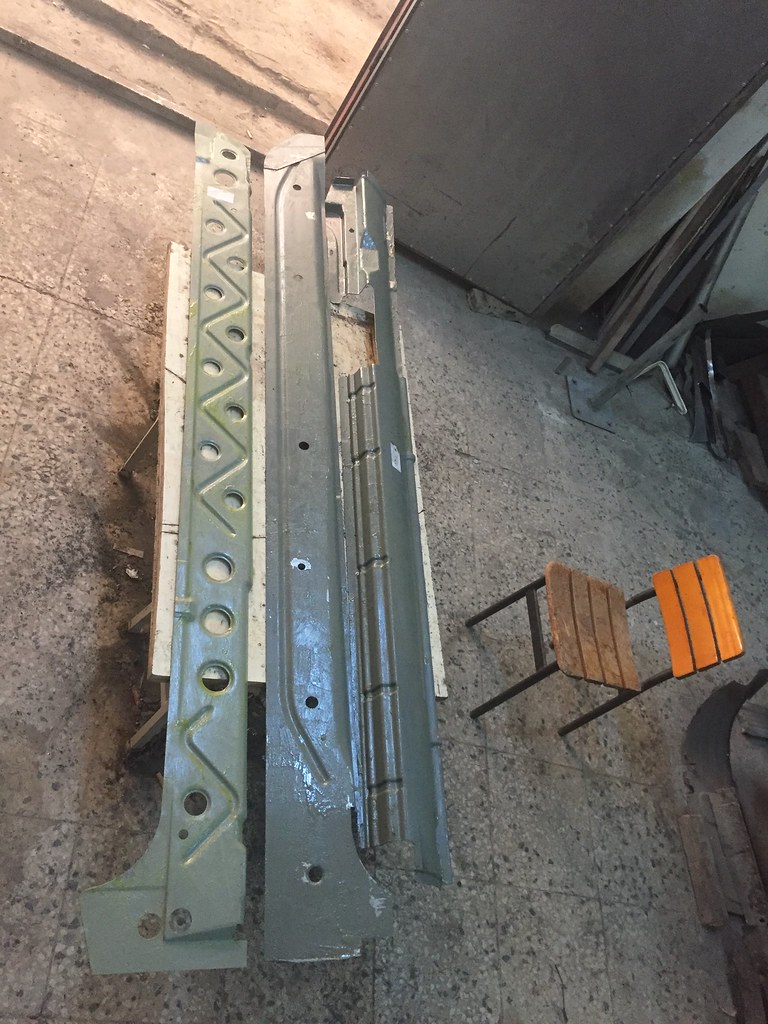

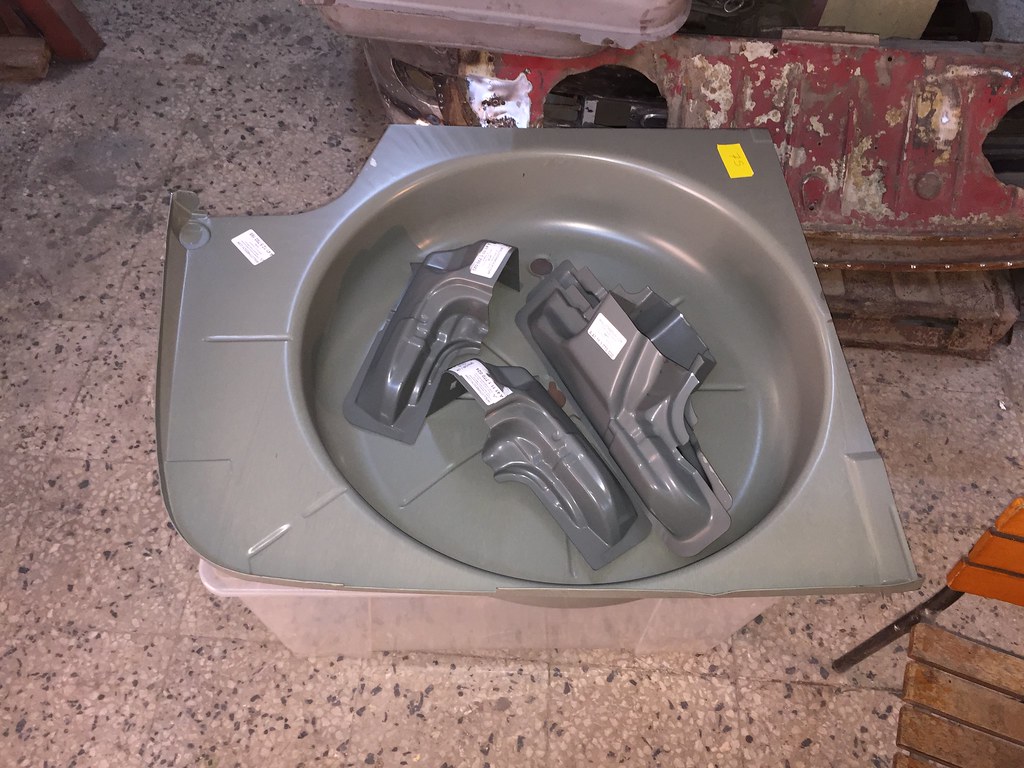

Some new parts arrived





Kizilsakal

Well-Known Member
Site Donor
Messages
203
Reaction score
20
Location
Istanbul, Turkey
The primer on the parts was to protect them from rust in the warehouse maybe but not good enough to put on the car.
so I removed it. I will be putting on epoxy primer.

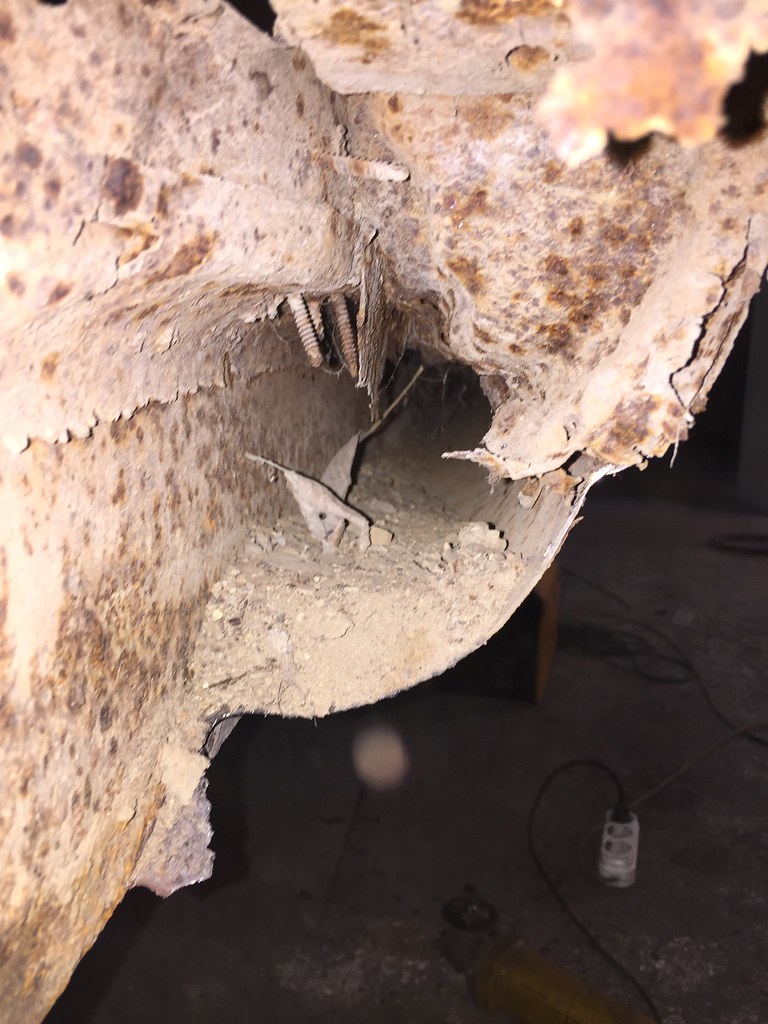

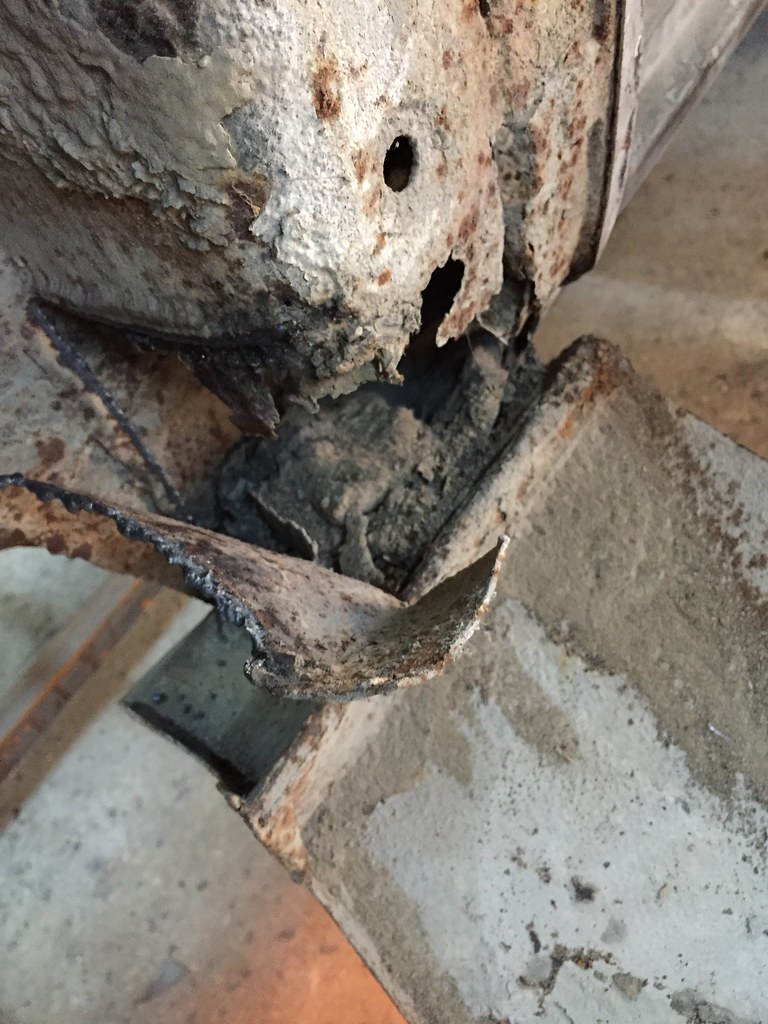

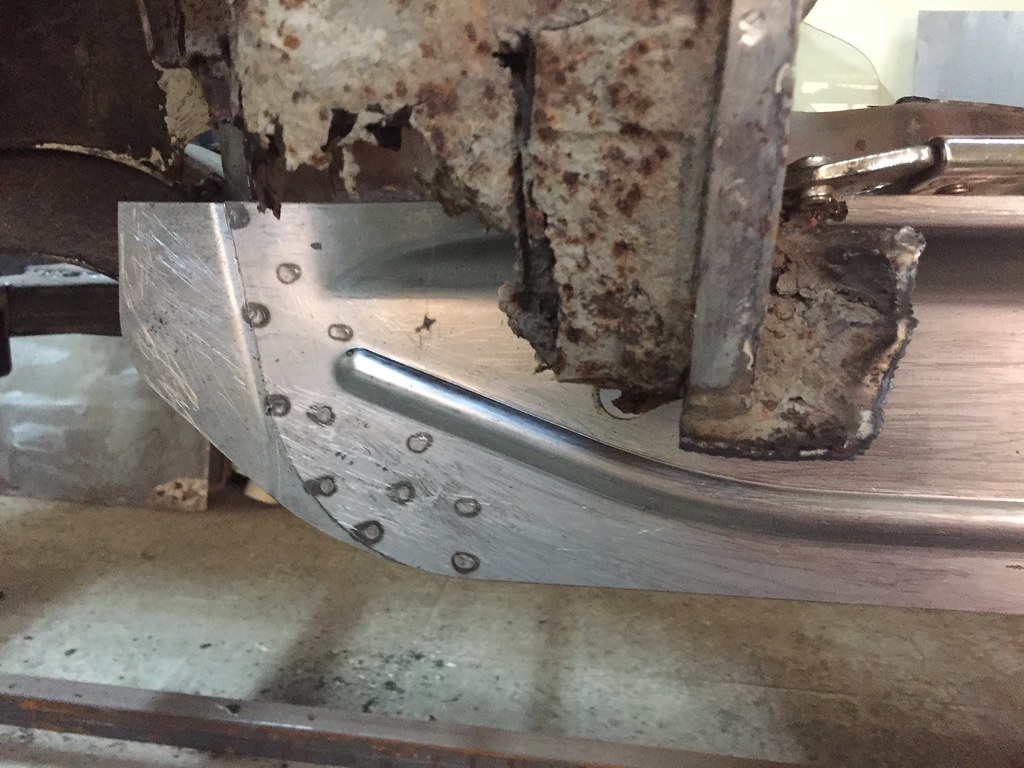

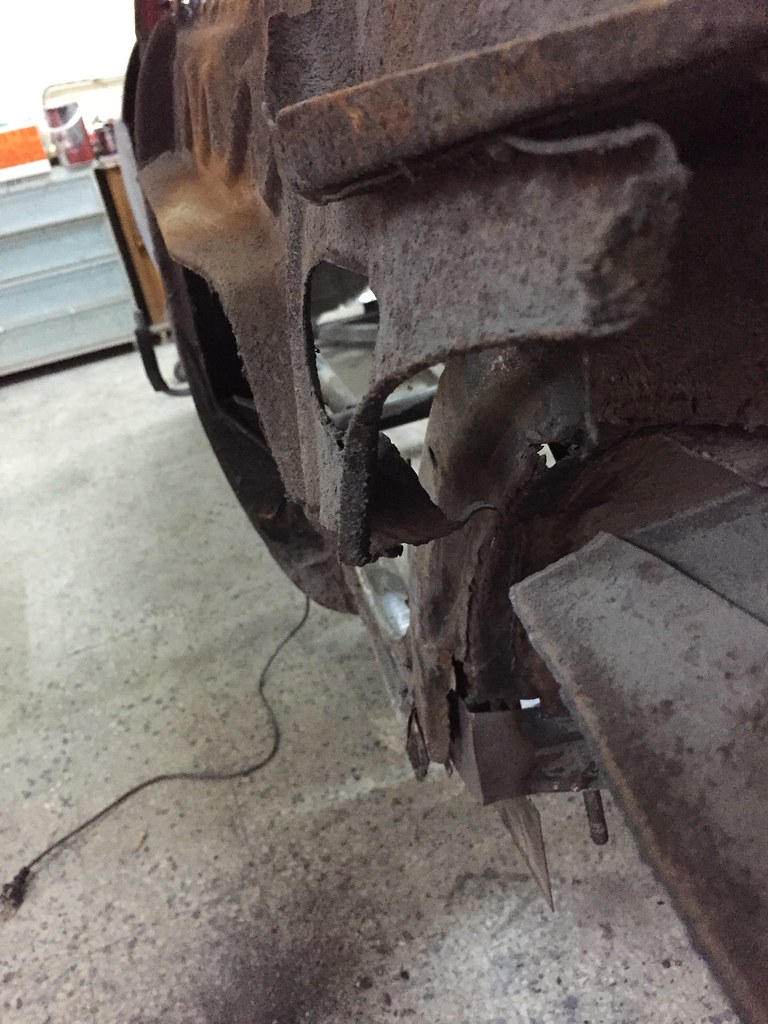

removed the sill on driver side. the intermediate piece was missing as we noticed before.

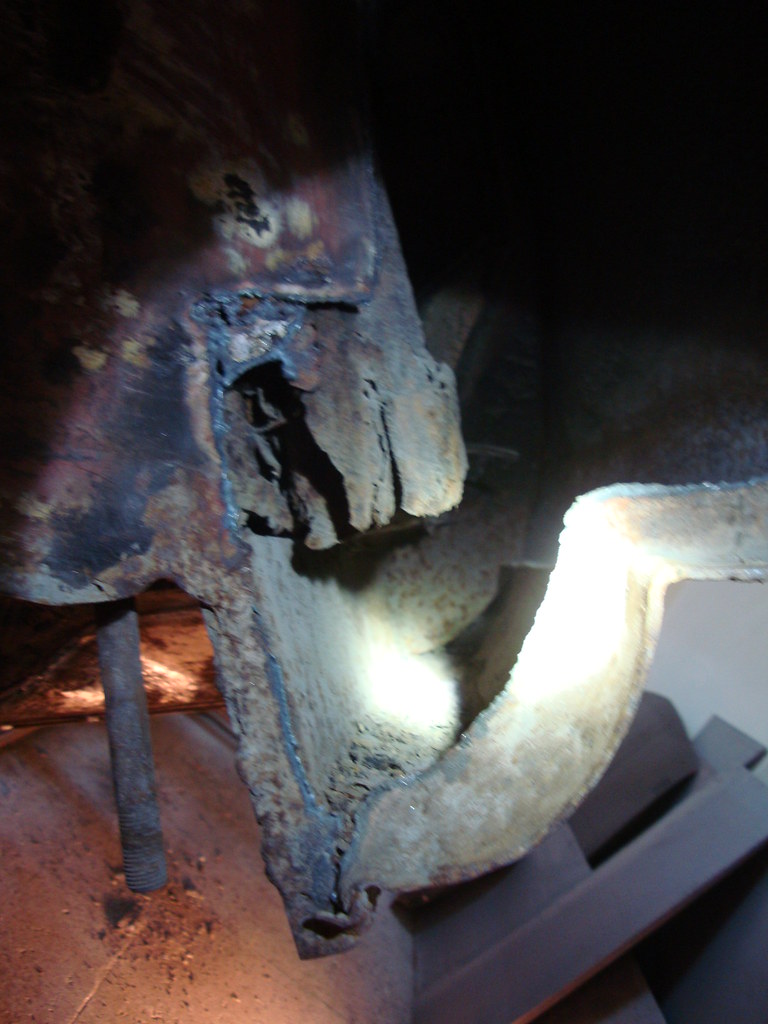

about 6-7 kg of dirt was there instead.











Sean-e9

Active Member
Site Donor $
Messages
56
Reaction score
15
Location
Springfield, IL

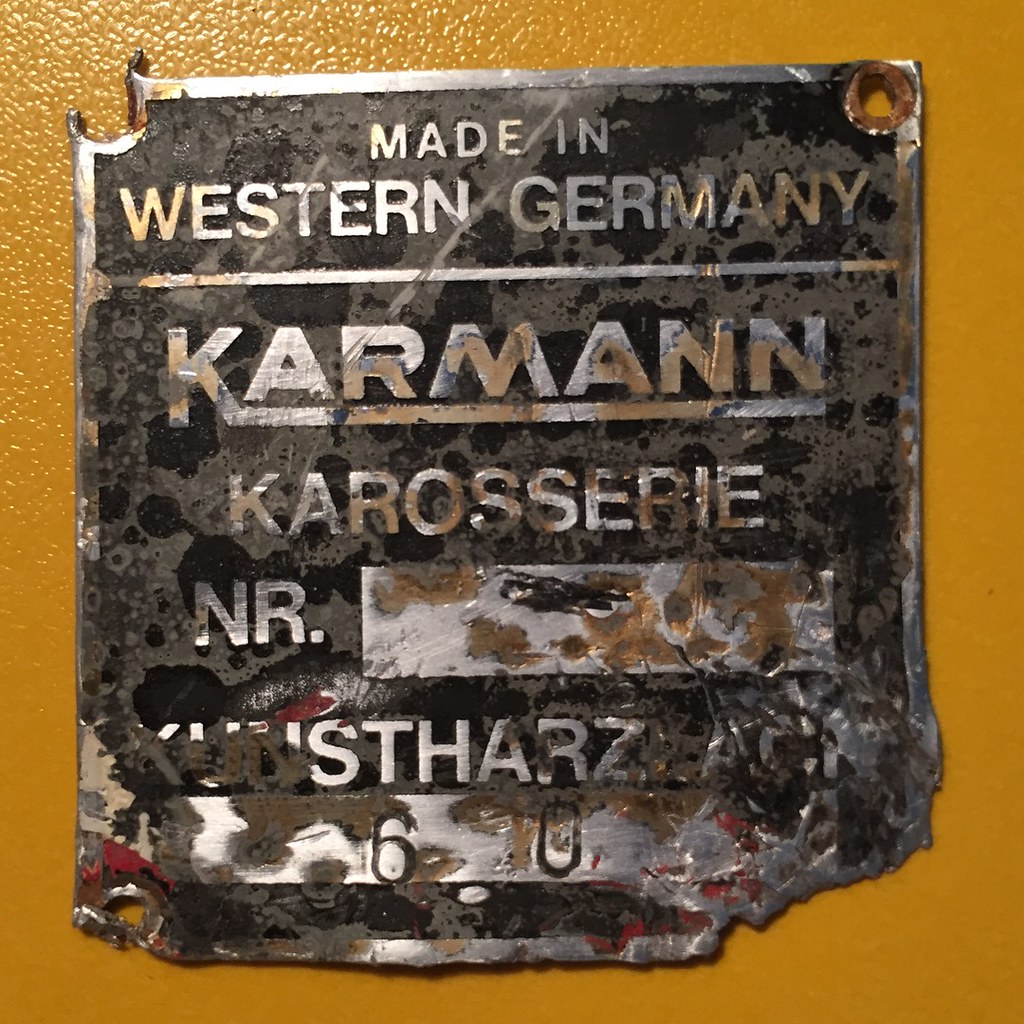

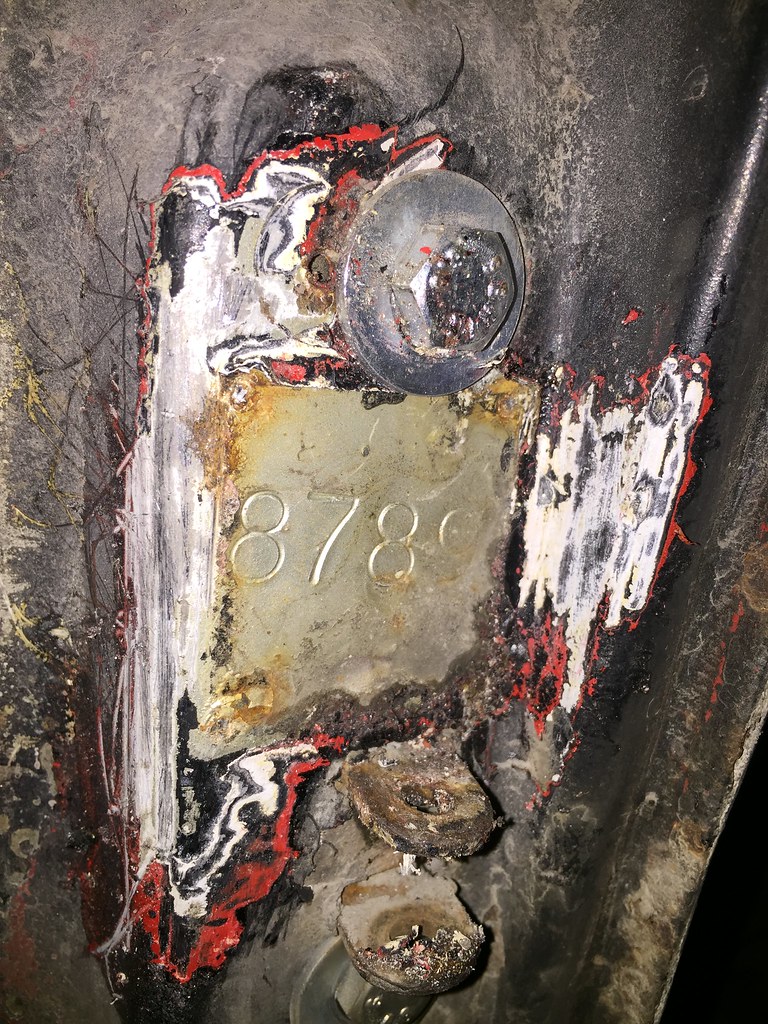

8789 is just a serial number issued by Karmann. 60 indicates the car was originally Polaris silver.


Sent from my iPhone using Tapatalk


Markos

Well-Known Member
Site Donor
Messages
13,369
Reaction score
7,502
Location
Seattle, WA
8789 is just a serial number issued by Karmann. 60 indicates the car was originally Polaris silver.


Sent from my iPhone using Tapatalk

Yup, and you can see that the 8789 is actually painted polaris.


mulberryworks

Mr. Fixity
Site Donor
Messages
1,243
Reaction score
612
Location
Jacksonville FL
8789 is just a serial number issued by Karmann. 60 indicates the car was originally Polaris silver.

The Karmann serial number has been discussed before, and it seems to be an internal process number and not tied to BMW VIN or serial numbers in any way.
No one has found any additional information about those numbers from Karmann, though there might have been some long ago, it's probably long been purged.


Kizilsakal

Well-Known Member
Site Donor
Messages
203
Reaction score
20
Location
Istanbul, Turkey
some more progress

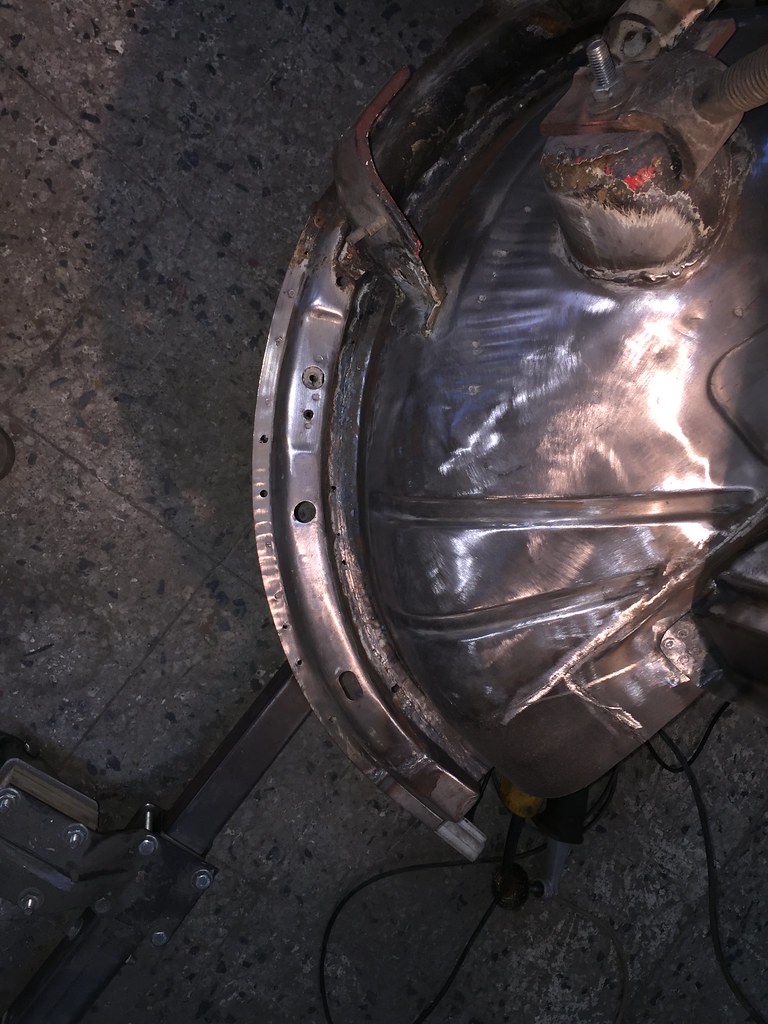

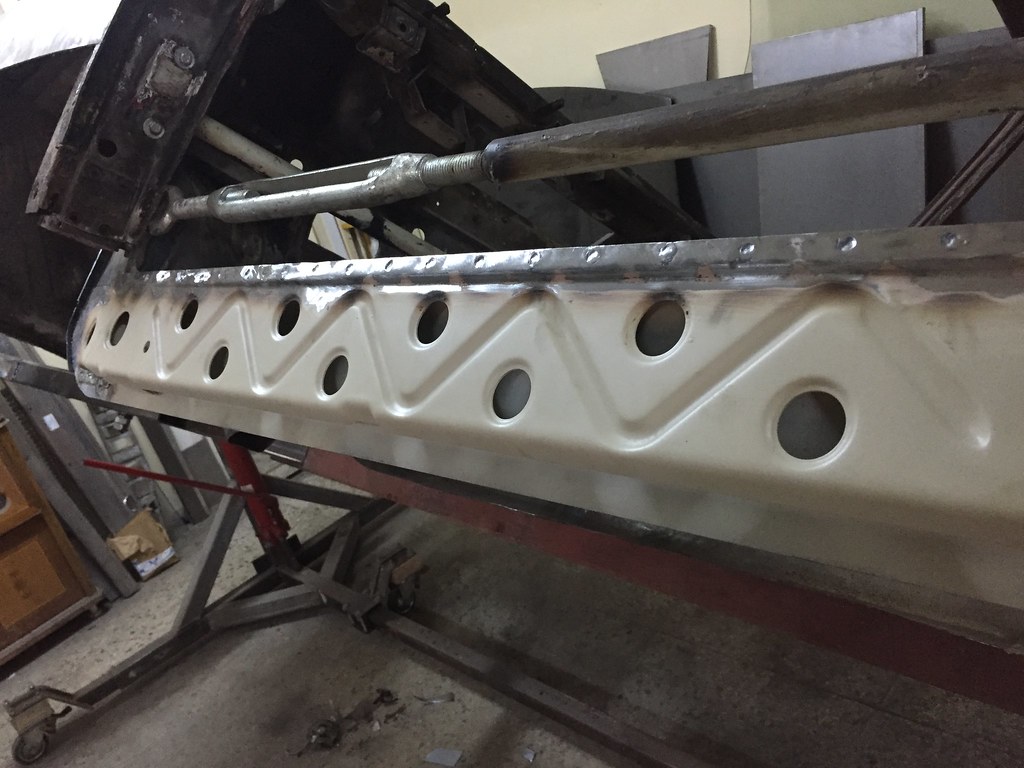

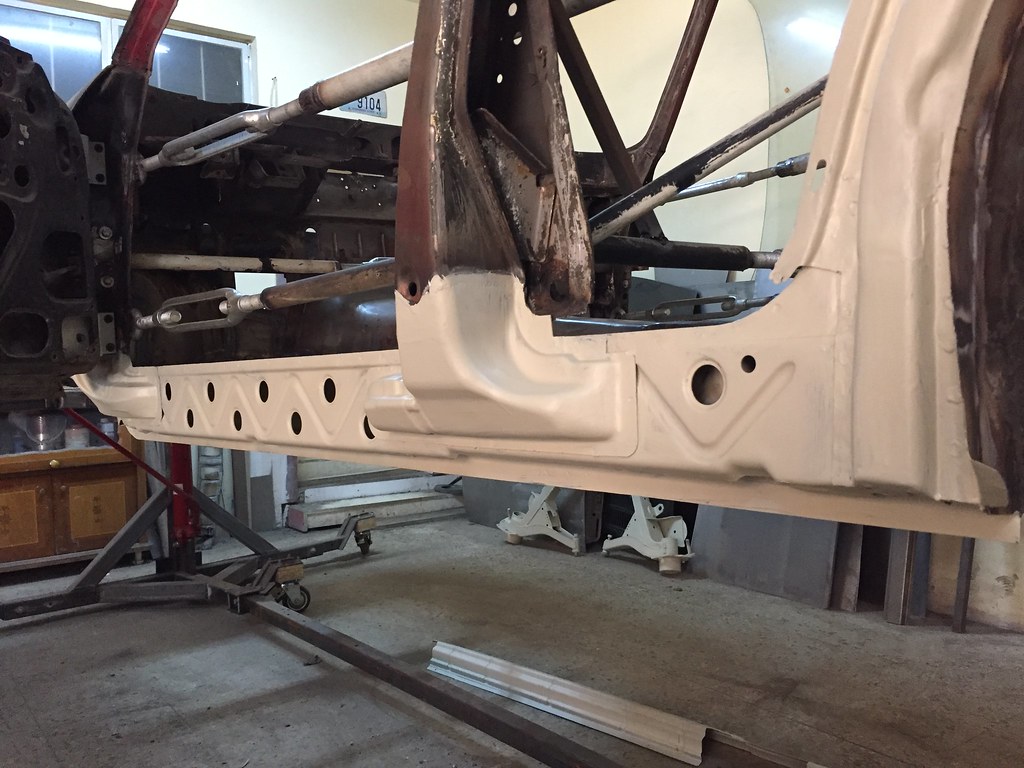

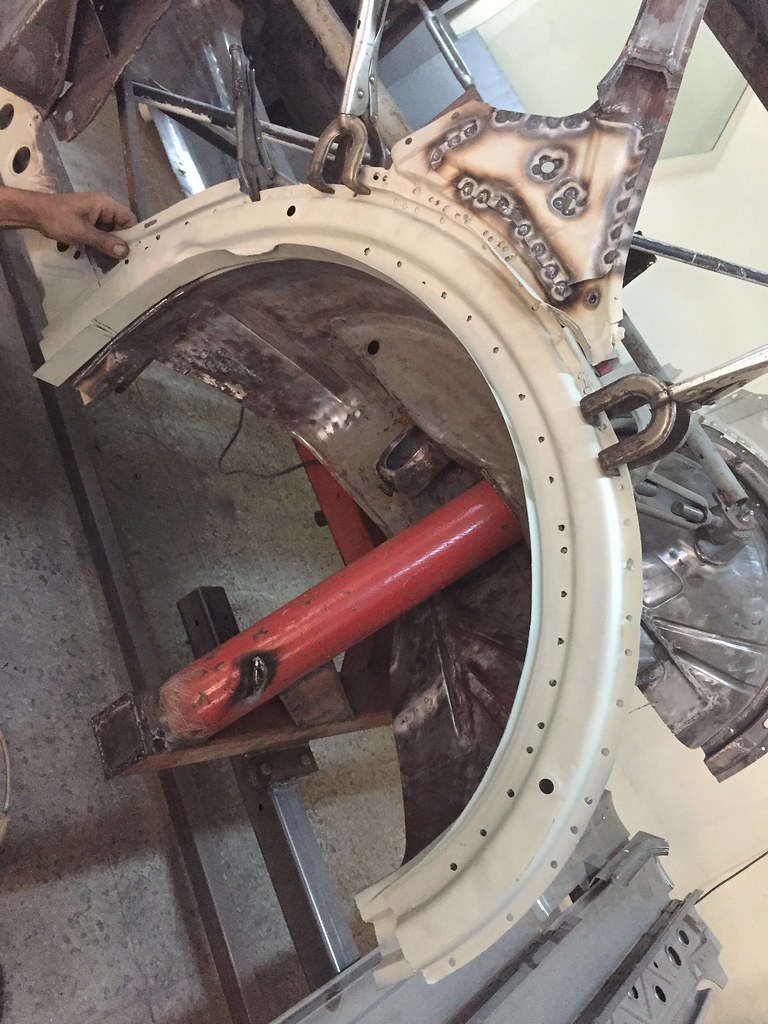

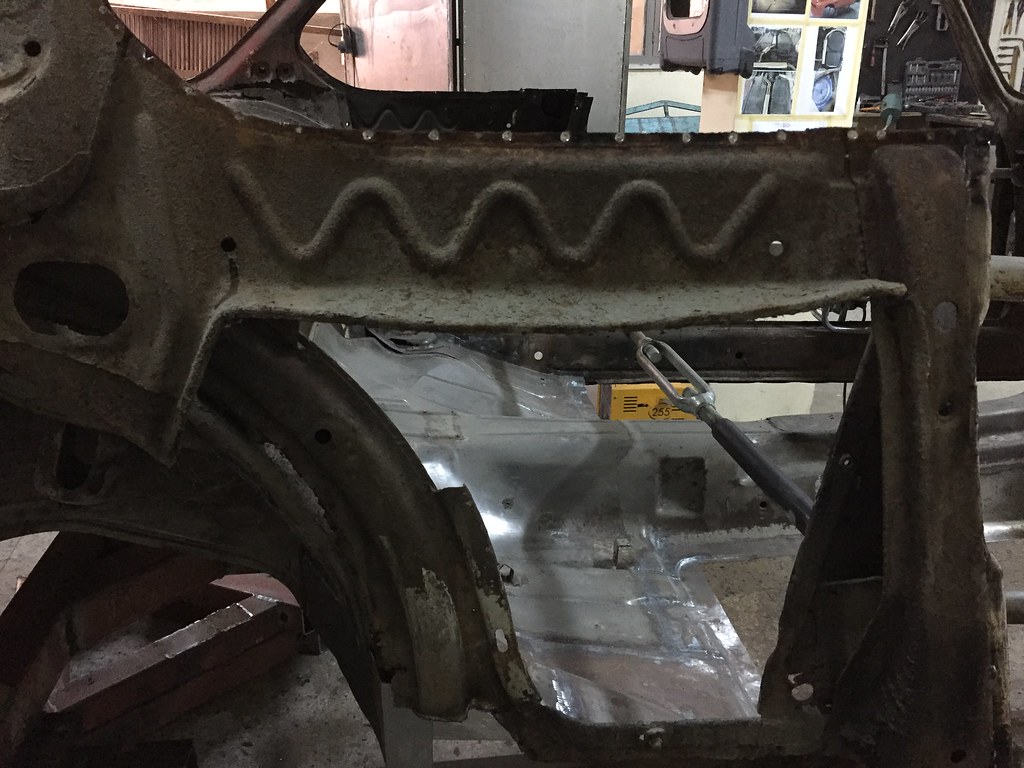

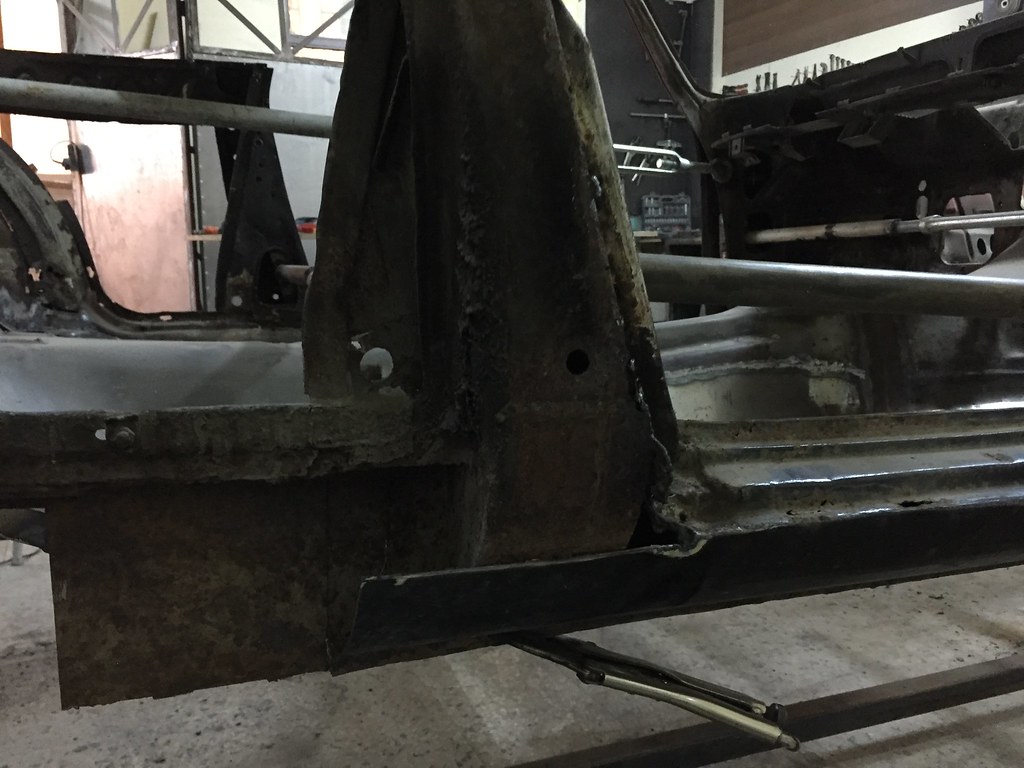

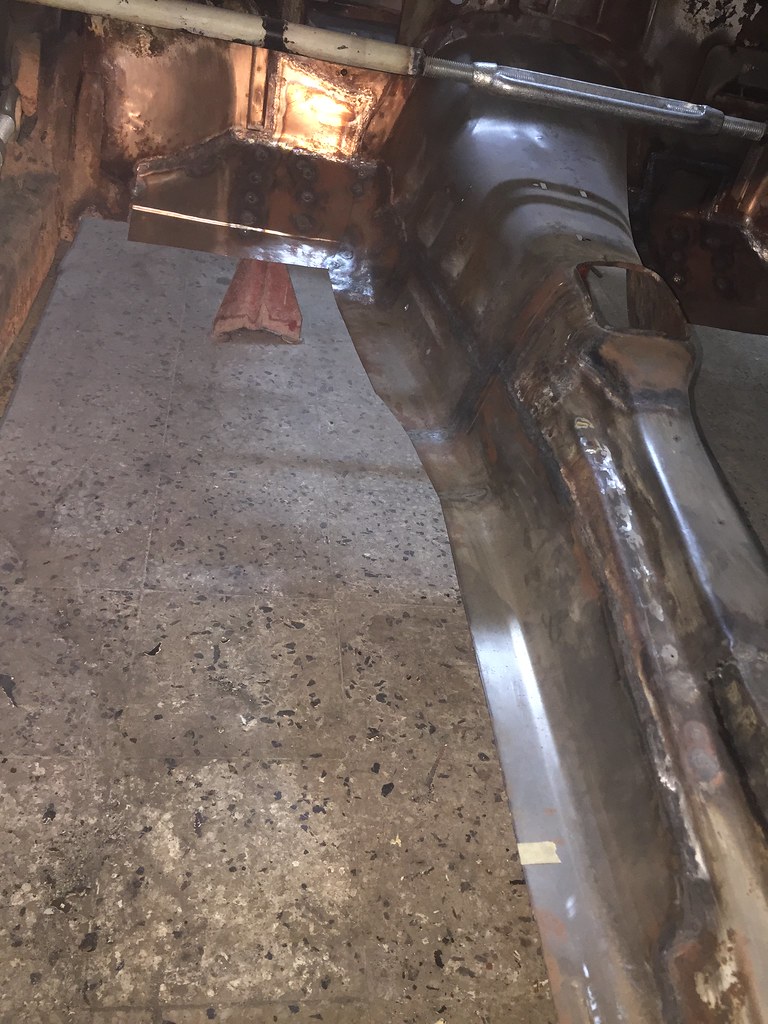

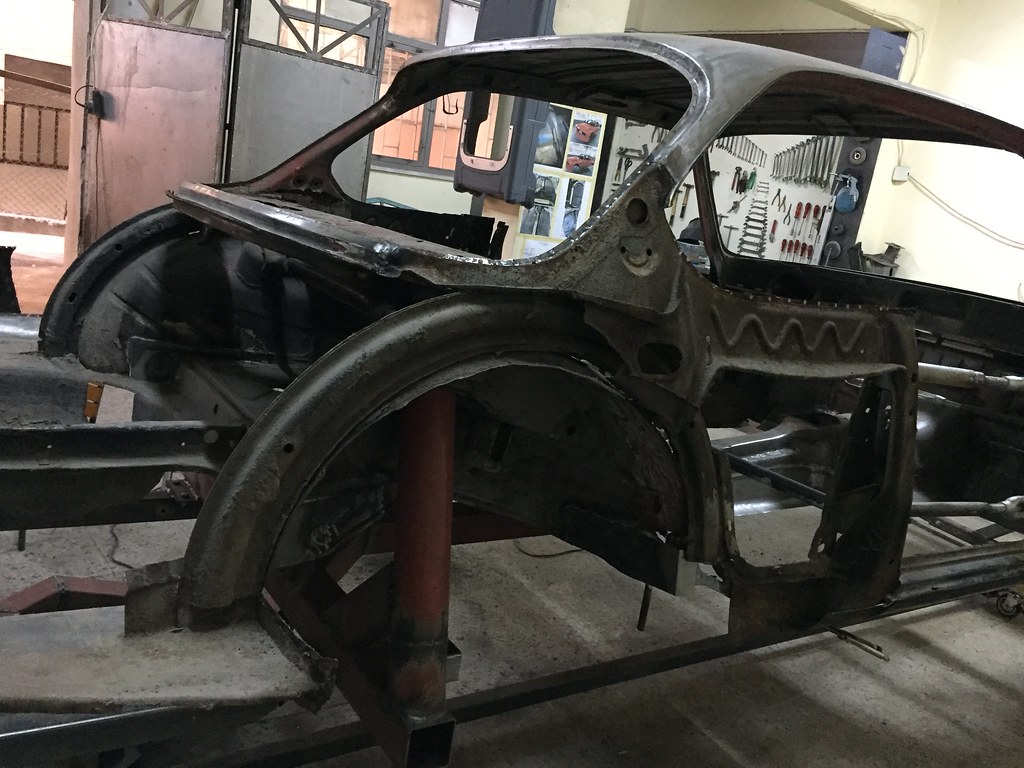

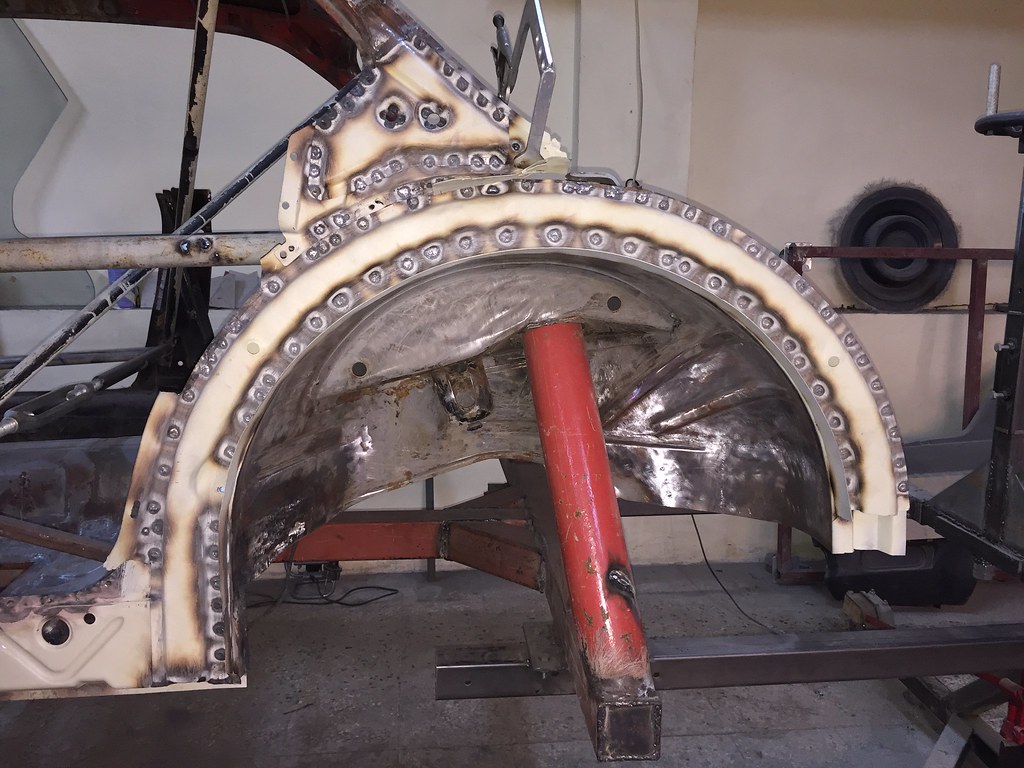

structure around the rear wheel arch and the rockers are done all the way to the bottom of the a posts



















Also the diff mounting piece caused a lot of stress fractures on the body so it's reinforced. the engine will be more than the standard 200 hp most probably.

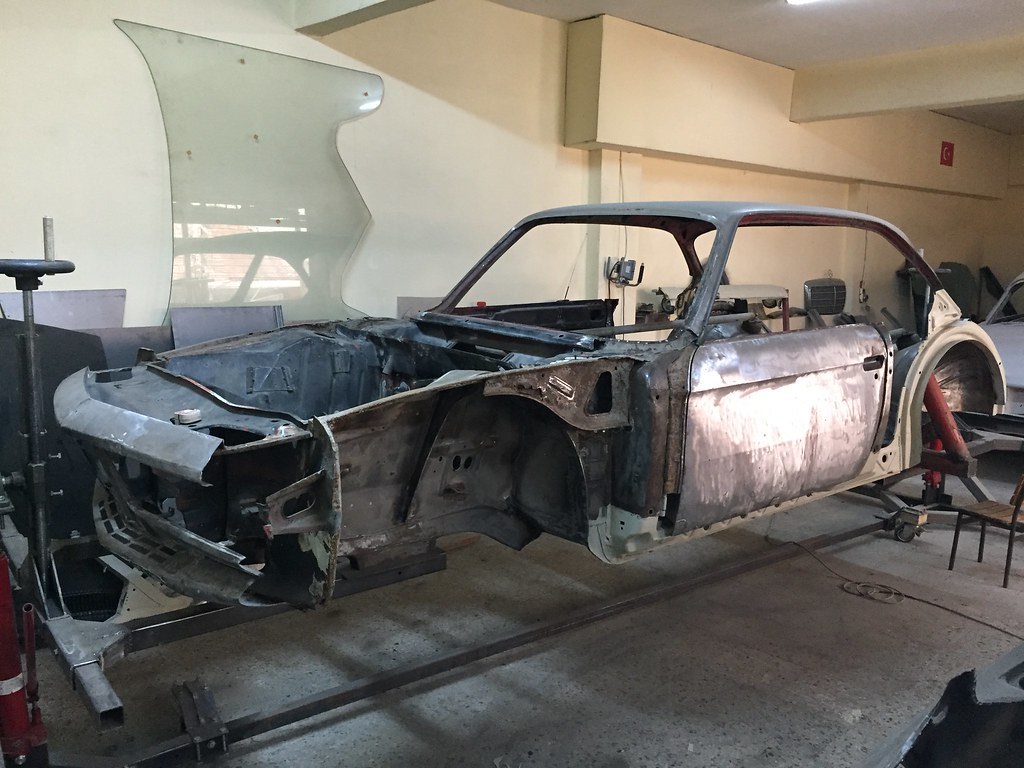

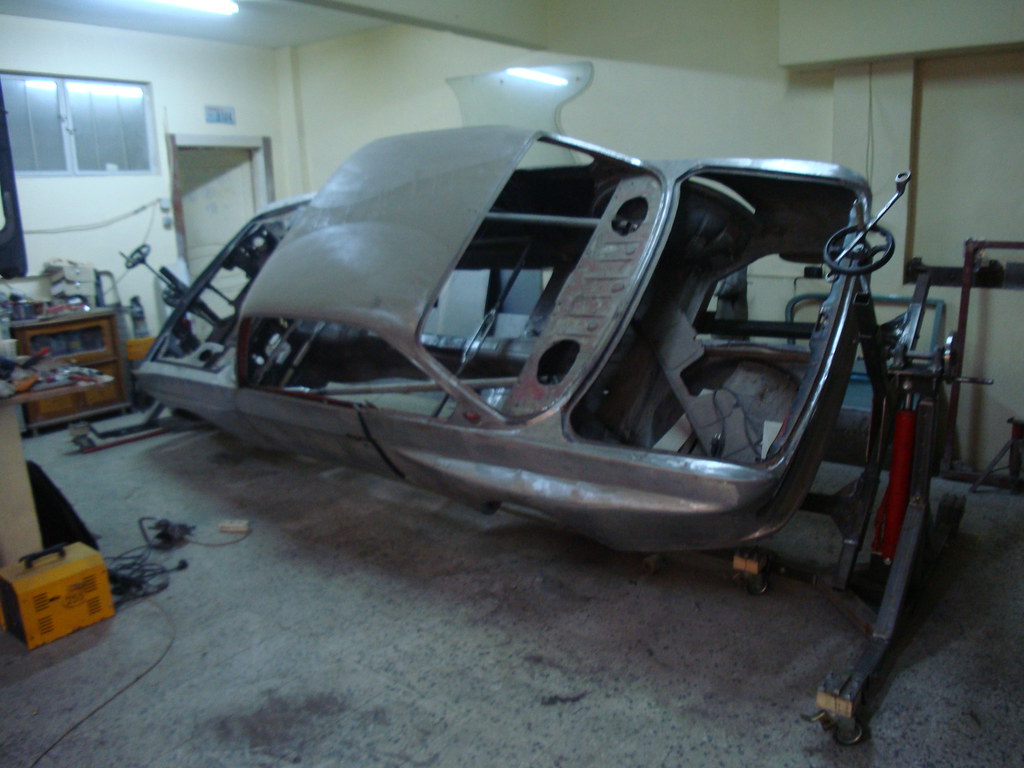

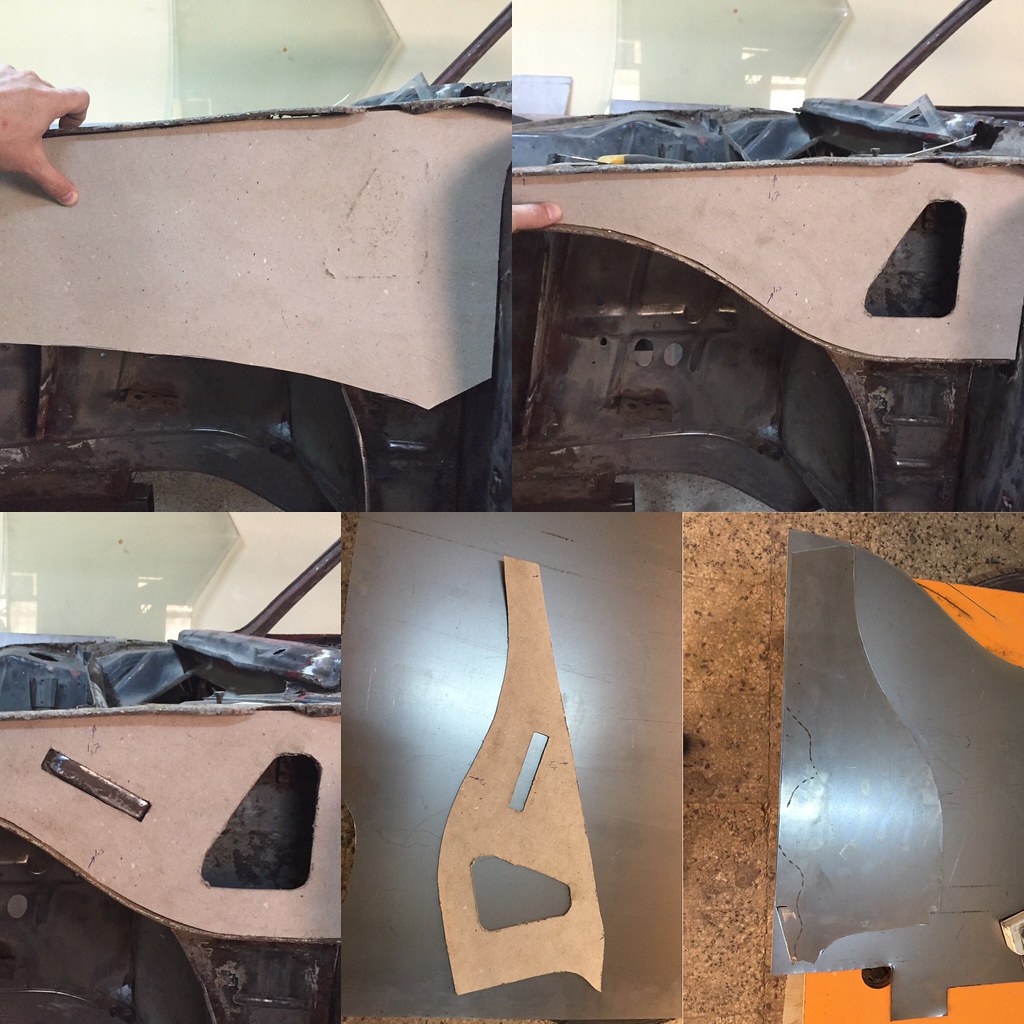

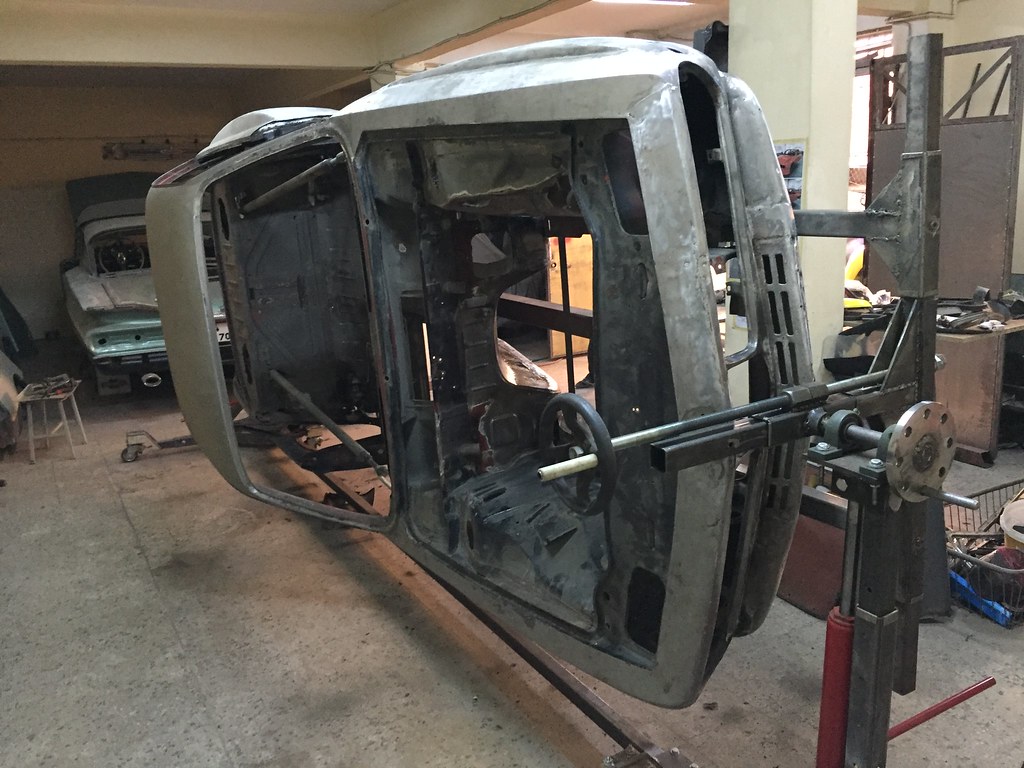

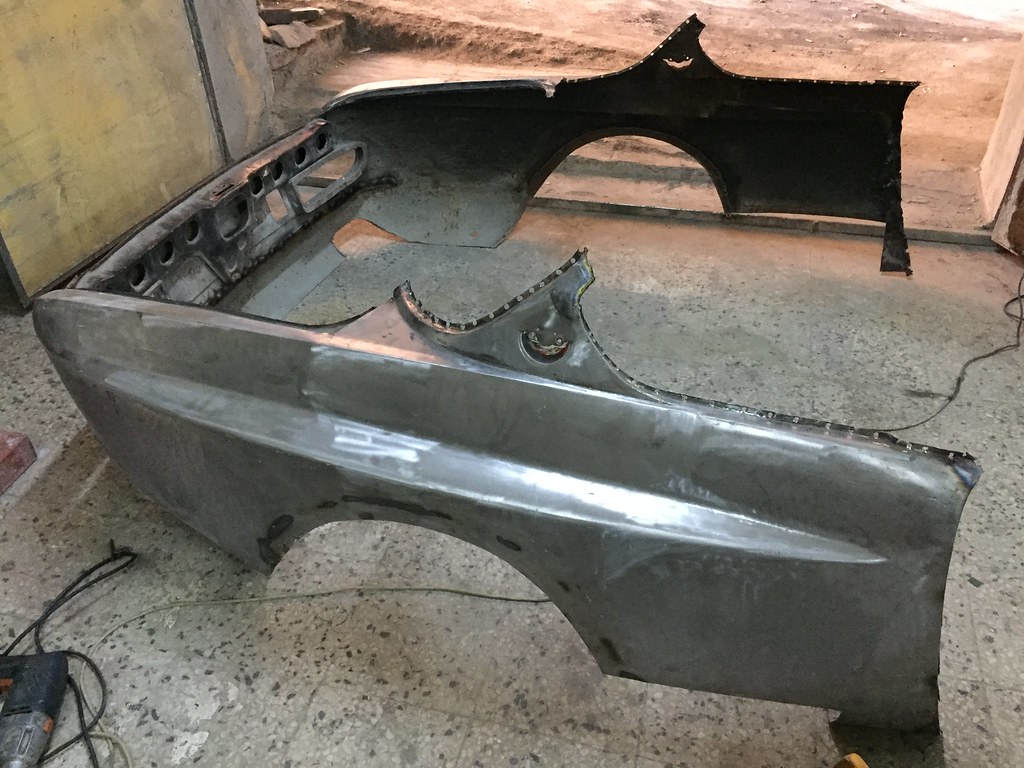

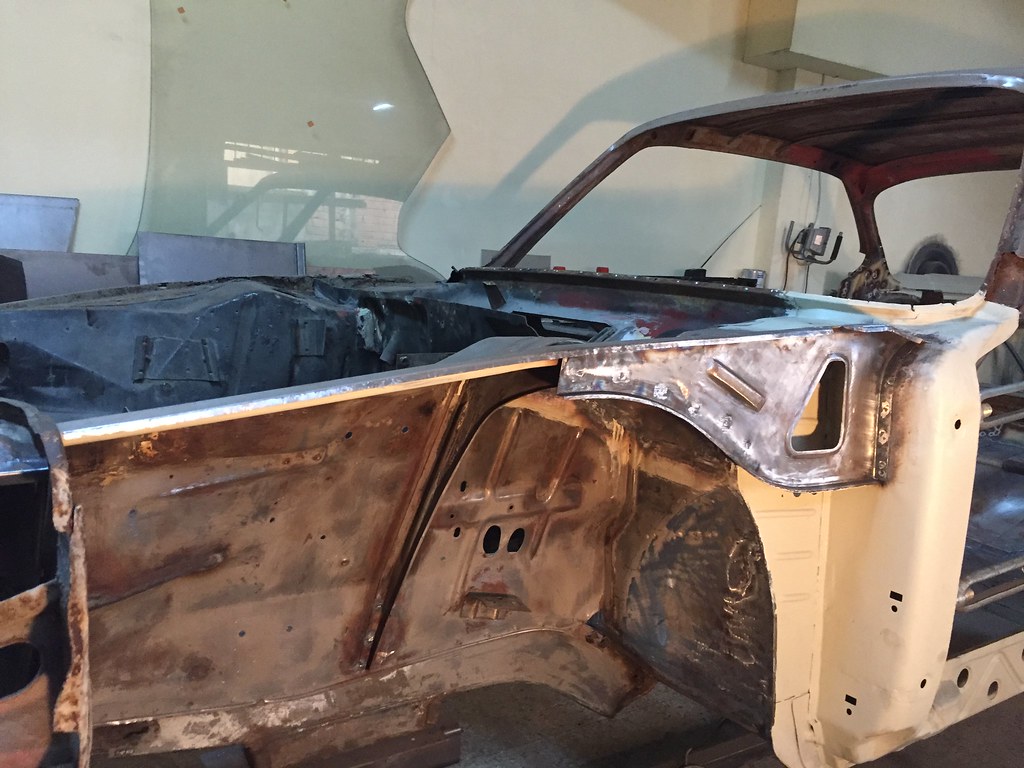

the front fenders are also removed

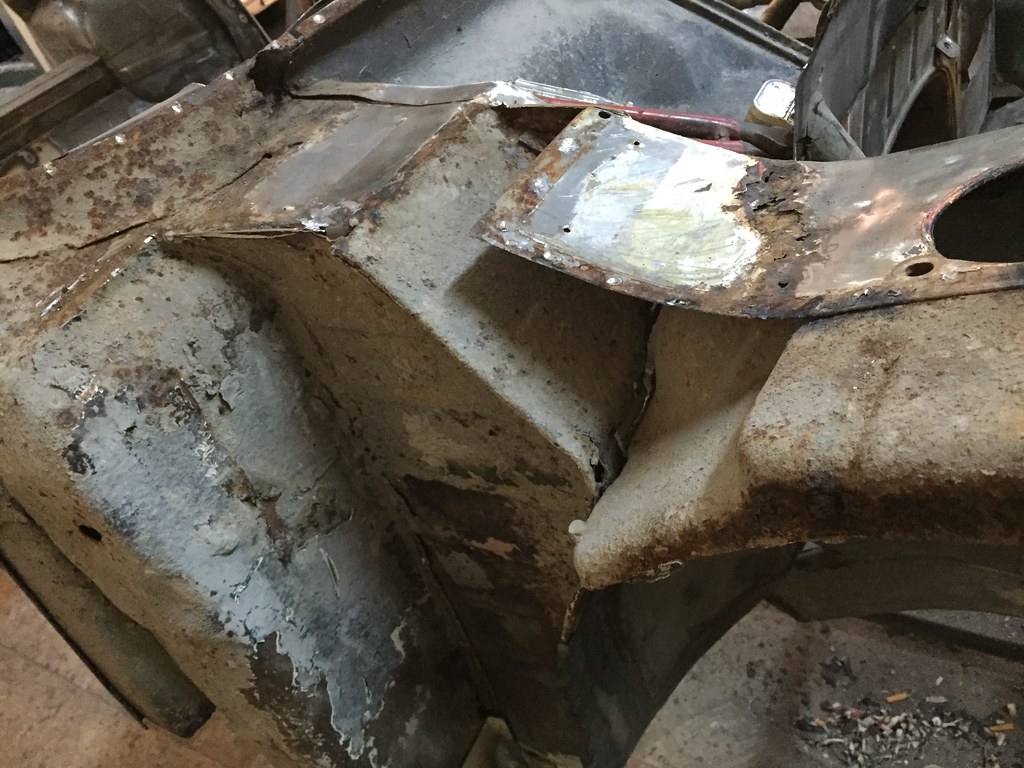

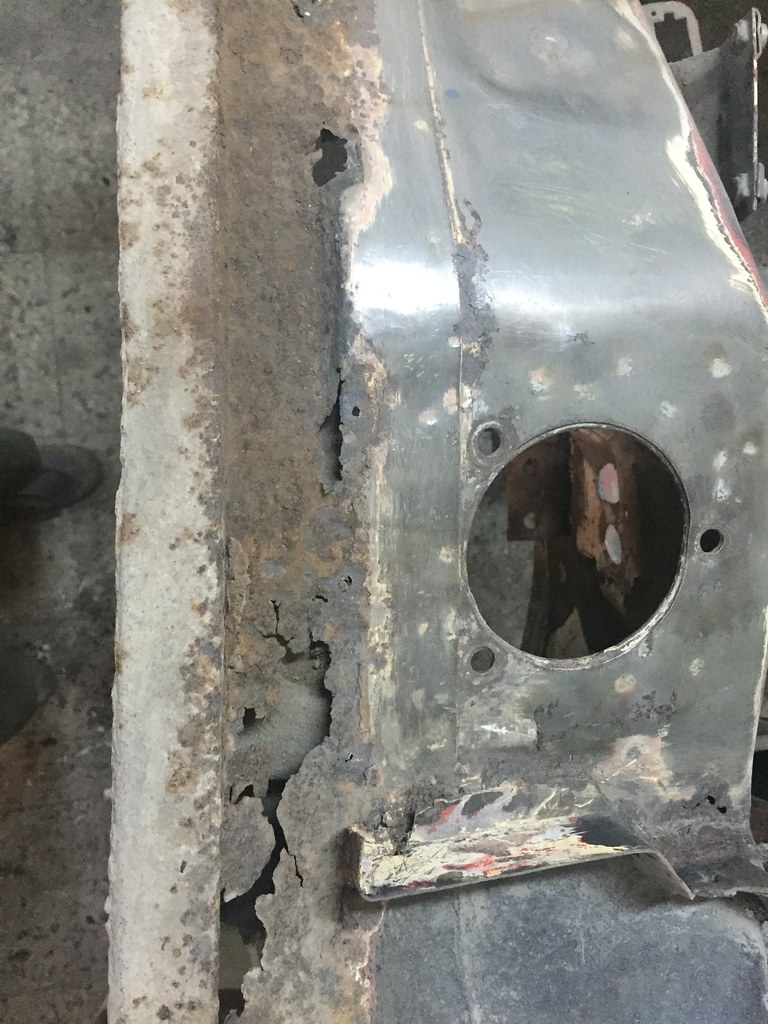

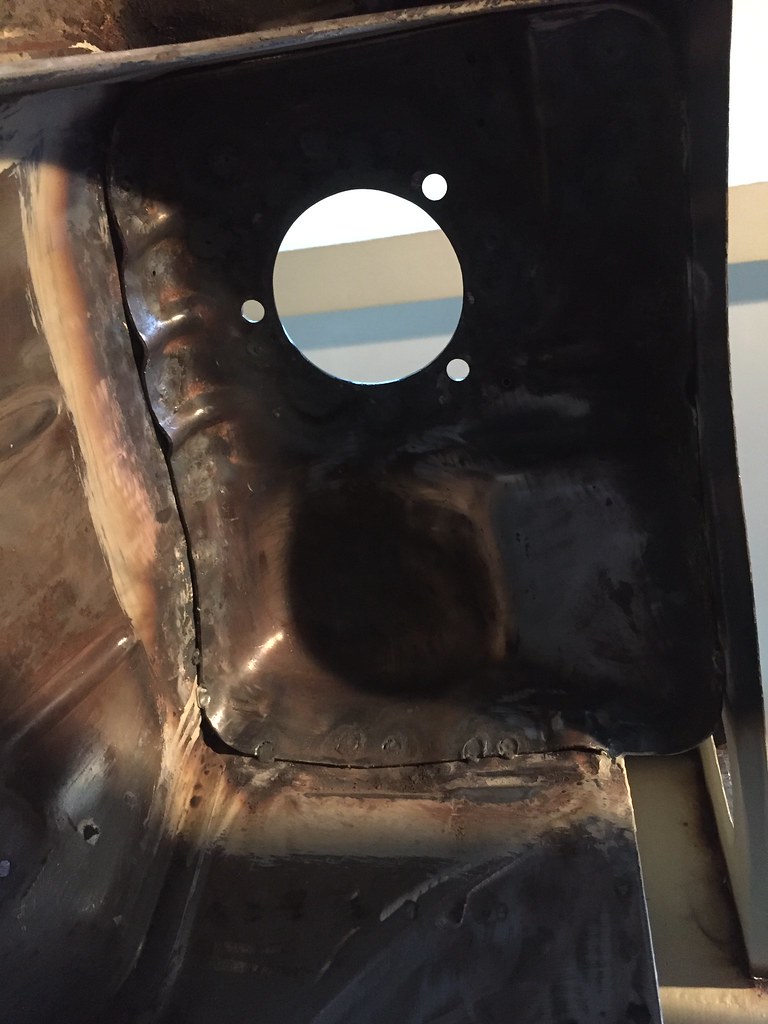

a lot of rust and stress fractures, so everything is normal.

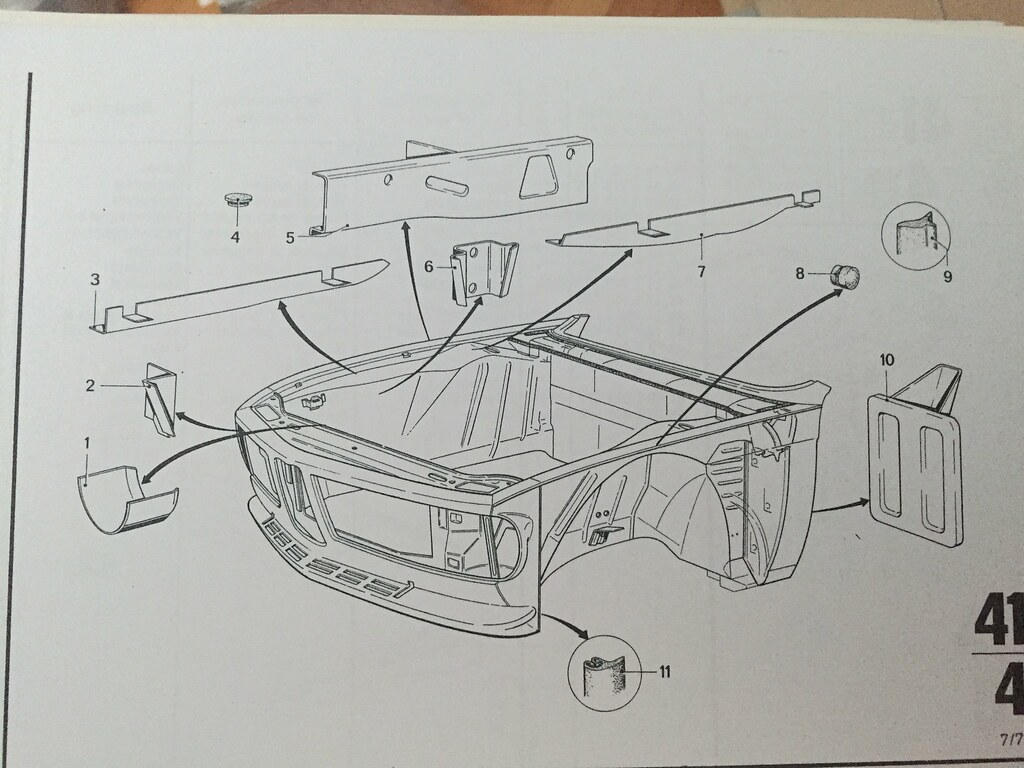

also some missing pieces I suspect

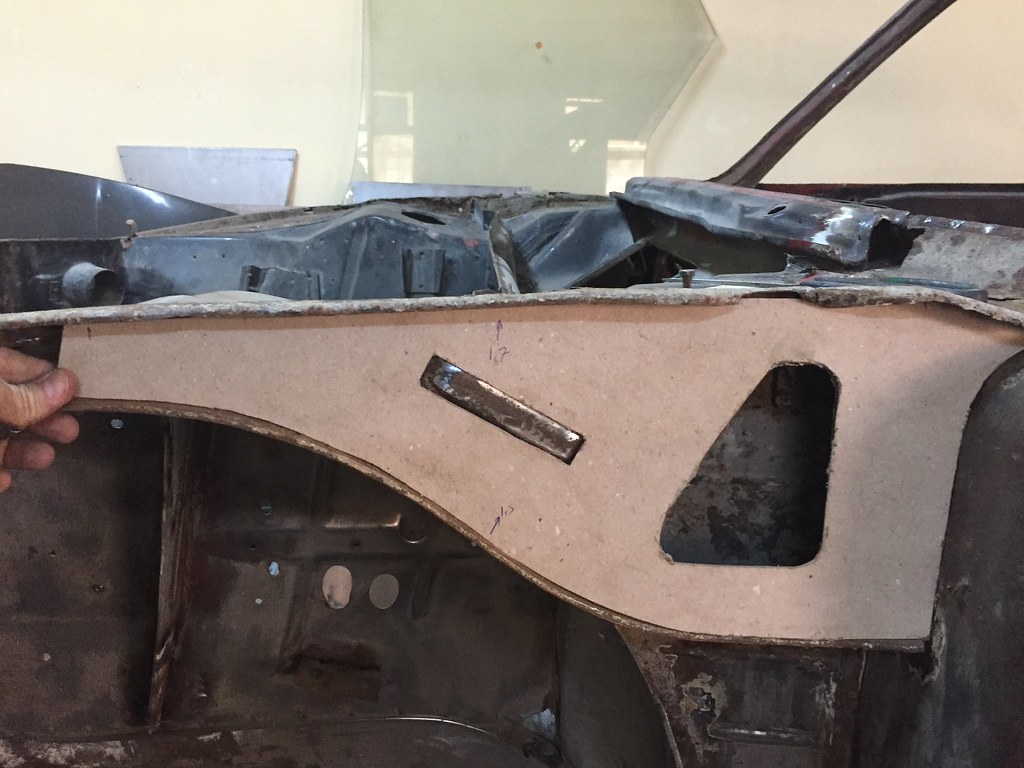

fixing with the help of CAD.. Cardboard Aided Design.



Kizilsakal

Well-Known Member
Site Donor
Messages
203
Reaction score
20
Location
Istanbul, Turkey
I haven't been able to post the updates for a while but the work continues.

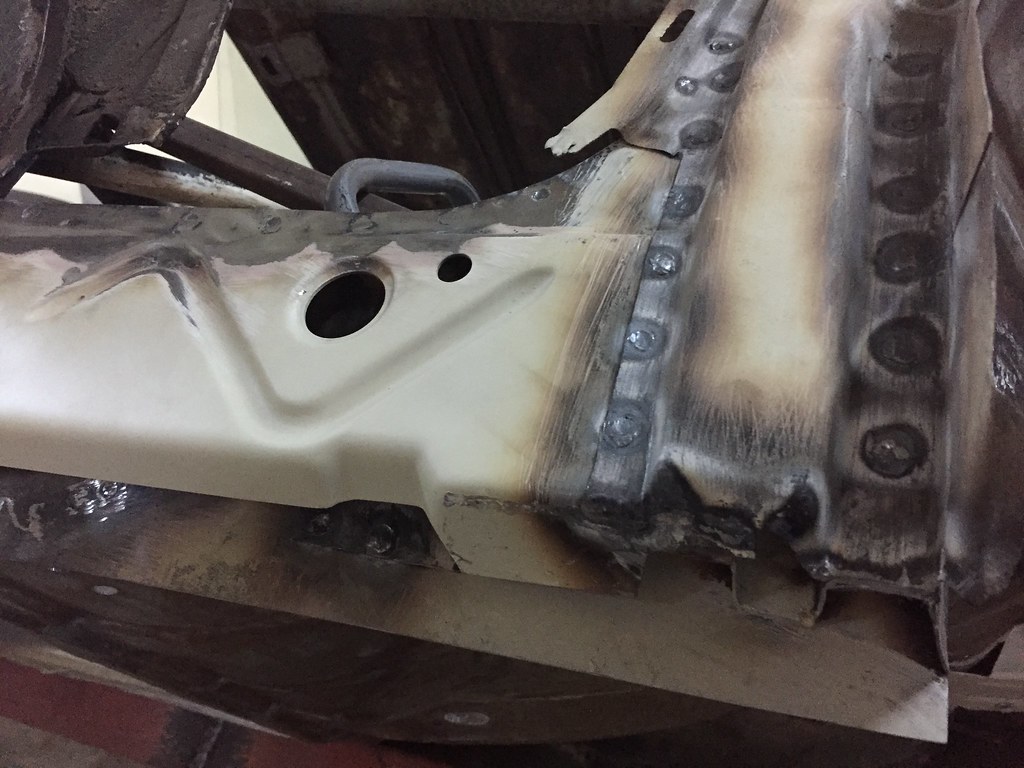

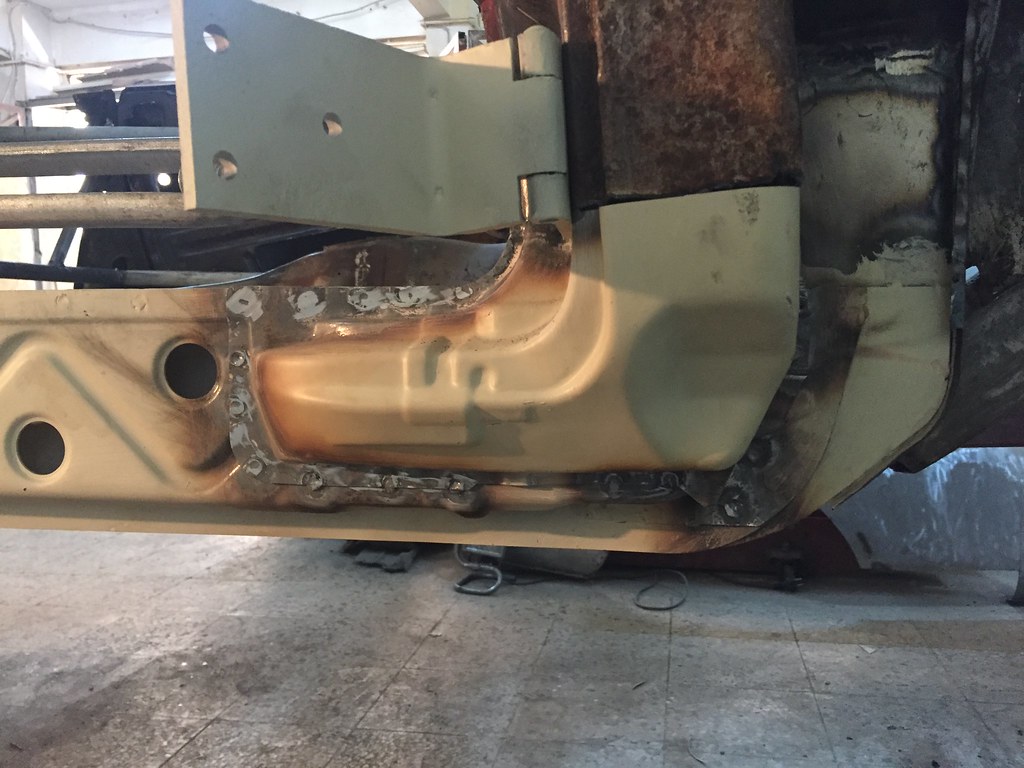

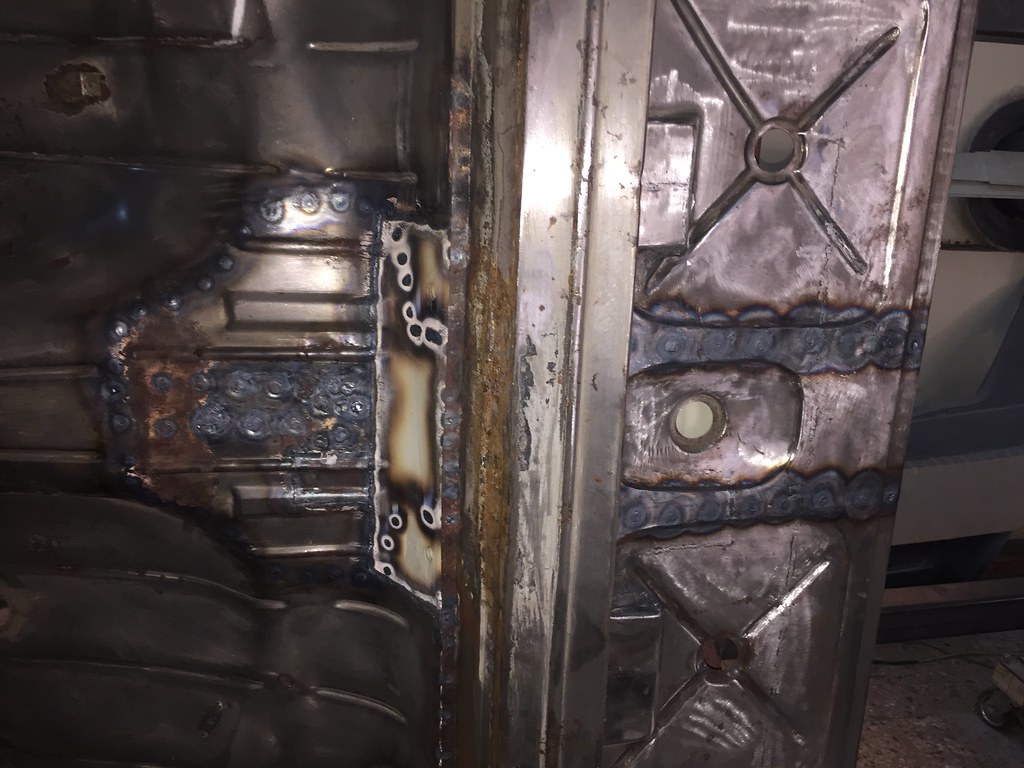

Every piece is treated with rust converter after being cleaned, then epoxy primer. after welding in place we clean the weld area again and spray another coat of epoxy primer on the burnt parts.






the other side is in worse shape, it will be next









Kizilsakal

Well-Known Member
Site Donor
Messages
203
Reaction score
20
Location
Istanbul, Turkey
Great work and progress! Did you decide on what engine you will use? Stock?


Thanks Gransin

Most probably stock looking engine (apart from the distributor) with modern EFI and internals. First goal is to finish the bodywork as perfect as I can.
