Spot welder had a nice workout getting hundreds of welds done, so much easier than having to take out the MIG or TIG!
Slapped on another coat of electrox, for those who wonder why I'm such a fanboy of this stuff, below is a comparison of rust buster epoxy primer (a well rated product) and electrox diluted 1 part paint to 10 part thinners (I was cleaning up the brushes!). Both painted onto an unprepped, dirty rusty cast iron stove used regularly and sat outside for 3 years.

Could you please share what brand/type of spot welder you are using? It looks to do a very nice job on the sheet metal seams.

Thanks
Drew


nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK
Could you please share what brand/type of spot welder you are using? It looks to do a very nice job on the sheet metal seams.

Thanks
Drew

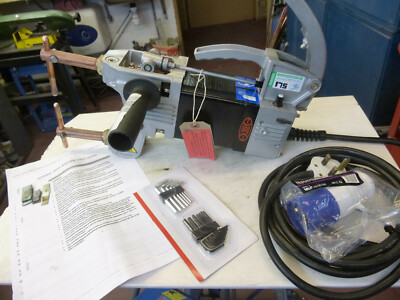

Drew, I'm using an old school ARO type 169, there's an old chap about an hour from me who refurb and sells them on ebay along with varying arms. By far the most useful bit of kit I've used on the e9. I've done around 800 or so up to this point on the car, the longer the arms the poorer the weld quality I've found but some areas necessitate them, no issues with the weld through primer and can go through the heavier zinc paint at a push without compromising weld, the surrounding sheet metal fails long before the weld. Timer is a nice feature too.

This is the same seller and type I'm using, paid around £350 for mine and done about £120 for 2 sets of arms and an electrode shaper.


autokunst

Well-Known Member
Site Donor $$
Messages
3,606
Reaction score
2,620
Location
Milwaukee, WI
I've got my eye on a used Miller Model 33 spot welder with electronic timer. It is a 2.5KWA unit (230V) that is rated to weld up to 4mm (3/16") of metal. Based on your feedback on your ARO, I was hoping to compare the amperage, but I am not sure it is an accurate comparison. I am pretty excited about doing proper spot welds.


afeustel

Well-Known Member
Site Donor $
Messages
551
Reaction score
177
Location
Houston
Drew, I'm using an old school ARO type 169, there's an old chap about an hour from me who refurb and sells them on ebay along with varying arms. By far the most useful bit of kit I've used on the e9. I've done around 800 or so up to this point on the car, the longer the arms the poorer the weld quality I've found but some areas necessitate them, no issues with the weld through primer and can go through the heavier zinc paint at a push without compromising weld, the surrounding sheet metal fails long before the weld. Timer is a nice feature too.

This is the same seller and type I'm using, paid around £350 for mine and done about £120 for 2 sets of arms and an electrode shaper.

Thanks for the info. I could really save time and energy if I didn't have to weld and grind every single MIG weld every single time...always feels like 1 step forward and 2 steps back.


nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK
One thing that I'll mention is that I did have to run a seperate 16A 230V plug from my fuse box as a standard UK 13A 230V just wouldn't cut it.

It's a great tool to have.


nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK

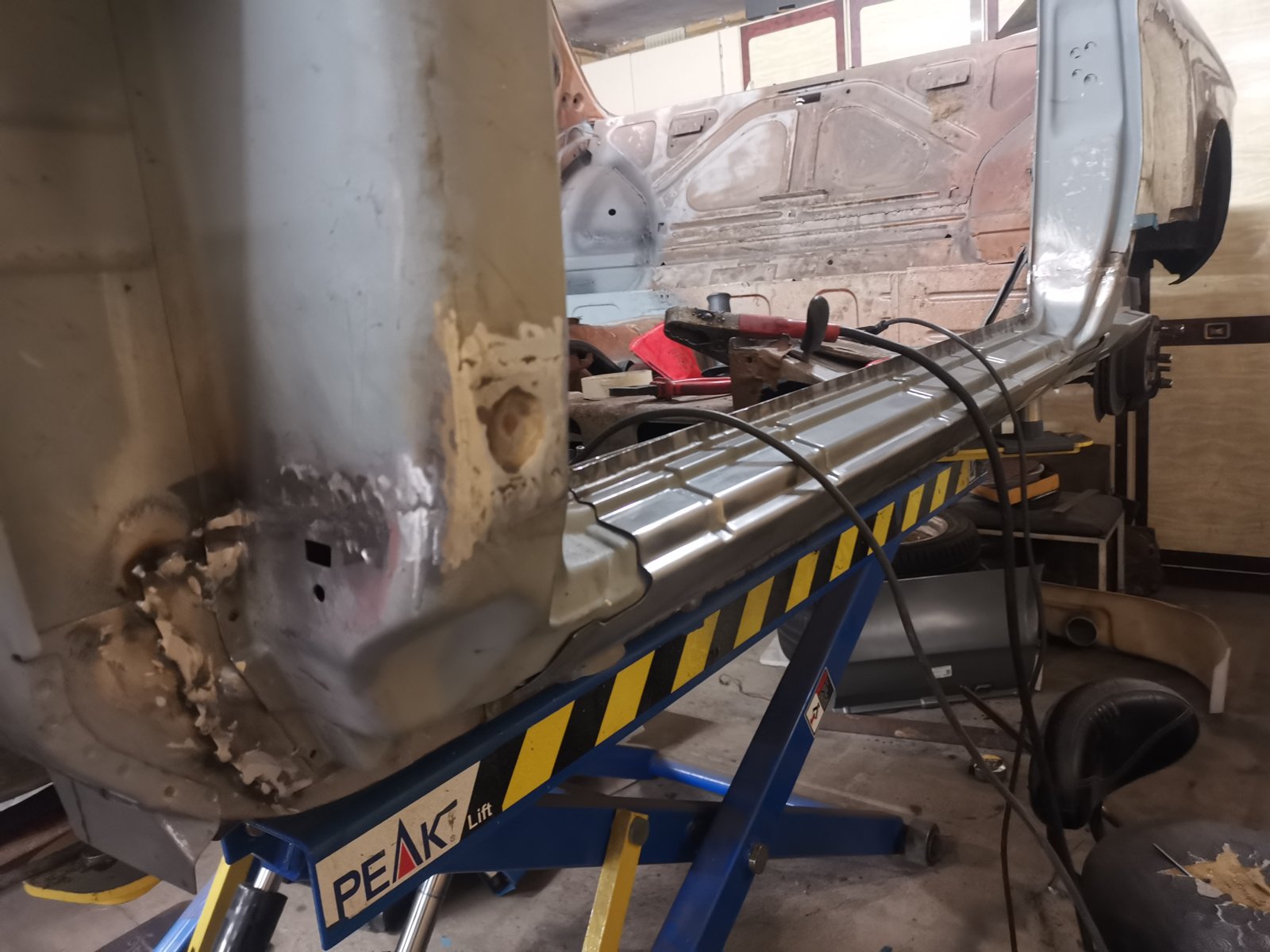

Sill assembly in and braces now off! A bit of clean up left before paint but not much left to do here now. Took a while as had to fit/remove the door a bunch and get the pillars all lined up but gaps are equal all round and the same as the other side. I'll finish the spot welds on the rear quarter section tomorrow, also got the front floor welded onto the bulkhead, maybe start repairing the rear floor before moving onto either getting the front wing cut and mounted, or getting the rear arch done.


Attachments

  • IMG_20210216_175735.jpg
    215.9 KB · Views: 296

nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK
A long way away I know, but think I've settled on the colour choice for the coupe. Hated the colour on it although I then learnt that this was very far off the original shade of sienna, although sienna has grown on me a lot I do really like this pyrite brown, individual colour available on a few late model m3s and m4s


Attachments

  • IMG_20210214_154656.jpg
    252.6 KB · Views: 300

nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK
And so the fun continues, surely this can't seriously be bare metal underneath the peeling underseal with the factory primer having not covered the metal???


Attachments

  • IMG_20210219_155302.jpg
    235.7 KB · Views: 271

nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK
Nothing much to report as I've forgotten to take photos,

Luckily my rear floors were good, only had a small patch on left rear by the sill to weld in, outer arch cut away and at the point where I'm about ready to cut the inner arch and weld in the WN panel plus a few patches where the repair panel doesn't cover it, but painting the floors and inside taking priority. I'll take a break from it for a month or so as things in the house need to be sorted, and need to order another bottle of welding gas... Again!


nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK

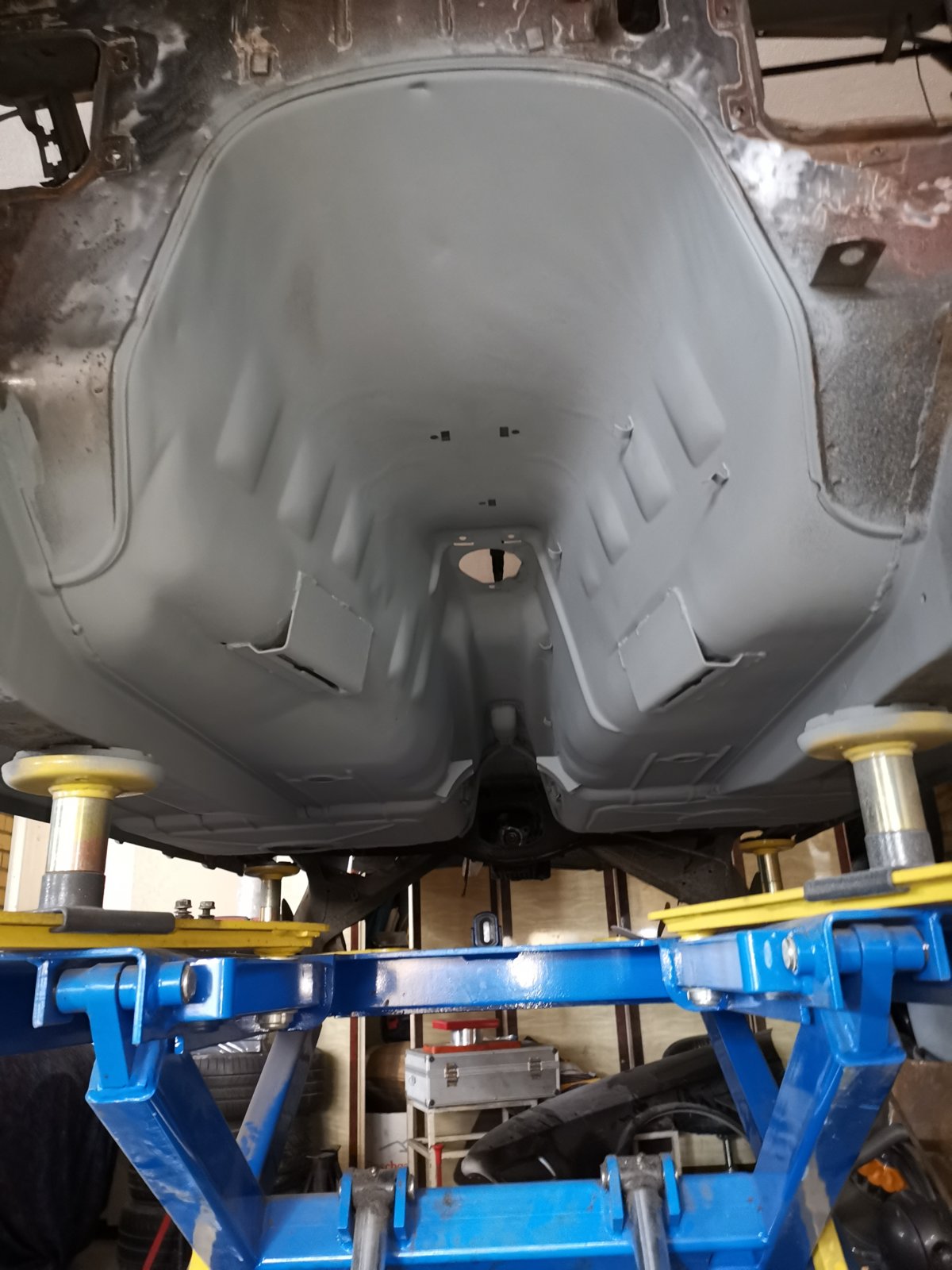

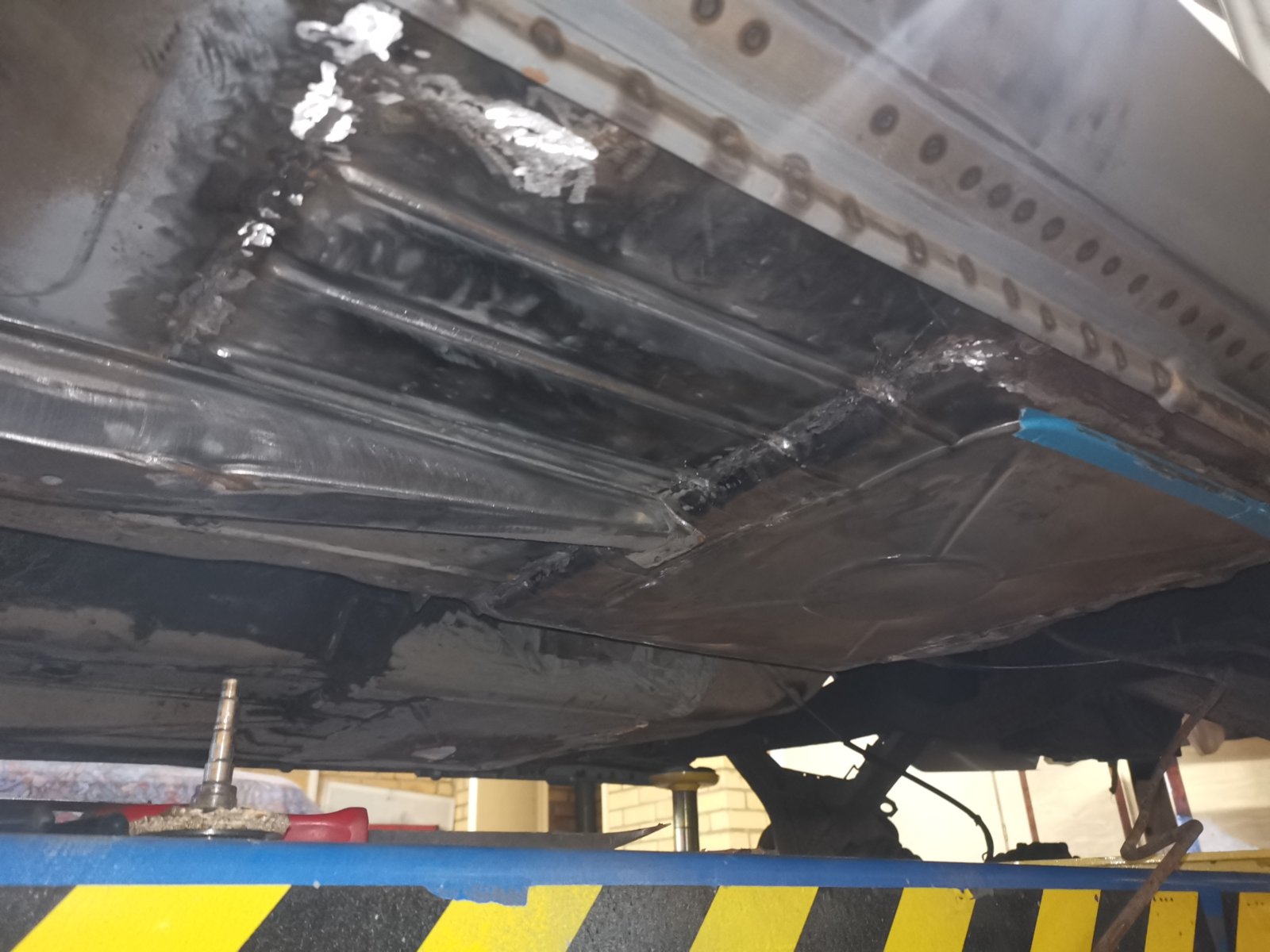

Finally started to clean off the underseal to get some paint down, passenger rear floor ended up having to be replaced, not quite finished dressing all the welds underneath so plenty more under here to get one with!


Attachments

  • IMG_20210305_172429.jpg
    189.7 KB · Views: 259

nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK

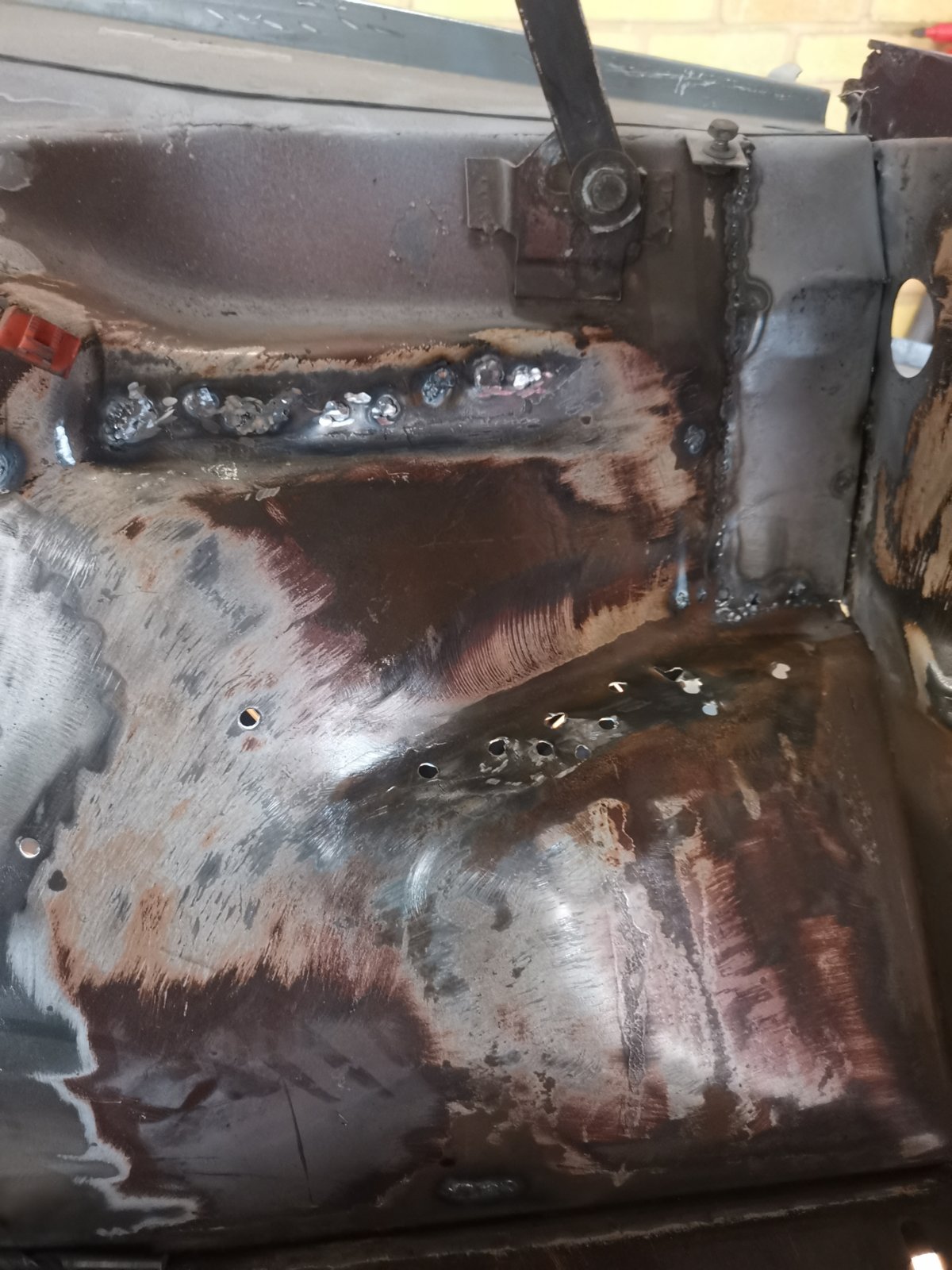

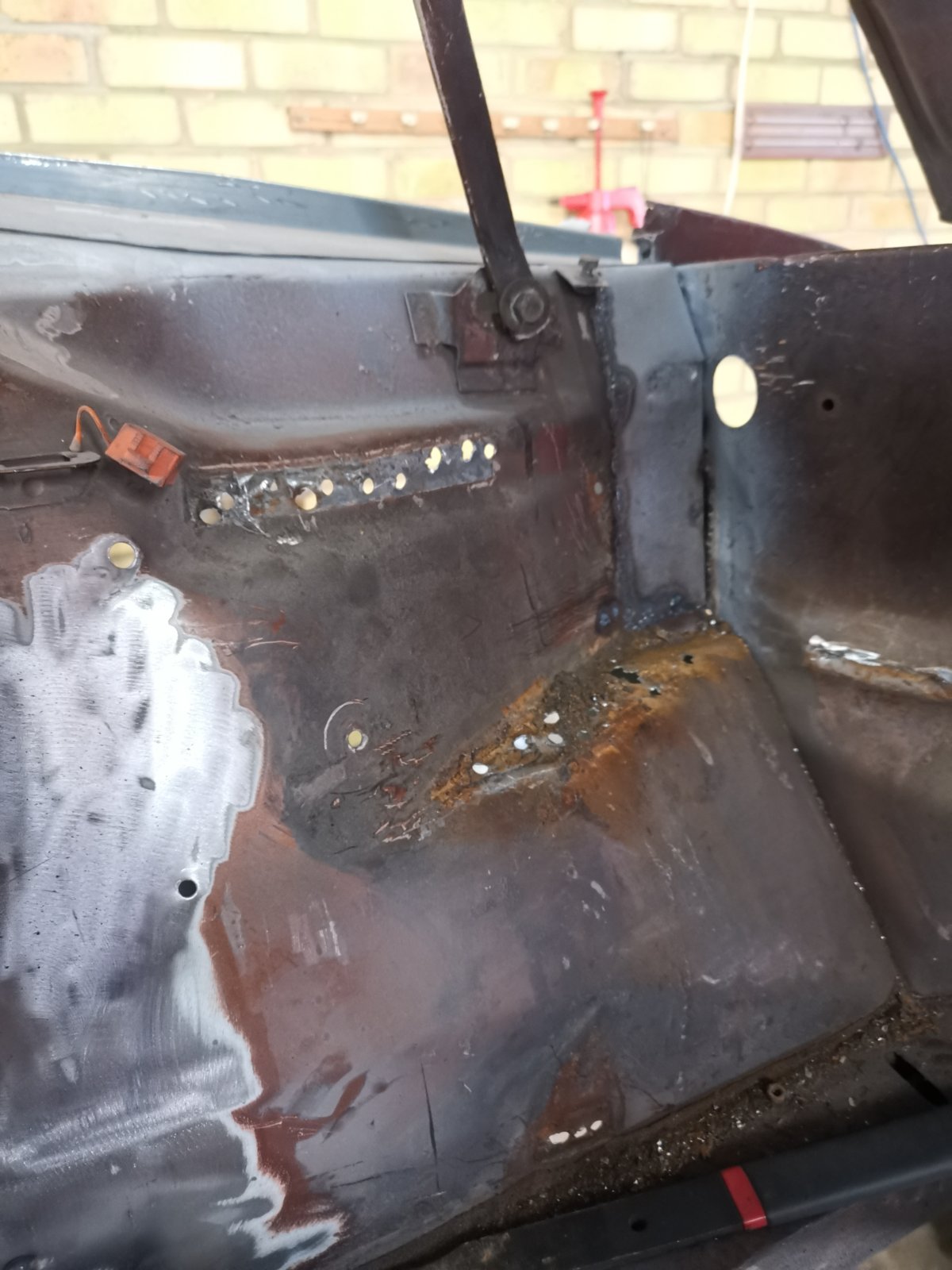

Got some zinc on the floor but need another coat, whilst waiting for paint to arrive decided to start removing the unnecessary brackets and holes, also pulled off the rear suspension box to find...... No rust behind it?! IMG_20210313_131028.jpgIMG_20210313_161938.jpgIMG_20210315_171519.jpgIMG_20210316_154127.jpg


Attachments

  • IMG_20210315_145606.jpg
    262.9 KB · Views: 219

nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK

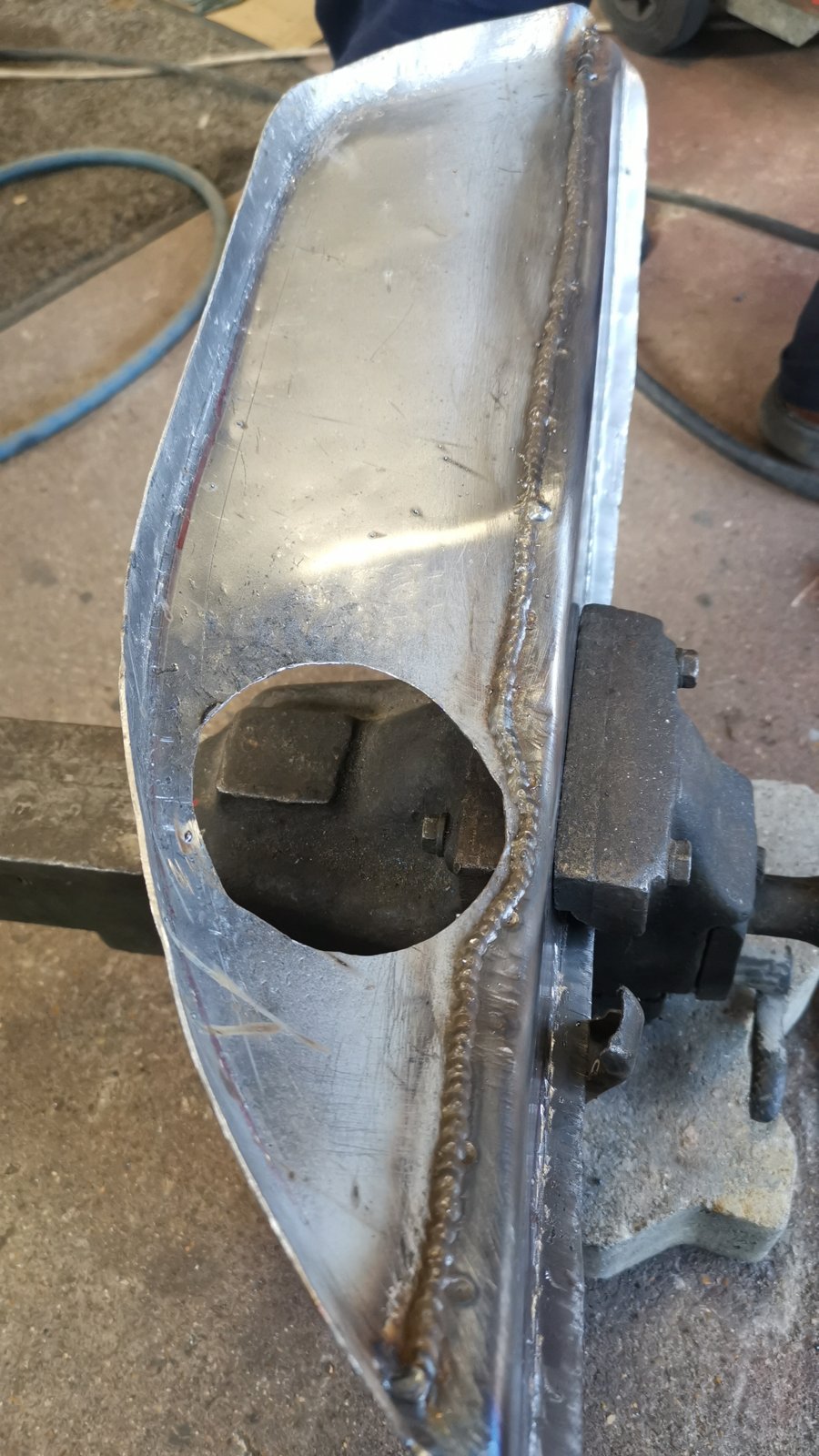

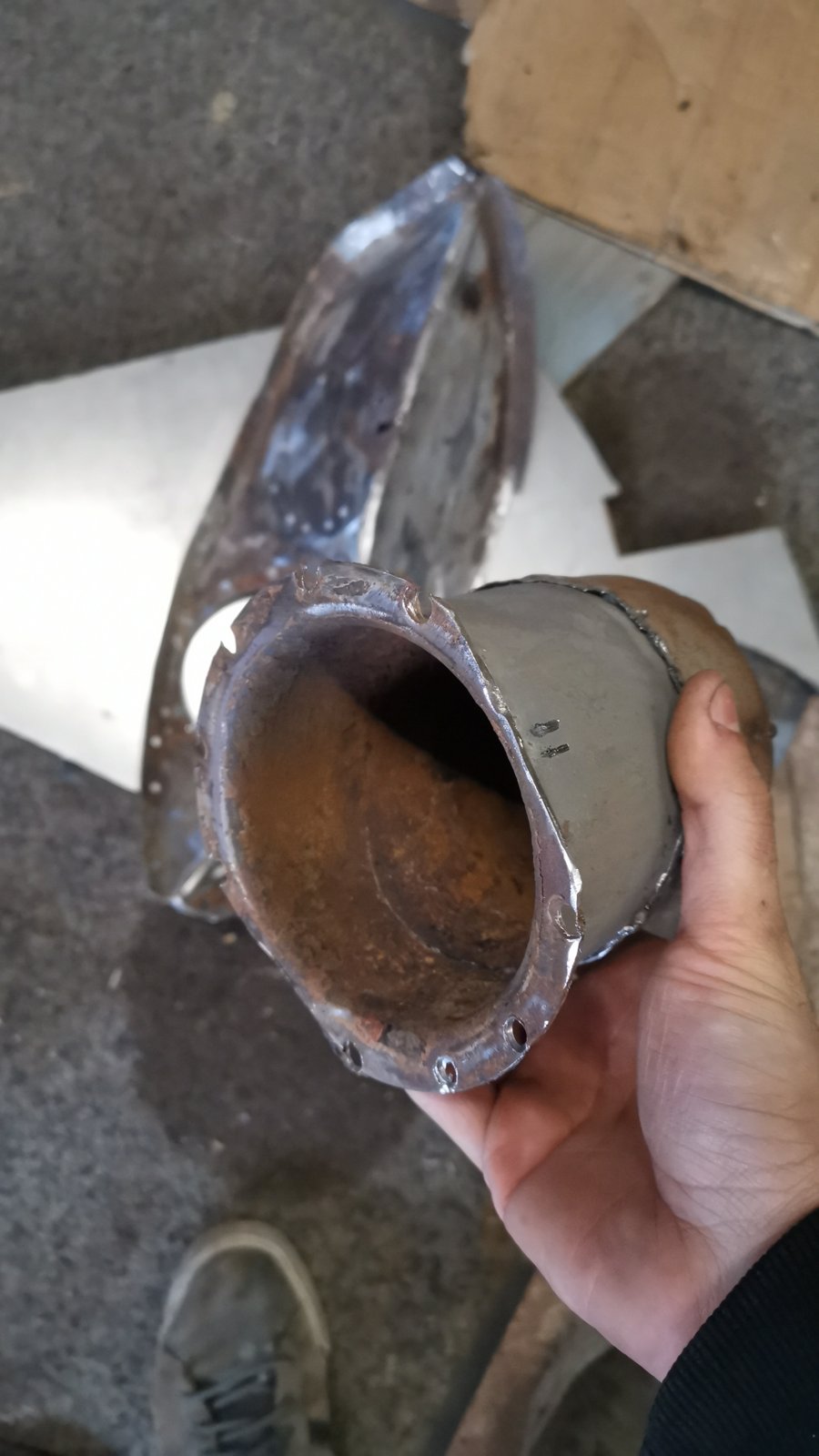

Rear box section fabricated and spot/mig welded together. Yet to trim for the shock absorber mount, although that's next alongside mounting the spring mount. After that it's continuing to repair the inner arch tub and get that all welded back up/painted/seam sealed. Starting to see the light at the end of the tunnel now.


Attachments

  • IMG_20210319_153931.jpg
    184.7 KB · Views: 208
  • IMG-20210319-WA0017.jpeg
    241.6 KB · Views: 205

autokunst

Well-Known Member
Site Donor $$
Messages
3,606
Reaction score
2,620
Location
Milwaukee, WI
Maybe you mentioned this elsewhere but I couldn't find it. I know you said you'd found no corrosion behind the rear suspension boxes. But why did you remove it (and fabricate a new one)? Was the box section corroded? Thanks for sharing - always great to see your progress.


nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK
Maybe you mentioned this elsewhere but I couldn't find it. I know you said you'd found no corrosion behind the rear suspension boxes. But why did you remove it (and fabricate a new one)? Was the box section corroded? Thanks for sharing - always great to see your progress.

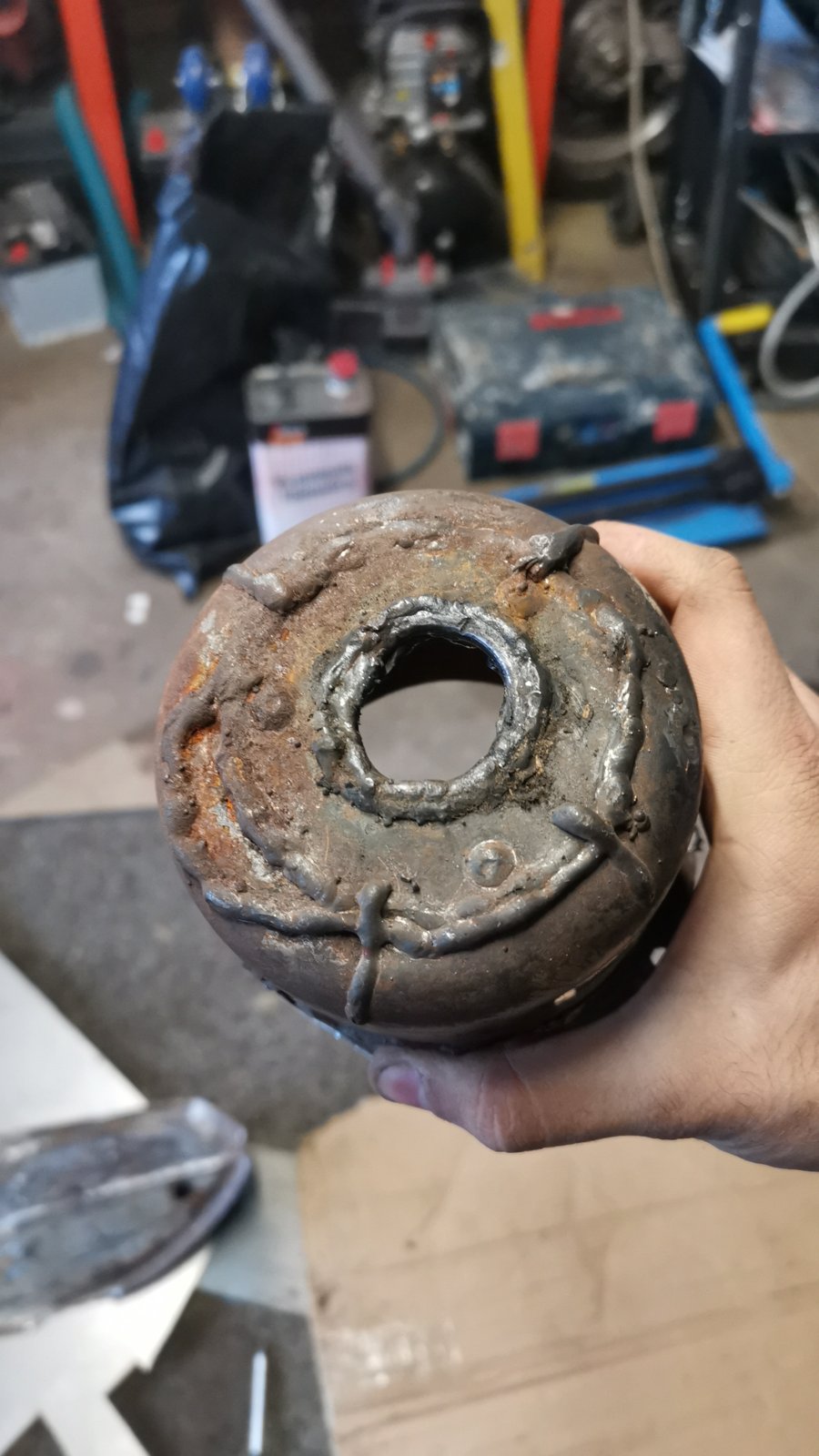

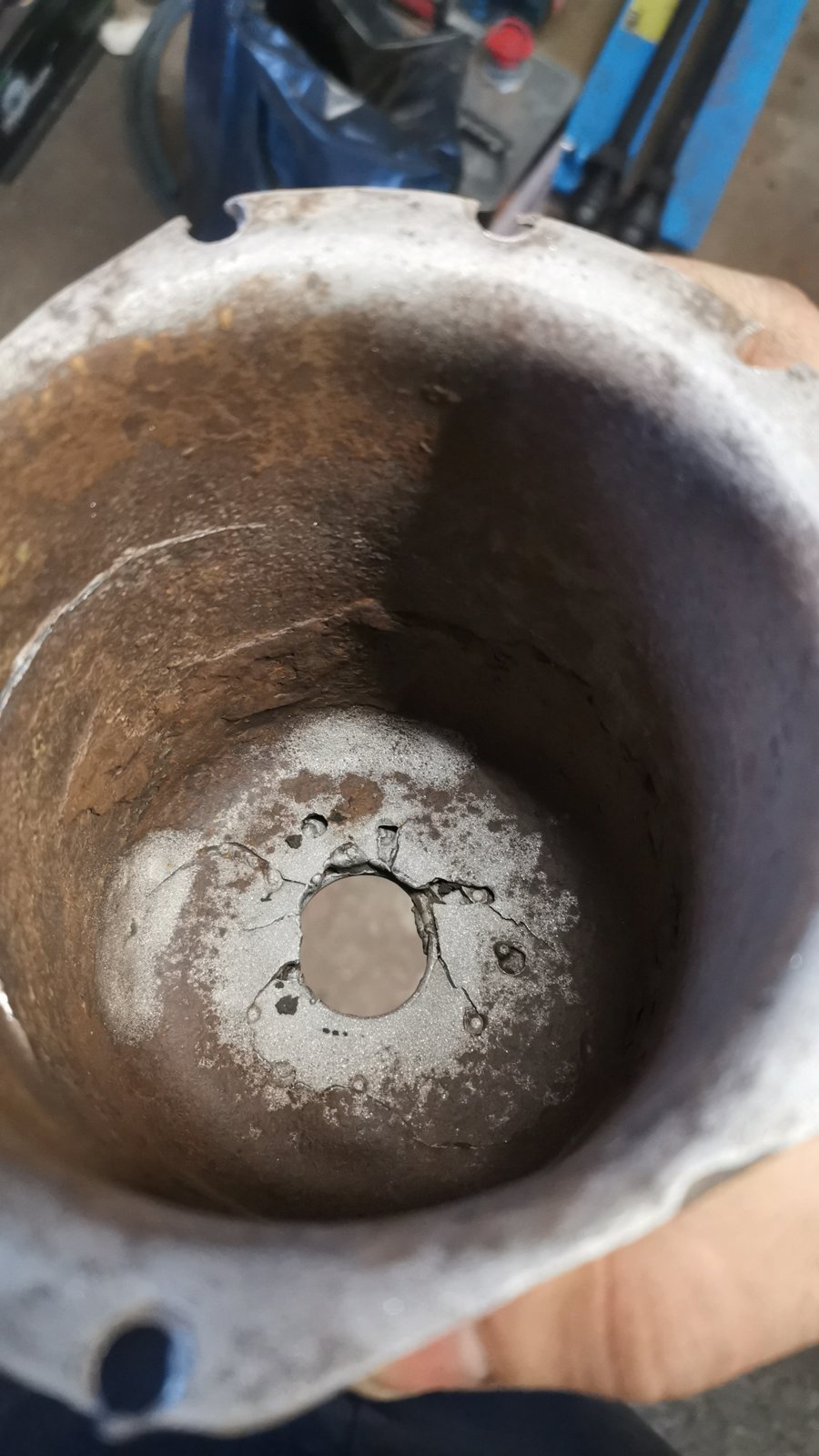

It was corroded although nowhere near as bad as the other side. Could have patched it up I guess, also I can repair the damper mount at the same time


Attachments

  • IMG_20210218_131901.jpg
    351.2 KB · Views: 211
  • IMG-20210317-WA0023.jpeg
    185.5 KB · Views: 204
  • IMG-20210317-WA0021.jpeg
    175.8 KB · Views: 197
  • IMG-20210317-WA0019.jpeg
    129.7 KB · Views: 207

nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK

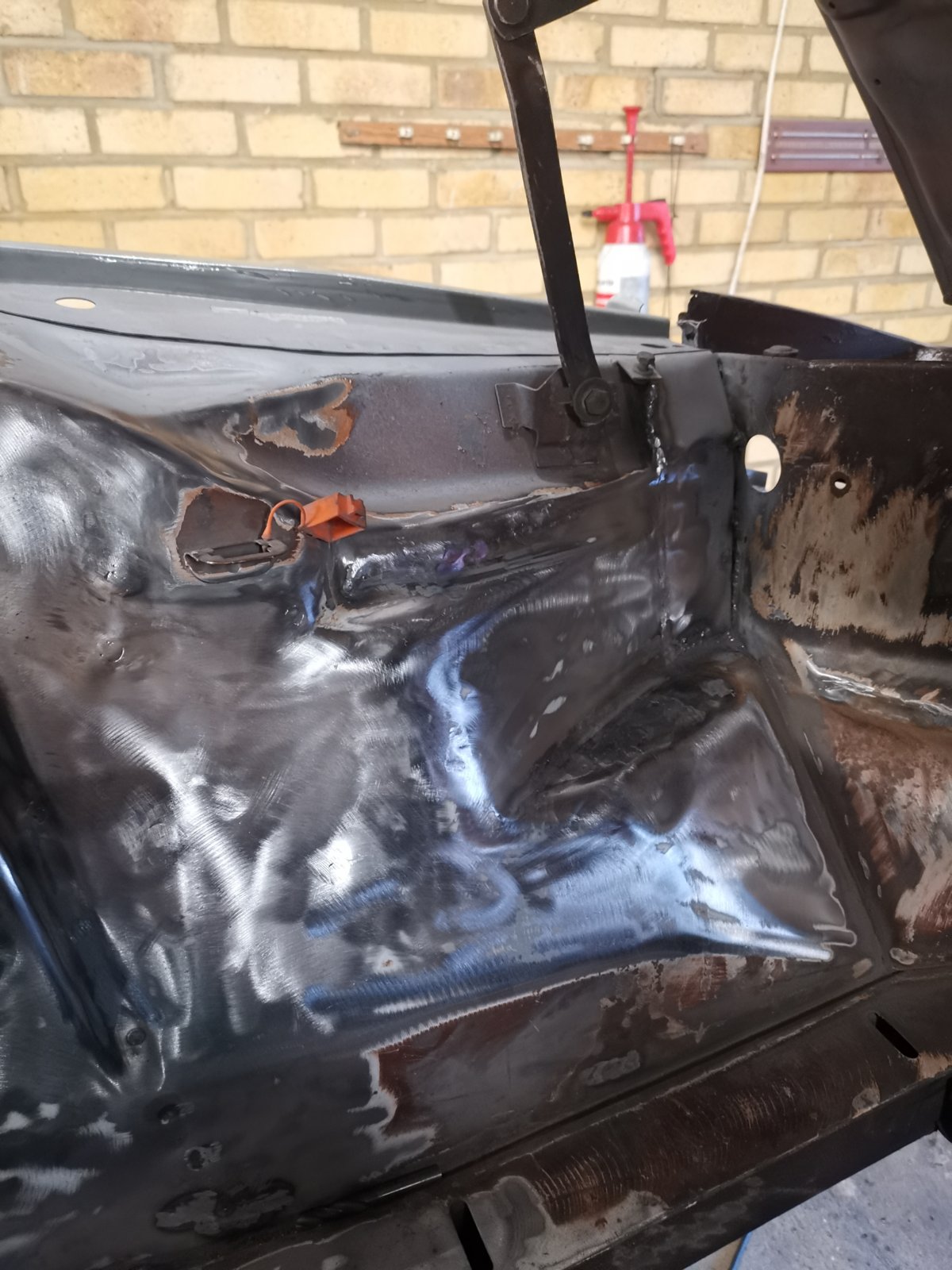

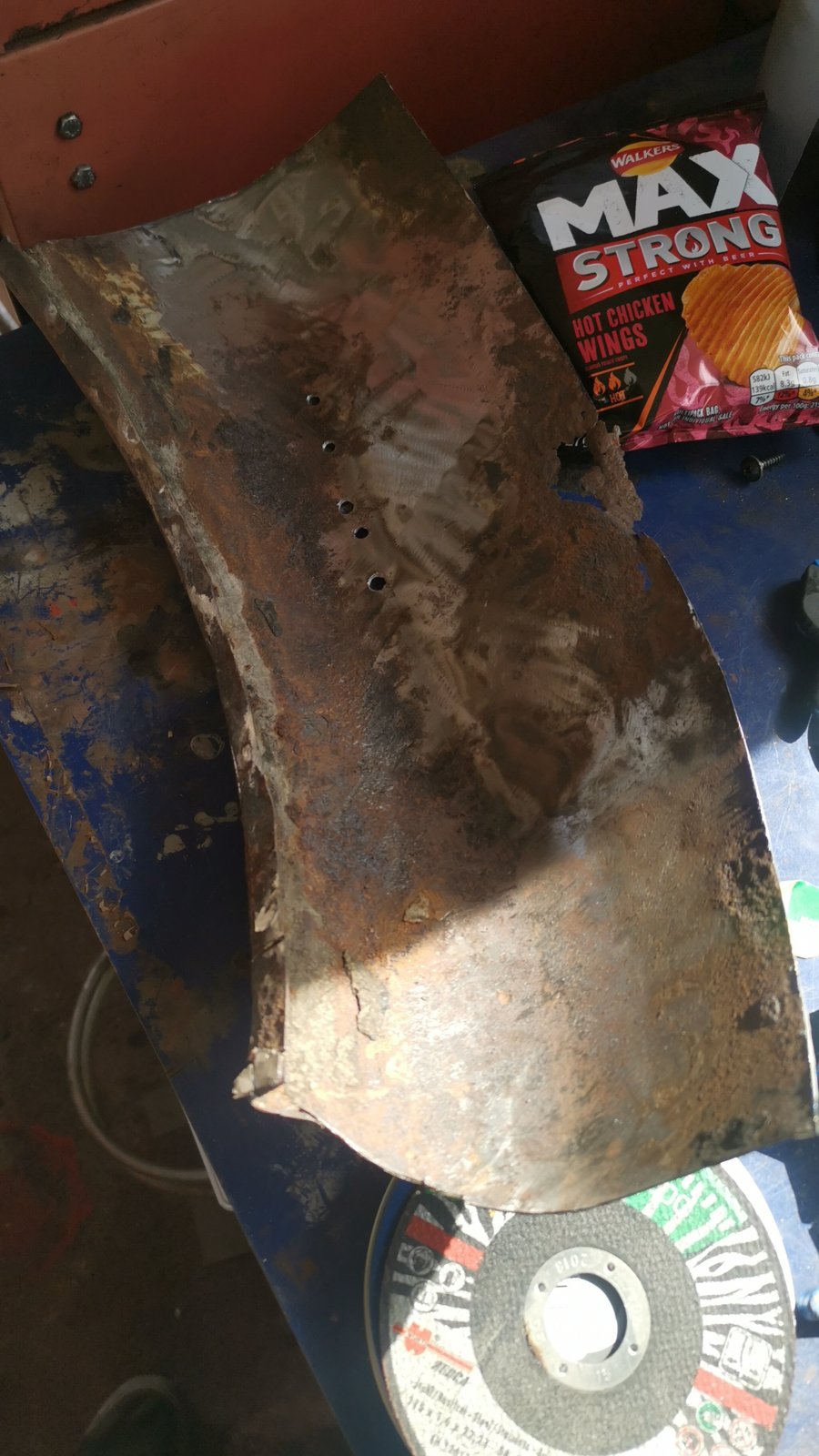

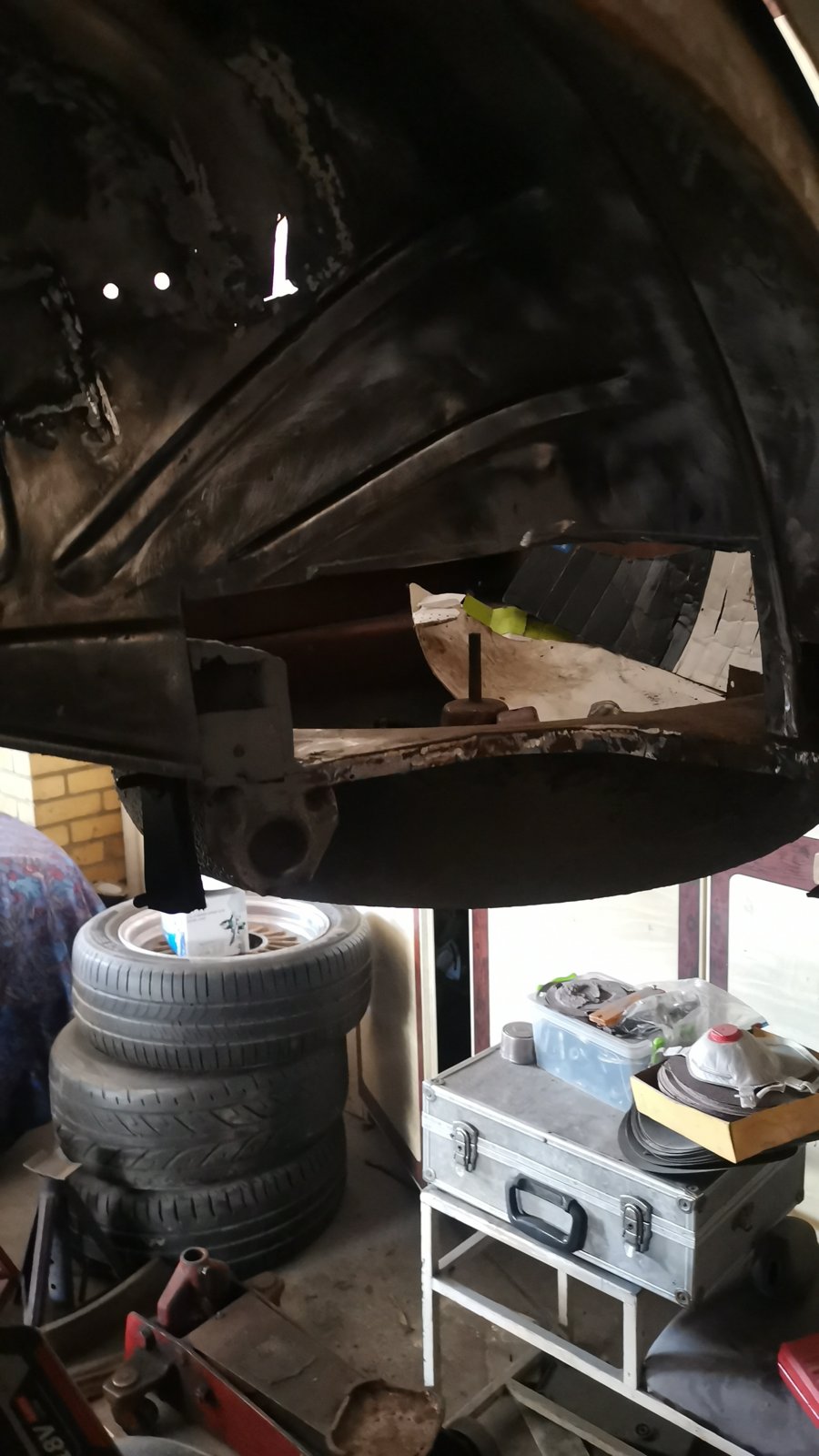

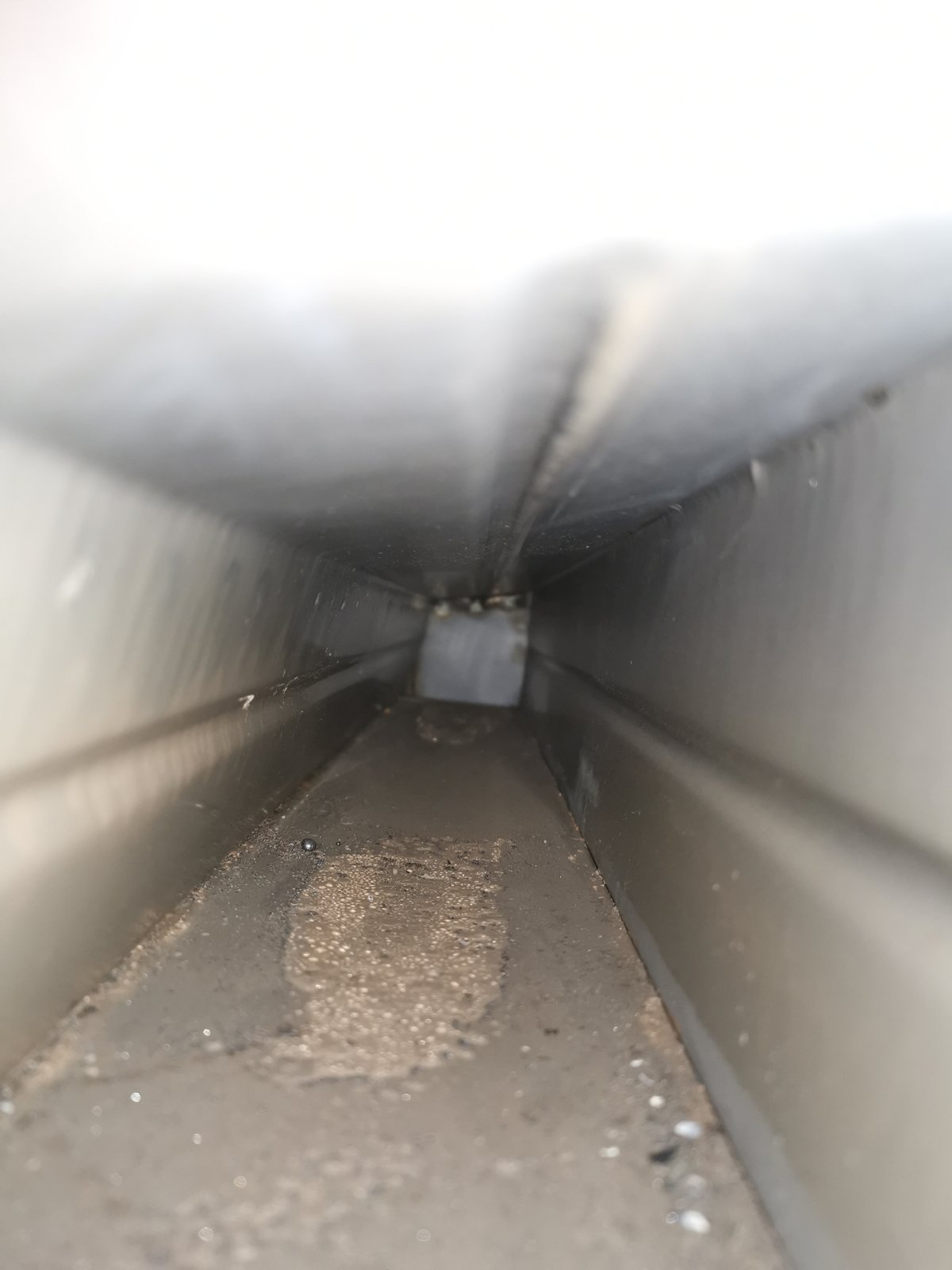

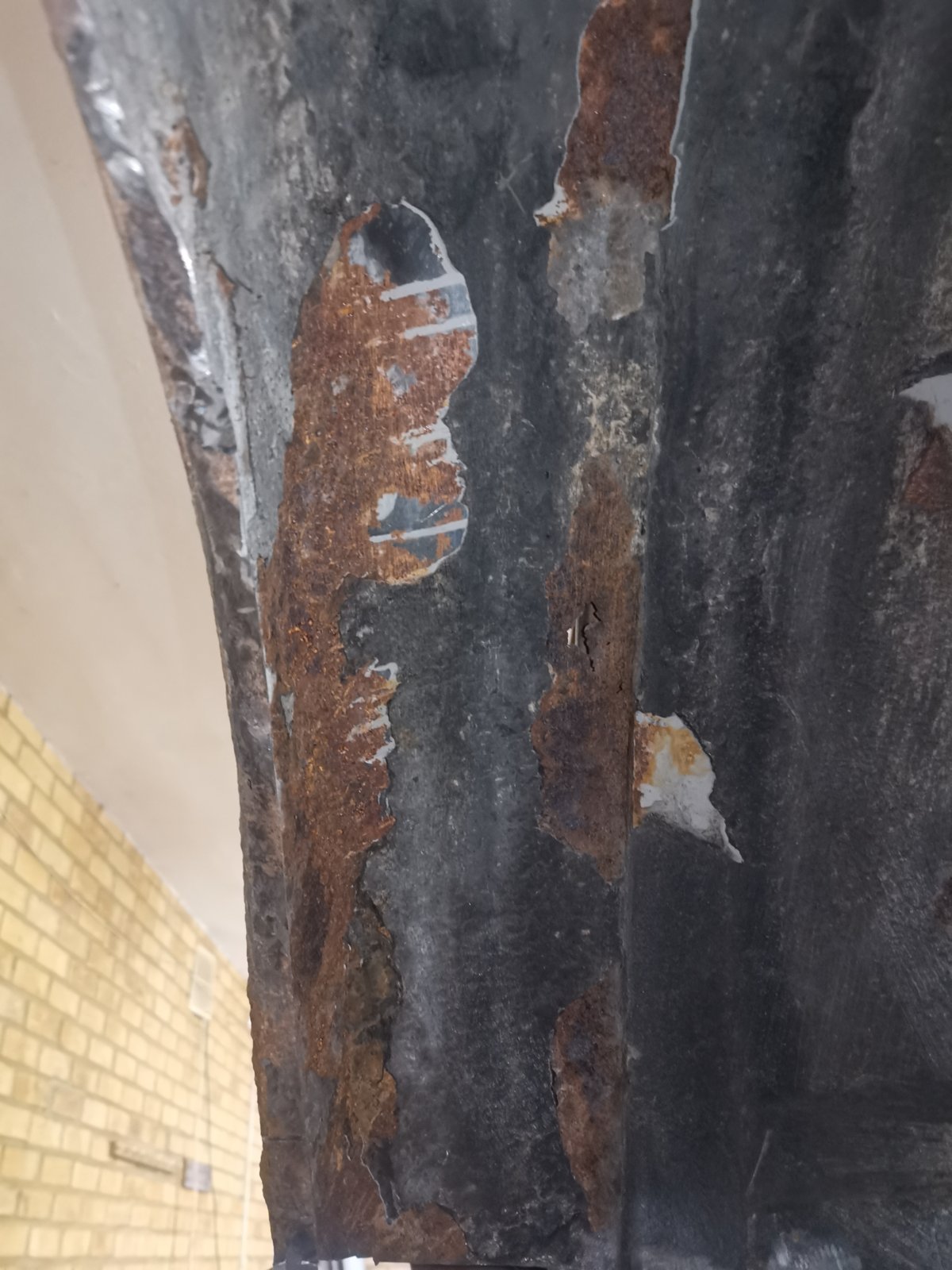

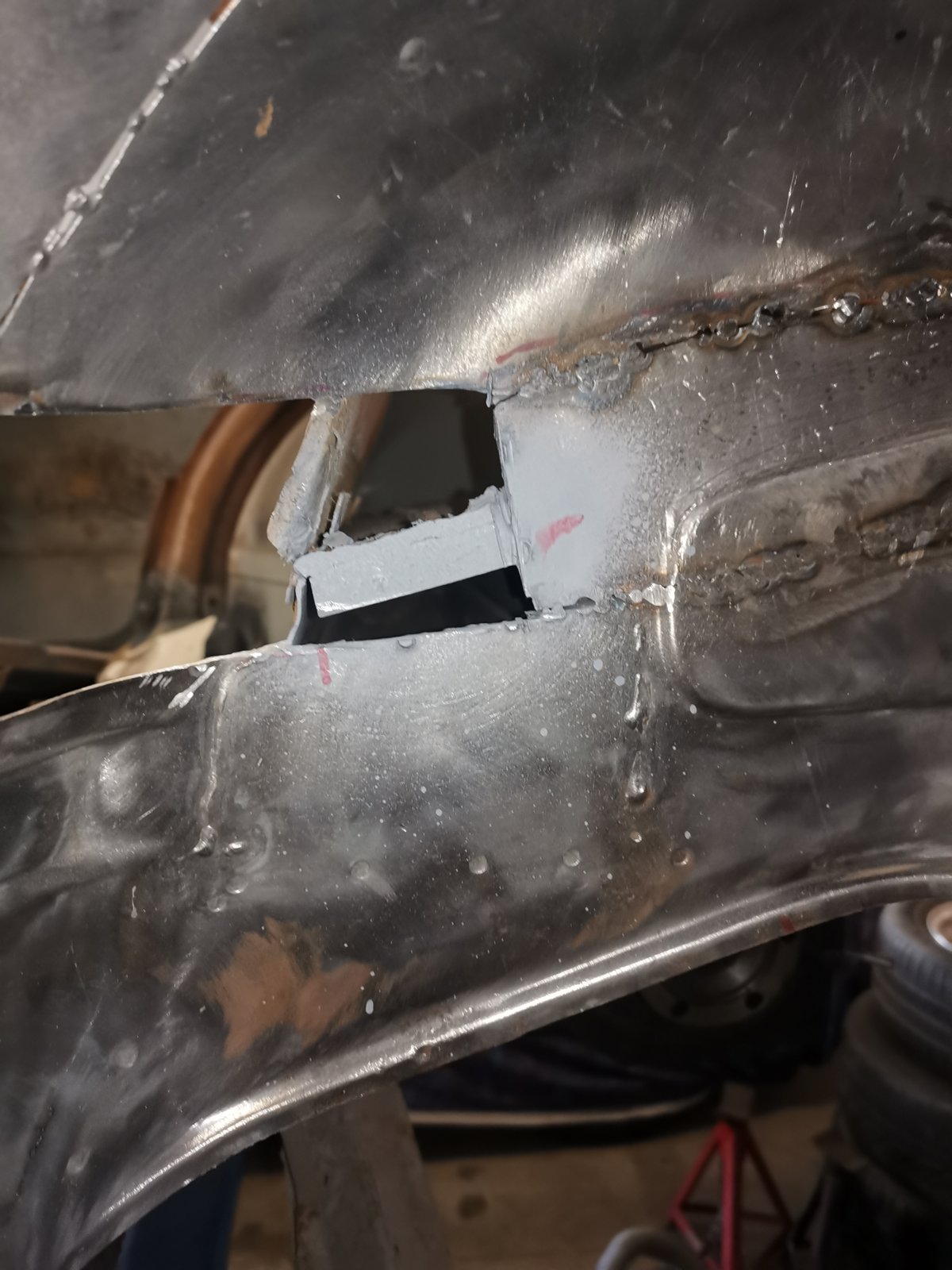

The hacking and welding of the inner arch continues. Really sucks that you can't find any repair sections for in here as some tricky compound curves in spots. Nonetheless, a couple of shots when I remembered to take them of pieces getting cut out, bonus shot of the box section in the trunk being rust free, perhaps the only section of the car that was!
Starting a new job this week so progress will probably slow down, but hoping to get this corner finished up for the end of April before dad moves to the passenger wing to mount it on, and I drop the rear beam and start fabricating diff reinforcement and repair panels.


Attachments

  • IMG_20210330_142359.jpg
    131.5 KB · Views: 172
  • IMG-20210330-WA0006.jpeg
    206.4 KB · Views: 193
  • IMG-20210329-WA0024.jpeg
    159.7 KB · Views: 182
  • IMG_20210325_143136.jpg
    209.1 KB · Views: 191
  • IMG_20210325_142605.jpg
    104.7 KB · Views: 186

nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK

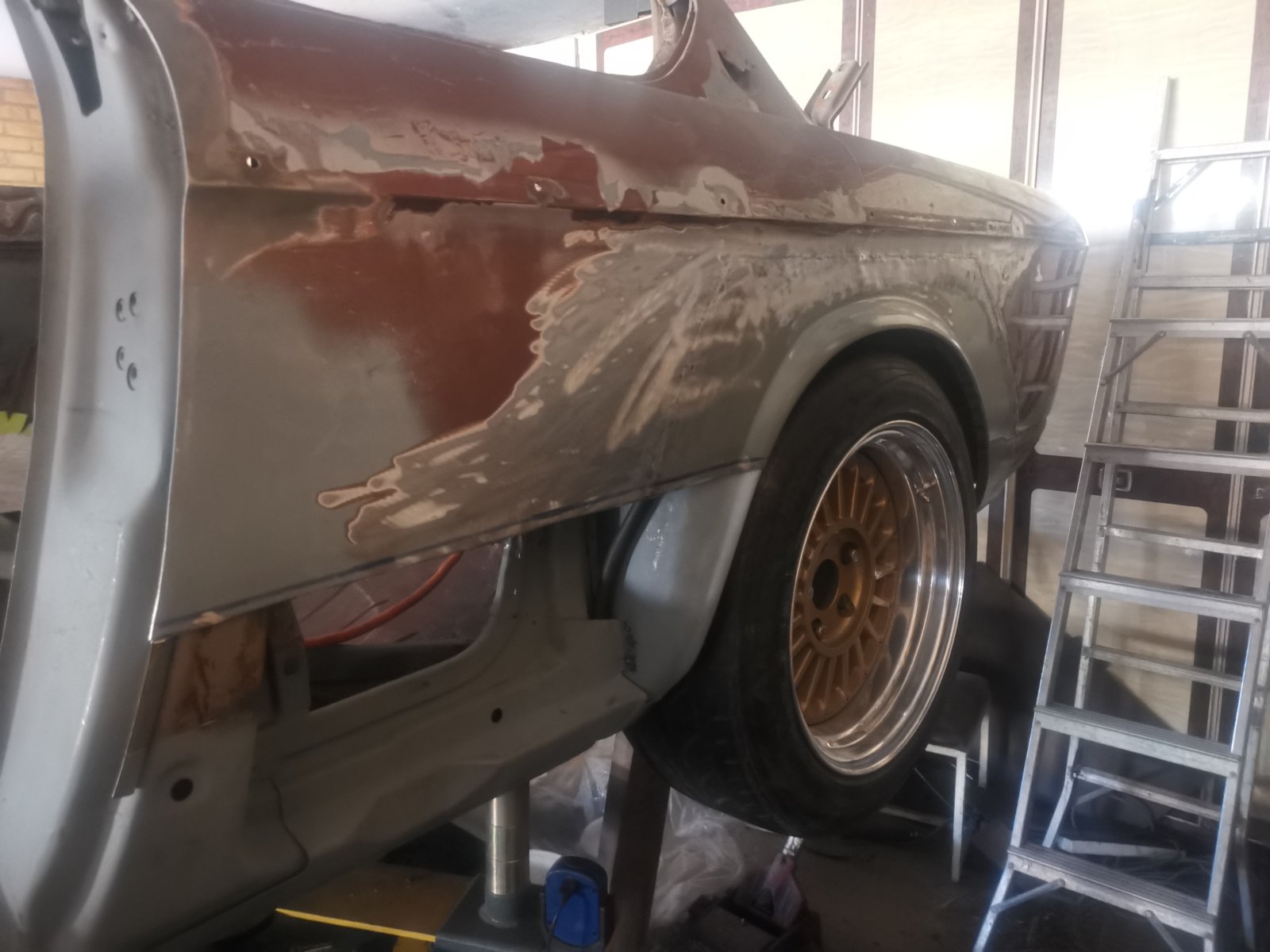

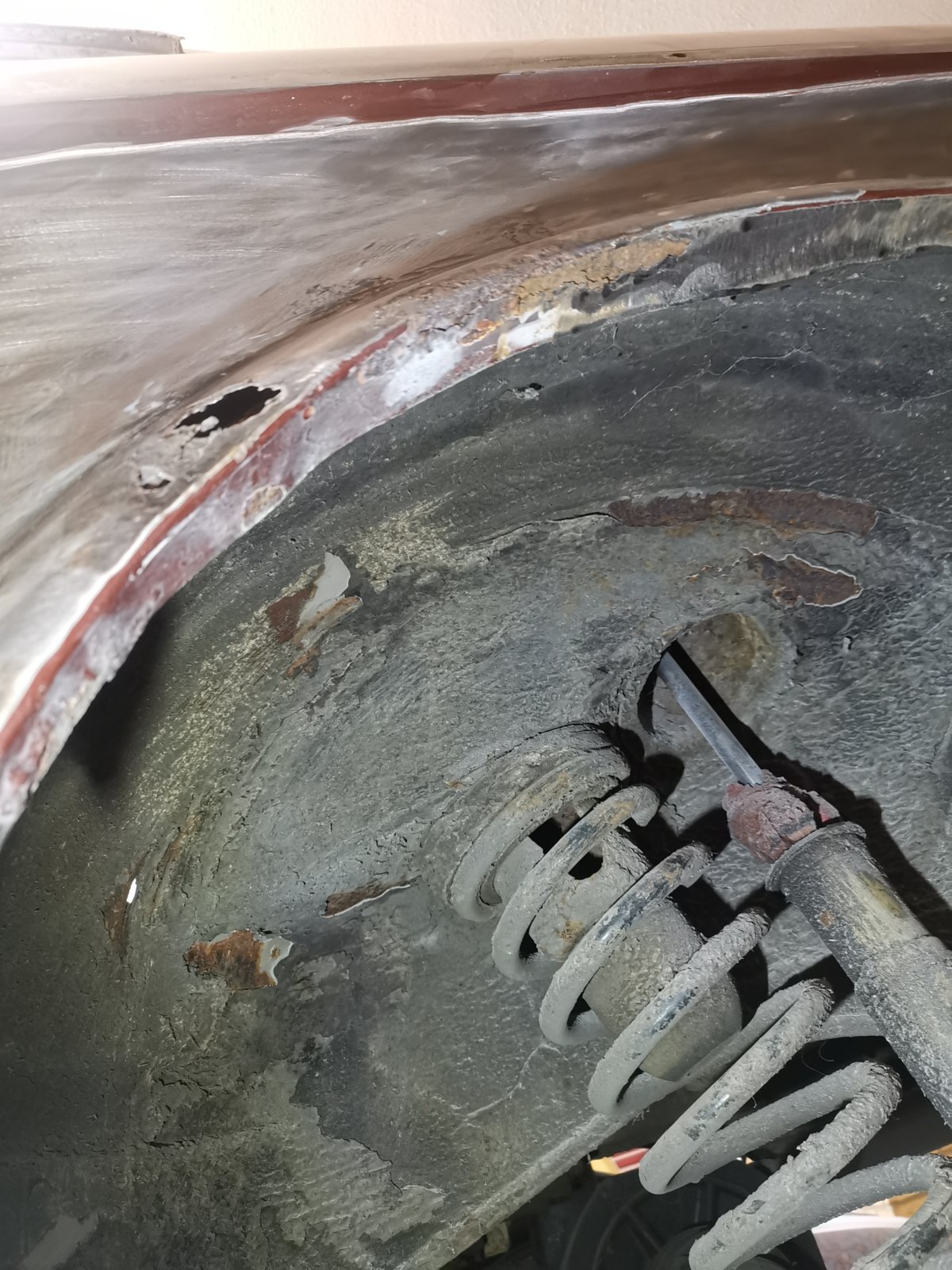

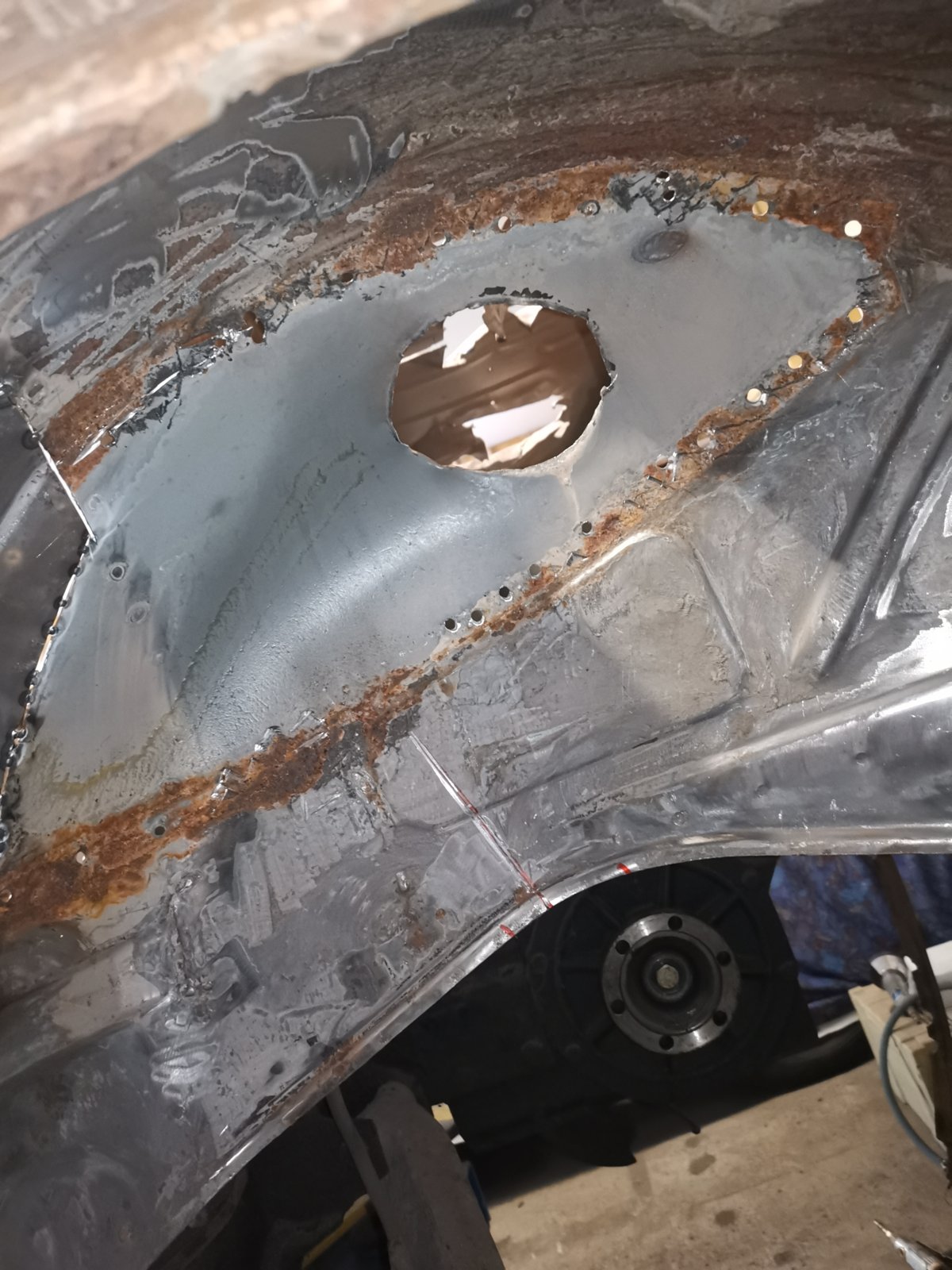

Not a crazy amount of work. Fitting on, checking clearances, taking off and repeat. I saw surface rust up above the arch tub so have now ended up cutting the complete arch out, sandblasted and zinc painted inside the best I could. Dad has been finishing up shaping a new inner arch and it's tacked onto the WN repair lip


Attachments

  • IMG_20210411_200735.jpg
    124.2 KB · Views: 181
  • IMG_20210413_183341_1.jpg
    156.1 KB · Views: 205

nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK
Continually impressed with what you are doing with my old car.
Amazing that I sold it on 30 years ago! :)

35 years now!

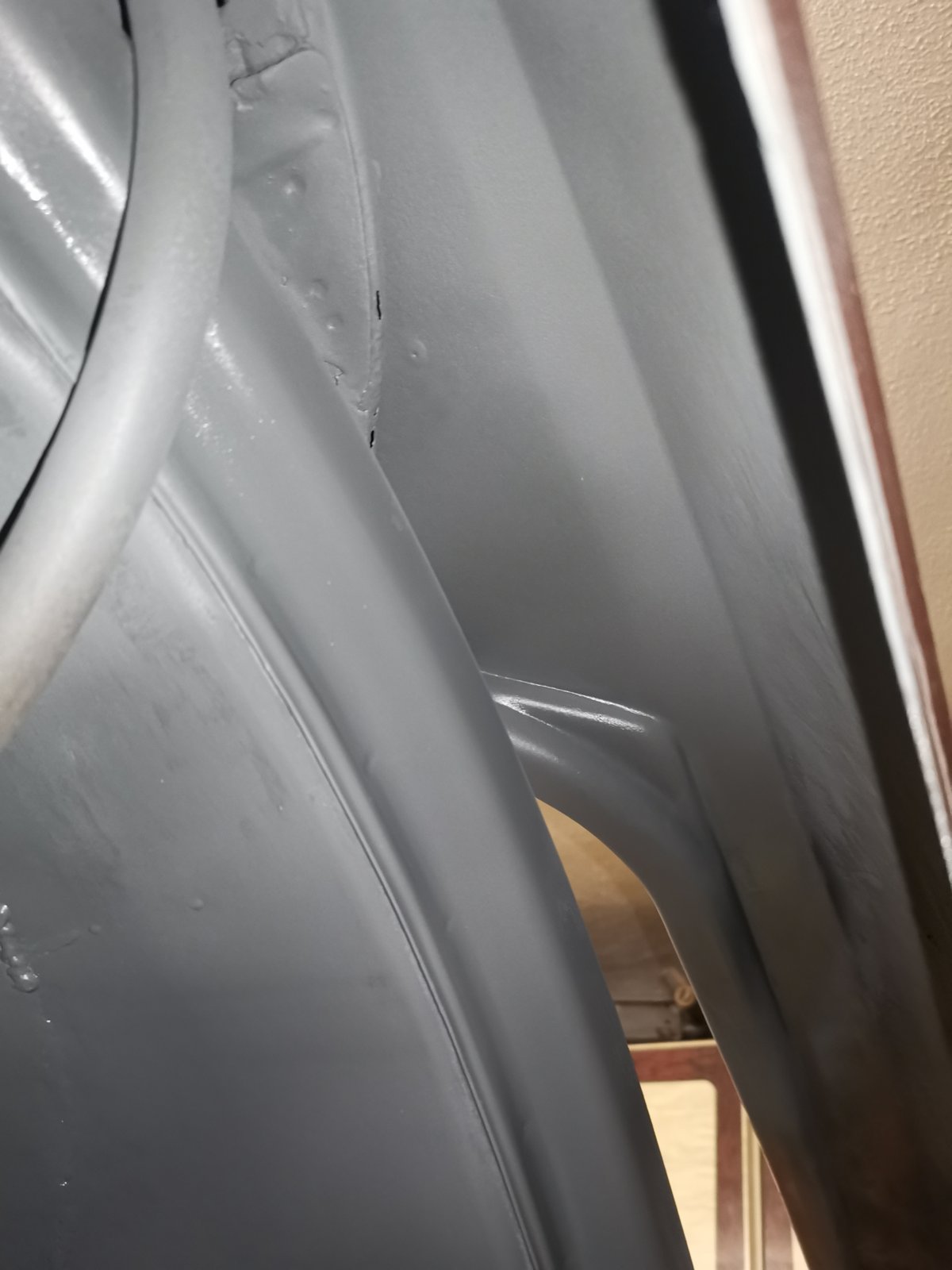

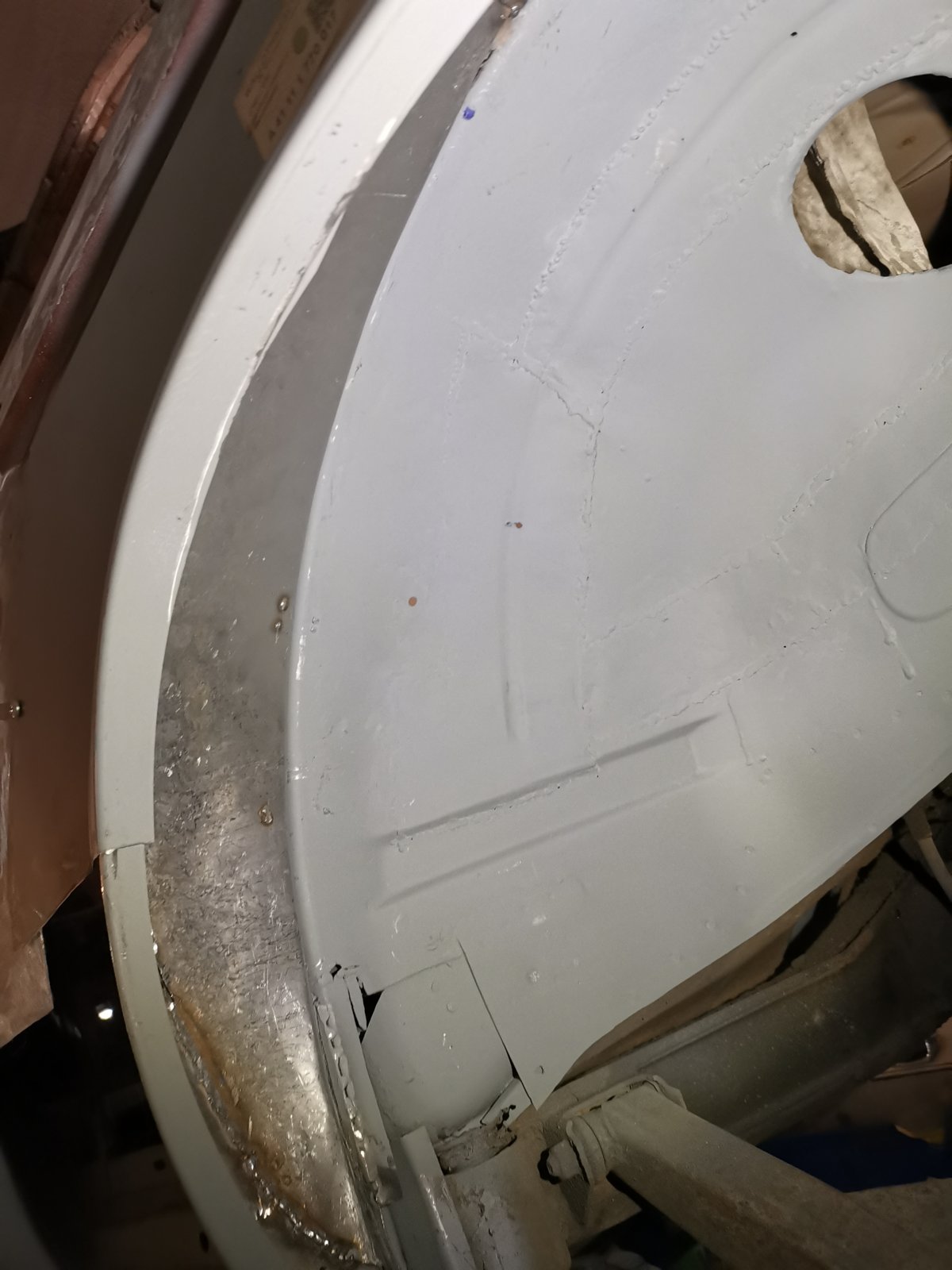

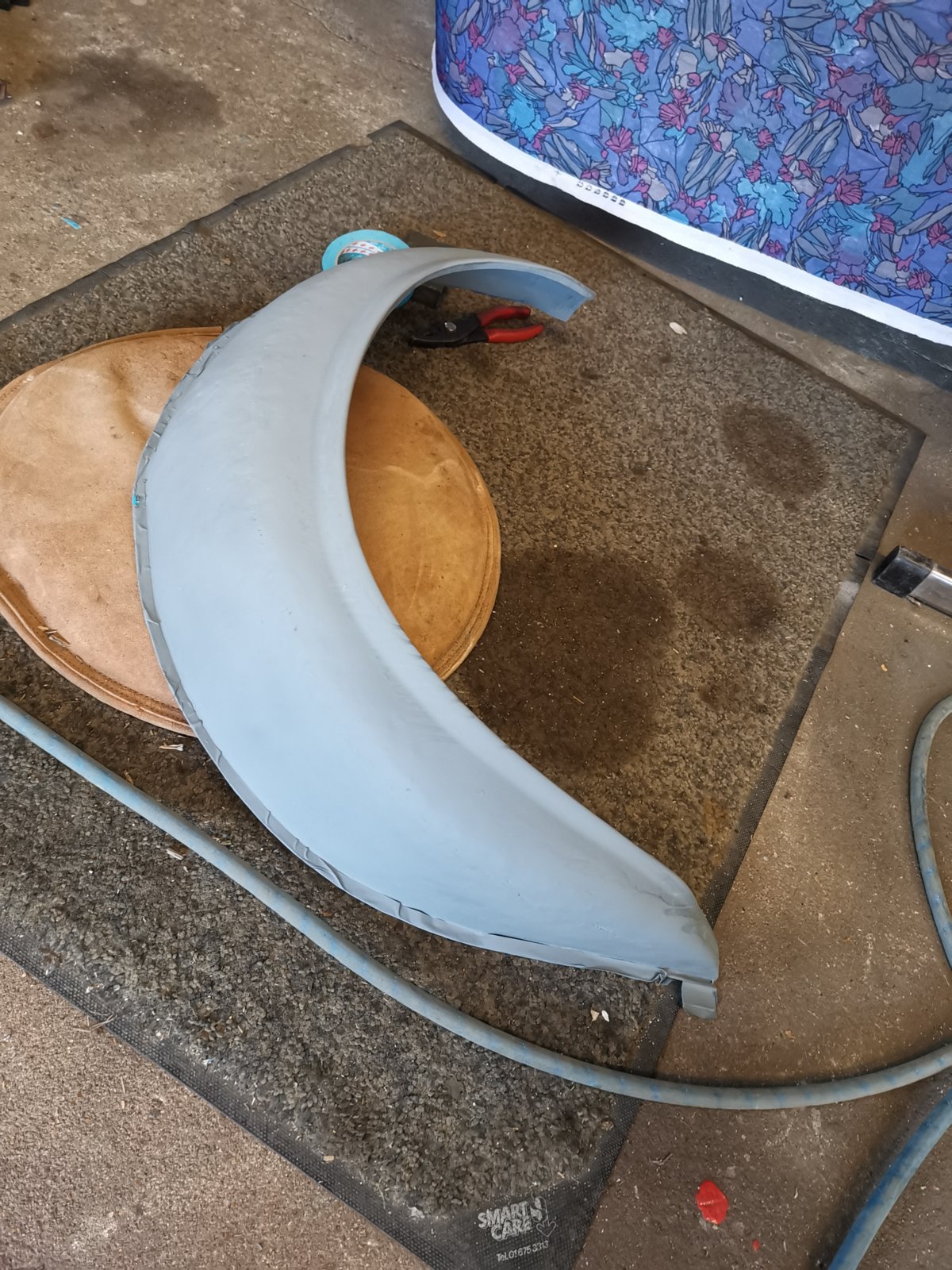

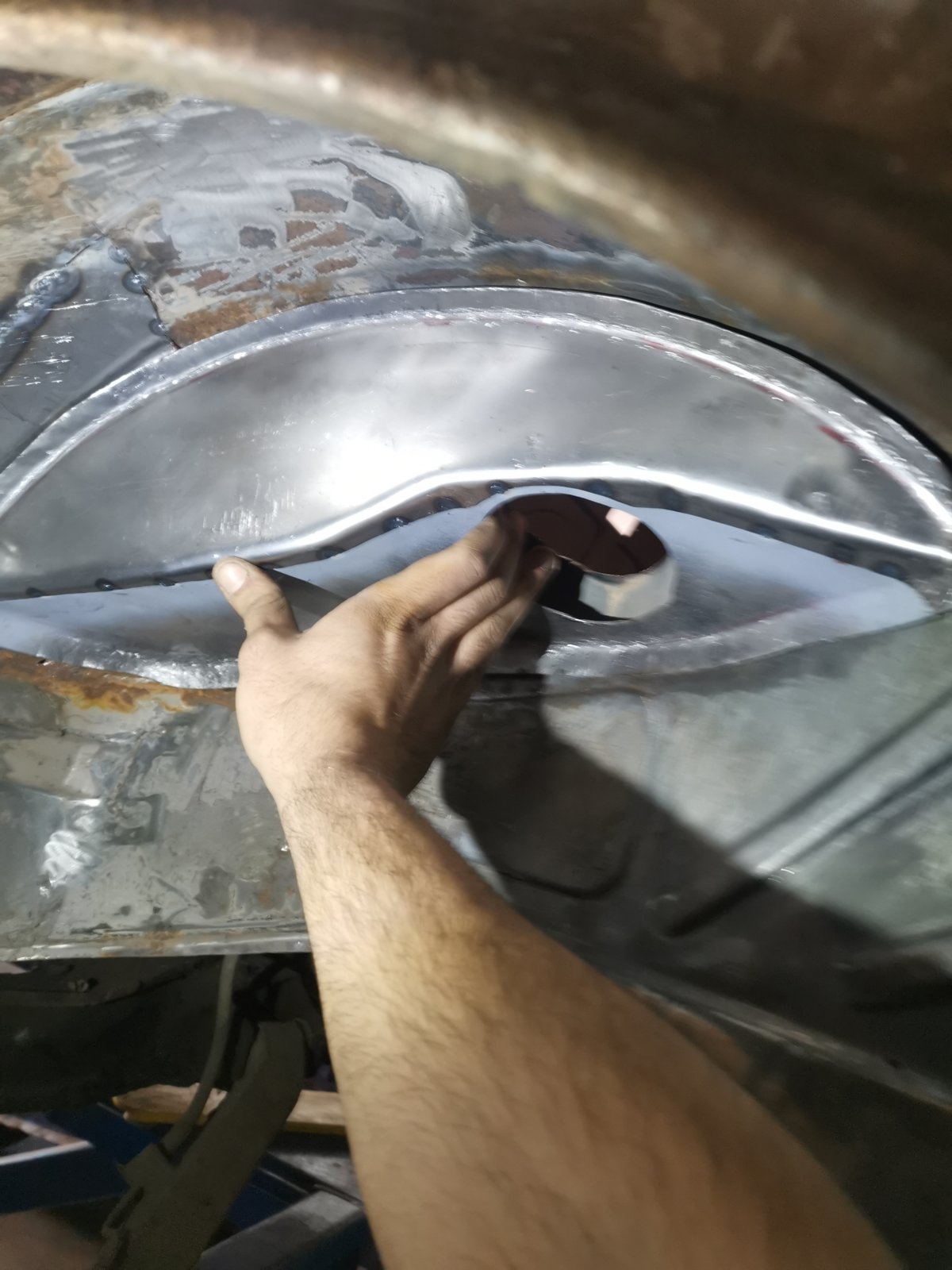

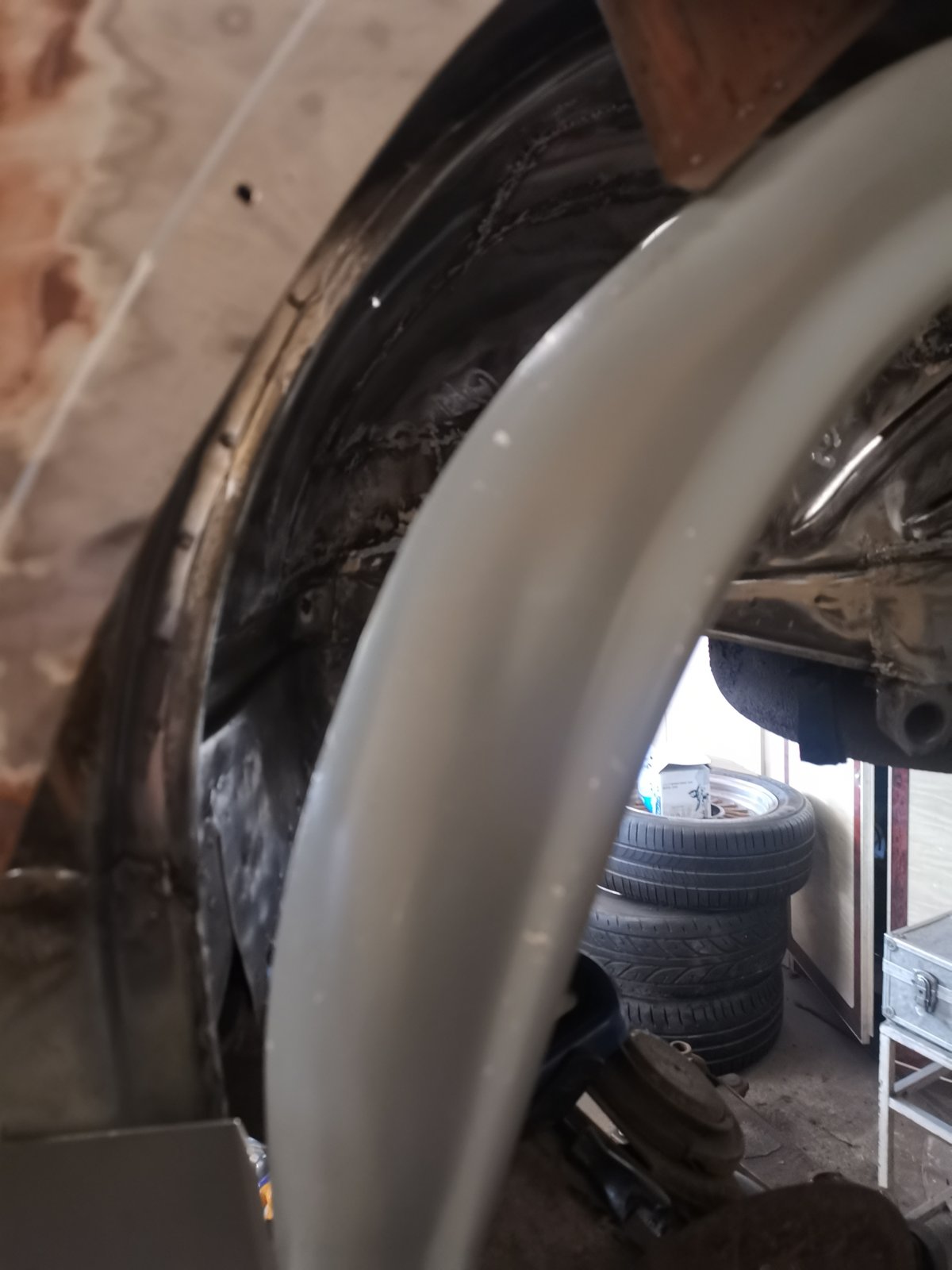

Inner arch tub now completely fabricated by Bodgemonkey Sr and the inner arch repair panel welded to it. Now the 10" Compomotives clear beautifully without any rolling of the lips, although will be trimming the outer flush to the inner and rolling the lips to squeeze some bigger rubber in. Some final fettling and then the inner arch can get welded to the body.


Attachments

  • IMG_20210415_221911.jpg
    162.2 KB · Views: 188
  • IMG_20210415_221935.jpg
    205.7 KB · Views: 195

nosmonkey

In Rust We Trust
Site Donor
Messages
1,102
Reaction score
1,001
Location
London, UK

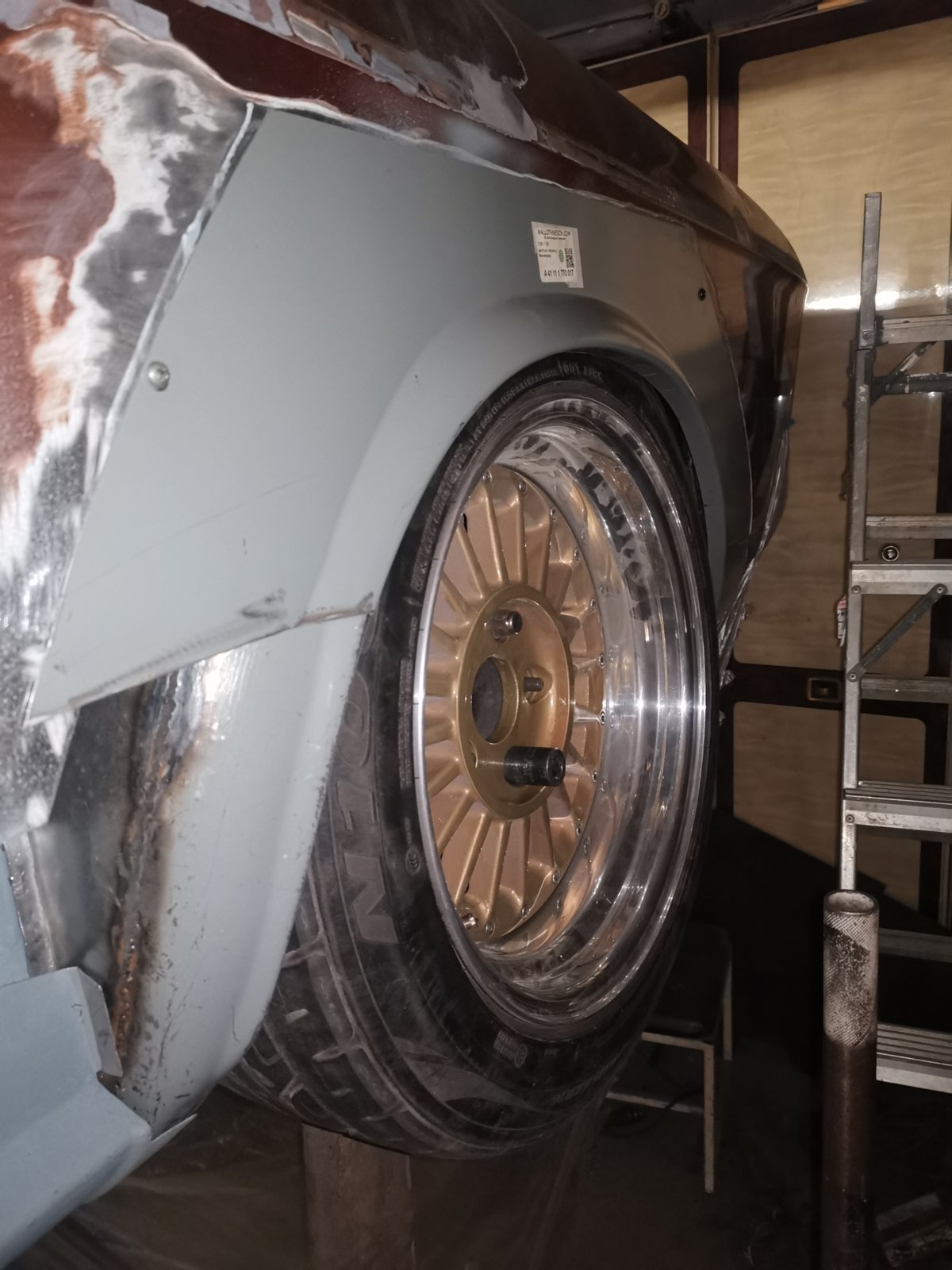

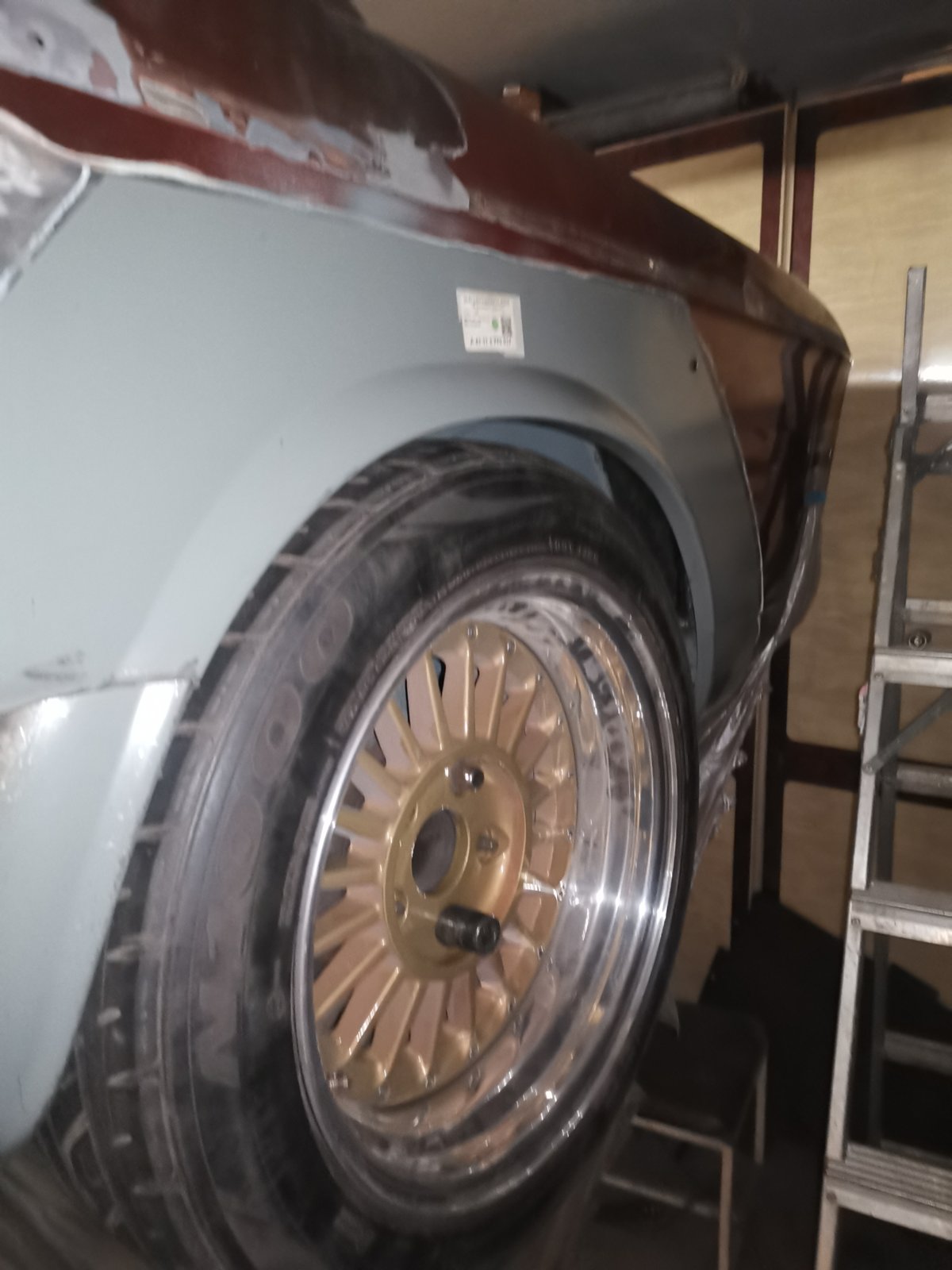

Arch tub formed with a WN repair panel, all welded into place and outer panel welded in. Seems to be a bit tighter than the test fitting and need to pull the arches out a touch before final trimming and rolling. Still hoping I can fit 245s under here once that's all done.

Next step is to get the shock and sprint mount/suspension box back in.


Attachments

  • IMG_20210425_185305.jpg
    174.4 KB · Views: 176
  • IMG_20210421_184108.jpg
    428.7 KB · Views: 177
