Great work! Looks really well protected. When do you plan to g eat into the engine build?
Cheers, I'm hoping towards the end of the year. Want to have the car painted and subframes etc all painted and in before I start on the engine, I doubt it will take long to do.


Marc-M

Well-Known Member
Messages
378
Reaction score
311
Location
Preston - Lancashire-UK
I’m anxiously waiting to see what combination of possible m30 stuff you choose to assemble
me 2 - it’s going to be great fun.... love the steel fab work .... I often think what it would be like to restomod - old looks, new drive.... very very appealing...


Also interested in the Upol raptor liner as I have used a 3m product but it’s so dammed expensive… and looks very similar and may be even better?


nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK
I’m anxiously waiting to see what combination of possible m30 stuff you choose to assemble
I have a B10 3.5 here getting bored out to 3.7L, 11.5:1 pistons with a 144mm s14 long rod set up, ported B35 head, with a 300 degree cam, km steel rockers, jenvey ITBs and a repro alpina airbox. Unsure on engine management just yet


nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK
me 2 - it’s going to be great fun.... love the steel fab work .... I often think what it would be like to restomod - old looks, new drive.... very very appealing...


Also interested in the Upol raptor liner as I have used a 3m product but it’s so dammed expensive… and looks very similar and may be even better?
I've heard fantastic things about the 3m seam sealer. Buzzweld here in the UK do a glass flake that is added to the raptor to make it even more resistant to abrasion but I didn't require it. I've yet to use raptor properly but first impressions are good and £100 worth is enough to do the underside. It's also tintable


Oldbmwcoupes

Well-Known Member
Messages
368
Reaction score
344
Location
Memphis, TN
I love the engine plan! Sounds like a hard hitting drive train. I have similar plans with a stroker 4.0 l engine. I’m debating a stand alone or Motronic 1.3


nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK

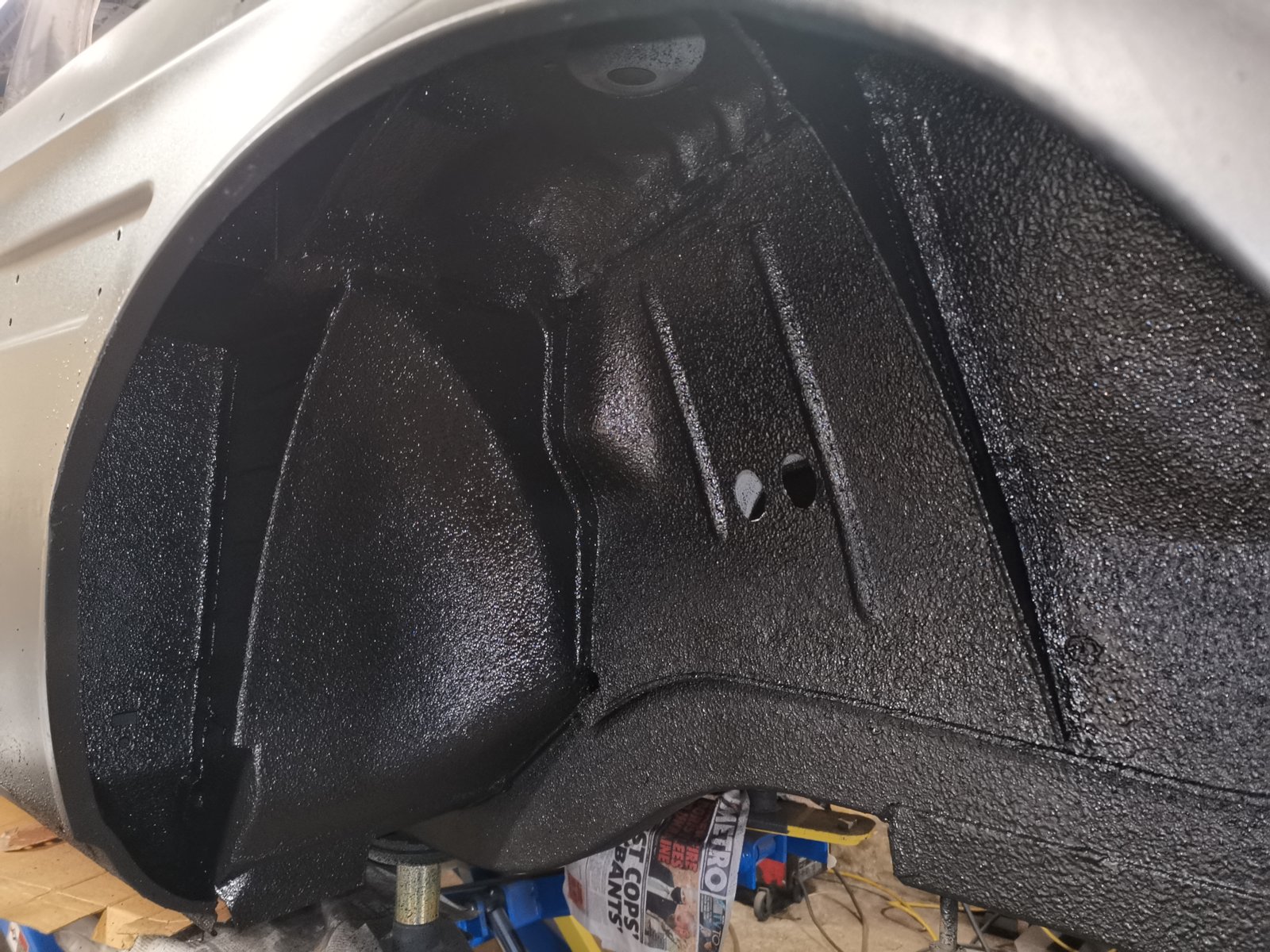

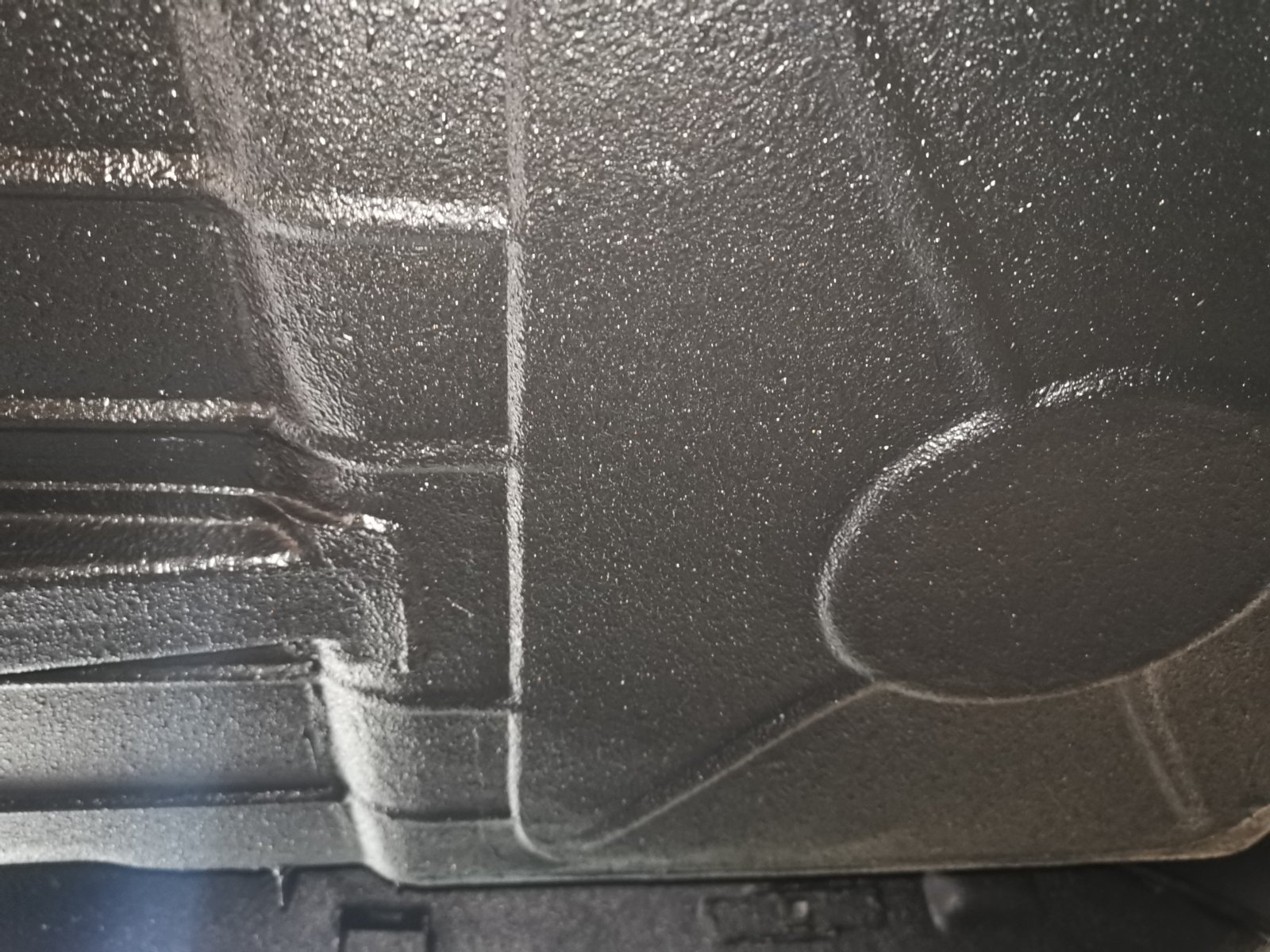

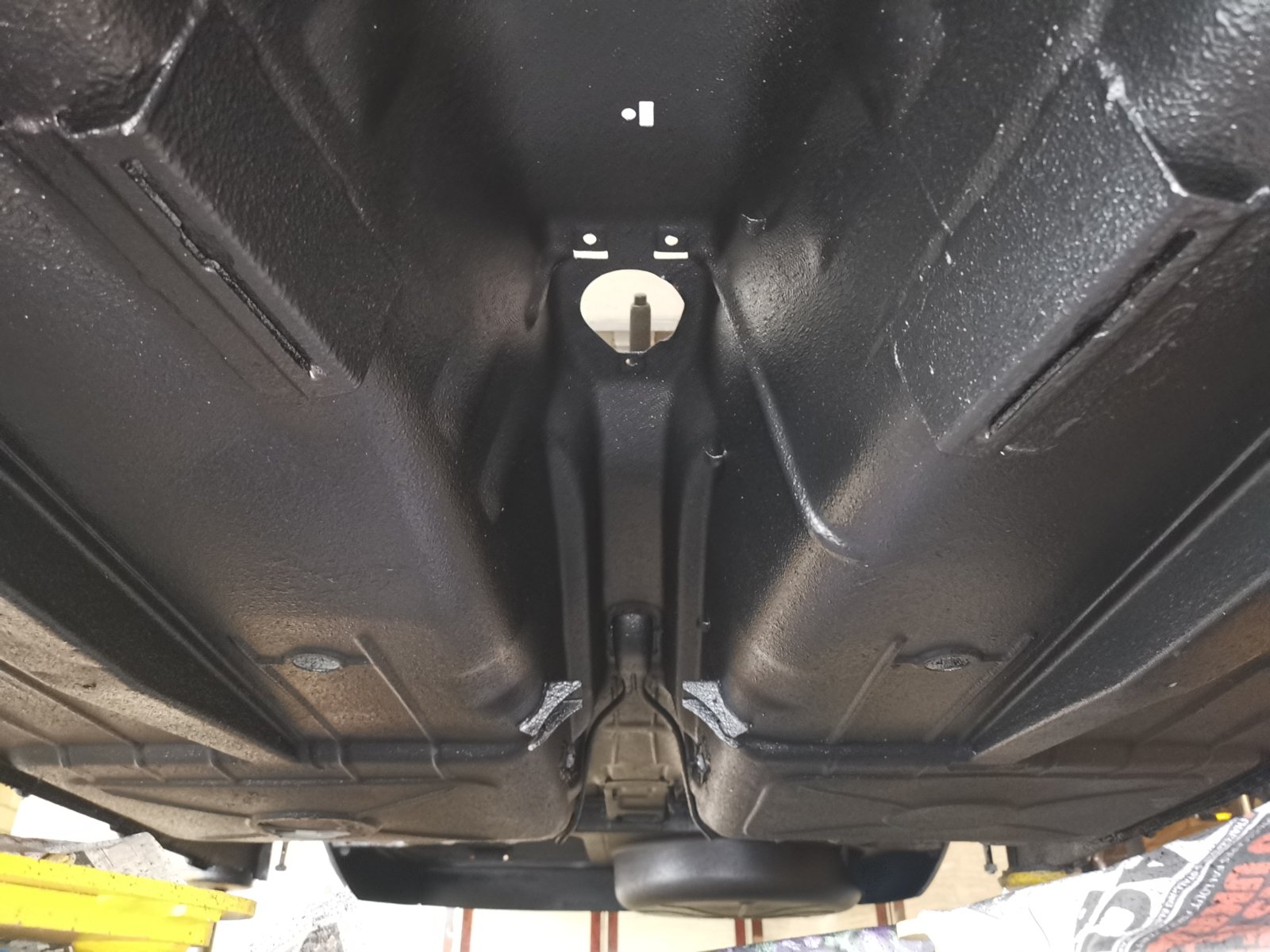

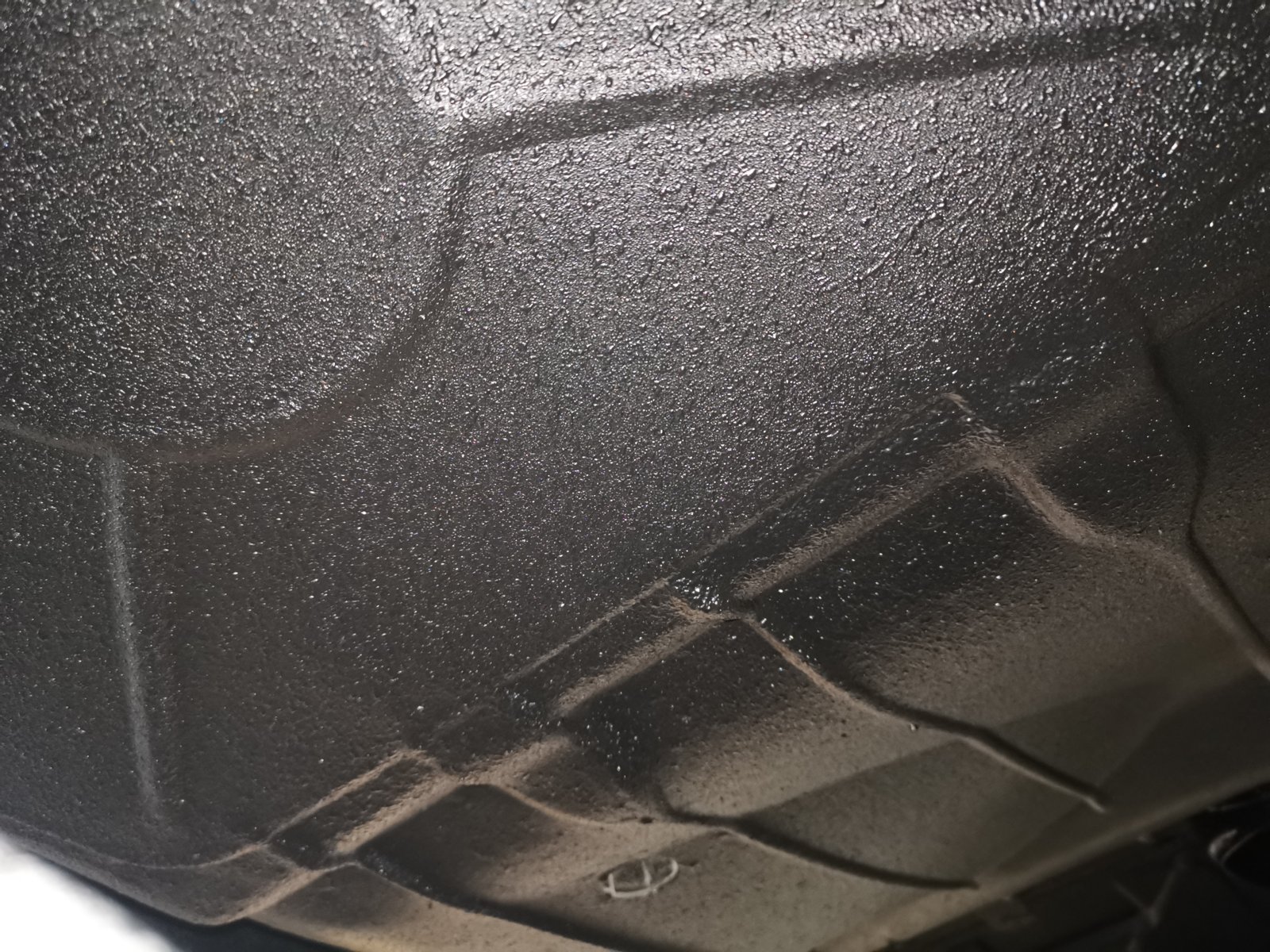

So now that the raptor has properly cured I went and inspected it all. No welds visible where the floors have been fitted and all the nooks and crannies are fully enclosed. Very happy with how this has turned out, and I'll definitely be using this in the future!


Attachments

  • IMG_20220205_133119.jpg
    345.1 KB · Views: 274
  • IMG_20220205_133132.jpg
    477 KB · Views: 246
  • IMG_20220205_133206.jpg
    247.1 KB · Views: 246

nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK
I love the engine plan! Sounds like a hard hitting drive train. I have similar plans with a stroker 4.0 l engine. I’m debating a stand alone or Motronic 1.3
With an engine like that I'd definitely look to going standalone, modern systems and infinite adjustability!


nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK

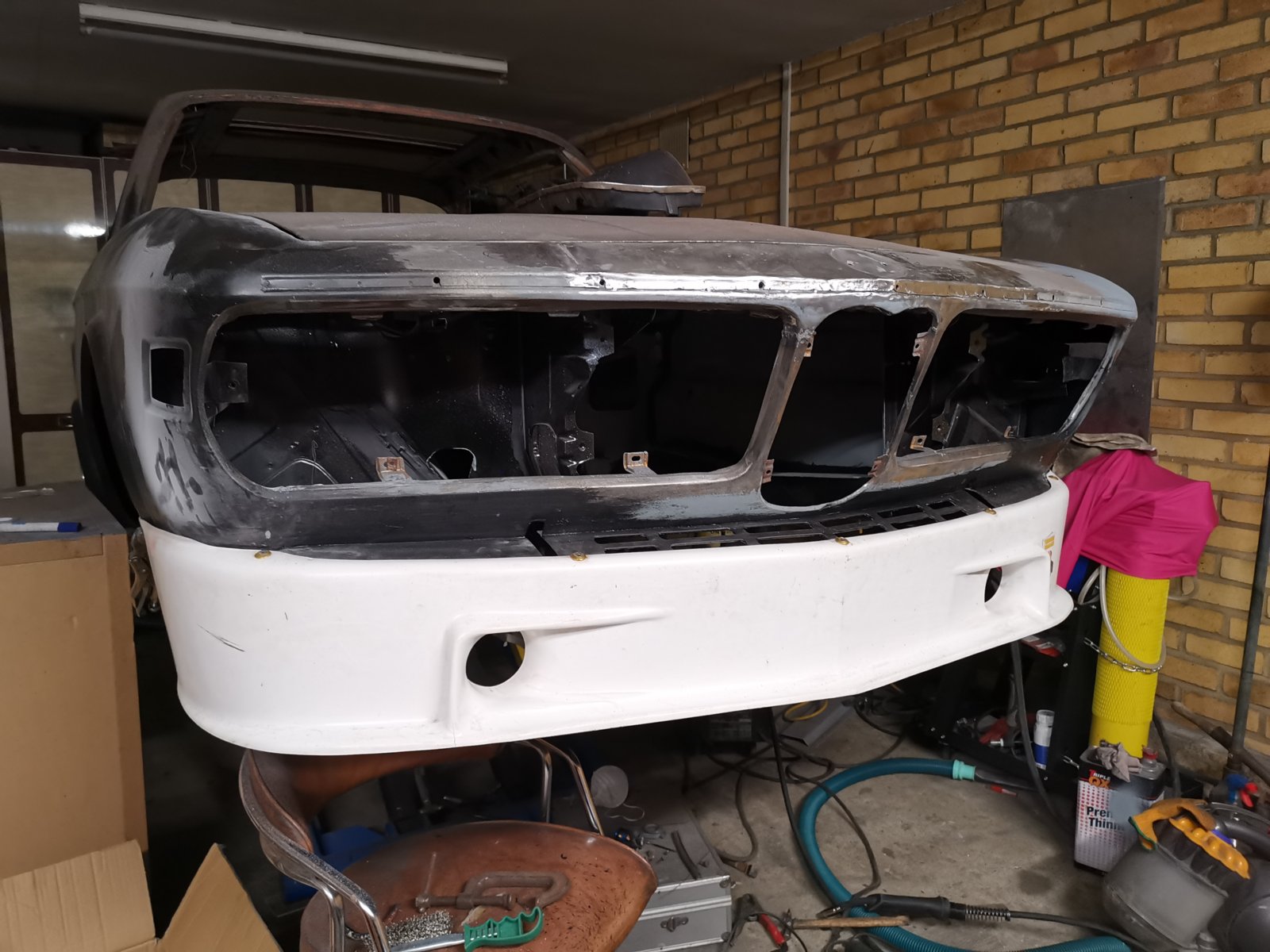

Front arches and chassis legs are now raptor coated. A few days to cure then will get the front subframe on and the wider e12 arms to see how it all sits. Also got the spoiler riv nuts installed on the new front panel, the nosecone was quite heavily damaged from shunts in the past so was cut out, everything painted and cleaned and straightened then re welded. Finally photo is getting bored on Gran Turismo and doing some mock ups to see if I like the new colour


Attachments

  • IMG_20220320_173814.jpg
    415.1 KB · Views: 231
  • IMG_20220319_200329.jpg
    240.4 KB · Views: 240
  • IMG_20220304_234947.jpg
    318.4 KB · Views: 243

nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK
Why e12 arms? Longer will require a different tension strut and the inner bolt is smaller.
As mine is a 74 AFAIK it should have had the later style arms. They had clearly been replaced at some point in the past as one was a different colour but the were both the shorter arms. Tension strut fitted on just fine and the bolt diameter was fine too which is odd


nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK

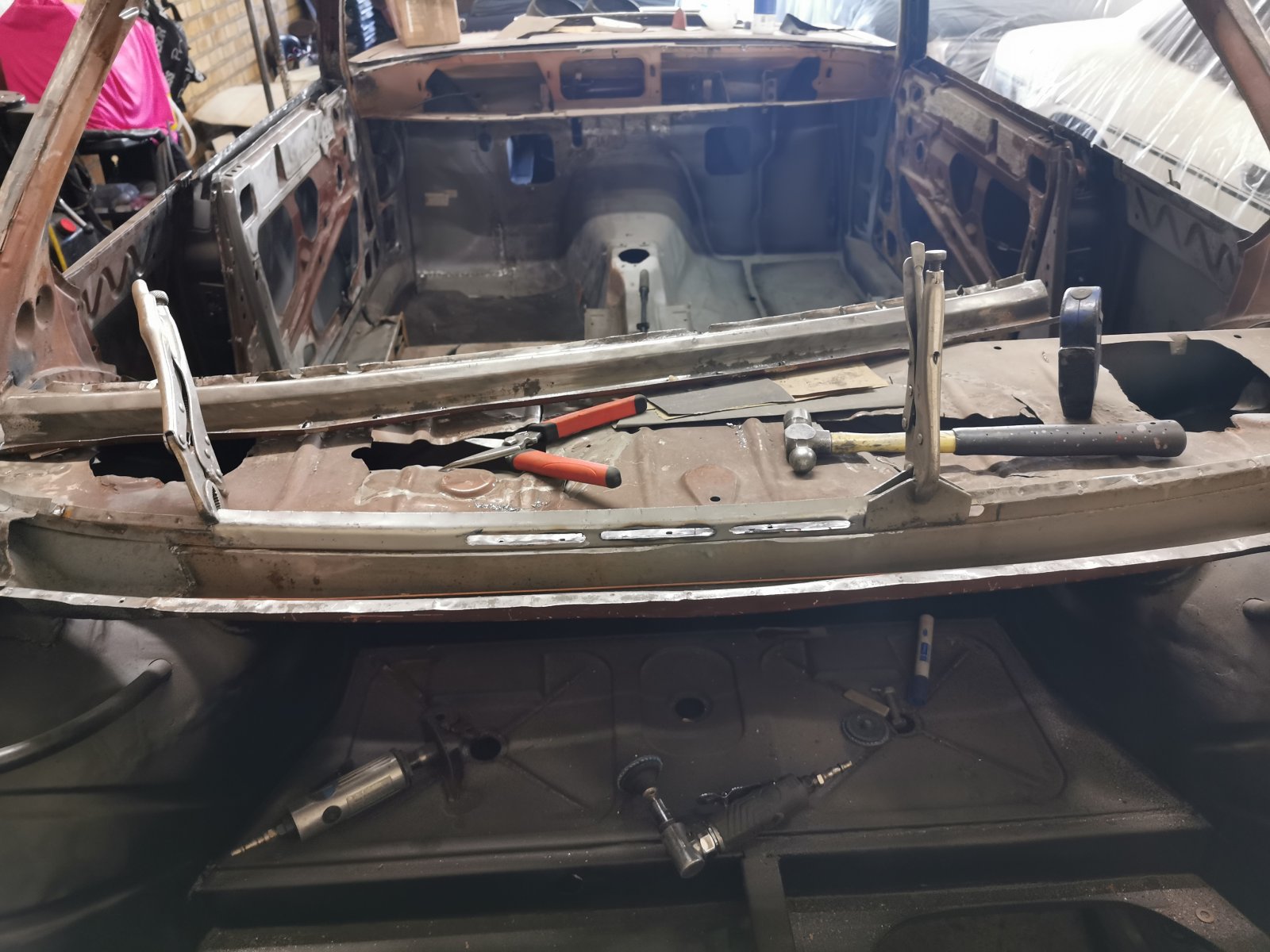

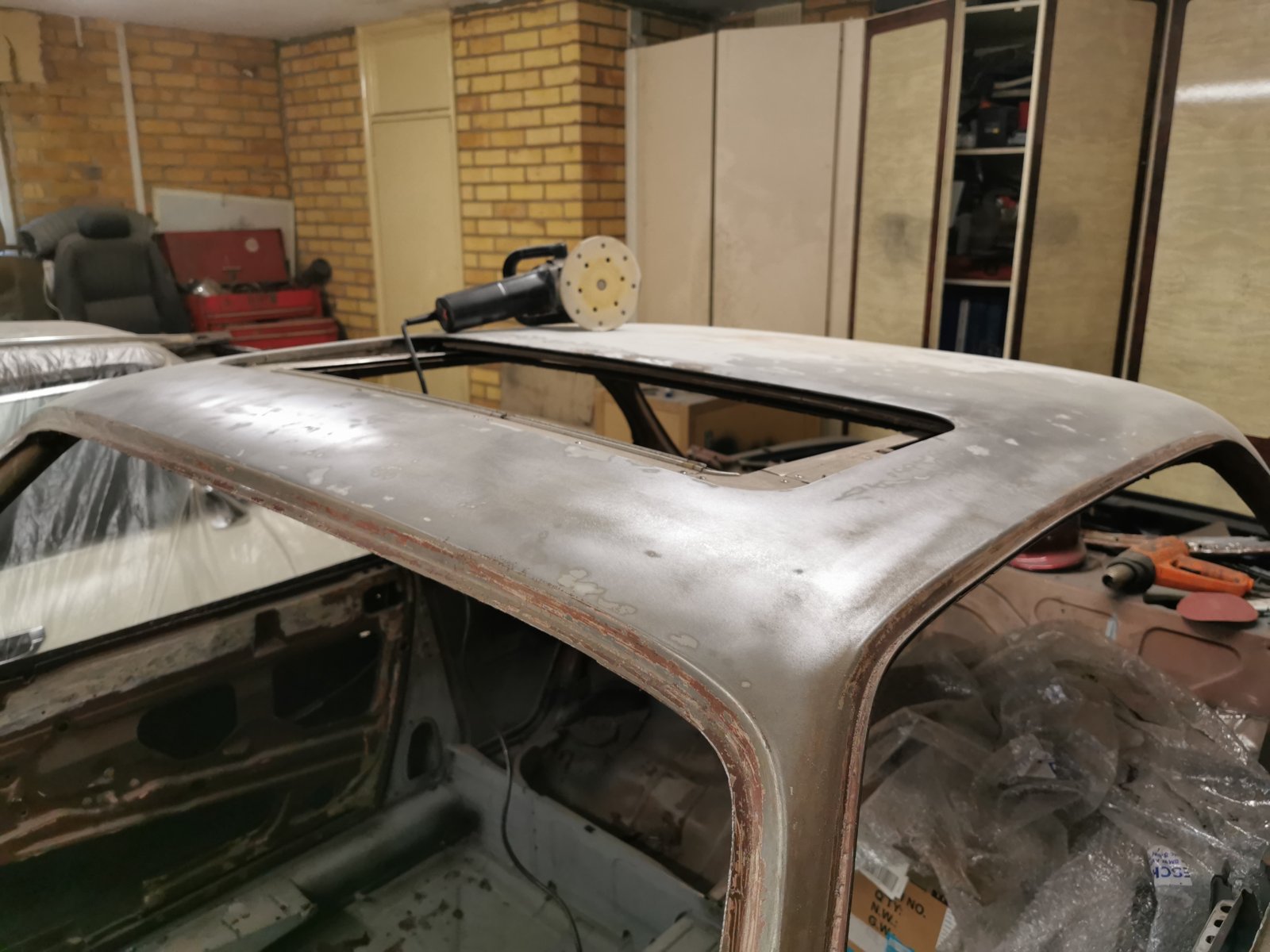

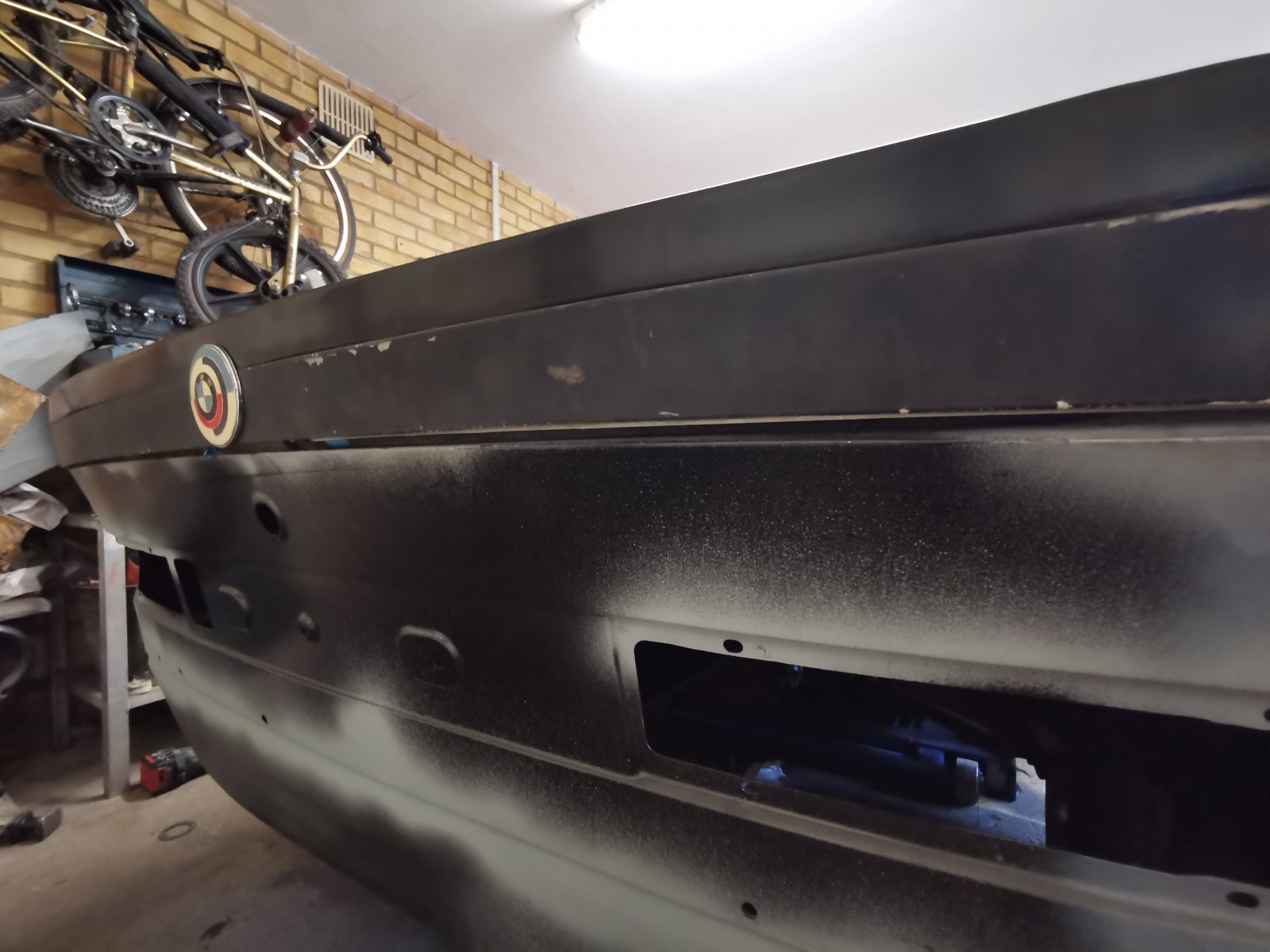

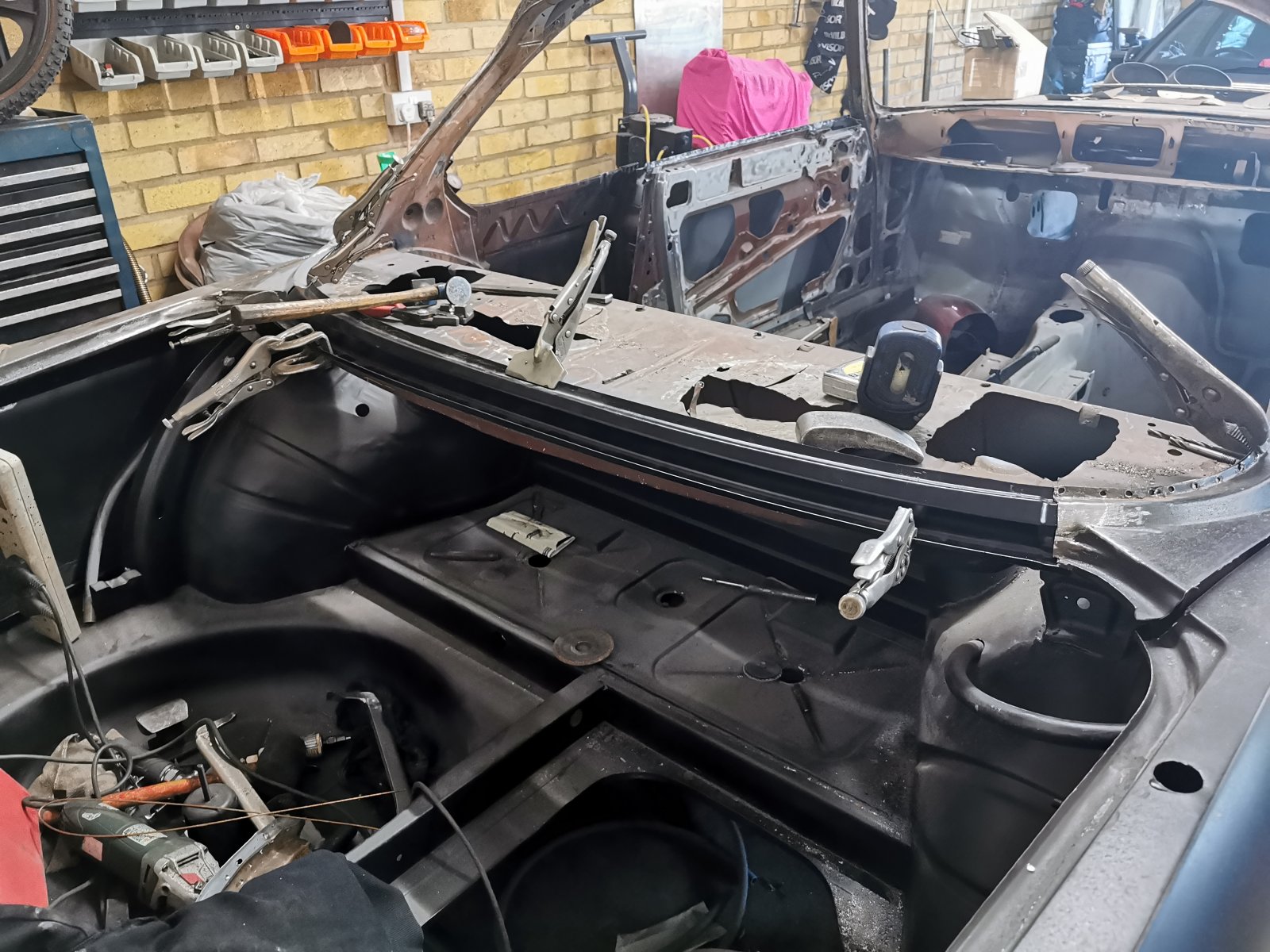

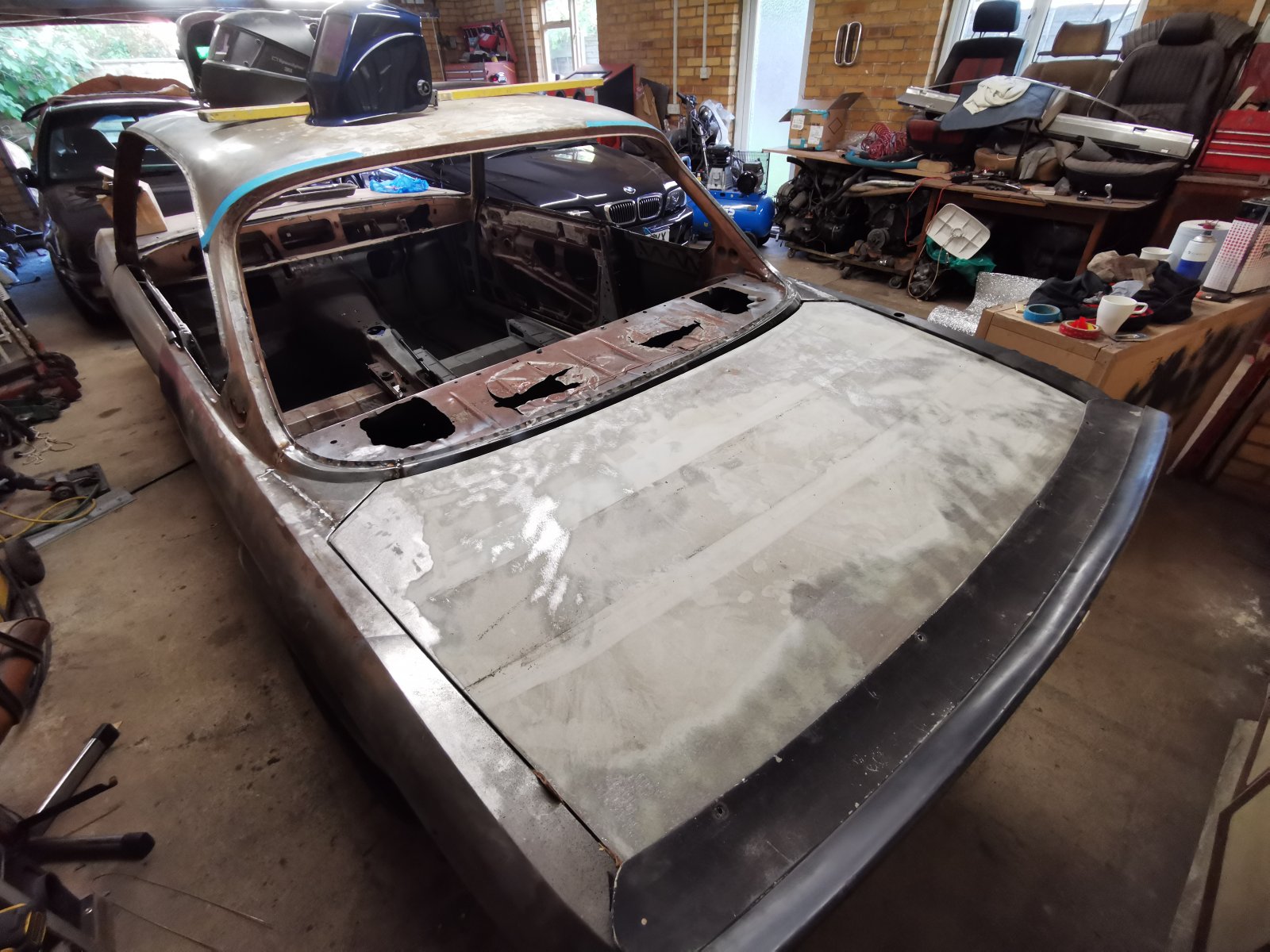

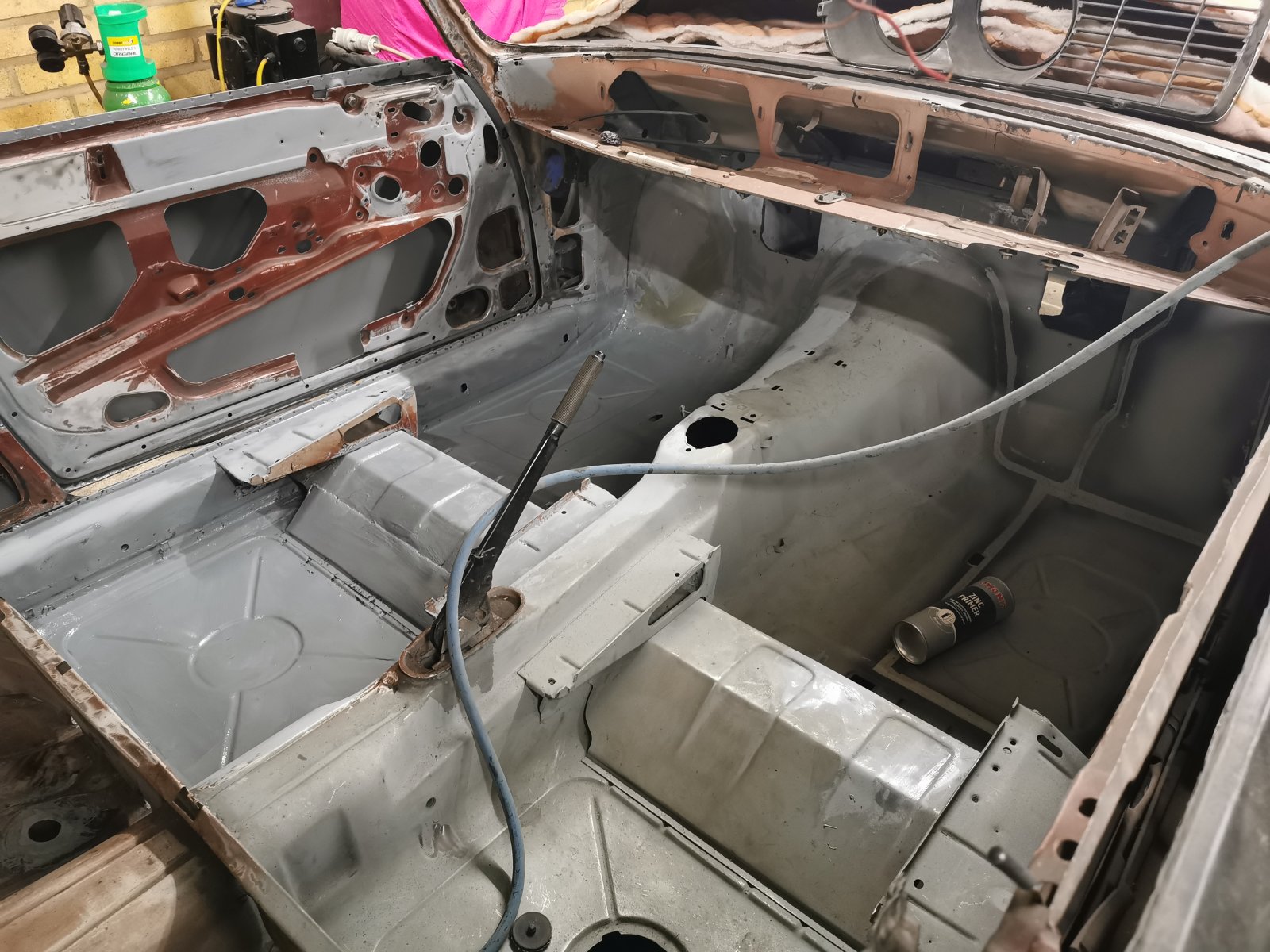

In other news, the car is finally back down on all 4 wheels for the first time in a very long time! Started to strip the roof down to bare metal and removed the rear lower screen frame. Just these areas left to do now and the welding machines can get a long deserved break!


Attachments

  • IMG_20220323_212854.jpg
    238.5 KB · Views: 194
  • IMG_20220406_175116.jpg
    213.9 KB · Views: 206
  • IMG_20220330_214006.jpg
    246.8 KB · Views: 168
  • IMG_20220330_214509.jpg
    295.6 KB · Views: 201

nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK

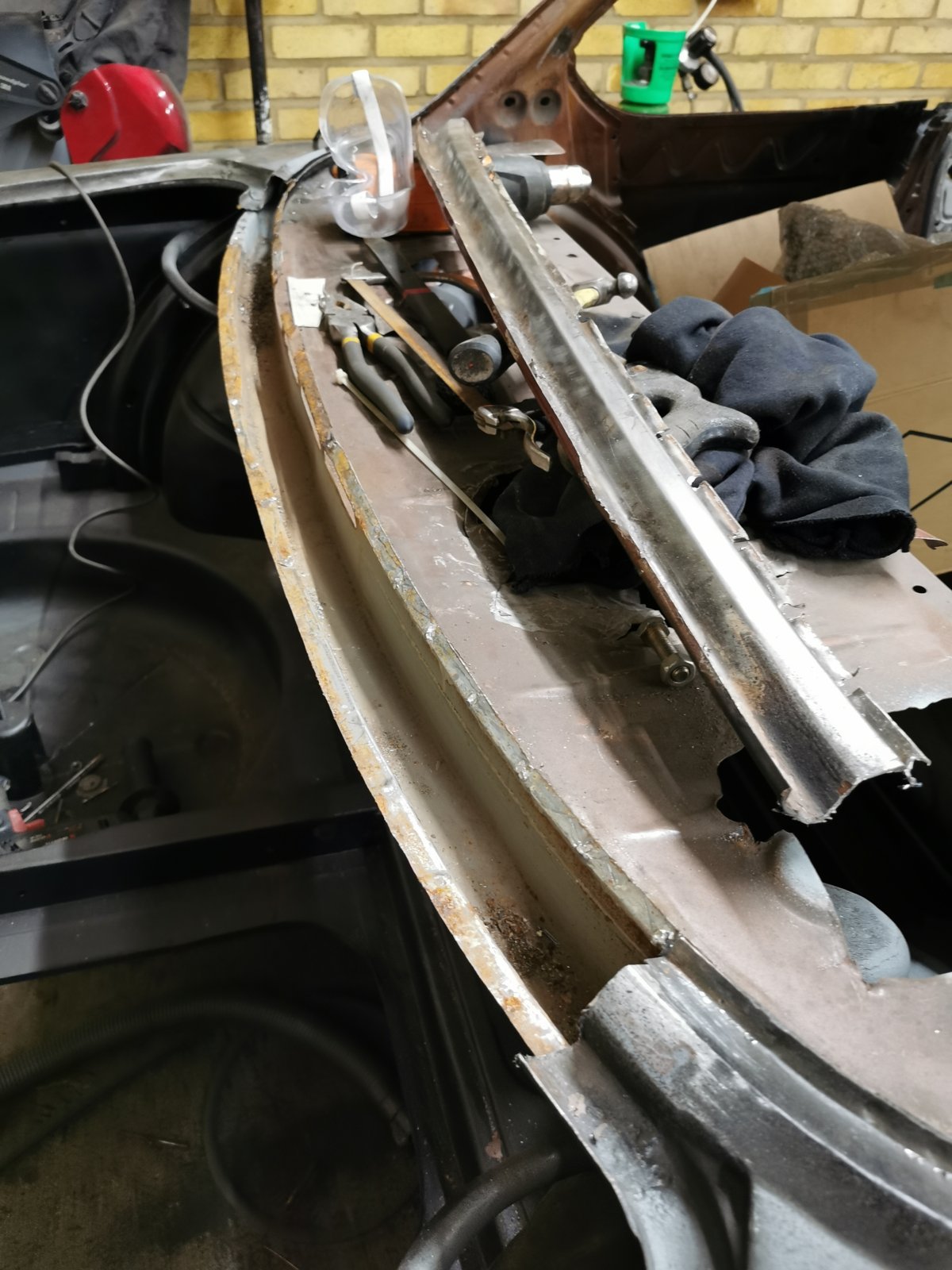

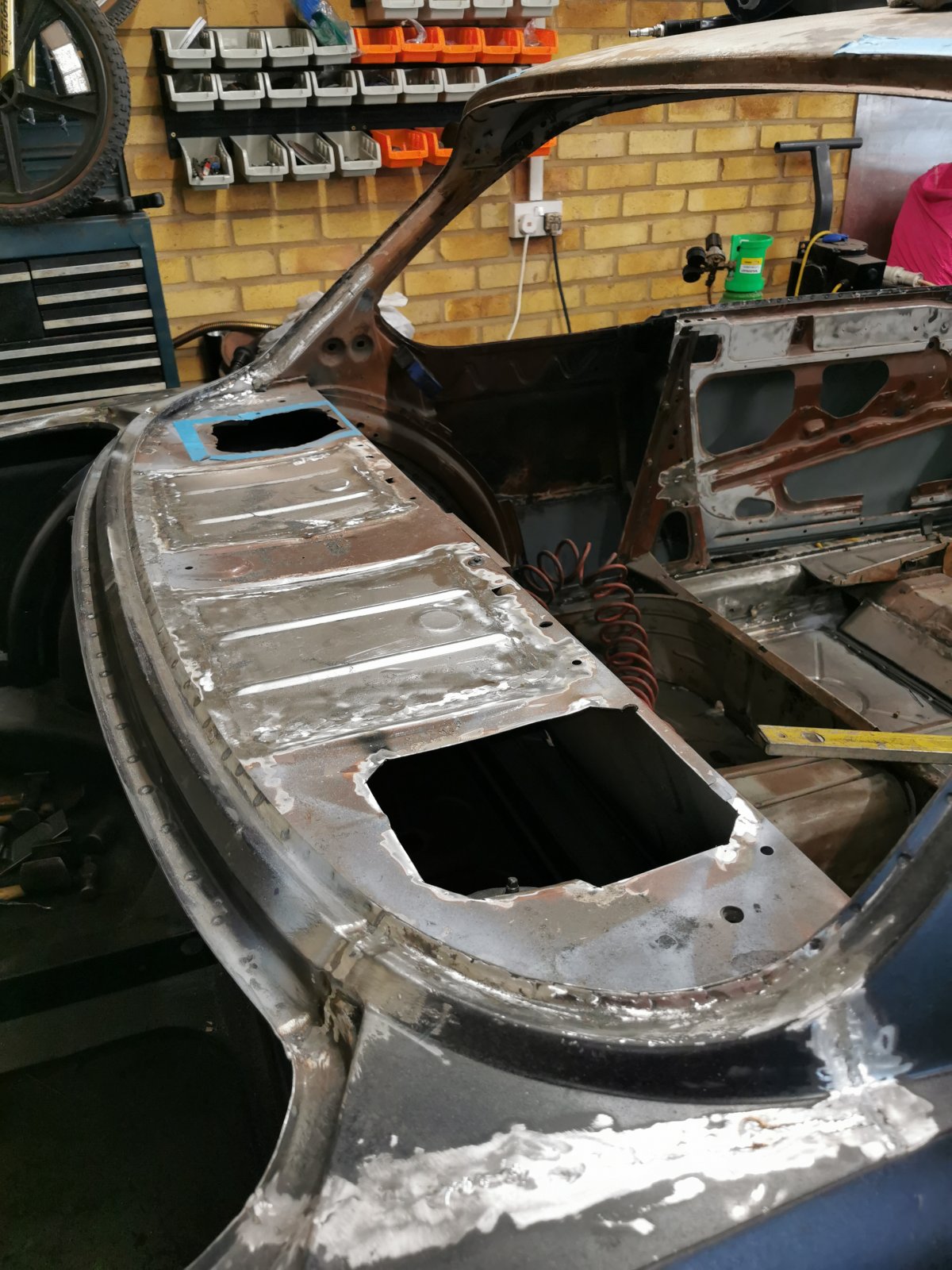

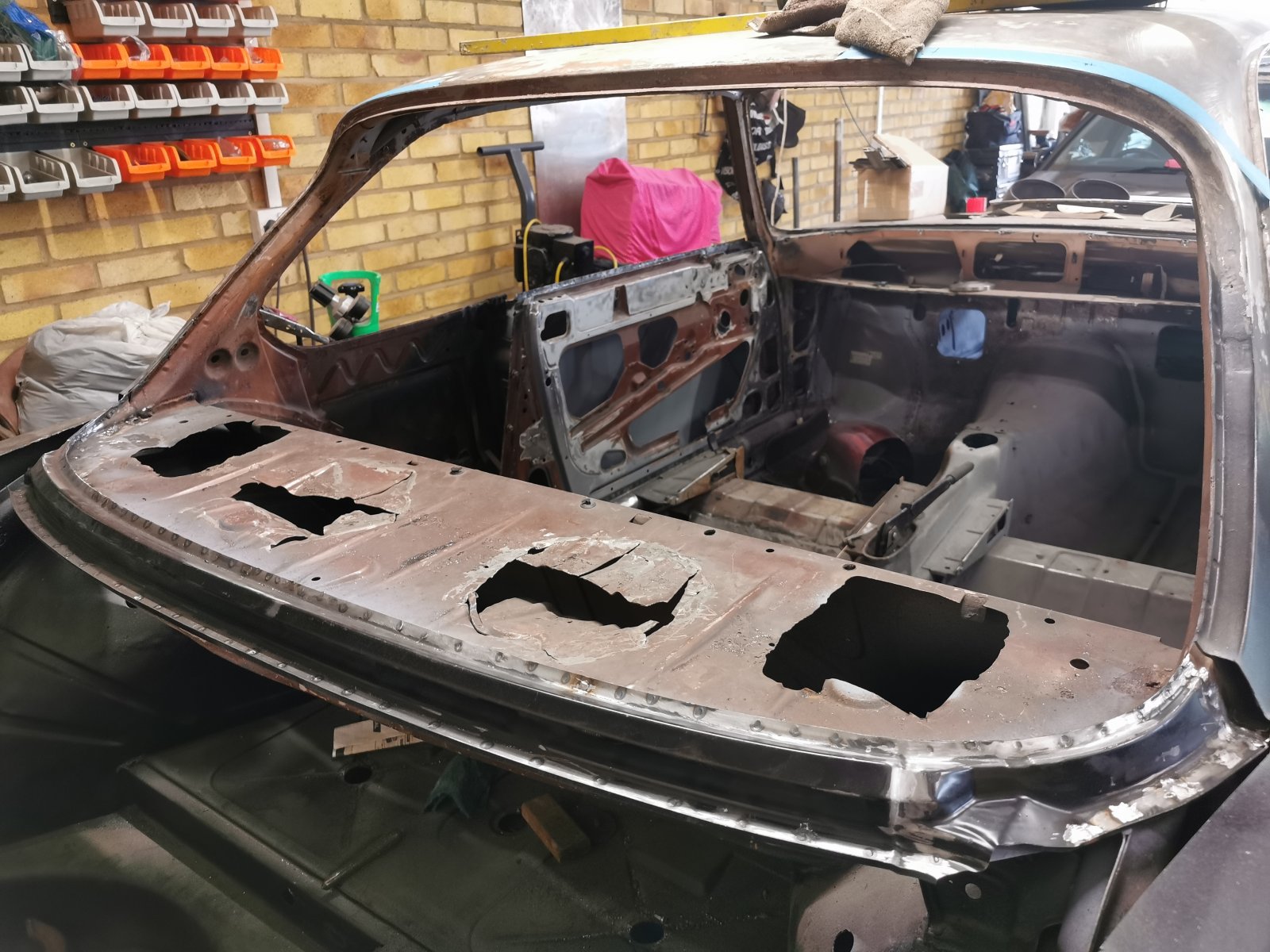

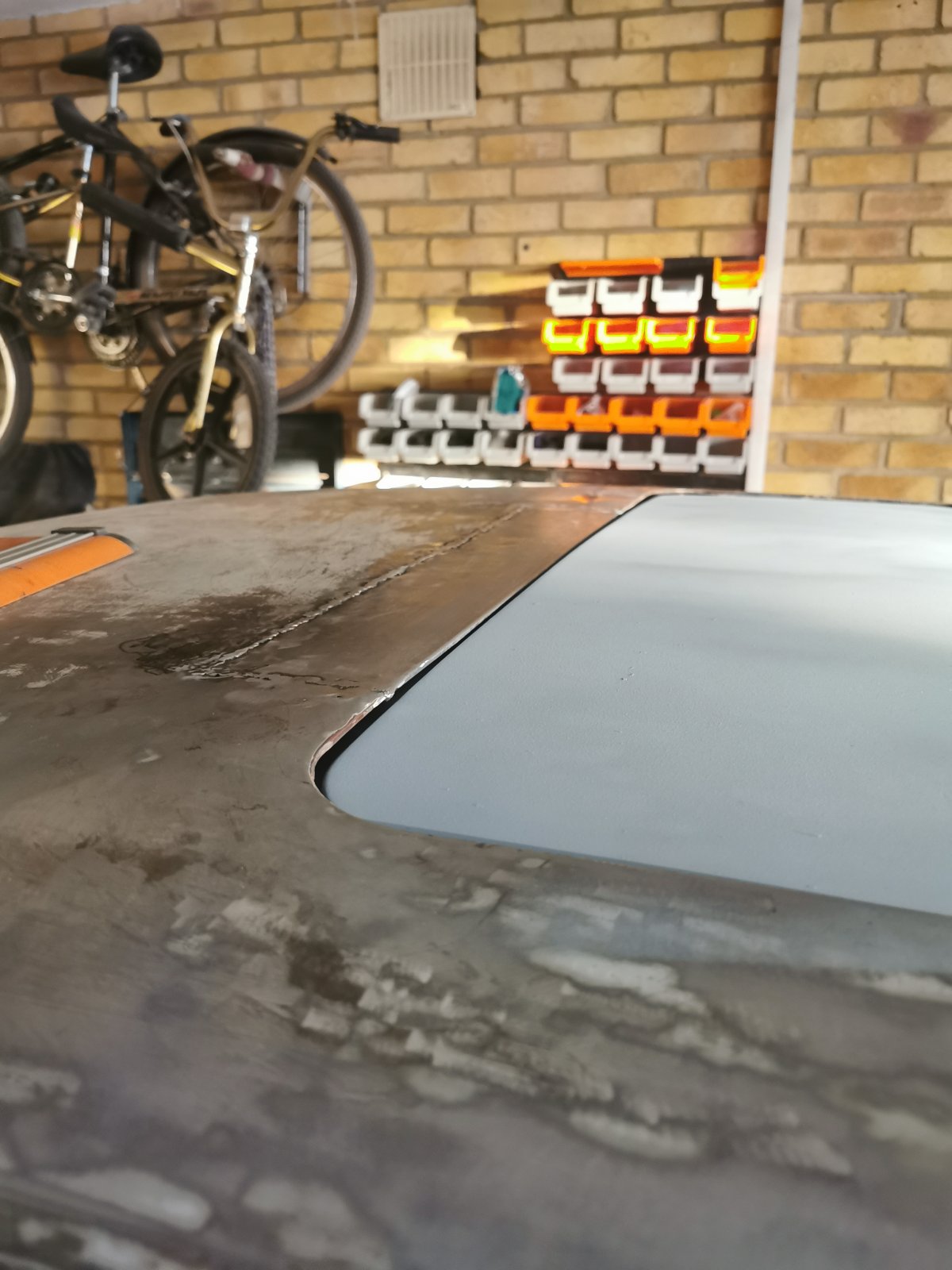

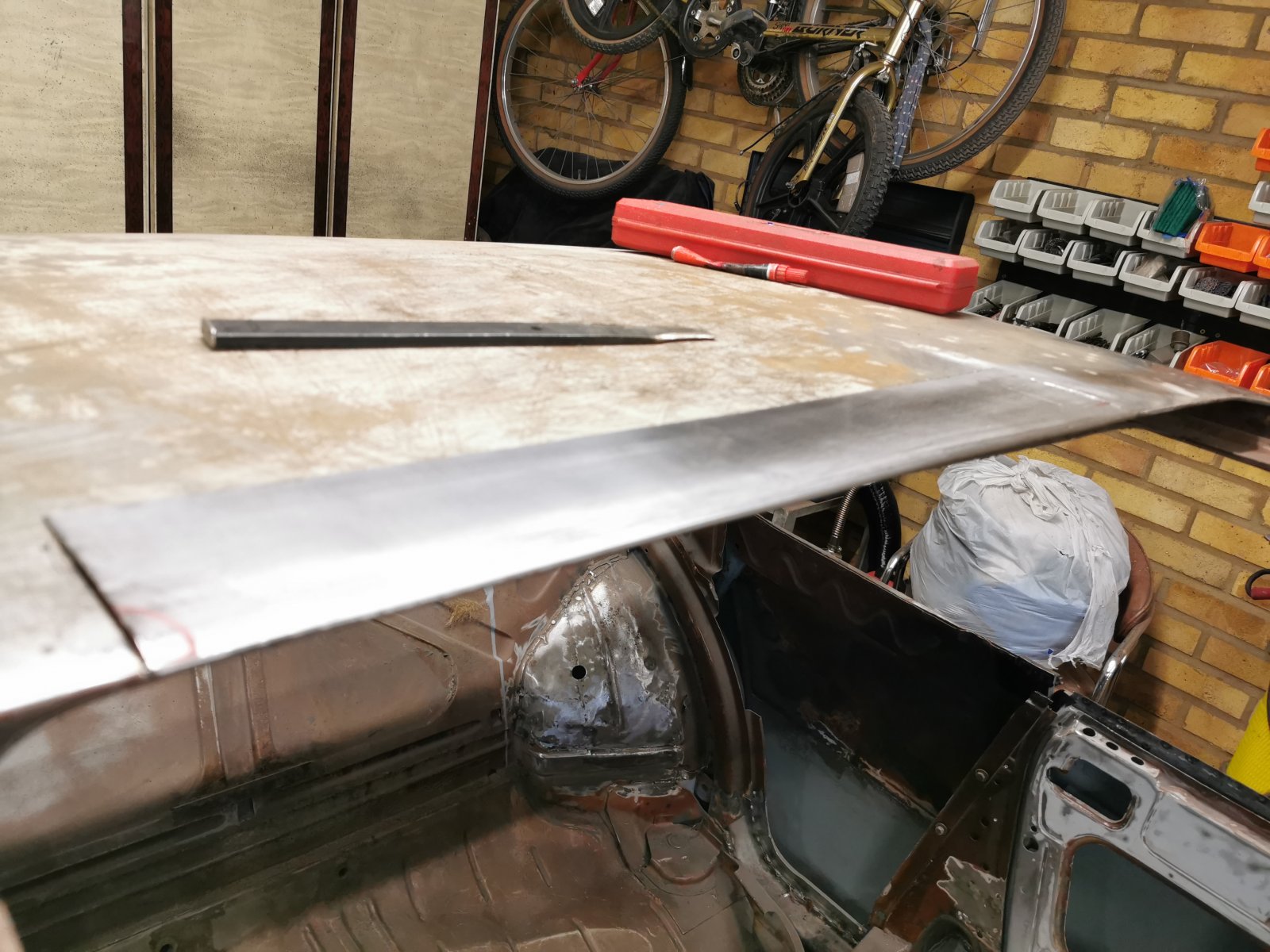

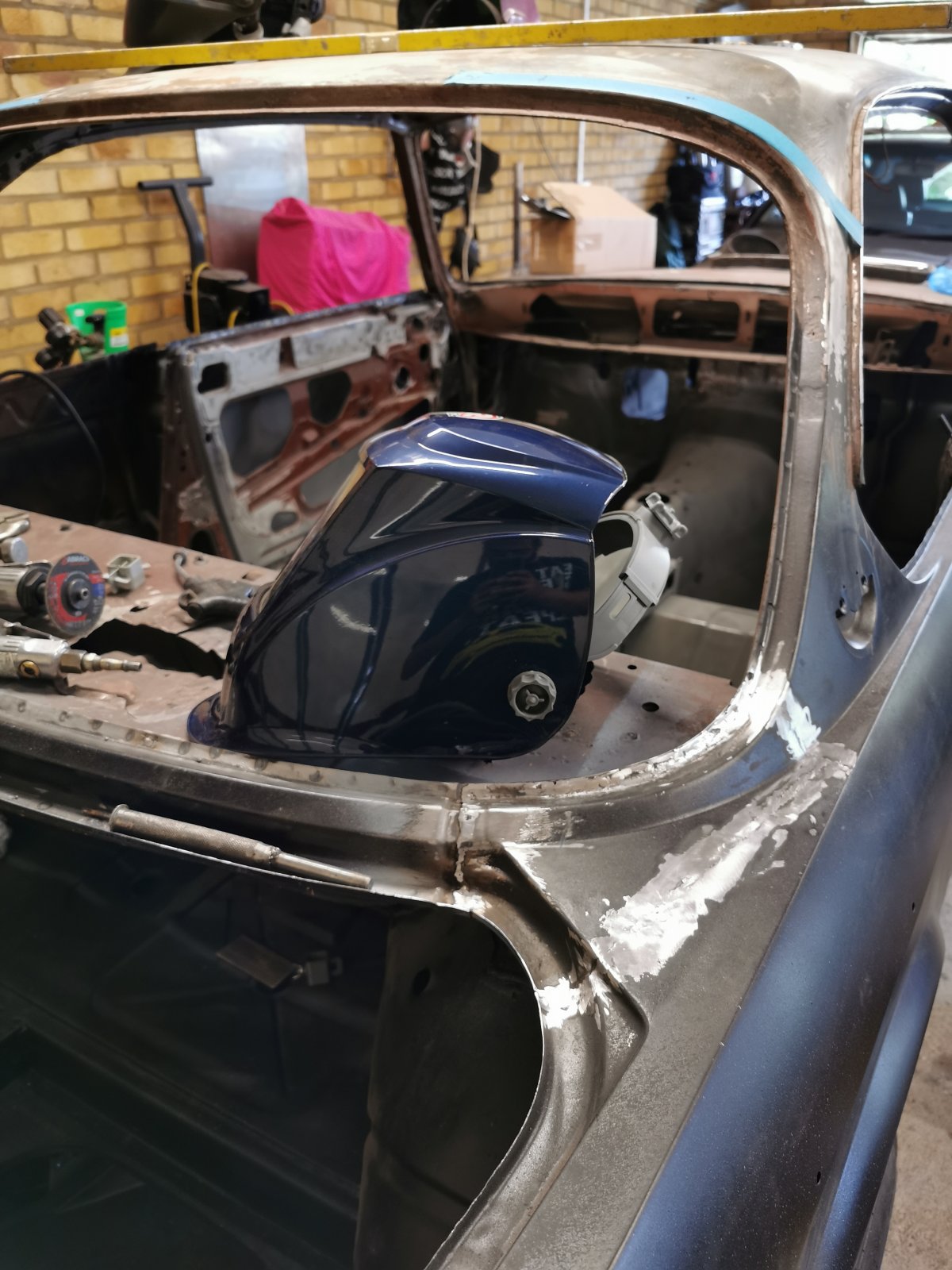

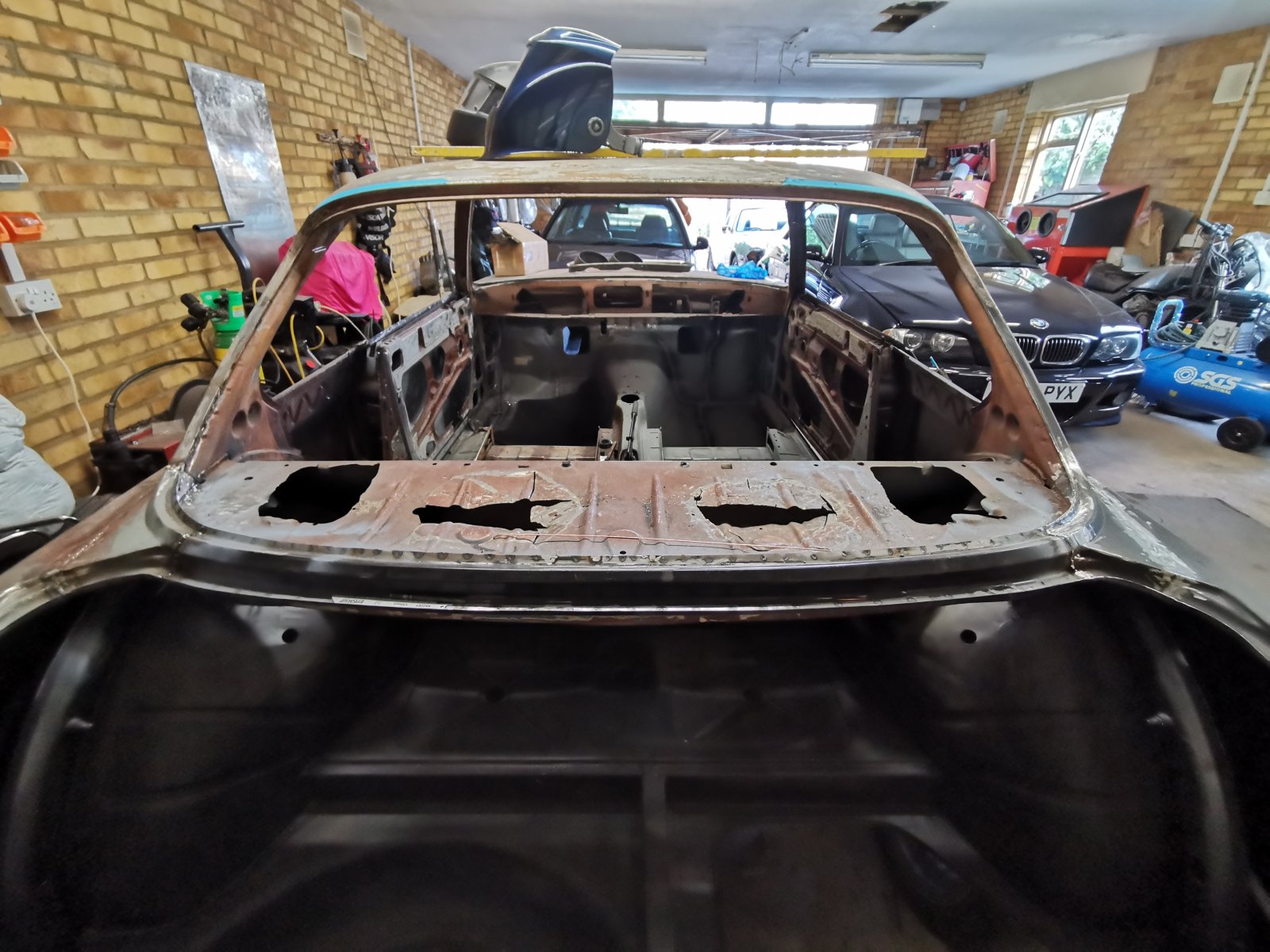

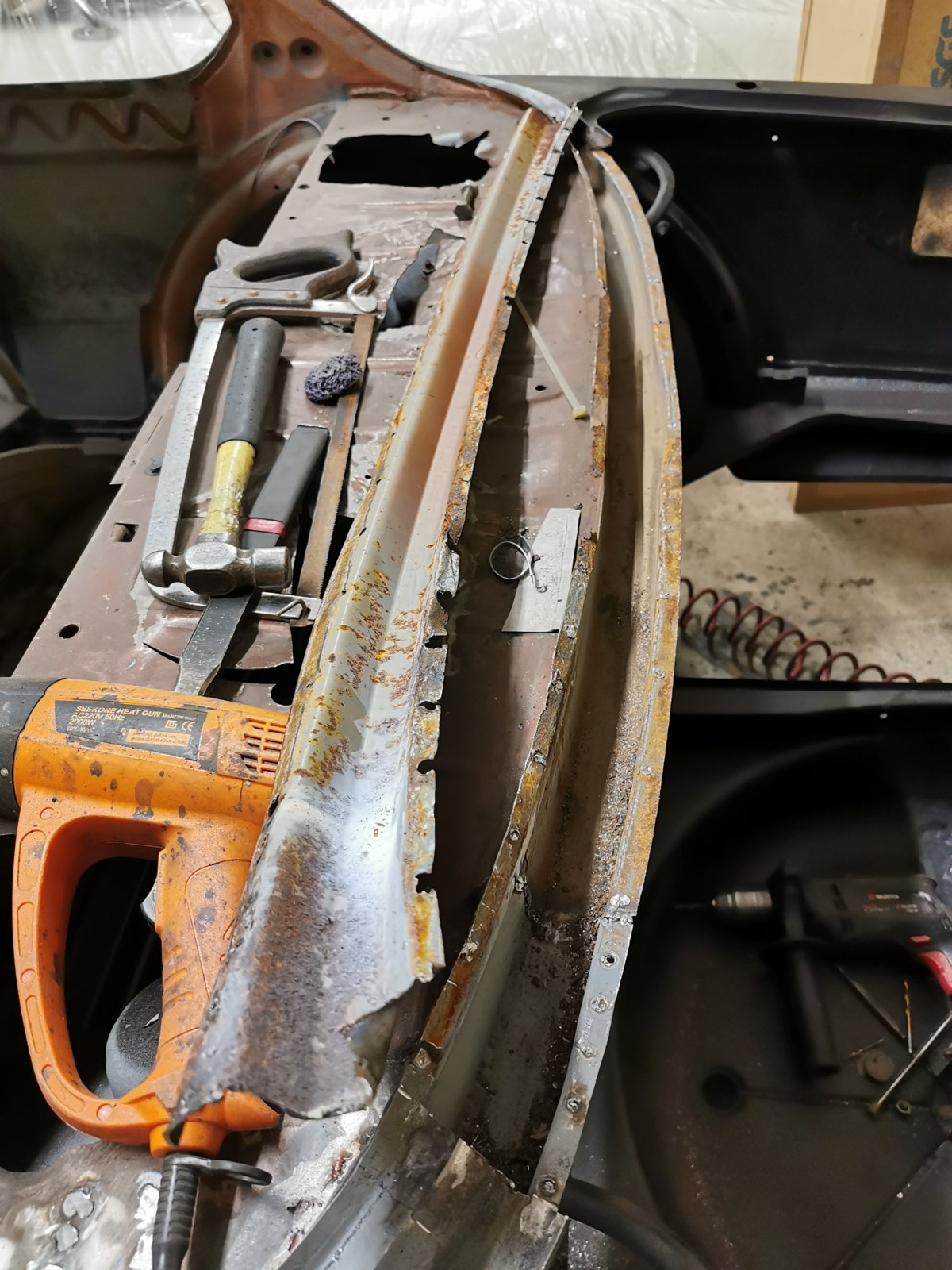

A bit more done. Rust around the sunroof cut out, still needs some finishing work, man I hate welding roof panels! The lower rear window frame was also removed, a repair piece welded to the inner framework before a new frame was fitted. Tops of the rear quarters back on, these have a bit more work to do still and they need to be lead loaded too, gaps all look OK as well with only minor fettling required. I'm really pleased that the welding is almost over!

Next up, those speaker holes....


Attachments

  • IMG_20220511_162639.jpg
    289.8 KB · Views: 153
  • IMG_20220511_151350.jpg
    247.2 KB · Views: 170
  • IMG_20220511_185156.jpg
    251.7 KB · Views: 162
  • IMG_20220512_195931.jpg
    194.7 KB · Views: 165
  • IMG_20220514_185240.jpg
    344.3 KB · Views: 140
  • IMG_20220522_175233.jpg
    317.6 KB · Views: 161
  • IMG_20220529_125307.jpg
    267.8 KB · Views: 148
  • IMG_20220529_172541.jpg
    258.5 KB · Views: 141
  • IMG_20220529_190309.jpg
    288.6 KB · Views: 149
  • IMG_20220529_195032.jpg
    308.4 KB · Views: 180

nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK
Unfortunately, the M30 build will no longer be happening.

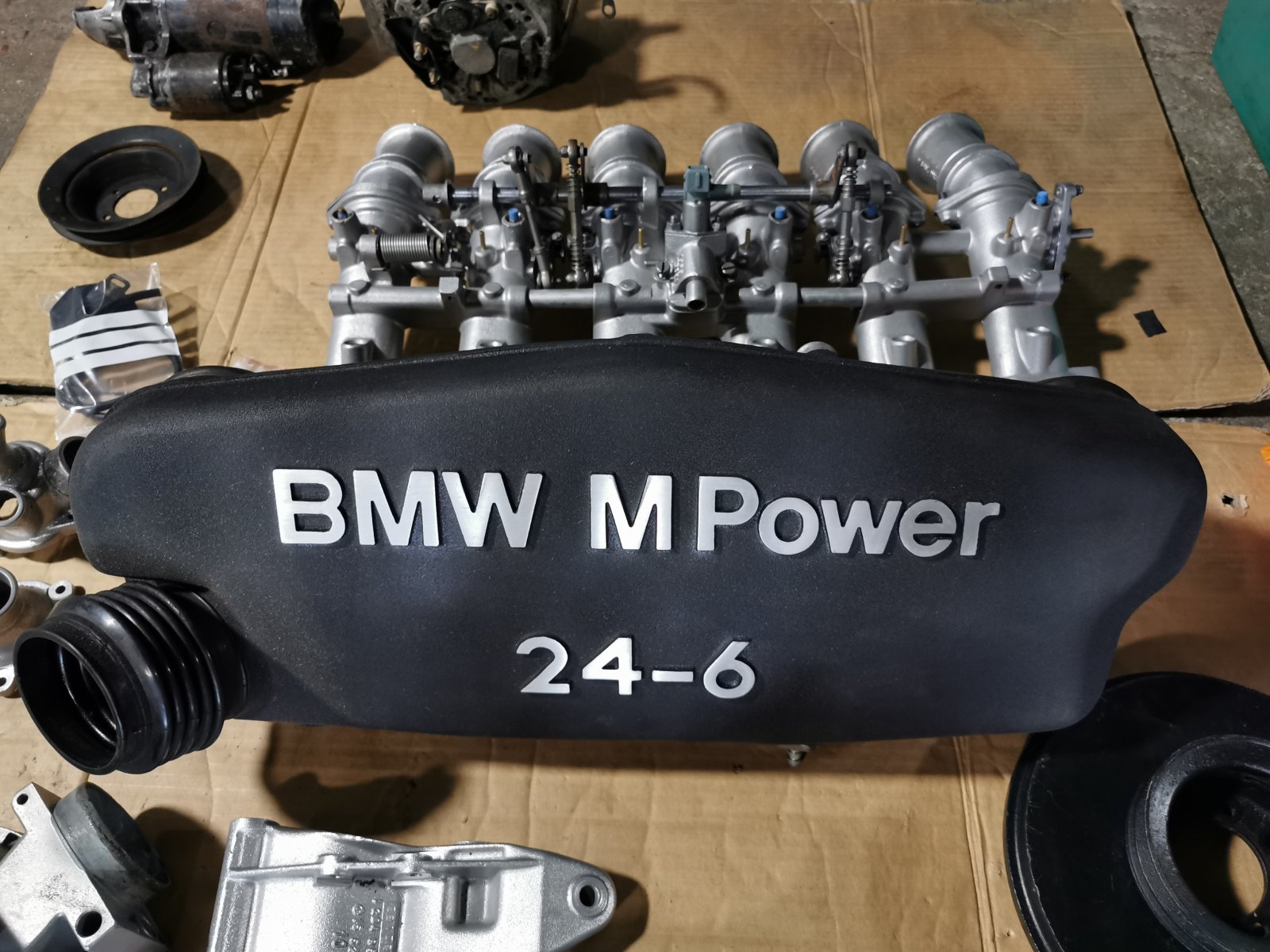

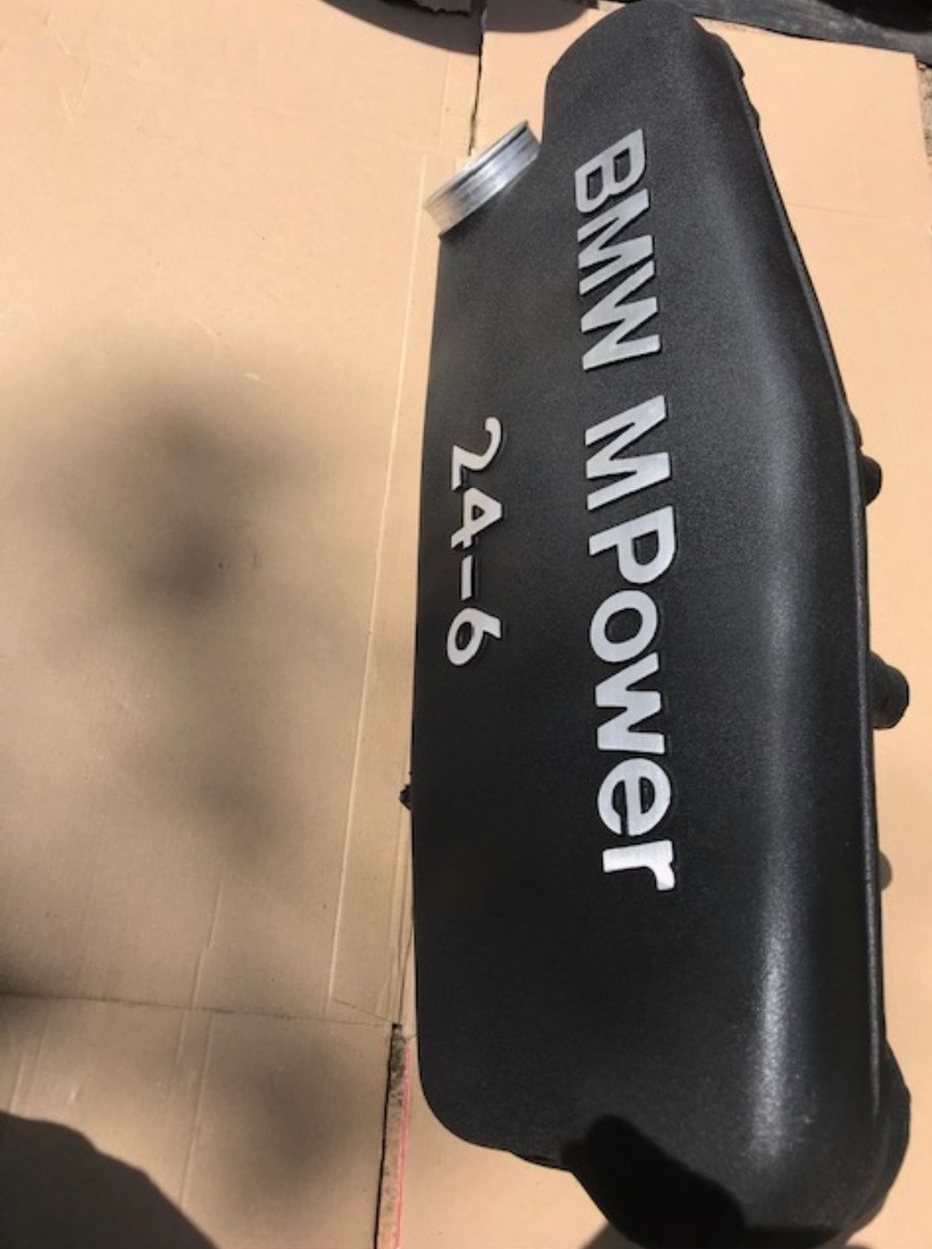

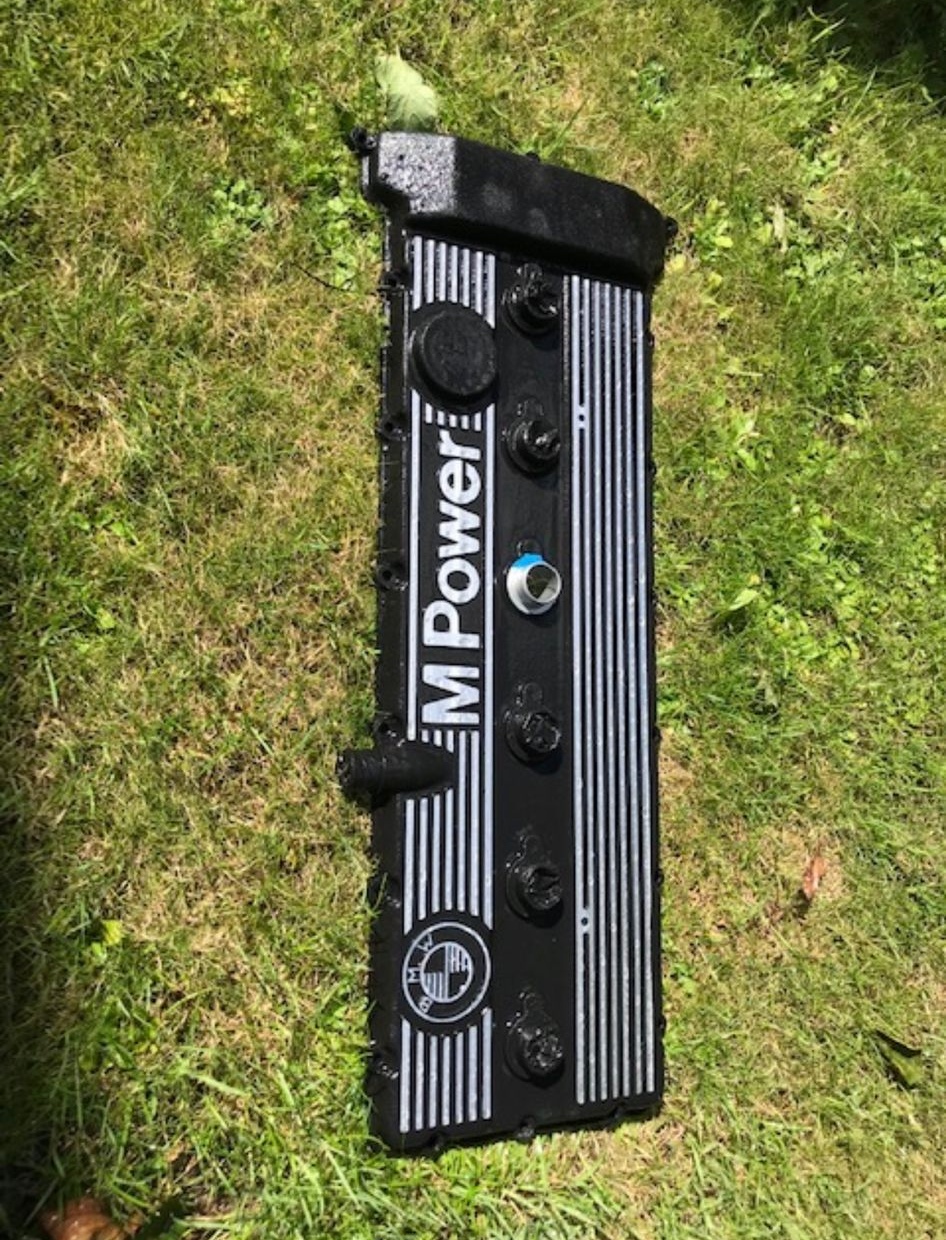

An E28 M5 has very kindly donated its heart, M88/3 power is now on the way! As such all my M30 items will be for sale soon. The b10 engine is already gone but I do have a very nice complete b34 sans ecu. Km steel rockers, daddywad manifold and Jenvey itbs


Attachments

  • IMG-20220512-WA0036_edit_26932537232869.jpg
    314.2 KB · Views: 163
  • IMG-20220512-WA0041_edit_26958823071927.jpg
    222.4 KB · Views: 166
  • IMG-20220512-WA0040_edit_26966123768801.jpg
    554 KB · Views: 168
  • IMG-20220512-WA0039_edit_27000829485983.jpg
    281.9 KB · Views: 176

nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK

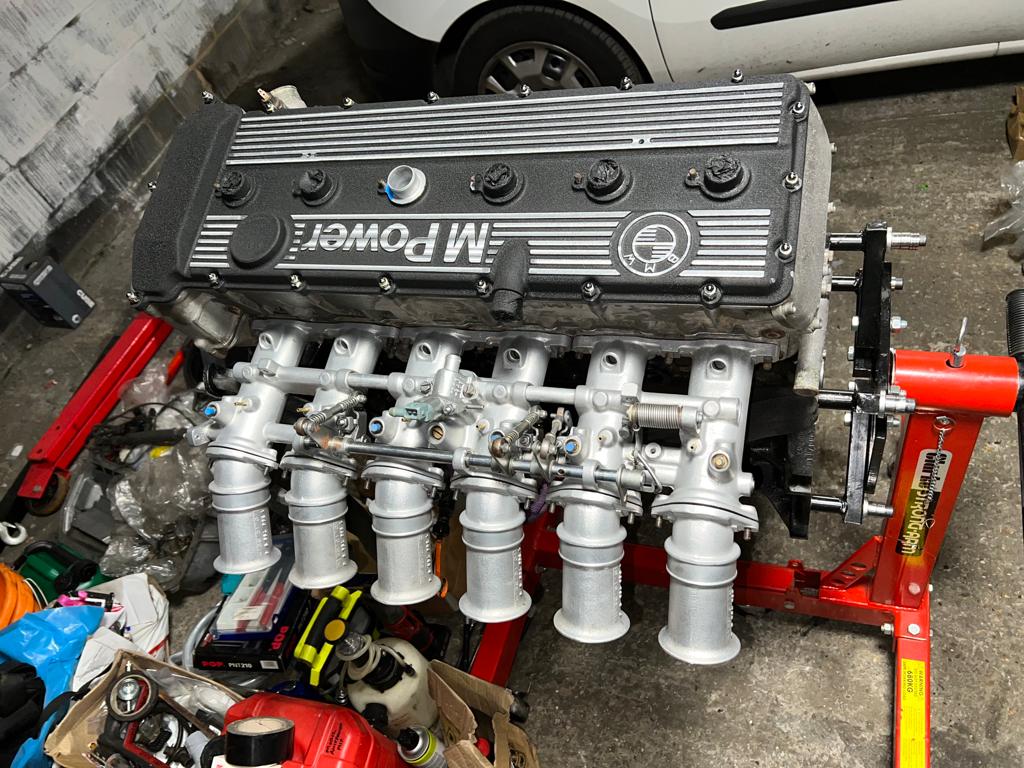

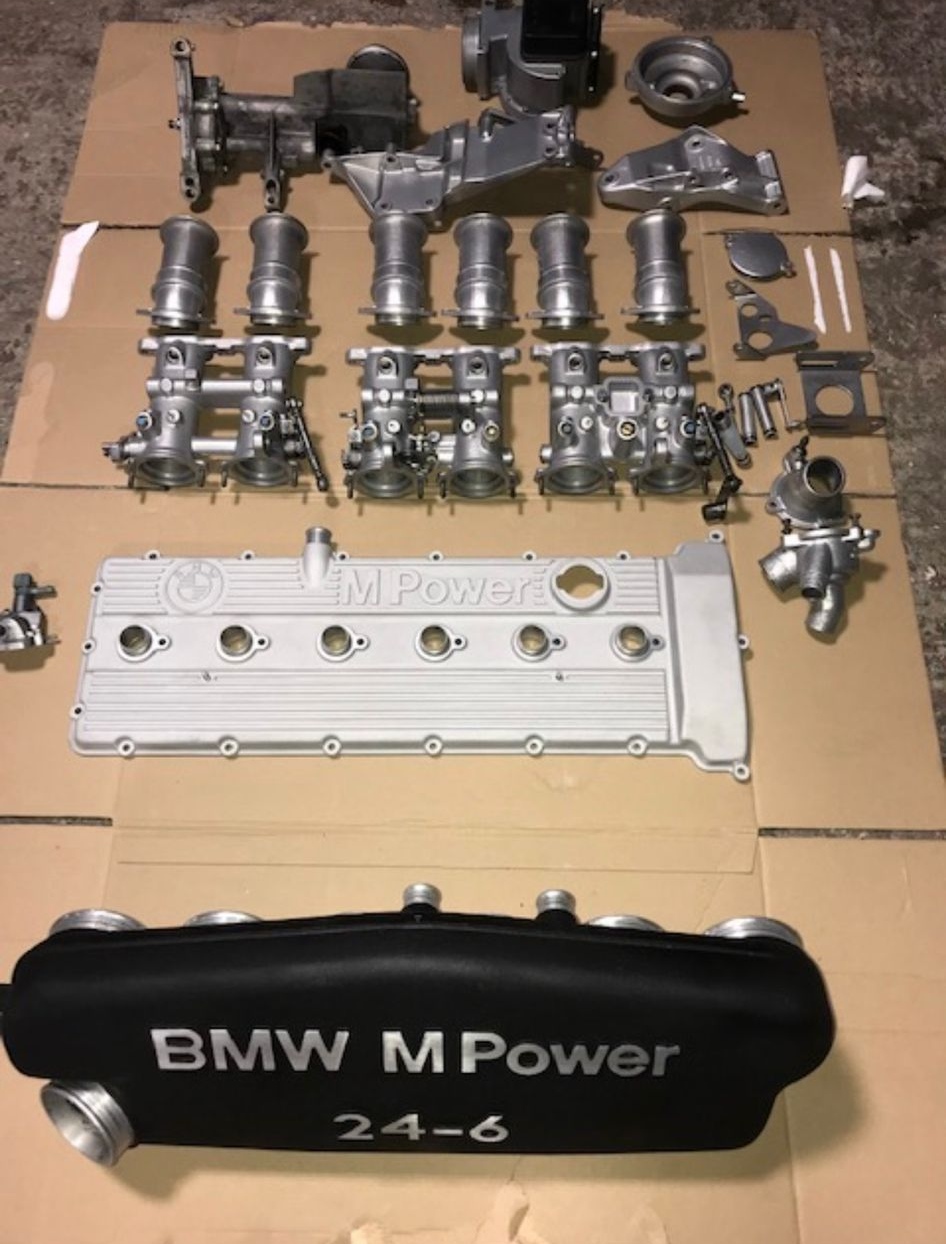

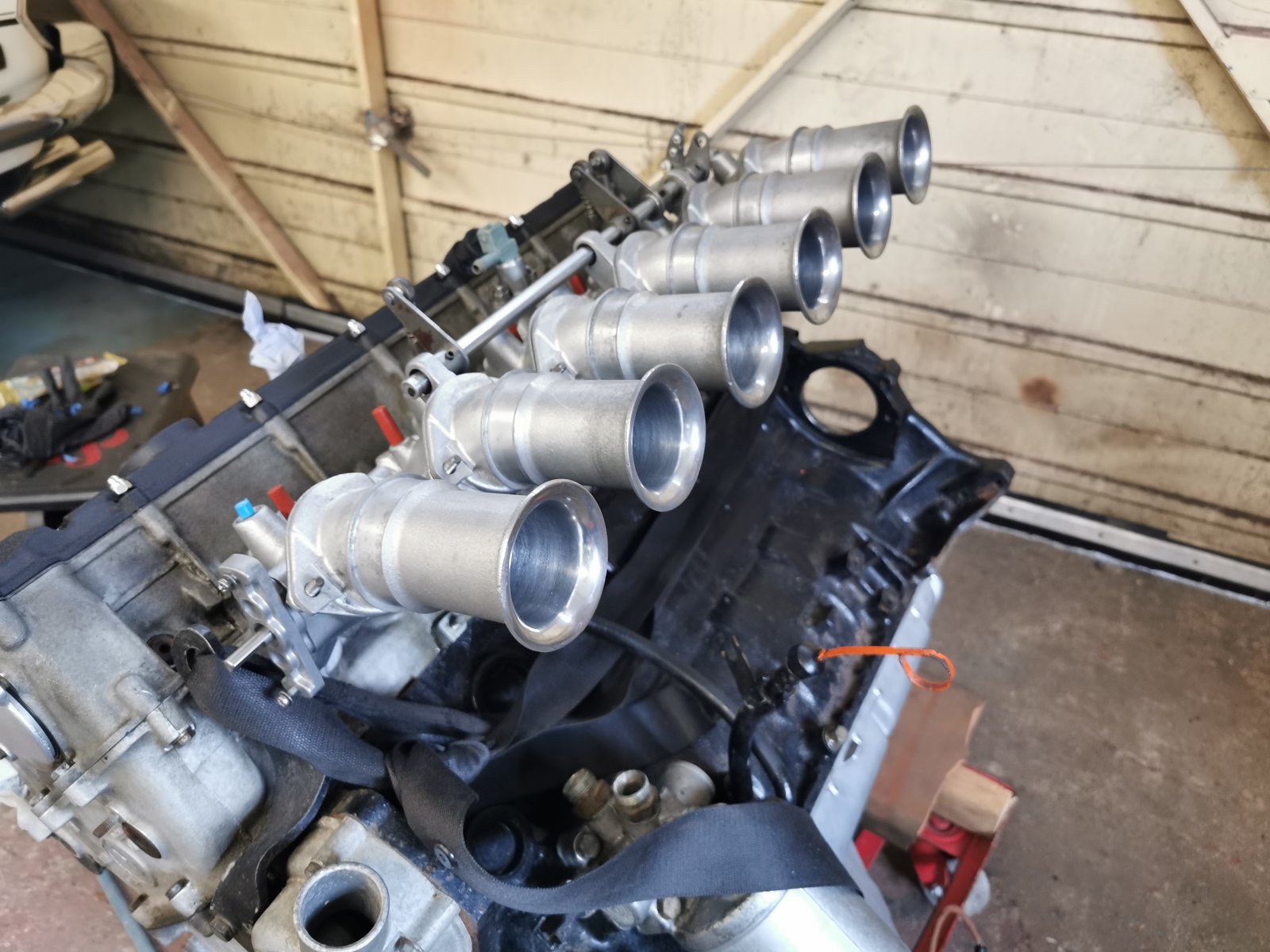

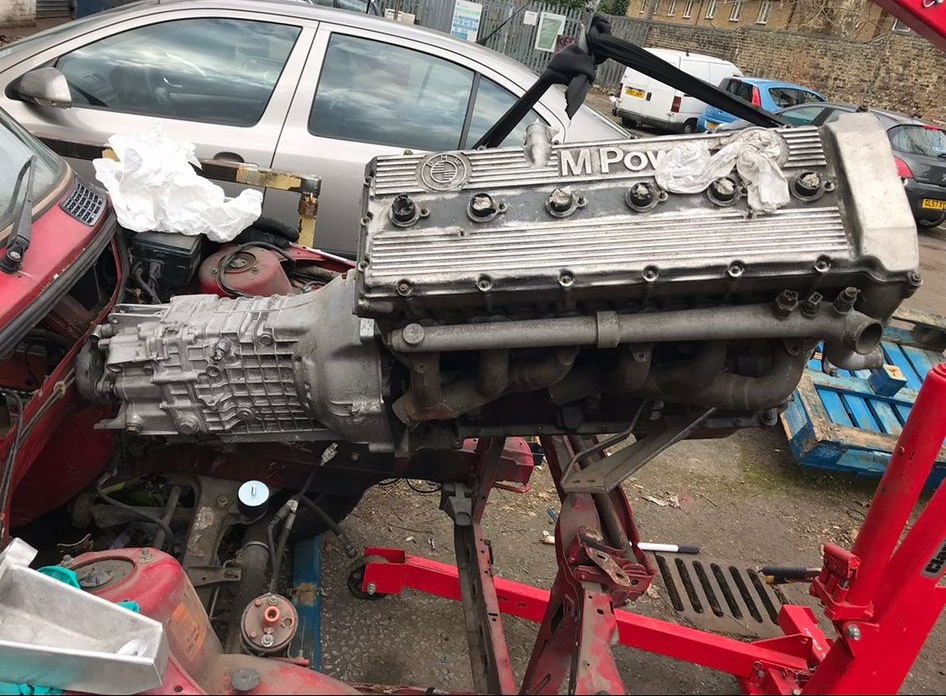

Well she's here and I'm still drooling.
Throttle bodies stripped as they were sticking a bit. Waiting on new linkage shaft bearings, a nice change to welding!


Attachments

  • IMG-20220603-WA0012.jpg
    159.4 KB · Views: 147
  • IMG_20220603_145951.jpg
    286.2 KB · Views: 153

nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK

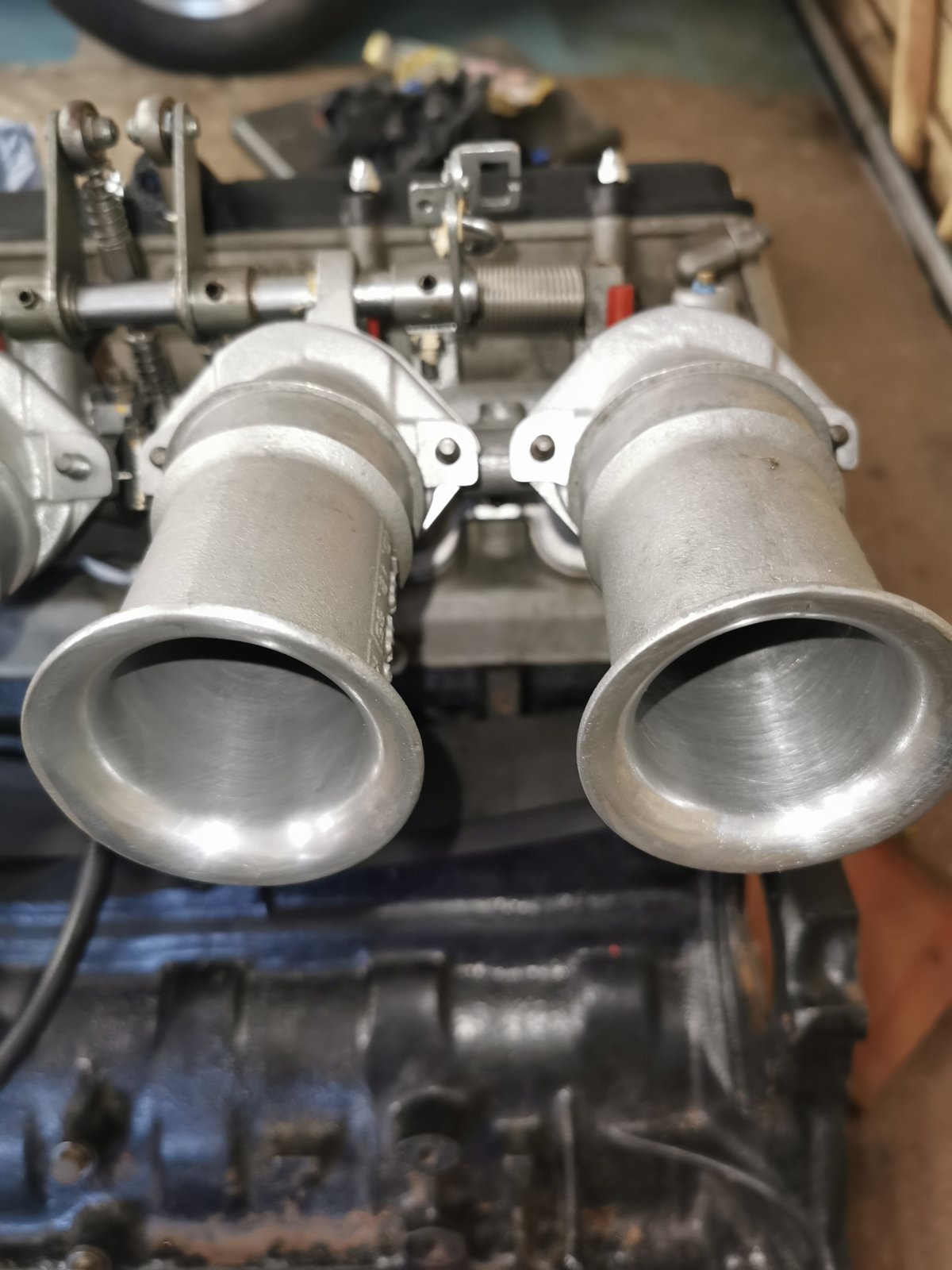

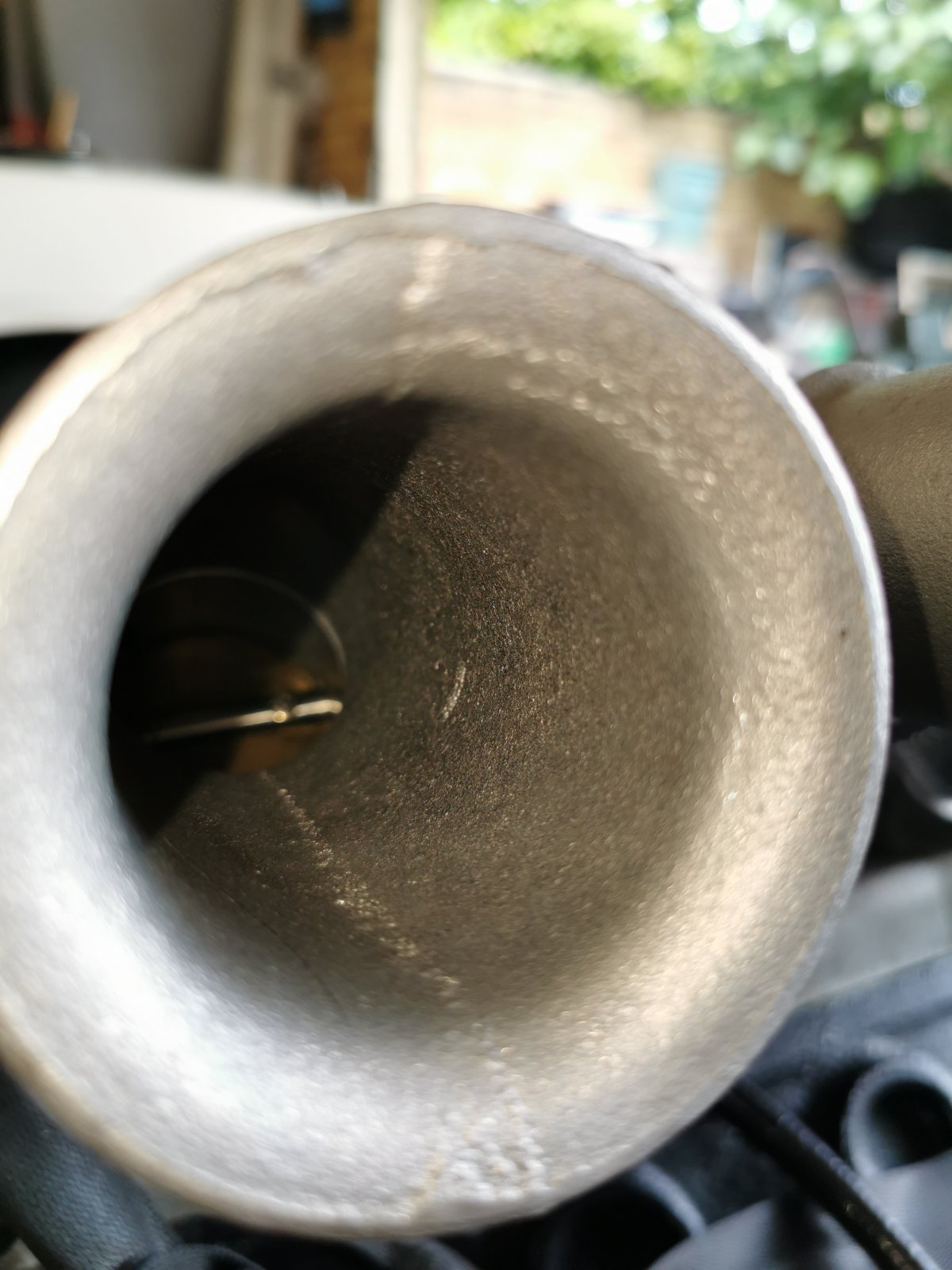

Trumpets have had the casting marks smoothed and polished. I will at some point go standalone but for now will just get it running as per factory.

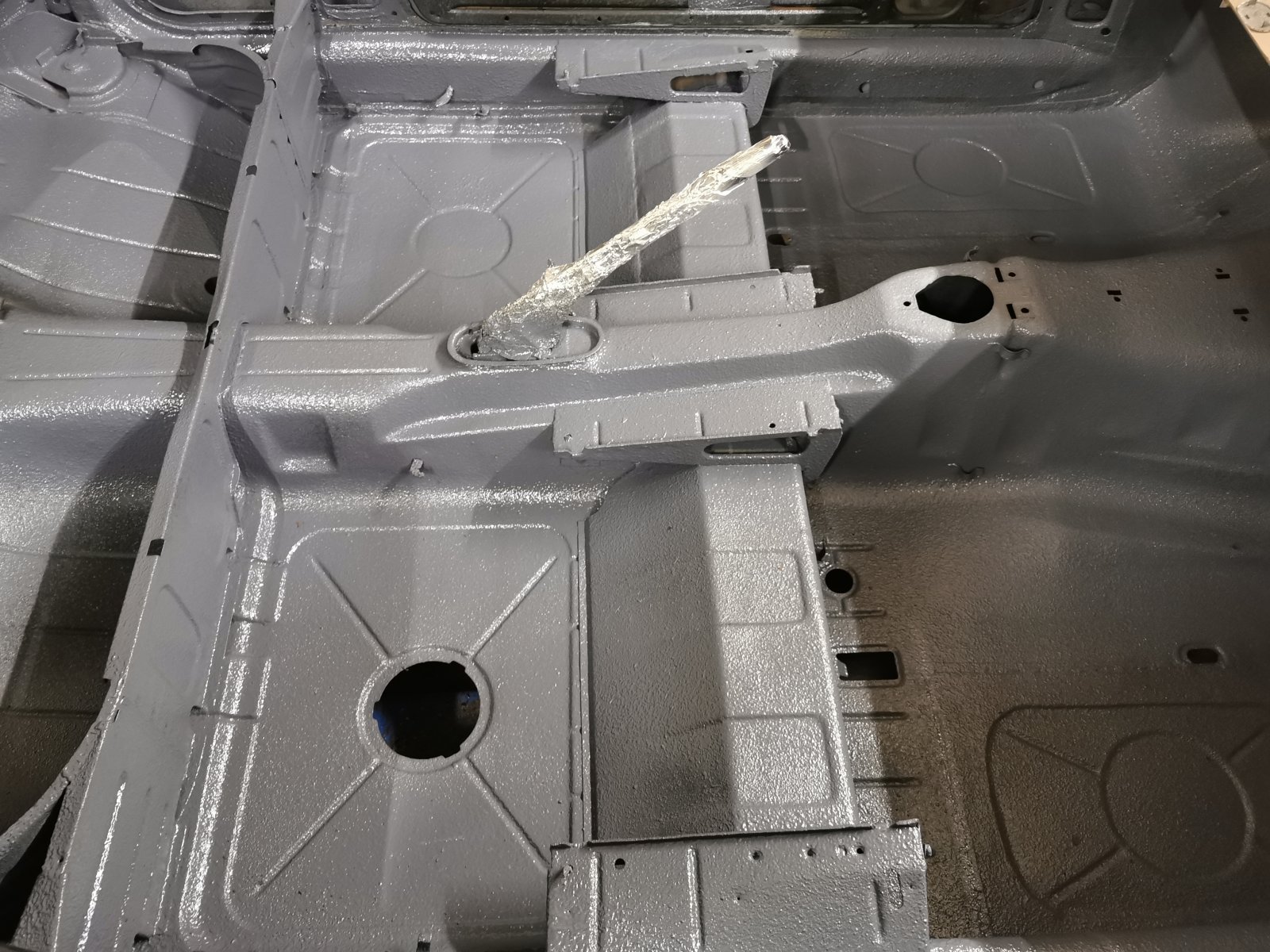

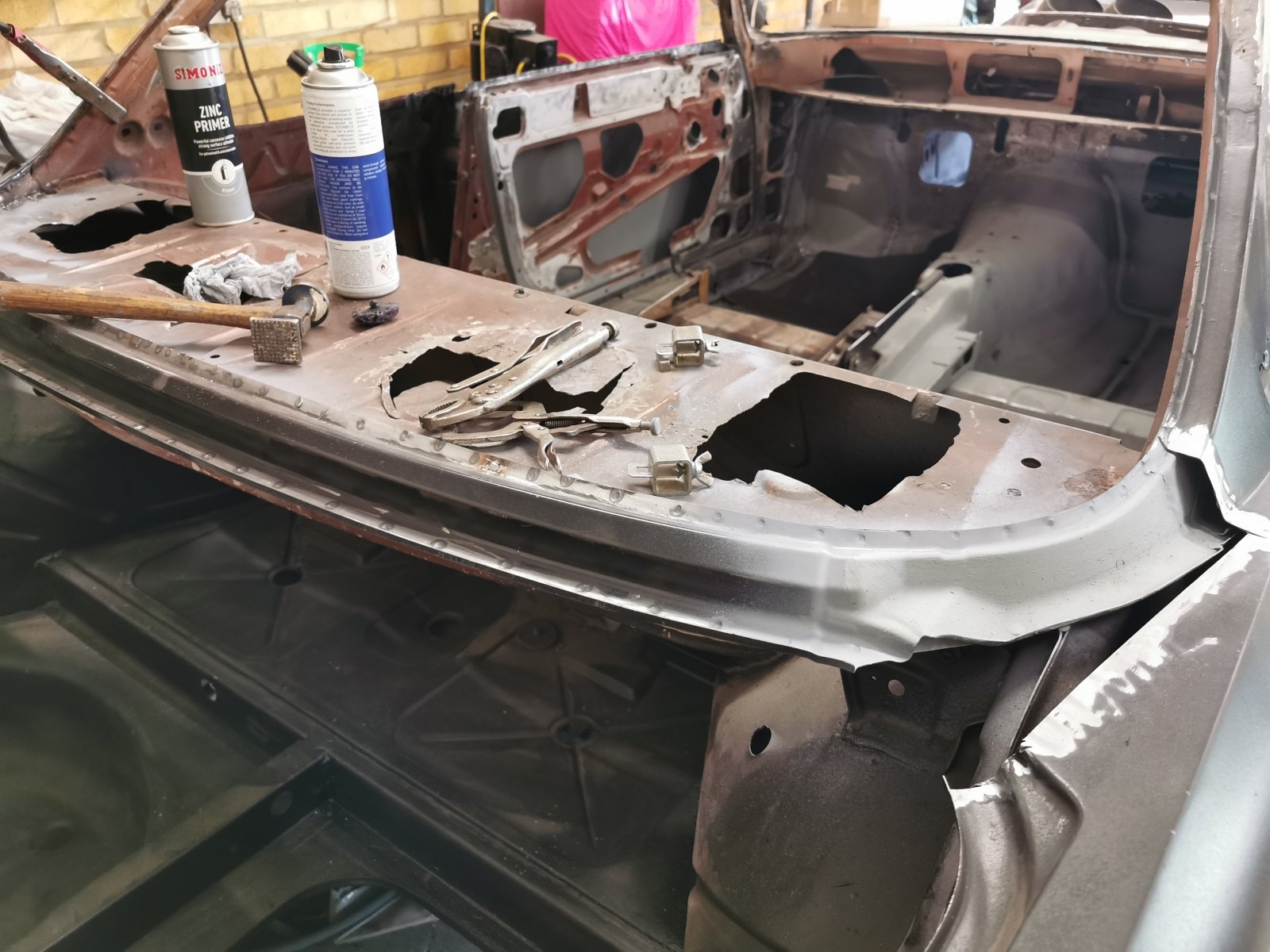

Also started getting the zinc paint down on the floor and got the parcel shelf cleaned up a bit more. Need to hit the seams with some epoxy so I can seal them all and get the lizardskin down too! A nice feeling doing something other than welding


Attachments

  • IMG_20220605_142300.jpg
    250.9 KB · Views: 159
  • IMG_20220605_191610.jpg
    186.6 KB · Views: 153
  • IMG_20220604_165438.jpg
    195.2 KB · Views: 166
  • IMG_20220605_191150.jpg
    328.9 KB · Views: 143
  • IMG_20220604_170206.jpg
    315.6 KB · Views: 165

nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK

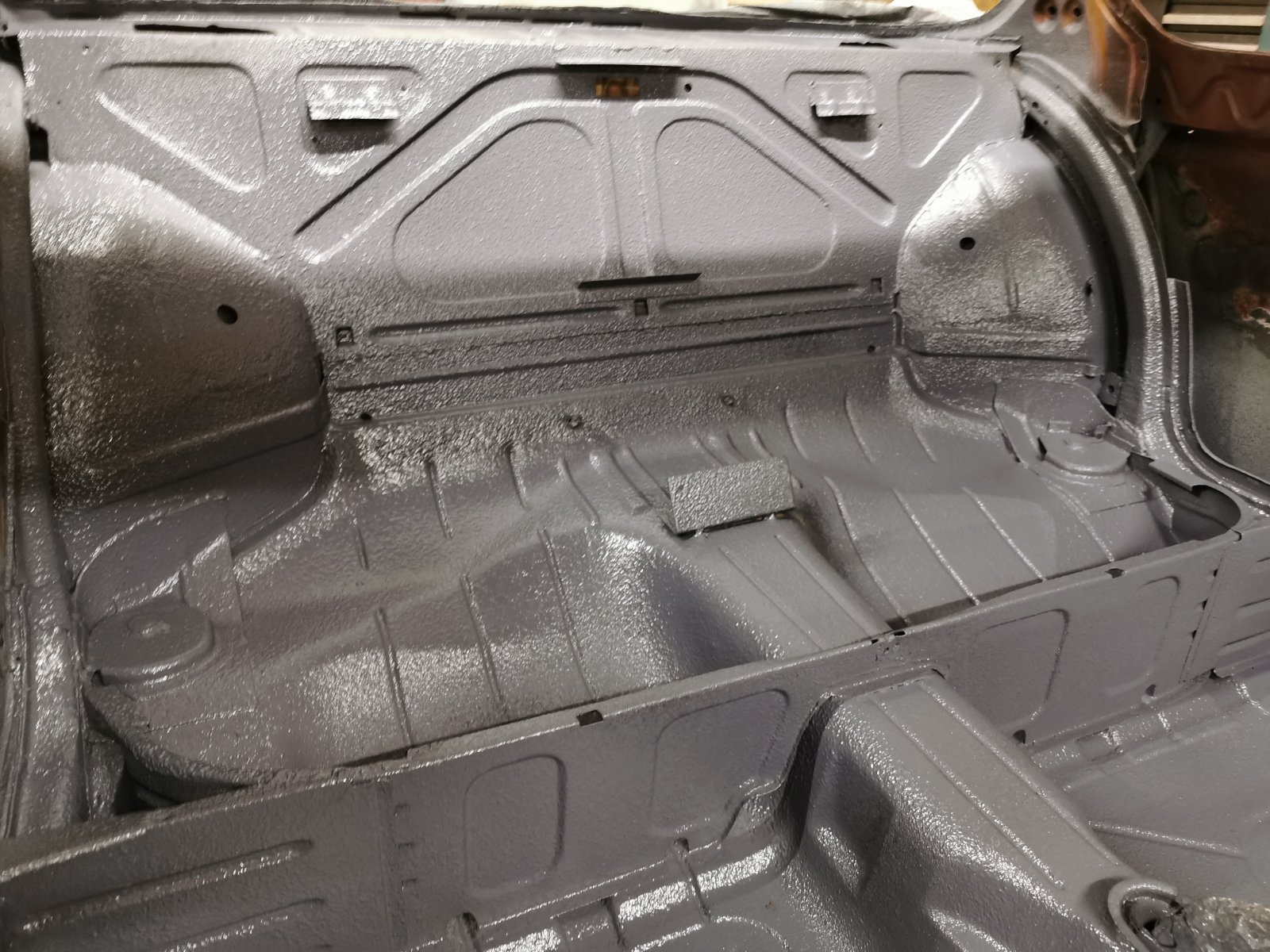

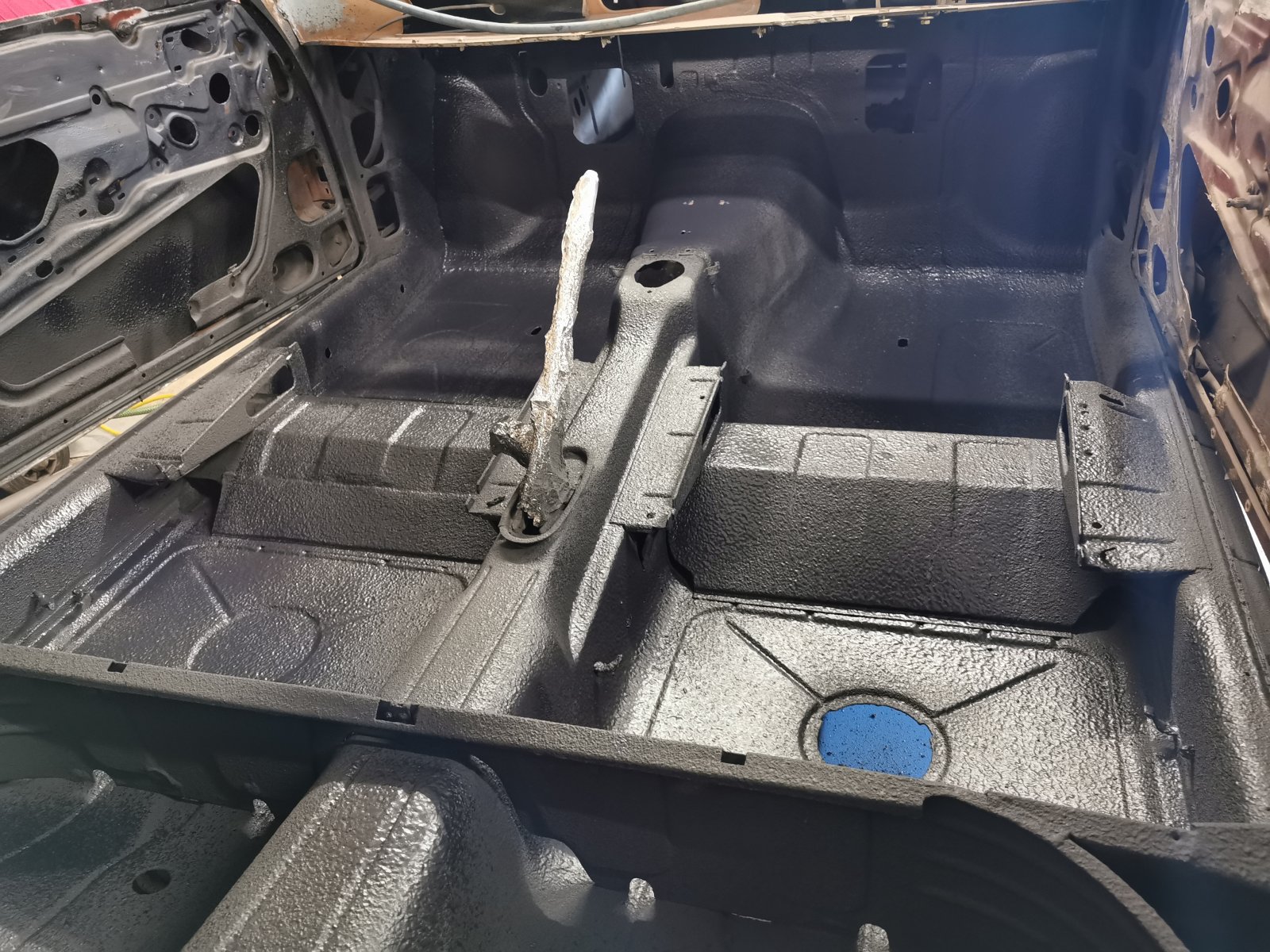

The first coat of lizard skin is down. 1 more to go and then the ceramic heat insulation. Really looking forward to seeing how it turns out


Attachments

  • IMG_20220609_212150.jpg
    371.8 KB · Views: 160
  • IMG_20220609_212144.jpg
    376.5 KB · Views: 137

nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK
The point of no return...

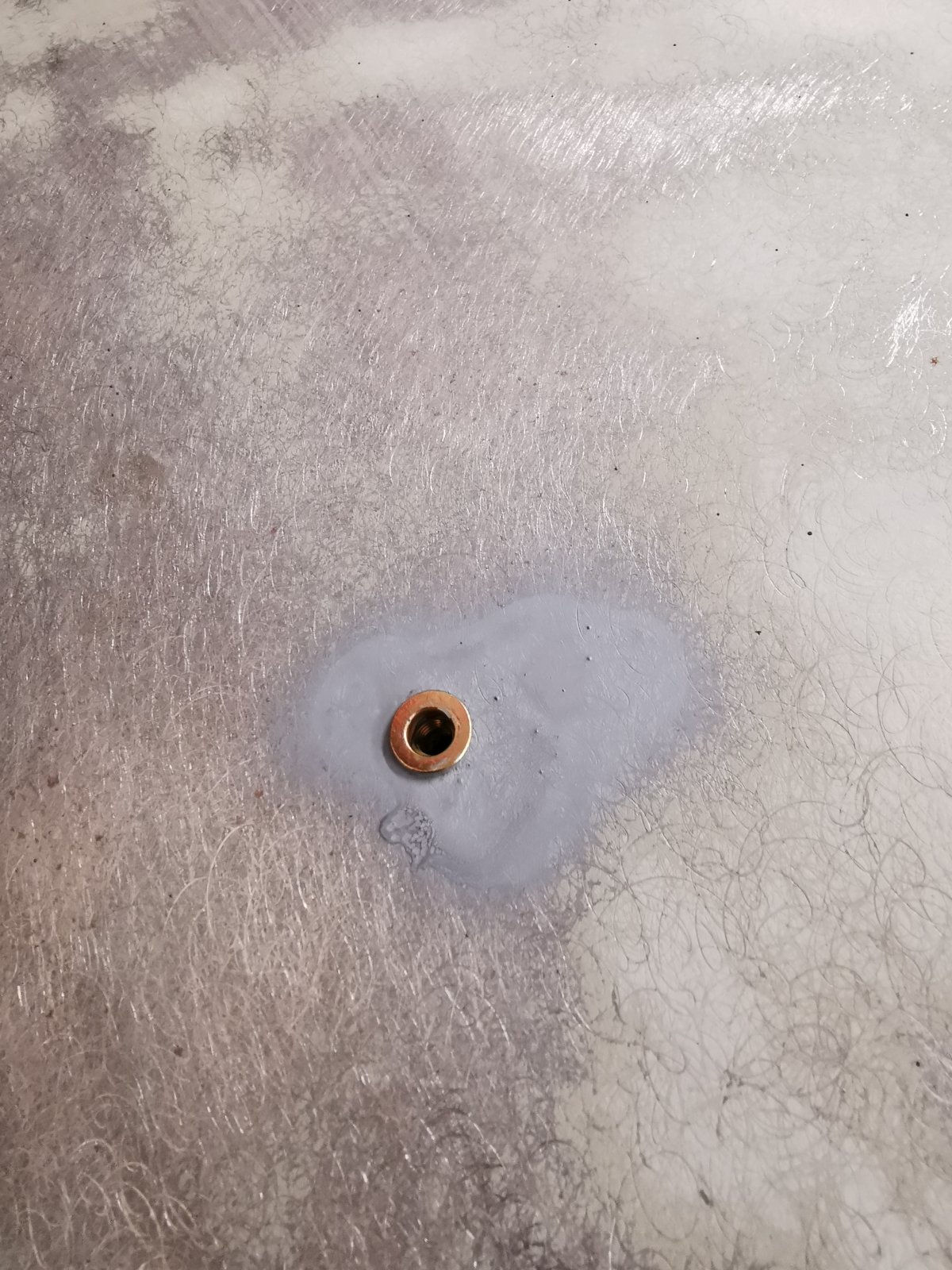

M5 rivnuts installed

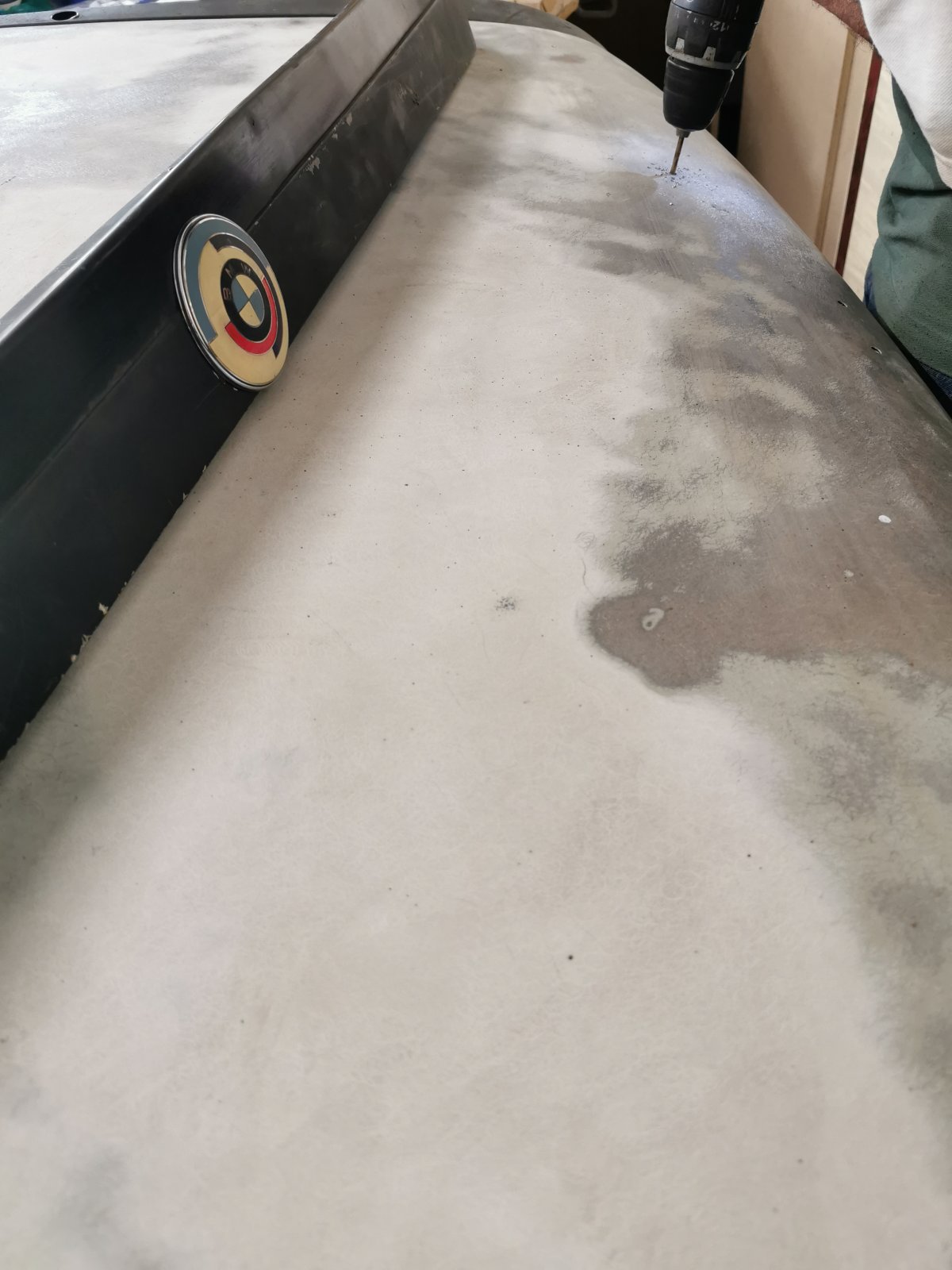

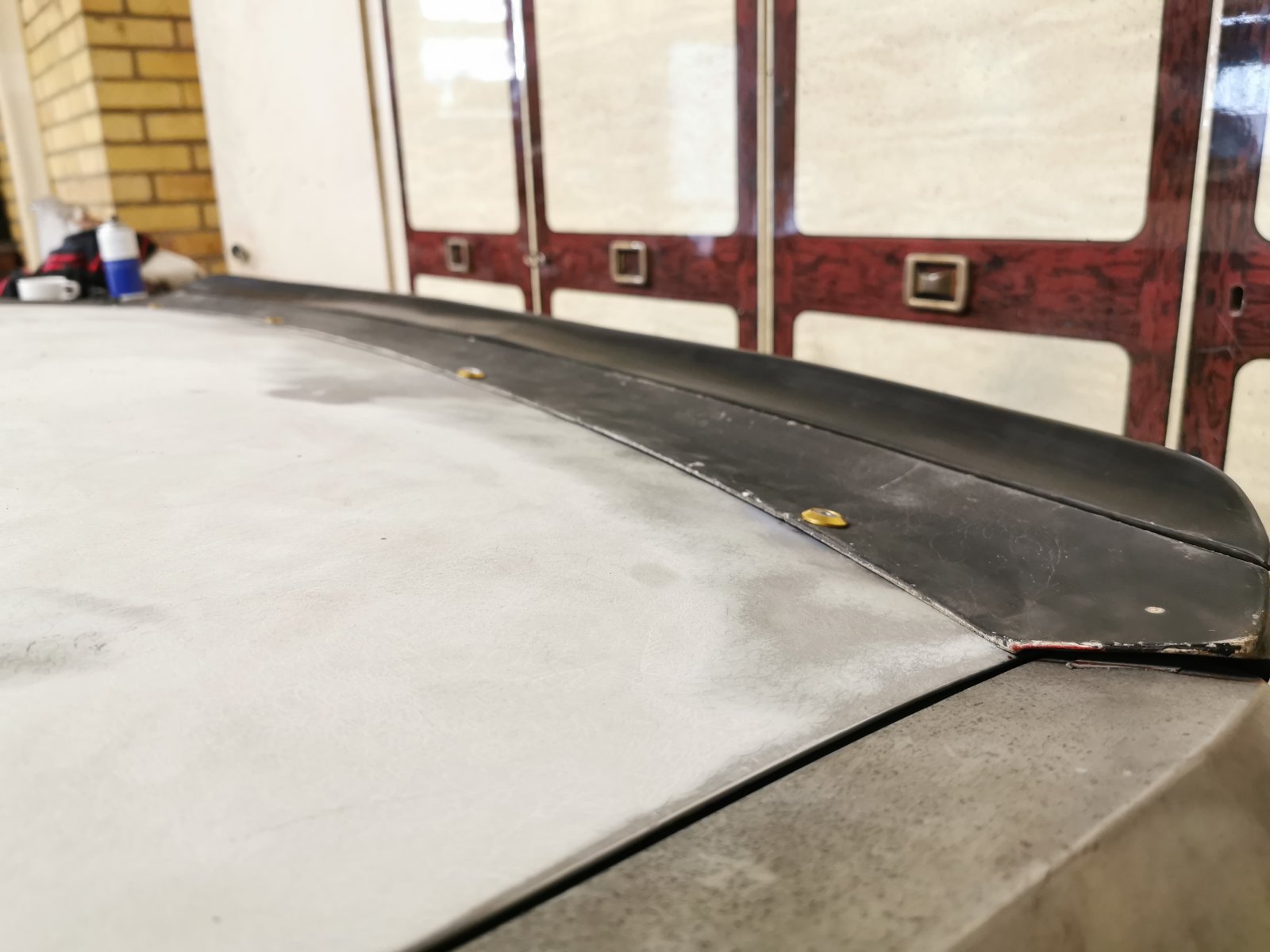

Spoiler on! It's the later csl type with the closed end caps, so to make the rubber fit I will have to cut the end studs down. Bottom edge will be glued down


Attachments

  • IMG_20220611_173742.jpg
    184.5 KB · Views: 125

nosmonkey

In Rust We Trust
Site Donor
Messages
1,141
Reaction score
1,043
Location
London, UK

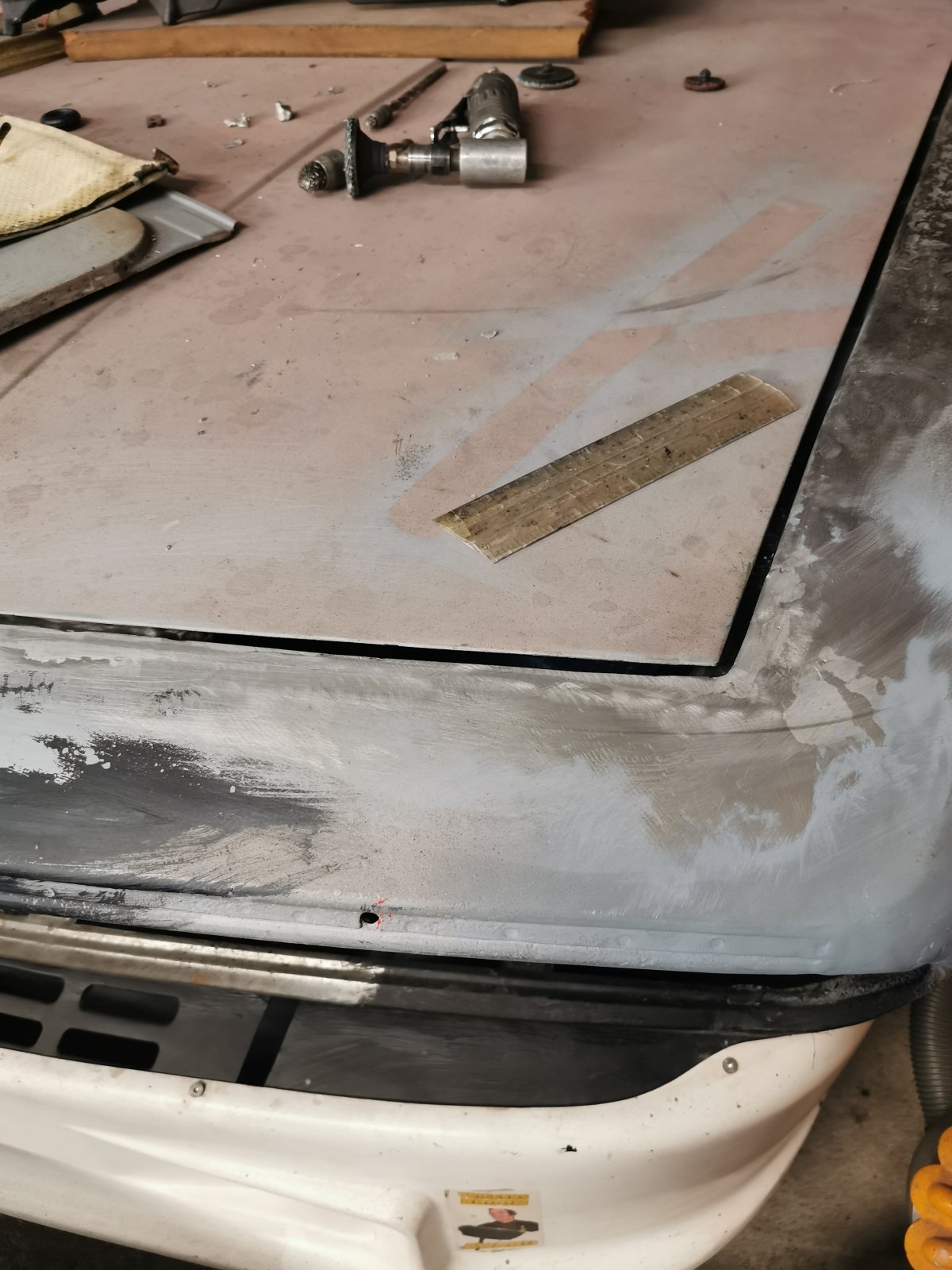

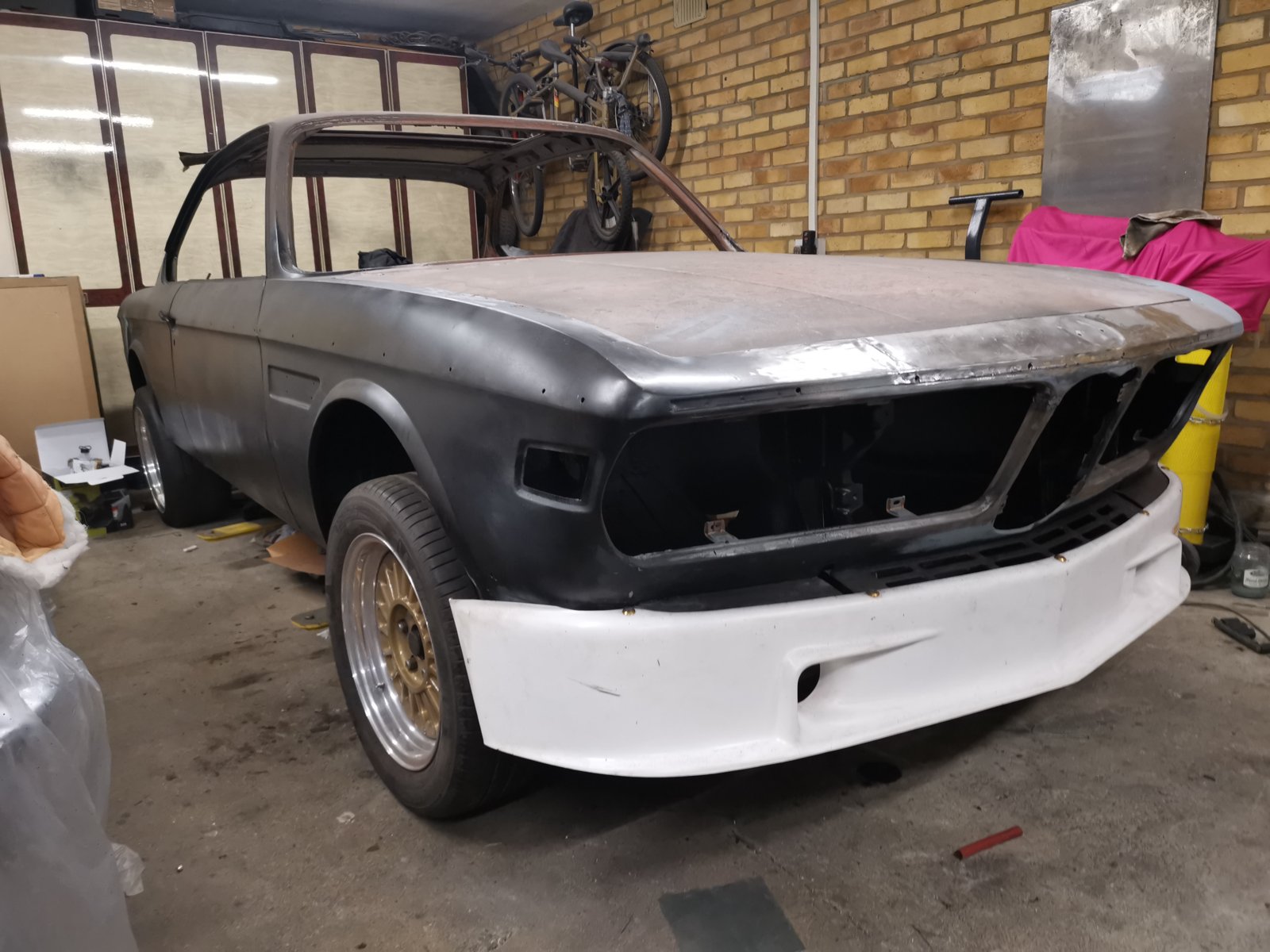

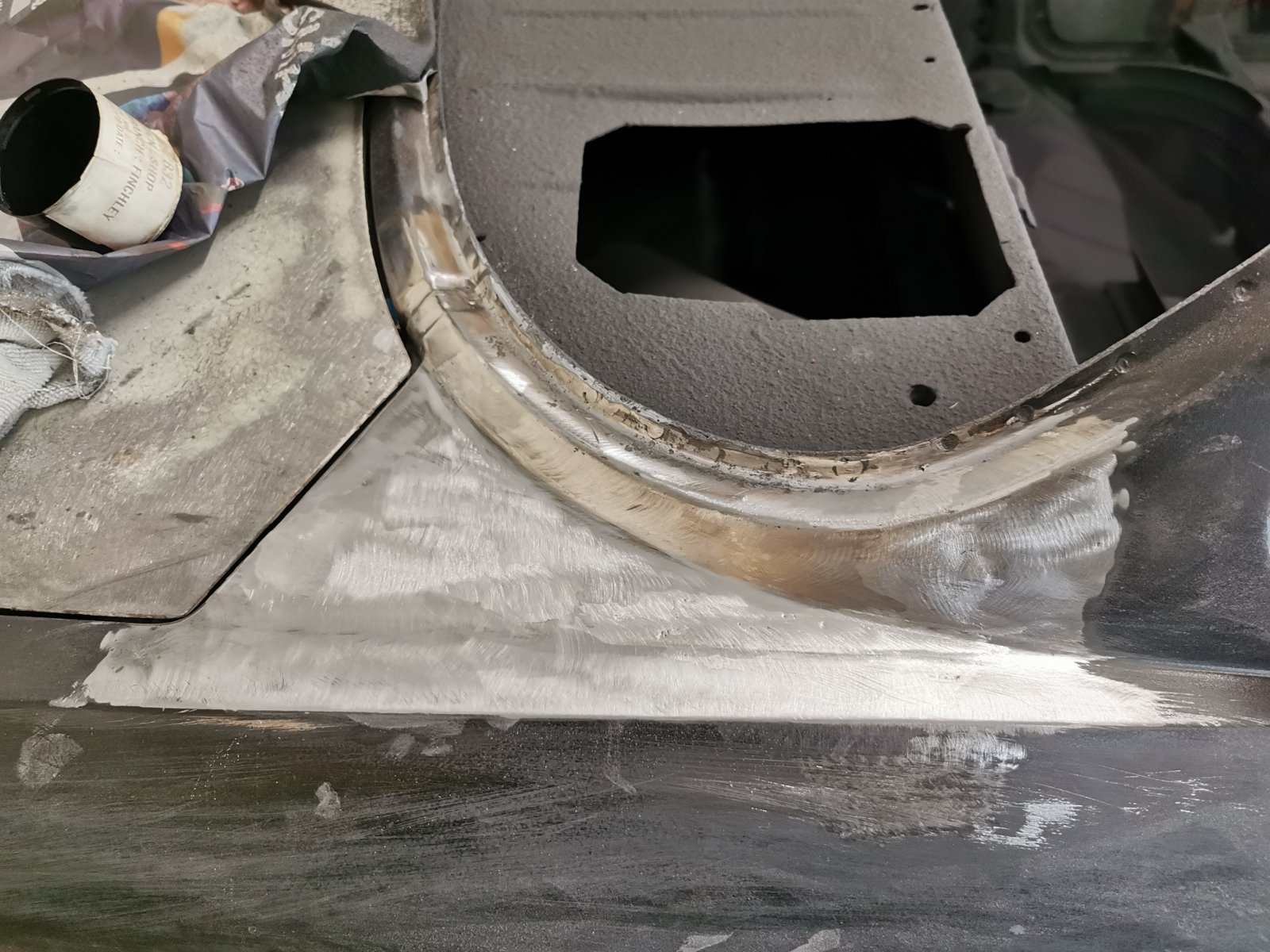

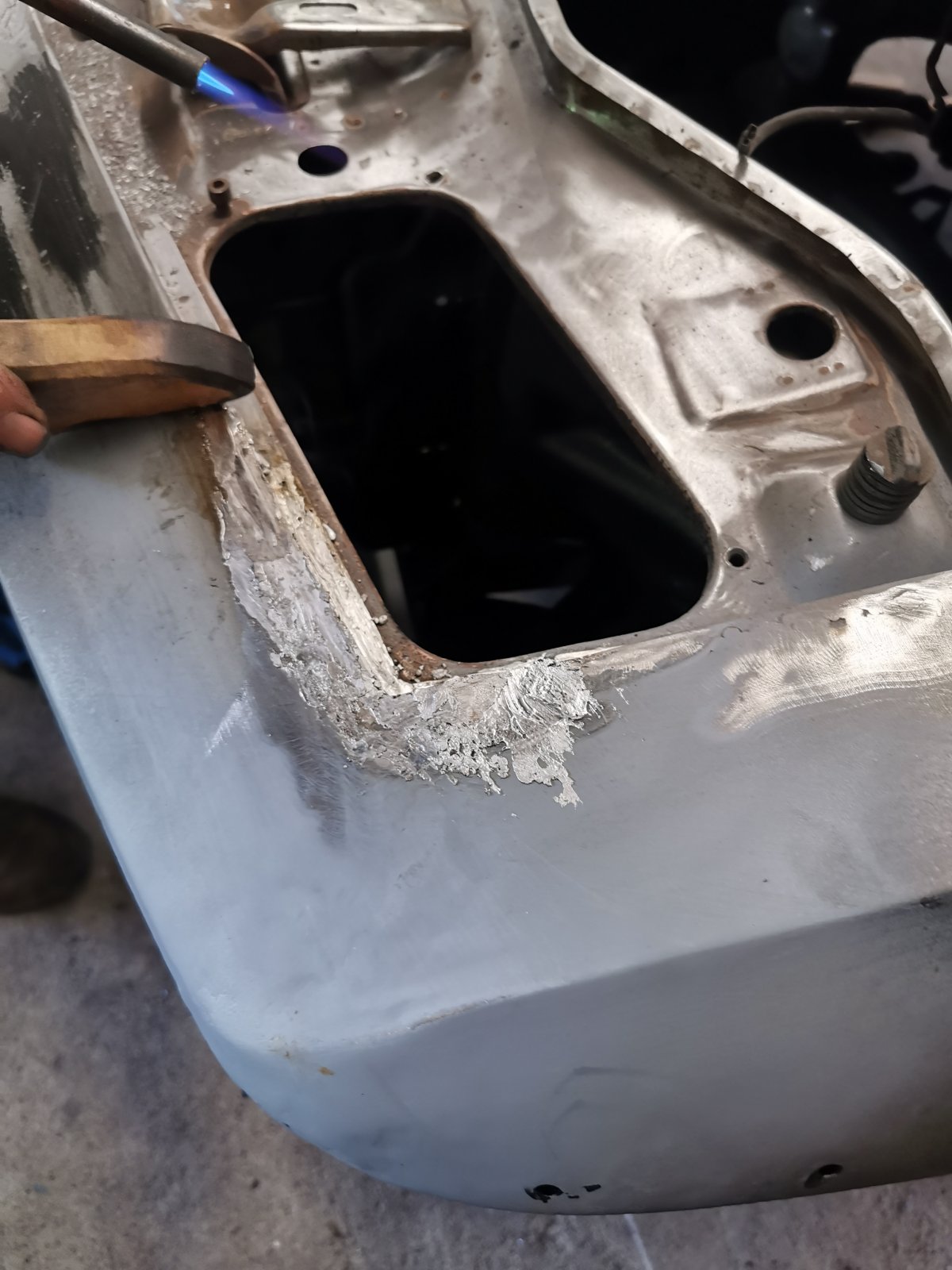

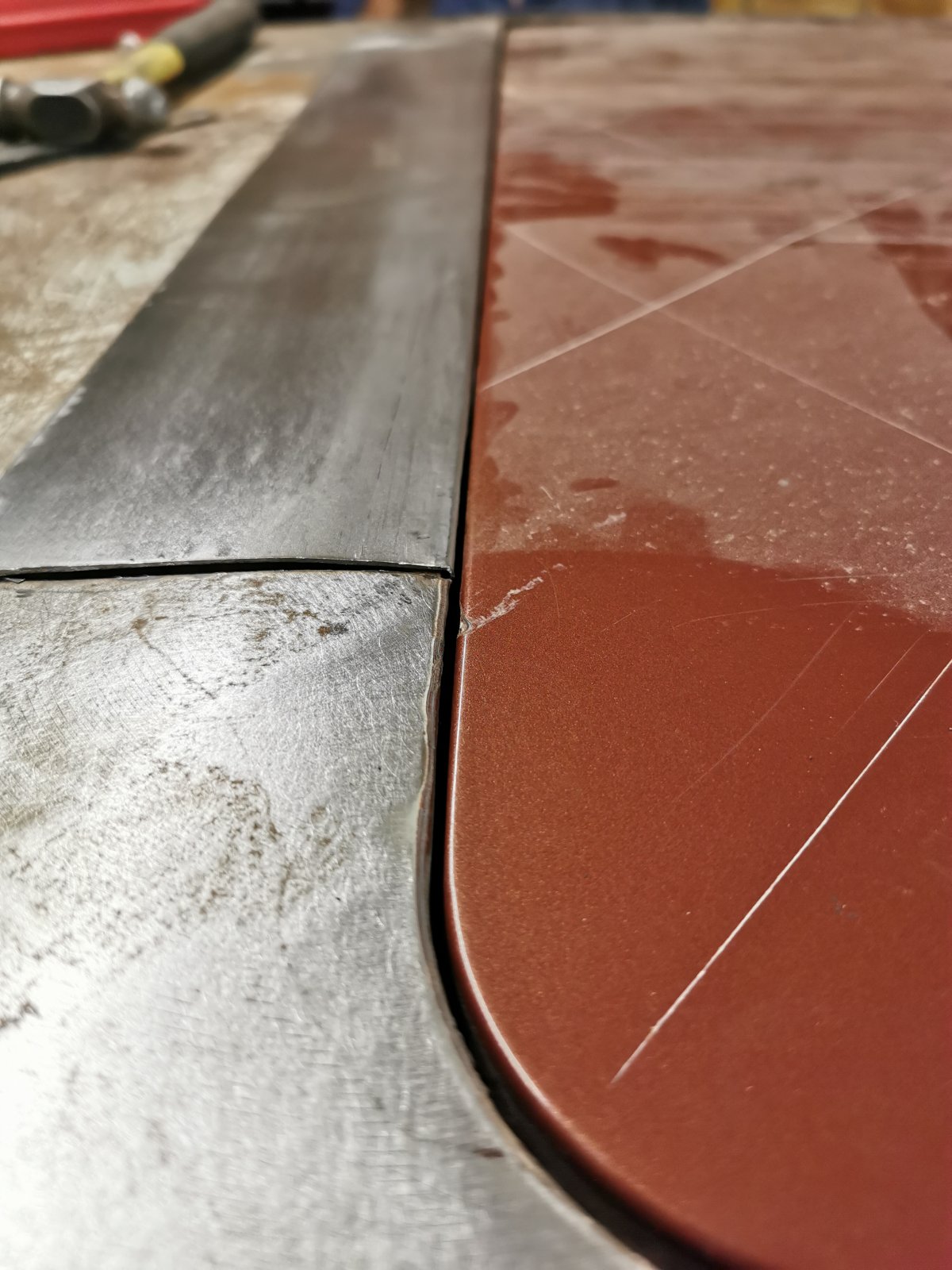

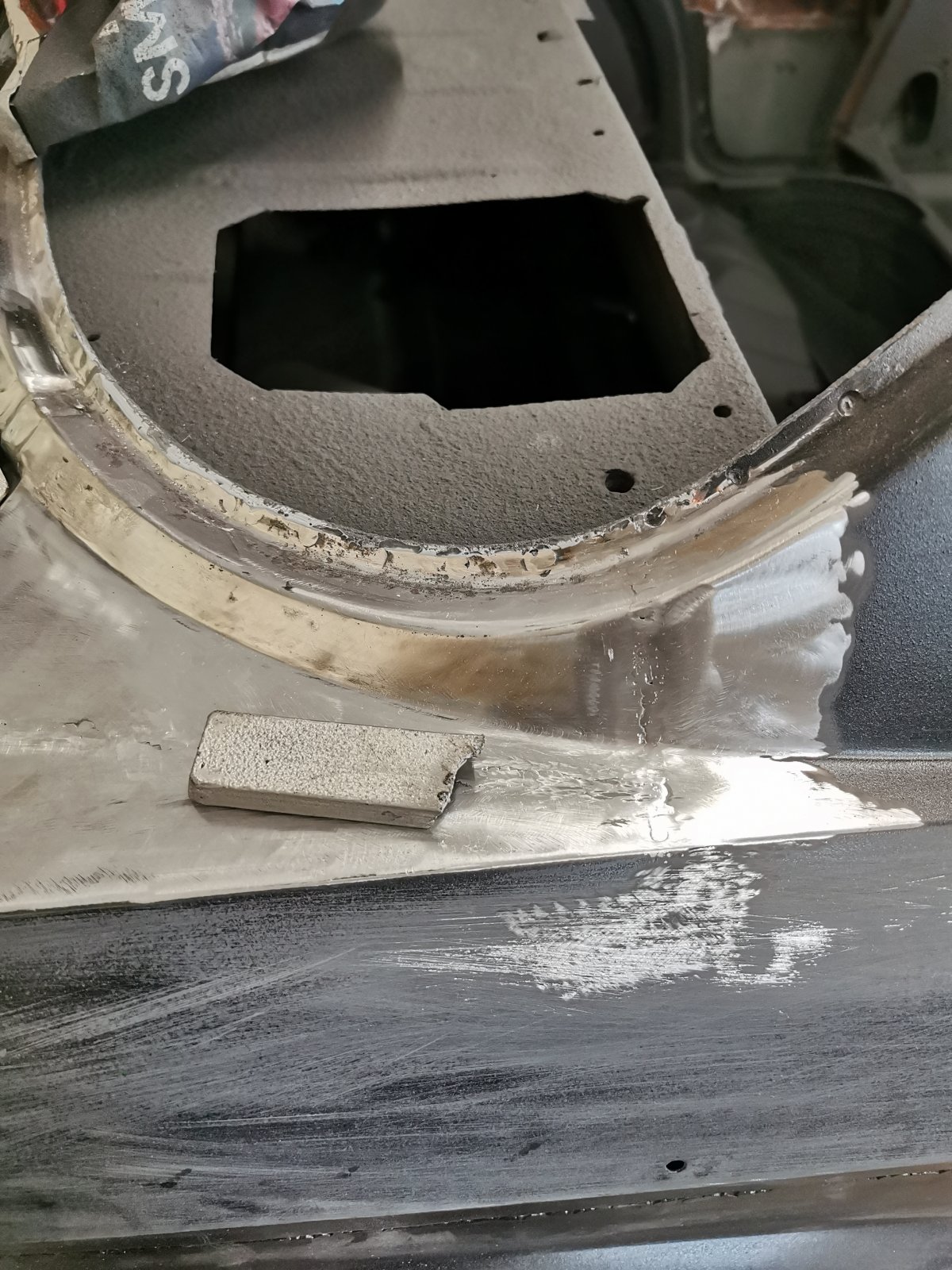

Leadwork is all finished up now on the tops of the wings. Where the car had been in a bit before the gaps on the front end were everywhere. I've got 2 bonnets here that are both approx 3mm shorter on one side than the other which is odd and ruled that out. The gaps are a hell of a lot better but around the front badge it is about 1mm tighter than I'd like. Also the passenger side just didn't match up gap wise with the drivers side. A bit of lead on the edging just to get the gaps a bit tighter and more consistent. It's not bolted down so not final, but it's around 5-6mm each side and around 4mm at the front edge so far.
