what batteries did you use?
what batteries did you use?
One Antigravity ATX20-hd. ( Ultimately removed.)

Or, lead acid/AGM: two Batteries Plus 12v 24HL-BS AGM12/0.

Long story, but the Antigravity was removed because the dumb installer guy ( that’s me) had busted the brushes in the alternator and it wasn't charging the Lithium Antigravity unit. I removed Antigravity unit.

With 90% confidence, there wasn't a compatability issue. The broken brushes were the problem. I changed to the AGMs and then found the brush problem after the two AGMs were in place. I left well enough alone.

RP

Last edited:

BMW3.0CSi

Well-Known Member
Site Donor
Messages
95
Reaction score
63
Location
The Netherlands
RP,

Can you share some pictures of your motor mounts? And how you managed to get the motor properly in its place?

I’m working on a s38b36 swap but with using the original motor mounts M30/e9 I had to take out the radiator because the fan hits it.


Patton

Well-Known Member
Site Donor $
Messages
755
Reaction score
642
Location
Atlanta GA

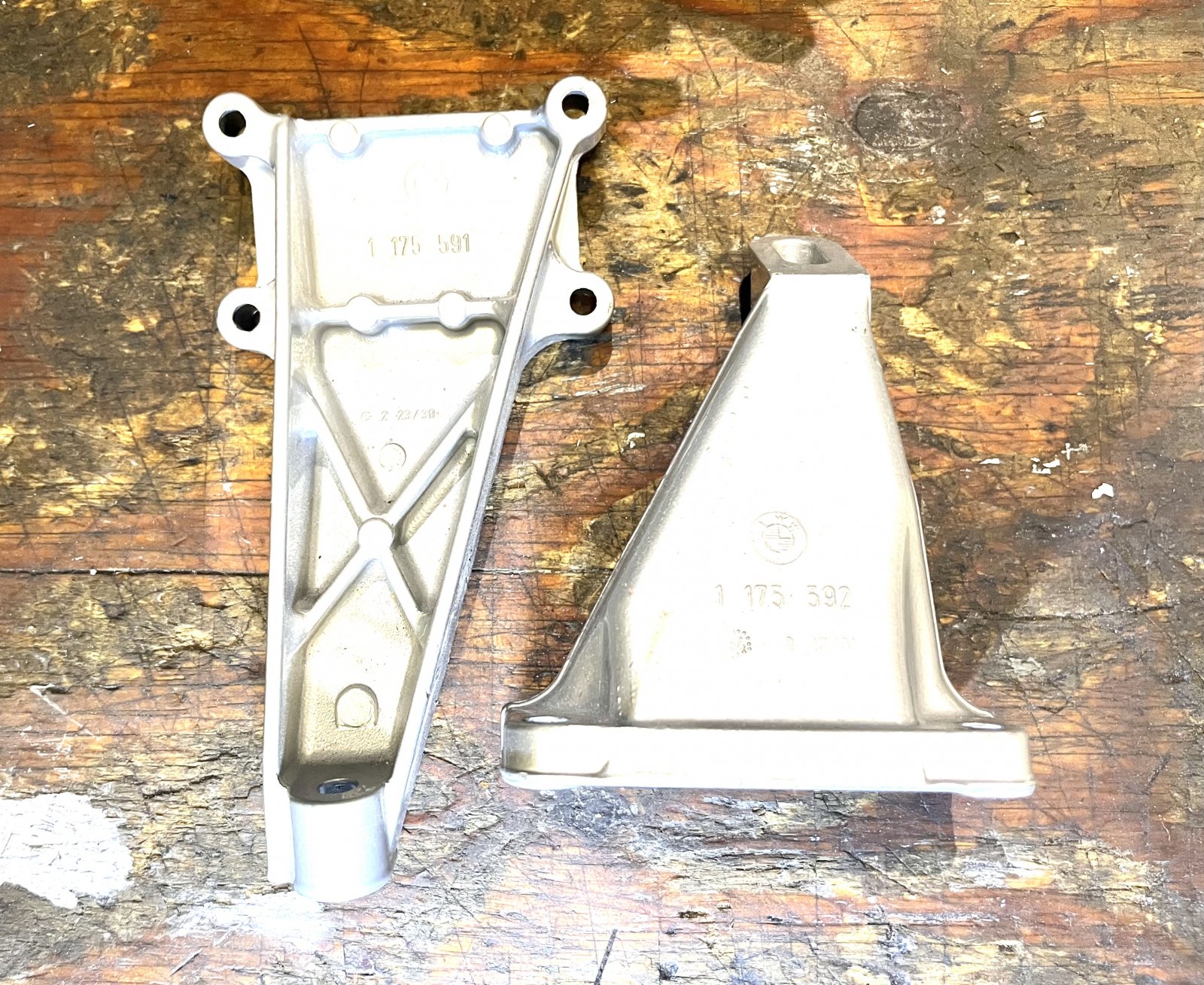

BMW3.0CSi: Photographs comming: Bottom line, the motor mounts were used off of the original 3.0 engine.


Patton

Well-Known Member
Site Donor $
Messages
755
Reaction score
642
Location
Atlanta GA

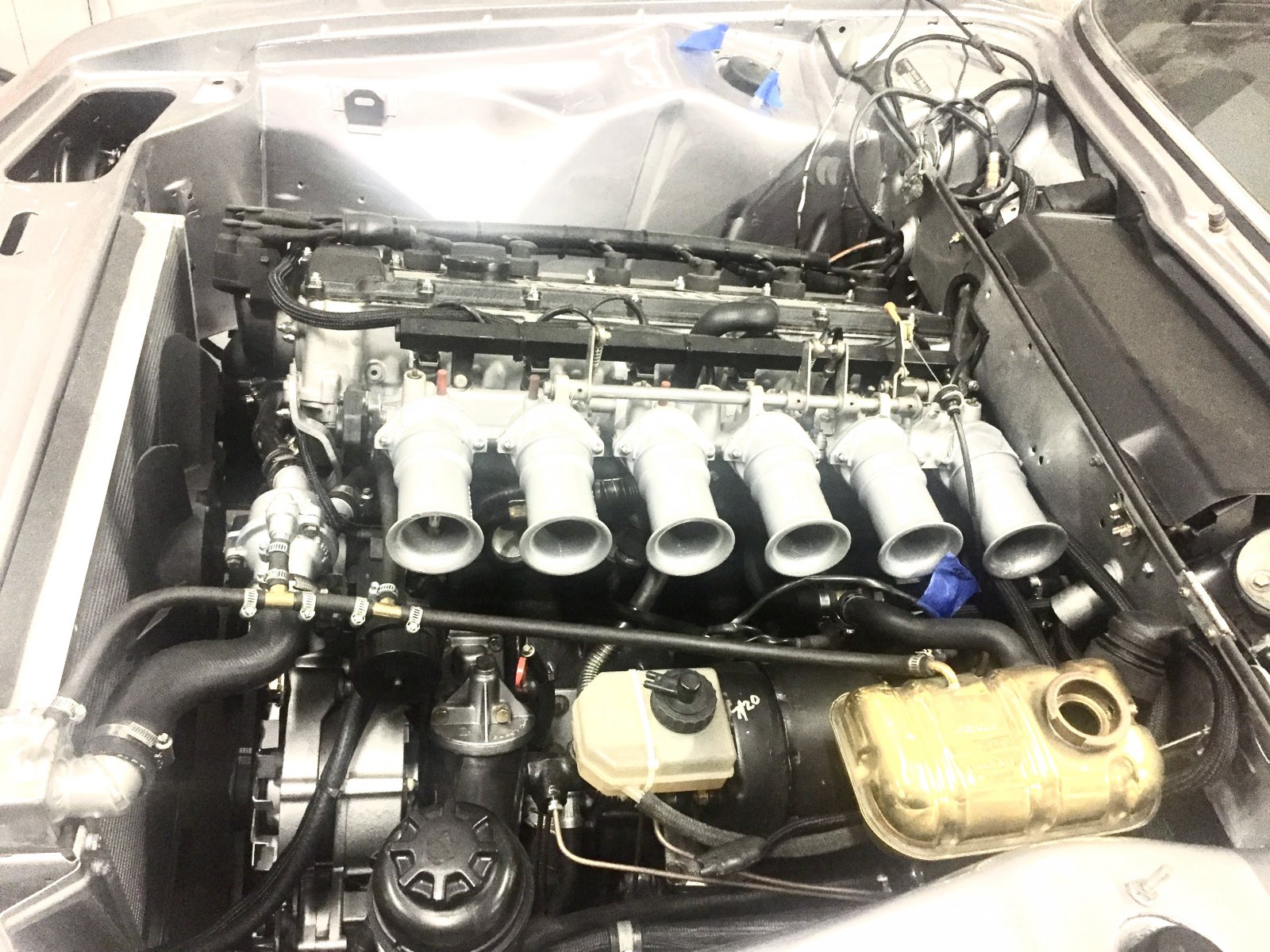

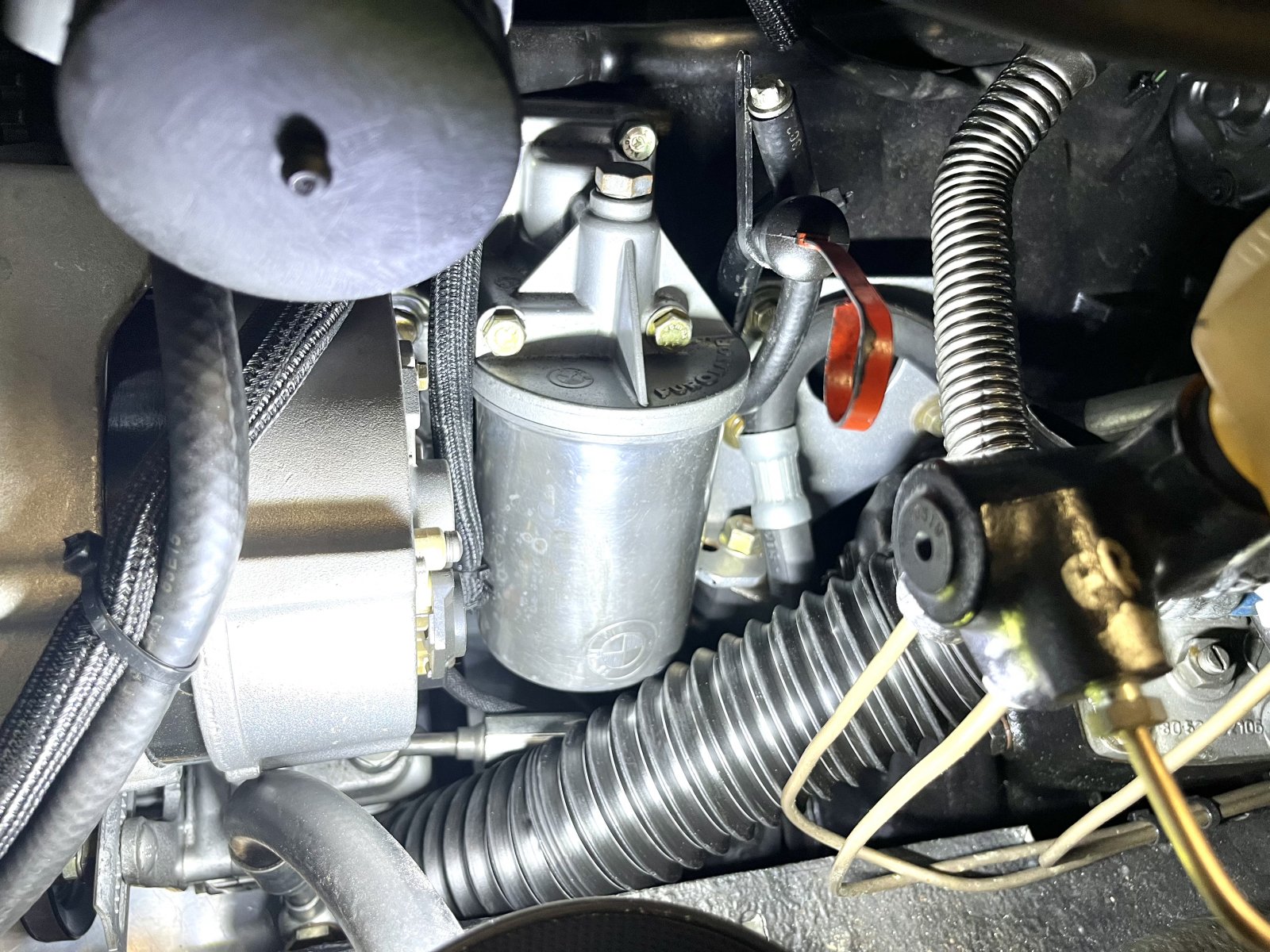

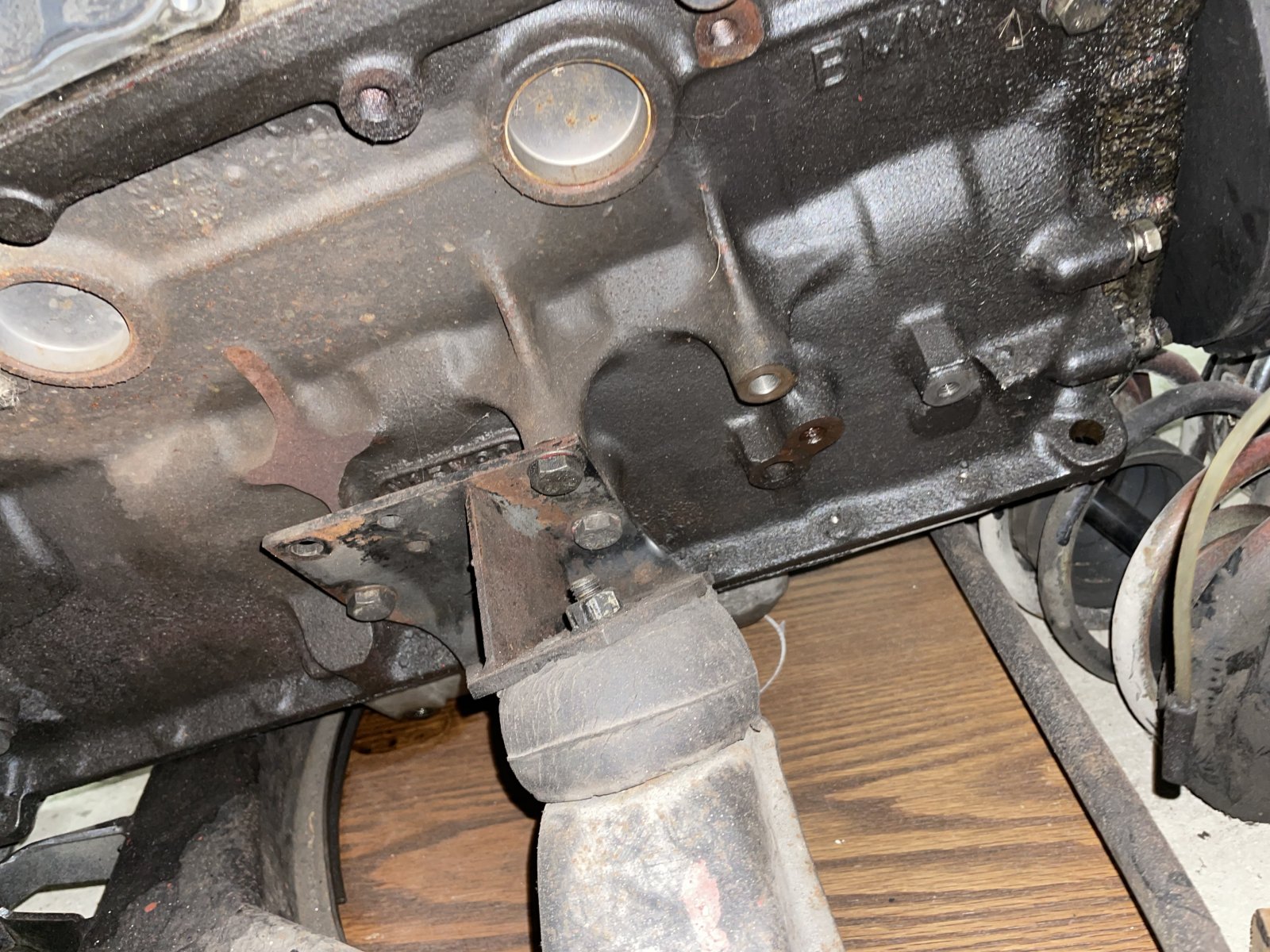

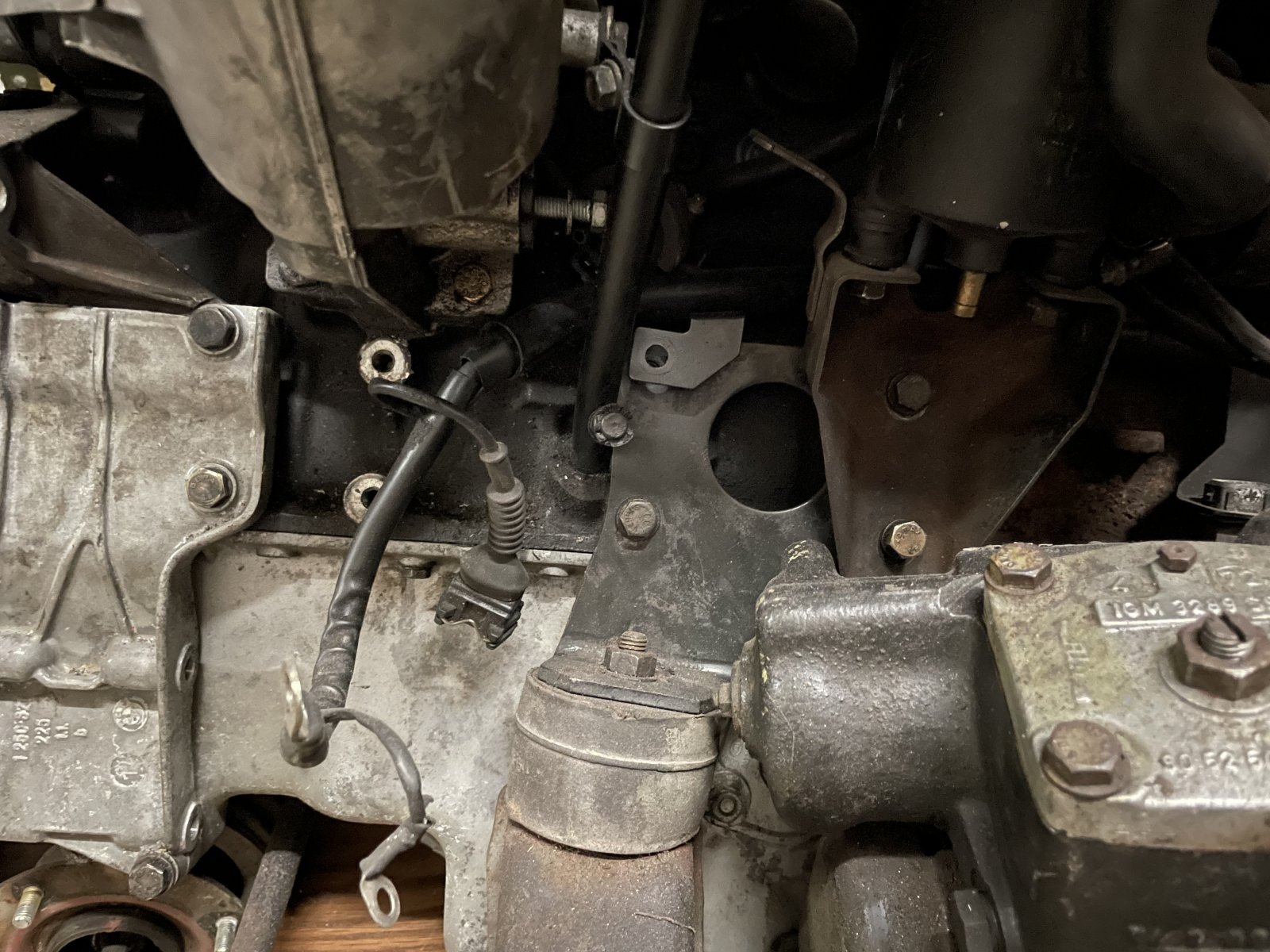

Hard to see it, look beside the oil filter housing. Driver side.

Lots of polished nuts!

Last edited:

Patton

Well-Known Member
Site Donor $
Messages
755
Reaction score
642
Location
Atlanta GA

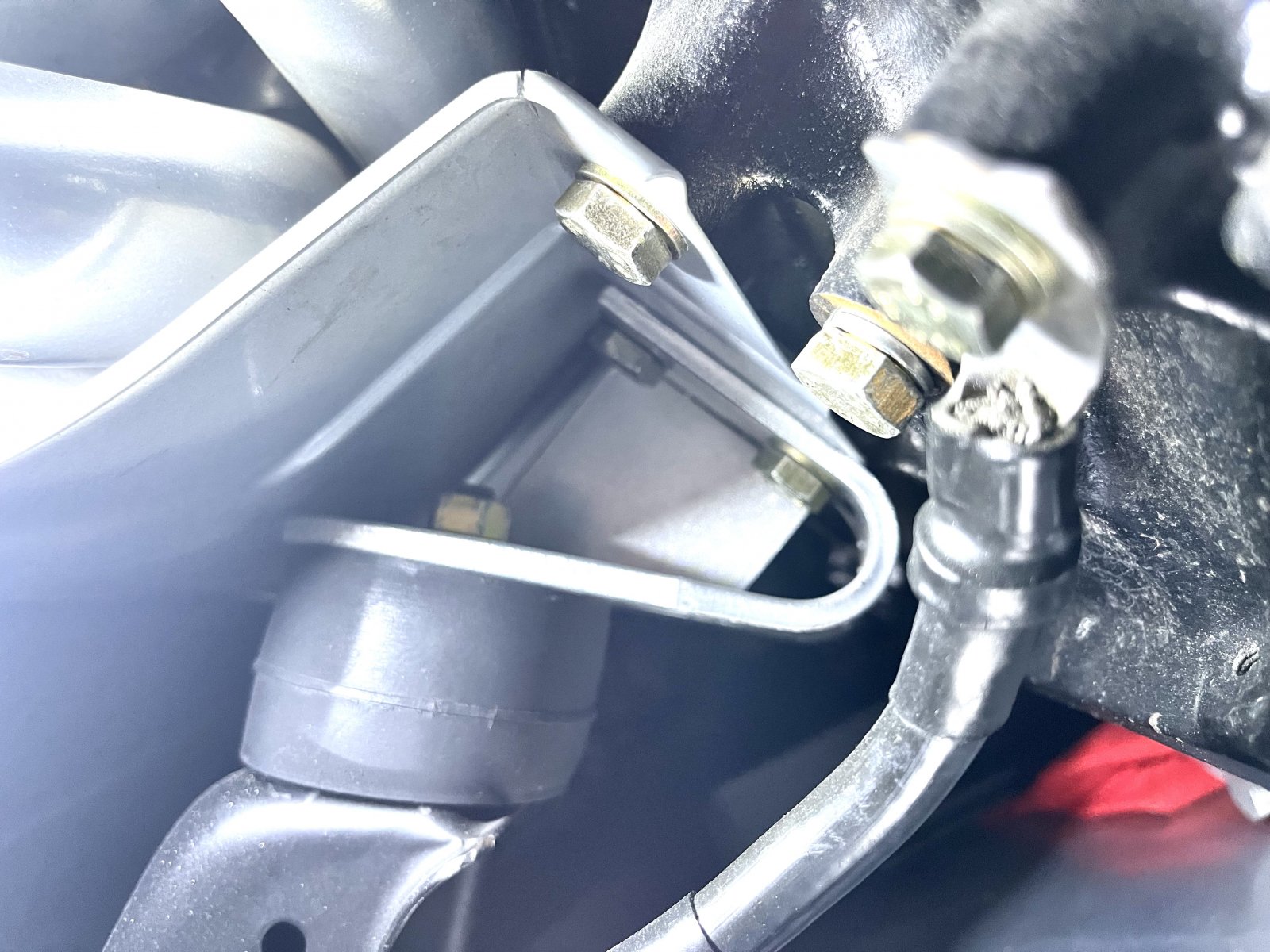

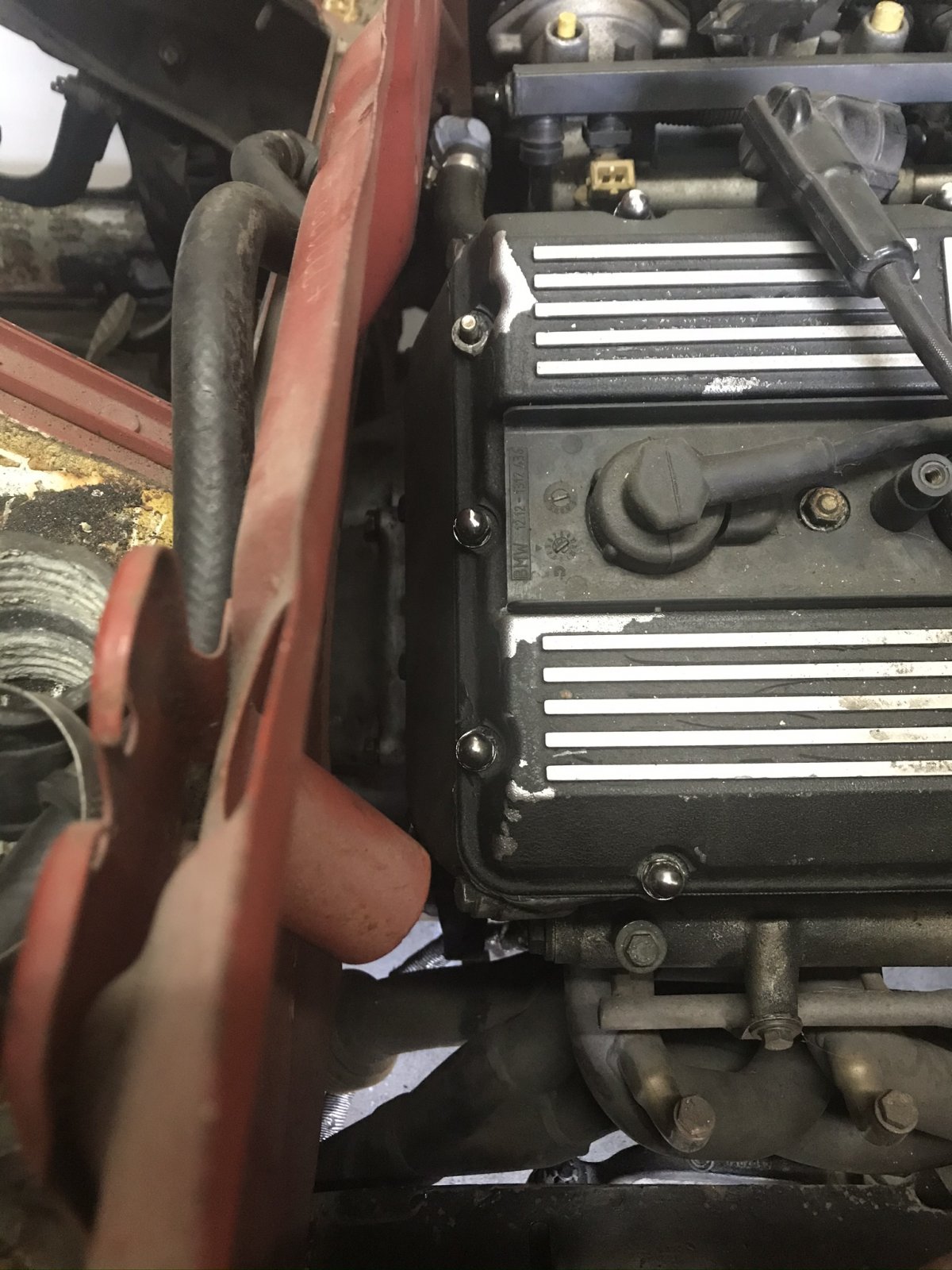

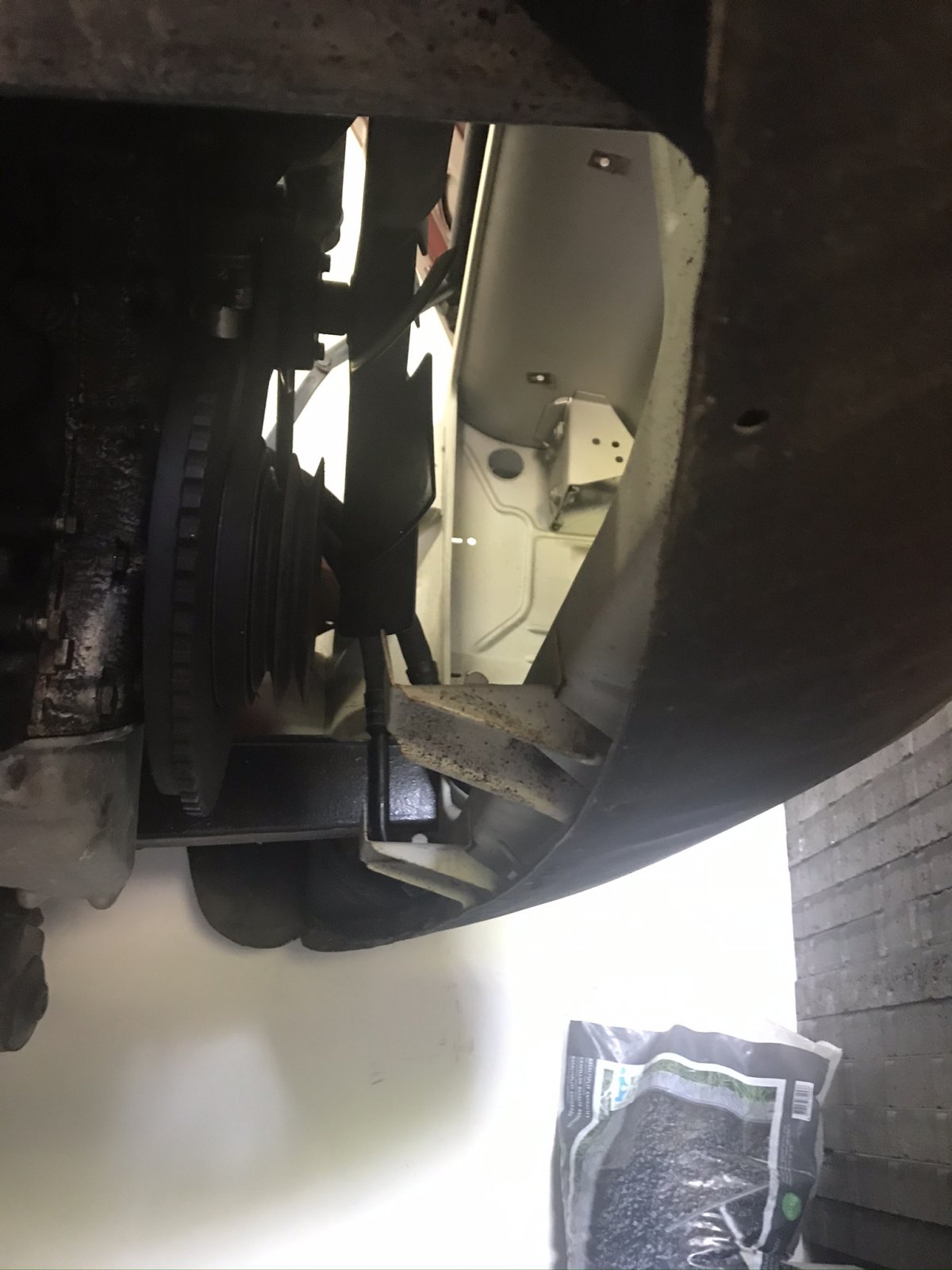

Passenger side just below the heat shield and bundle-of-snakes header pipes.

More polished nuts.

Last edited:

Patton

Well-Known Member
Site Donor $
Messages
755
Reaction score
642
Location
Atlanta GA

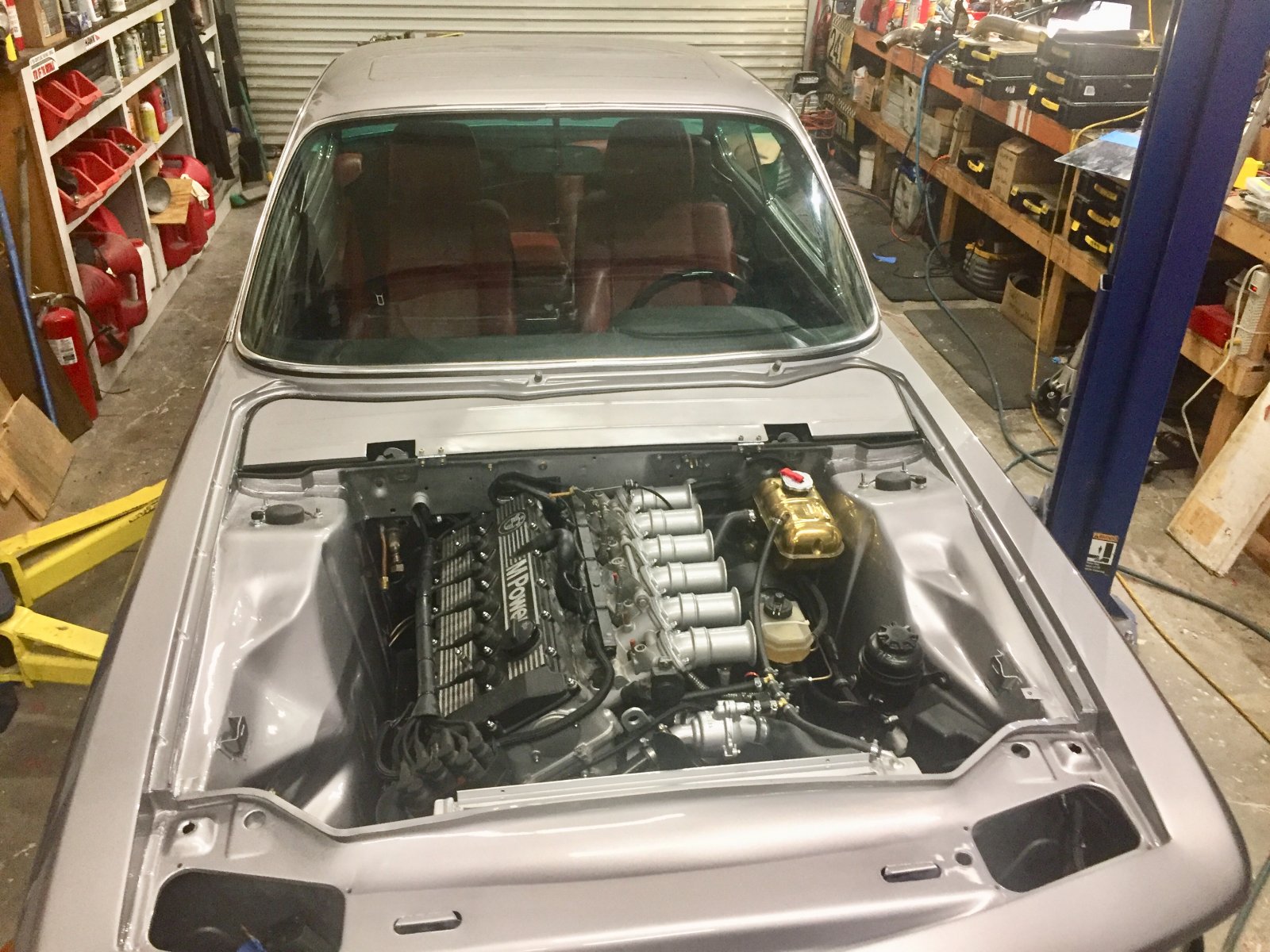

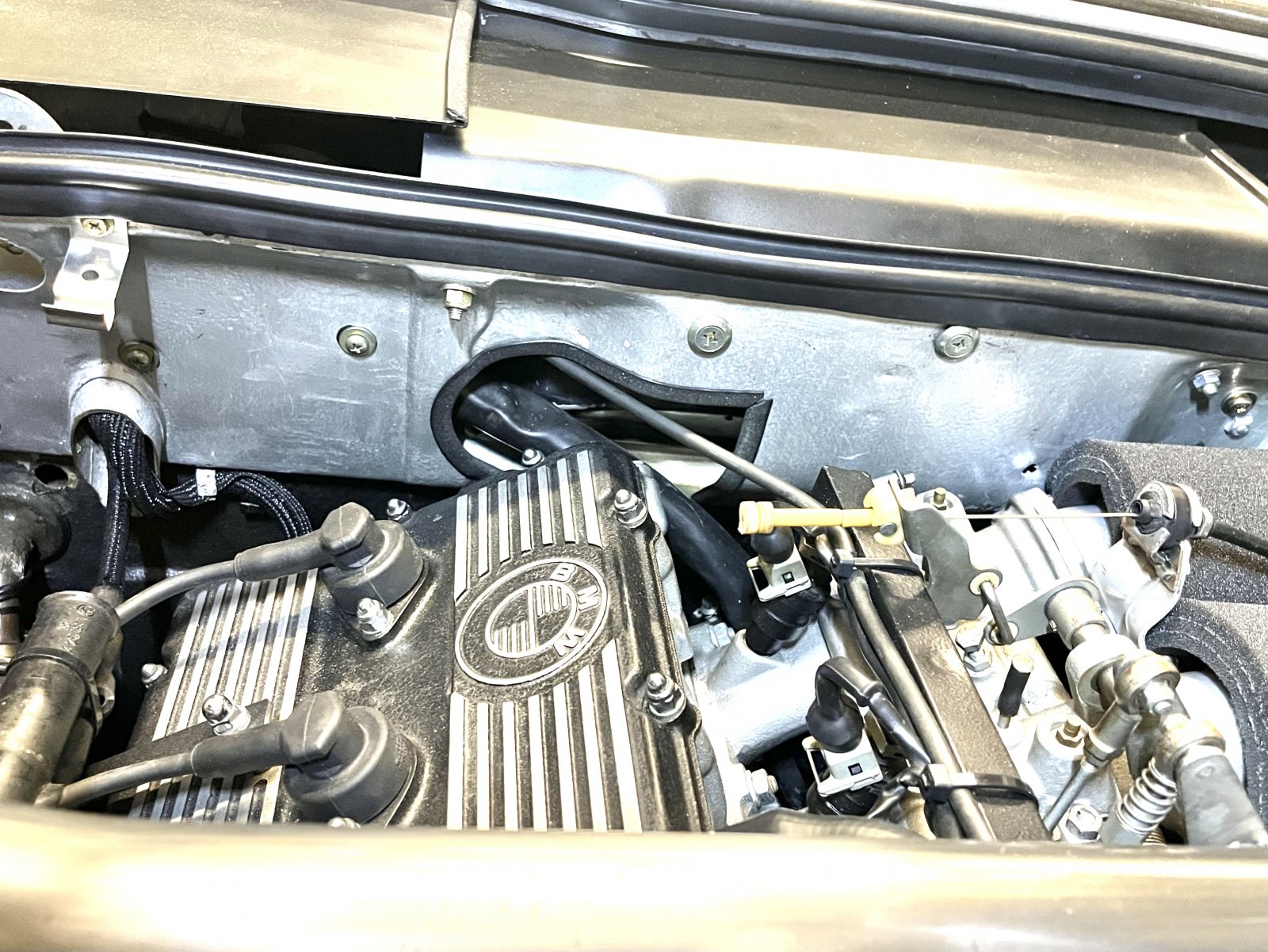

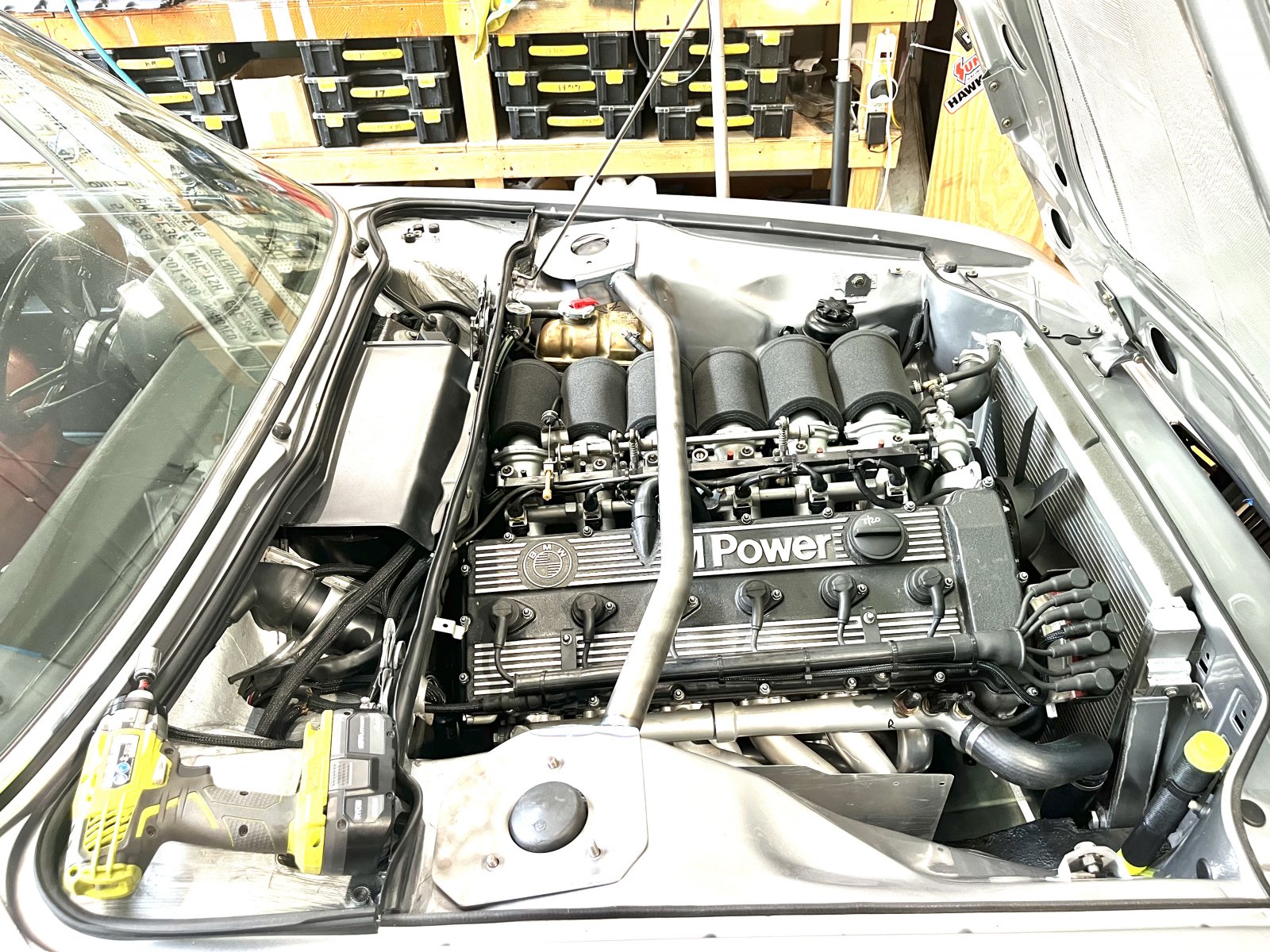

Rear of engine photograph with knock-out hole for wiring pass thru and a bit of valve cover clearance.

Yep, polished nuts.


BMW3.0CSi

Well-Known Member
Site Donor
Messages
95
Reaction score
63
Location
The Netherlands
BMW3.0CSi: Photographs comming: Bottom line, the motor mounts were used off of the original 3.0 engine.

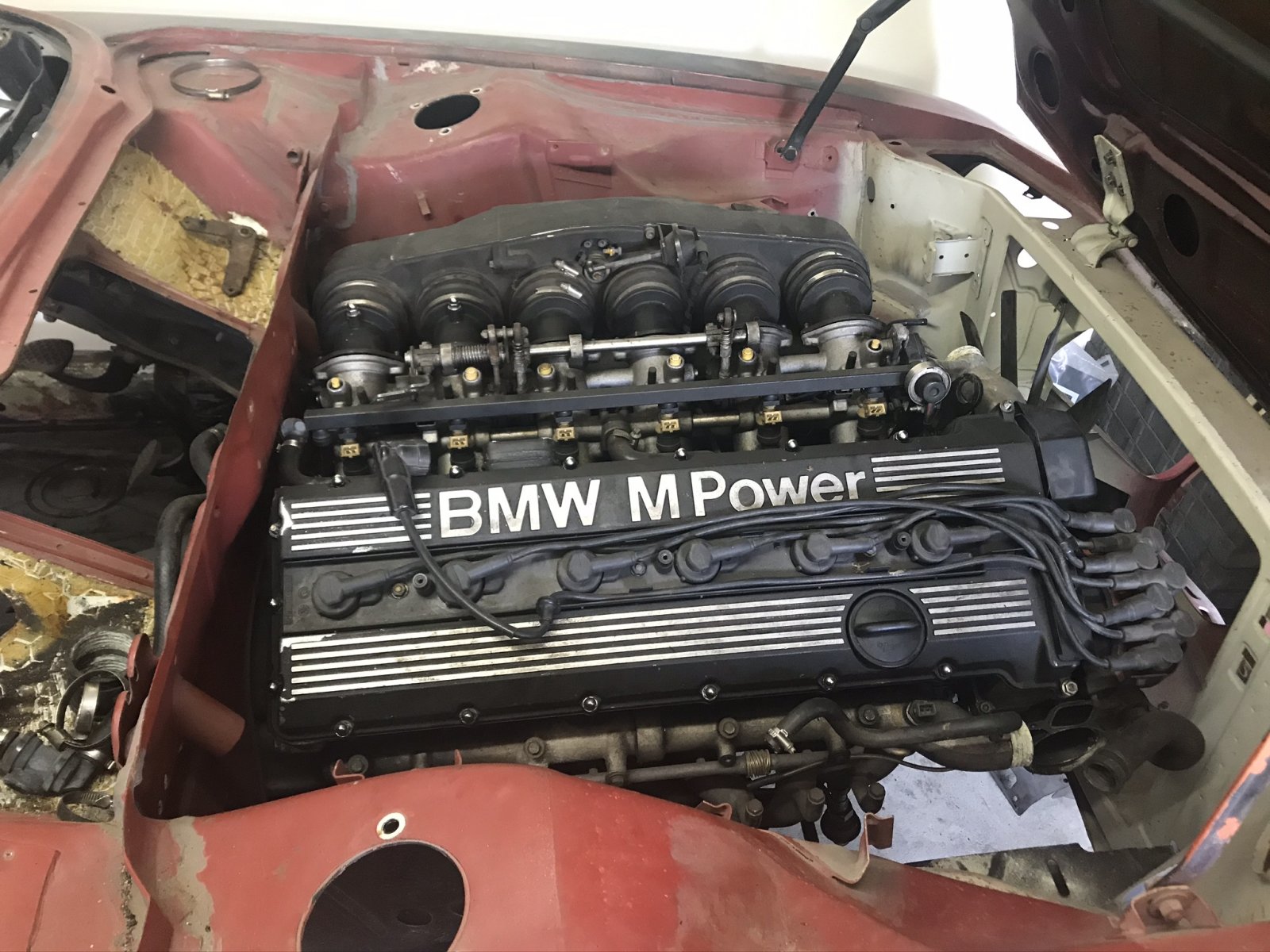

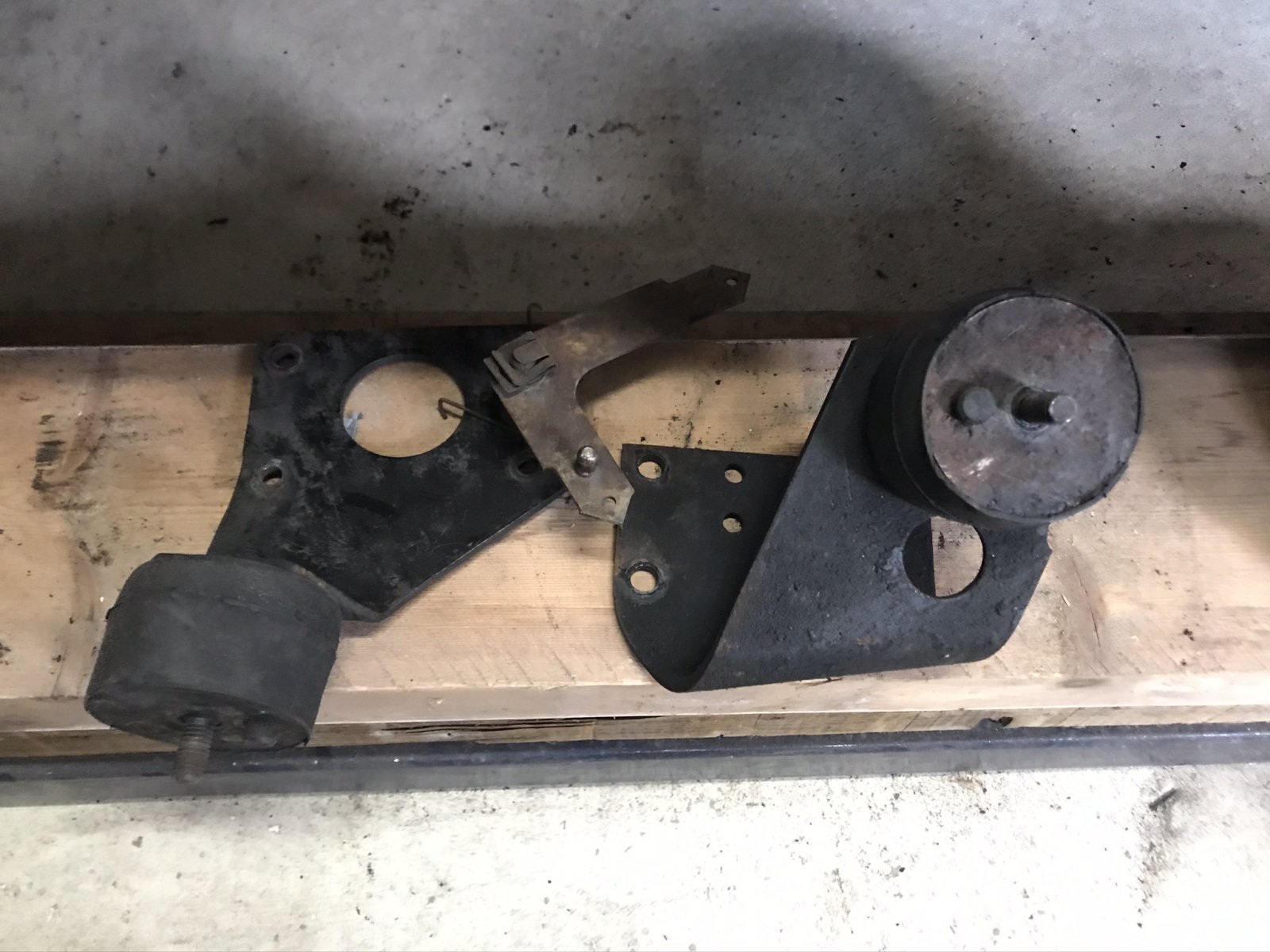

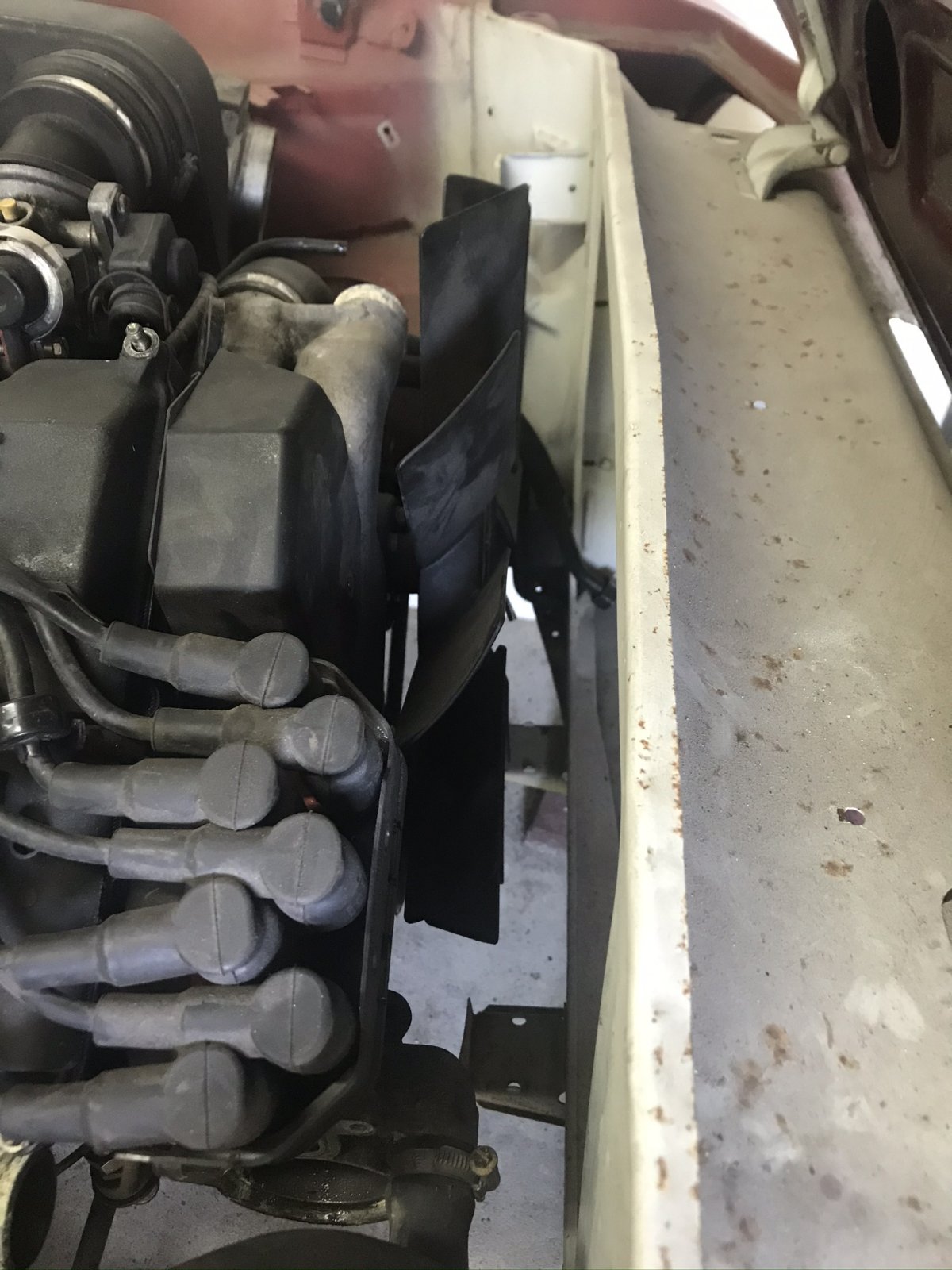

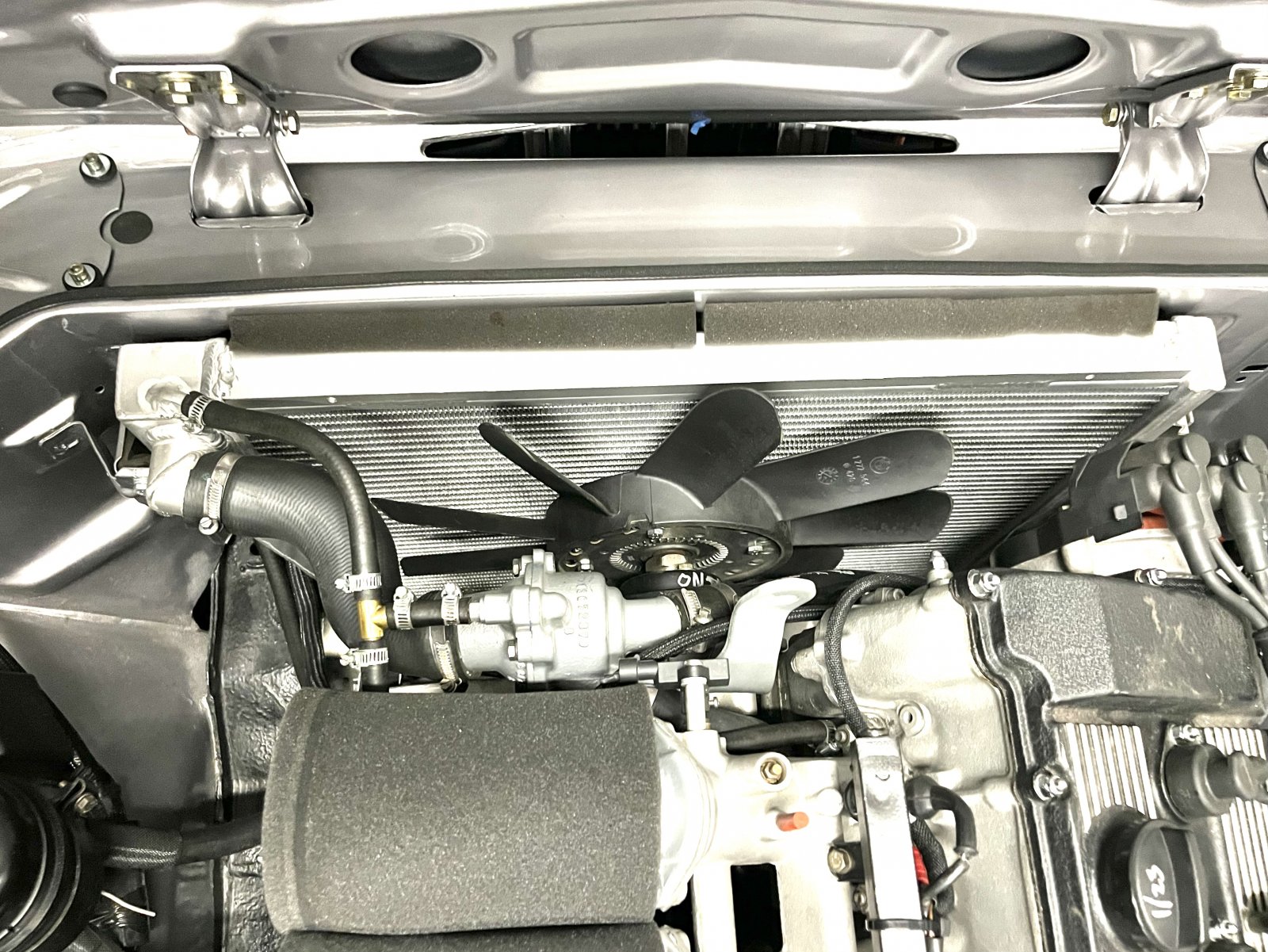

Thx, that is interesting, I did the same but was not able to put the original style radiator in. Is it correct that you have a slightly adjusted radiator compared with the original? The center core looks a bit thinner then original? Interesting to check whether the M88 is slightly smaller in length then the S38b36. It looks like you have comparable clearance between your firewall and engine like mine has, while I didn't had to modify the firewall.

Does the M88 have different options/locations to attach the engine brackets in terms of the screw holes on the engine? I thought that the M30/M88/S38 are all almost equal to eachother regarding this what I read?


Attachments

  • CD0FBEFF-E6E2-420A-AF83-0E9D1070AF4E.jpeg
    233.4 KB · Views: 82
  • F44F1404-56FE-4FB0-89CB-91BD6CC5B11A.jpeg
    177.5 KB · Views: 79
  • 9A98973B-B691-4E87-9BDB-8802B529A373.jpeg
    276.5 KB · Views: 72
  • A2DCFC97-F5BF-48CC-B9D2-67D2B0B201D0.jpeg
    242.6 KB · Views: 72
  • 061A8CFA-9679-40B4-B24F-7A4BA9F308C0.jpeg
    318.3 KB · Views: 83
  • D26D92DA-61F2-43B7-A829-08AA0253B9F3.jpeg
    329.8 KB · Views: 74
  • EA8D84A9-AFFA-4308-AE59-734B9270D713.jpeg
    406.4 KB · Views: 86
Last edited:

Patton

Well-Known Member
Site Donor $
Messages
755
Reaction score
642
Location
Atlanta GA
Thx, that is interesting, I did the same but was not able to put the original style radiator in. Is it correct that you have a slightly adjusted radiator compared with the original? The center core looks a bit thinner then original? Interesting to check whether the M88 is slightly smaller in length then the S38b36. It looks like you have comparable clearance between your firewall and engine like mine has, while I didn't had to modify the firewall.

Does the M88 have different options/locations to attach the engine brackets in terms of the screw holes on the engine? I thought that the M30/M88/S38 are all almost equal to eachother regarding this what I read?
I don’t recall any different location “bosses” on the block.

The radiator is an inexpensive unit I picked up from an eBay site.

Could you notch the area in front of the radiator to allow for clearance?
Perhaps look at other pictures of retrofitted/repower engines.

Sorry that my pictures we not of any help.

RP


m_thompson

Well-Known Member
Messages
780
Reaction score
141
Location
Rhode Island
Looks like your motor mount heat shield has a crack at the bend. Will vibration eventually make the crack expand?


Patton

Well-Known Member
Site Donor $
Messages
755
Reaction score
642
Location
Atlanta GA
Looks like your motor mount heat shield has a crack at the bend. Will vibration eventually make the crack expand?
Yep, but it does have nice powdercoating.
Not concerned in the least about further expansion…

Thanks.
RP

Last edited:

Patton

Well-Known Member
Site Donor $
Messages
755
Reaction score
642
Location
Atlanta GA

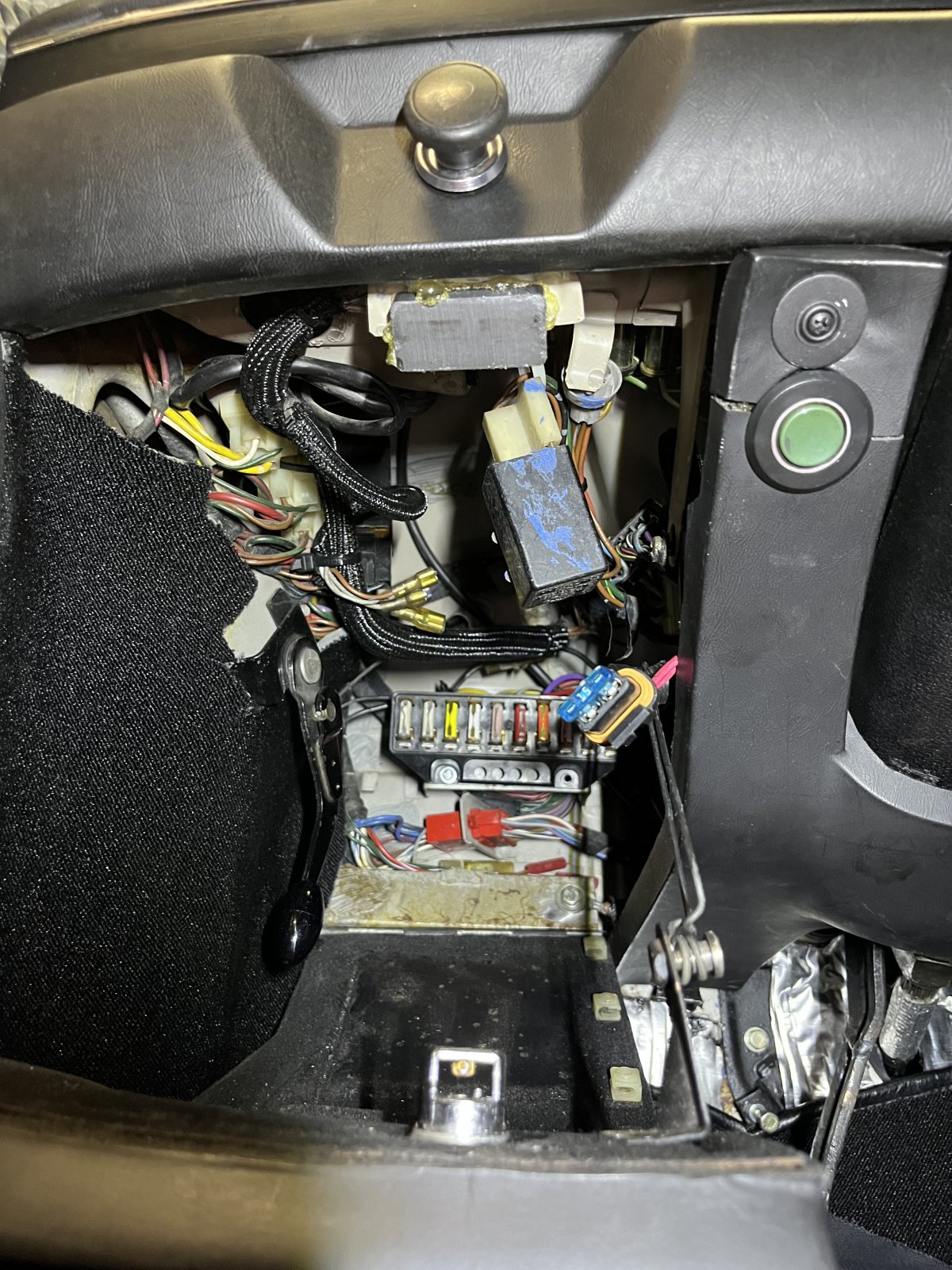

At the 12:00 position is the light switch.

Just below is a rectangular magnet that was glued to the metal frame. The magnet holds the fuse panel/door “up” and closed. I used the magnet to replace the twist handle opener that broke and spit the spring to a yet discovered location.

The handle opener is installed on the fuse panel/door, it just doesn’t function.

RP


Attachments

  • 1B26BD32-9688-46BC-9F35-65ED2AFC2CA8.jpeg
    426.5 KB · Views: 72
Last edited:
