My 1974 Inka S38B35 project

quite a journey!

what a puzzle you put back together.

Again, very smart of you to have collected those rare parts that are NLA. I.e. fenders/rear wings, etc.

quite a journey!

what a puzzle you put back together.

Again, very smart of you to have collected those rare parts that are NLA. I.e. fenders/rear wings, etc.
it is very hard work he build complete E9 from A to Z to know all of this work and to do it right it is amazing and how many man hour it takes to complete this hard work God bless you

Another update to the chronicles for August means 76,5h spent... mostly on restoring the doors :)

Continuing with the driver's side door, the inner frame almost done with new lower section etc:

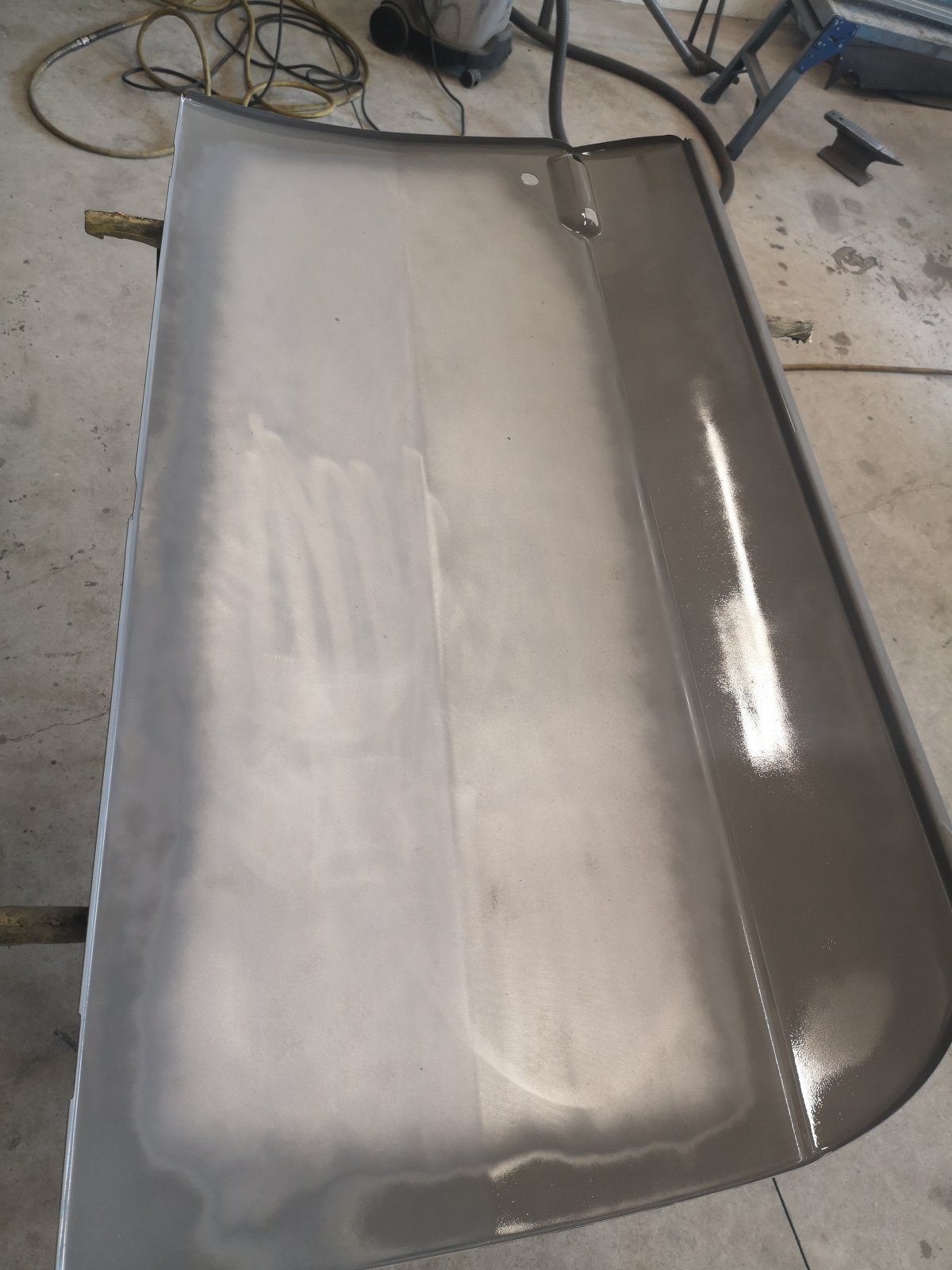

Preparing the new door skin:


And the restored frame to meet each other:


Here we go:

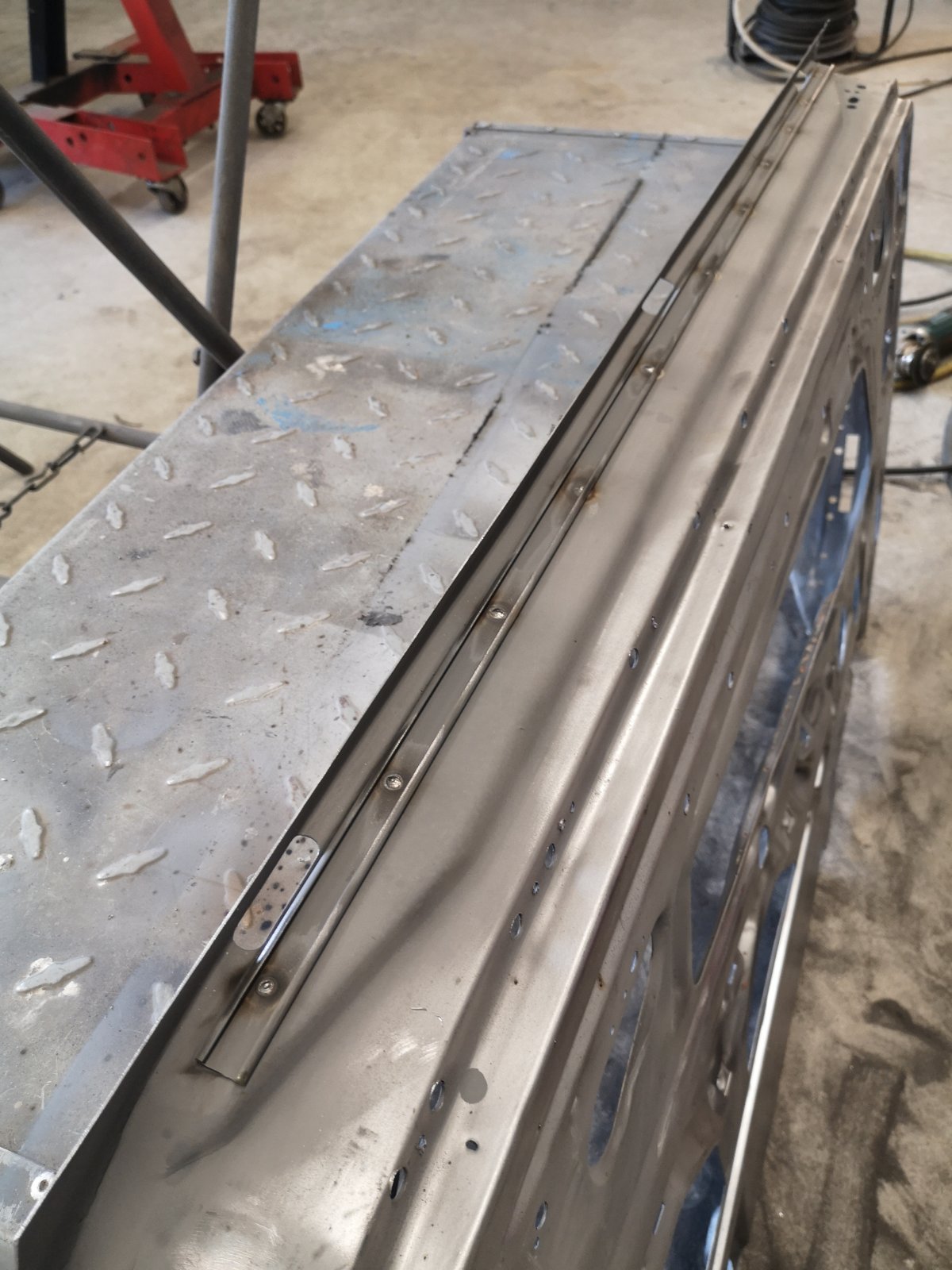

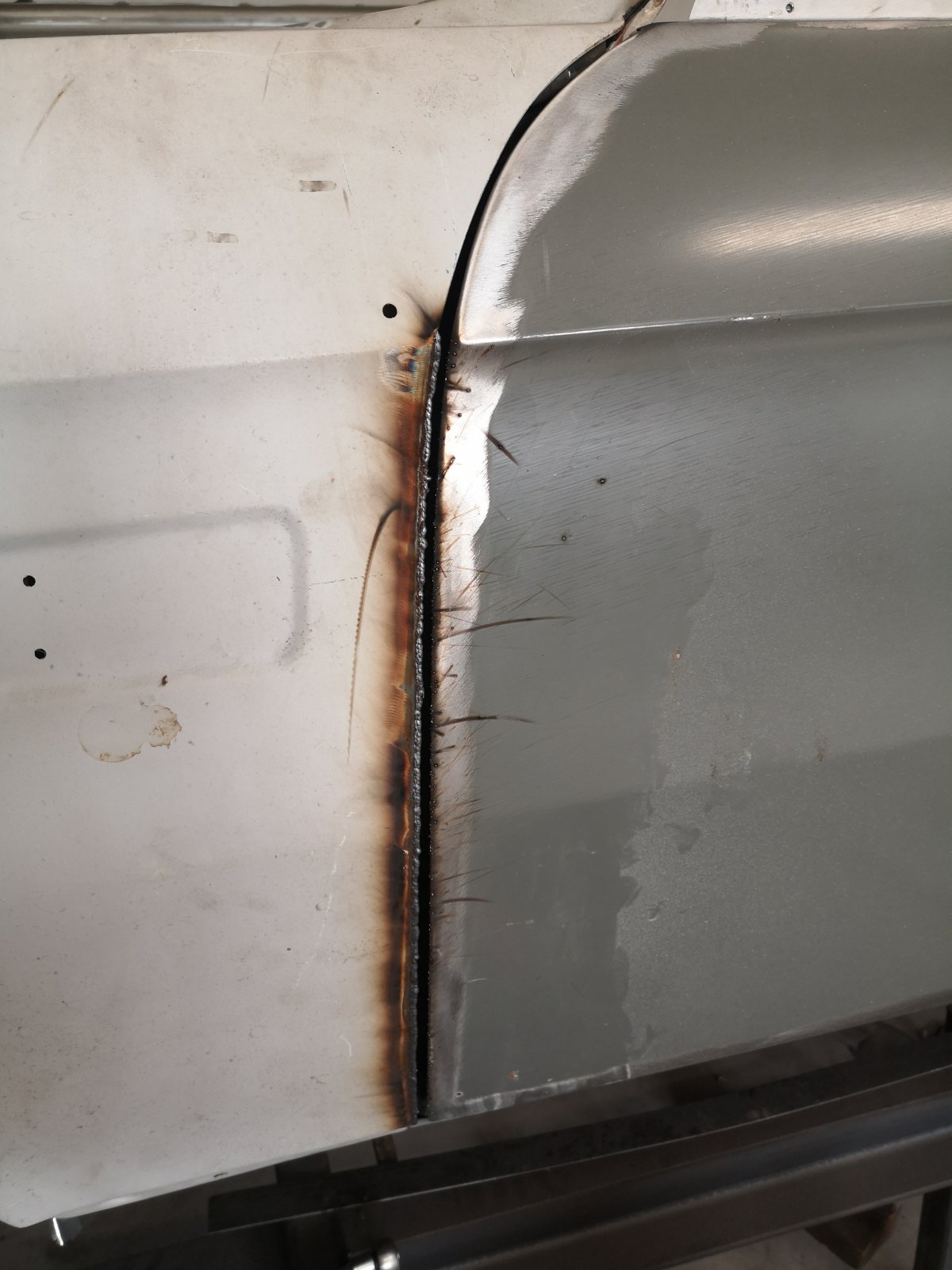

With the door done, we mend the gaps:


Looking better now:

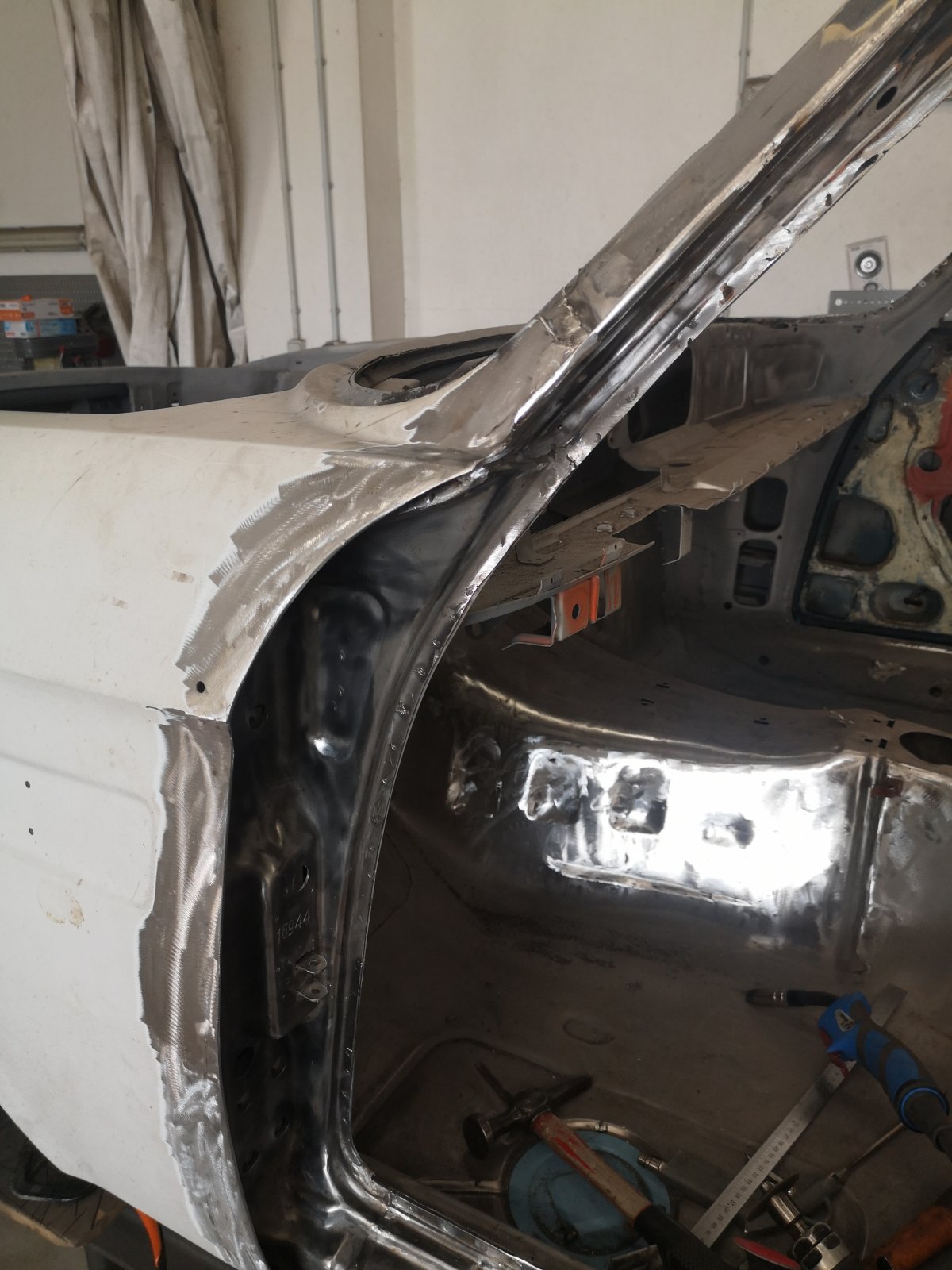

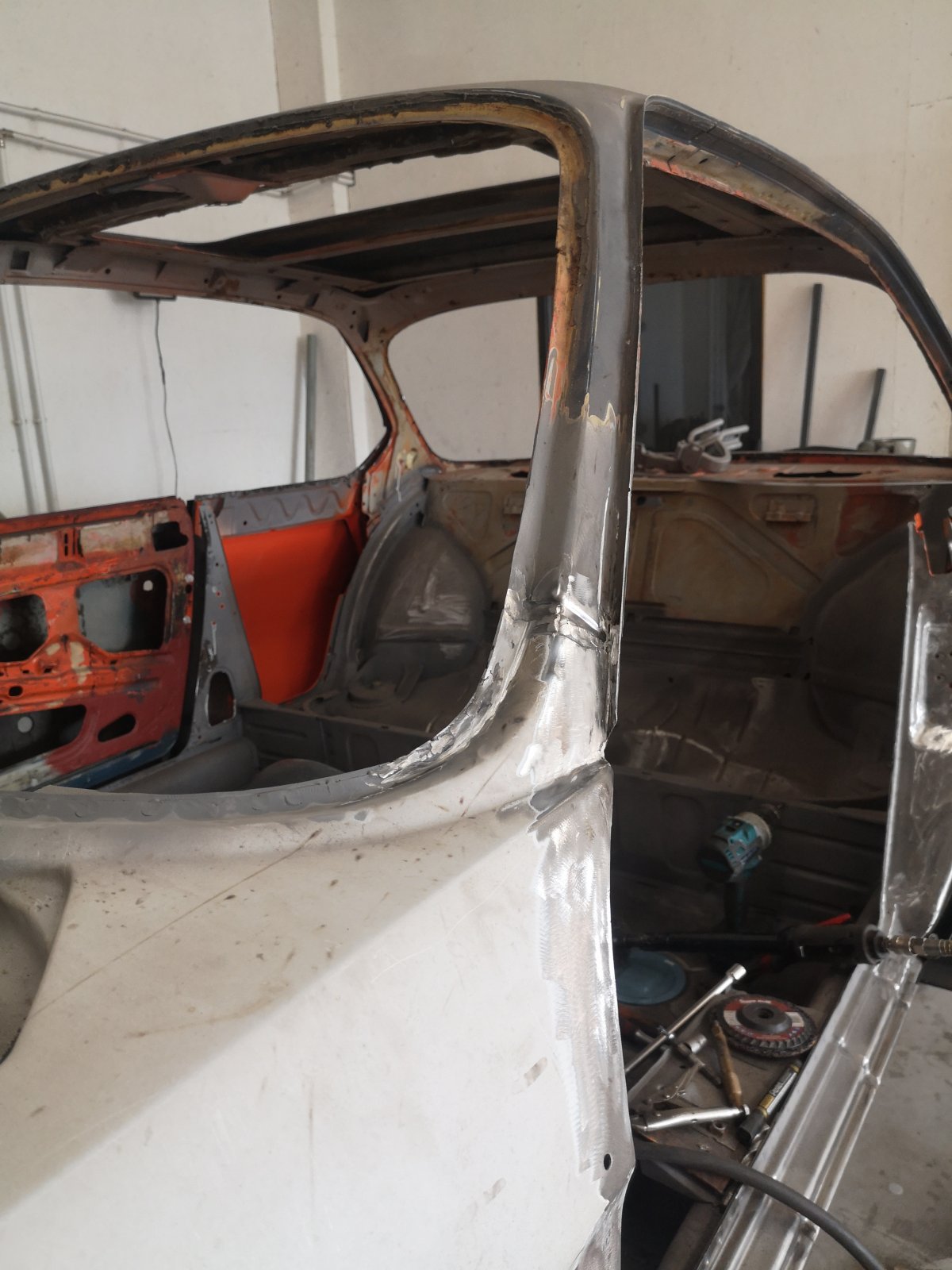

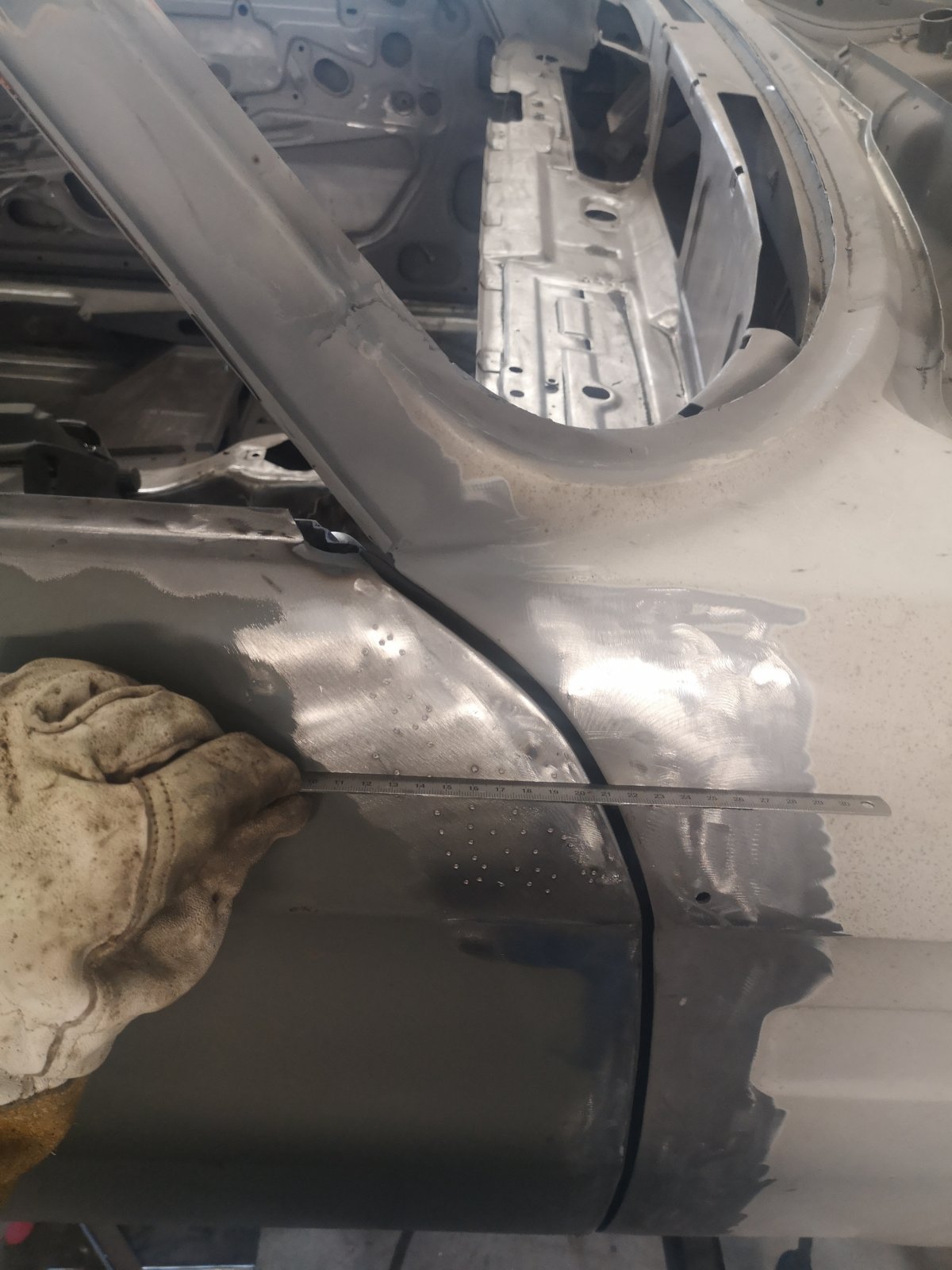

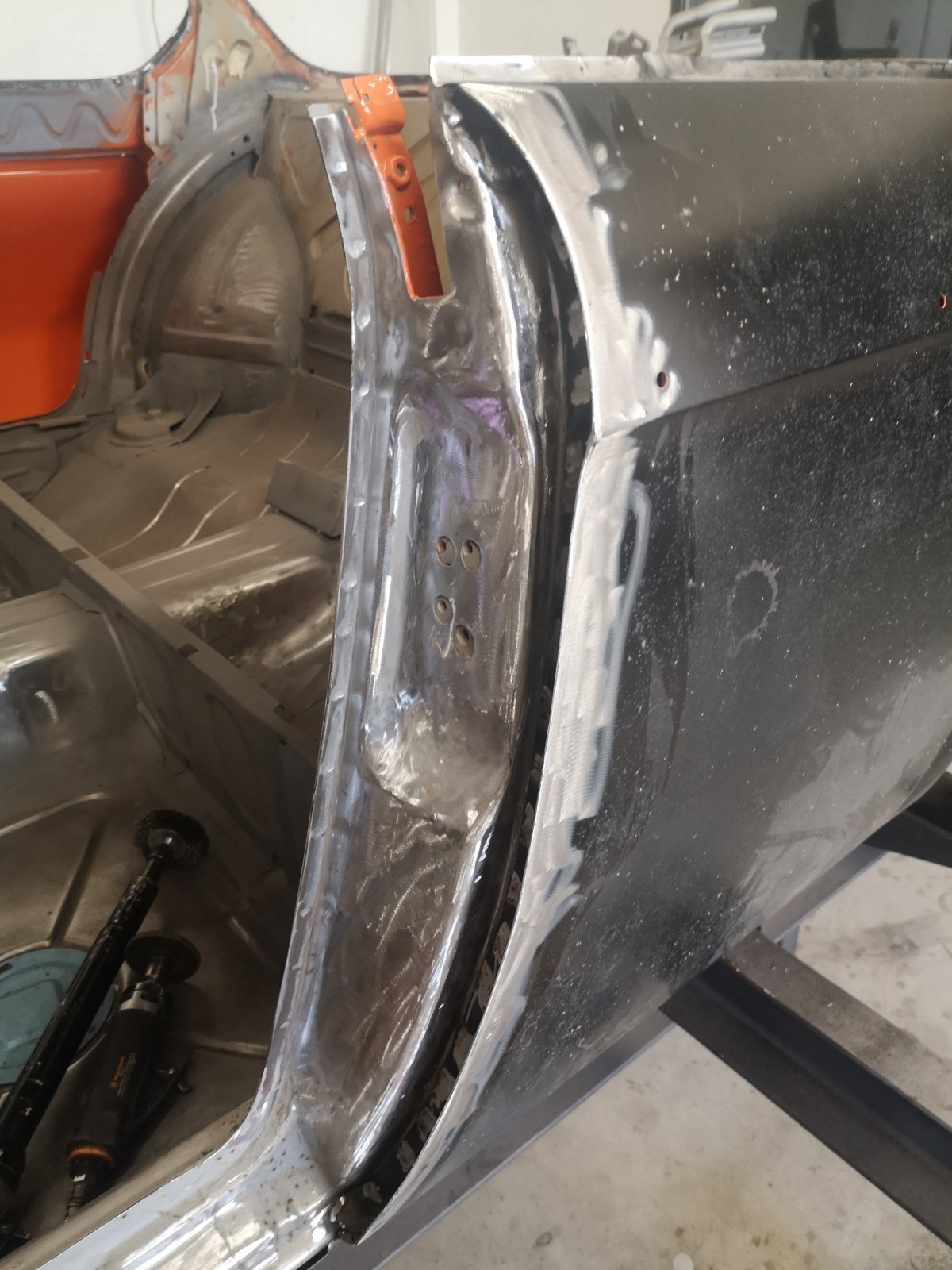

And we can finsh welding up the front A-pillar:


And windscreen frame as well:

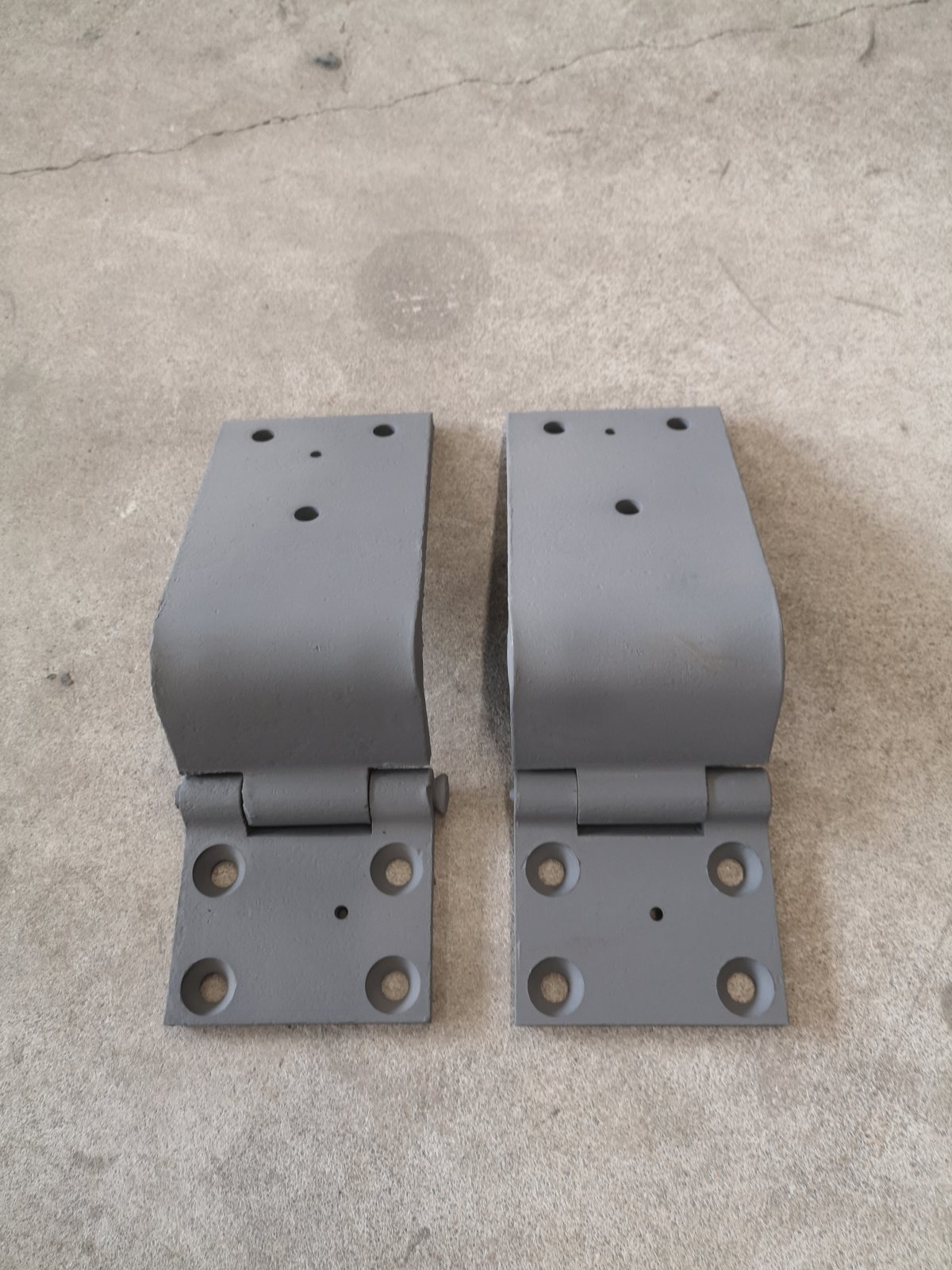

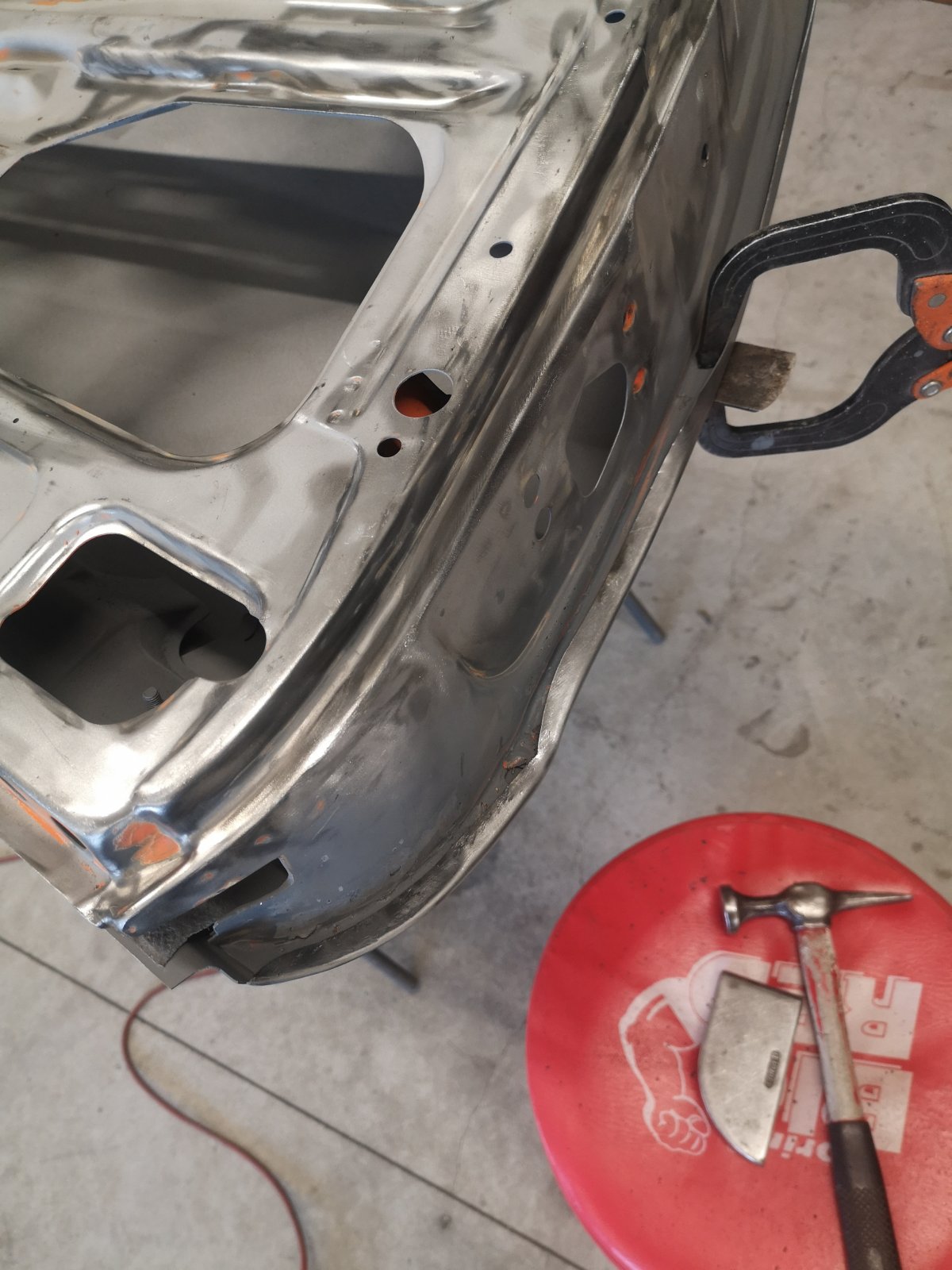

Door hinges blasted and primered:

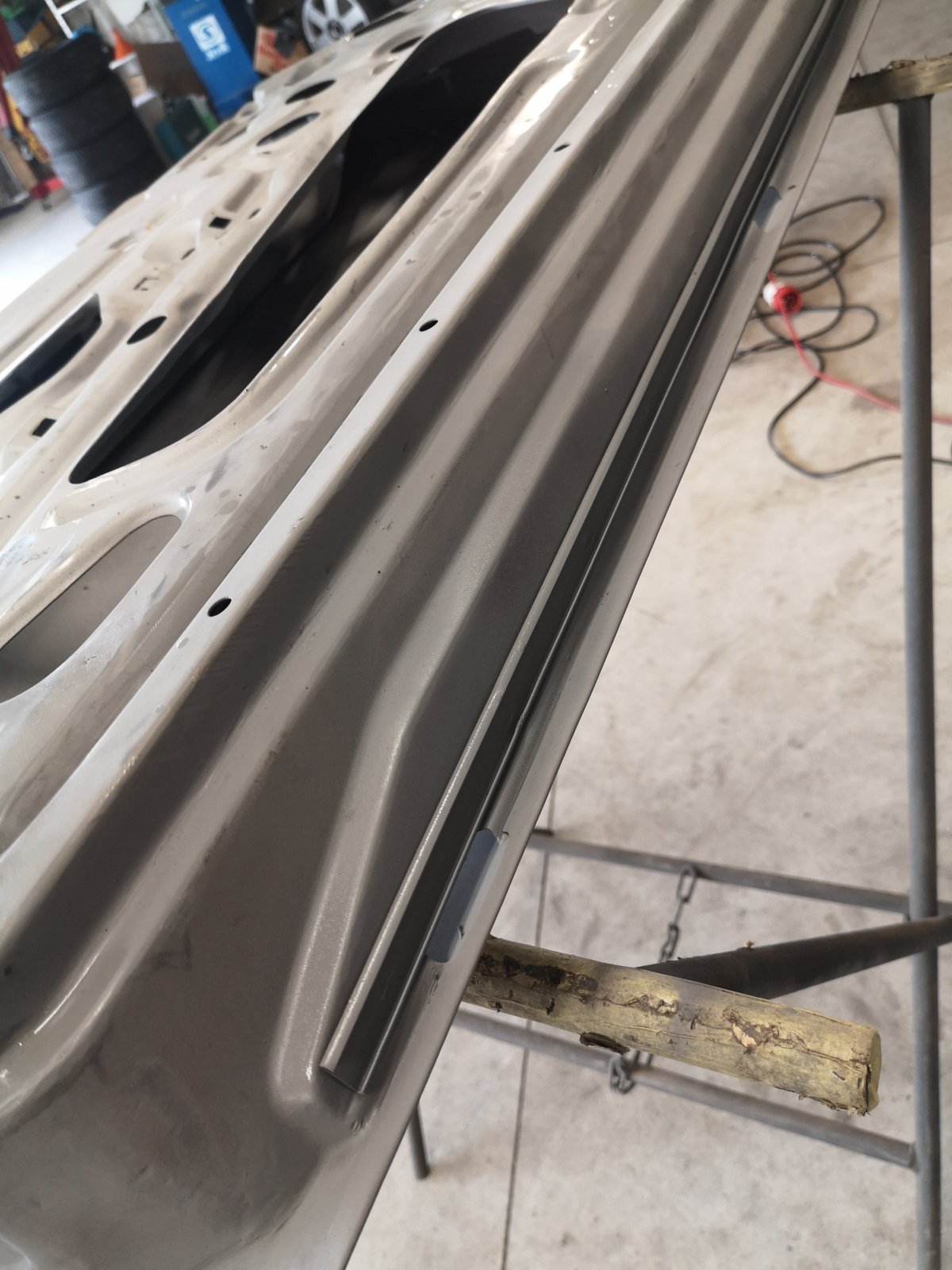

New rail for the seal below the door too:

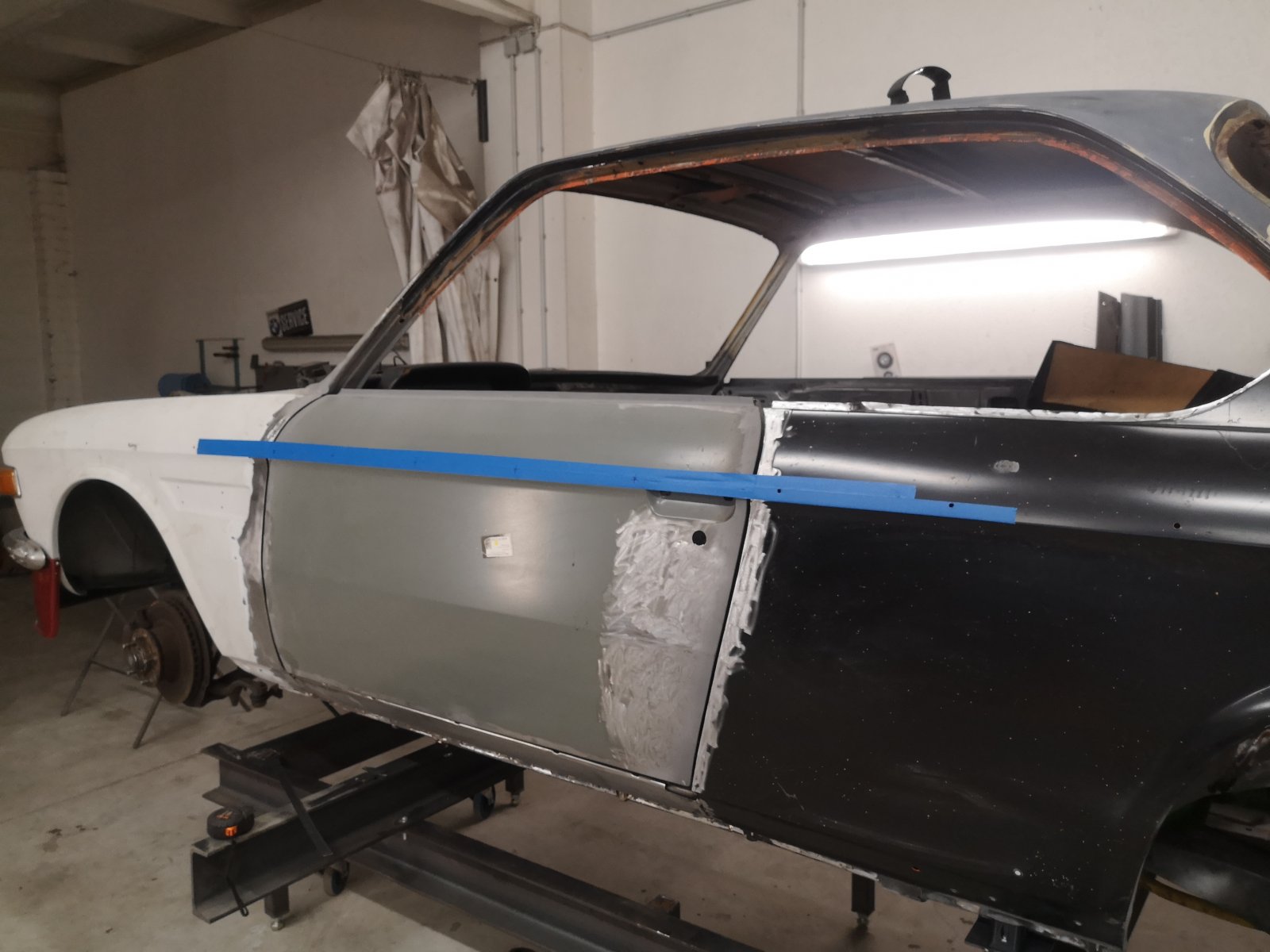

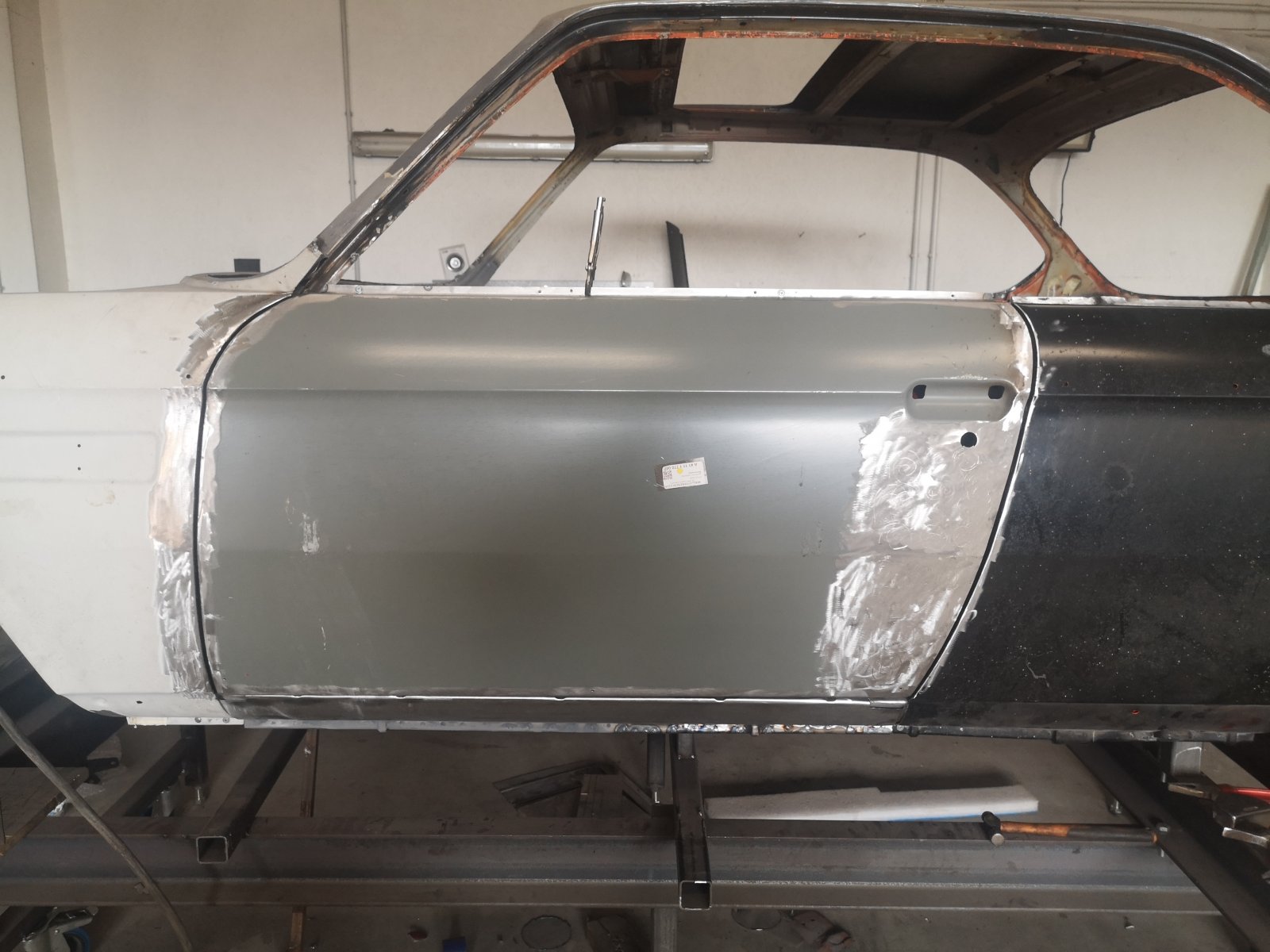

And finishing touches on the rear wing:


The passenger side door is in rough shape as well:


Eek....:


Someone has "repaired" it previously cutting good parts from another door most probably...

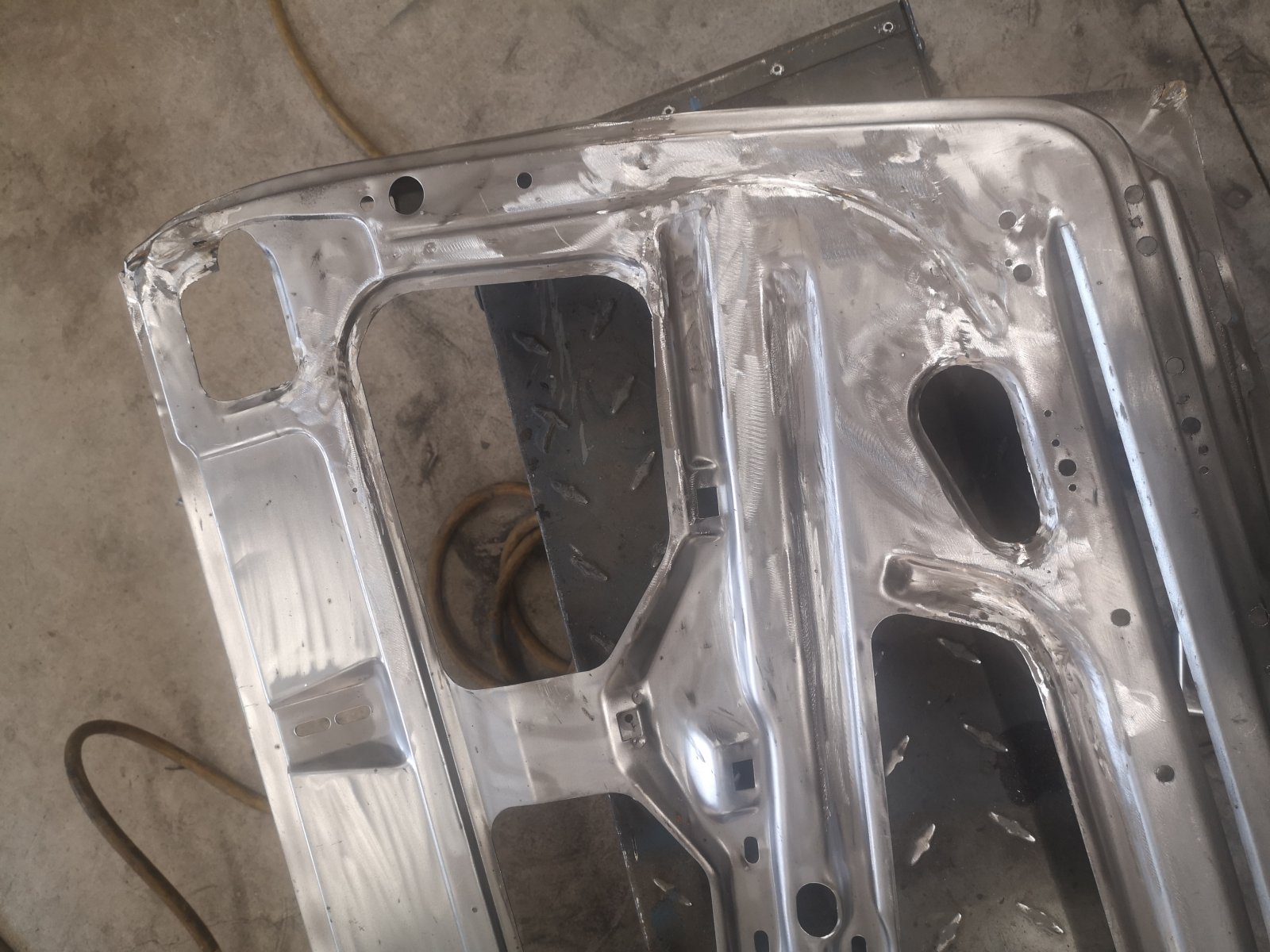

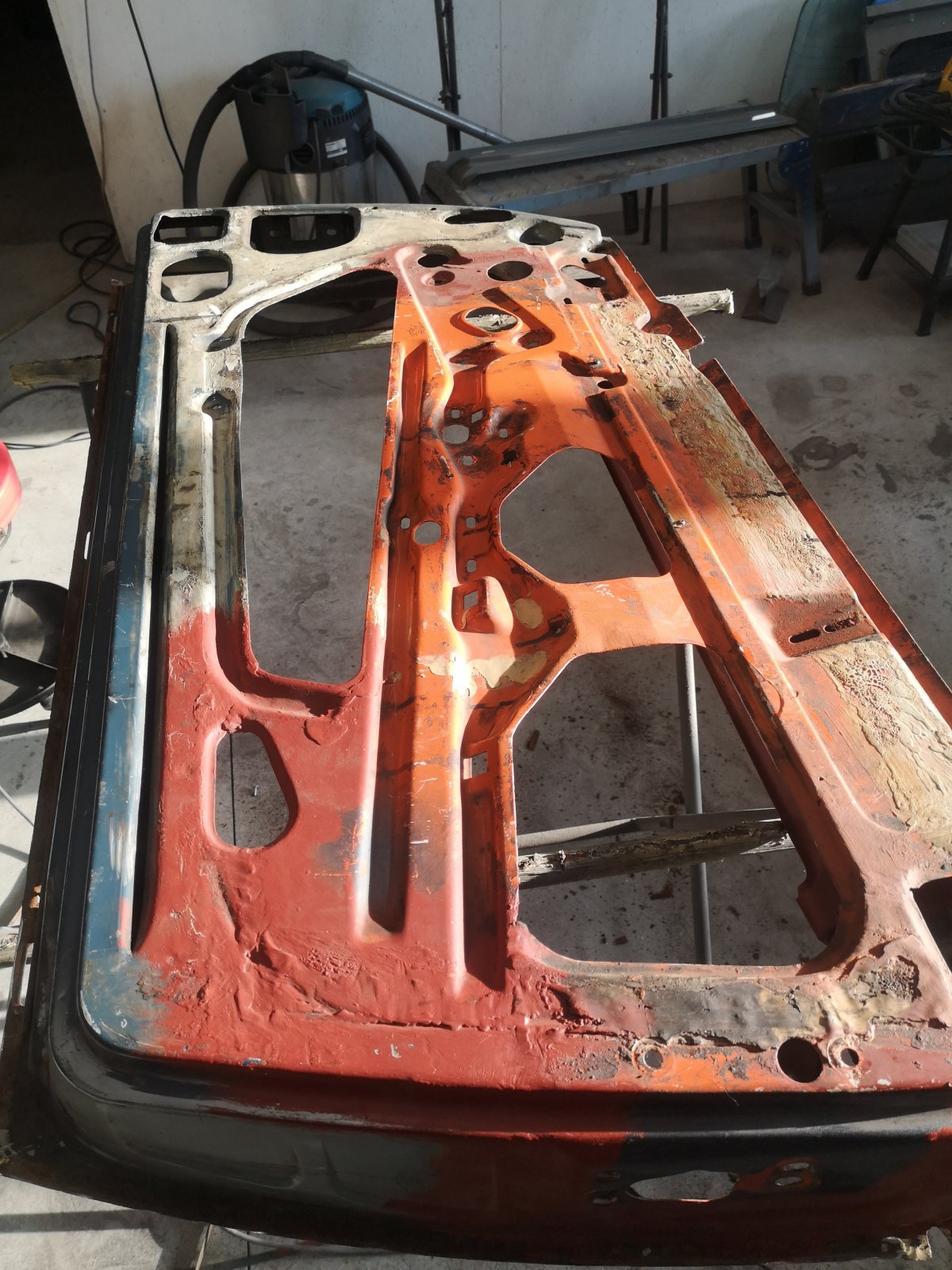

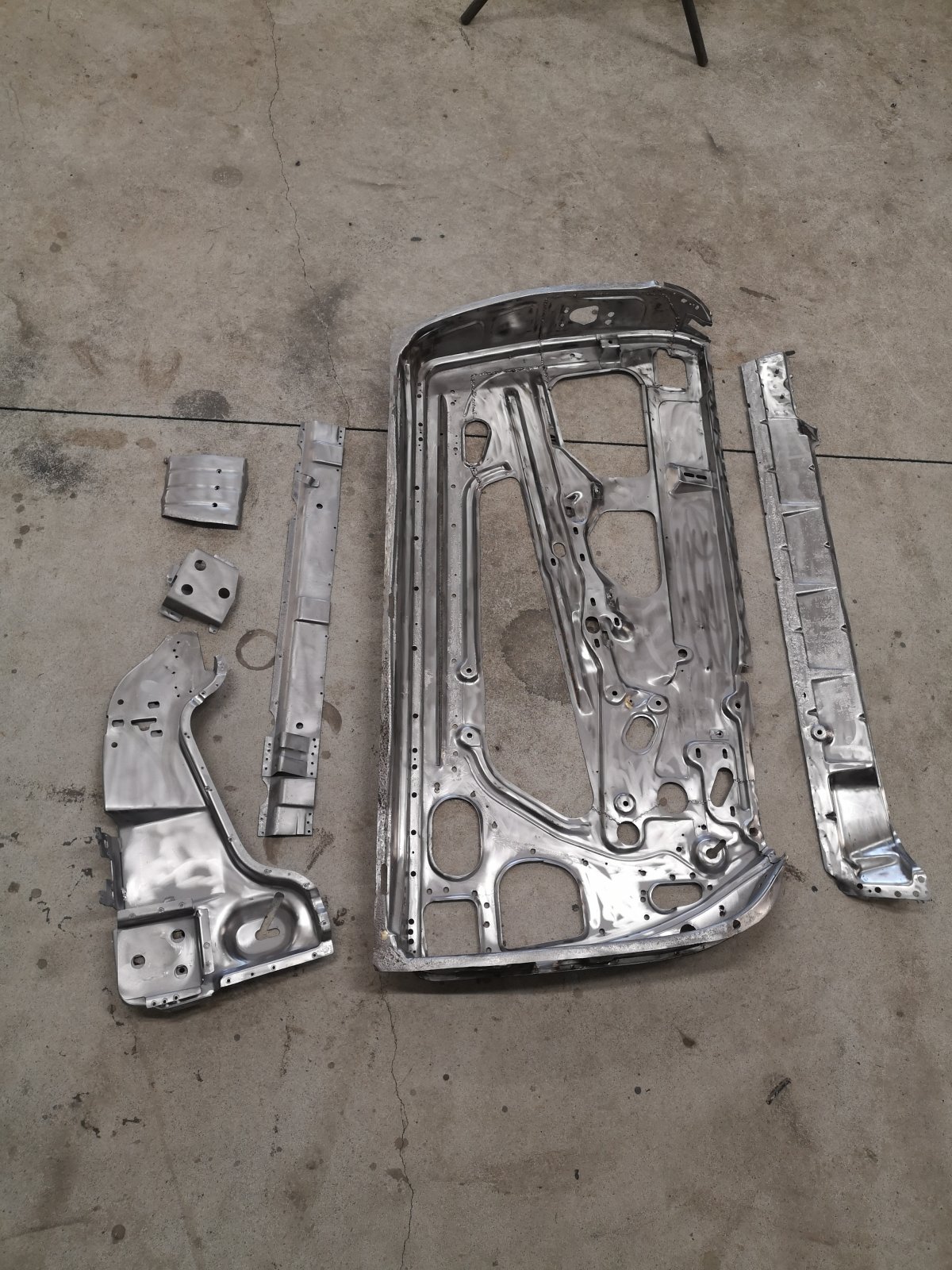

Dismantled and blasted parts of the door:


With the previous repairs now visible even better:


We correct these signs of previous hacks of course:


And here the passenger side door’s frame is almost done to be reskinned:

Last edited:
i have a freshly rebuilt 86 s38b35 w/
11:1 compression
you would know if you have seen my posts
ok and the euro snakes
ceramic coated already

And just like Amazon it's free shipping! Oo wait your in Europe? Never mind. ;)

An additional 46h spent in September mending the passenger door and correcting gaps/body lines relating to it.

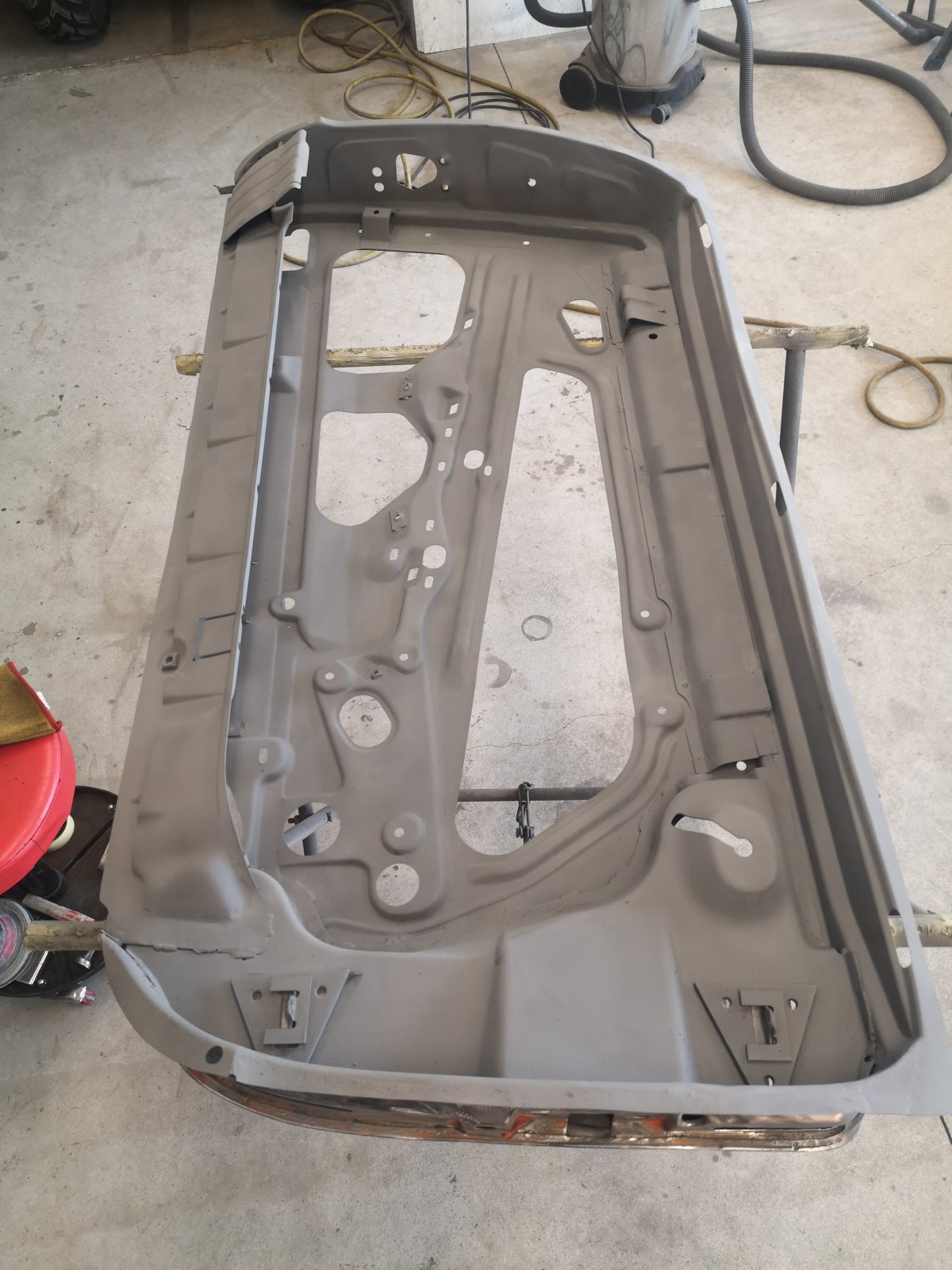

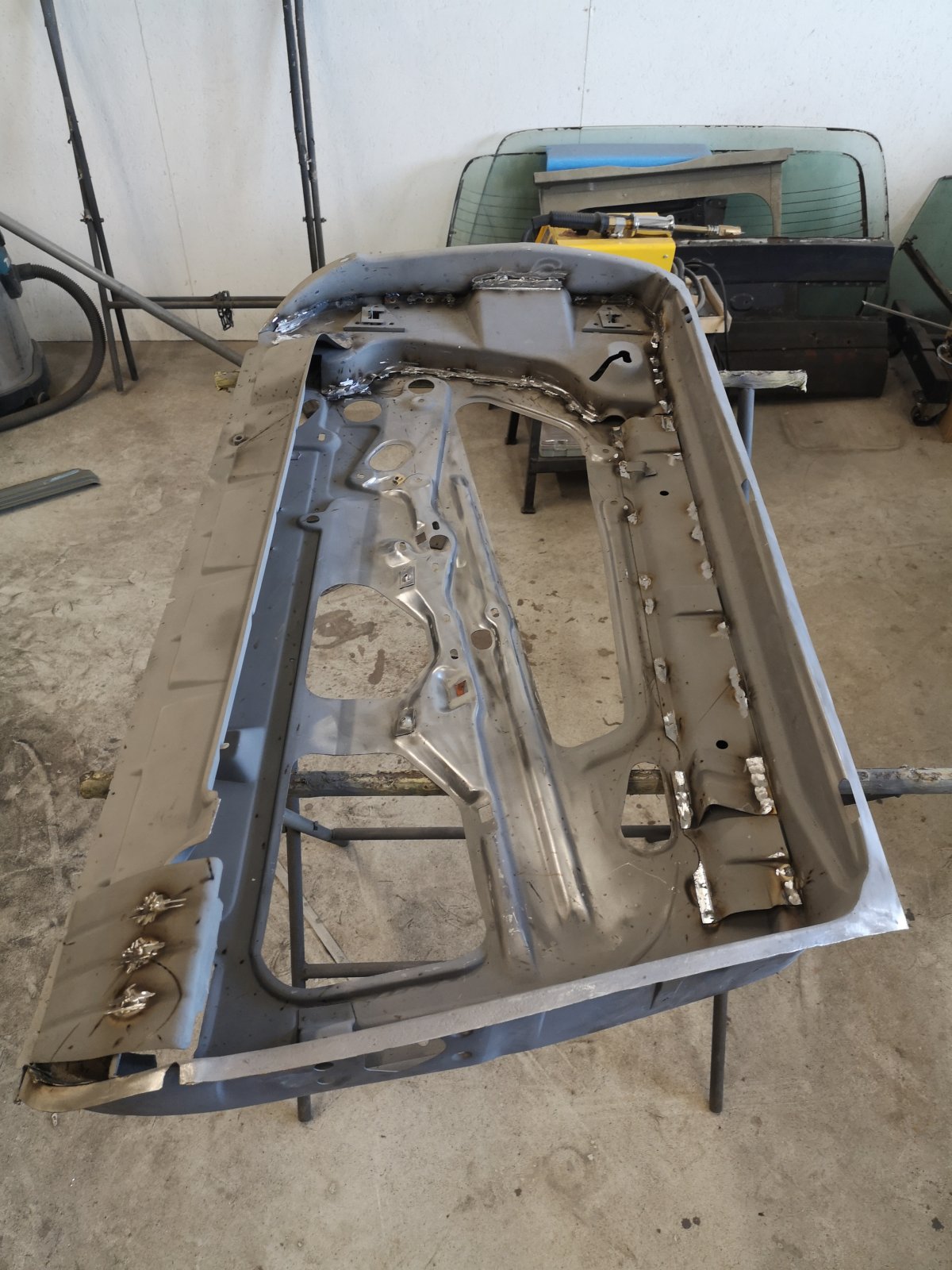

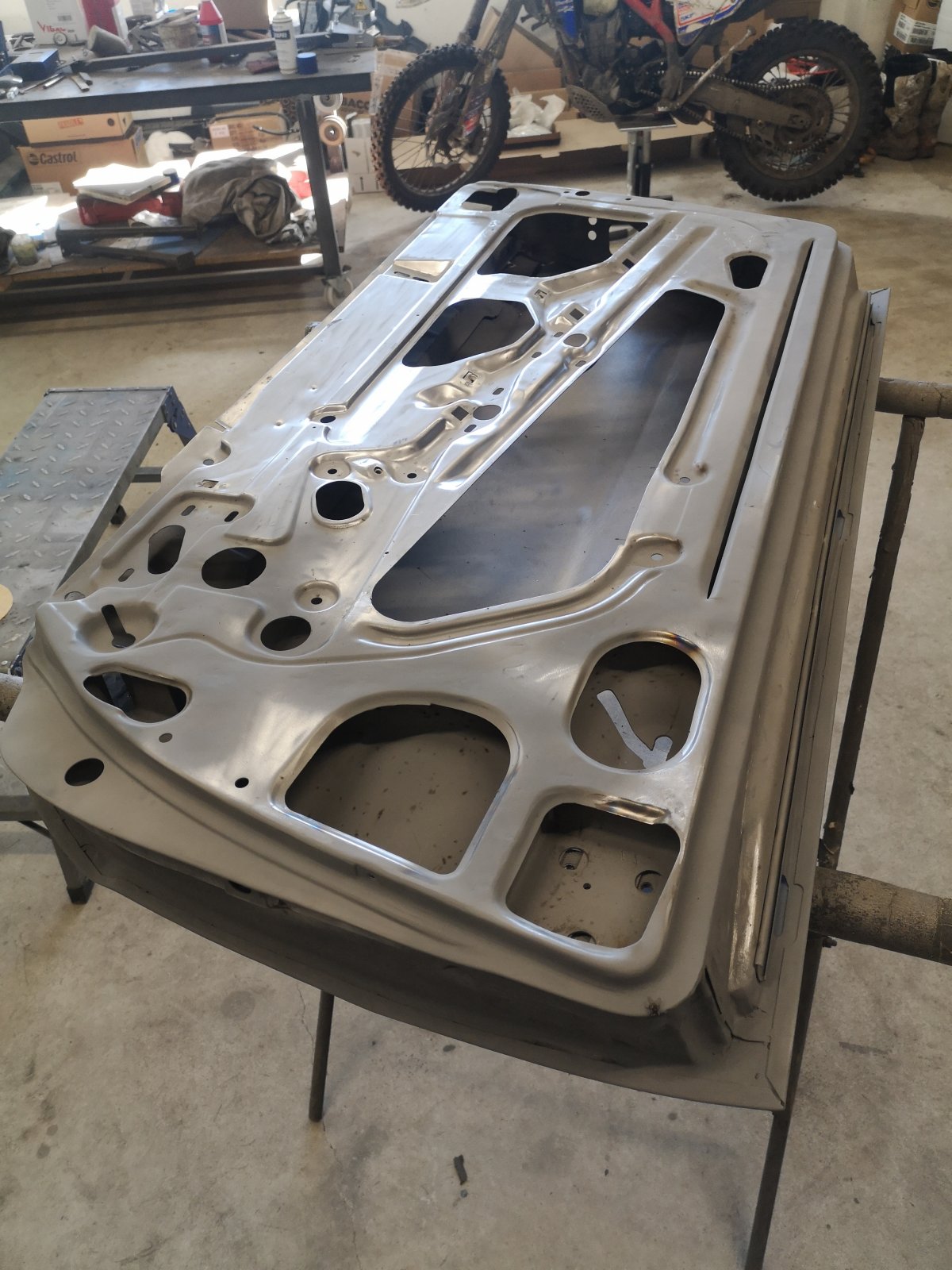

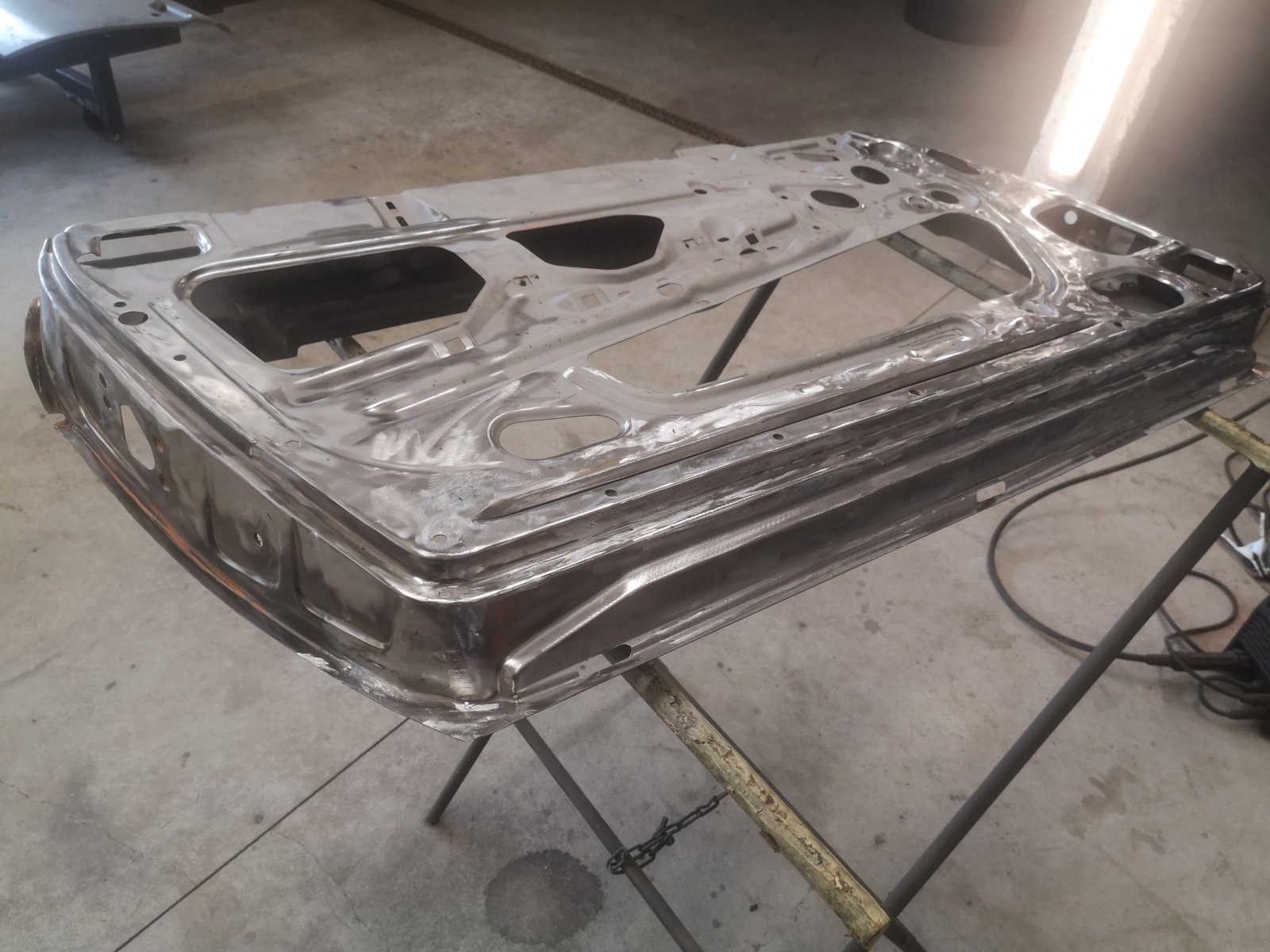

Door's frame welded and complete again:


Reskinned too:

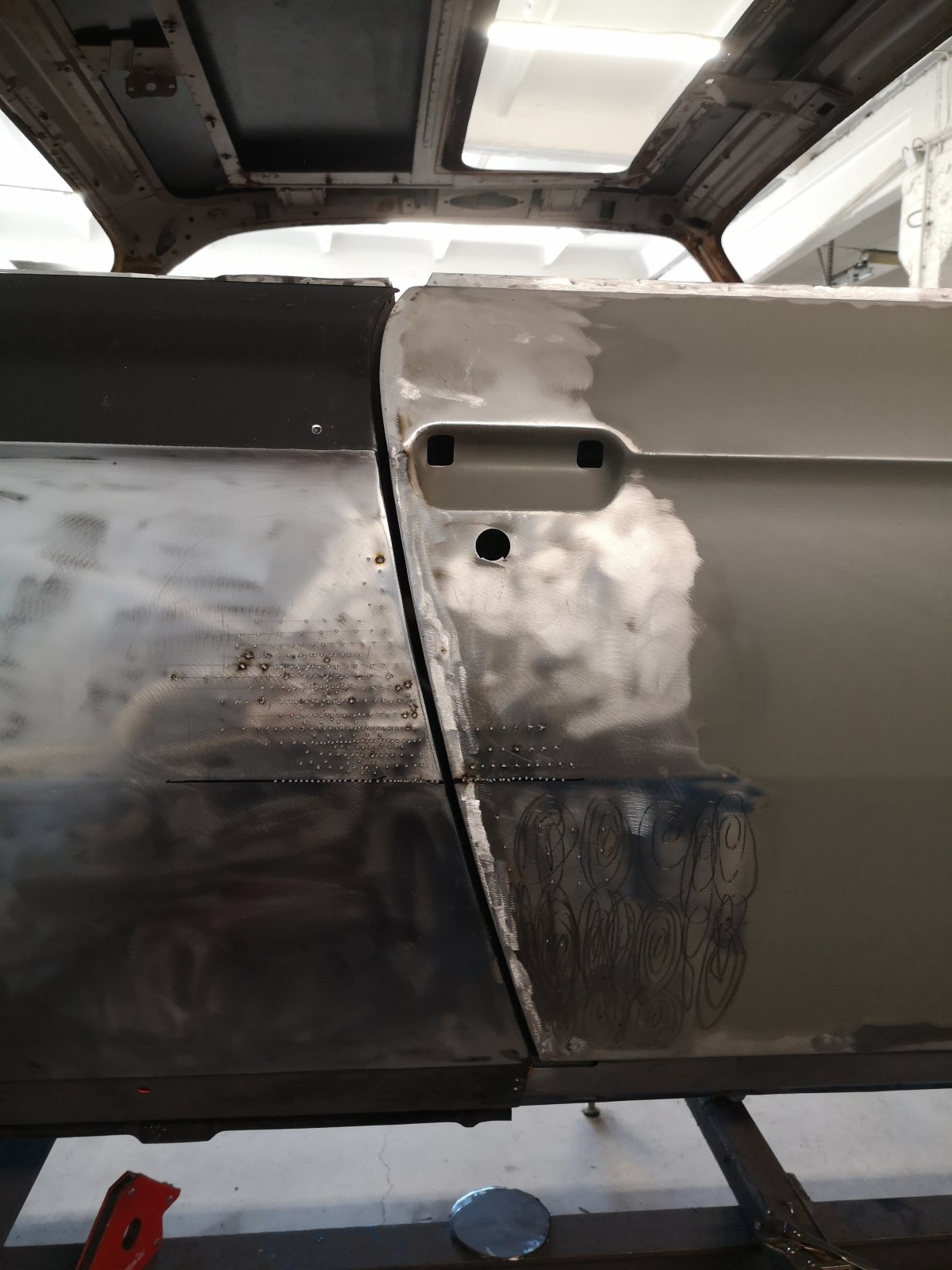

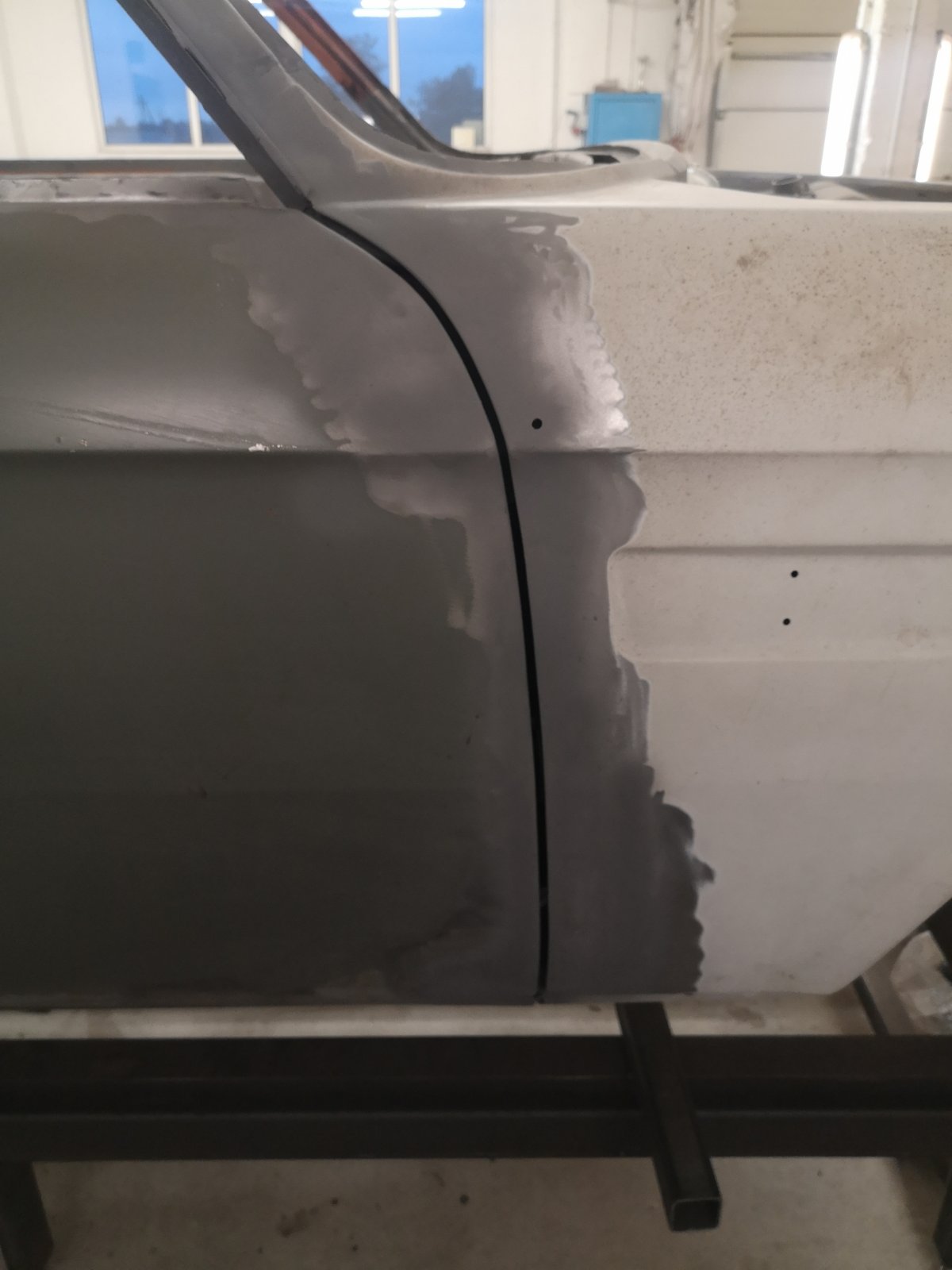

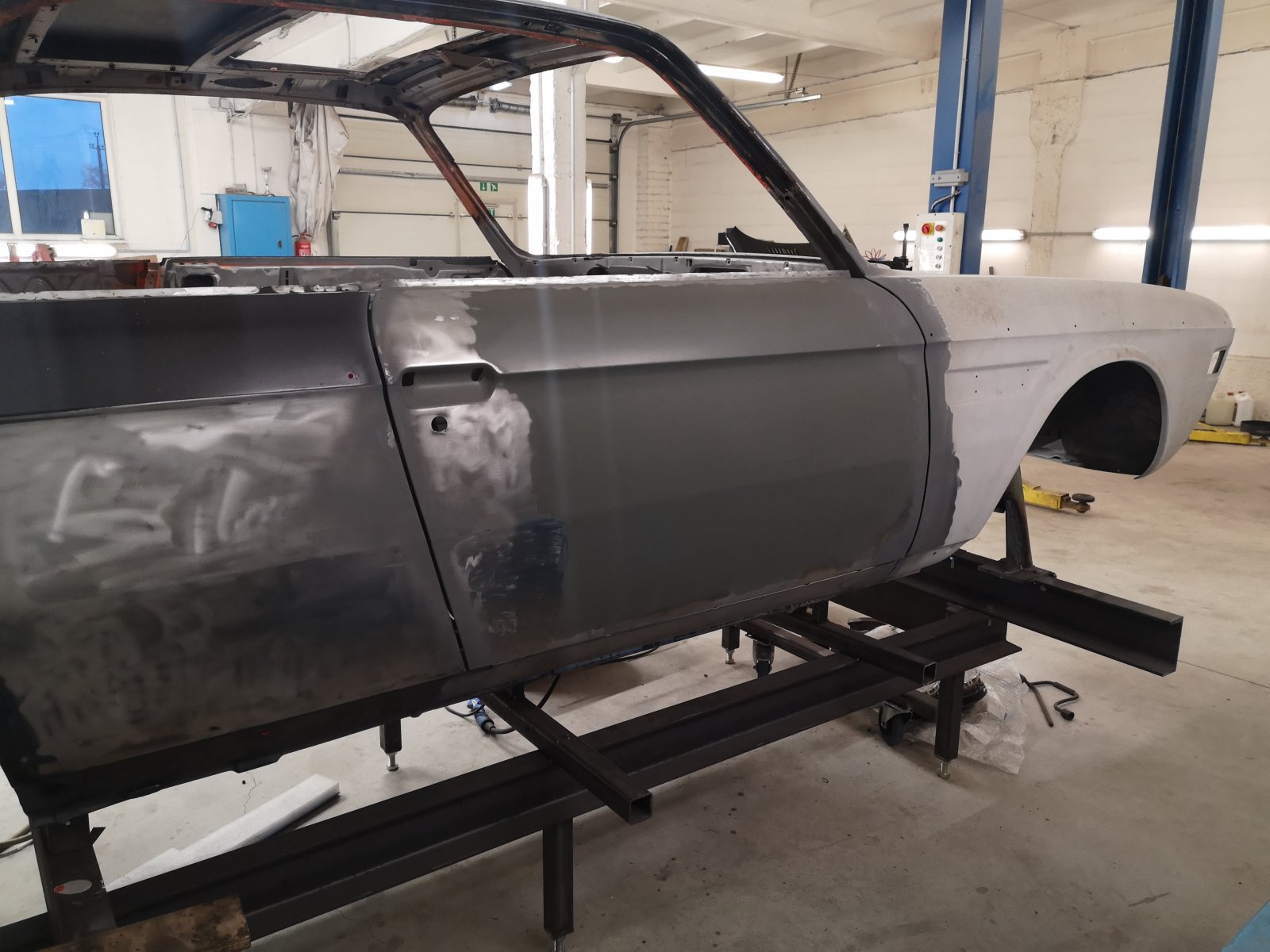

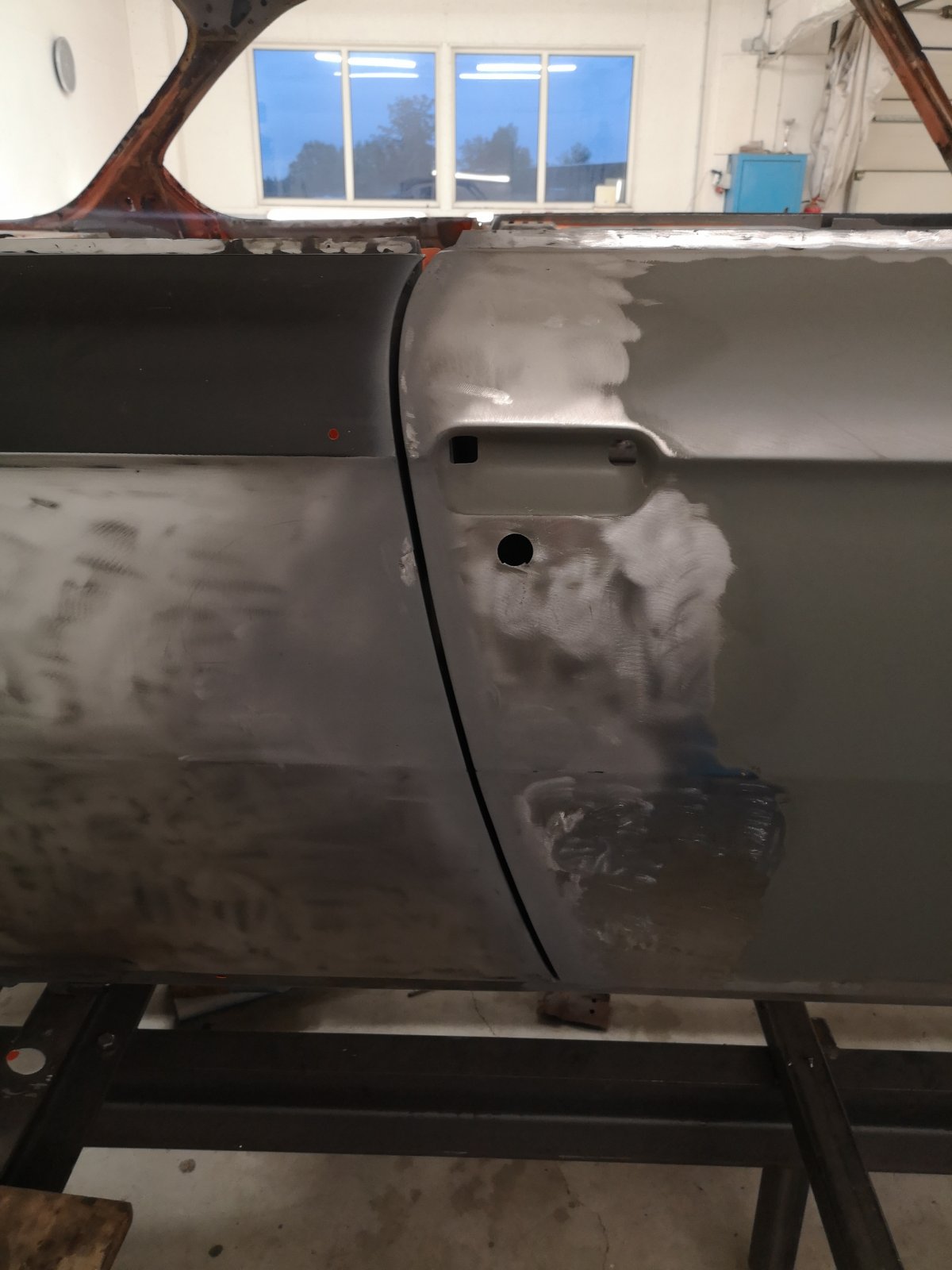

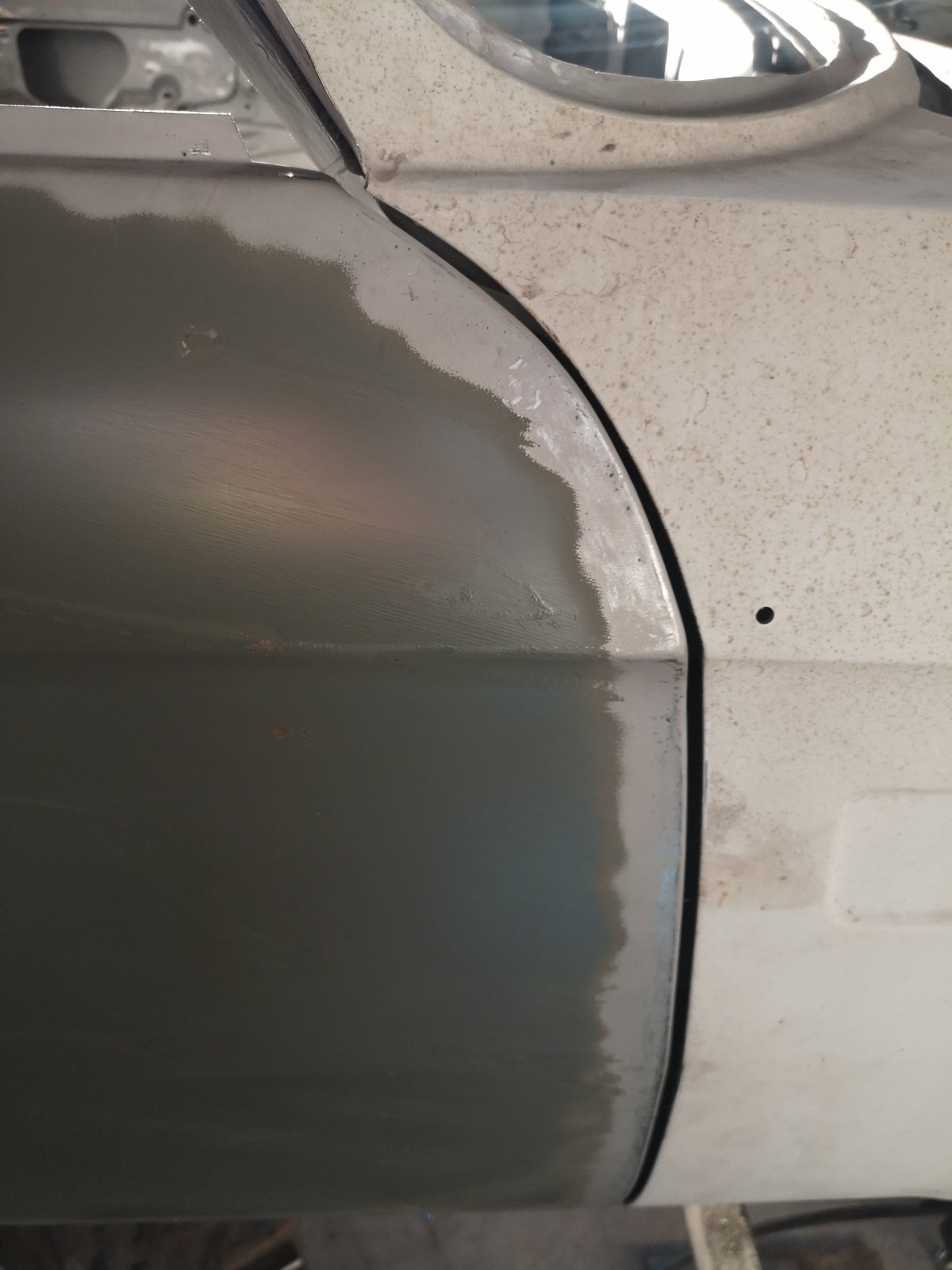

The gaps are pretty awful on this side, so we will correct these:


Work in progress:


And here too:


Much better like so:


And so:

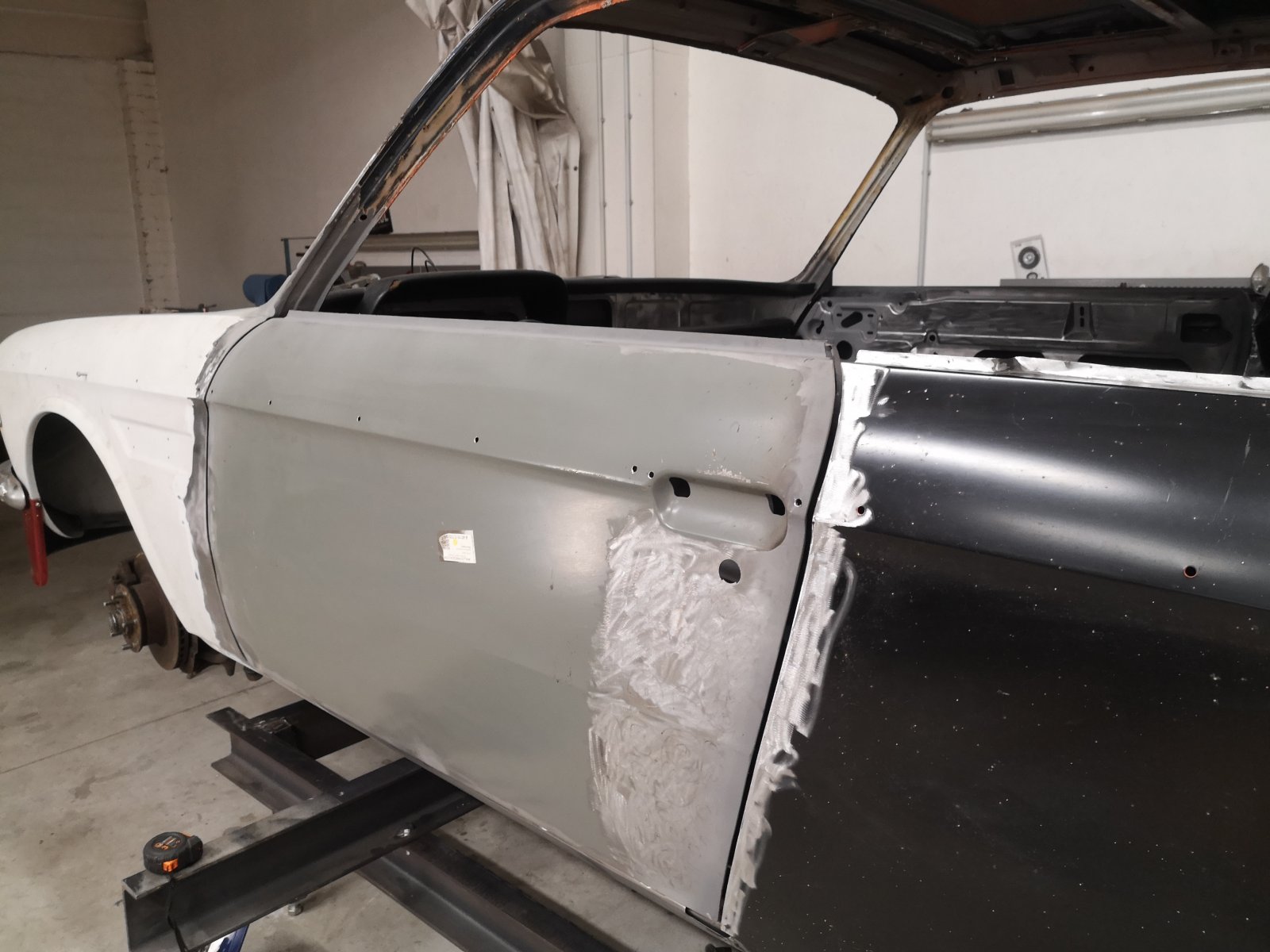

So now the passenger side door is "new" again and fits well:

Last edited:
Update for October, hours spent - 58h
and all of it just on the hood :)

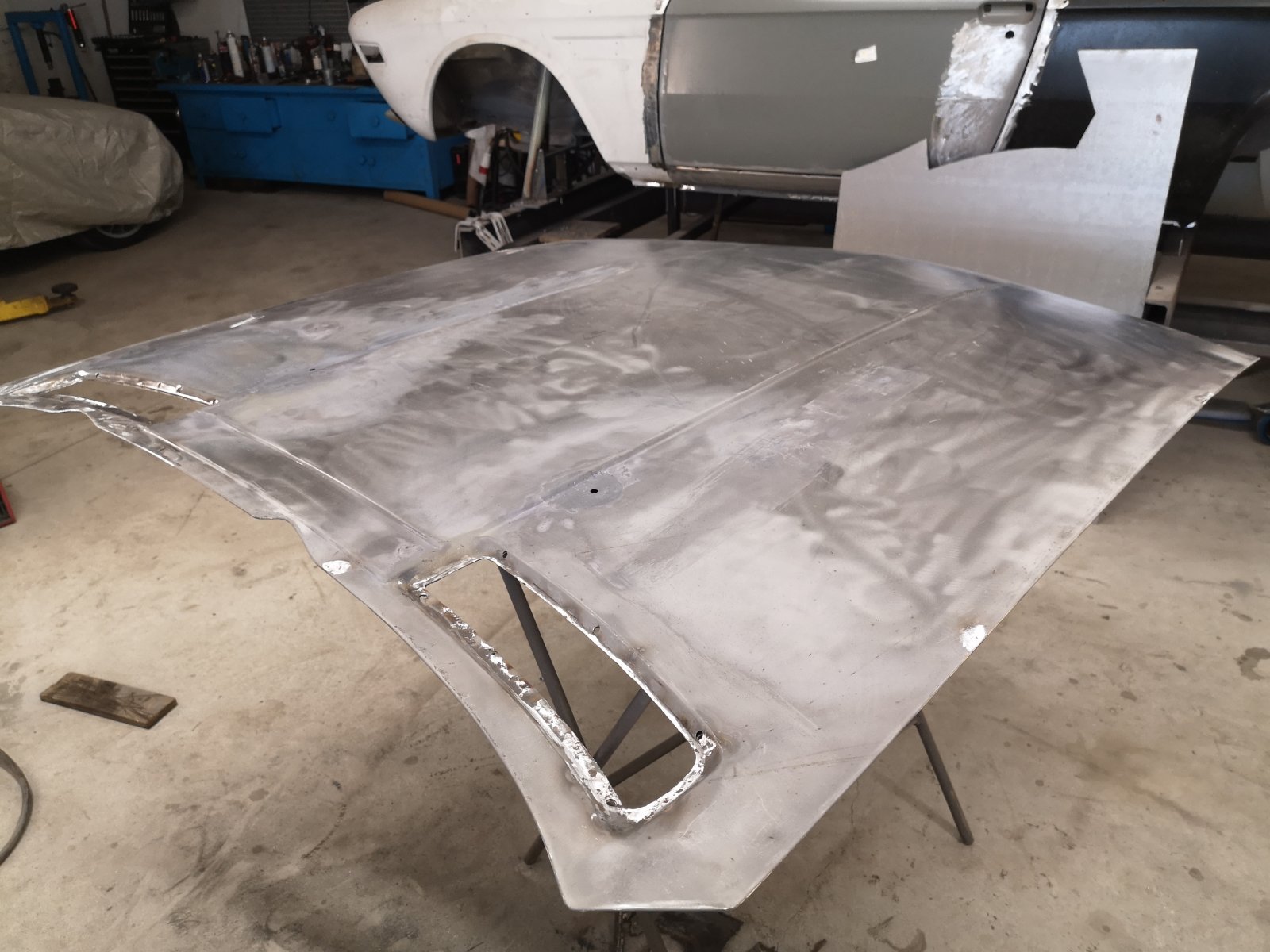

So here goes with the photos, a detailed process of restoring this POS, but I could not find a more better part nearby, so what can you do. Cannot say better than new, but it is going to be decent and is definitely usable.

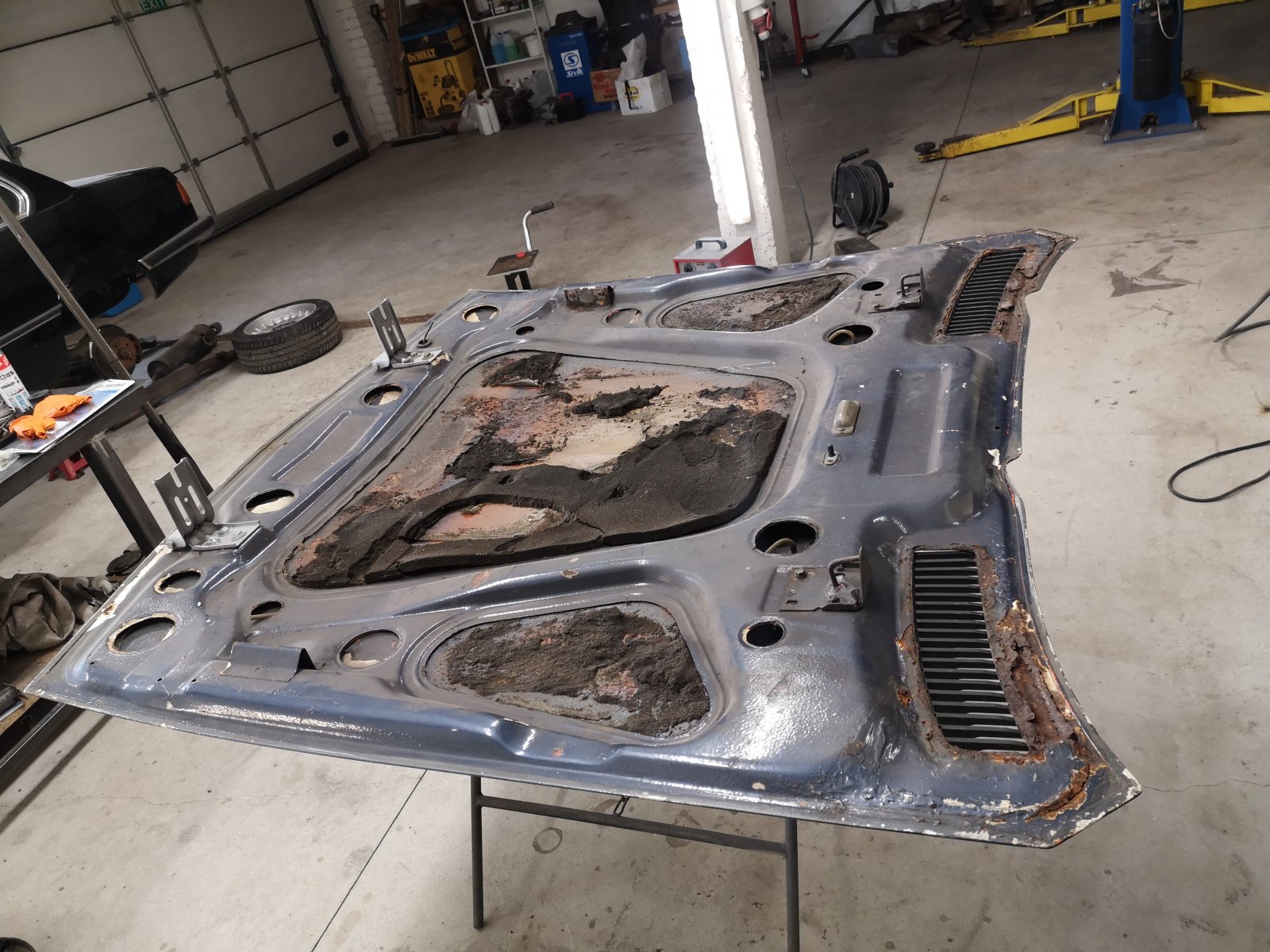

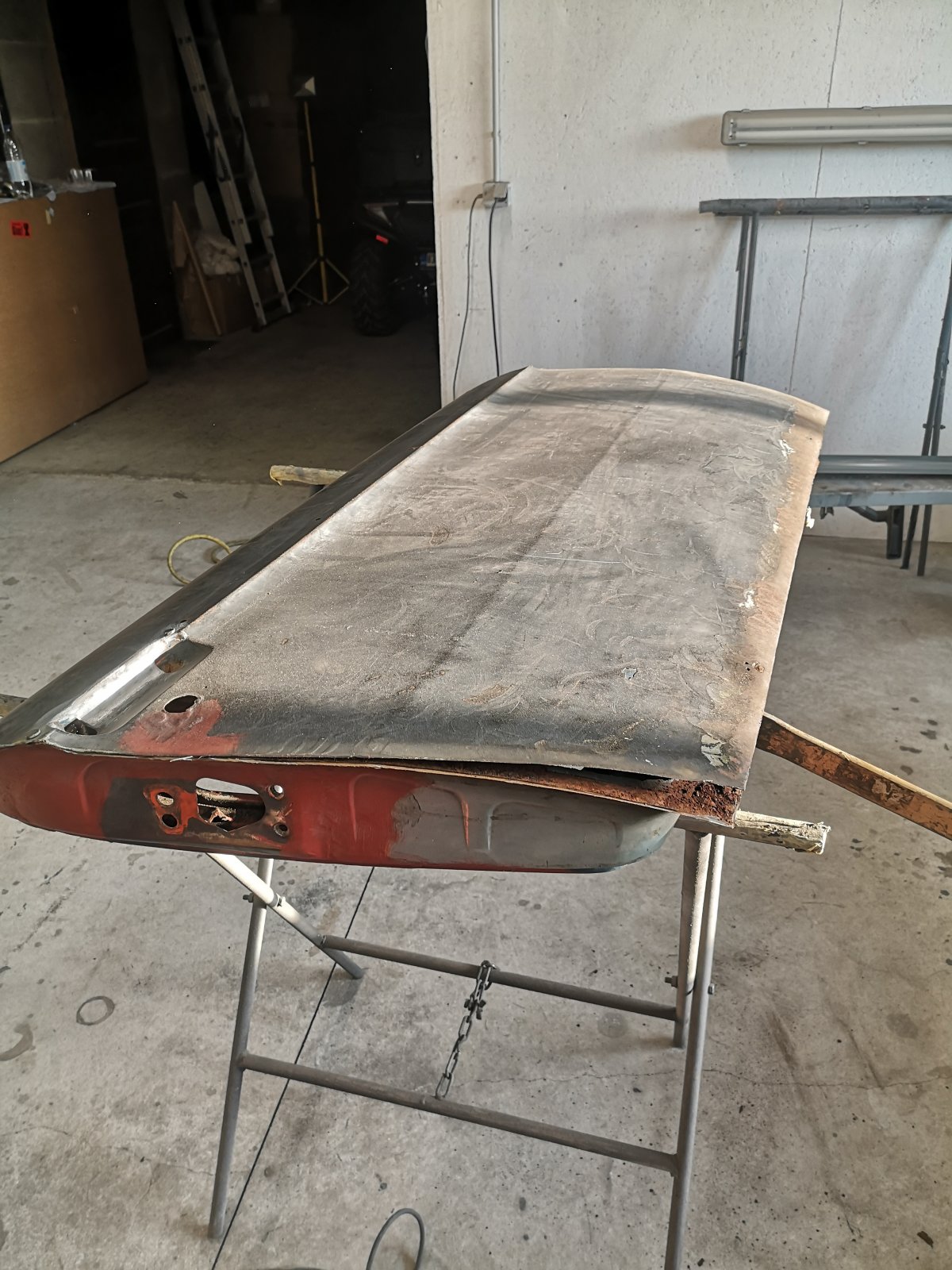

Starting point is this:

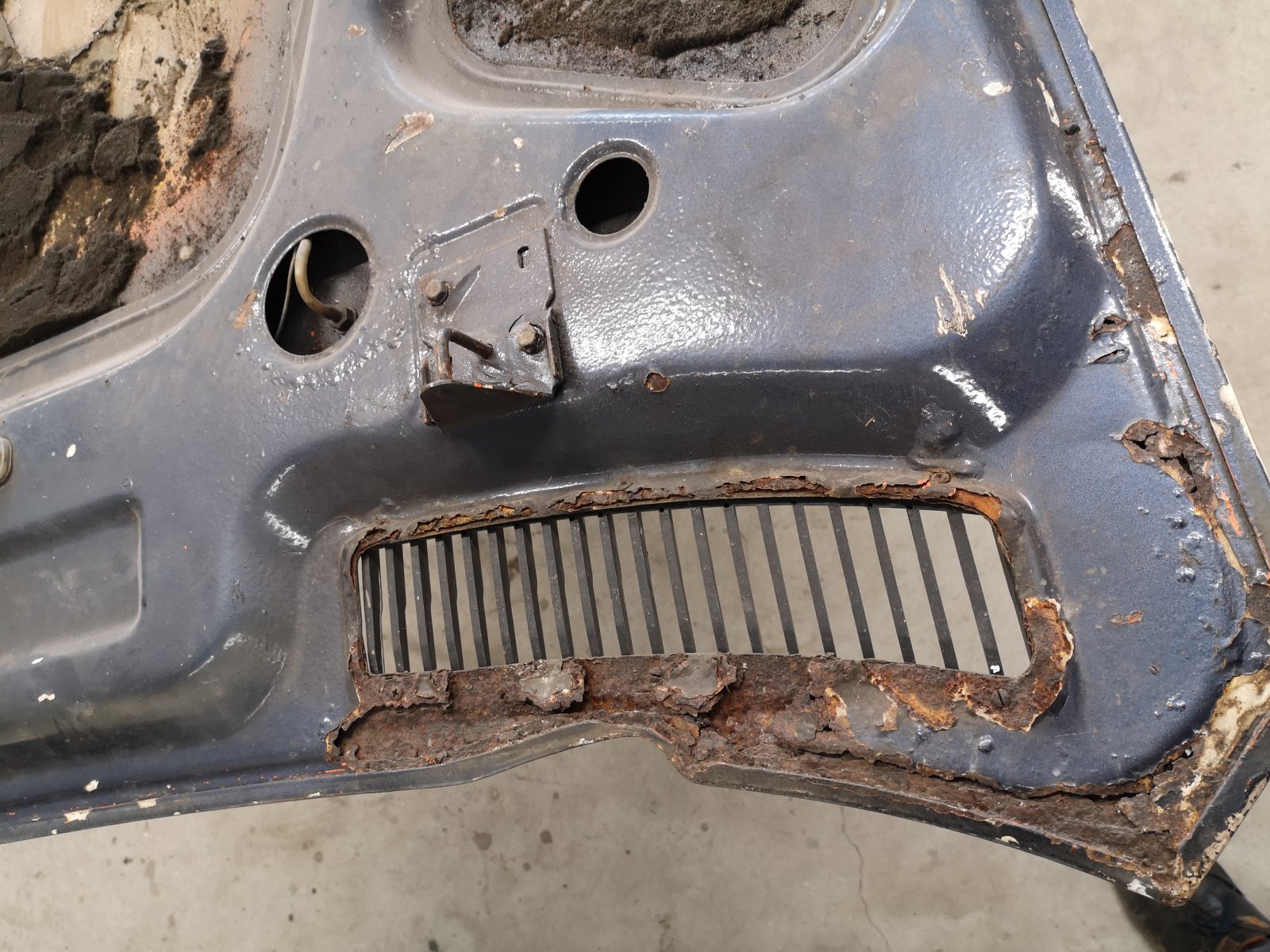

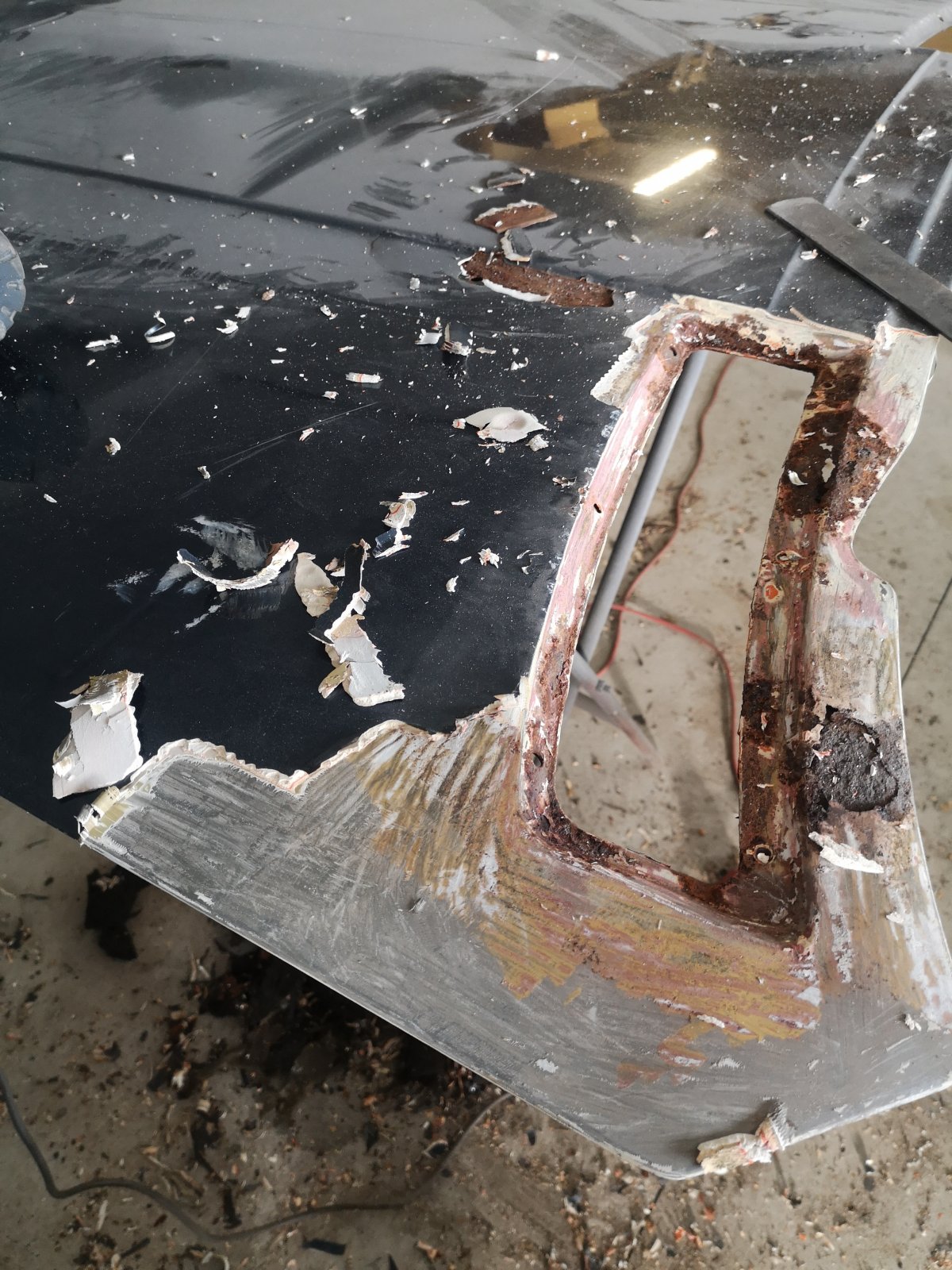

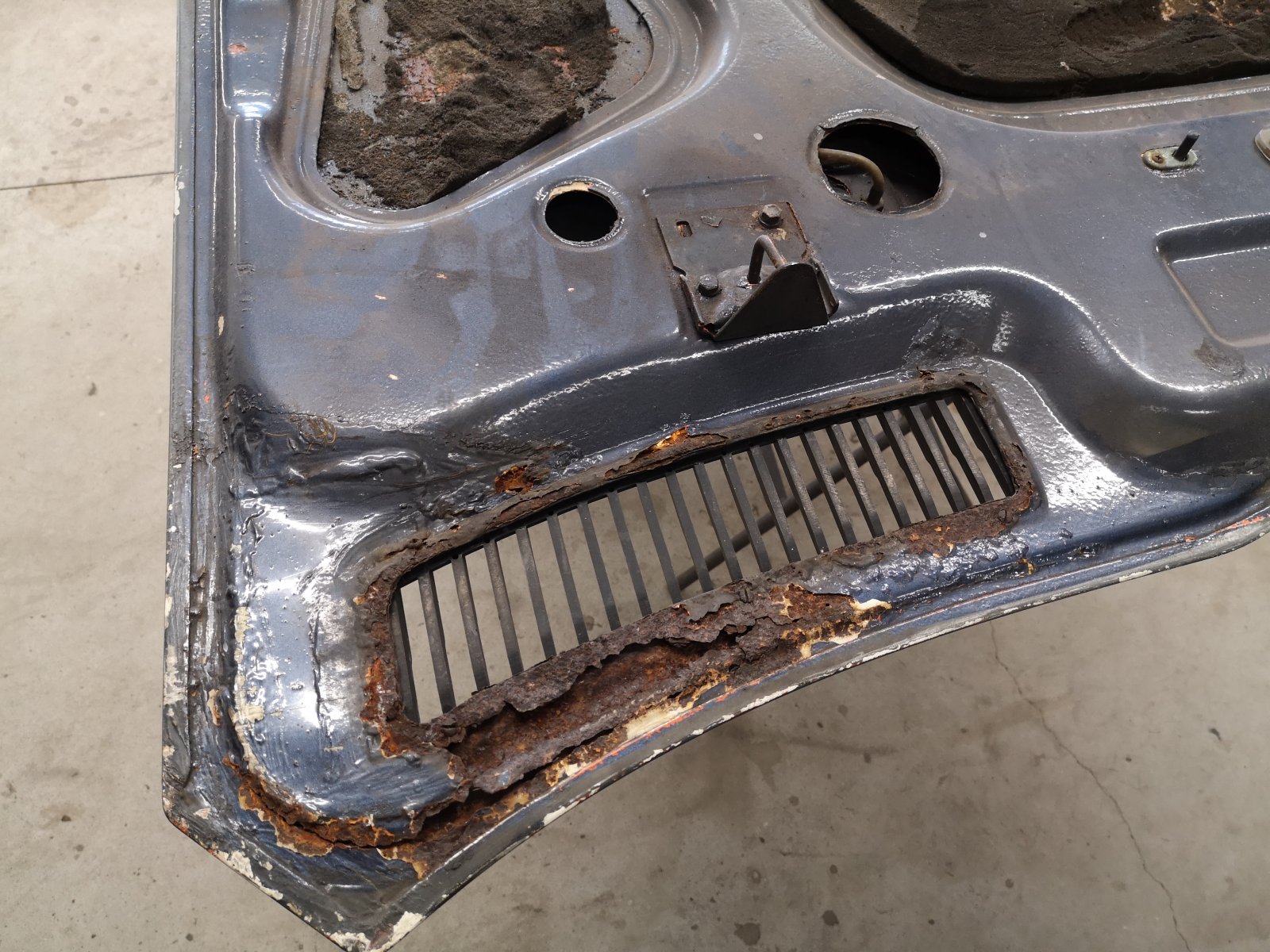

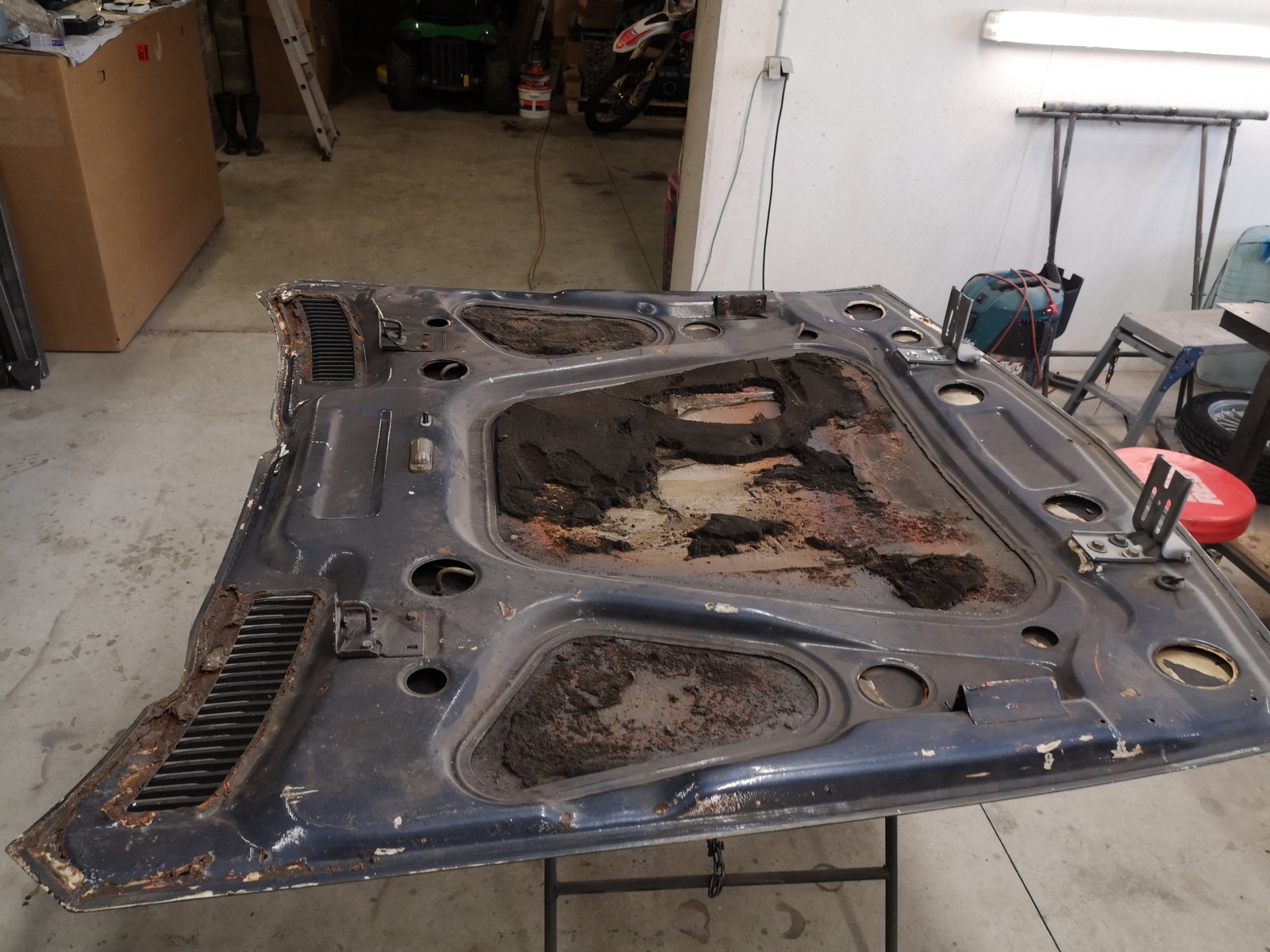

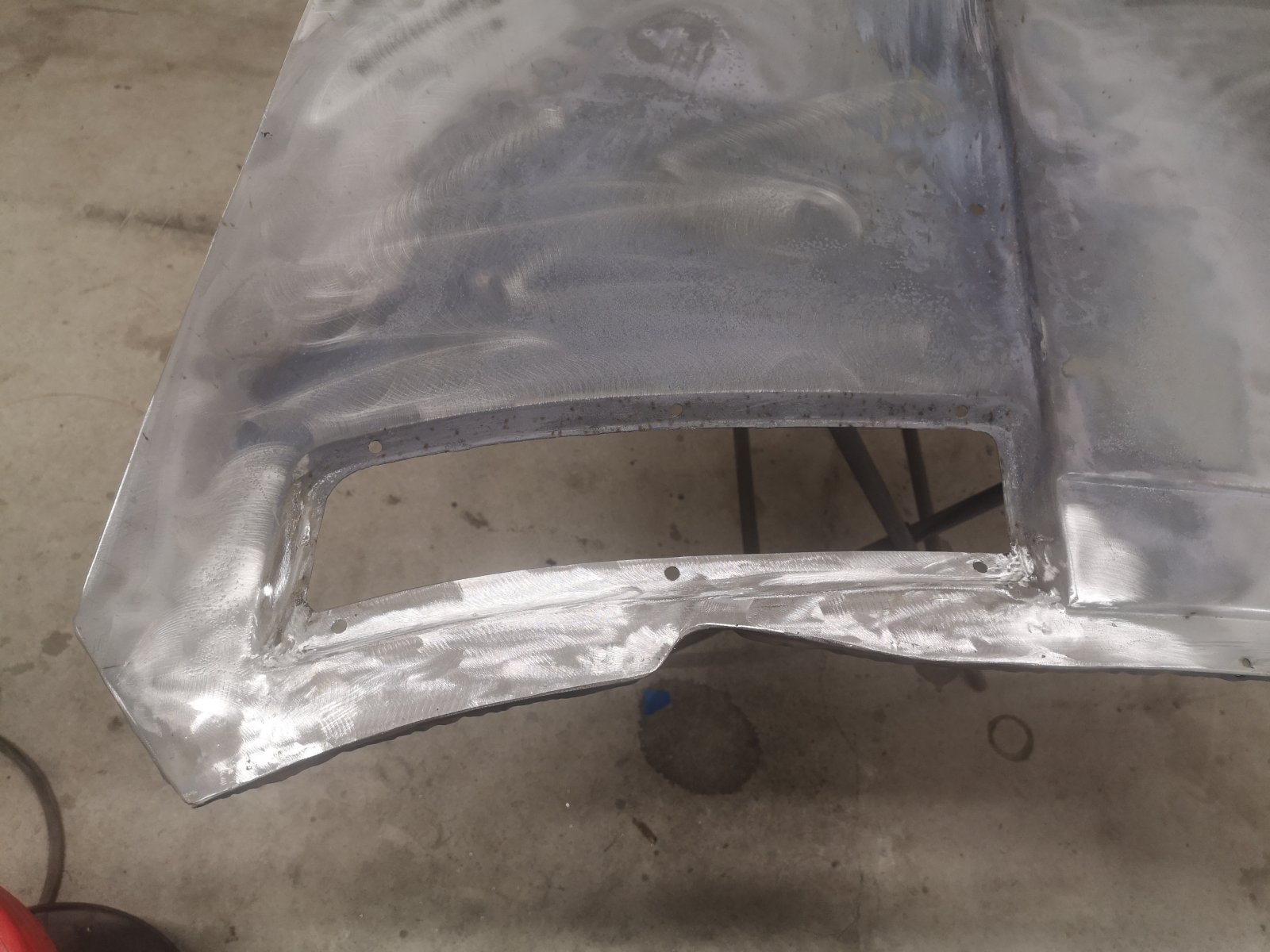

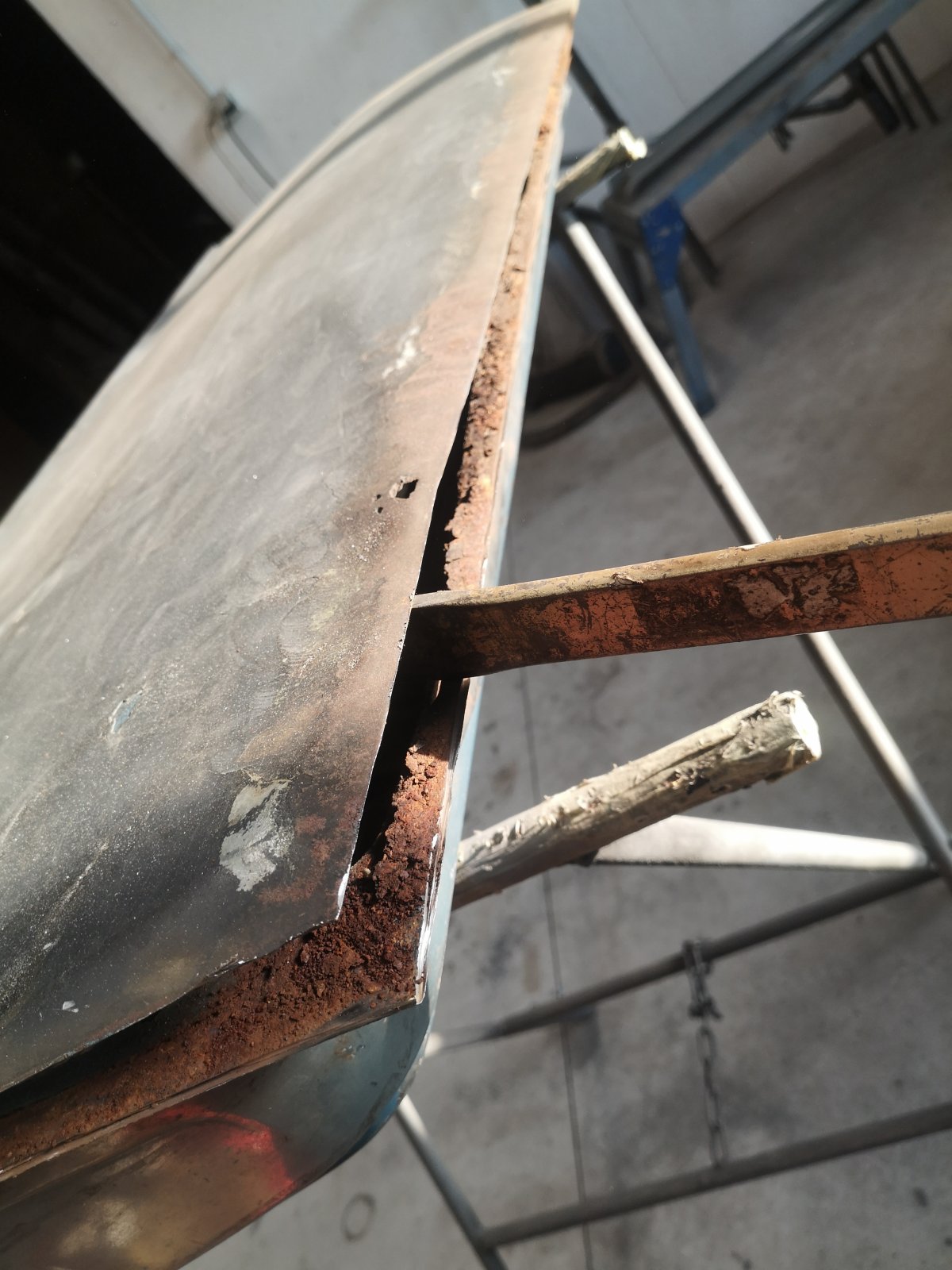

A lot of rust issues around air vents:




We have to get to bare metal first, removing all the added layers.


Almost there on the inner side:

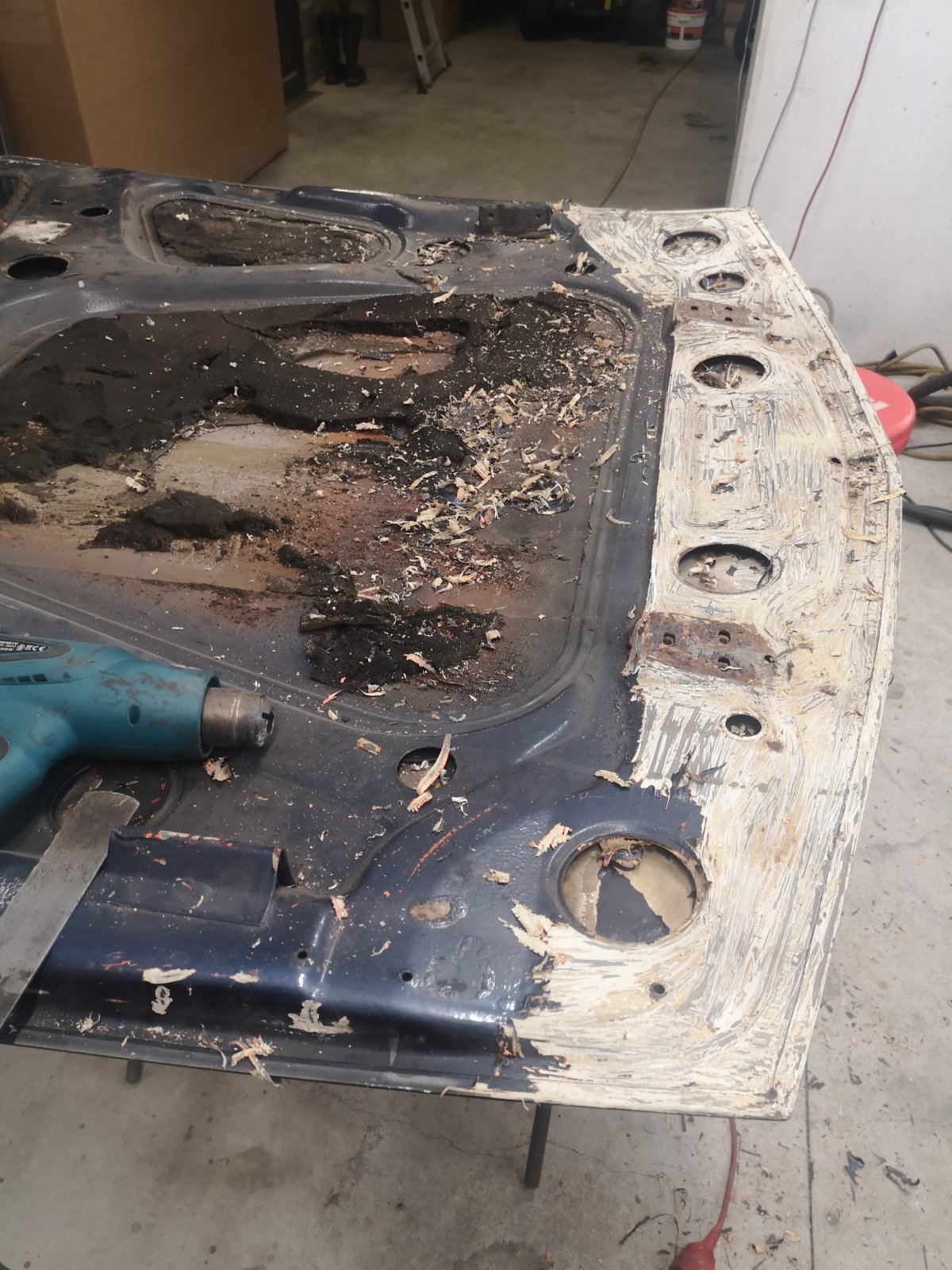

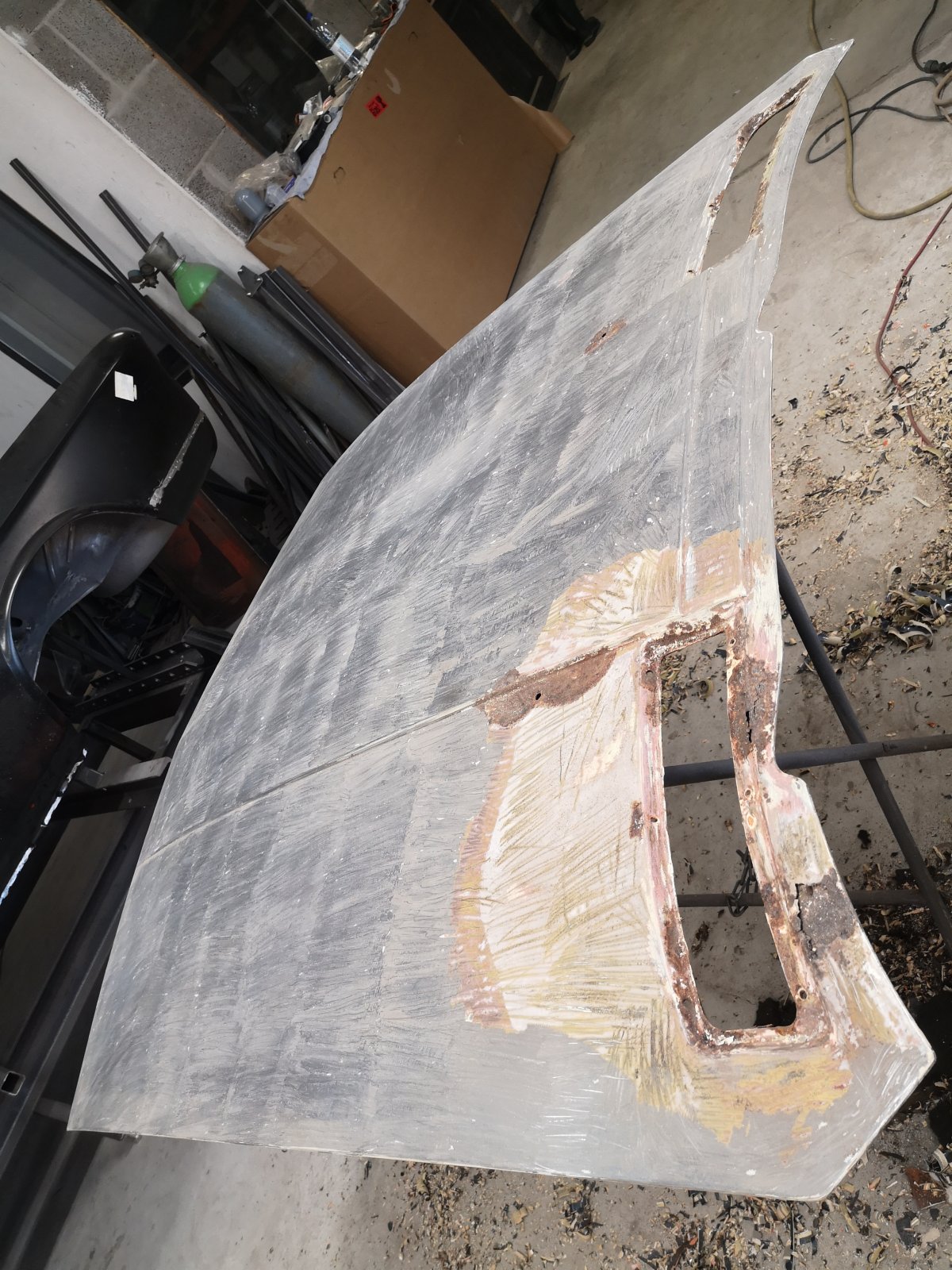

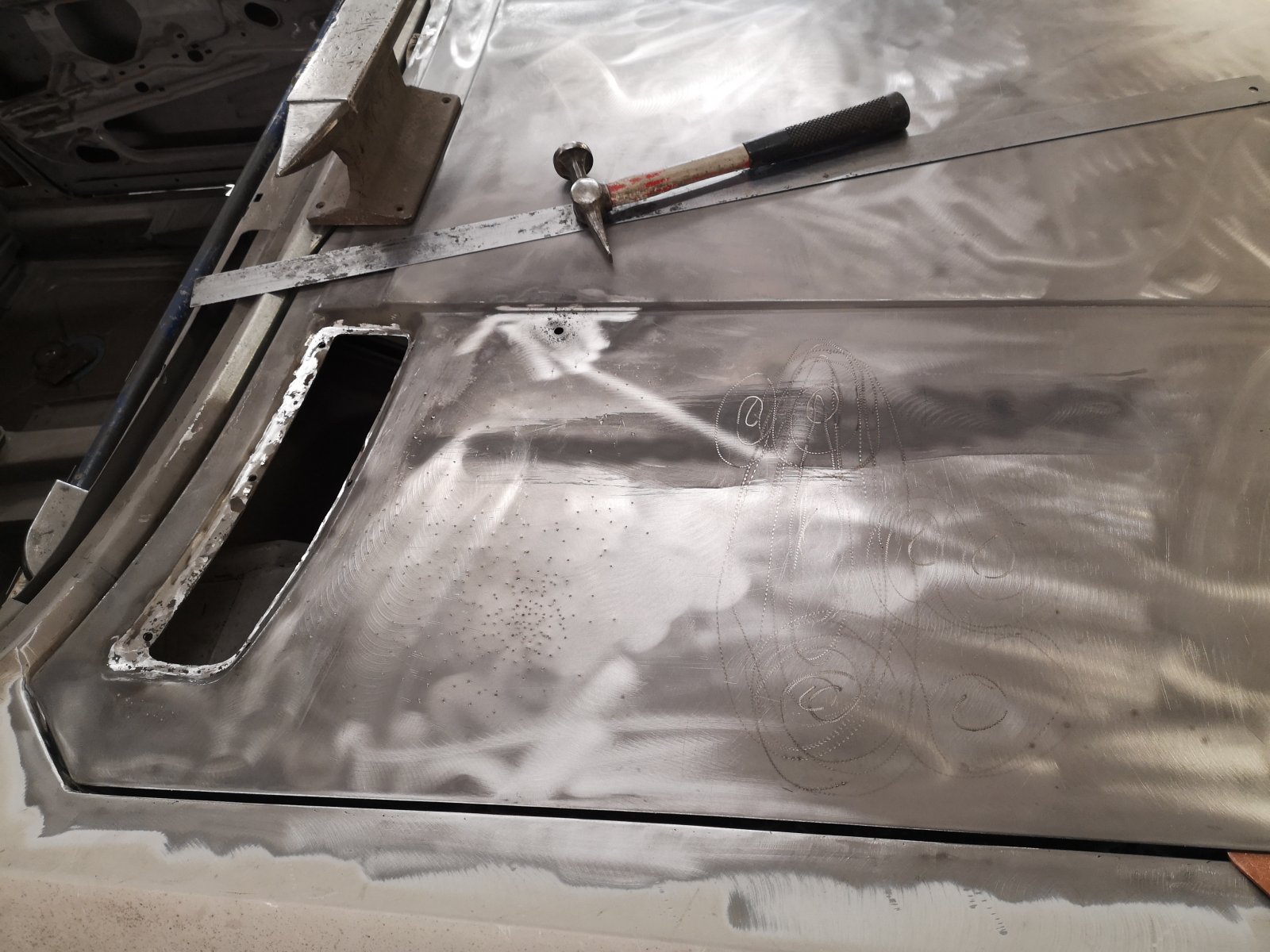

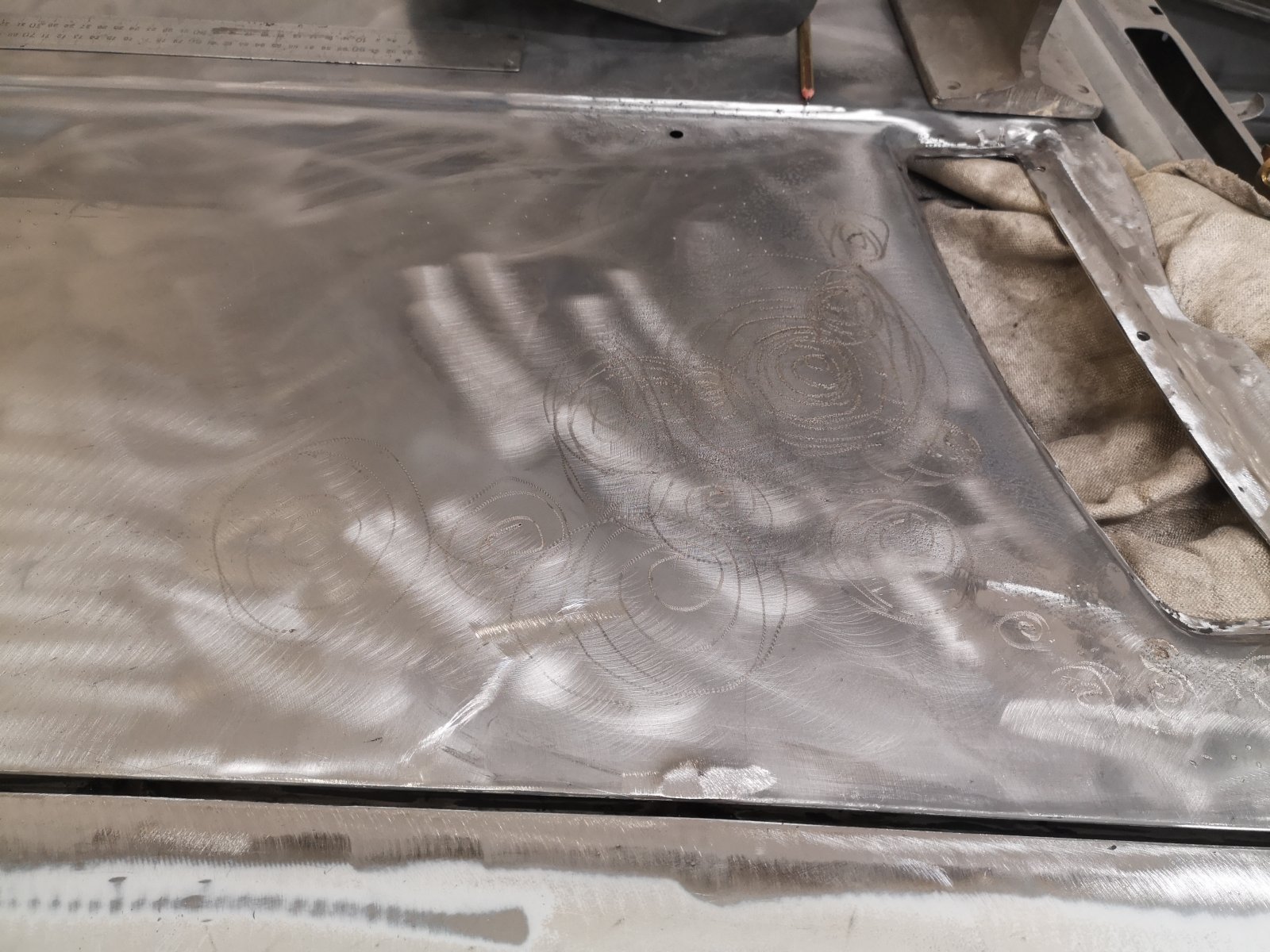

And now proceeding with the outer side, quite a lot of bondo. Let's dig deeper...


There is one fishy area for sure on the driver's side now that it has been cleaned of paint and bondo:

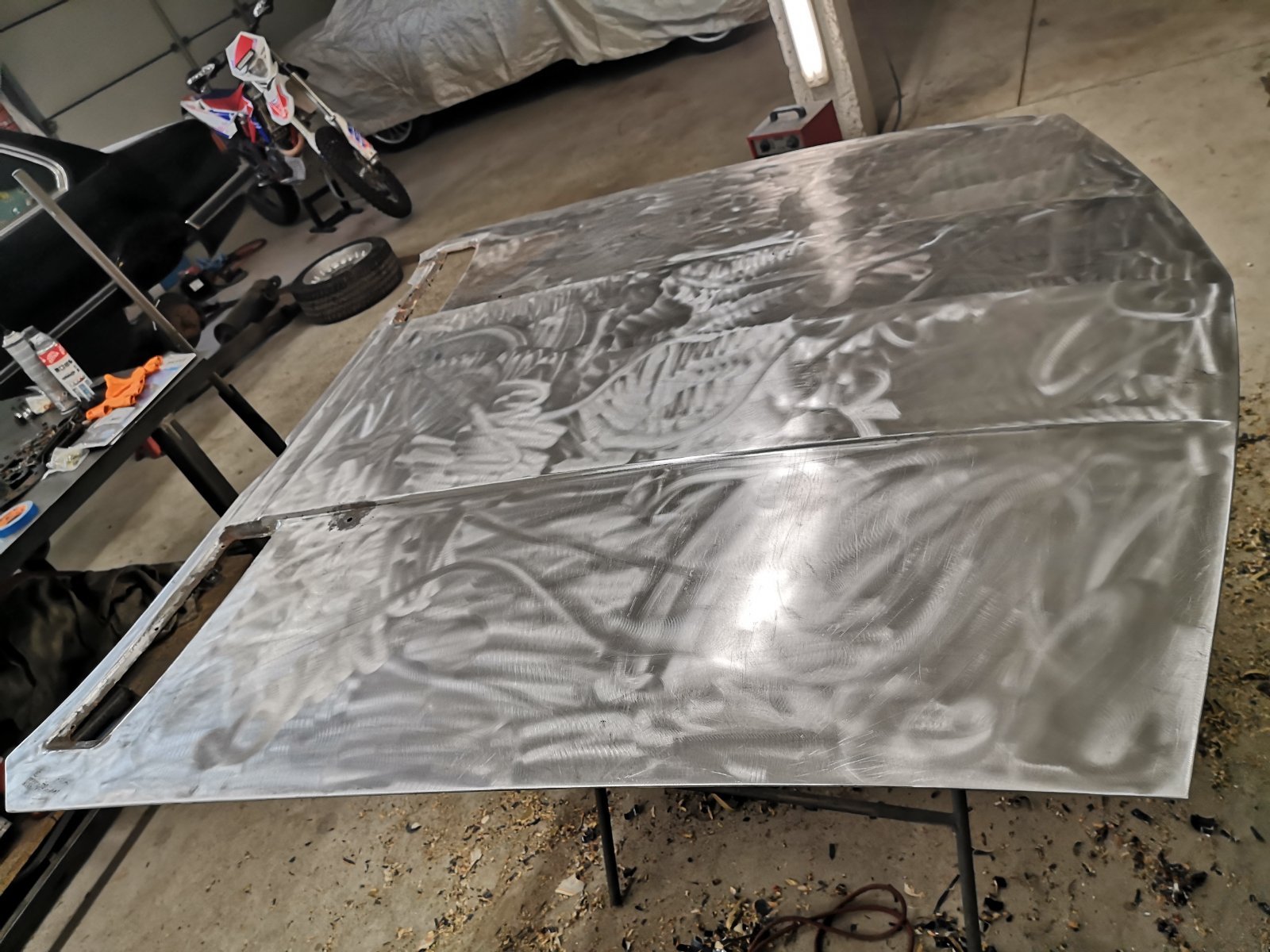

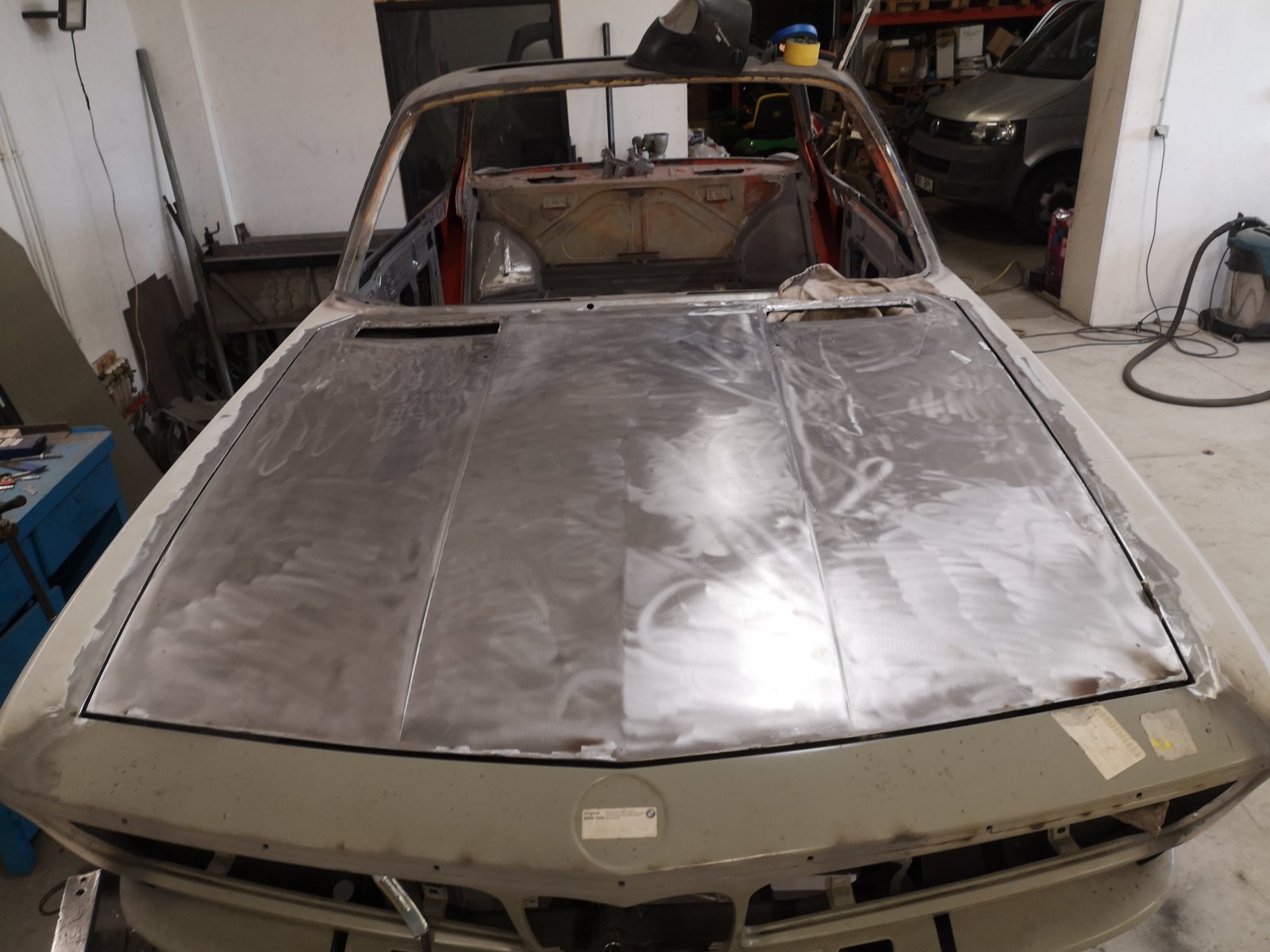

More or less clean surface on the outer part


And inner part too:

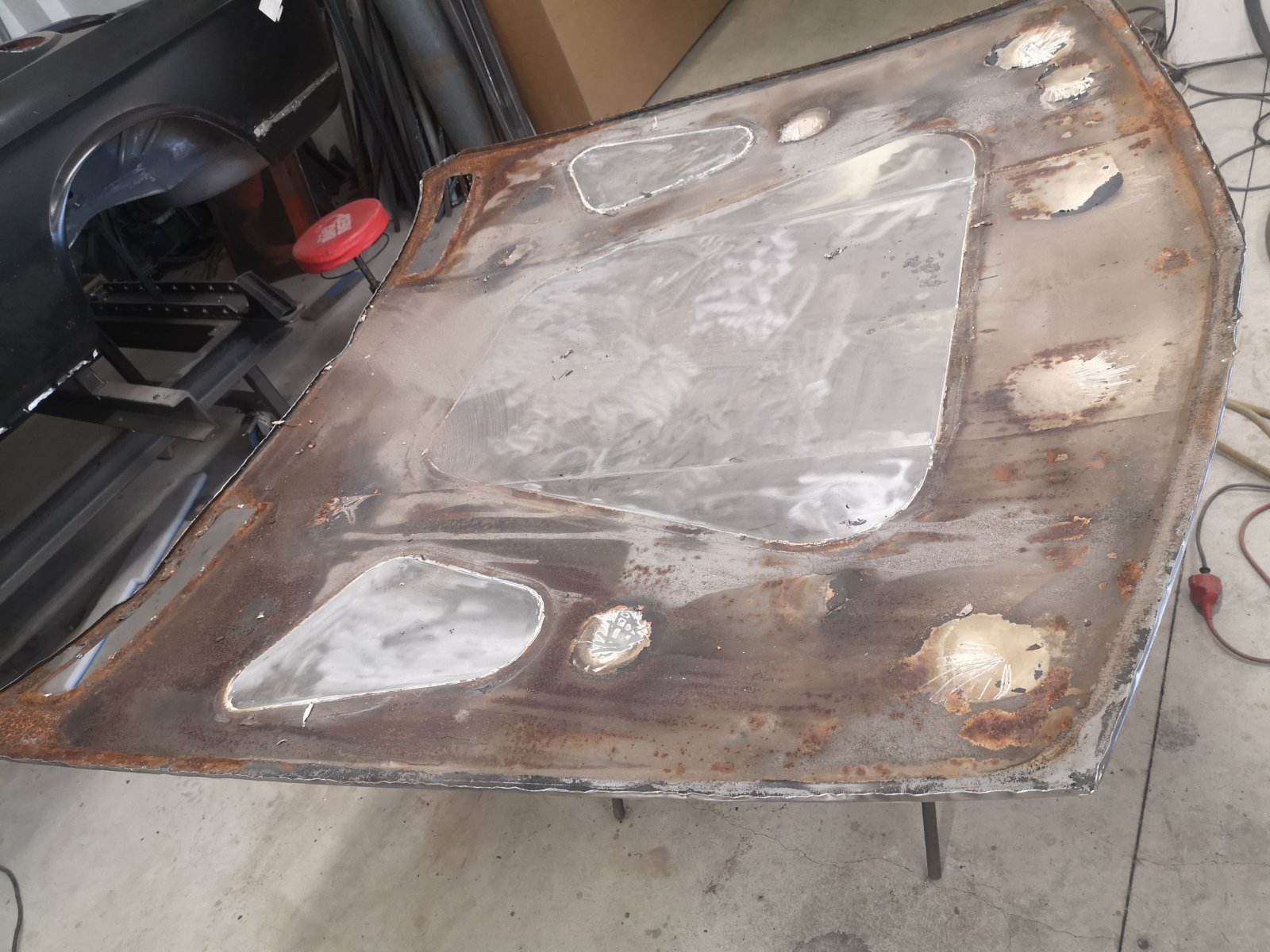

Voila, the outer skin removed from the inner frame:


Frame off, the whole bonnet seems to have fire damage?!?

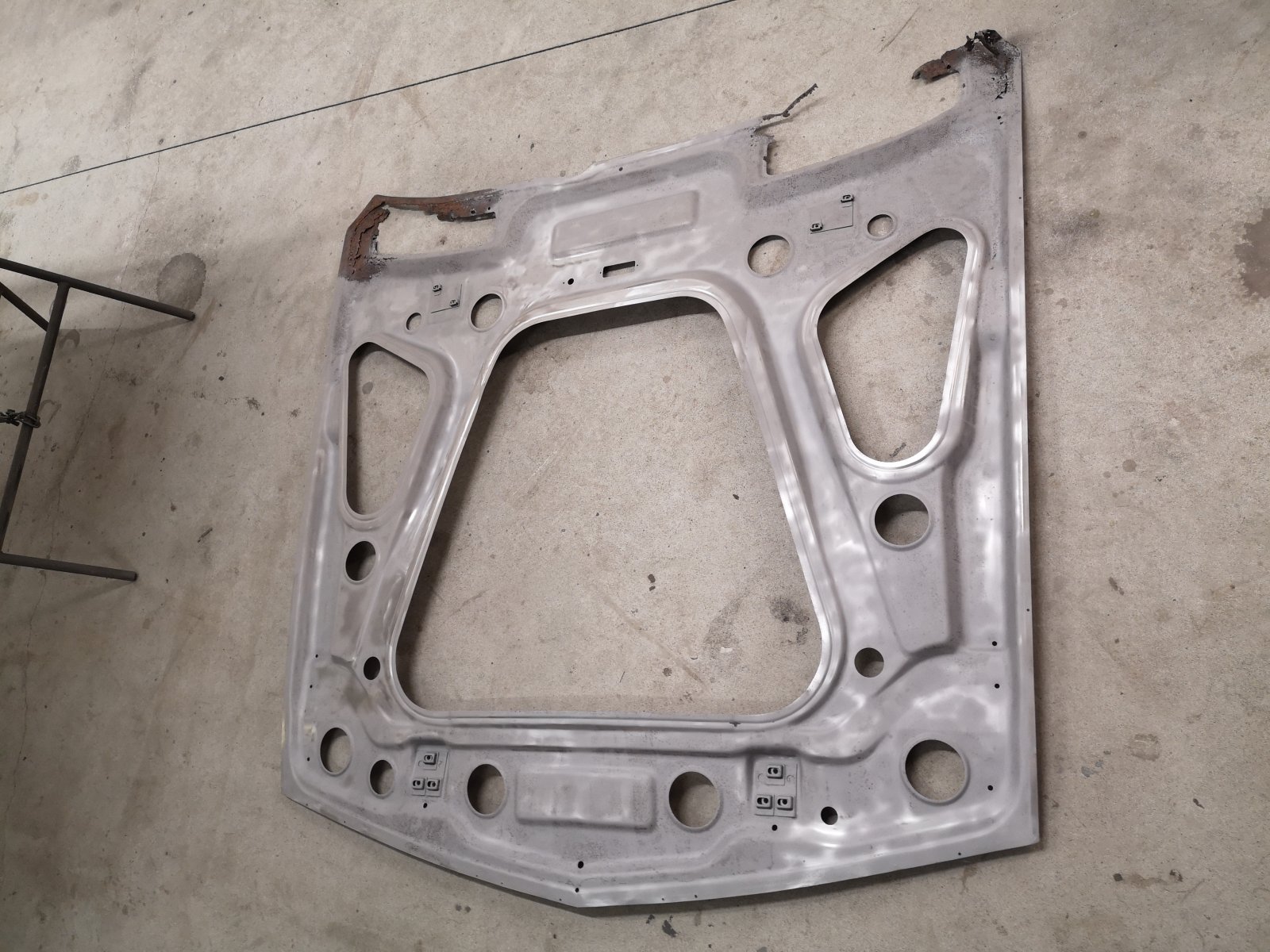

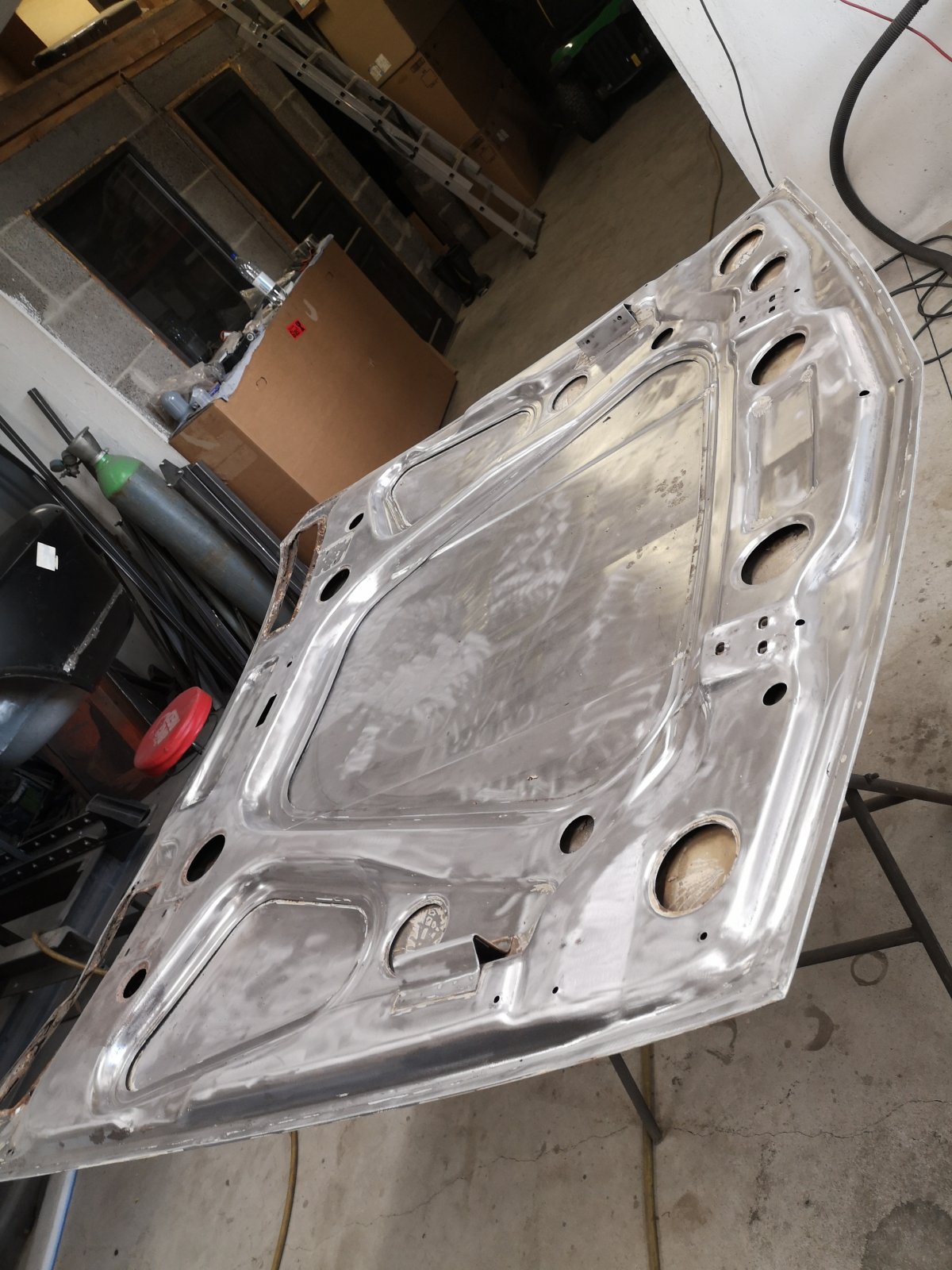

Cleaning the inside of both parts


Here too

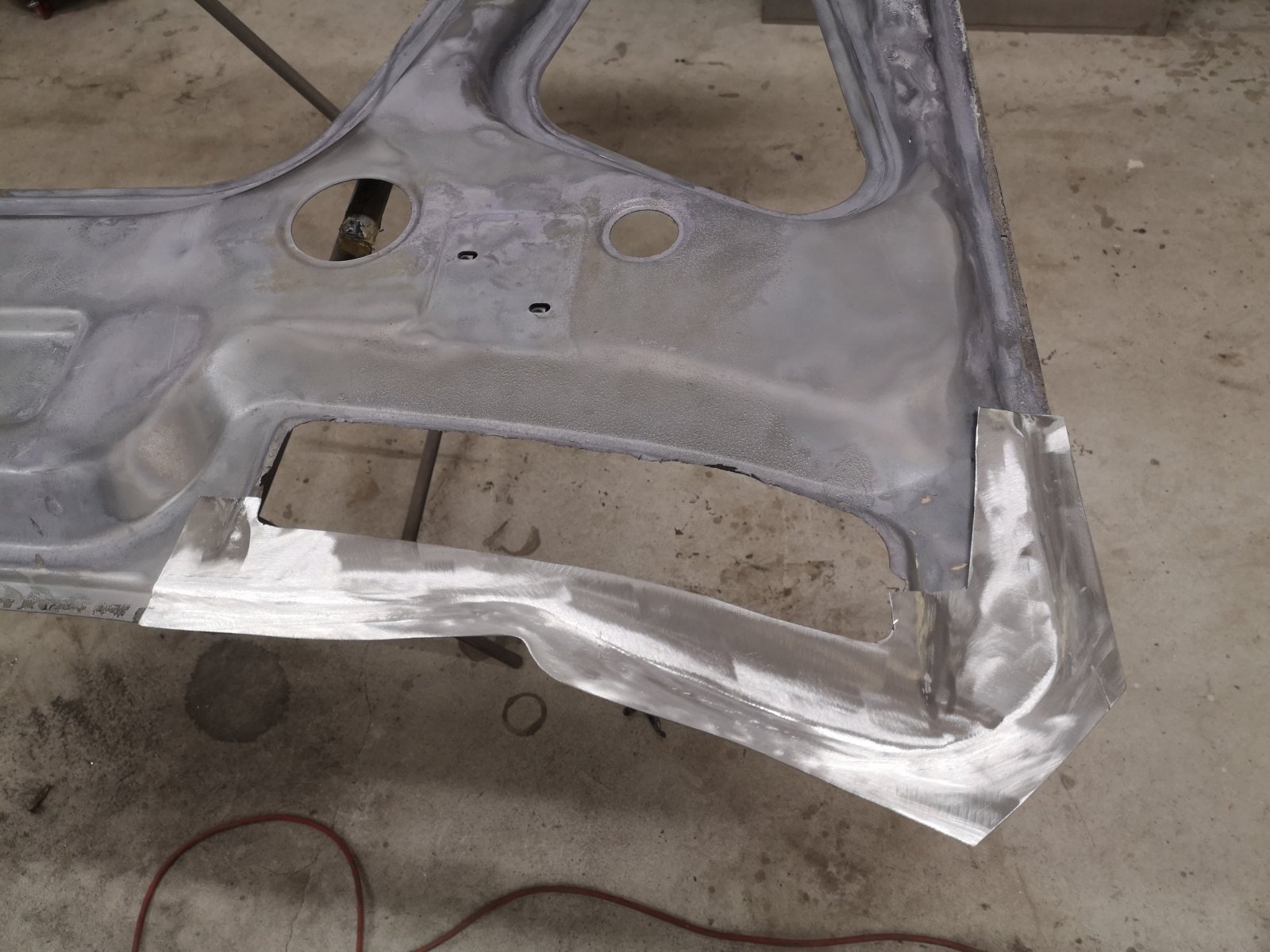

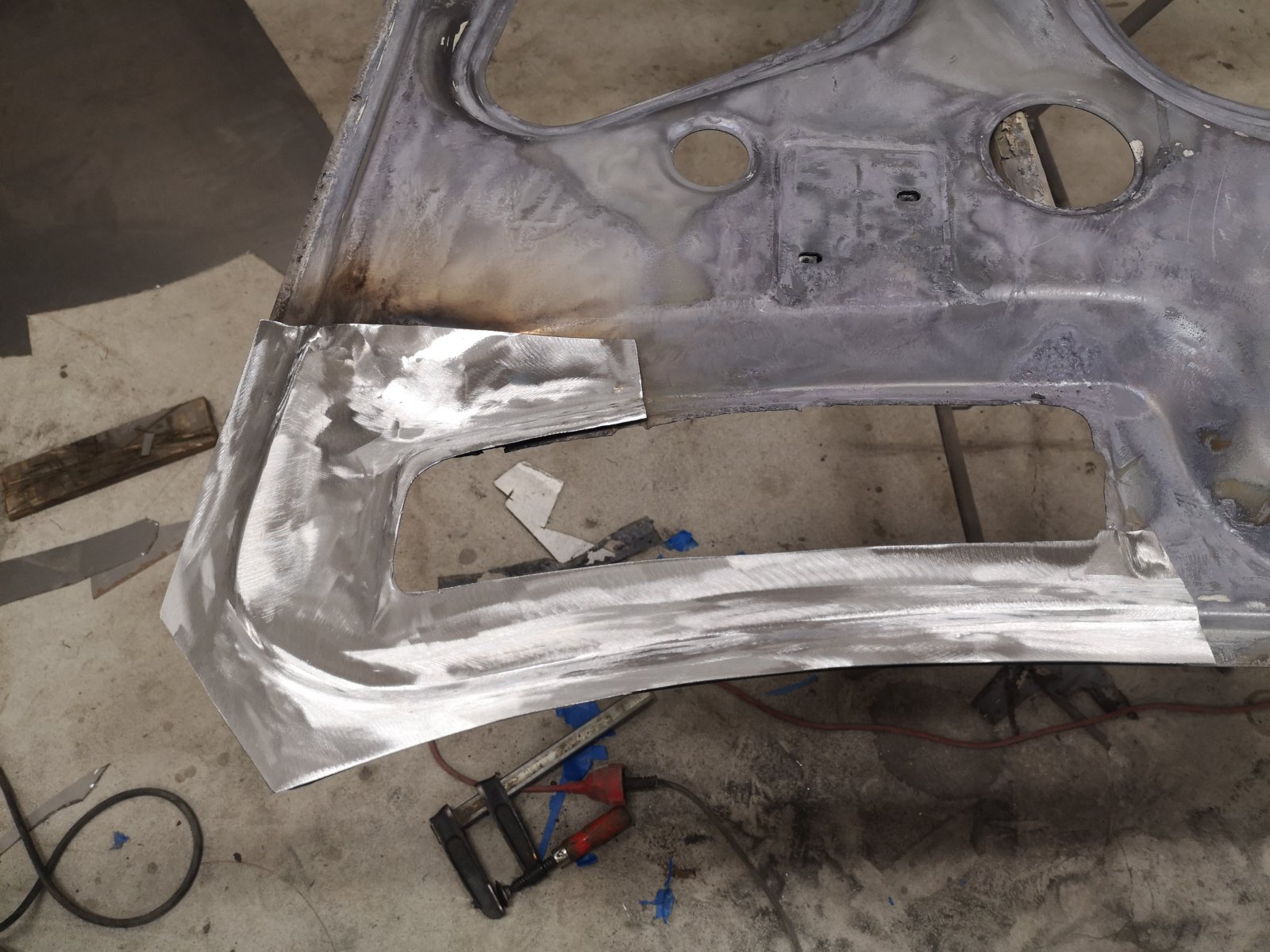

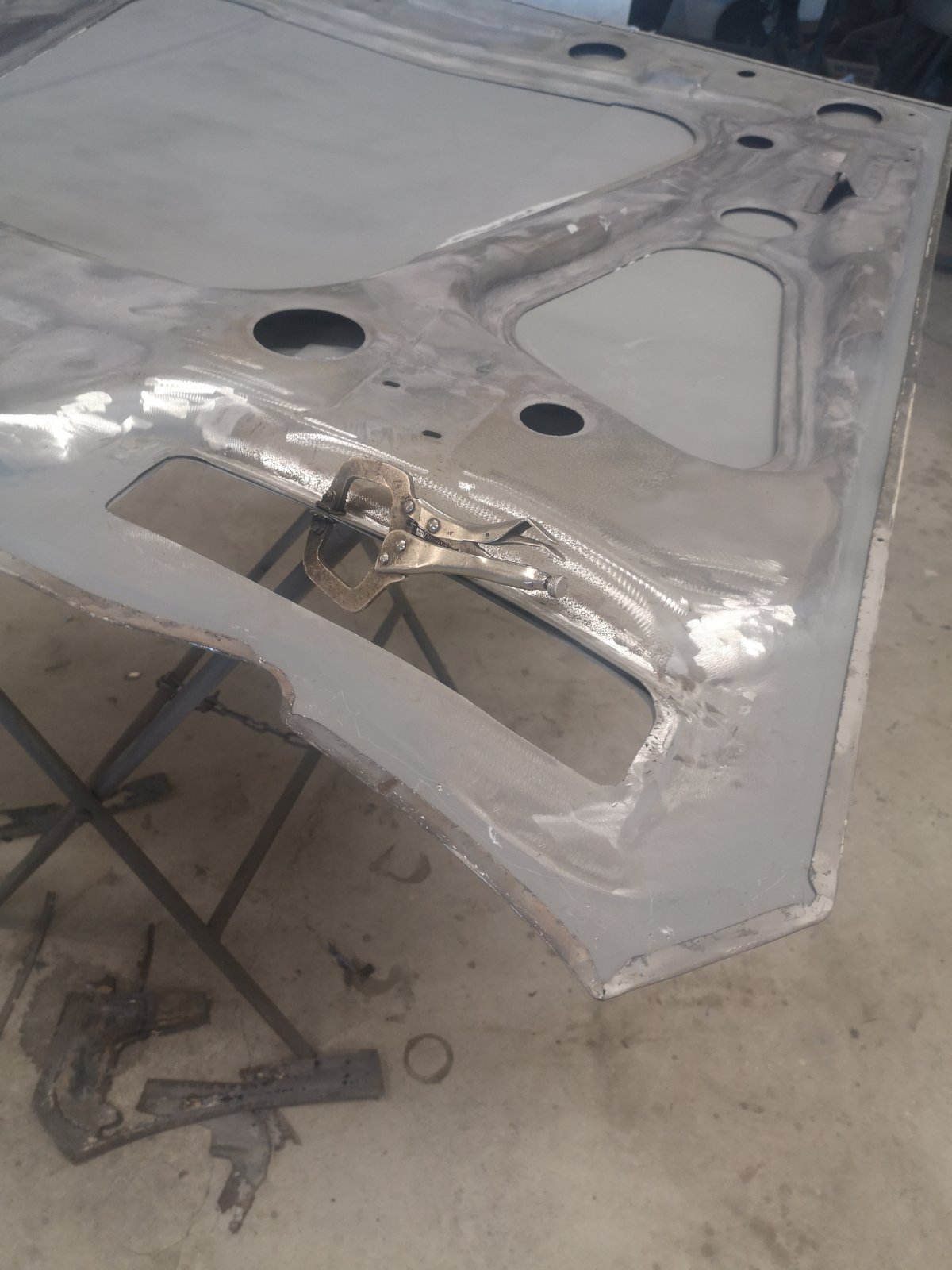

With that done we can start to rebuild the parts:


Much better:


Templating and testing on the other side


And done


A bit more here too

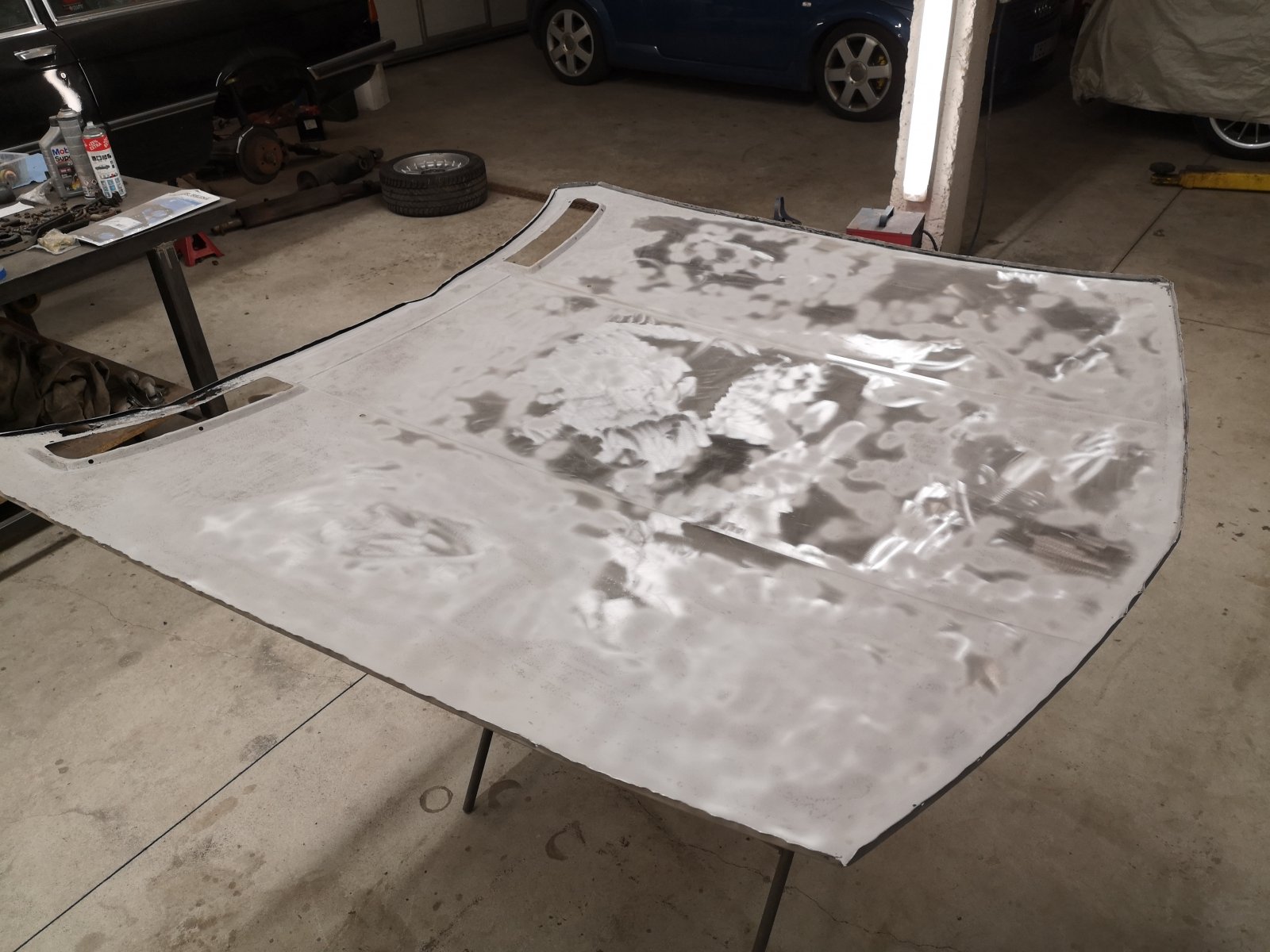

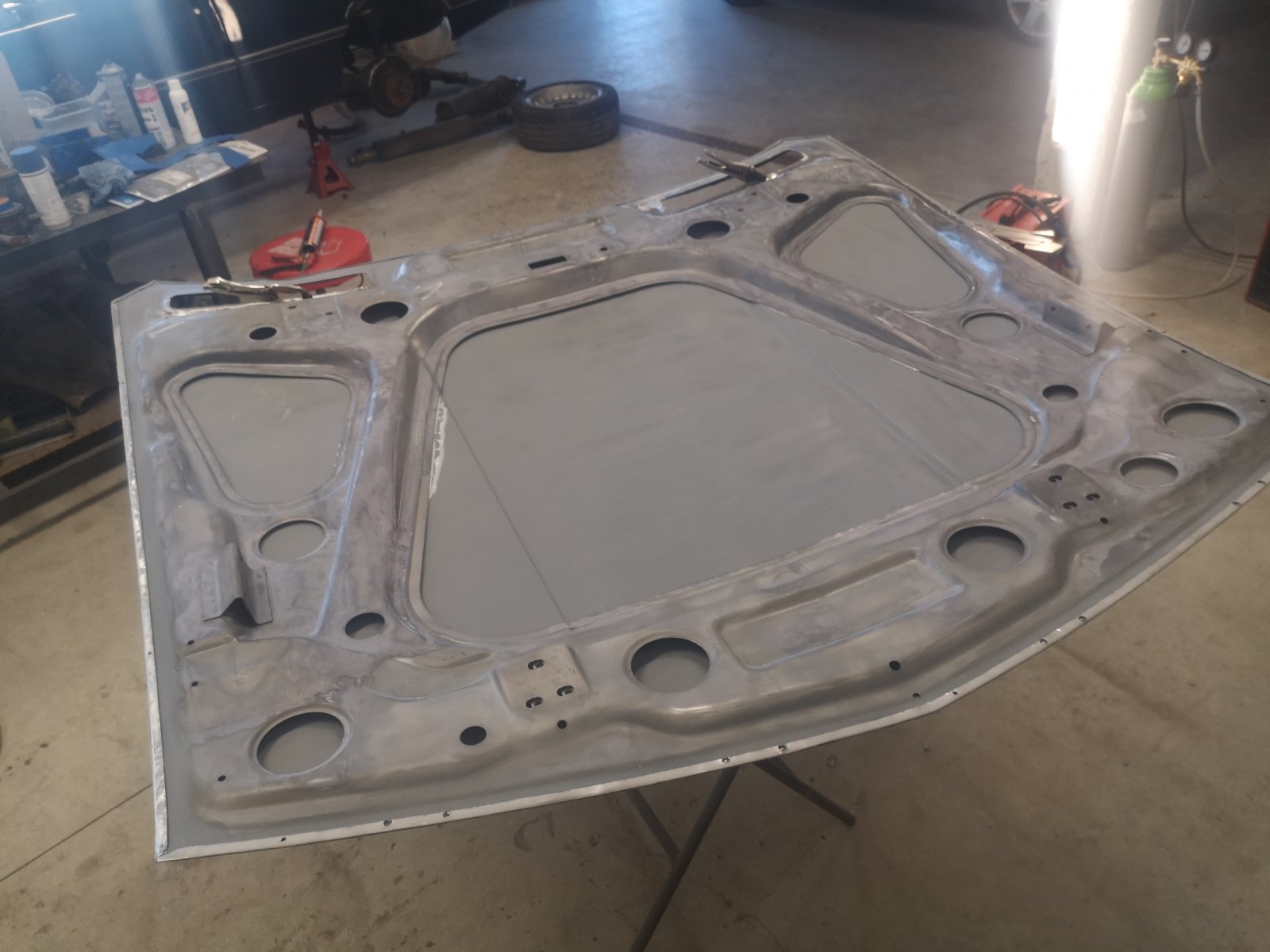

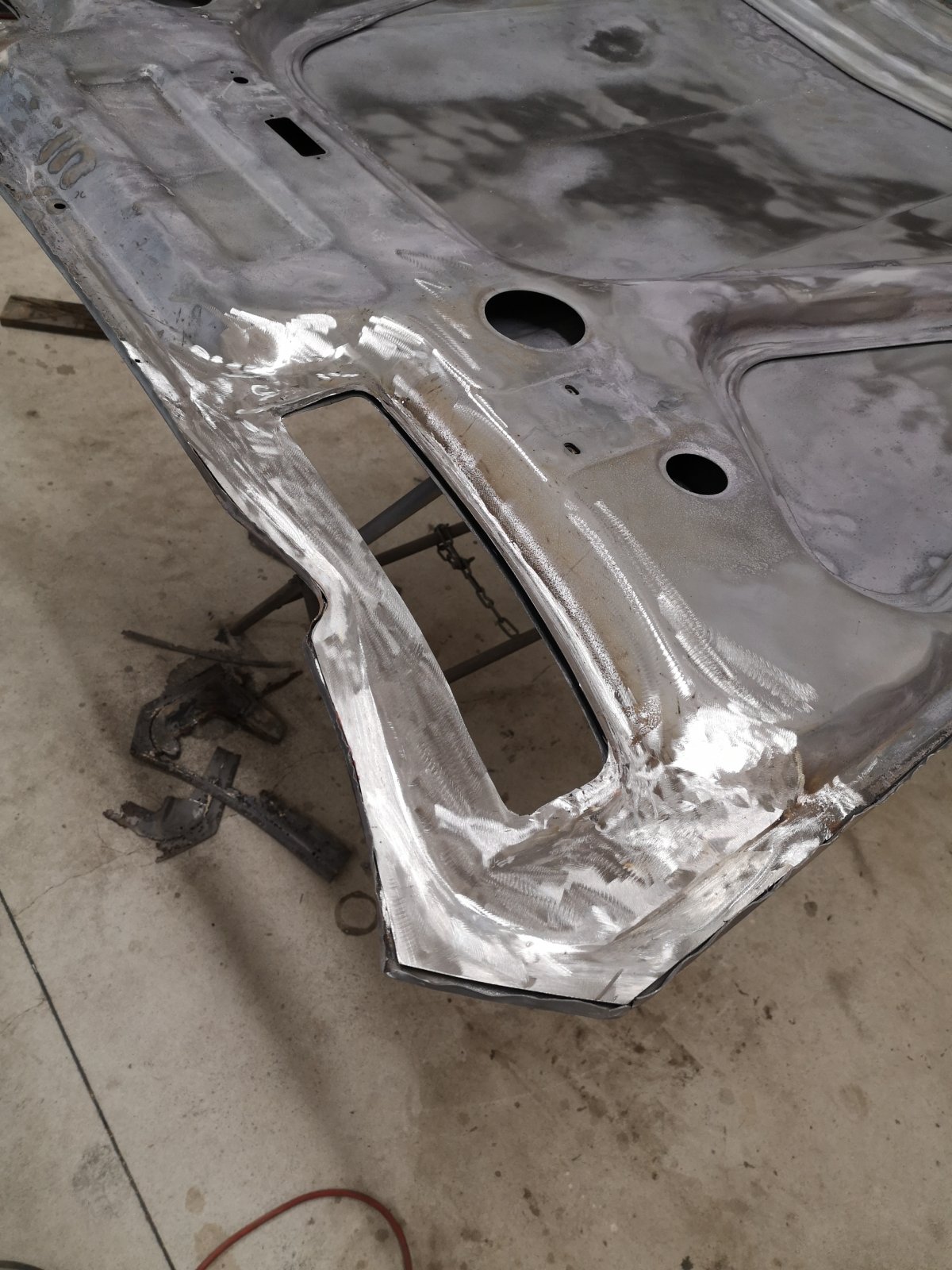

And now as both frame and skin have been finally repaired, it is time to check how they fit back together

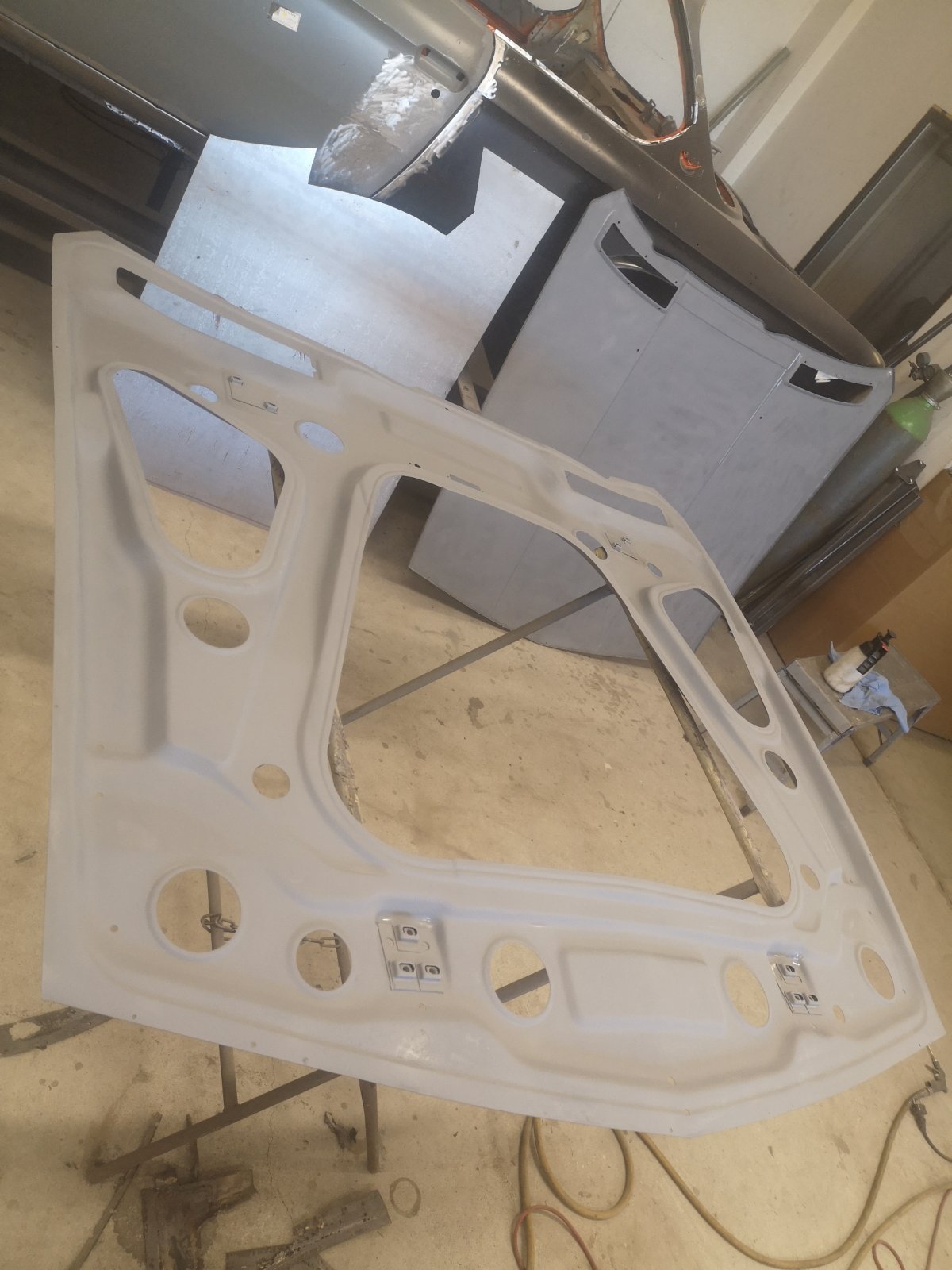

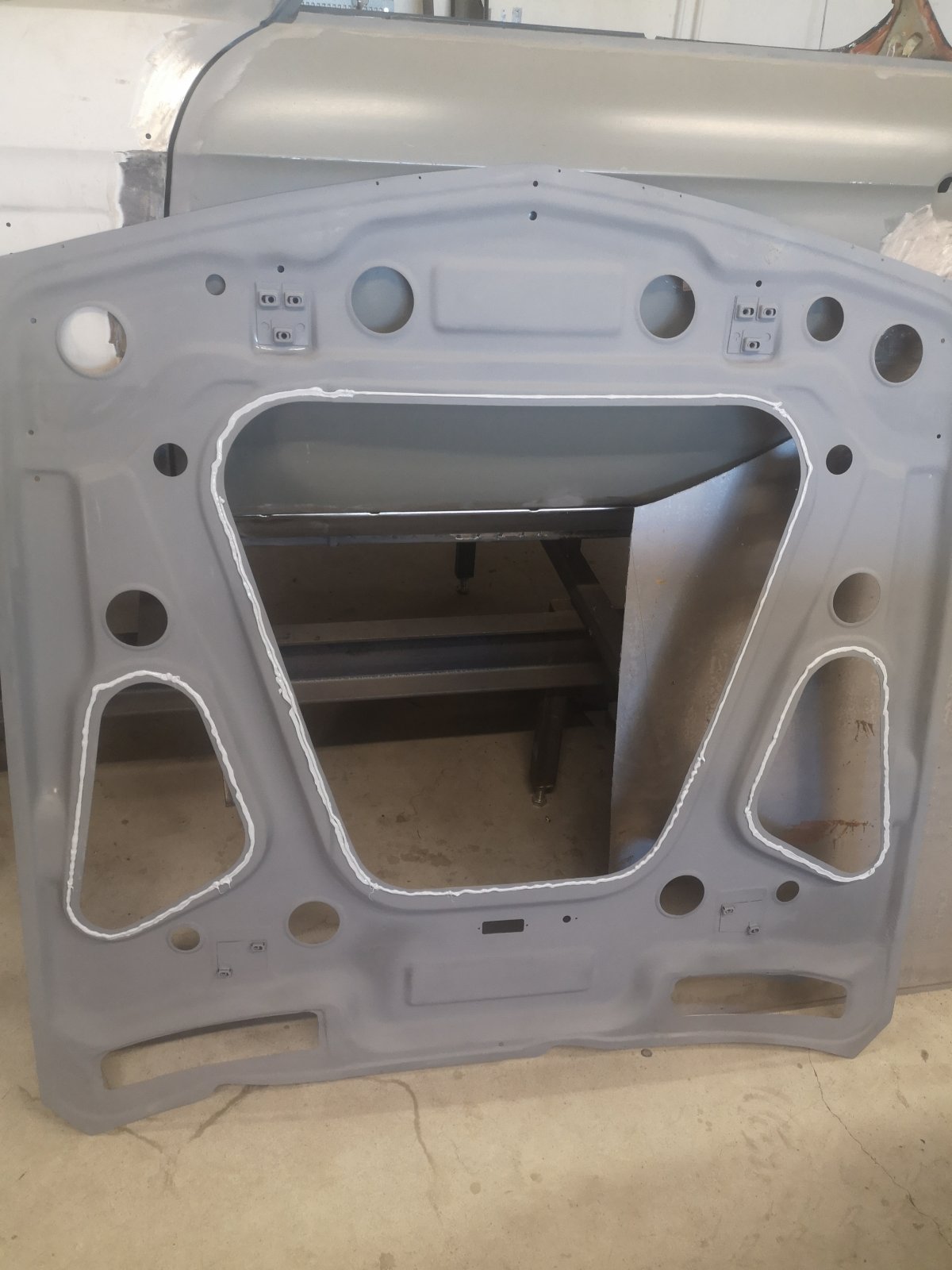

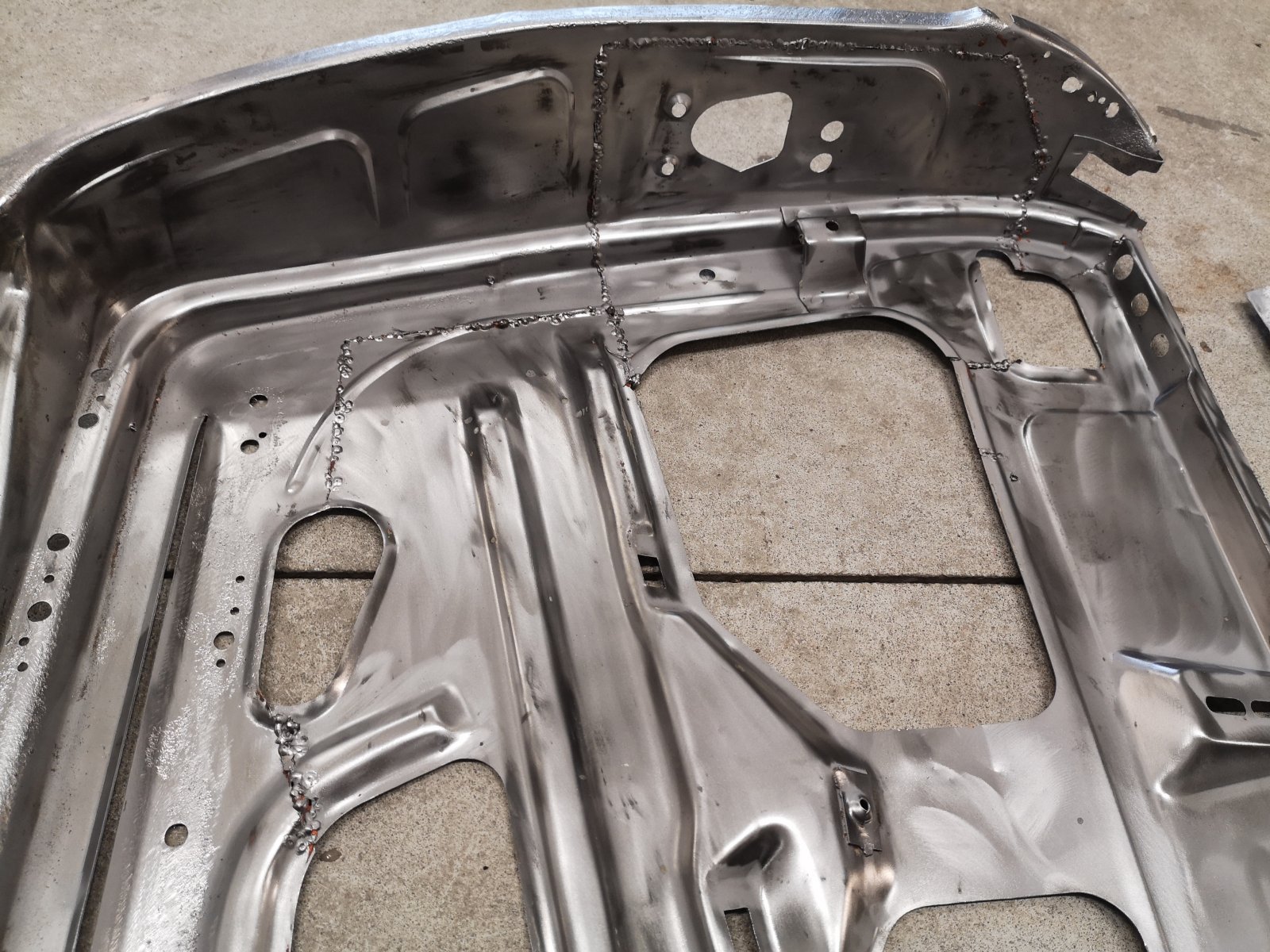

Primered frame

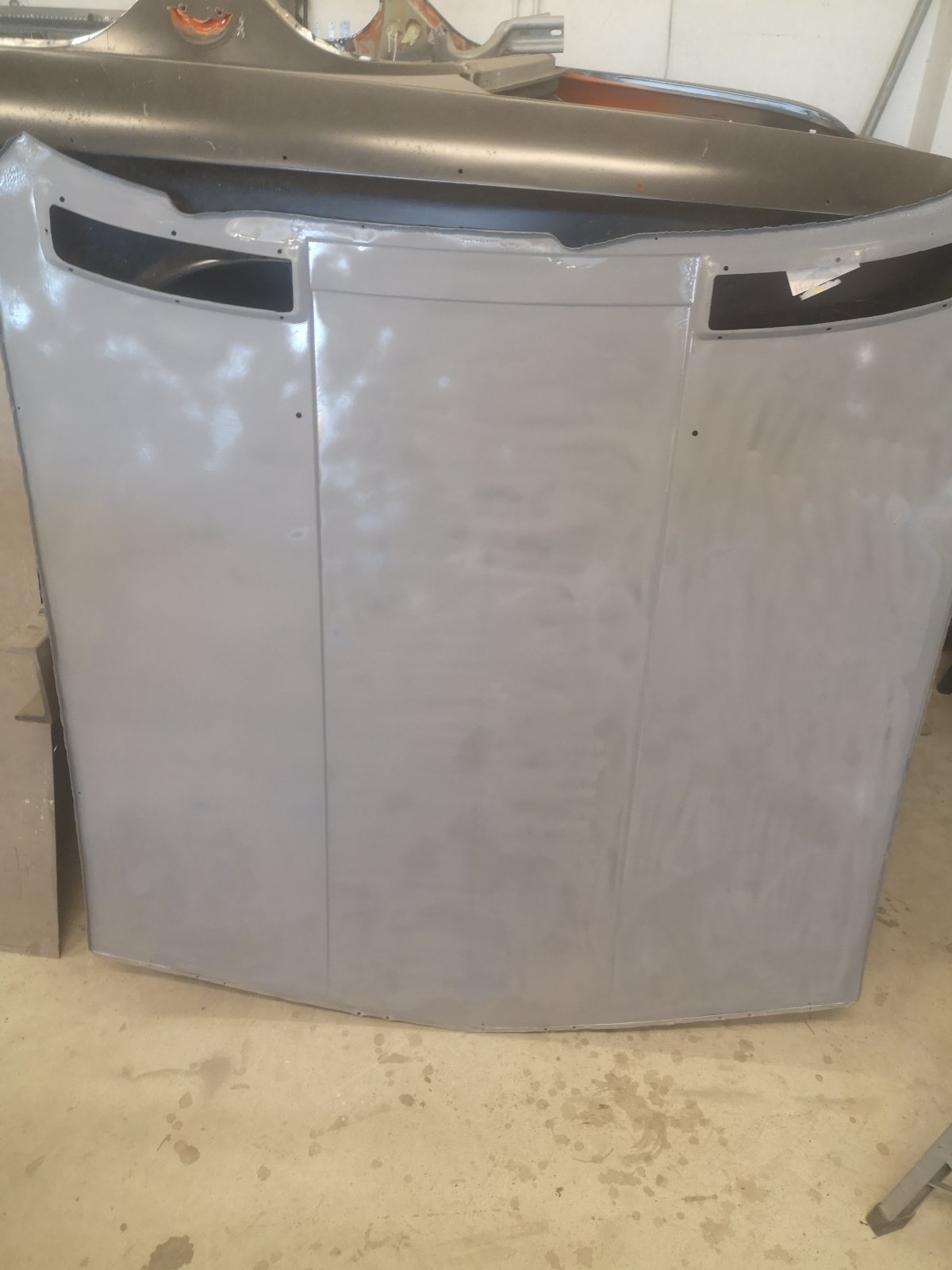

And hood skin too


Add some glue


And we can put the hood back together




A bit of finishing touches


Test fitting the hood, panel gapping etc to follow and it is done then.
Roof still remains from the big items on the body shell, so... to be continued :)

Last edited:
Update for October, hours spent - 58h
and all of it just on the hood :)

So here goes with the photos and detailed process or restoring this pos, but I could not find a more better part, so what you do. Cannot say better than new, but it is going to be decent and usable.

Starting point is this:
View attachment 151045

View attachment 151044

A lot of rust issues around air vents:
View attachment 151043

View attachment 151042

We have to get to bare metal first, removing all the added layers.
View attachment 151041

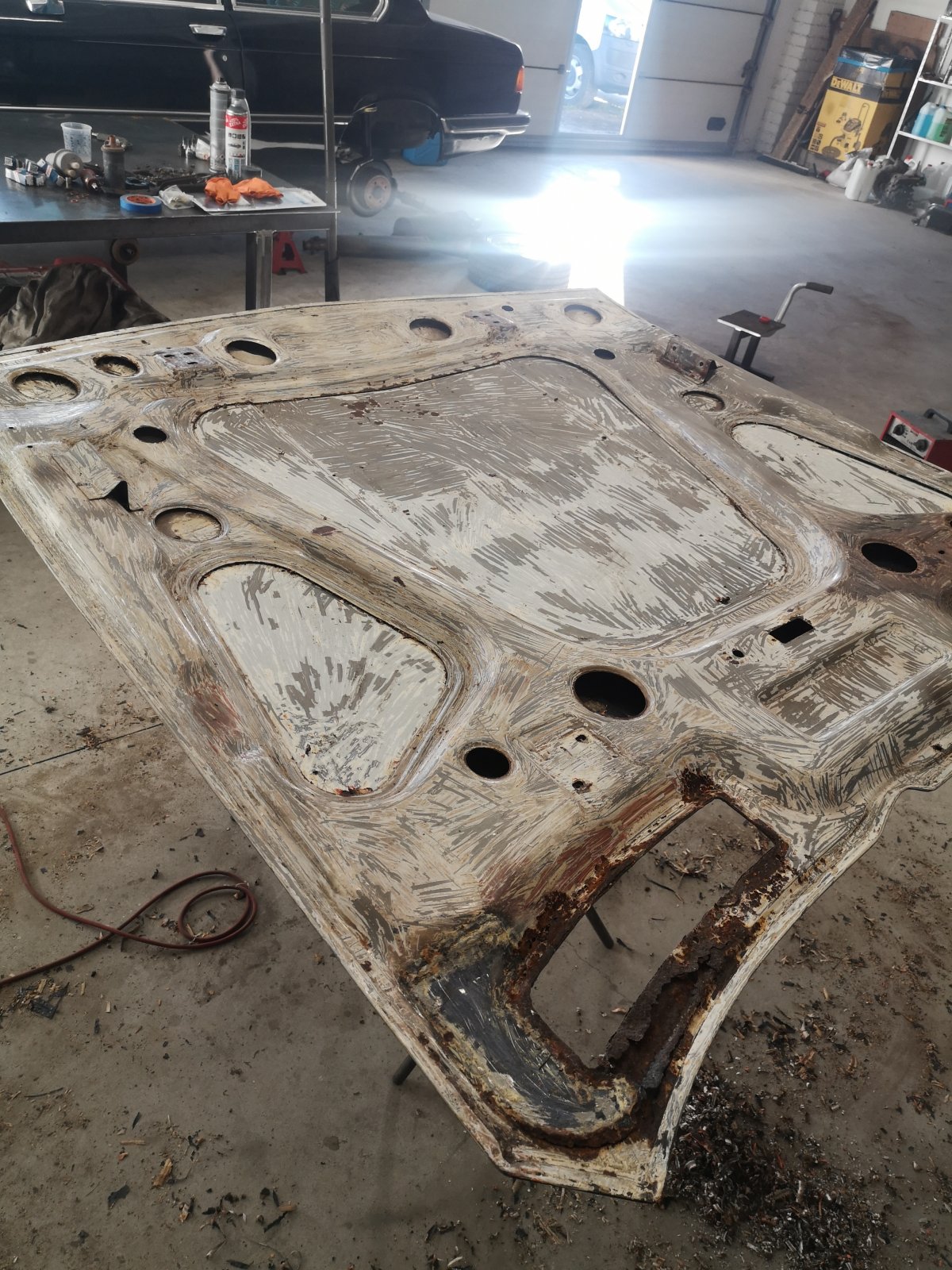

Almost there on the inner side:
View attachment 151040

And now proceeding with the outer side, quite a lot of bondo. Let's dig deeper...
View attachment 151039

There is one fishy area for sure on the driver's side now it has been cleaned of paint and bondo:
View attachment 151038

More or less clean surface on the outer part
View attachment 151037

And inner part too:
View attachment 151036

Voila, the outer skin removed from the inner frame:
View attachment 151035

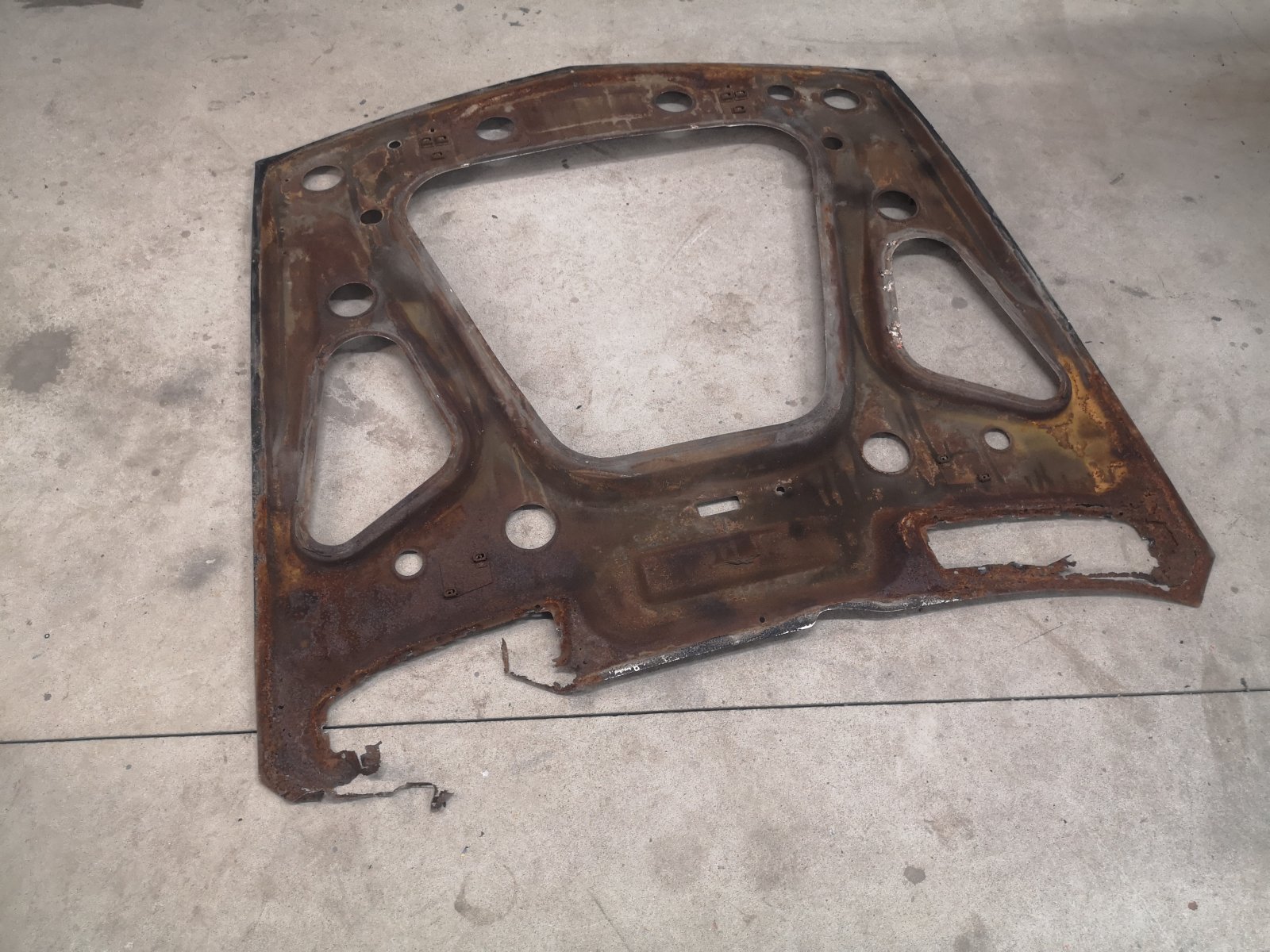

Frame, seems to have fire damage?!?
View attachment 151034

Cleaning the inside of both parts
View attachment 151033

Here too
View attachment 151032

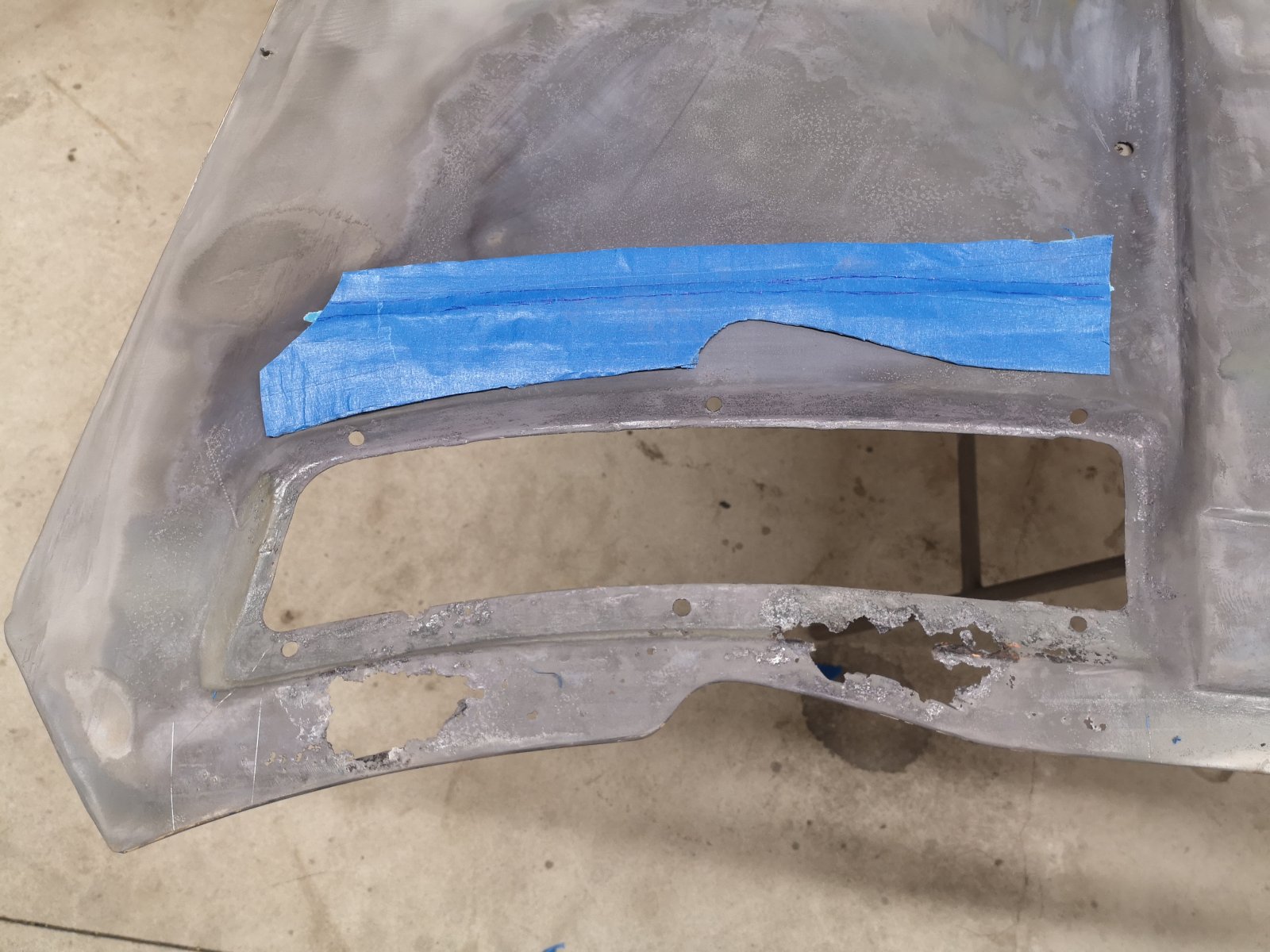

With that done we can start to rebuild the parts:
View attachment 151031

Much better:
View attachment 151030

Templating and testing on the other side
View attachment 151029

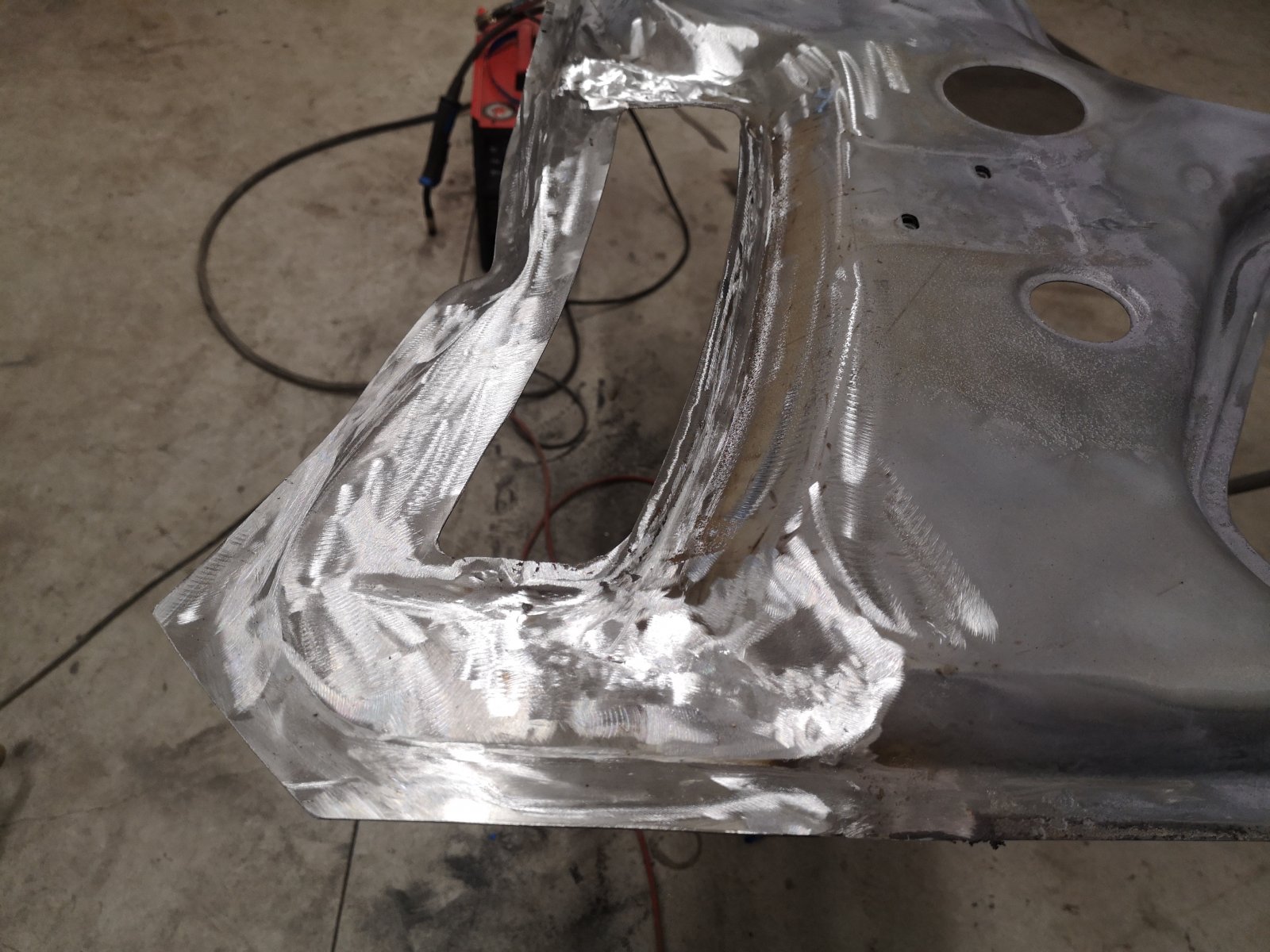

And done
View attachment 151028

A bit more here too
View attachment 151027

And now as both frame and skin have been repaired it is time to check how they fit together
View attachment 151026

Primered frame
View attachment 151025

And hood skin too
View attachment 151024

Add some glue
View attachment 151023

And put the hood back together
View attachment 151021

A bit of finishing touches
View attachment 151020

Test fitting, panel gapping etc to follow and it is done. Roof still remains from the big items on the body shell, so... to be continued :)
Excellent work

Update for October, hours spent - 58h
and all of it just on the hood :)

So here goes with the photos, a detailed process of restoring this POS, but I could not find a more better part nearby, so what can you do. Cannot say better than new, but it is going to be decent and is definitely usable.

Starting point is this:
View attachment 151045

View attachment 151044

A lot of rust issues around air vents:
View attachment 151043

View attachment 151042

We have to get to bare metal first, removing all the added layers.
View attachment 151041

Almost there on the inner side:
View attachment 151040

And now proceeding with the outer side, quite a lot of bondo. Let's dig deeper...
View attachment 151039

There is one fishy area for sure on the driver's side now that it has been cleaned of paint and bondo:
View attachment 151038

More or less clean surface on the outer part
View attachment 151037

And inner part too:
View attachment 151036

Voila, the outer skin removed from the inner frame:
View attachment 151035

Frame off, the whole bonnet seems to have fire damage?!?
View attachment 151034

Cleaning the inside of both parts
View attachment 151033

Here too
View attachment 151032

With that done we can start to rebuild the parts:
View attachment 151031

Much better:
View attachment 151030

Templating and testing on the other side
View attachment 151029

And done
View attachment 151028

A bit more here too
View attachment 151027

And now as both frame and skin have been finally repaired, it is time to check how they fit back together
View attachment 151026

Primered frame
View attachment 151025

And hood skin too
View attachment 151024

Add some glue
View attachment 151023

And we can put the hood back together
View attachment 151022

View attachment 151021

A bit of finishing touches
View attachment 151020

Test fitting the hood, panel gapping etc to follow and it is done then.
Roof still remains from the big items on the body shell, so... to be continued :)
Hello, you are very talented to fix the car body part, I have many body part like the hood I have 2, fender and complete rear end, in case if you need any you let me know I hope you are not far from me I am in Los Angeles

Hello, you are very talented to fix the car body part, I have many body part like the hood I have 2, fender and complete rear end, in case if you need any you let me know I hope you are not far from me I am in Los Angeles
Thank you. I am ONLY on the other side of the world, but thanks for offering! I am sure there are many who need these parts more local to you.

Thank you. I am ONLY on the other side of the world, but thanks for offering! I am sure there are many who need these parts more local to you.
thank you for answering me, I offer since I saw you are spending time to fix rust damedge it is very hard job but you are talented guy. God bless you.

Help needed :)!

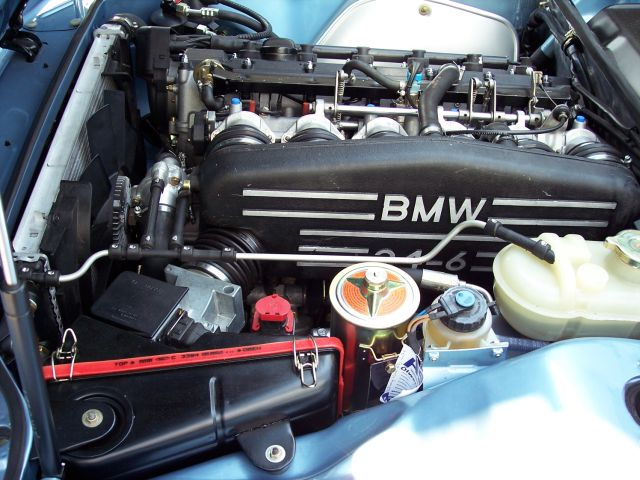

Can you guys please help identify, what airbox is used on this E9 with the S38 engine?



Nah, never mind. I am 99% positive after looking at various options this is a custom airbox designed from the standard M30 airbox, 13711271270

Last edited:
The previous post with the question about the airbox might give a clue of what is going on... but here are the full details for stuff done in November, a lot.. 138,5h spent on the car (+ a lot of more scratching the head, looking for parts etc).

Starting off with the finishing touches on the hood. Panel gapping and making the final adjustments here:

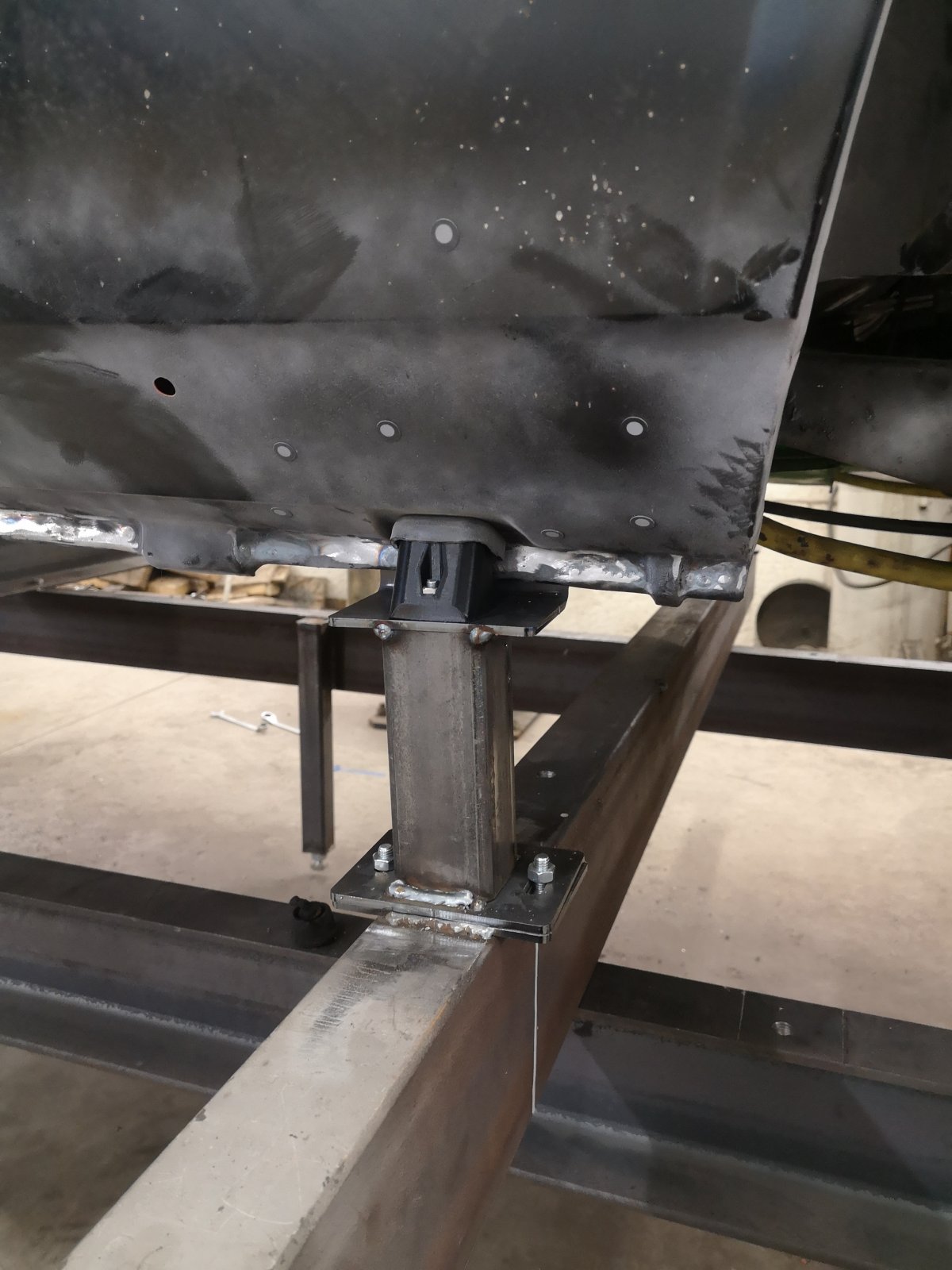

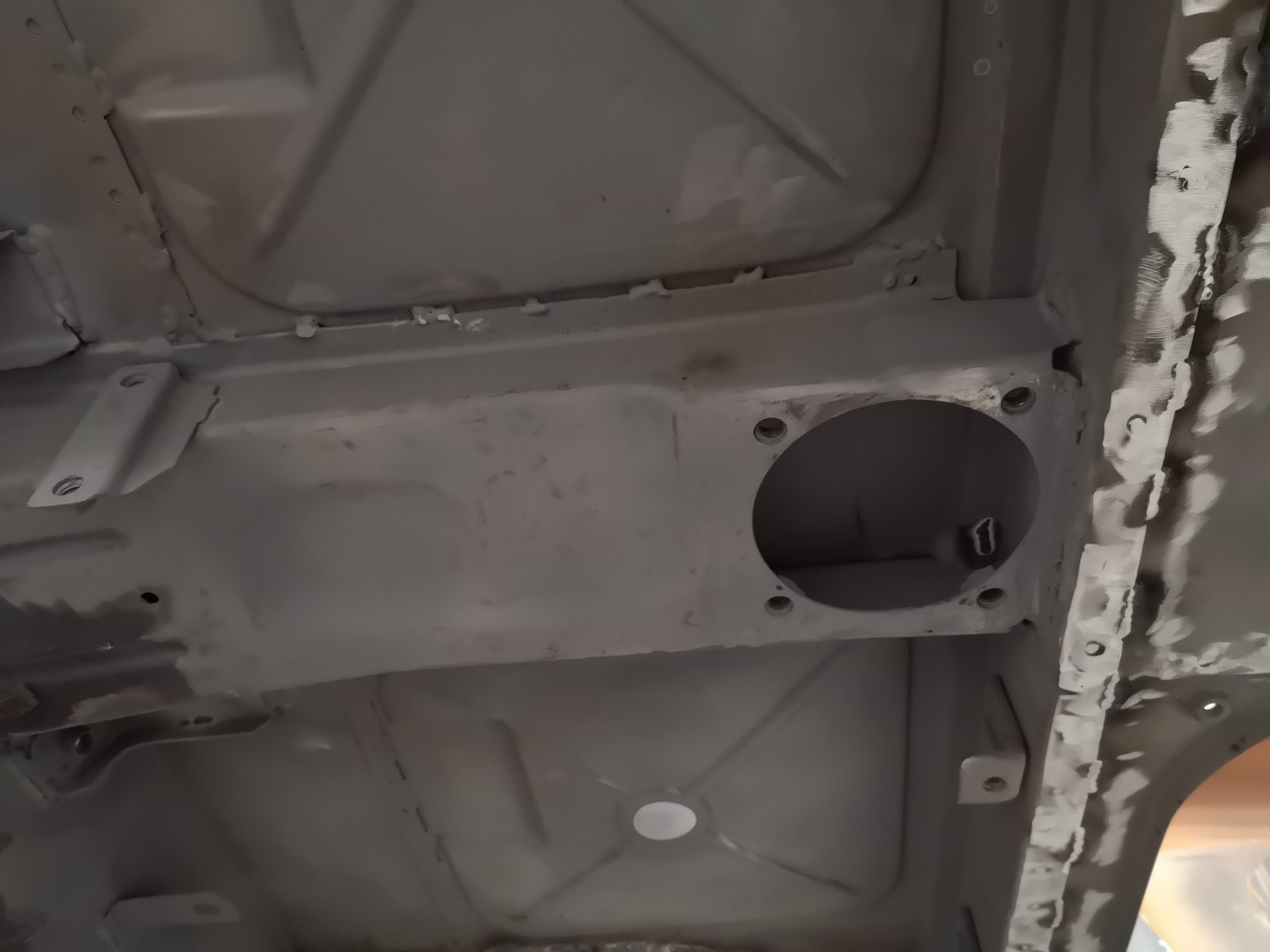

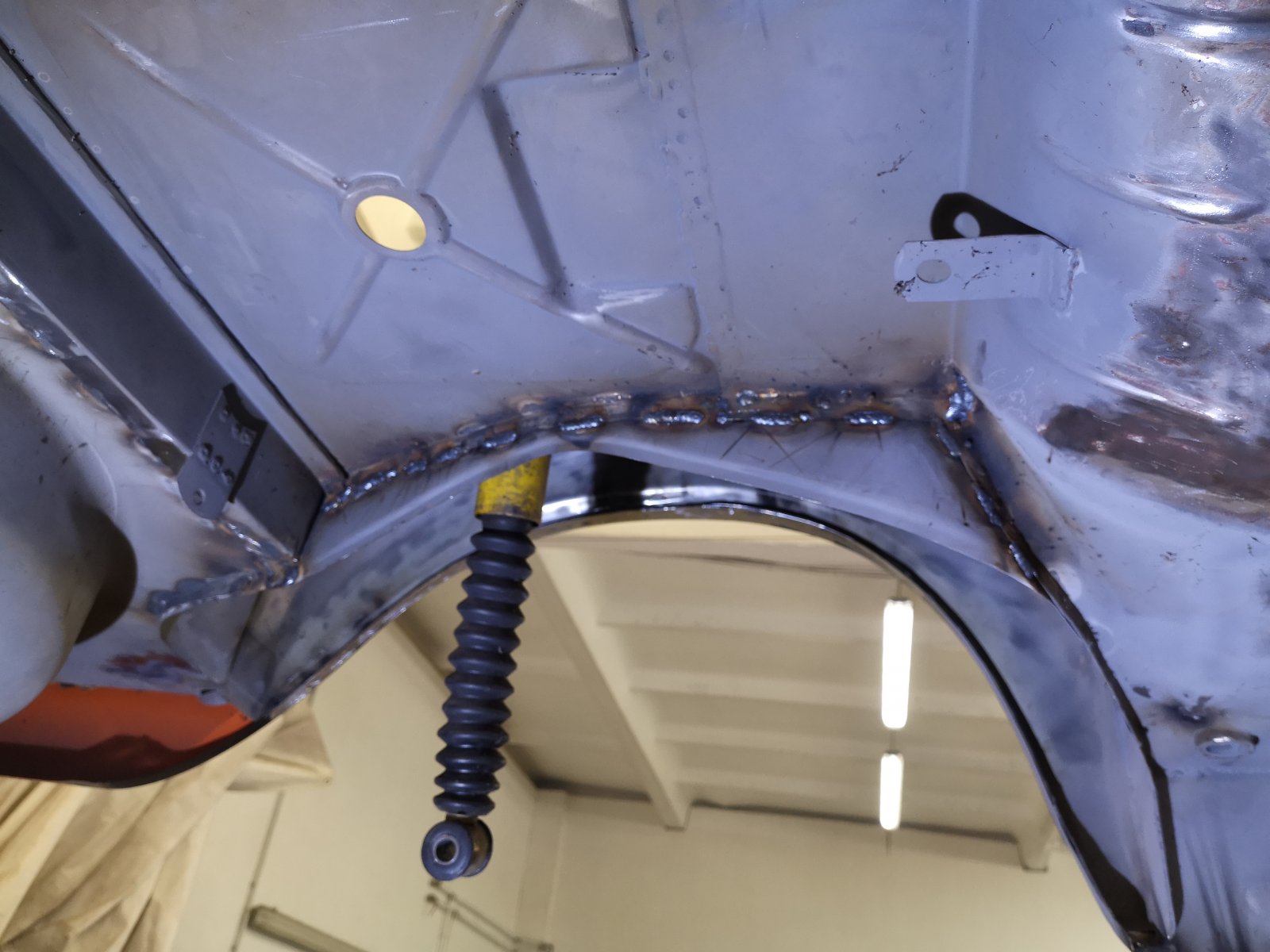

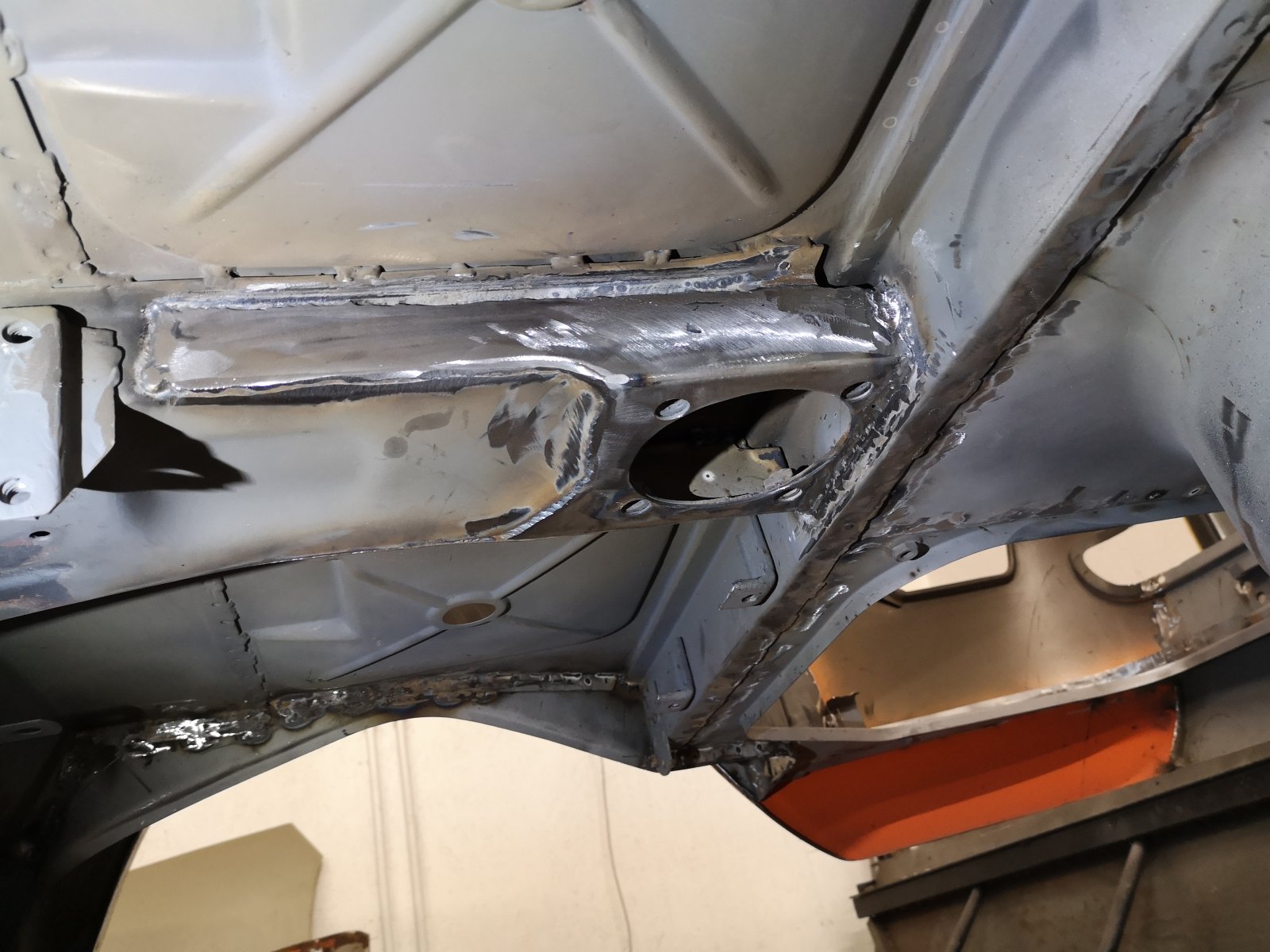

Next on the list is reinforcing the differential attachment points:






And we turn our attention to the parts piles. First, the big stuff... does the gearbox I had on the M30 work with the S38?

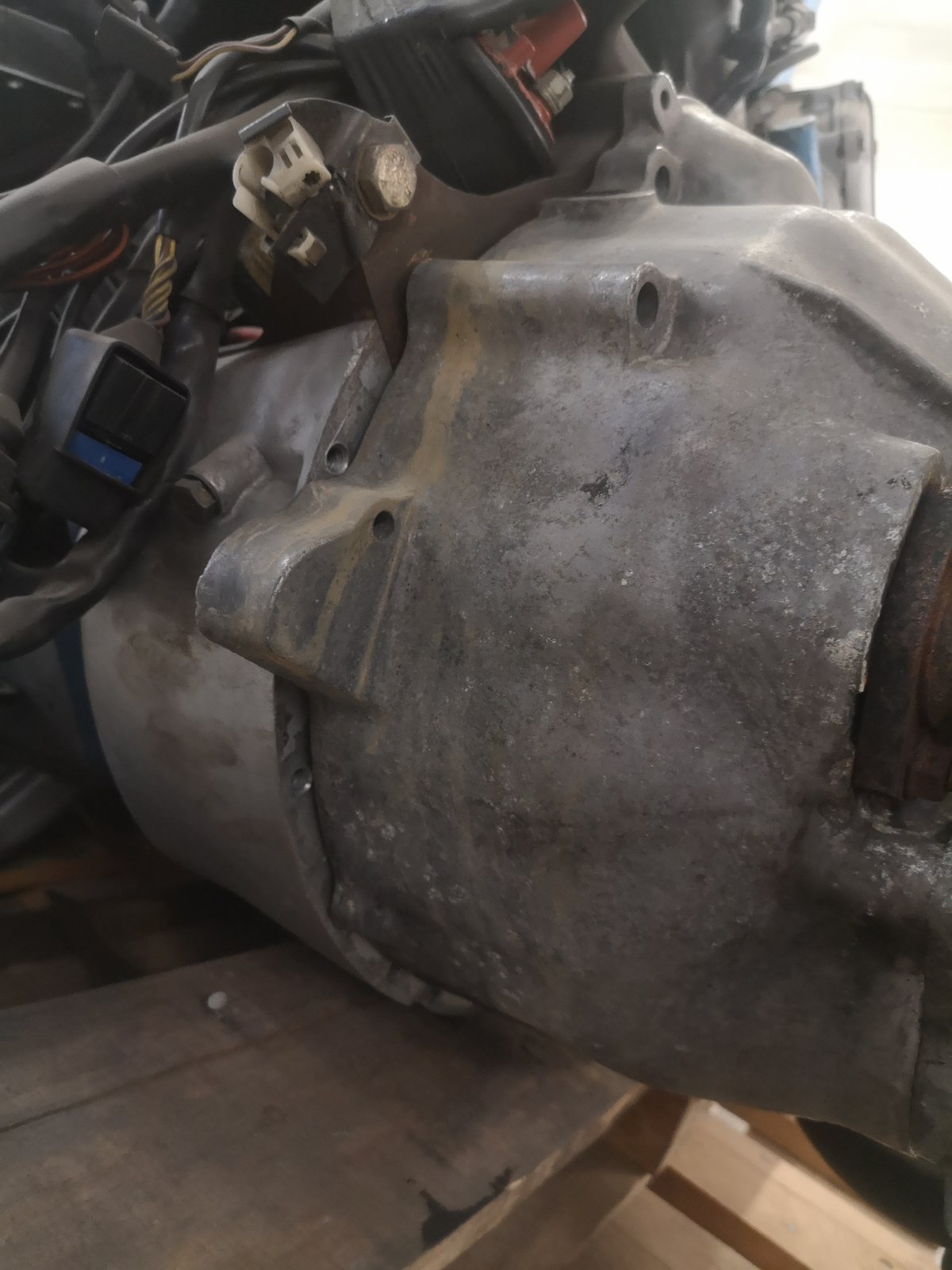

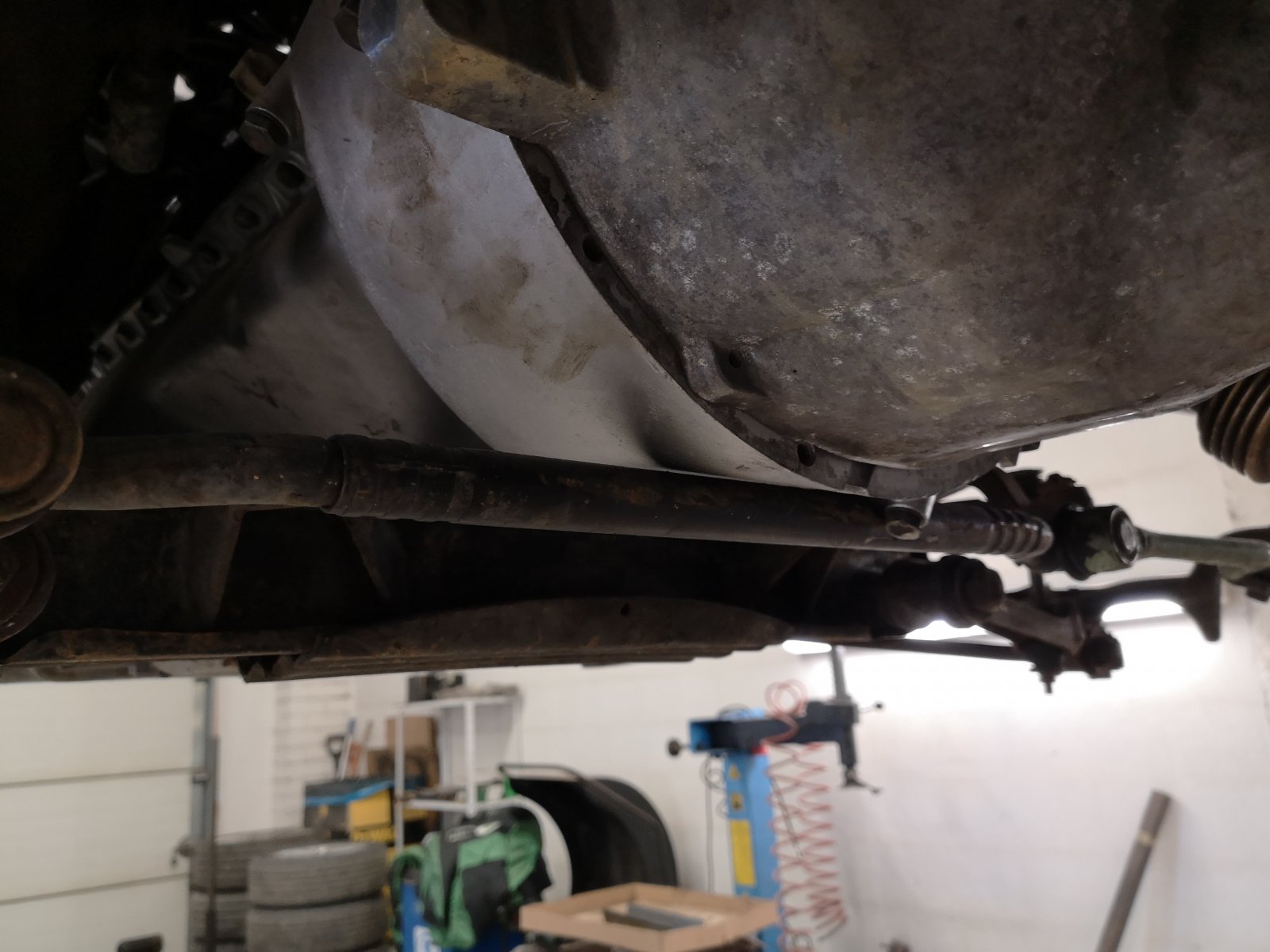

Yeah, not quite as see on the previous photo. The bellhousing is slightly thinner on the bottom side so cannot be bolted to the reinforcement plate the S38 has.


And no place to put these flywheel sensors:

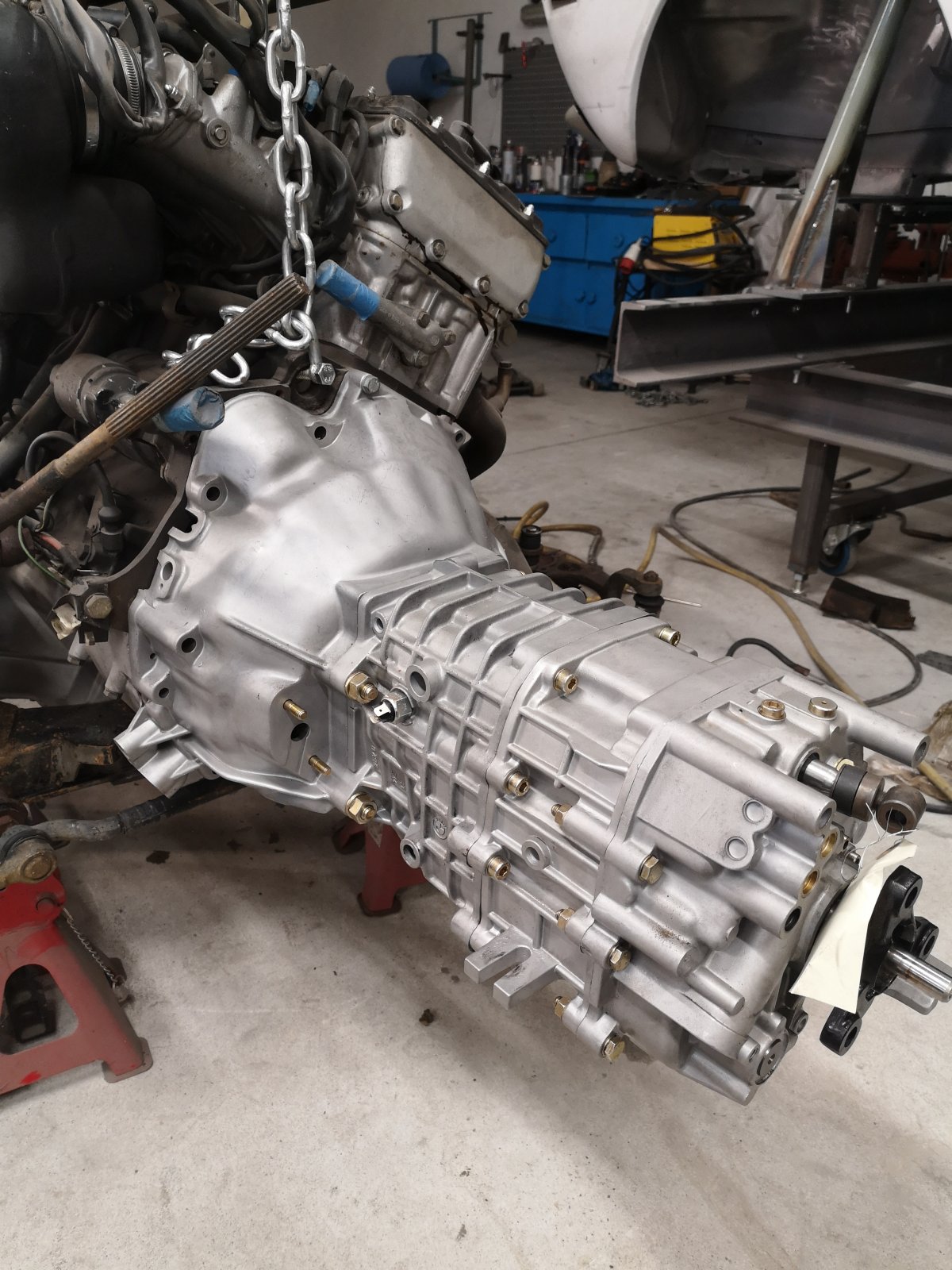

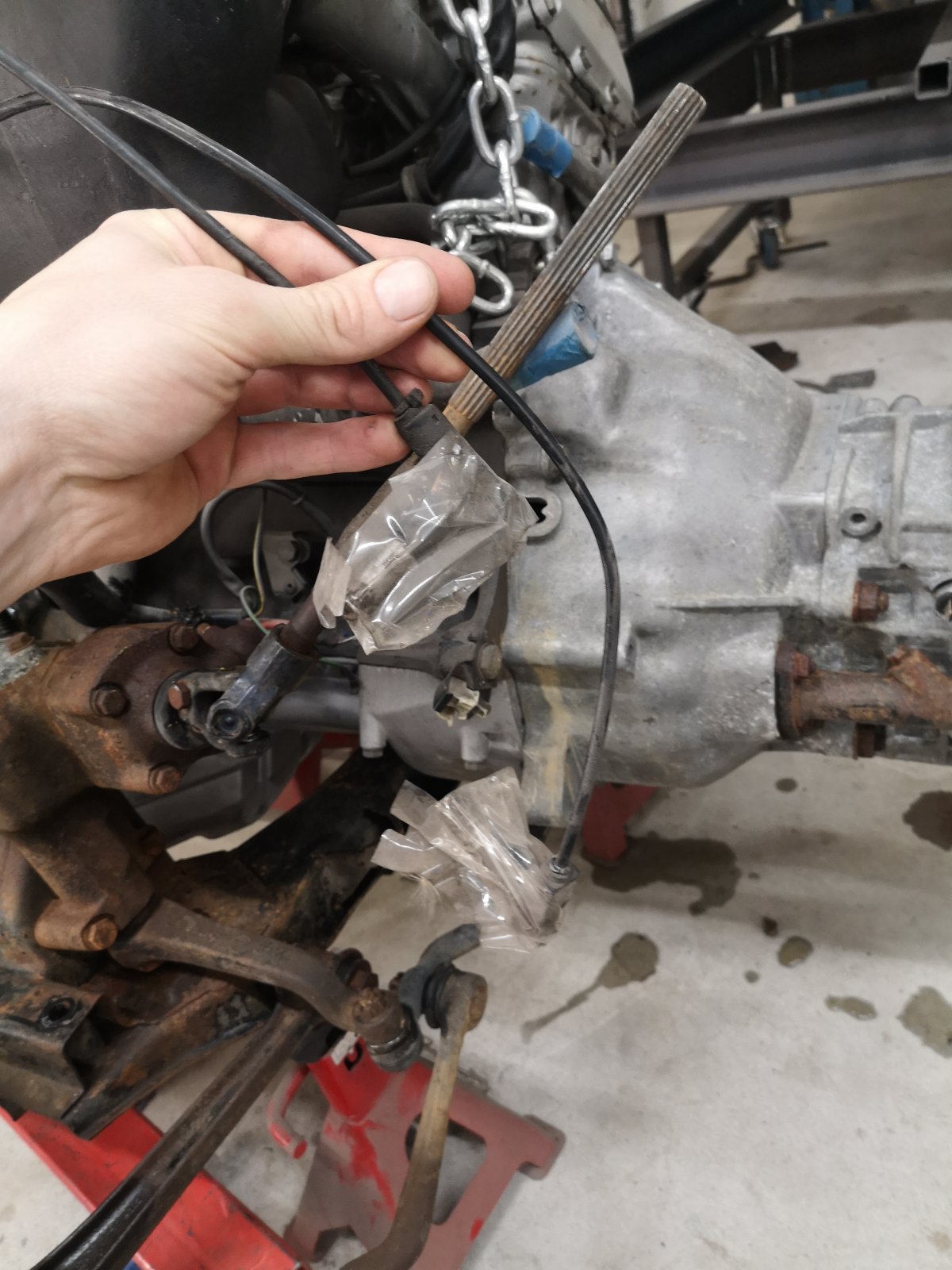

After a bit of head scratching, we find a refurbished G265 from a E30 M3 in the workshop... and it is exactly what we need. A S14 bellhousing fits perfectly so we quickly source one

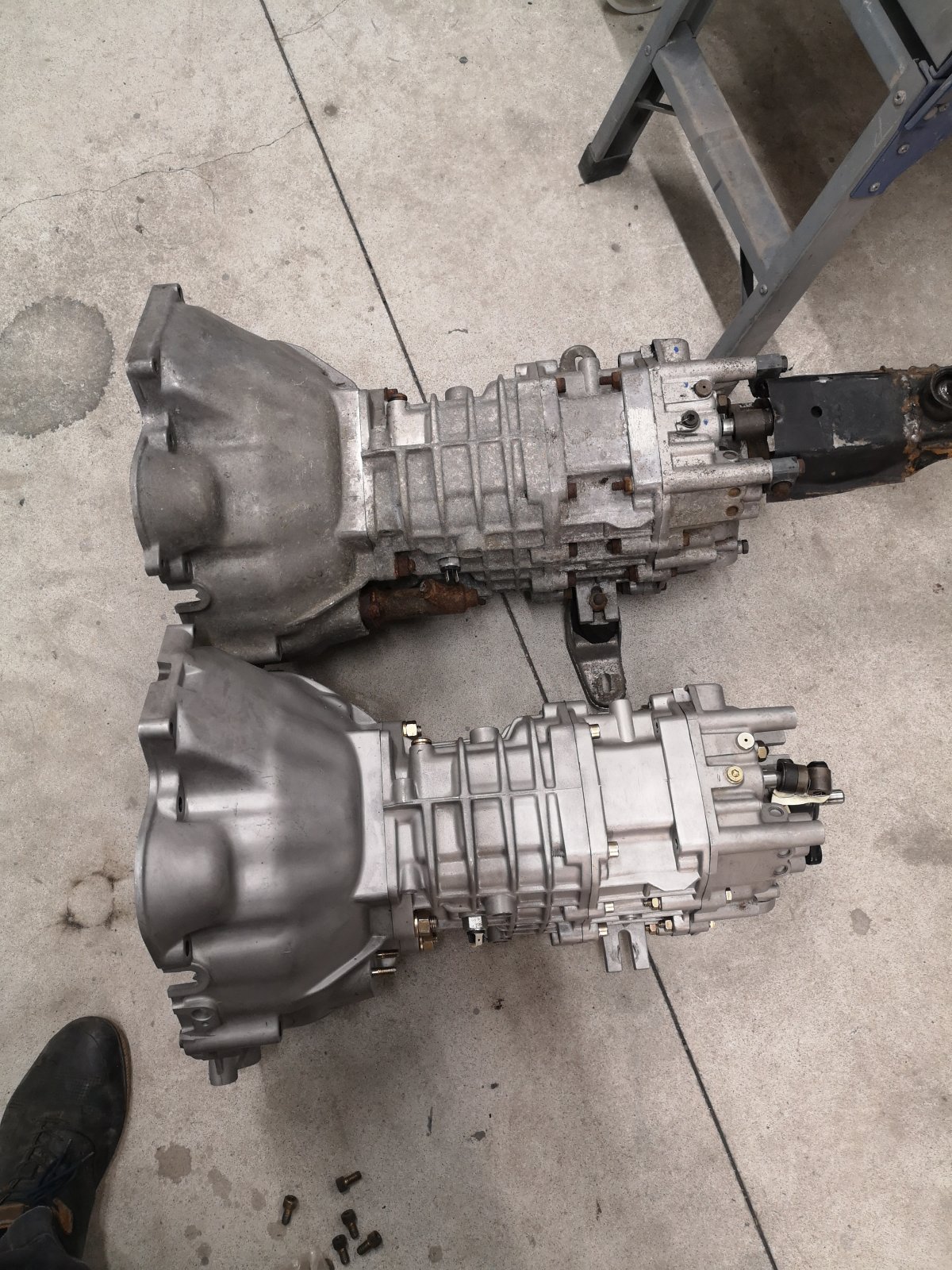

M30 dogleg vs the S14 dogleg bellhousings/gearboxes side by side

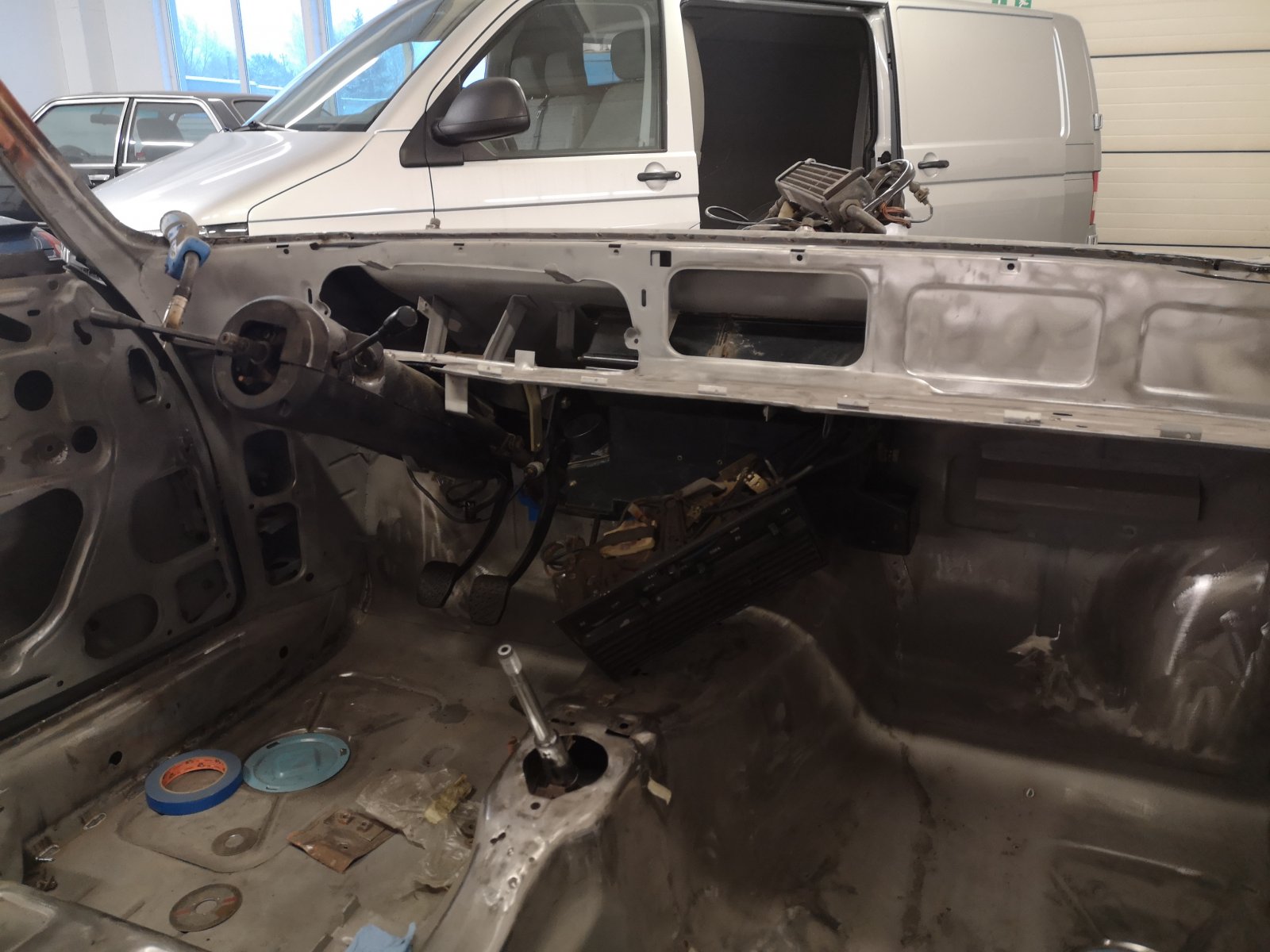

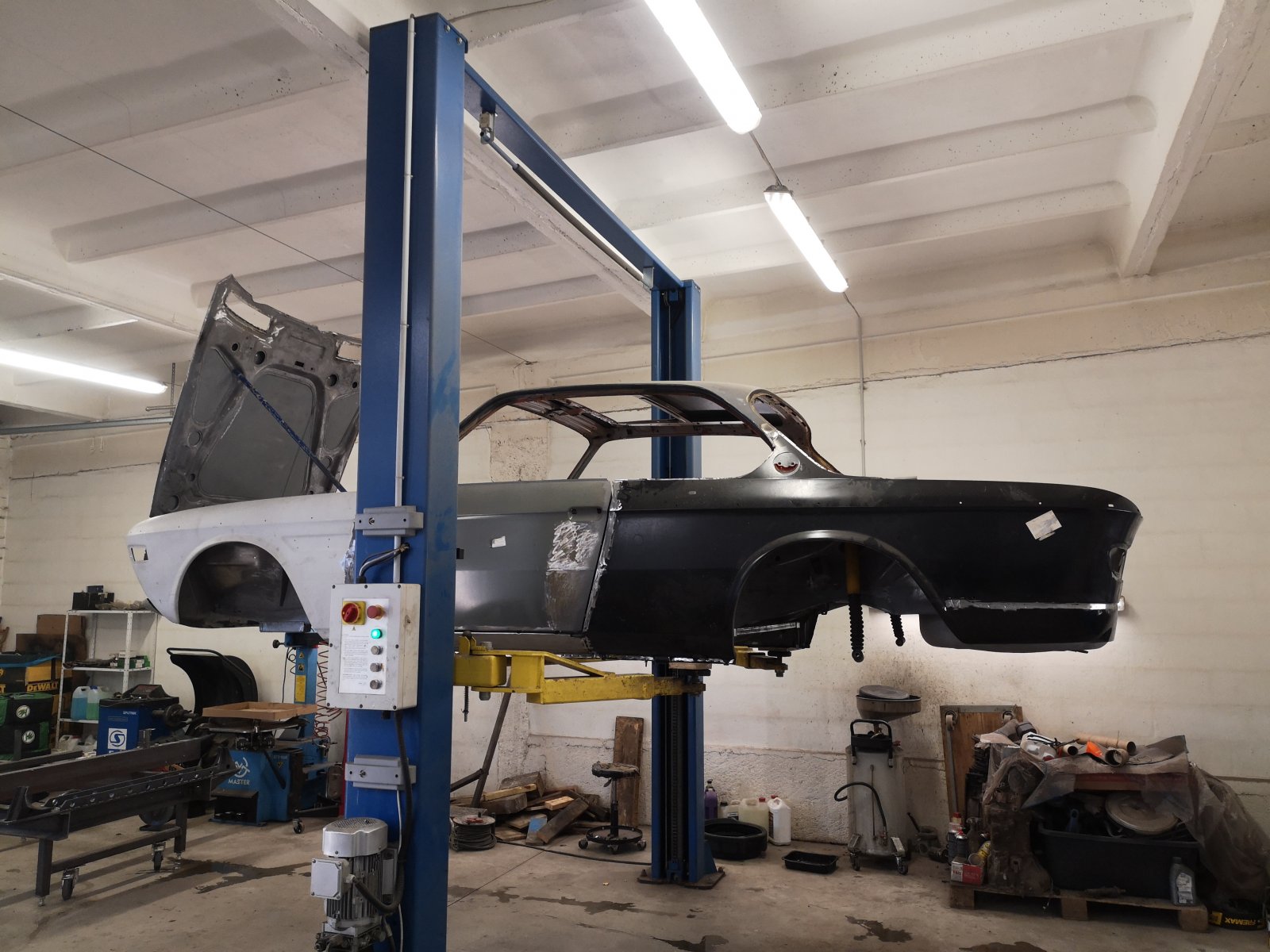

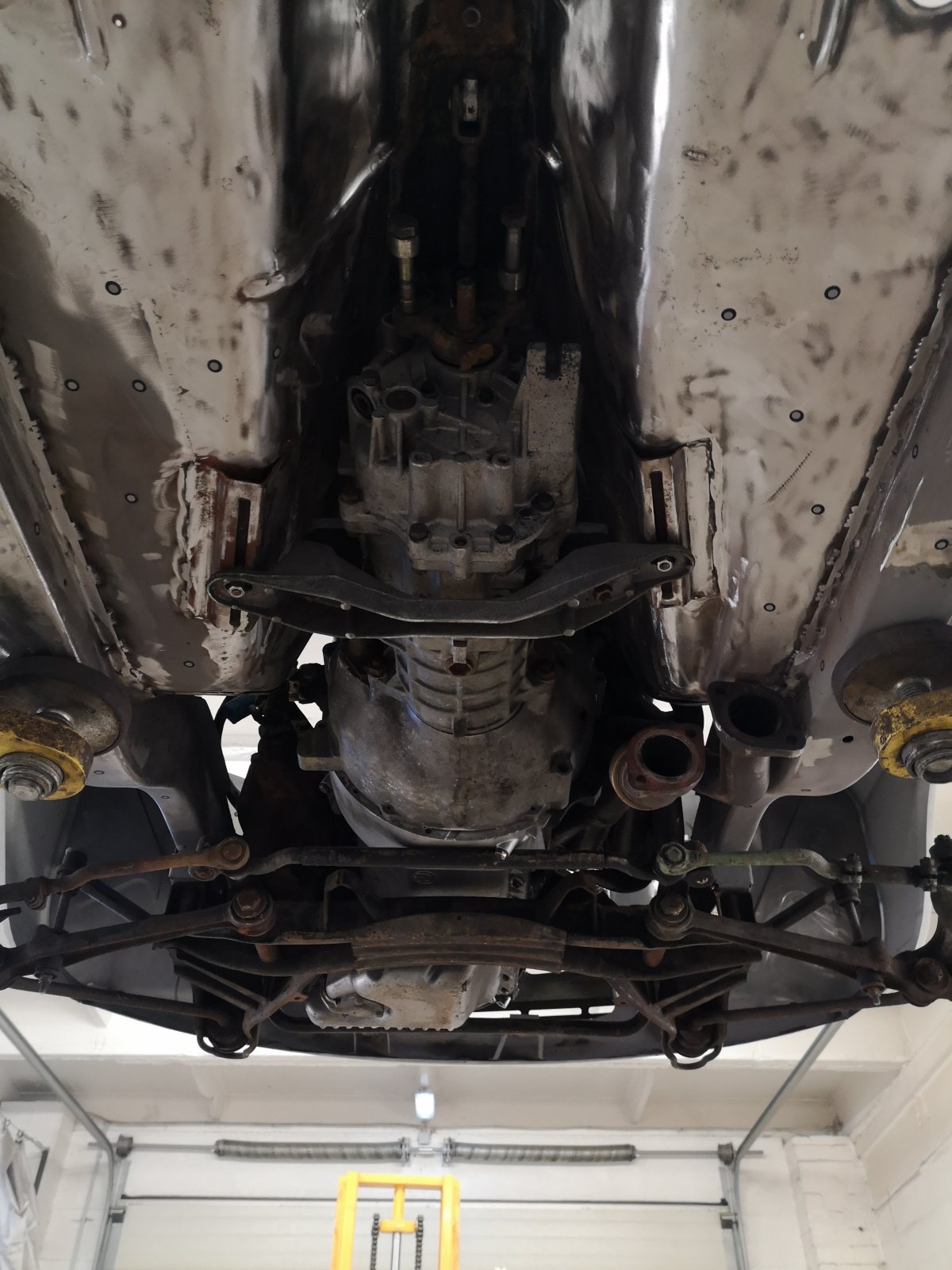

After ca. 1,5 years the car has come off the dolly, so we can start throwing more stuff on the car to test fit everything, make necessary holes, shave off a few more unneeded brackets etc. All of this stuff will later come off the car of course to be completely renewed as well when the body goes to the paint shop.

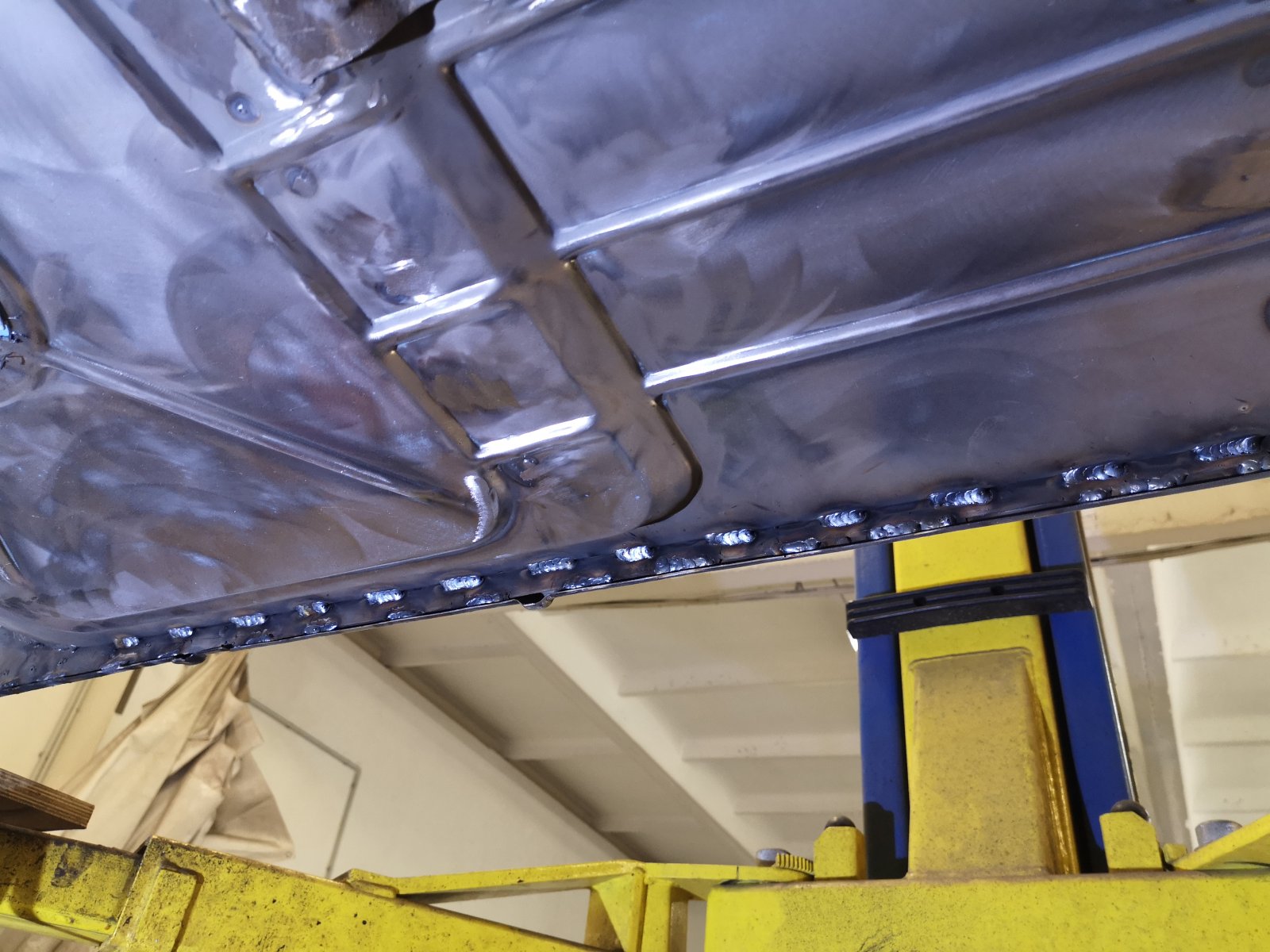

And we can now also get to some areas that still needed welding:

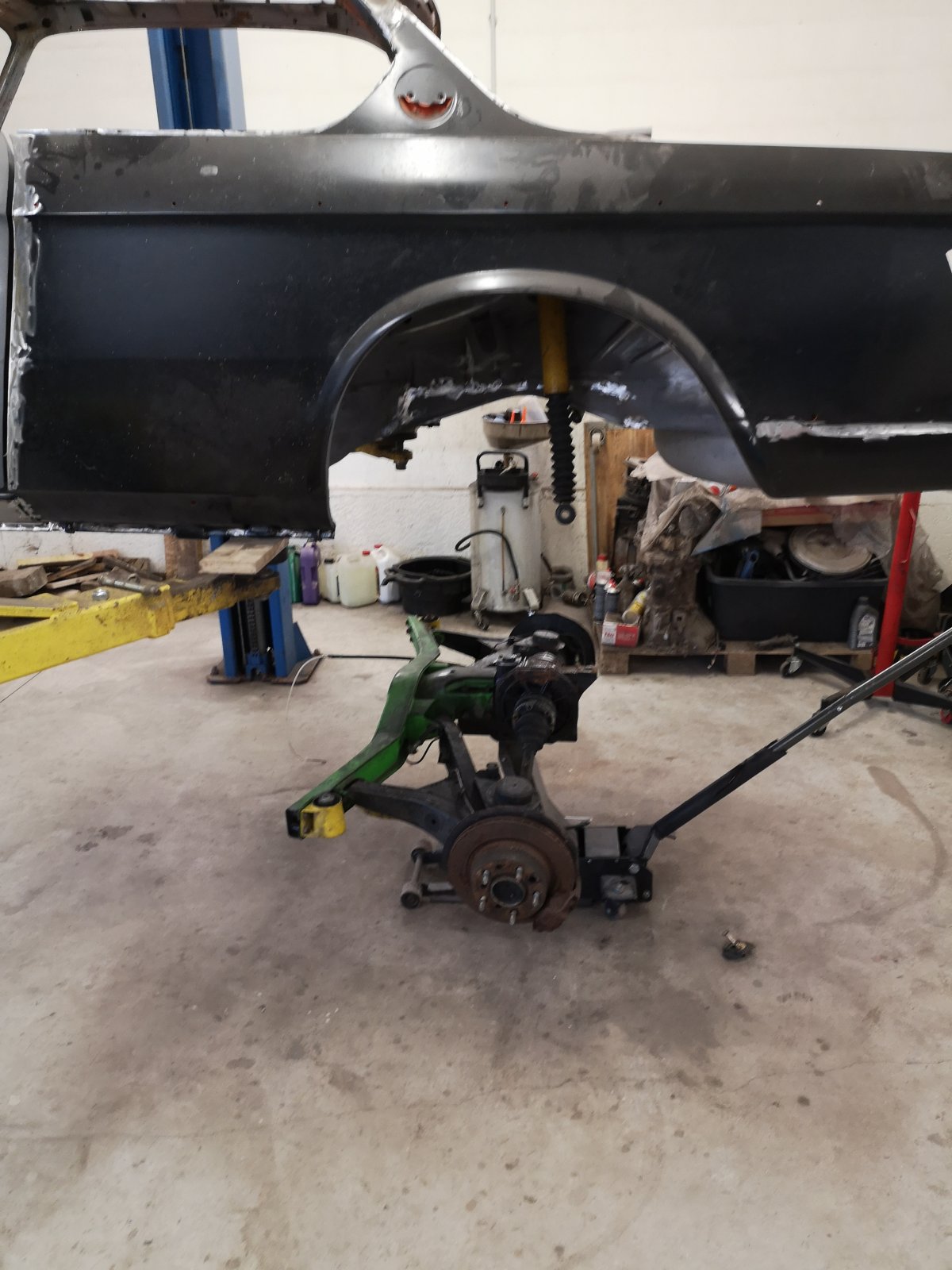

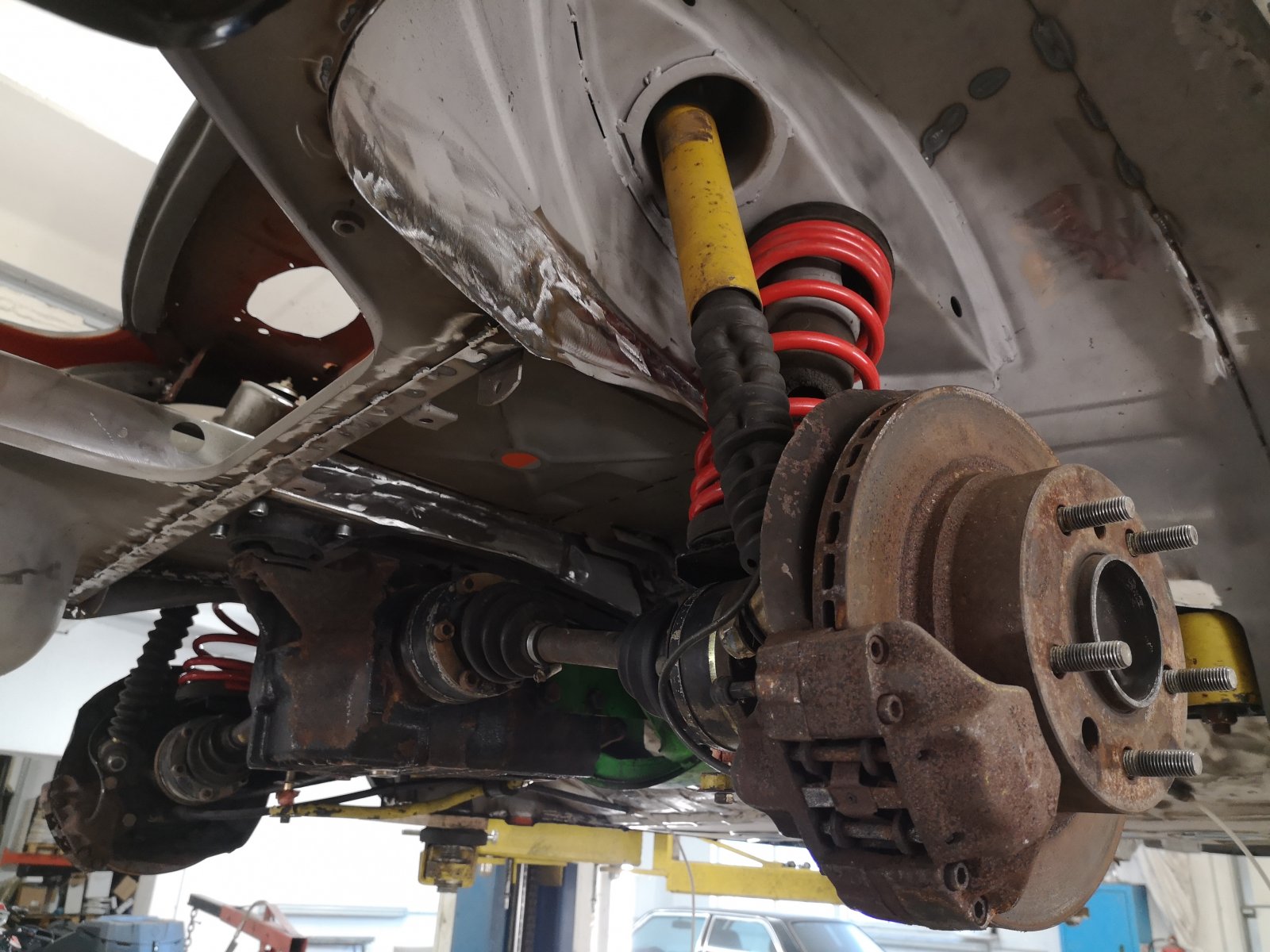

Rear subframe going in:


There...


And all buttoned up now

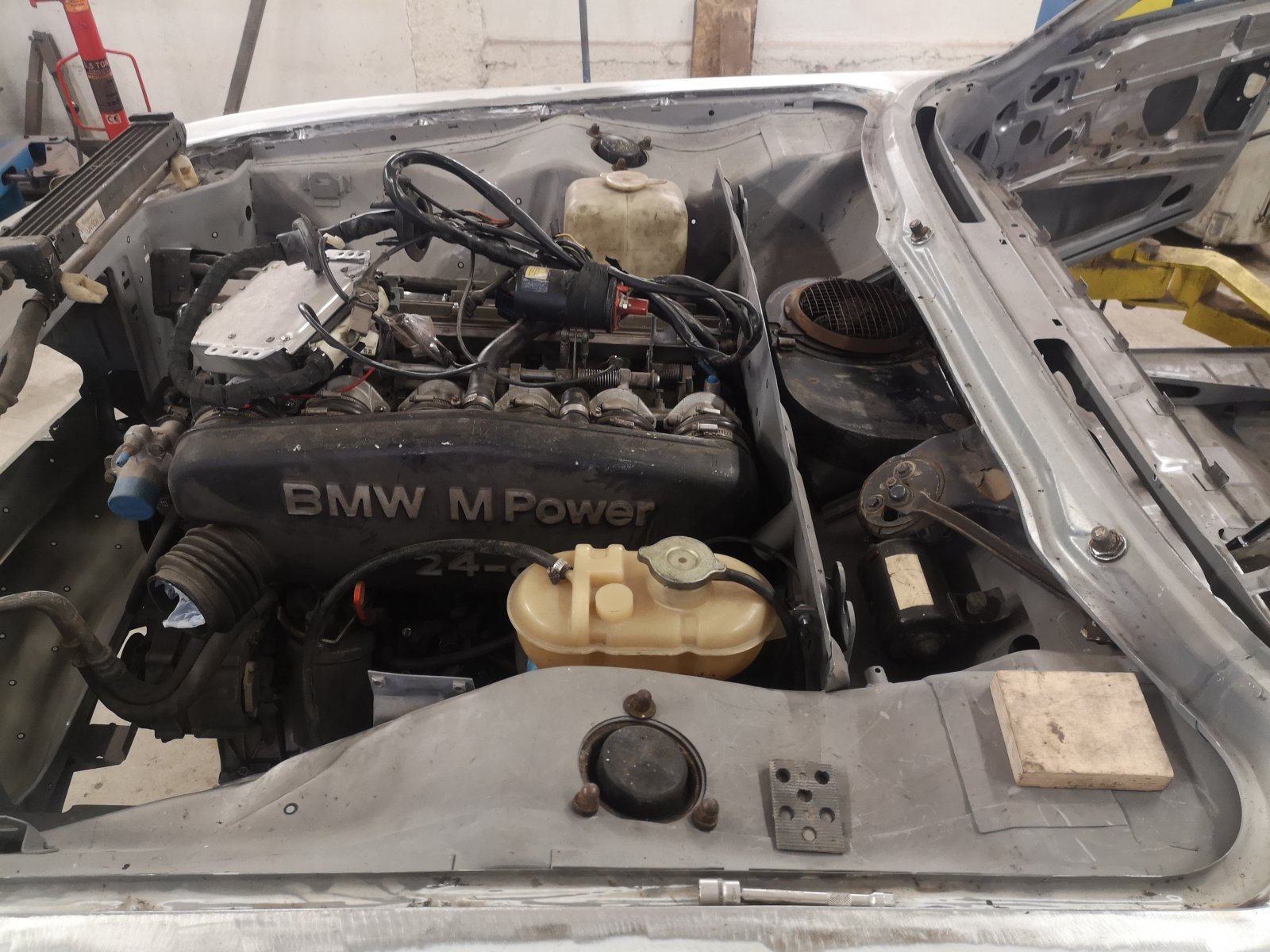

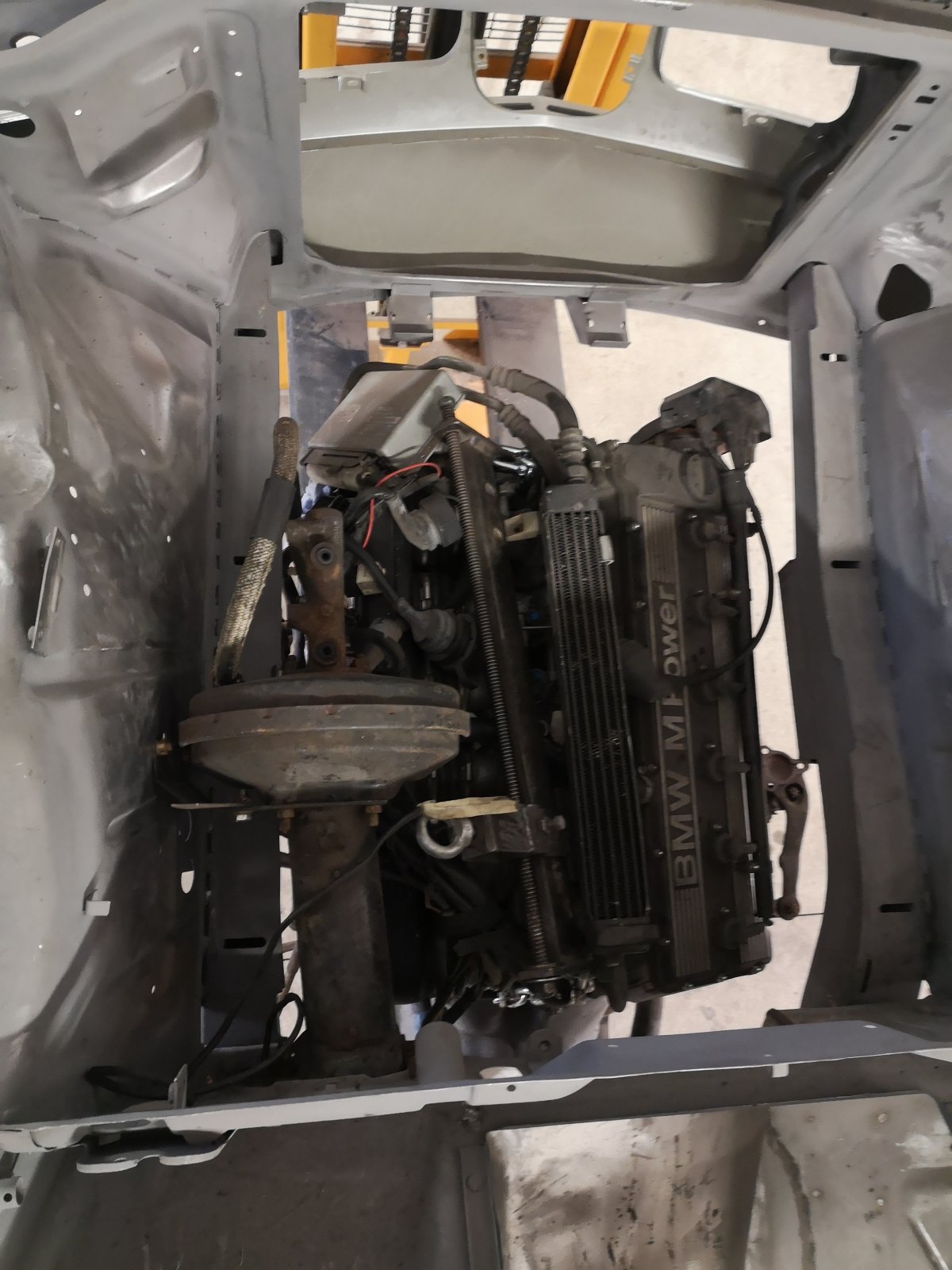

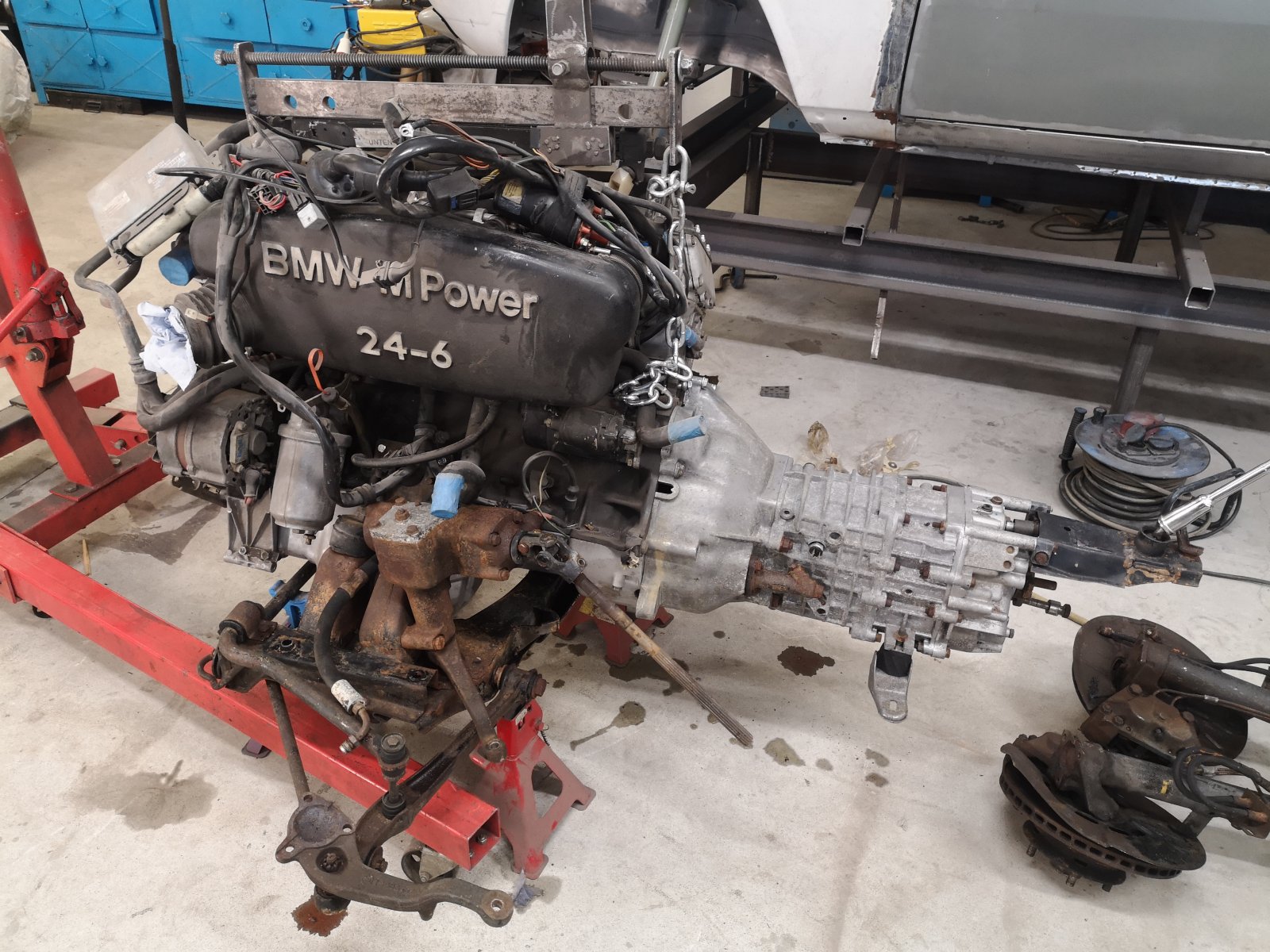

Time to test fit the engine:


Nope, we have some clearance issues here:

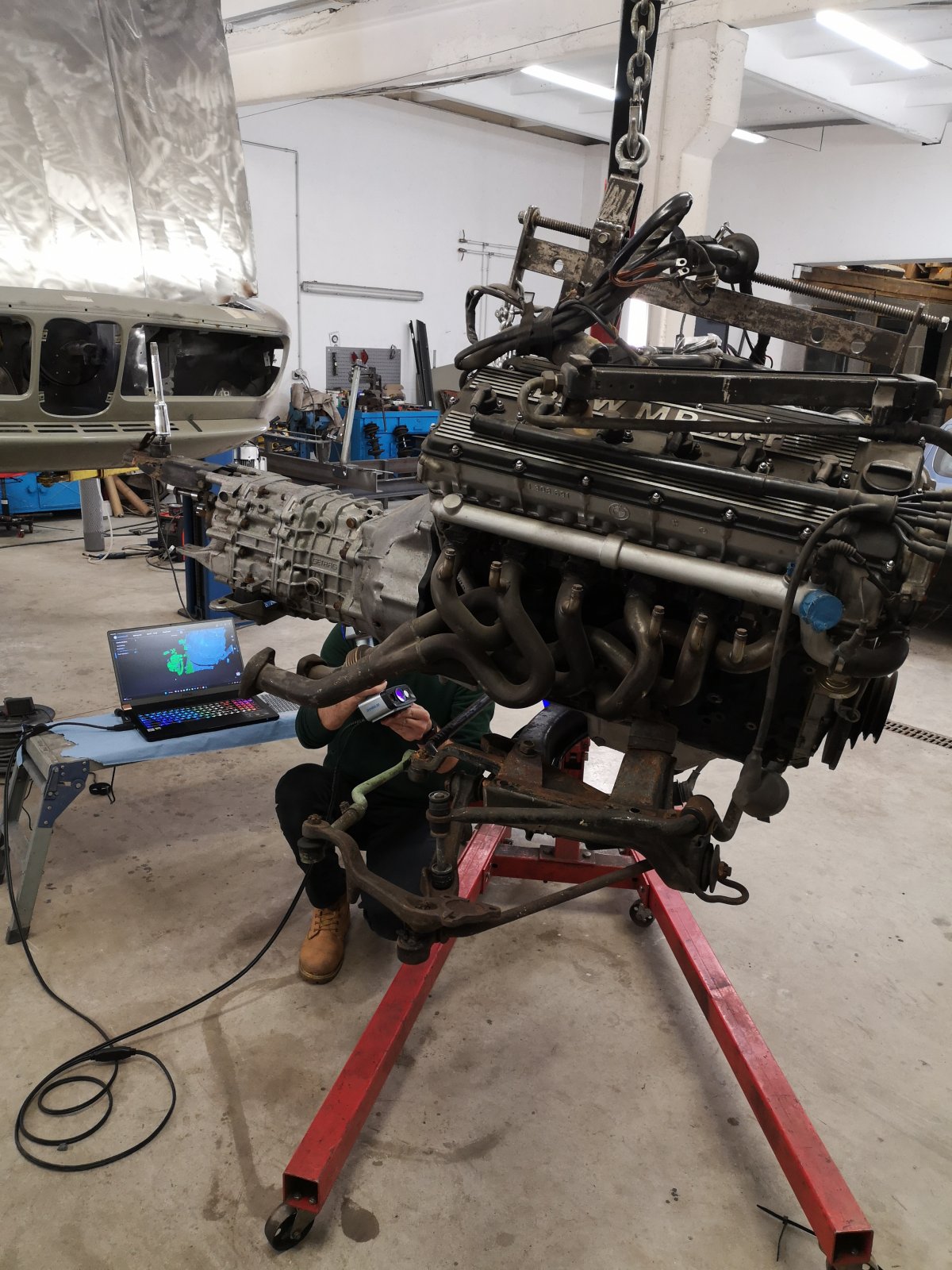

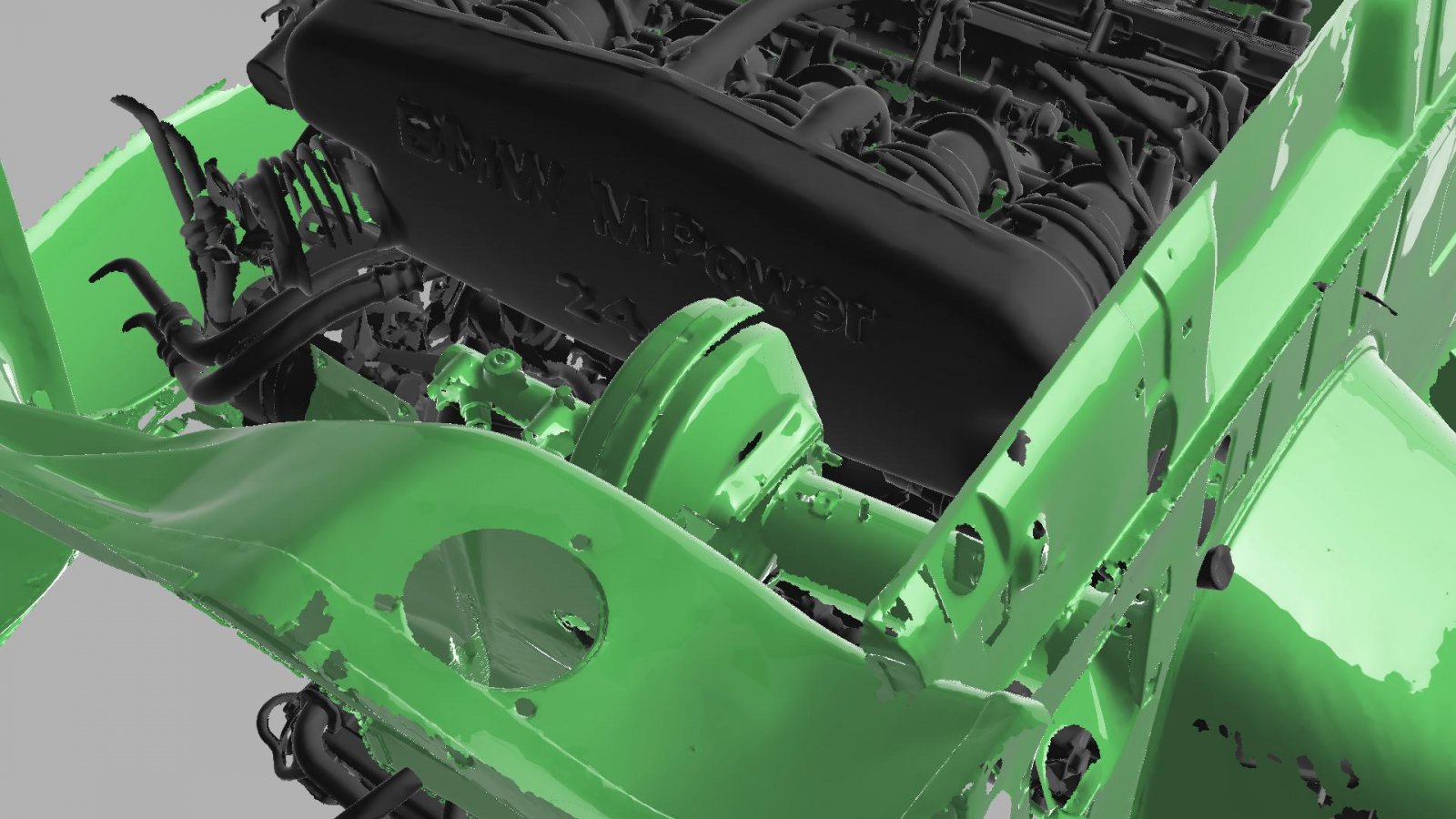

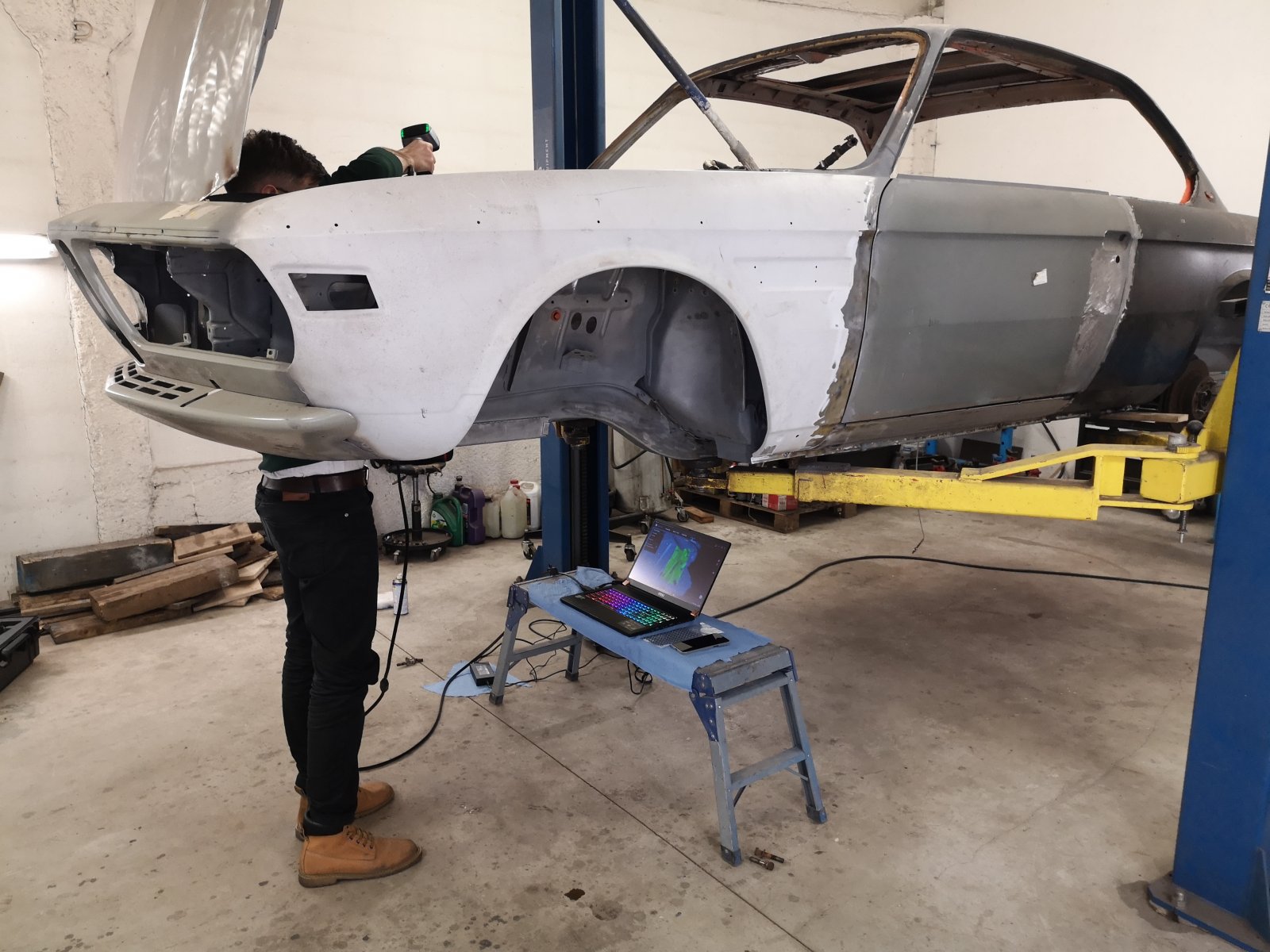

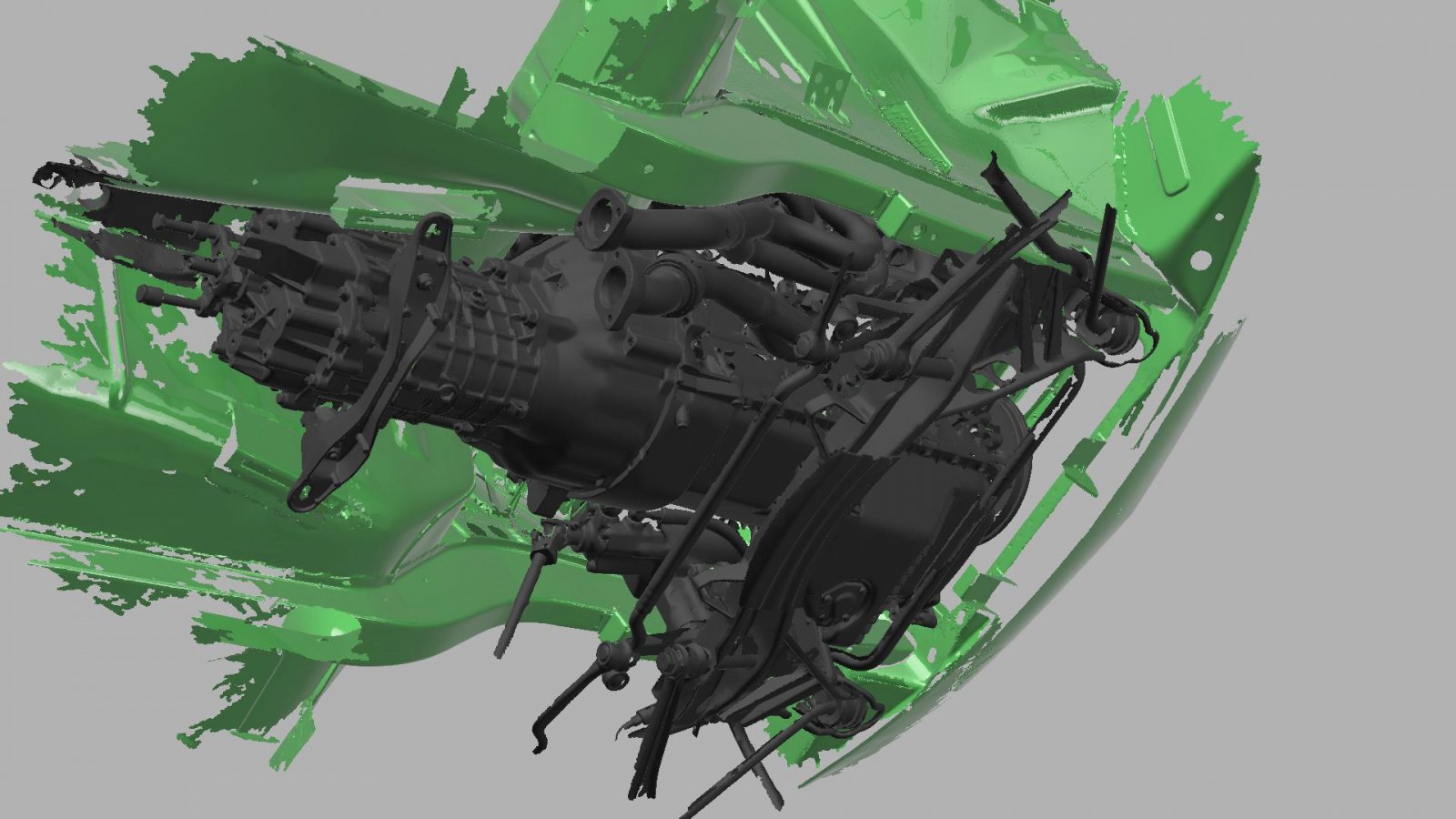

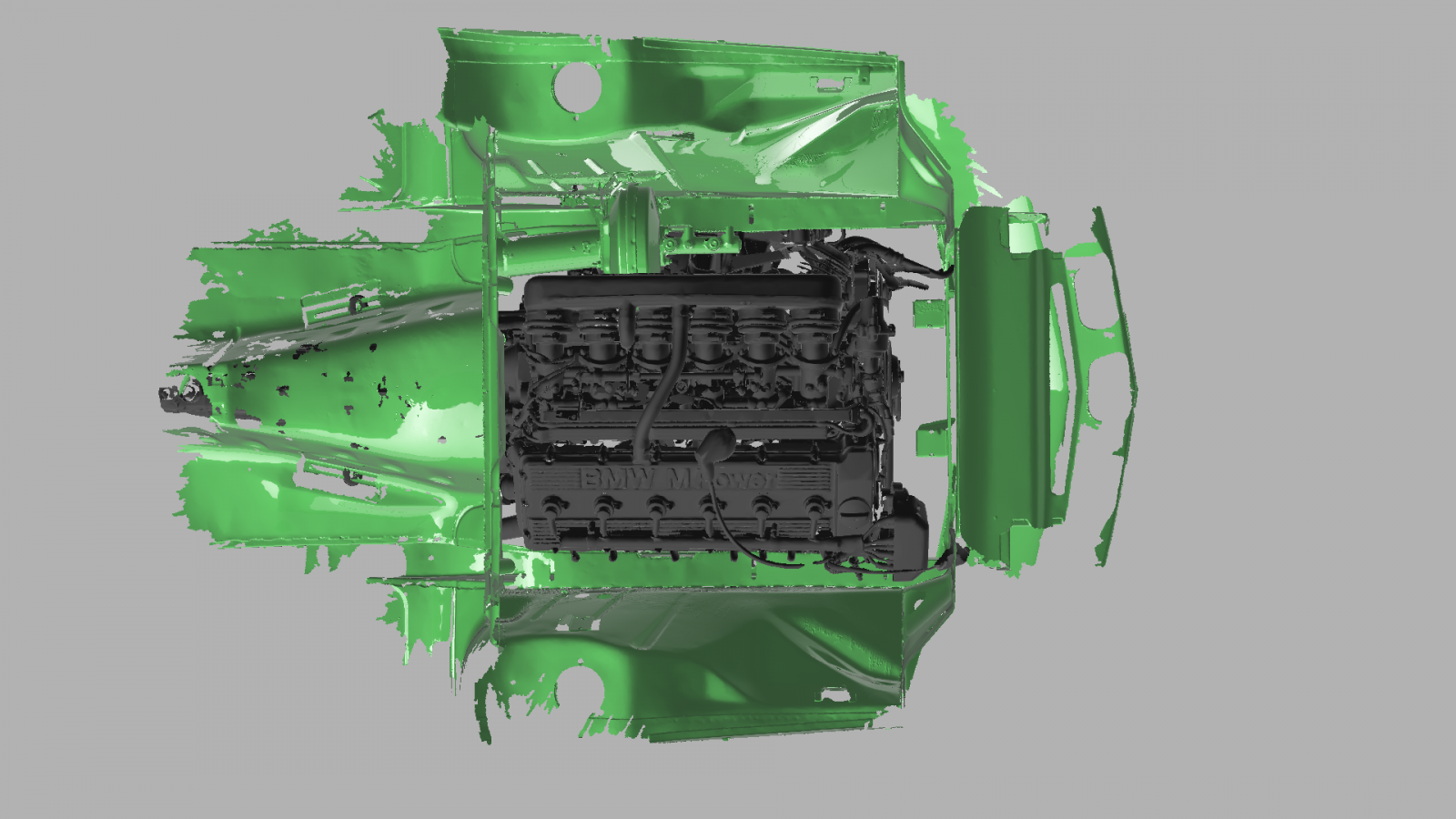

So in jumps a familiar fellow with his 3D scanner to scan the whole engine bay:


And the complete engine-transmission-front subframe assembly:


So he can play around with the parts without heavy lifting :)


Well,...


we told you, we have clearance issues :). So the brake servo/pump part has to be redesigned:


With the brake components removed, we can push the engine in.

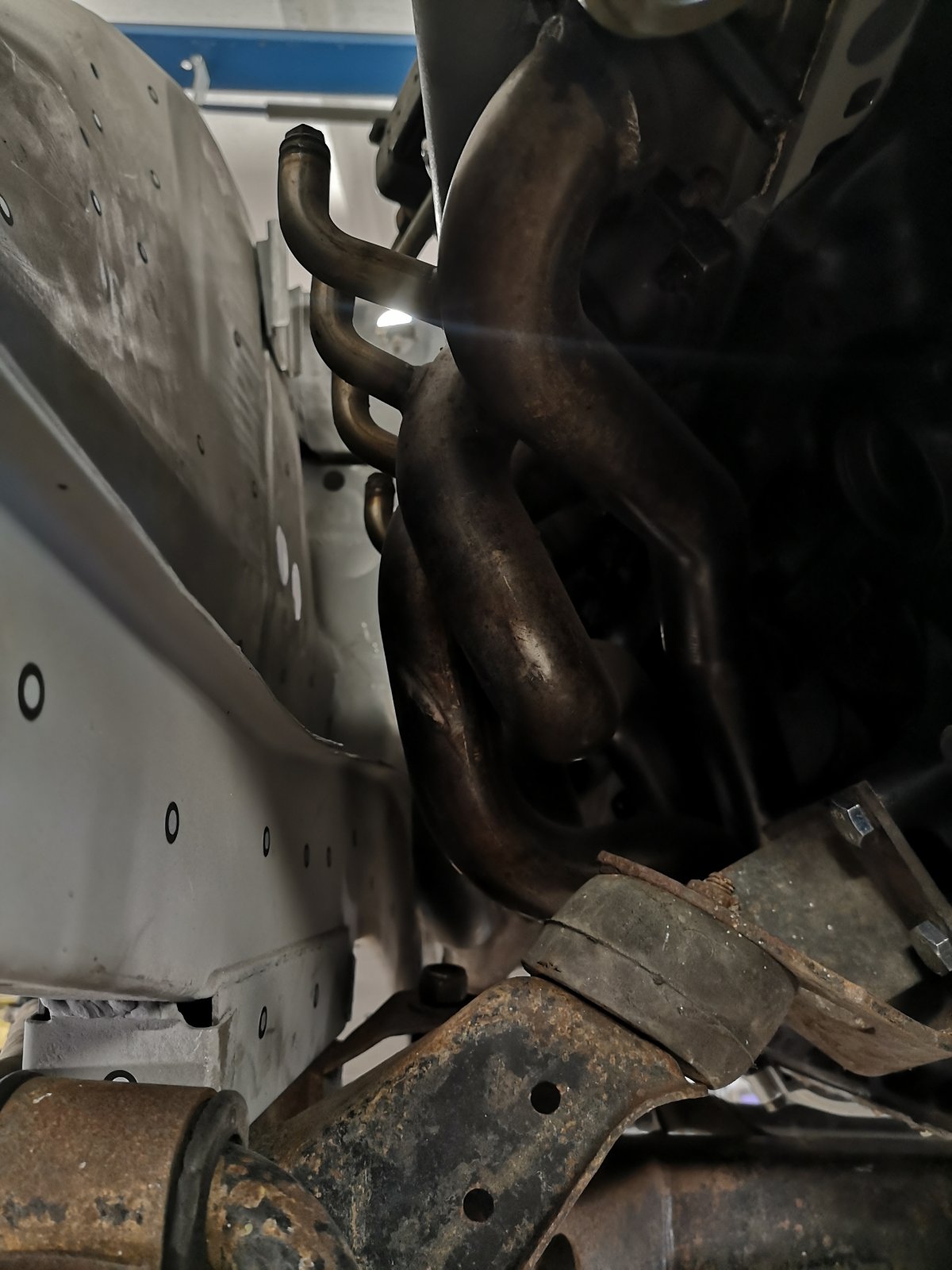

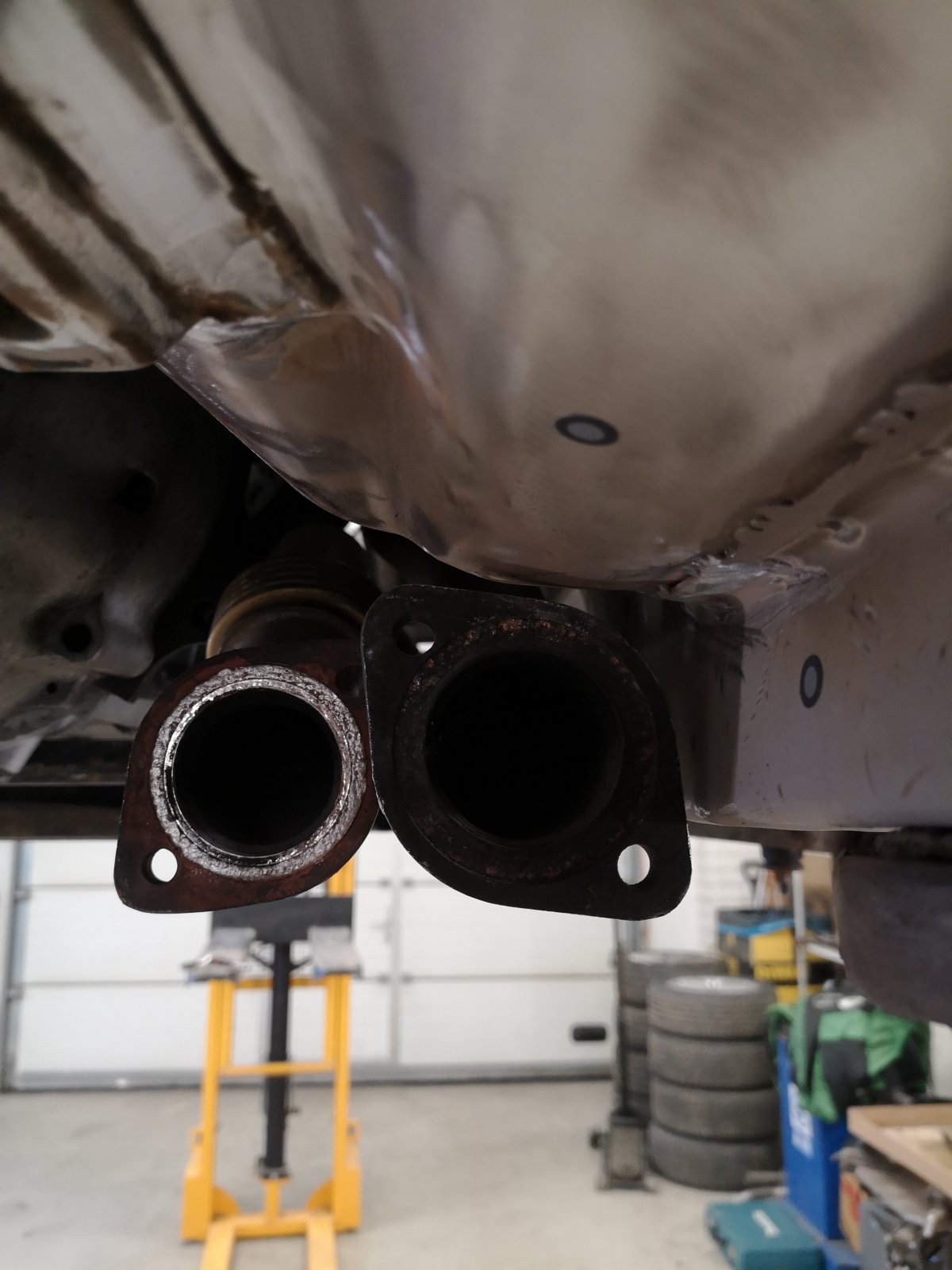

The downpipes are a bit too close to the floor, thus need to be modified.


But all clear here (I have the S38B36 headers as you can see)

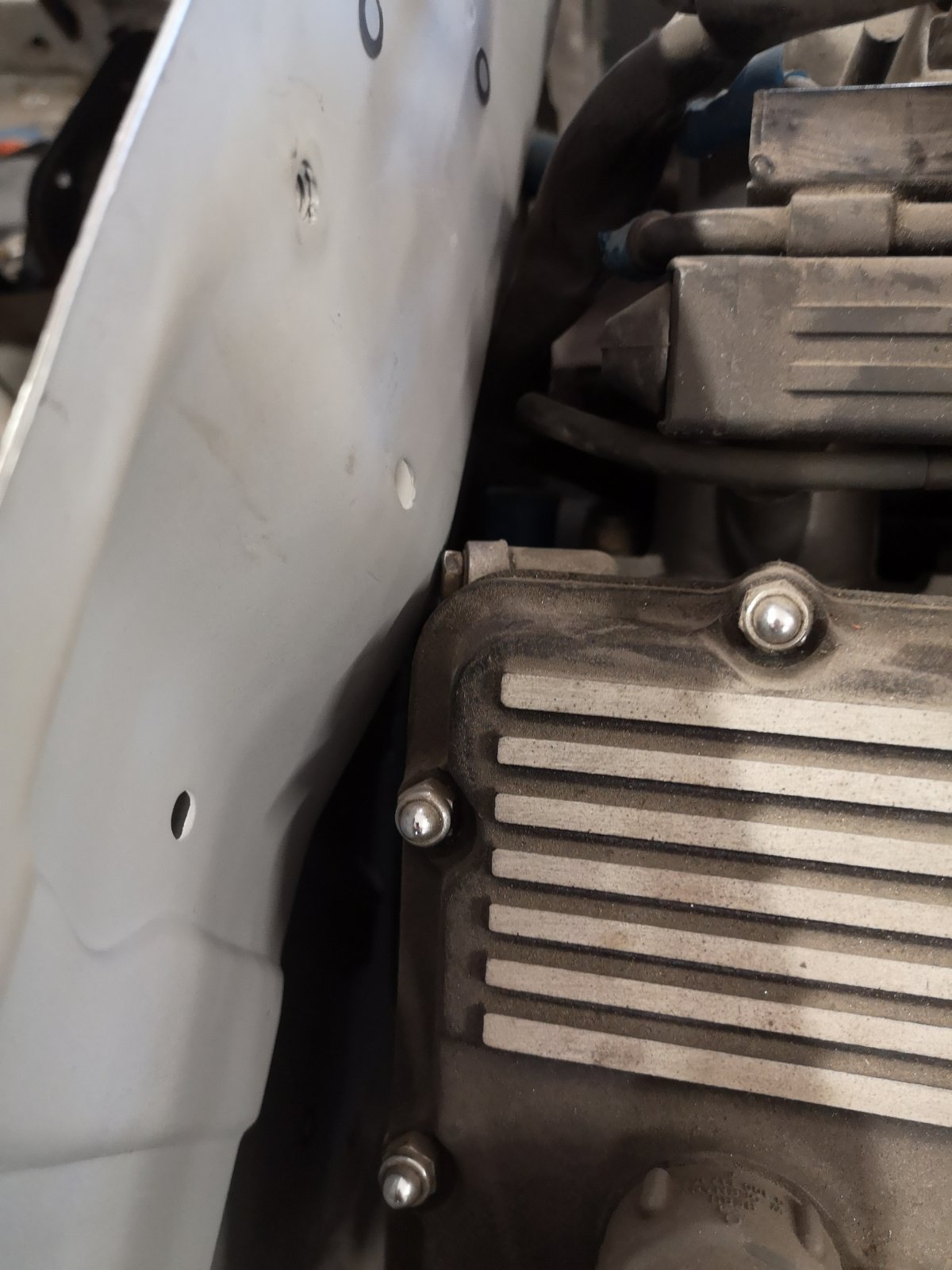

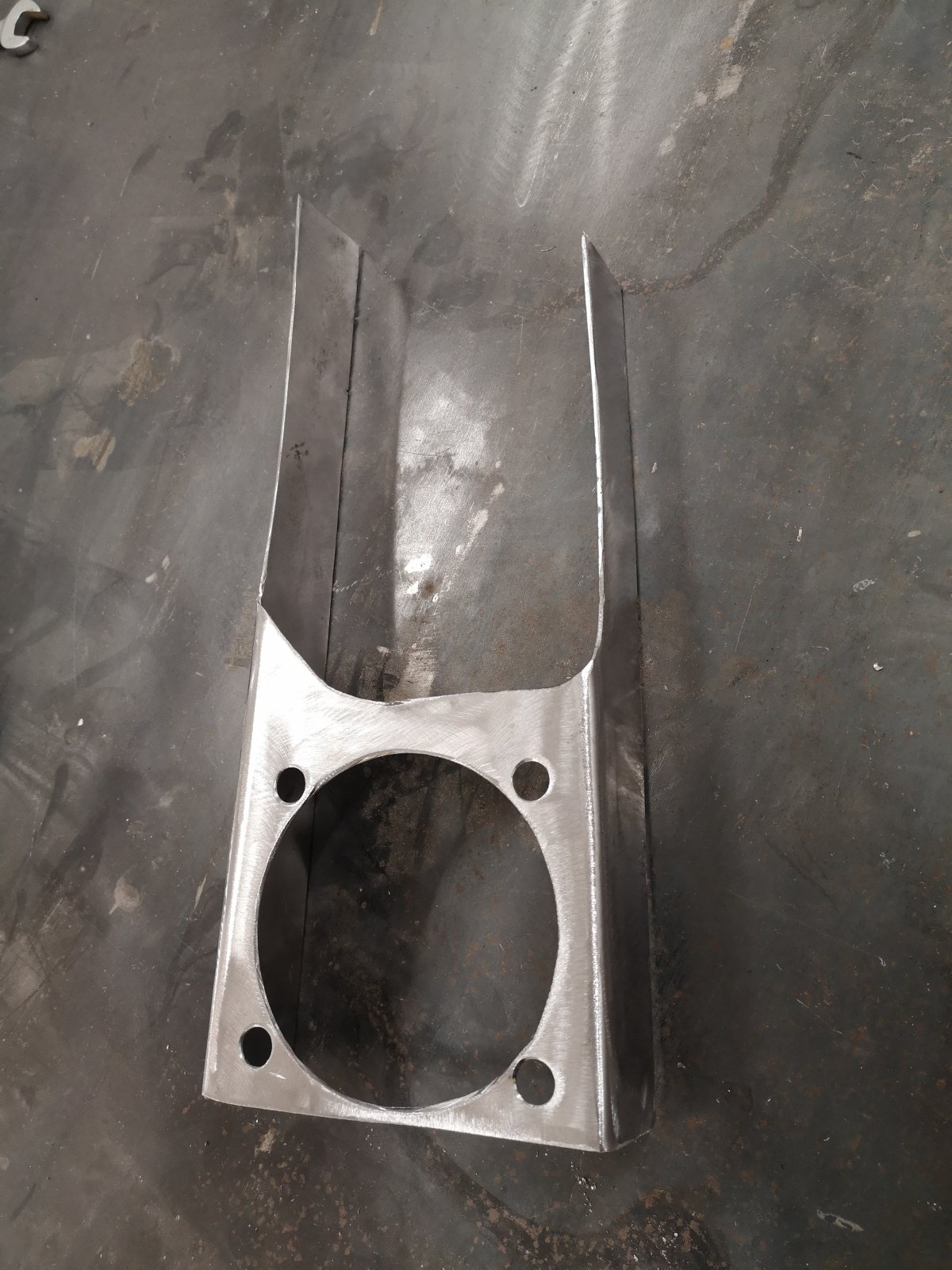

The damn reinforcement plate most probably needs to be modified too. We ordered a fresh set of engine and transmission mounts to verify we get the most accurate position first.


We might also need to hammer the firewall just a bit.


Throwing more stuff into the engine bay.

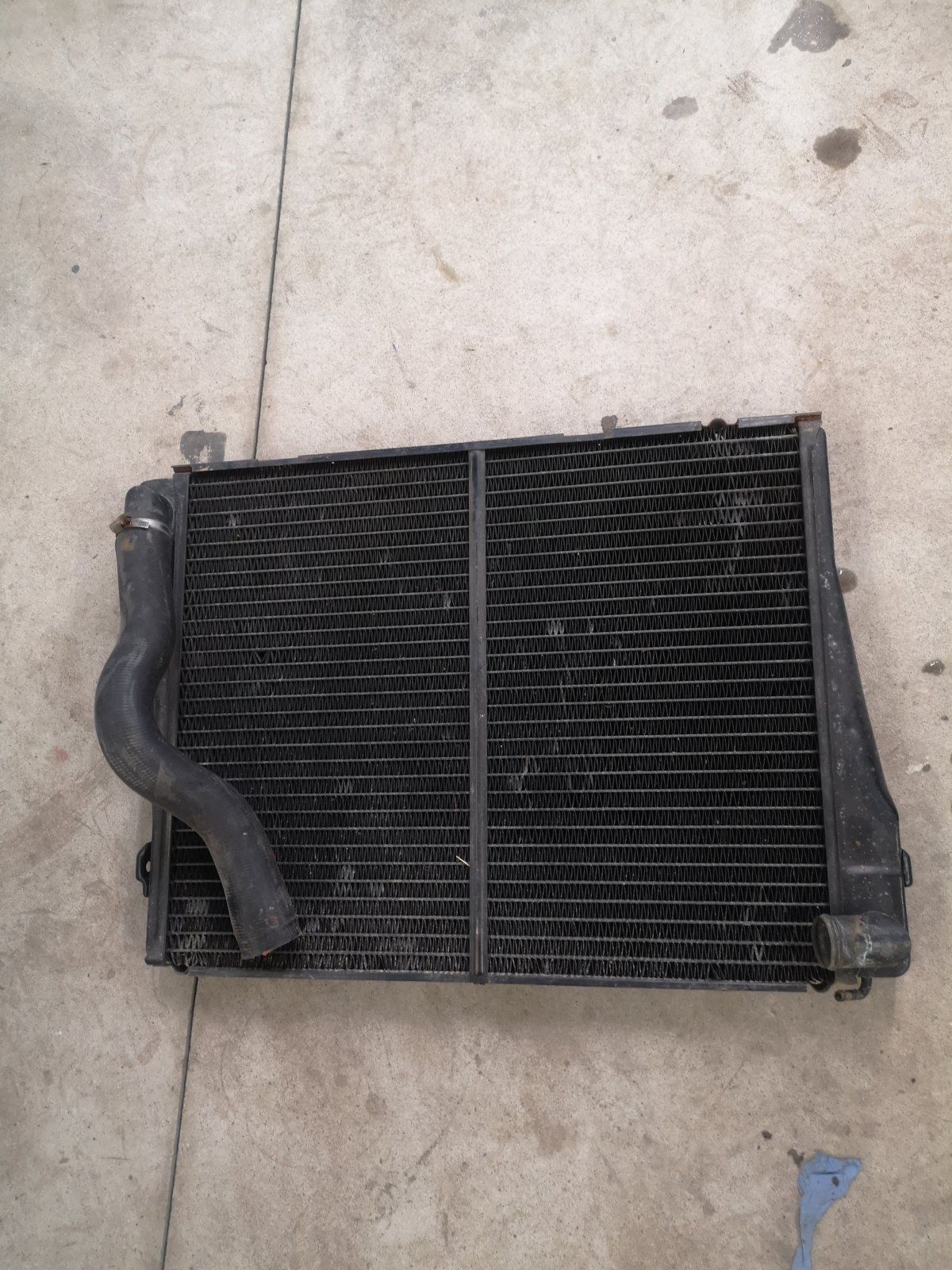

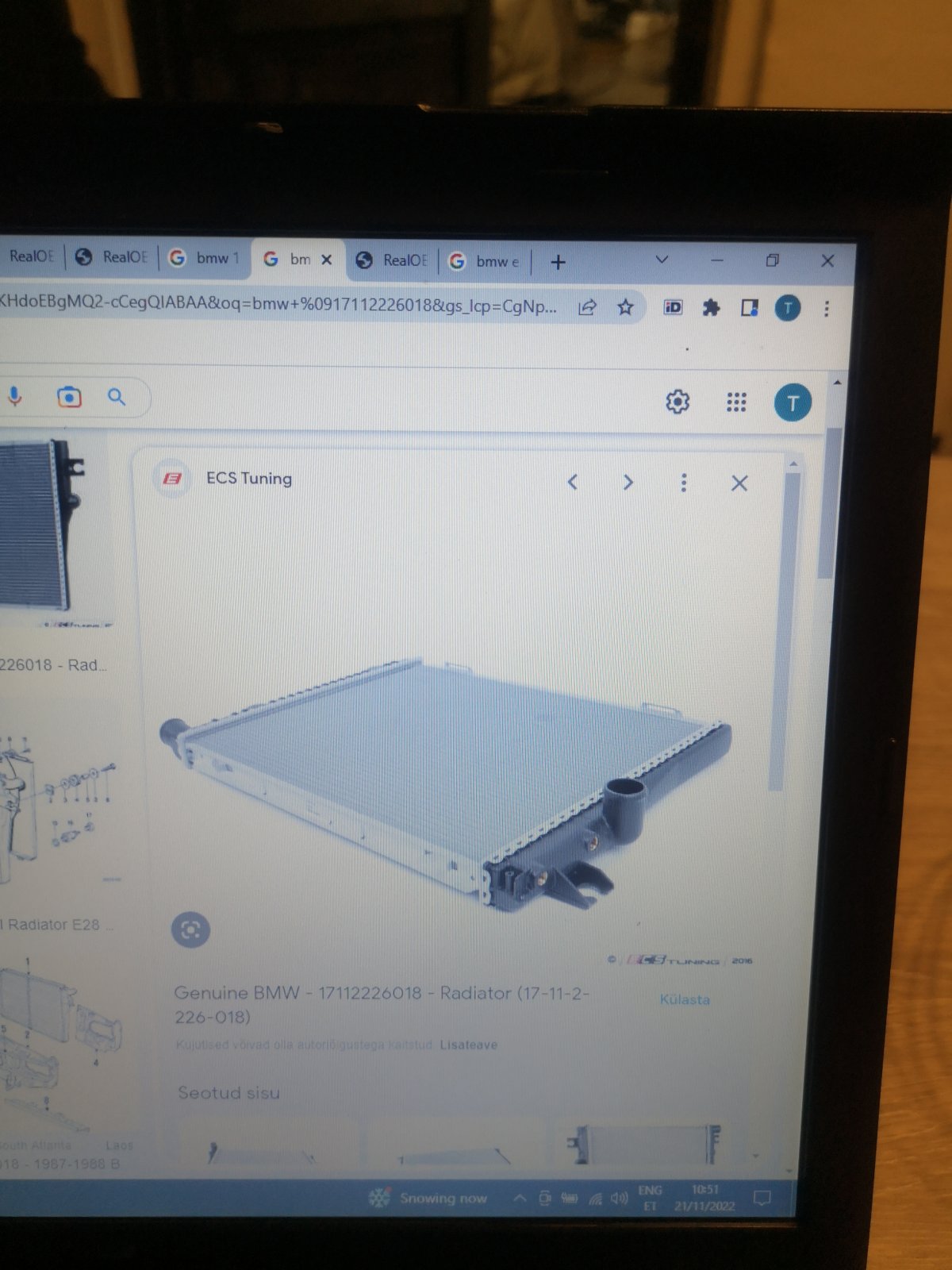

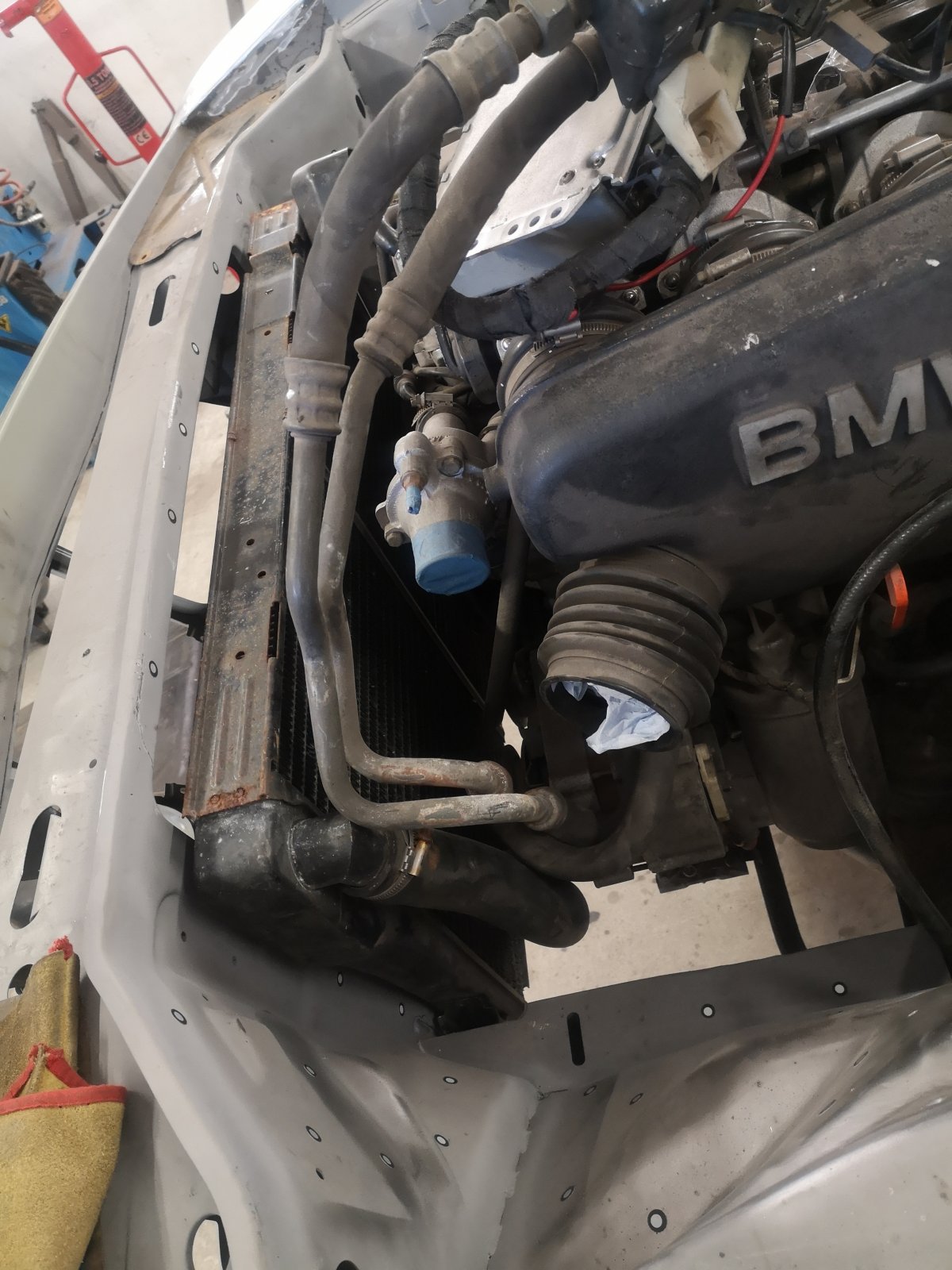

Should we keep the coolant radiator from M30?


Nope, it does not fit nor belong here anymore. Go with the trash...


We will order a new one from E28 M5

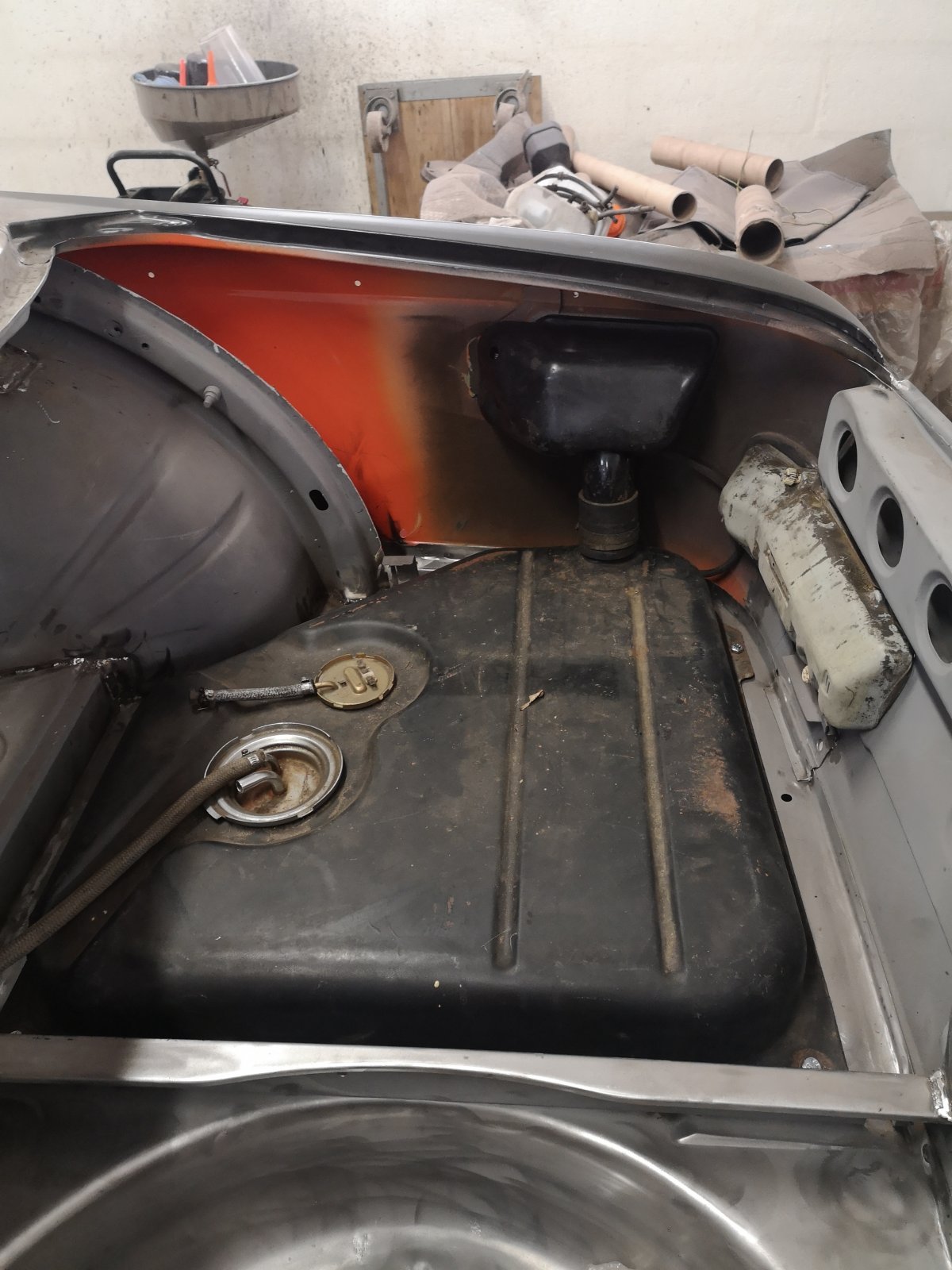

Fuel tank, neck etc fitted, but it was sitting way too high. Now that I look at it more, I think we need to try mounting it from the bottom as it is a 1974 car...


Steering column and heater box too. We will be going to install AC however and although I have parts from a E3, we are thinking about at least a semi-custom solution


November update continues in the next post...

Last edited:
We also saw the E24/E28 air filter box will not fit so we will have to come up with a custom solution using the M30 airbox as mentioned above, or build a custom one. The issue is, to have a large original size panel filter in a custom box would mean to loose the AFM, but I am not so keen on the idea of modifying the engine management electronics.... at least yet. And no, a cone filter is not an option for the "better than factory"-look I am after...

So while we have to wait for some new parts to continue on the engine bay side, we tackle the other sections of the car.

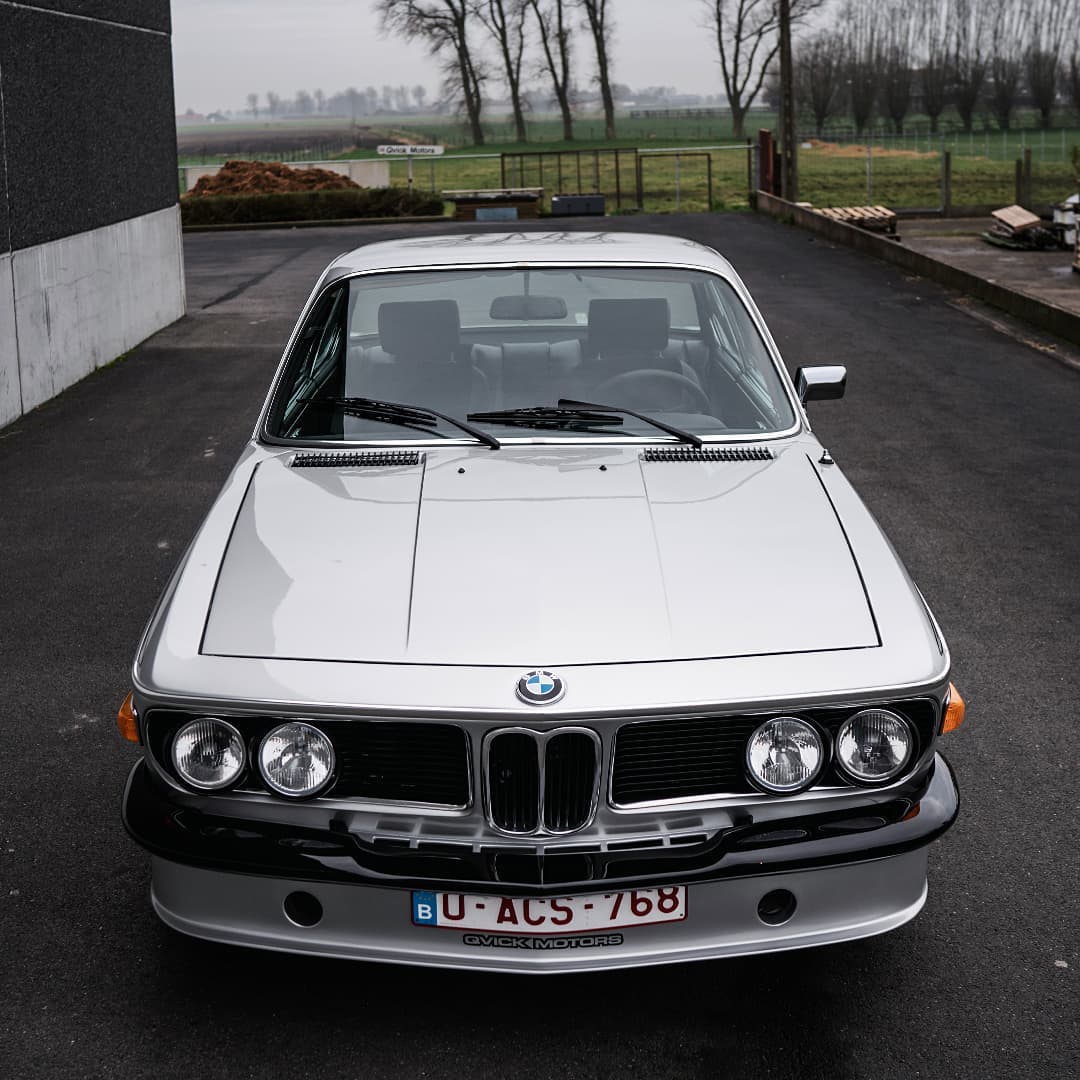

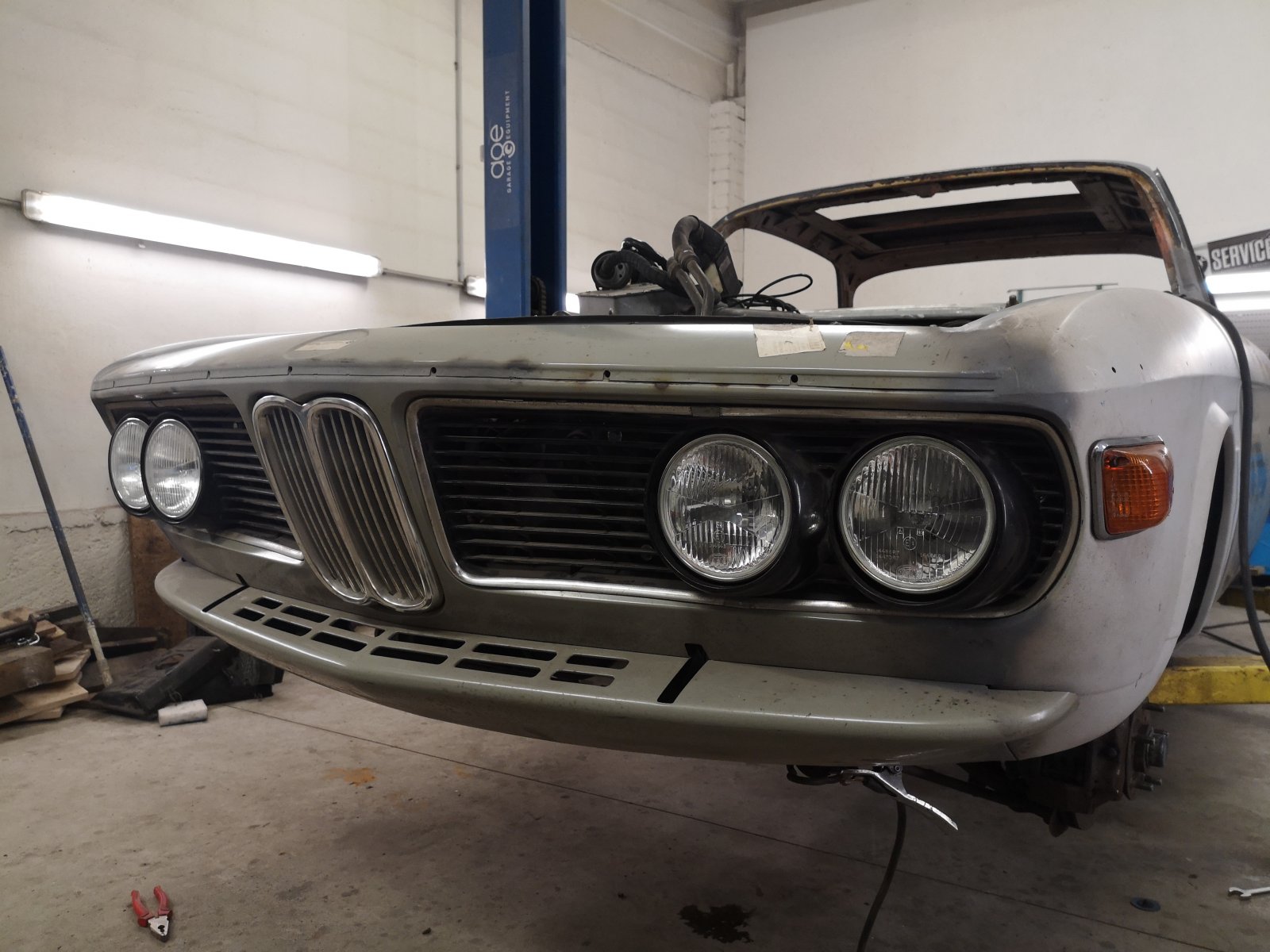

Headlights, grilles, etc in place:

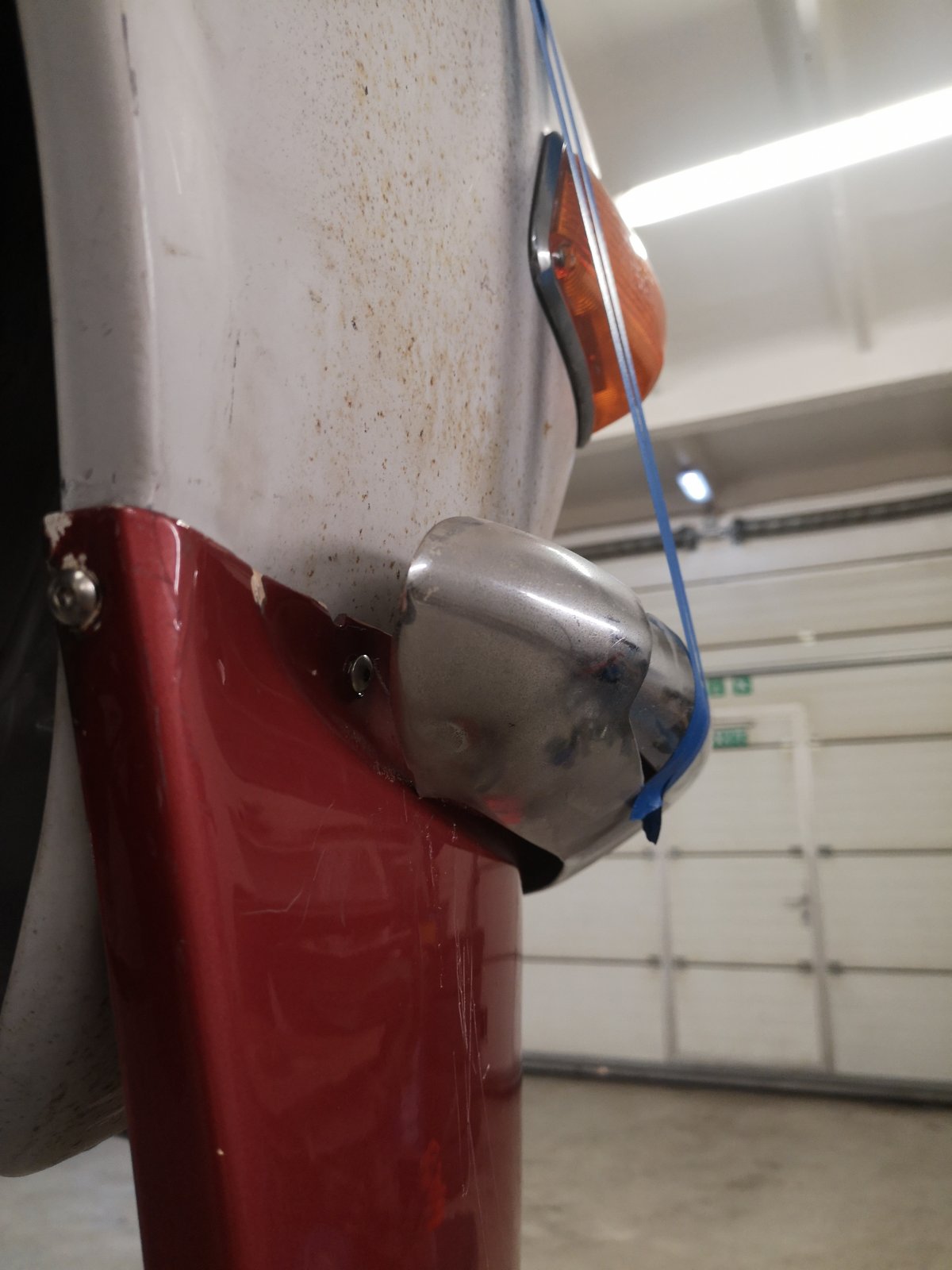

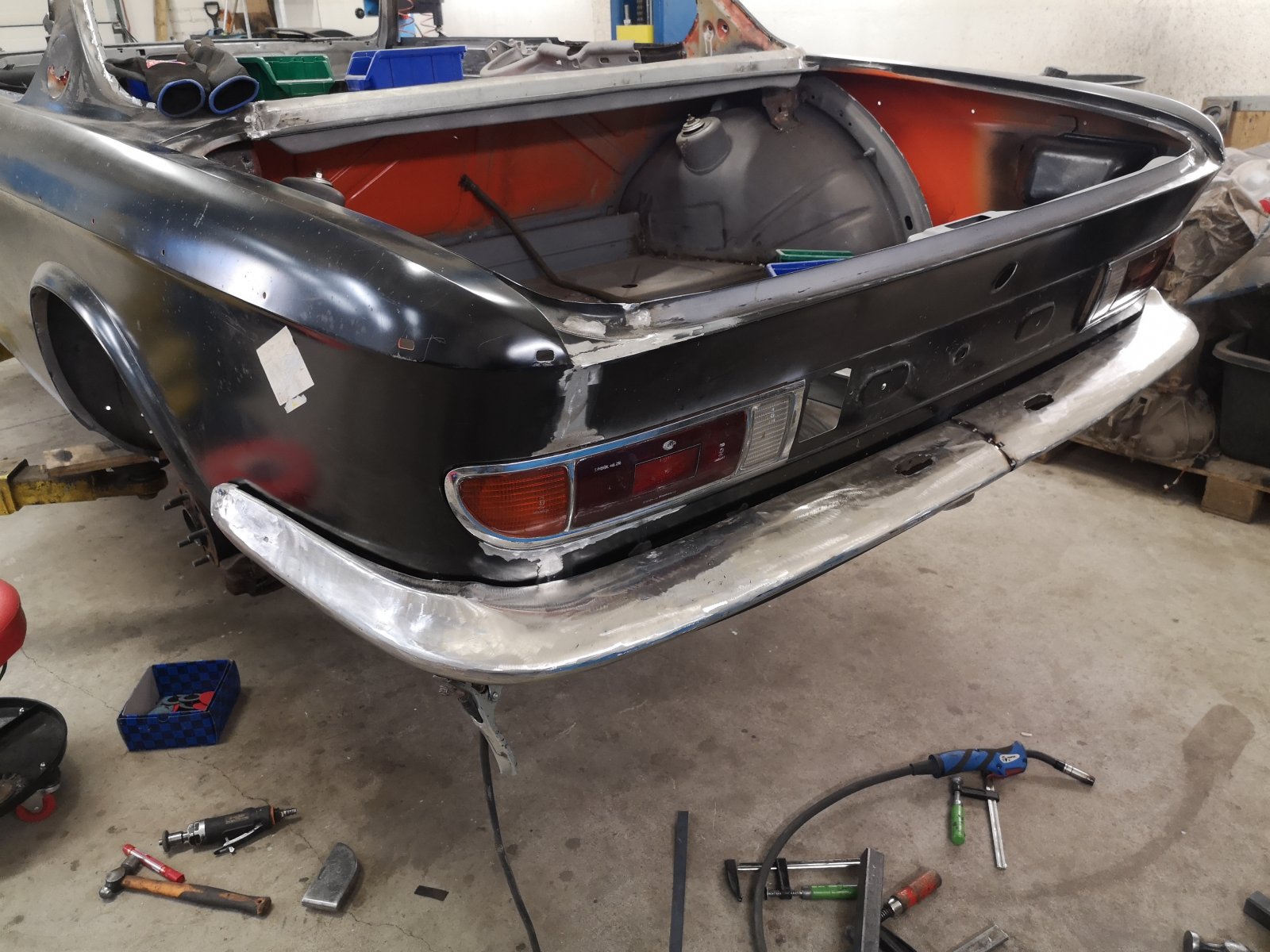

testfitting the bumpers... oh, these are ugly and also in bad shape too. With the rear I already had an idea of using the 2000cs one painted black or a fiberglass one.

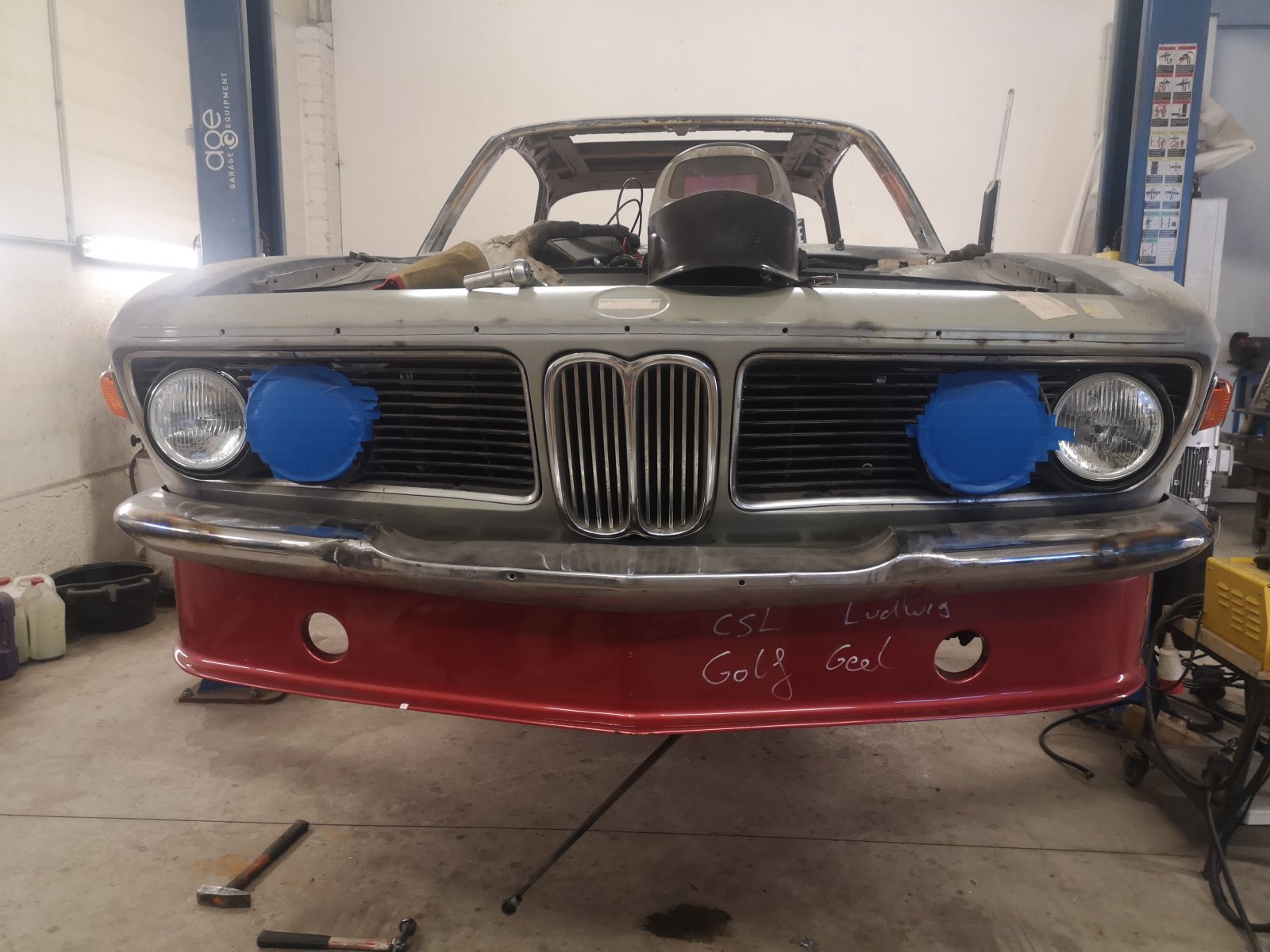

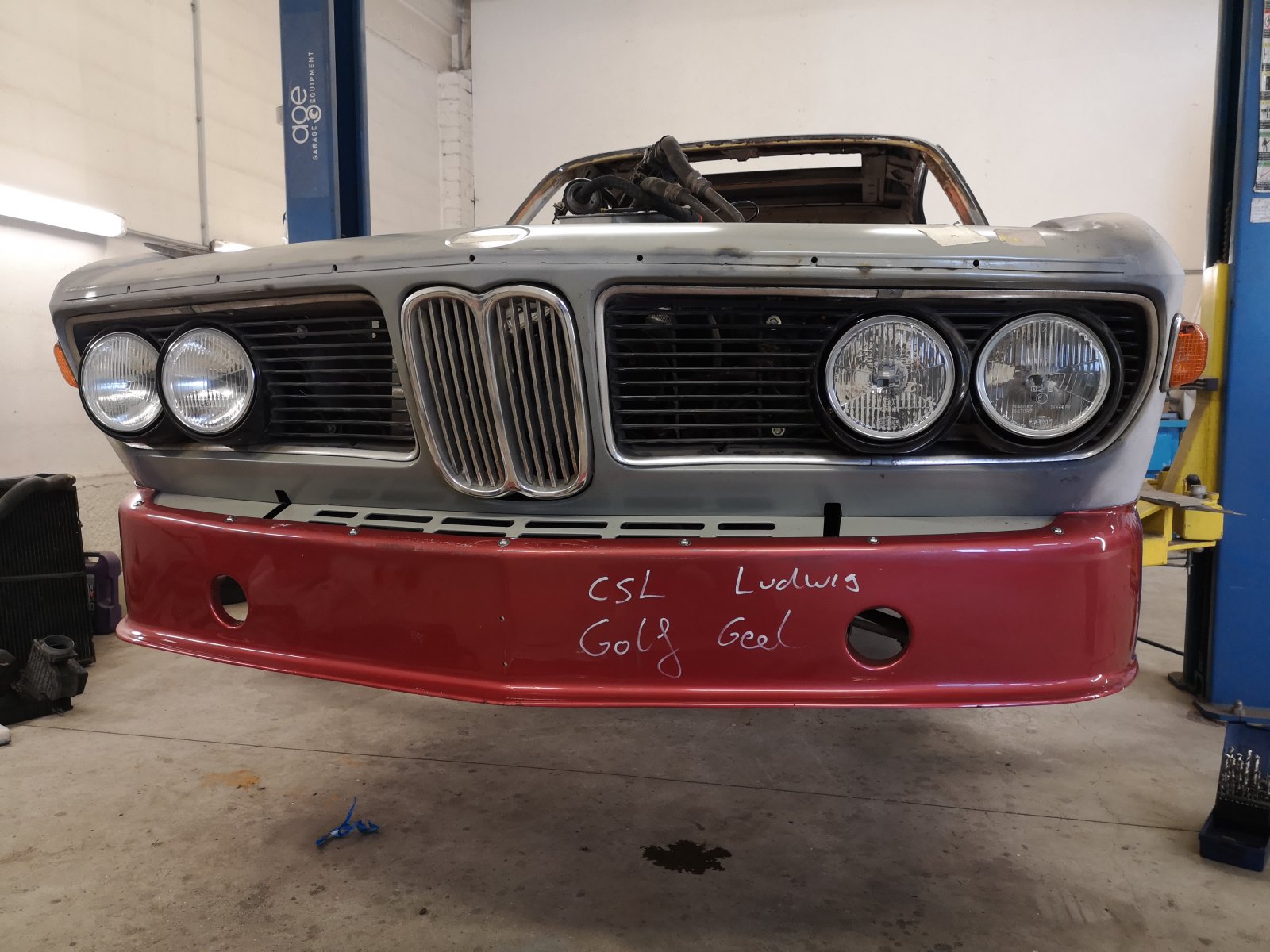

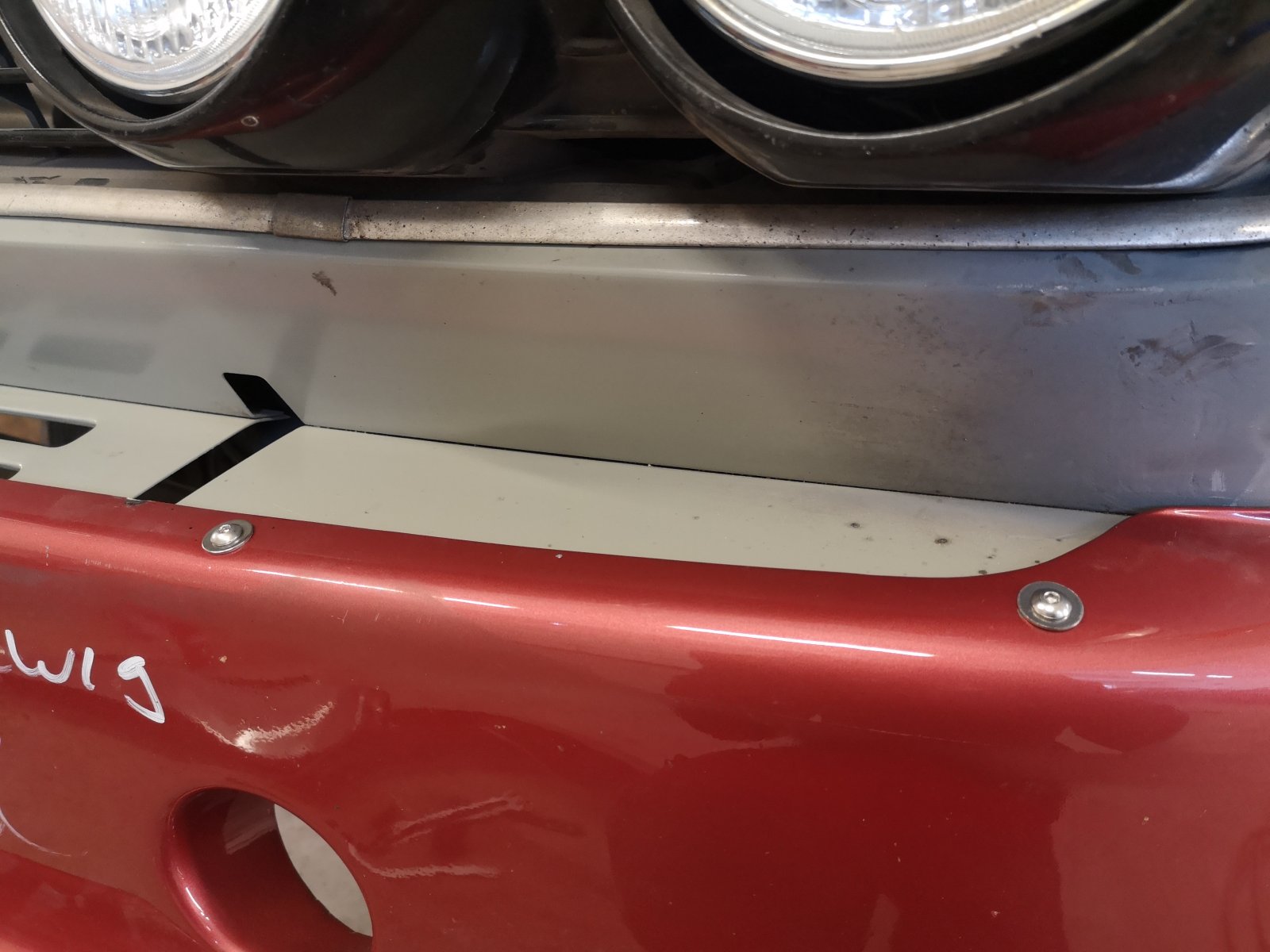

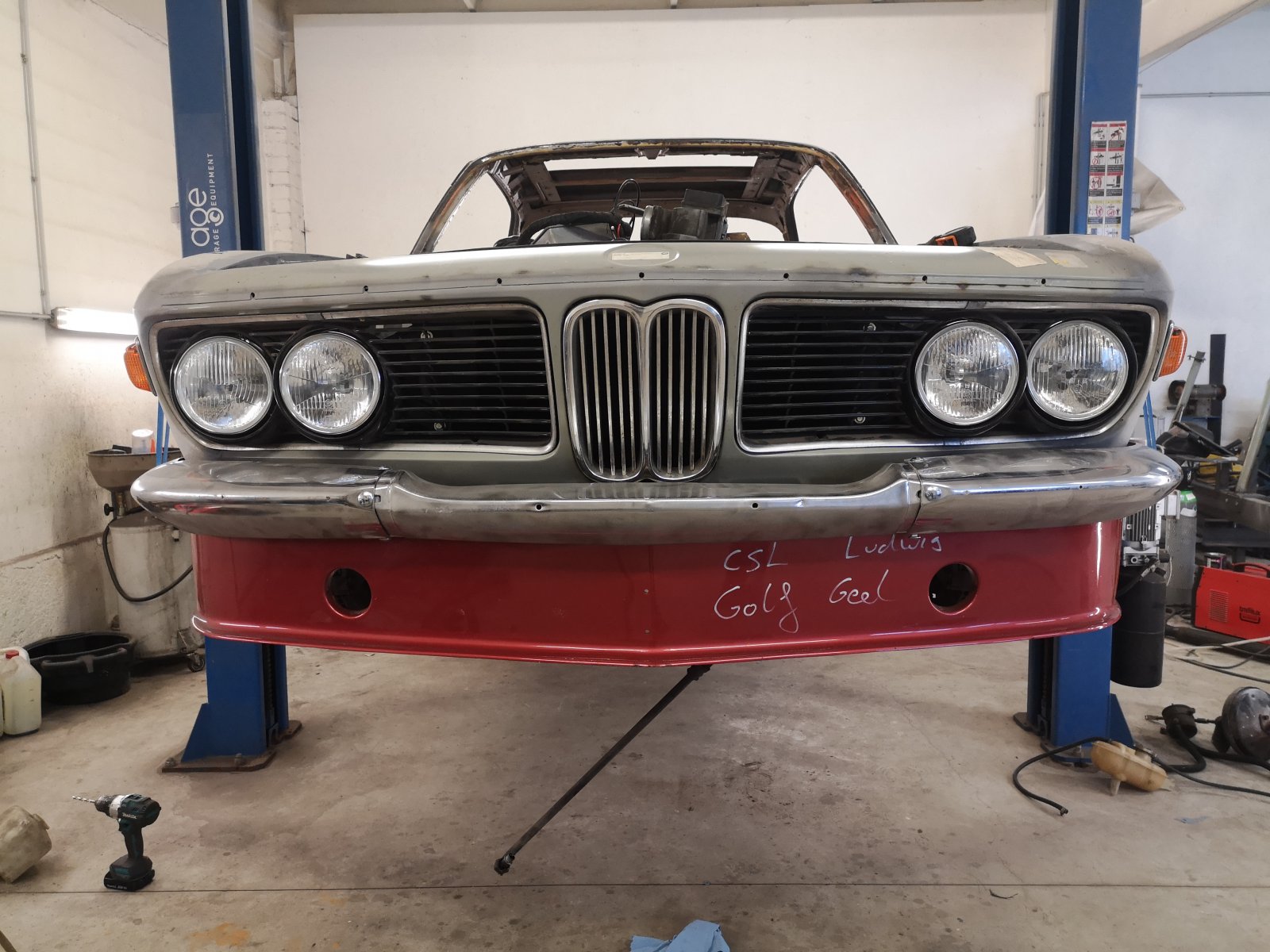

In the front, I thought I'd be running only the CSL front apron, without the bumper at all:


And here it is attached (with nut inserts)


We need to find slightly smaller stainless washers to make it perfect

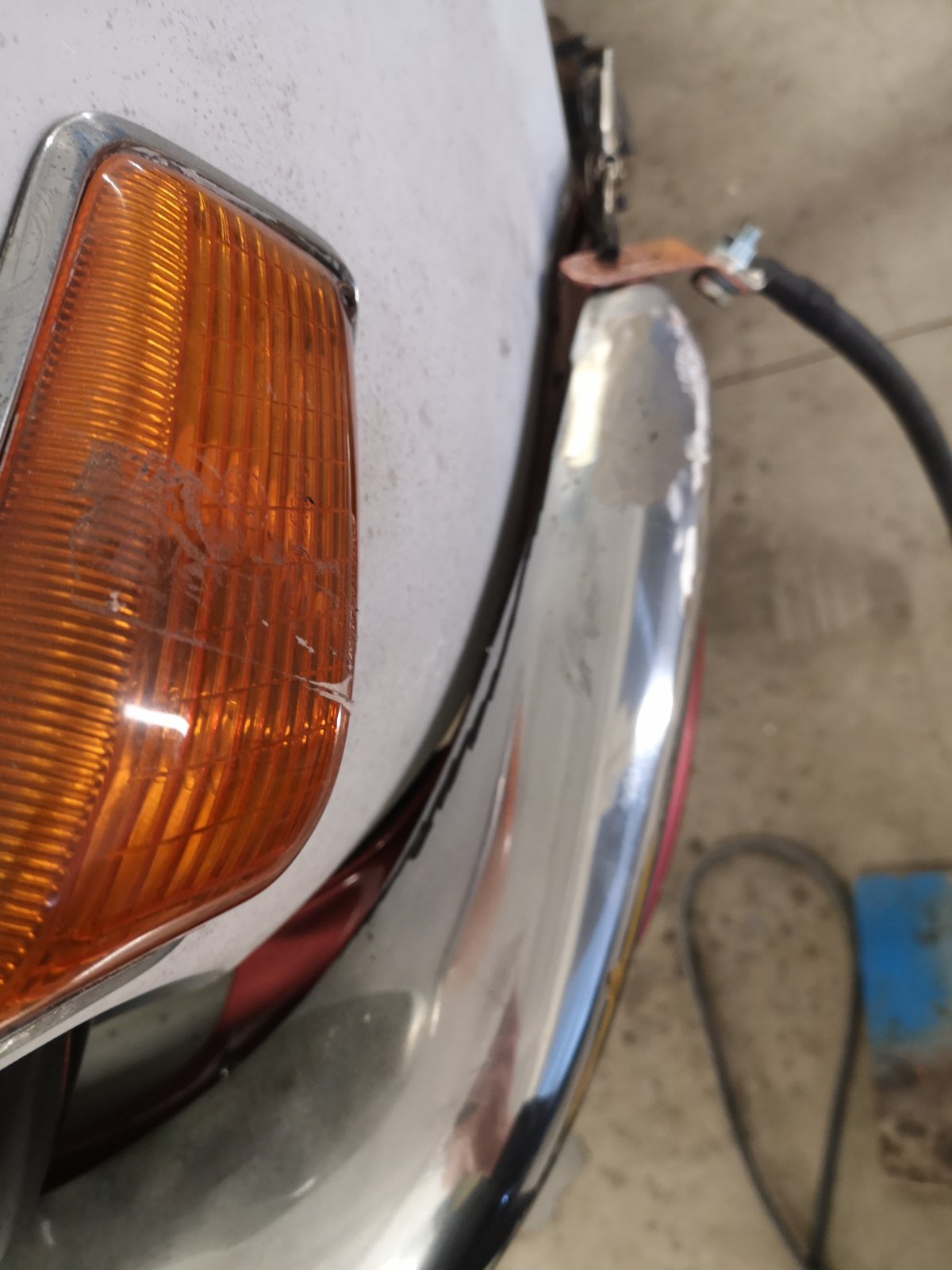

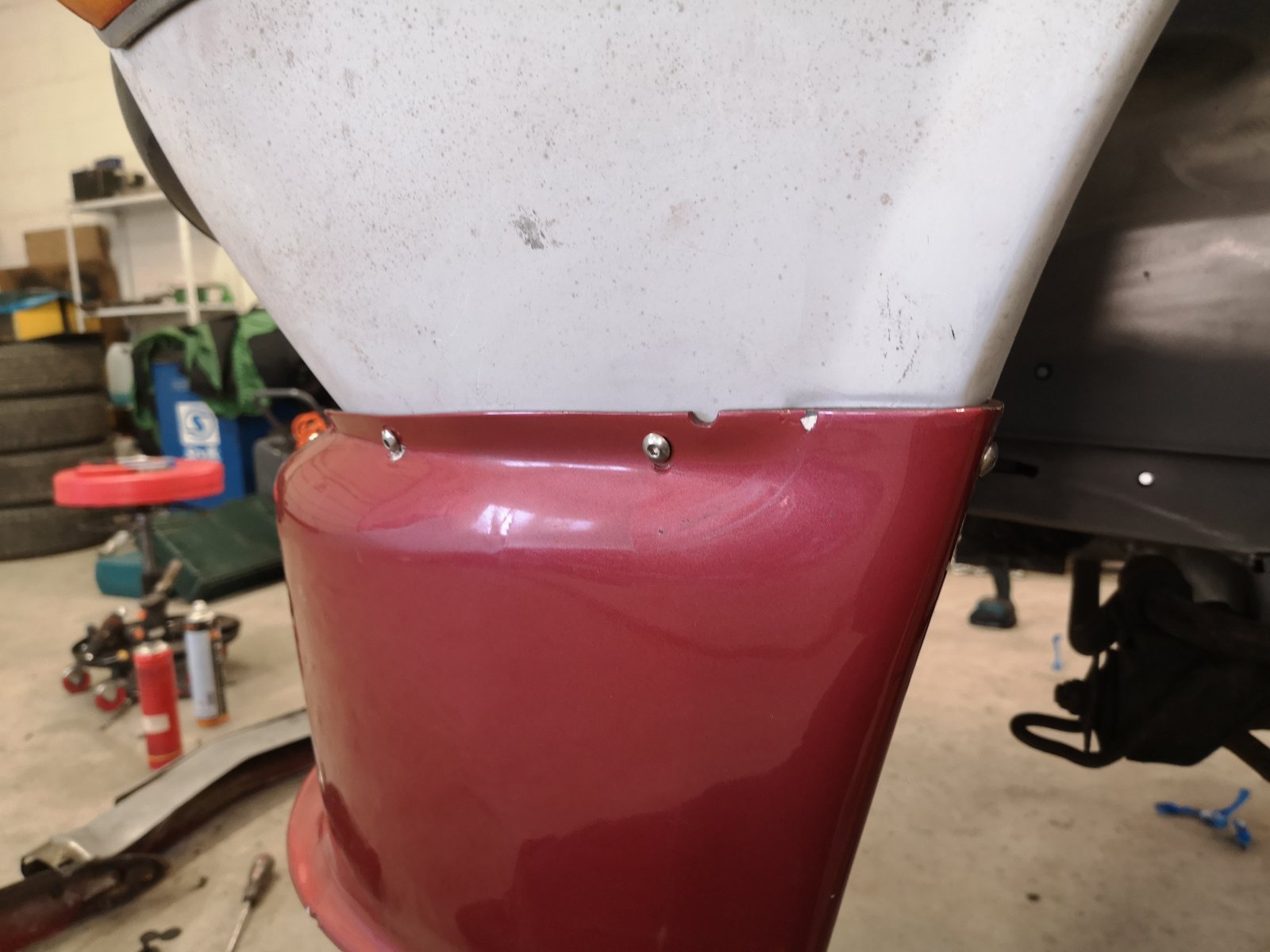

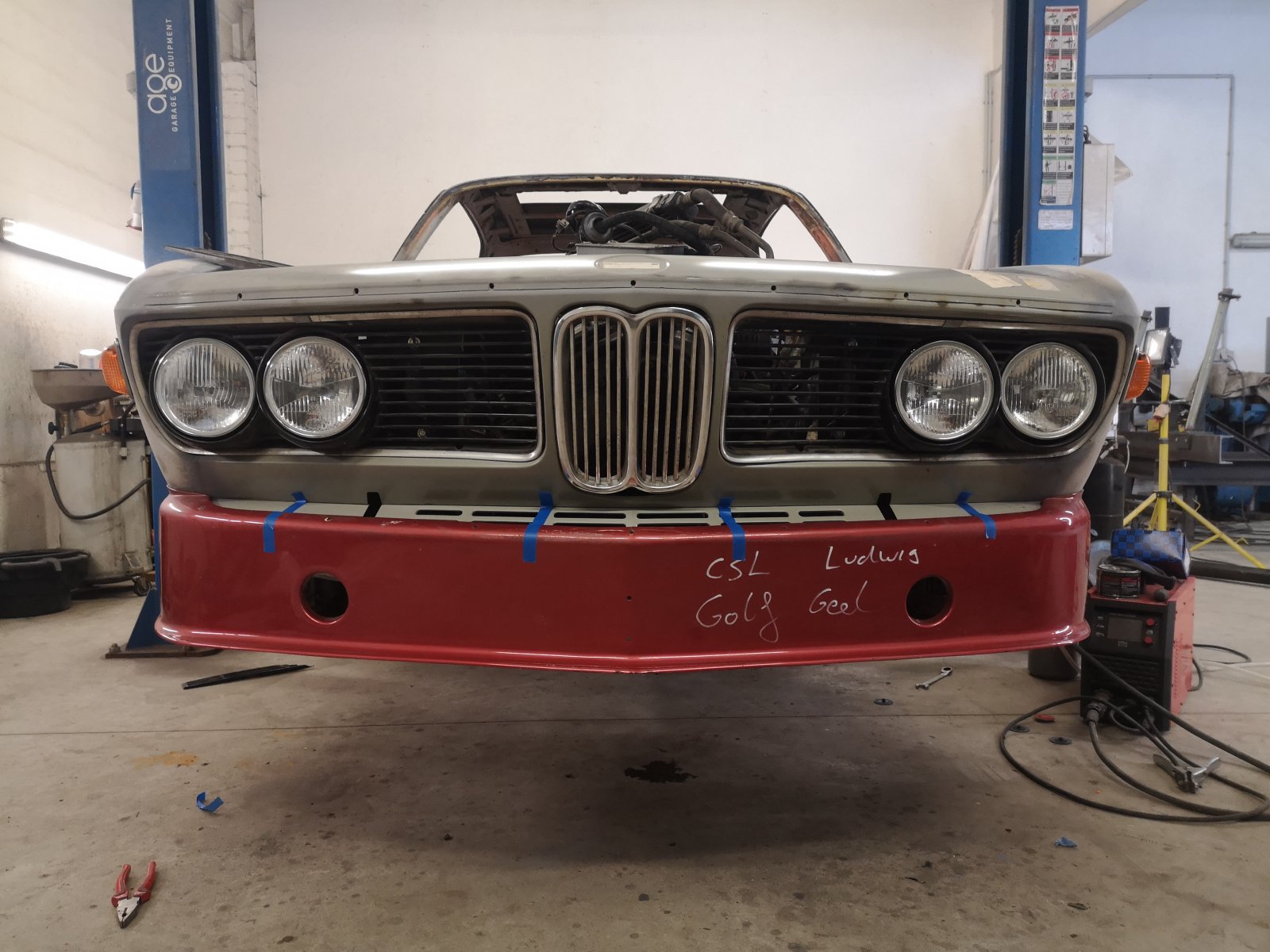

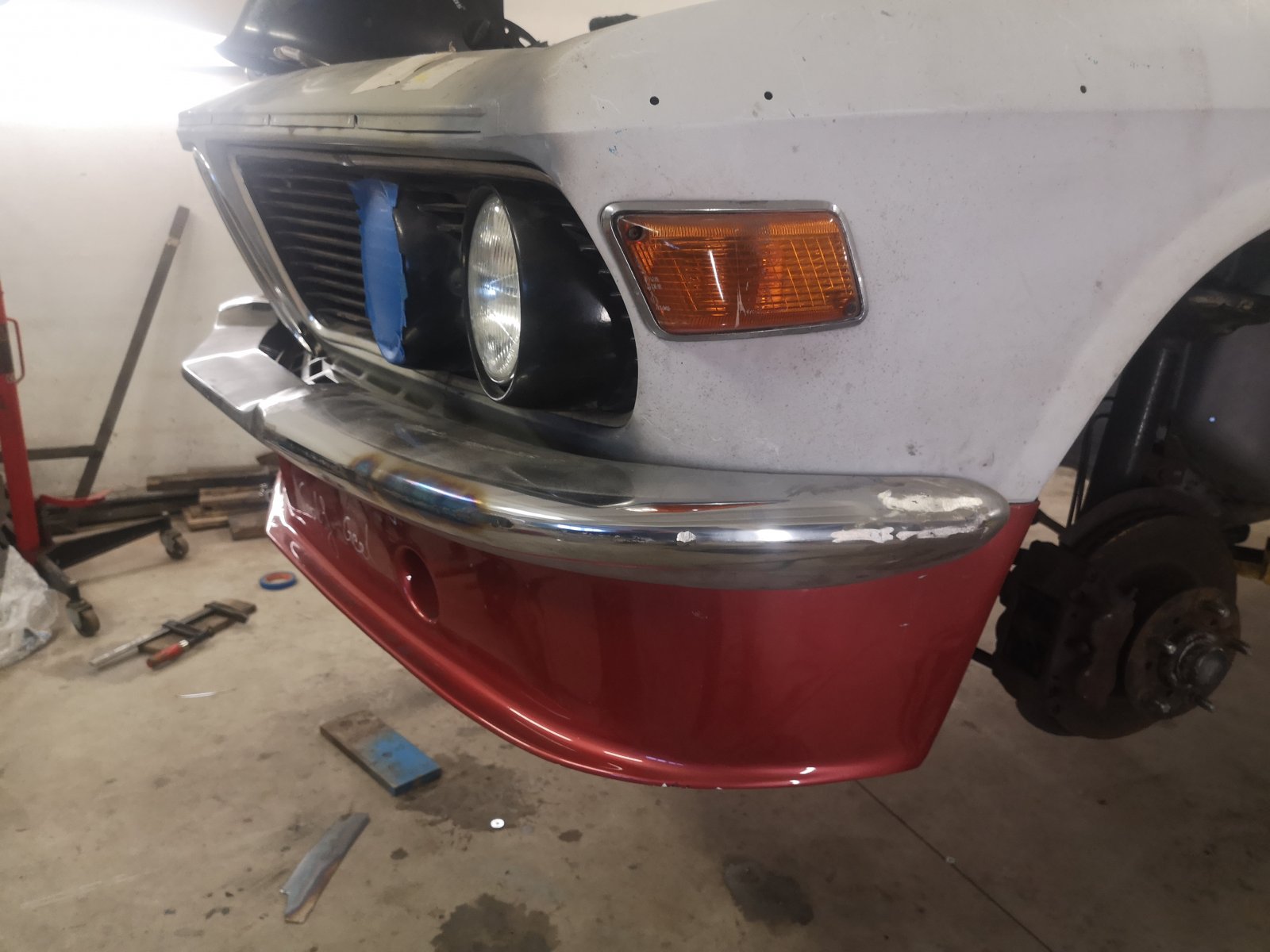

But now, testfitting the front bumper (as I need it for registration and yearly inspection anyway), we came to a design idea of a slimmed-down bumper, all in one piece and trimmed to match the CSL apron so we would not have to cut into it. And I might keep the bumper then on the car all the time.


Much better like so:

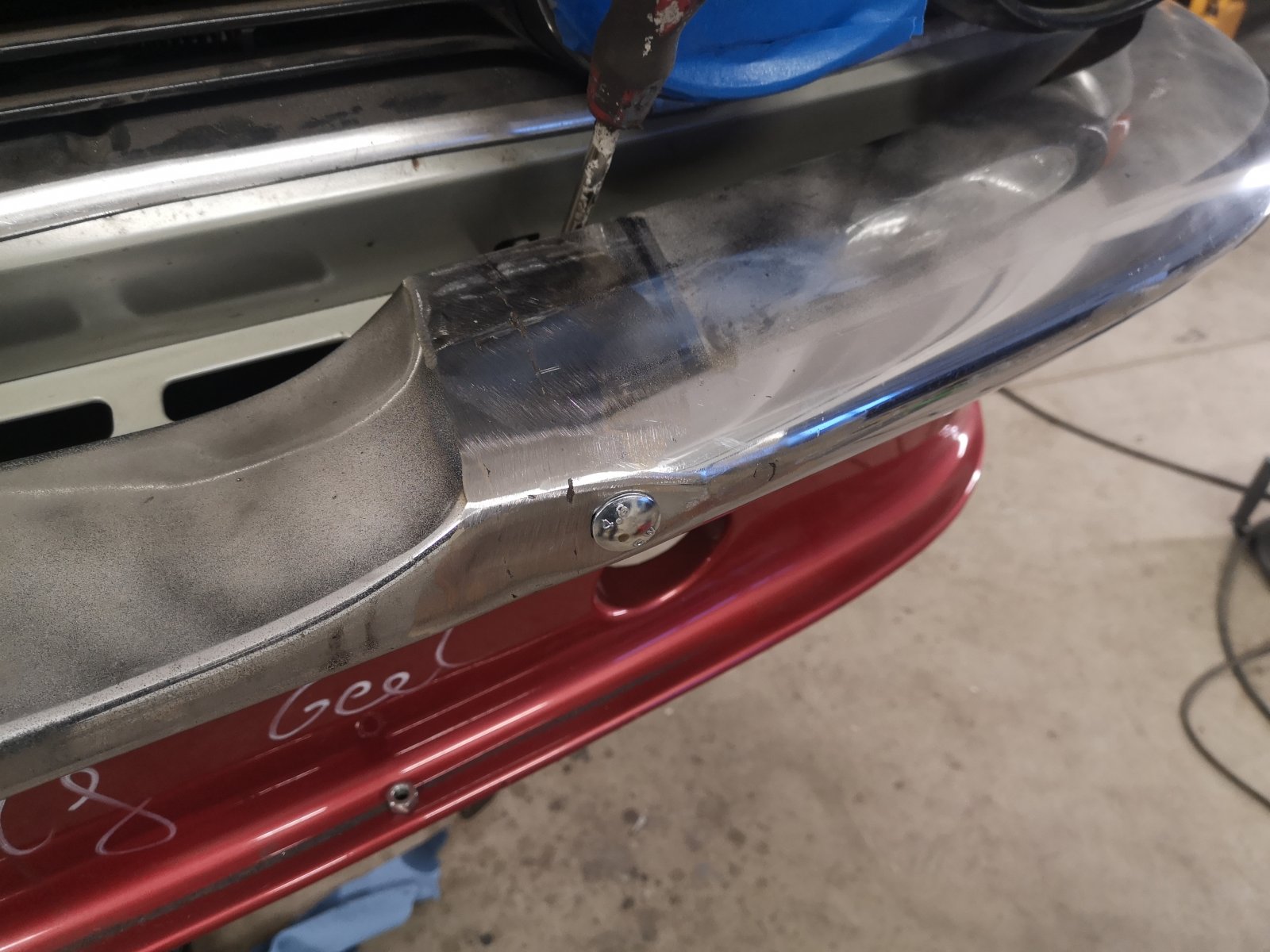

Bolted together, it is time to weld it and shape it to make perfect. Eventually it will be painted black just like the idea I had with the rear bumper.




A lot of fine tuning:

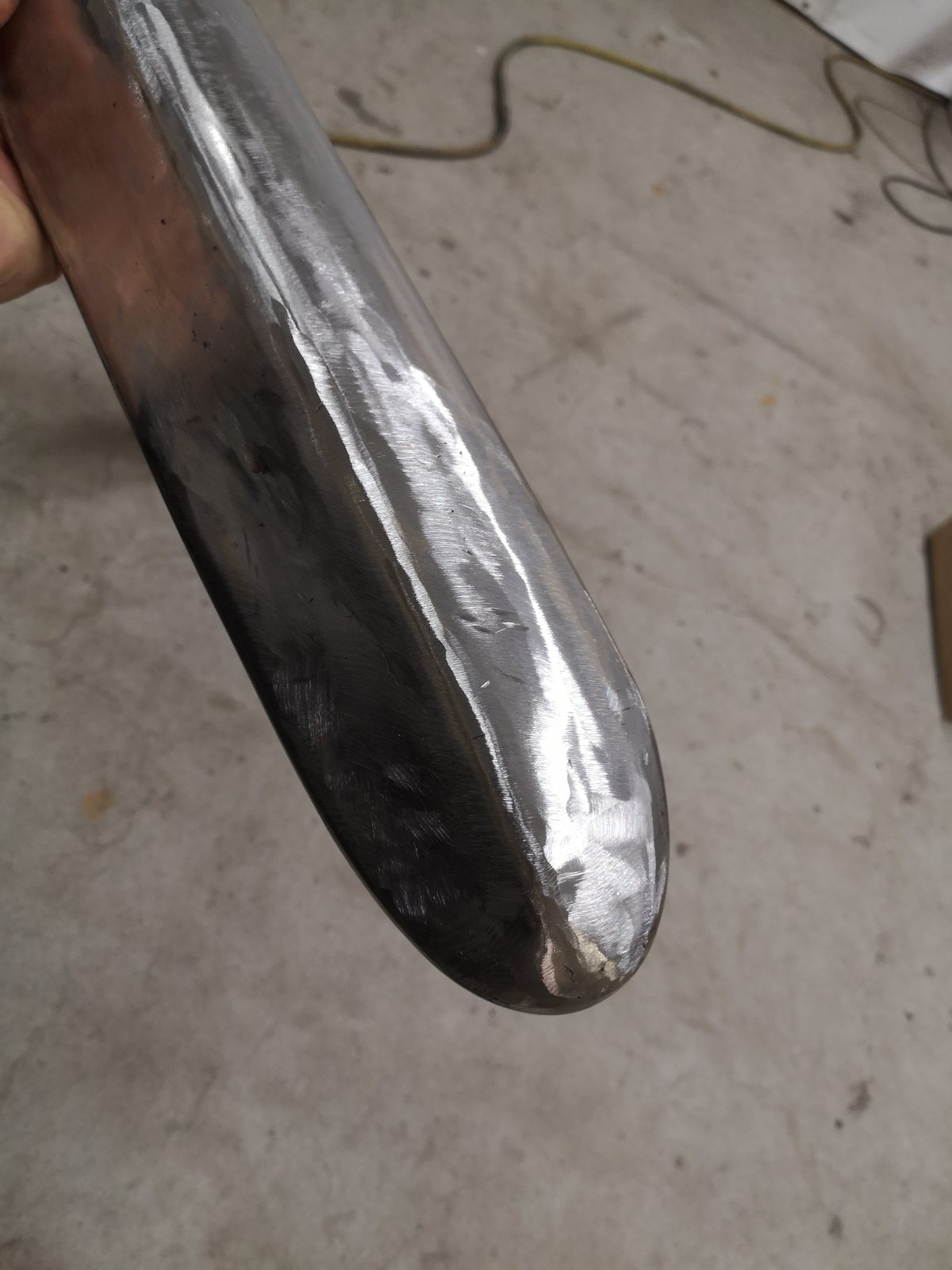

And it is done, reshaped to a slimmer appearnce too if you notice the difference with the photo above:

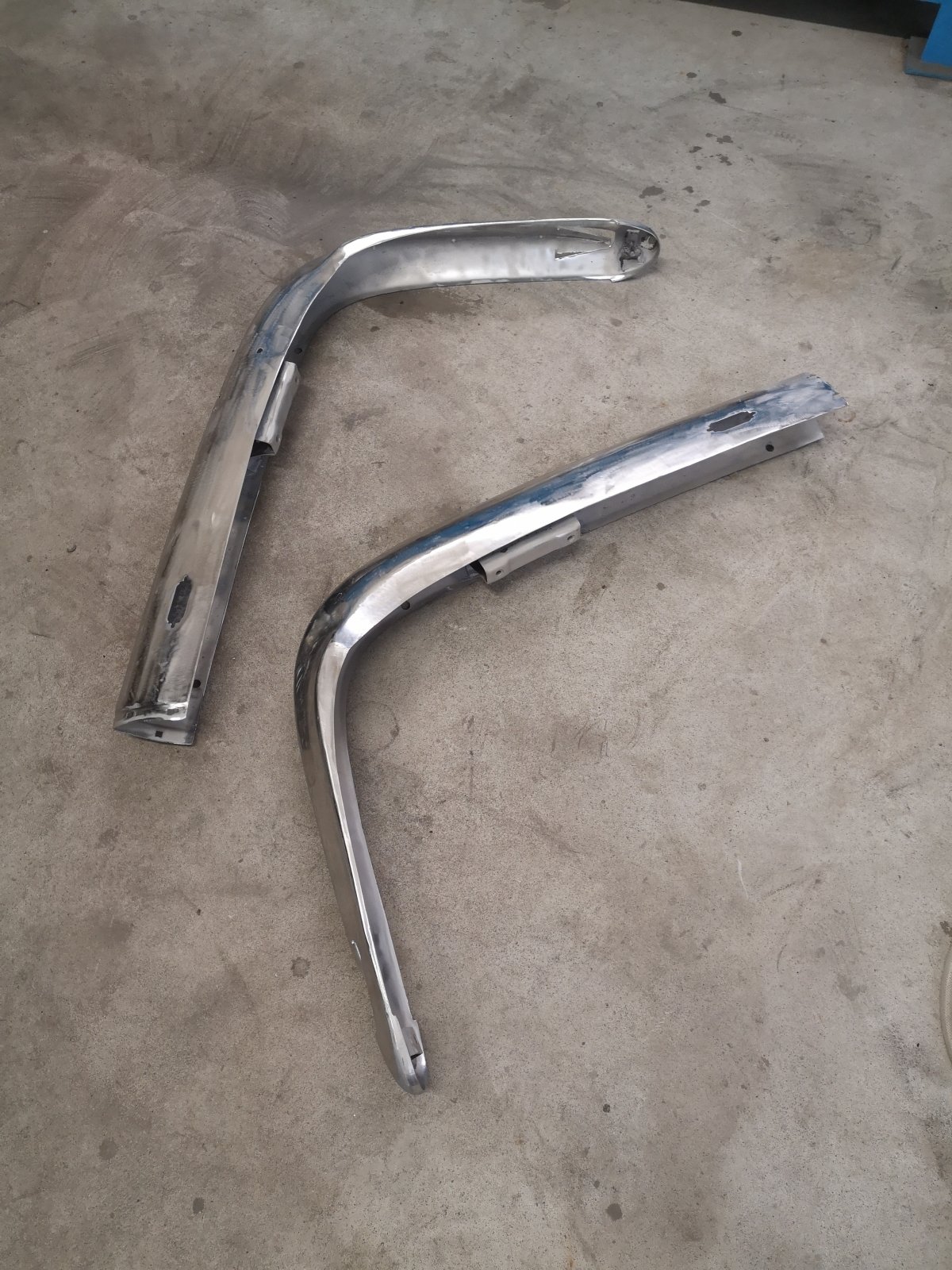

Bumper ends also welded shut of course

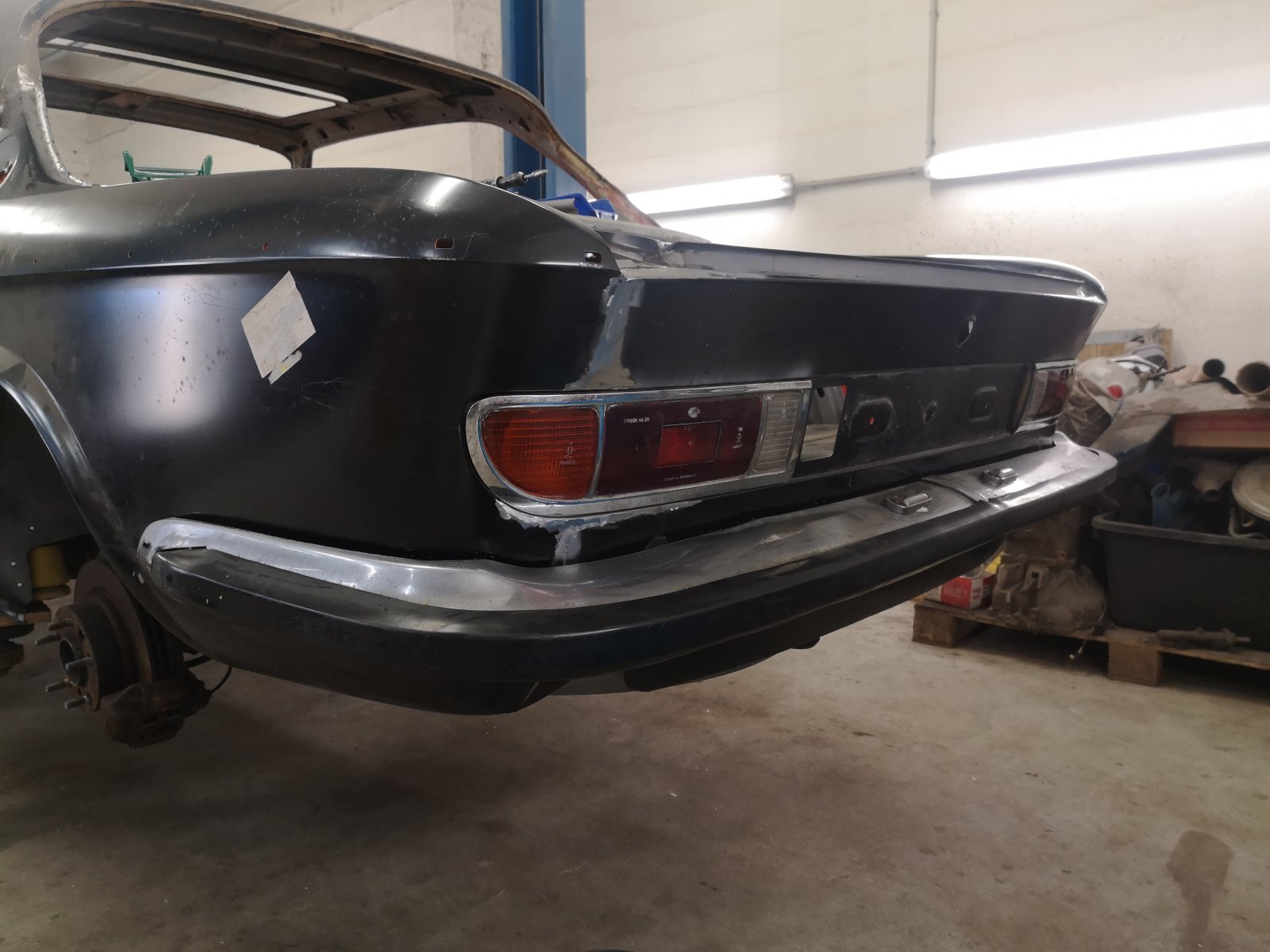

While initially I thought I had to buy a 2000CS rear one, we will modify the existing one and it will look just like the 2000CS one, but will be one piece ofcourse then too.

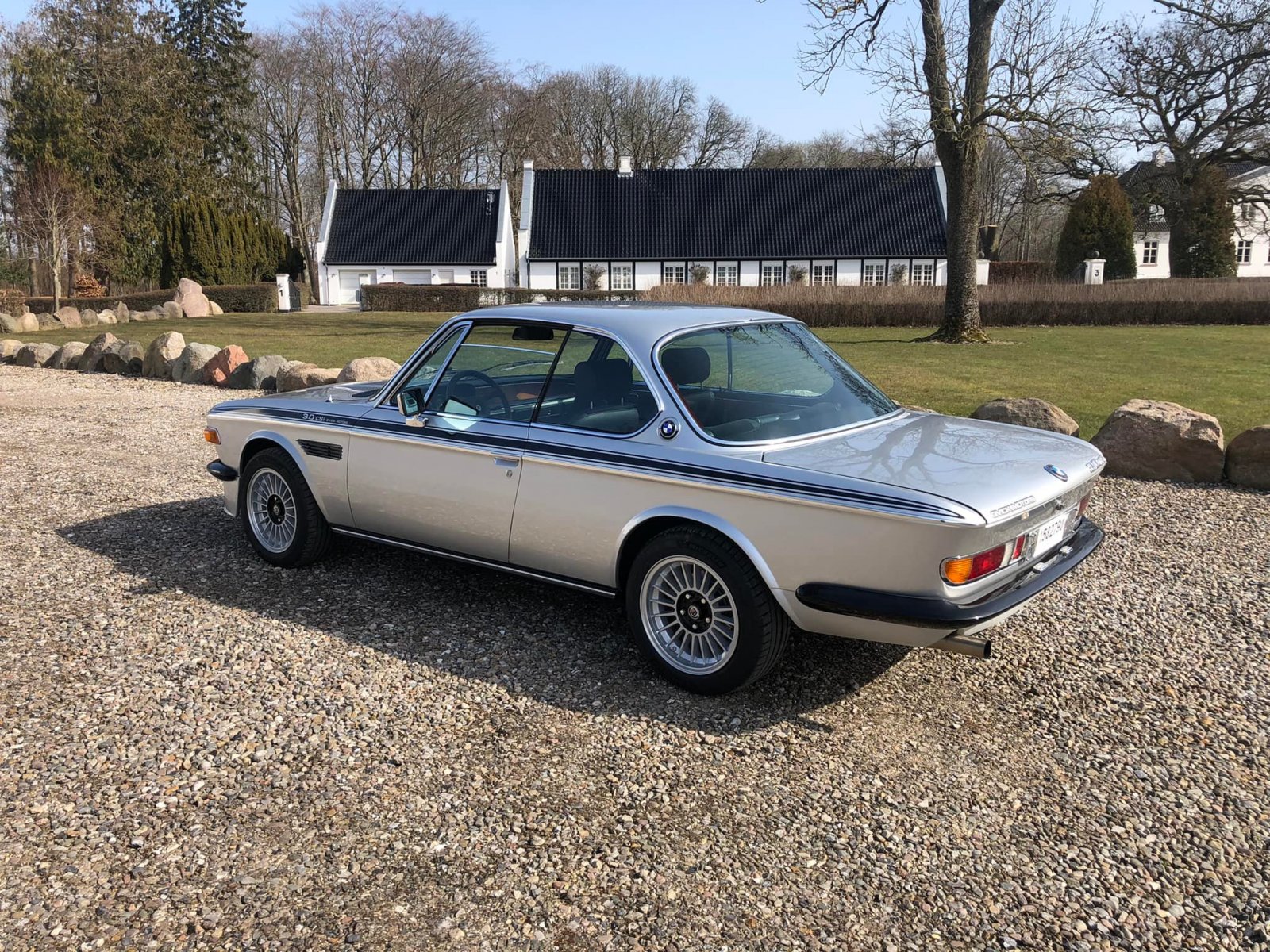

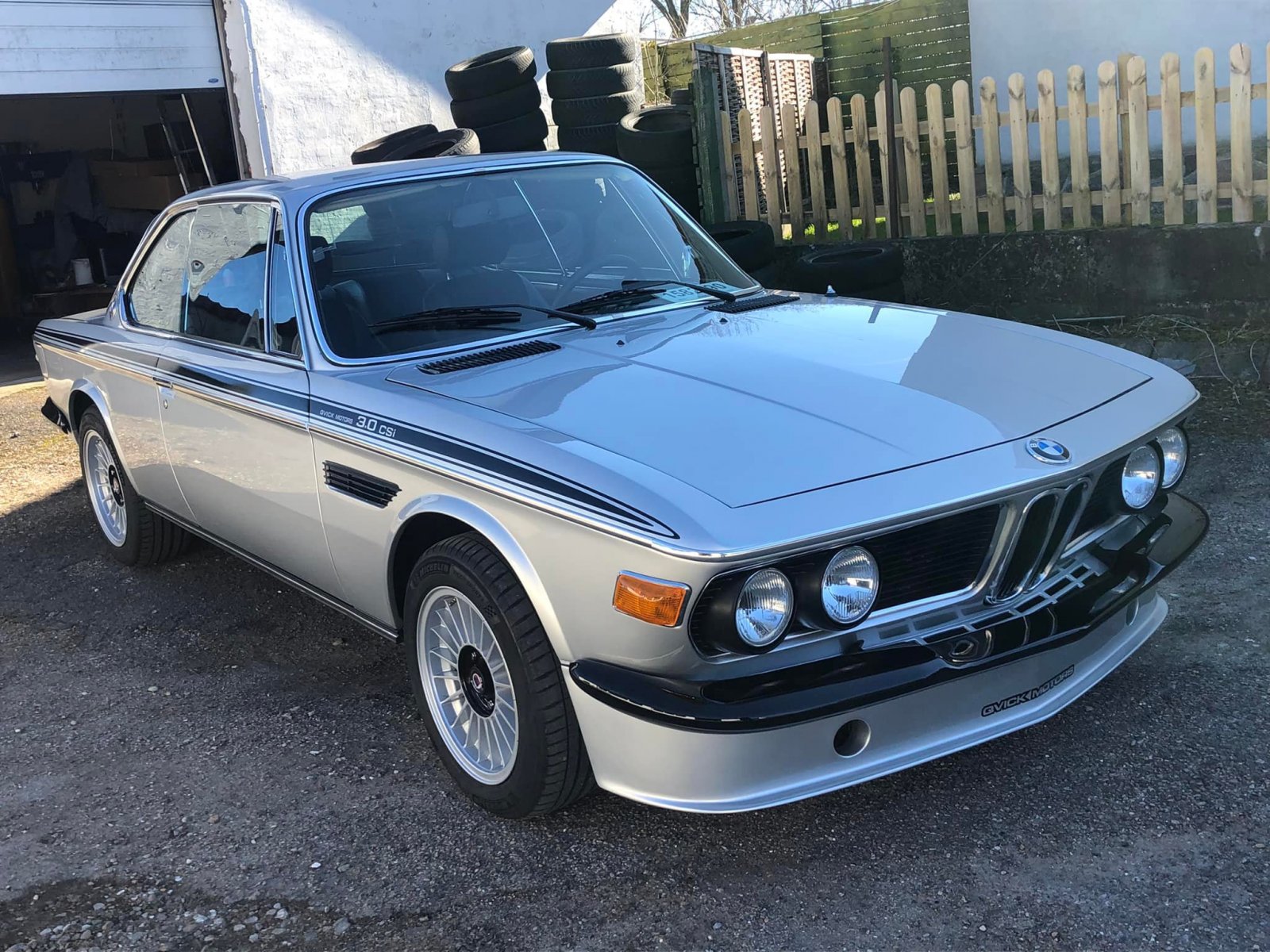

The "slim bumpers" idea is not completyly mine though, but came from this car. Looks pretty (to me at least). So we just had to copy it :)






Last edited:
In December, we kept on test-fitting the parts mostly finding out what else needs to be ordered etc. Total hours spent in December 112.5h

One of the biggest items and concerns I had was the electric sunroof. A huge lego, that we managed to put together and it works! At least for now :)

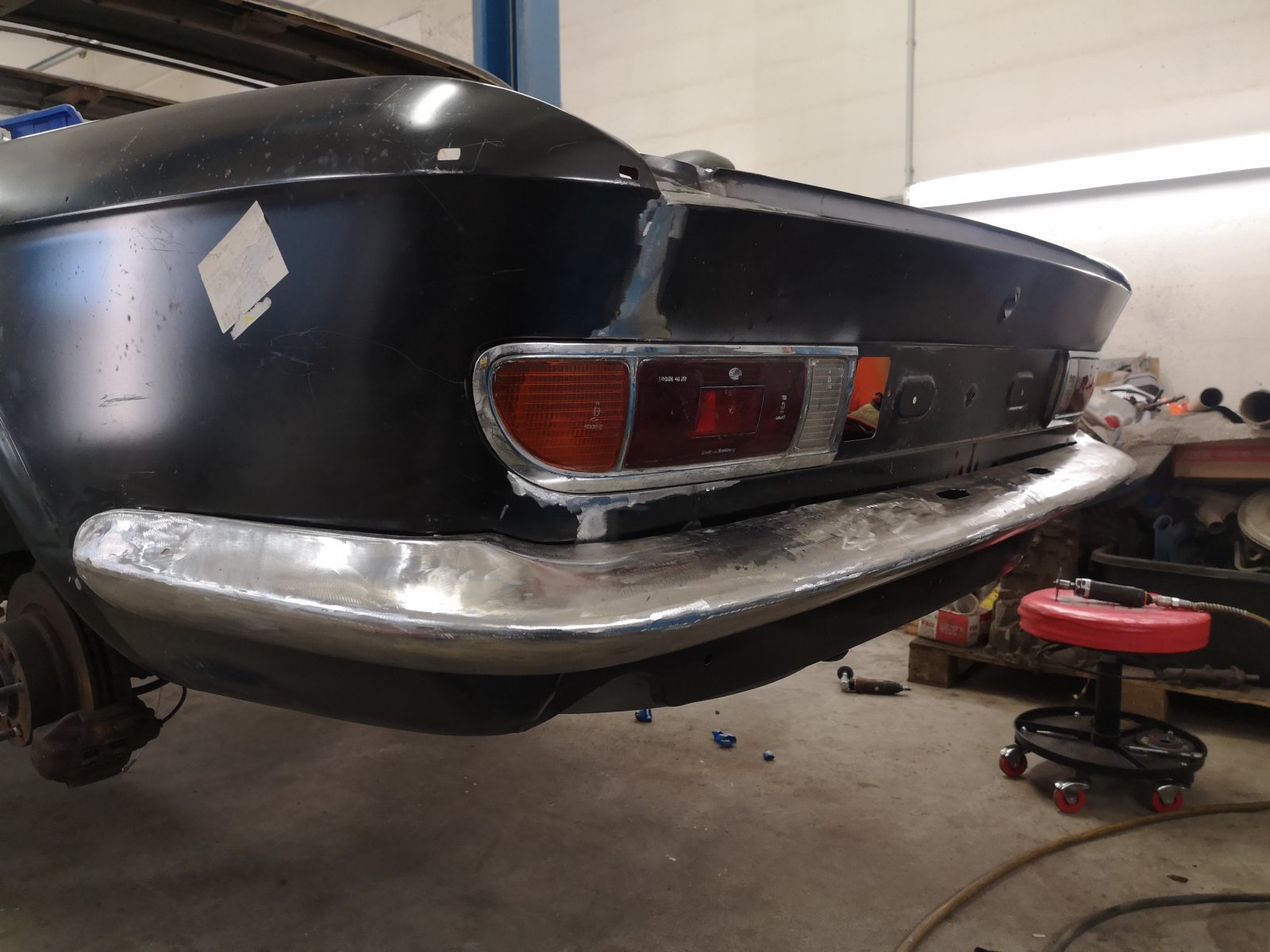

Next up was redoing the rear bumper to a 1-piece design without rubber elements etc.

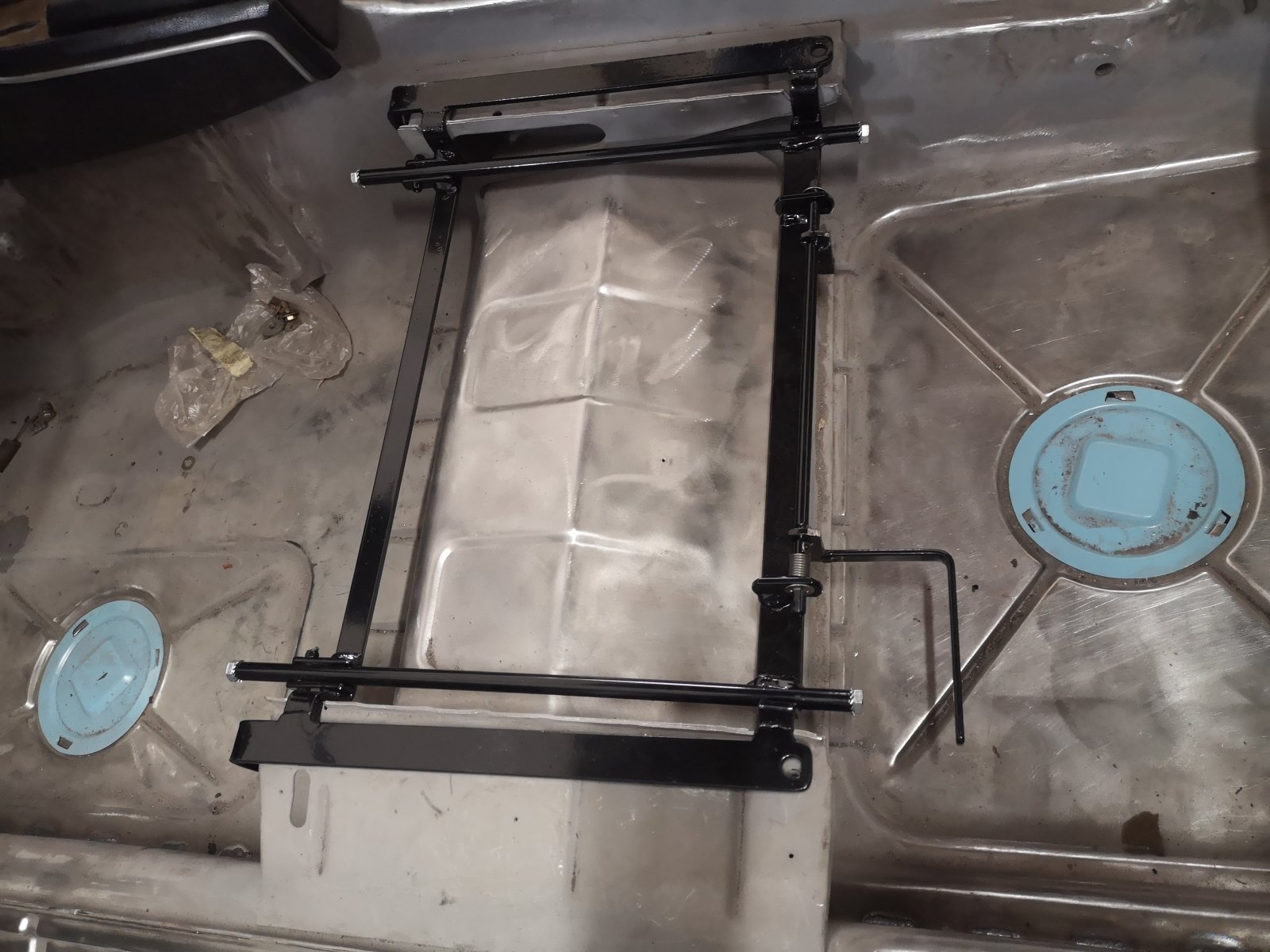

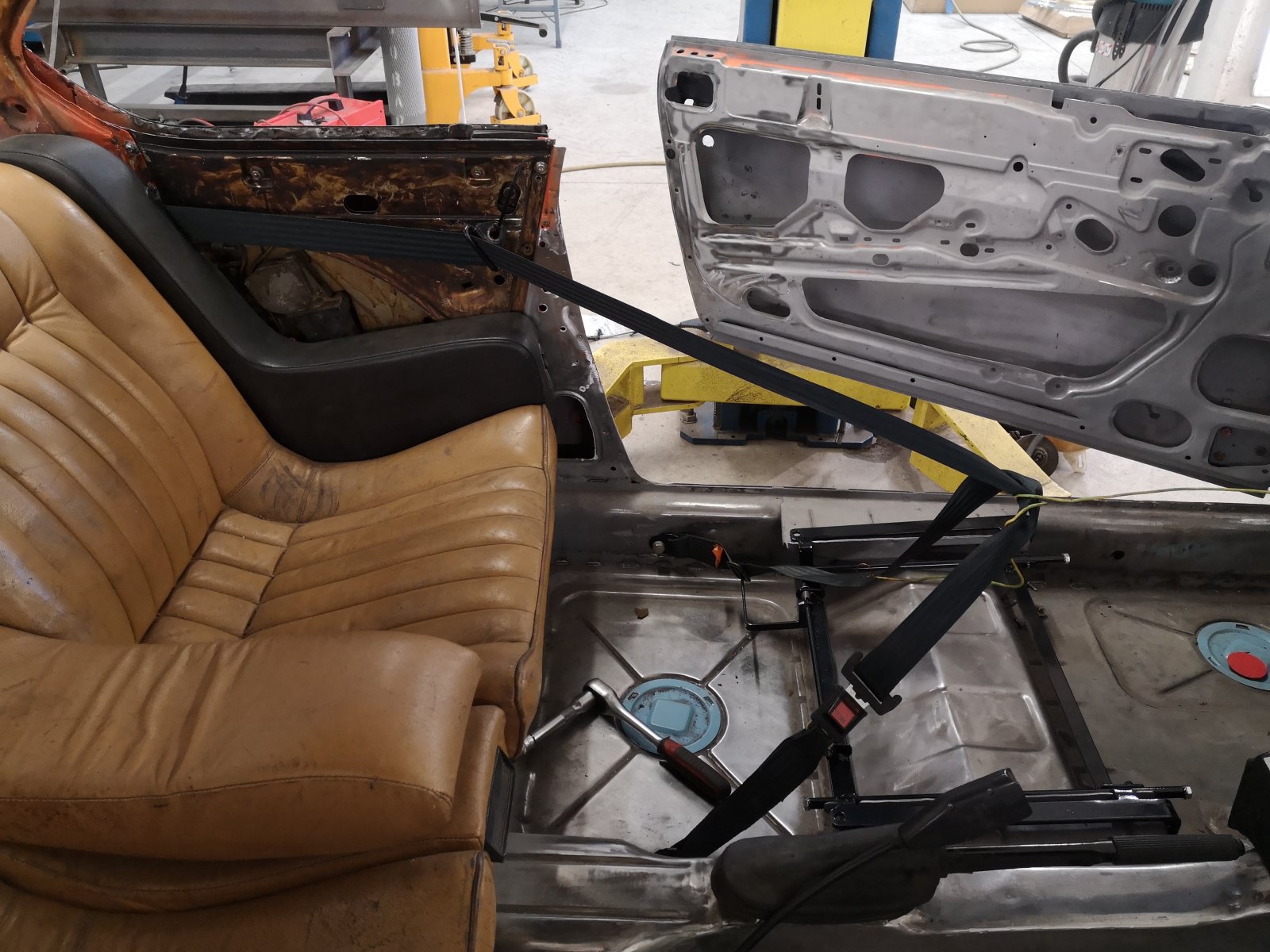

Then we test-fitted the CSL Scheel seat tilting mechanisms and made plans on what sliders to use.

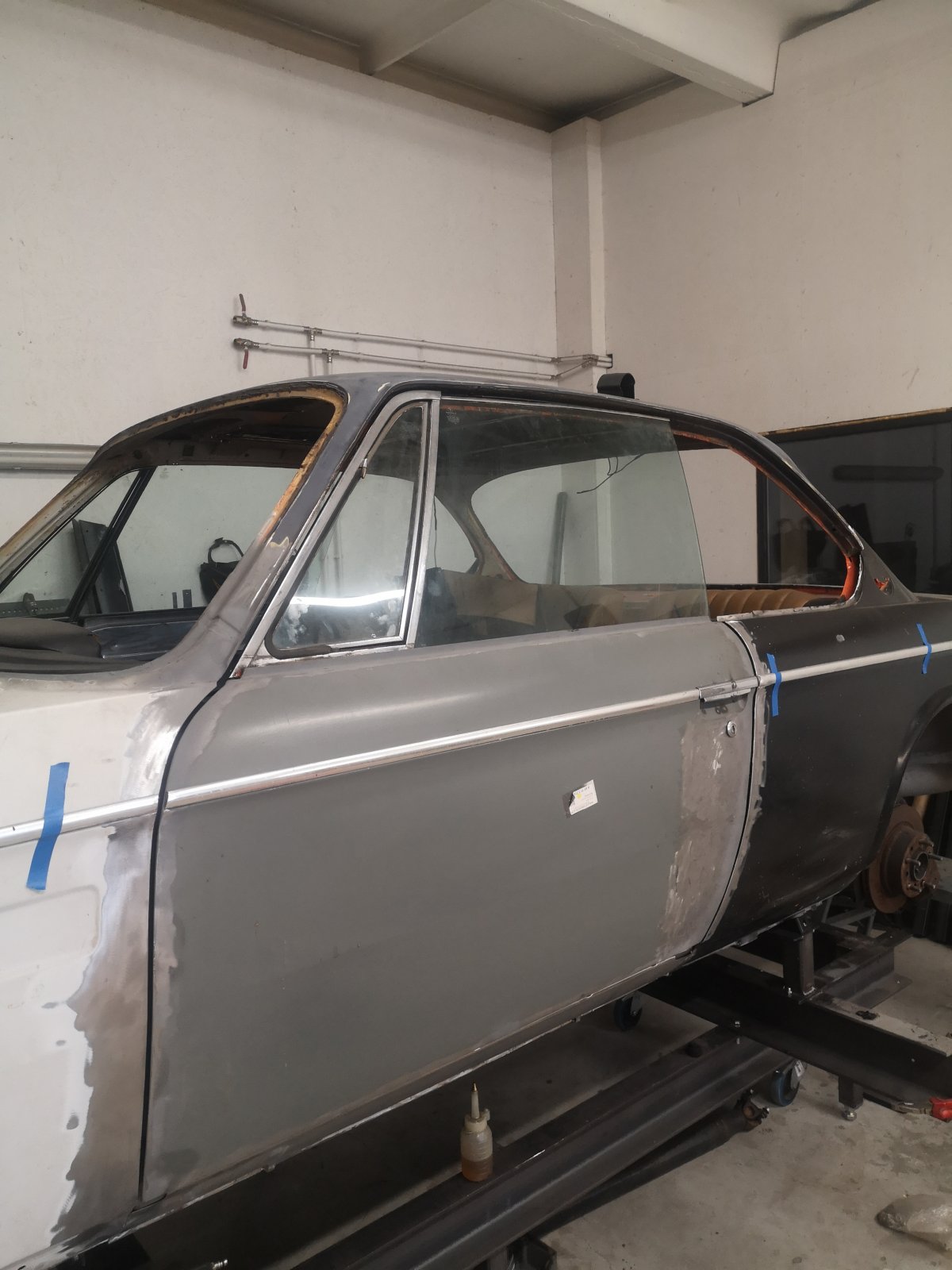

We also had a go with the rear seats and testfitted a few of the seat belts I had in the parts bin. Not quite what we need so I need your help finding a suitable set, it is a 1974 car...

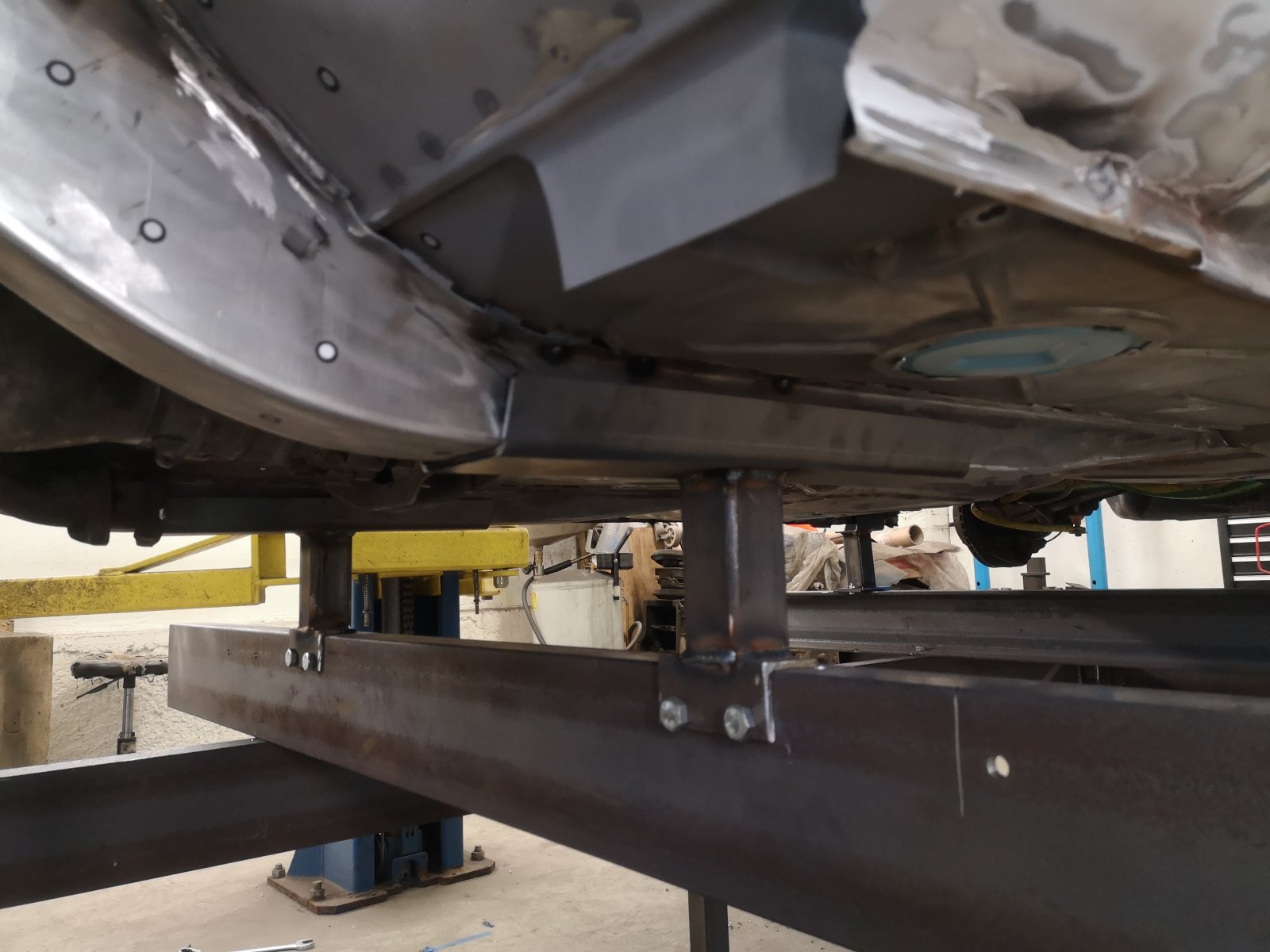

As we needed the car to be attached to the dolley with the engine and subframes accessible, we made new mounts for the car to sit on:

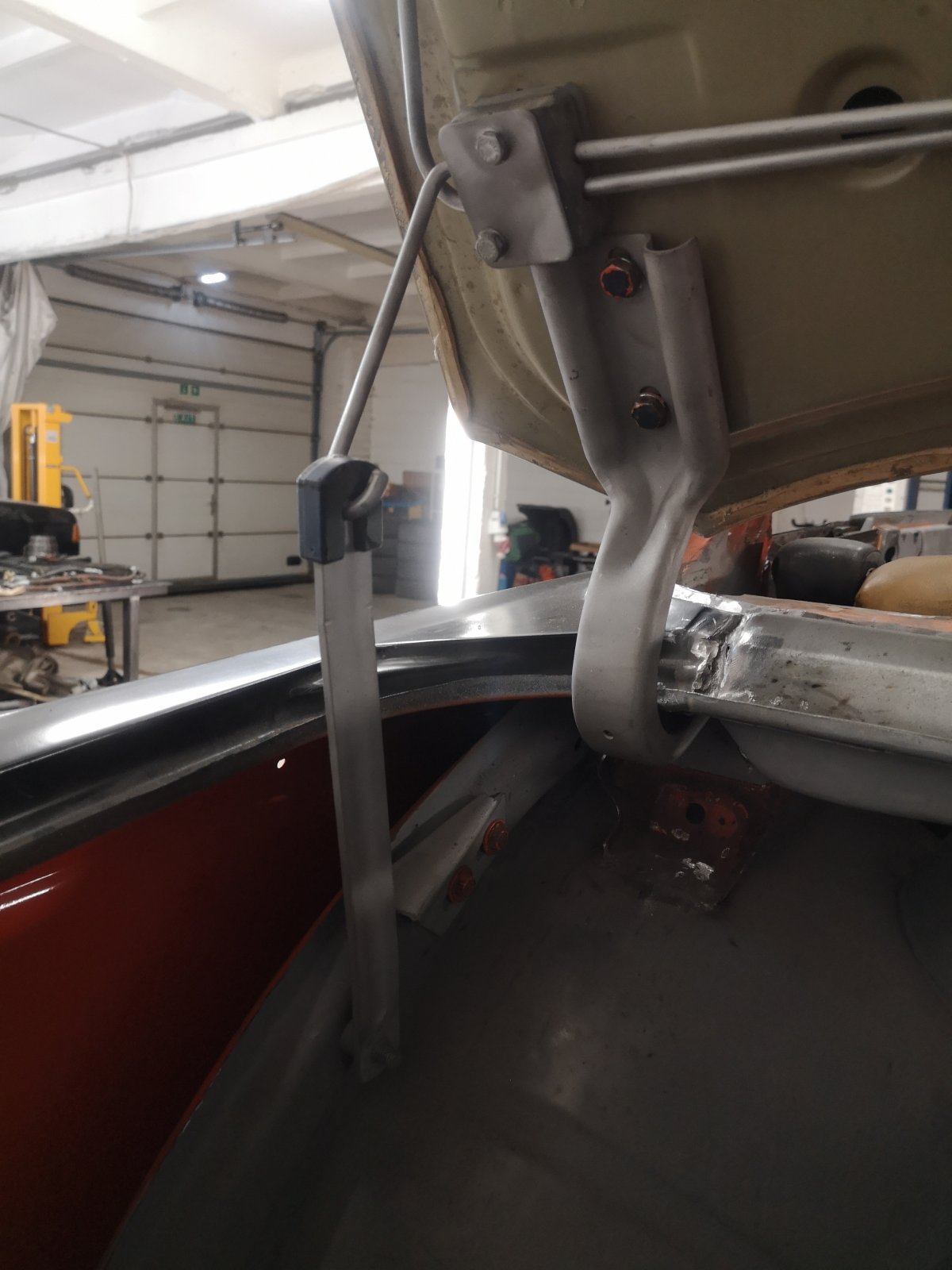

Trunk lid got its spring torsion thingy and other parts attached






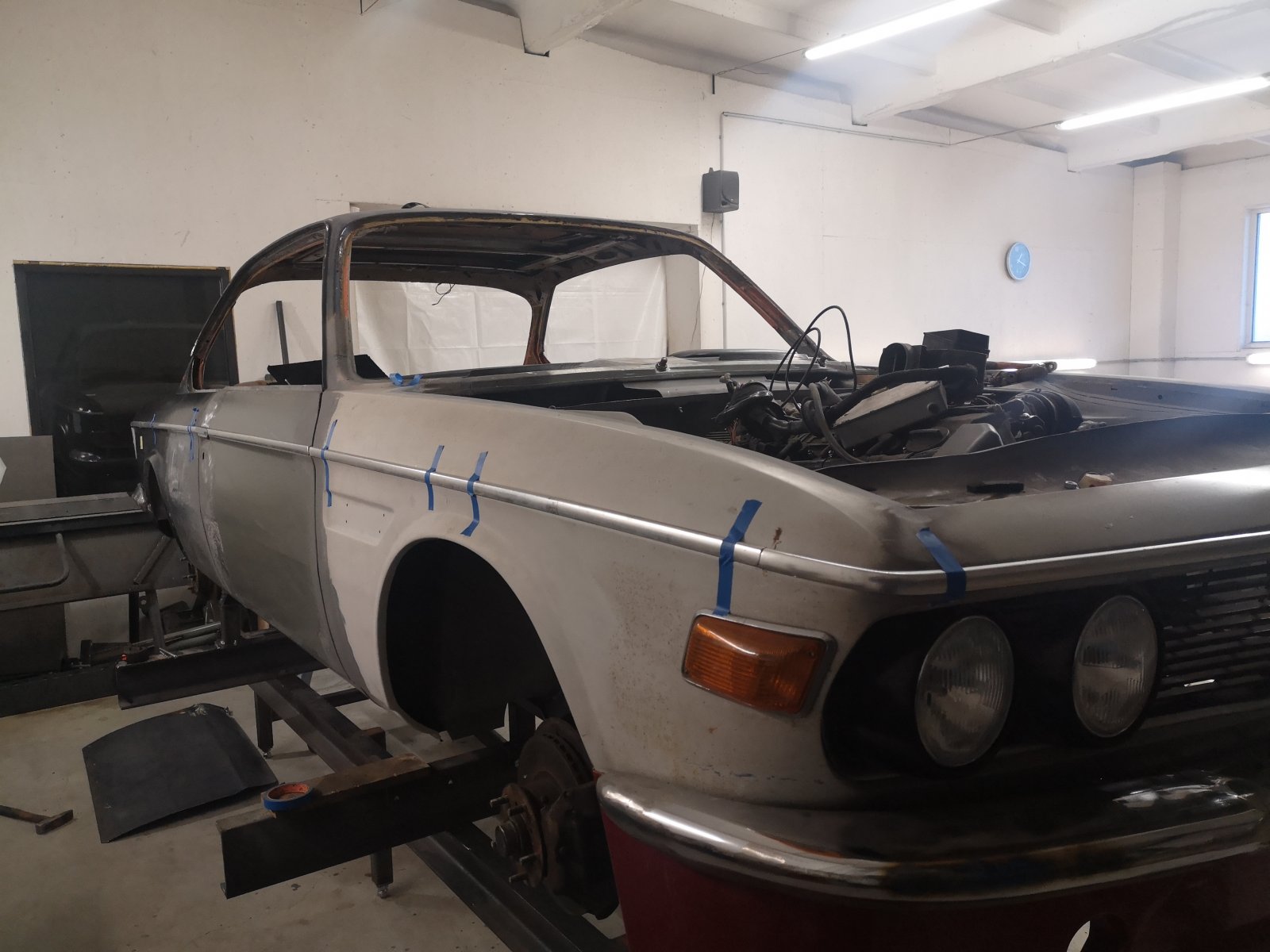

And then we turned our attention to the chrome...






And windows, making sure the installed motors run too

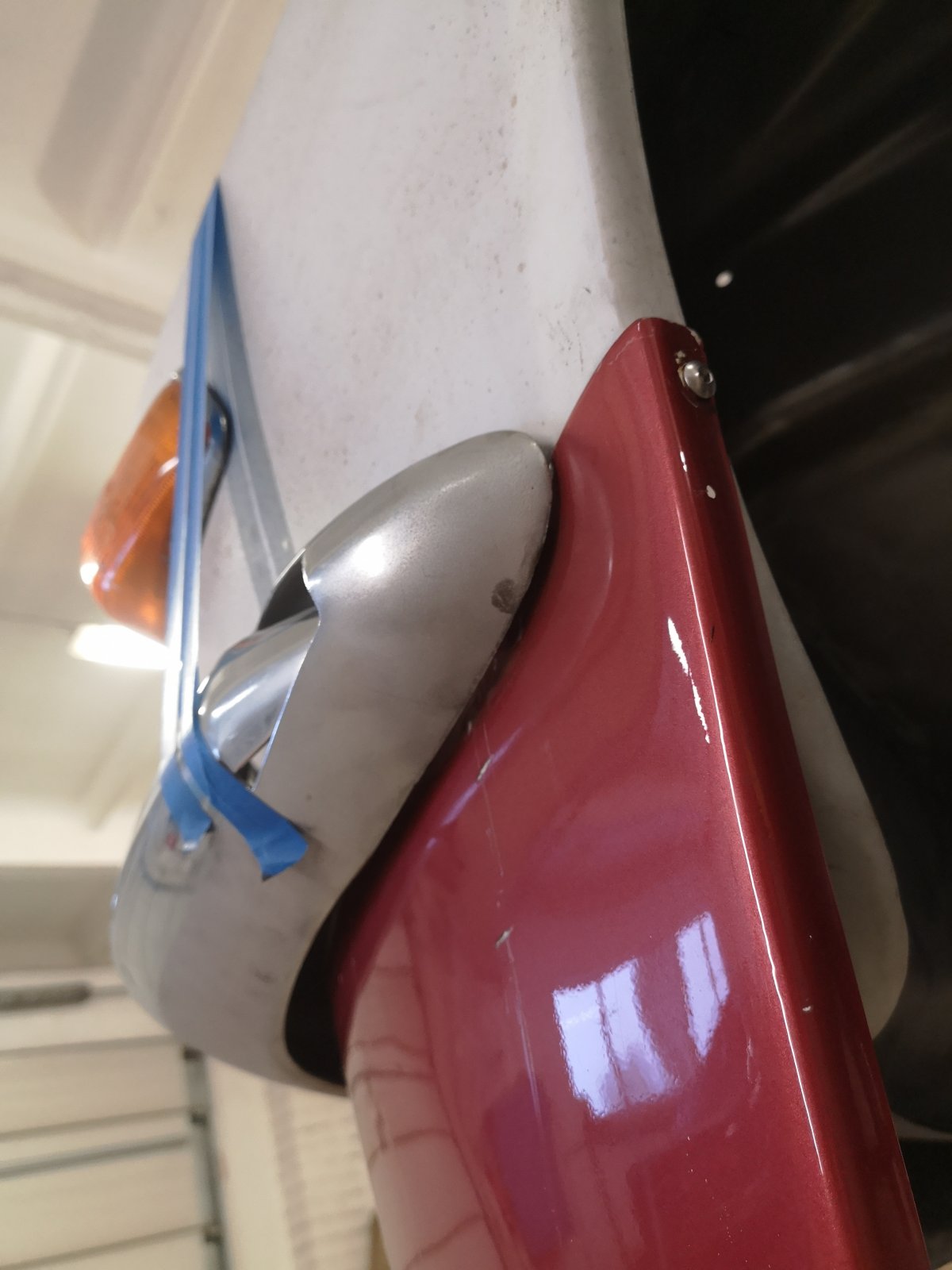

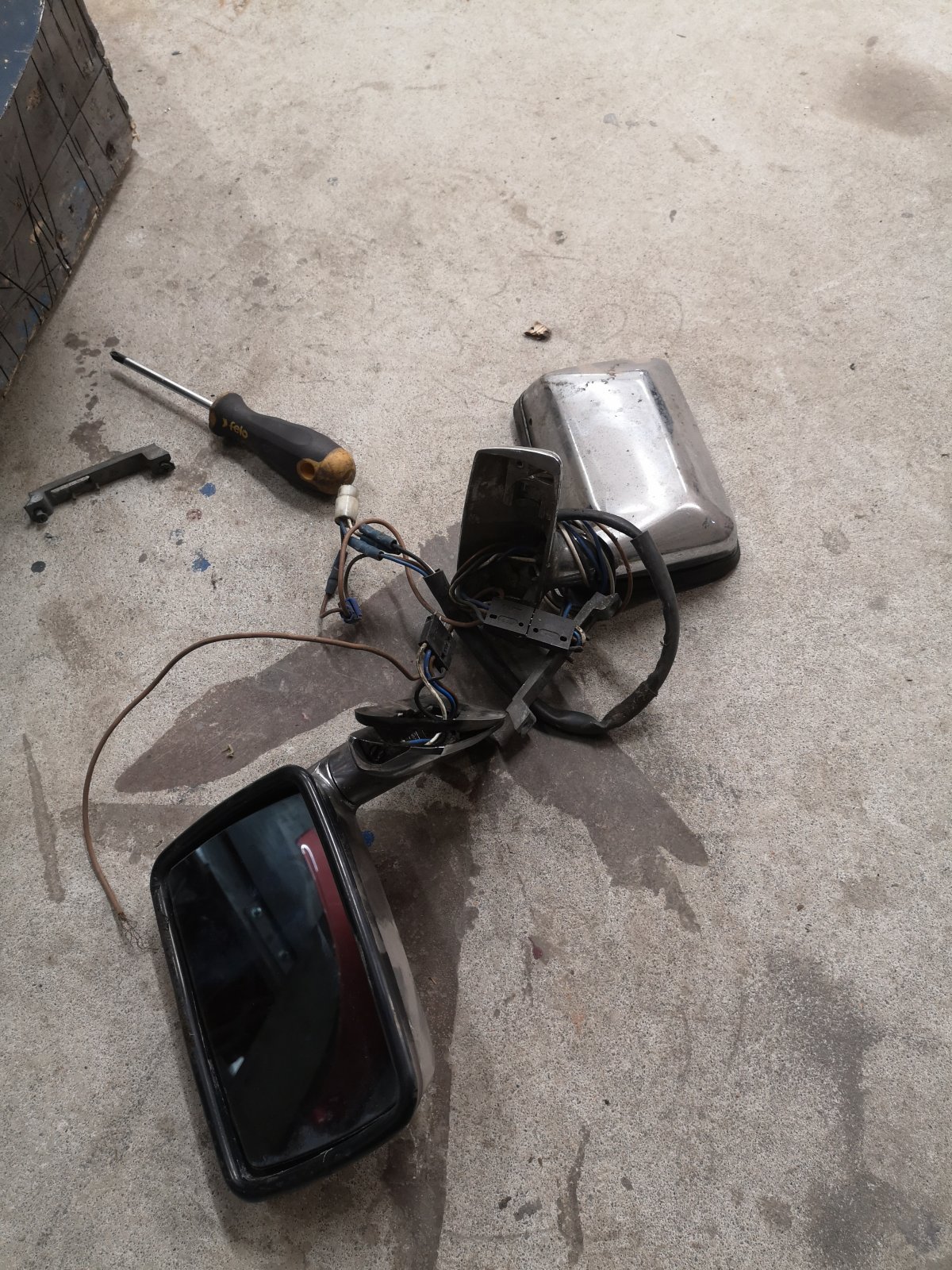

And then mirrors. Although they seem to be original to this car and quite rare, I decided to use the manual more slimmer ones so new ones ordered.


And another huge amount on misc. small items was ordered from W&N too. I am looking for a few chrome parts, door rubbers etc still among other things, so please offer me some if you have any, preferably in Europe.

haha, i thought i see some Belgian license plates scrolling here .... indeed, Eric's E9 !

btw, he's driving the Dakar rally for the moment ....
